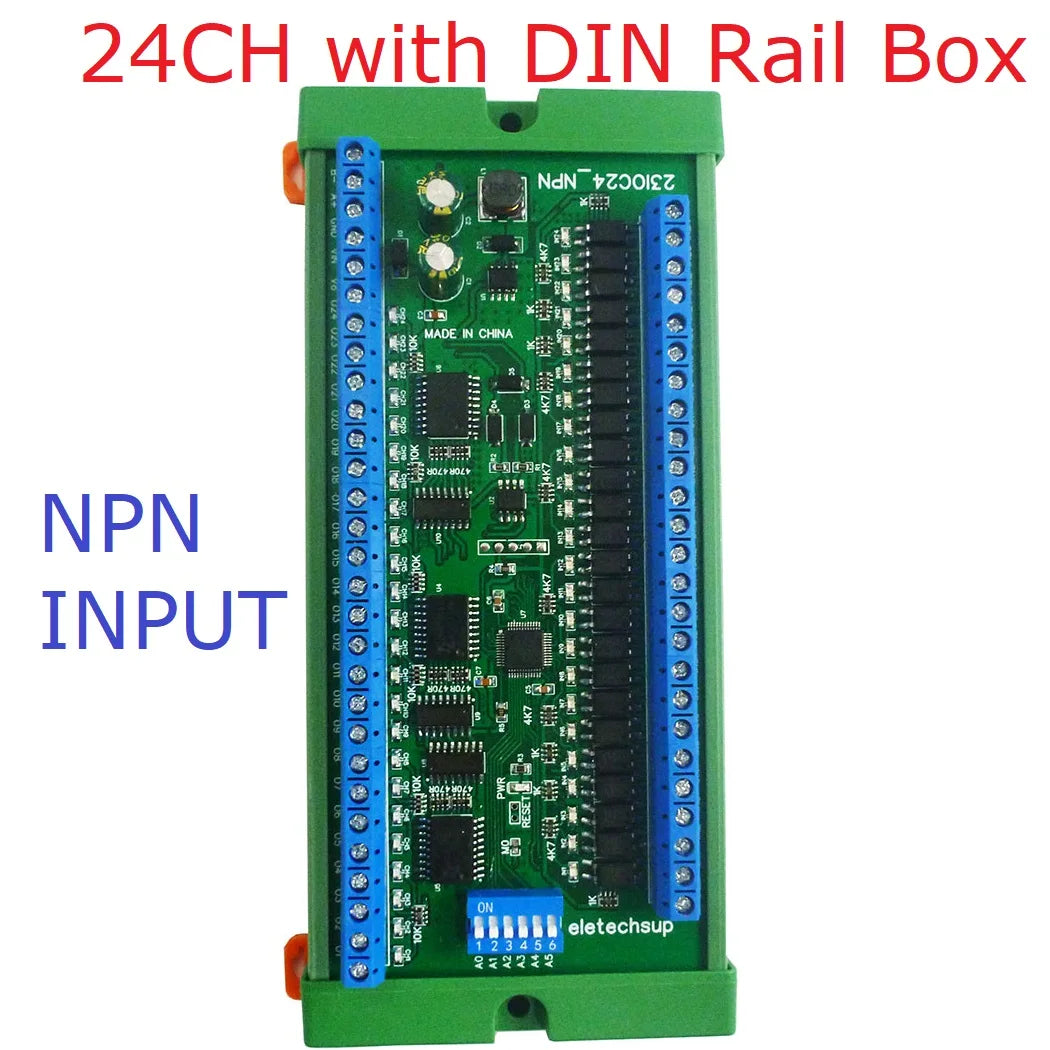

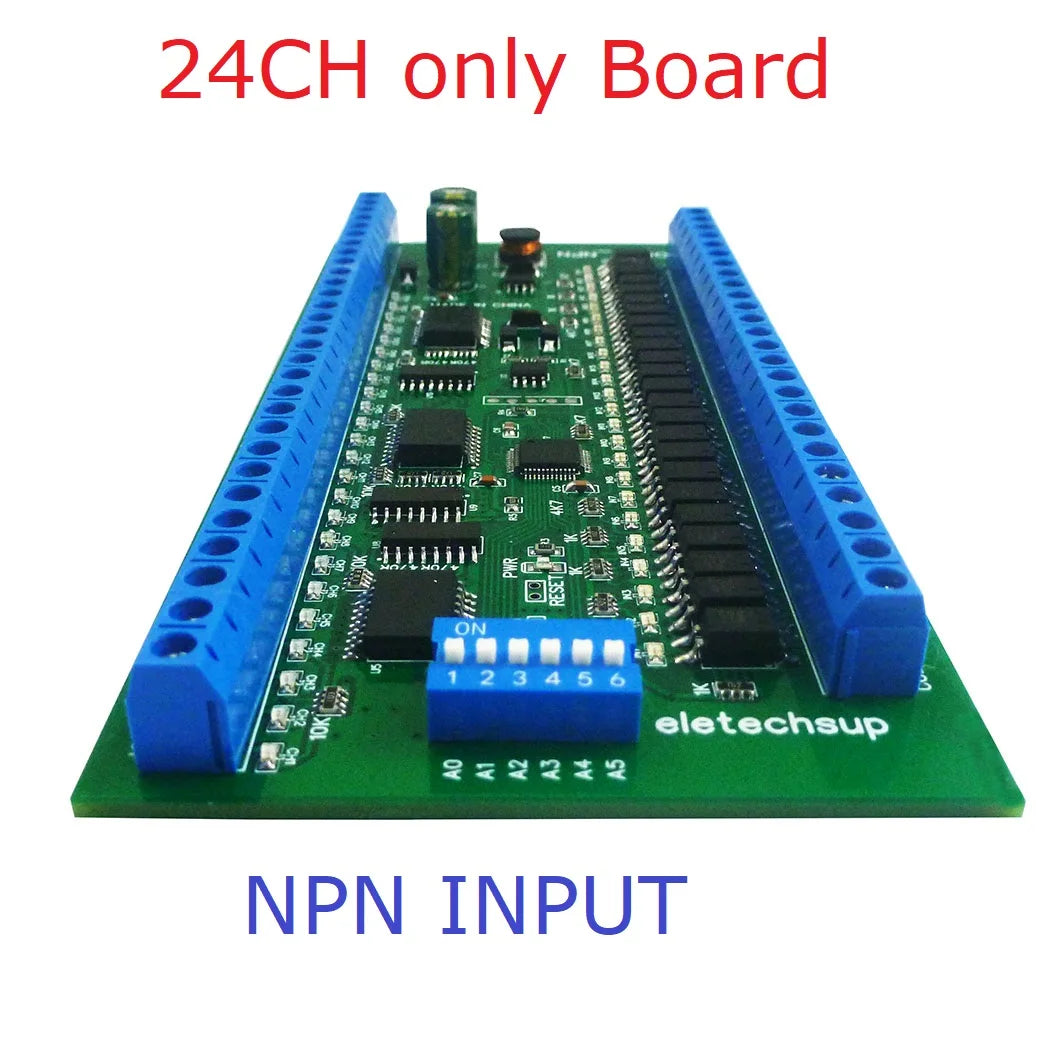

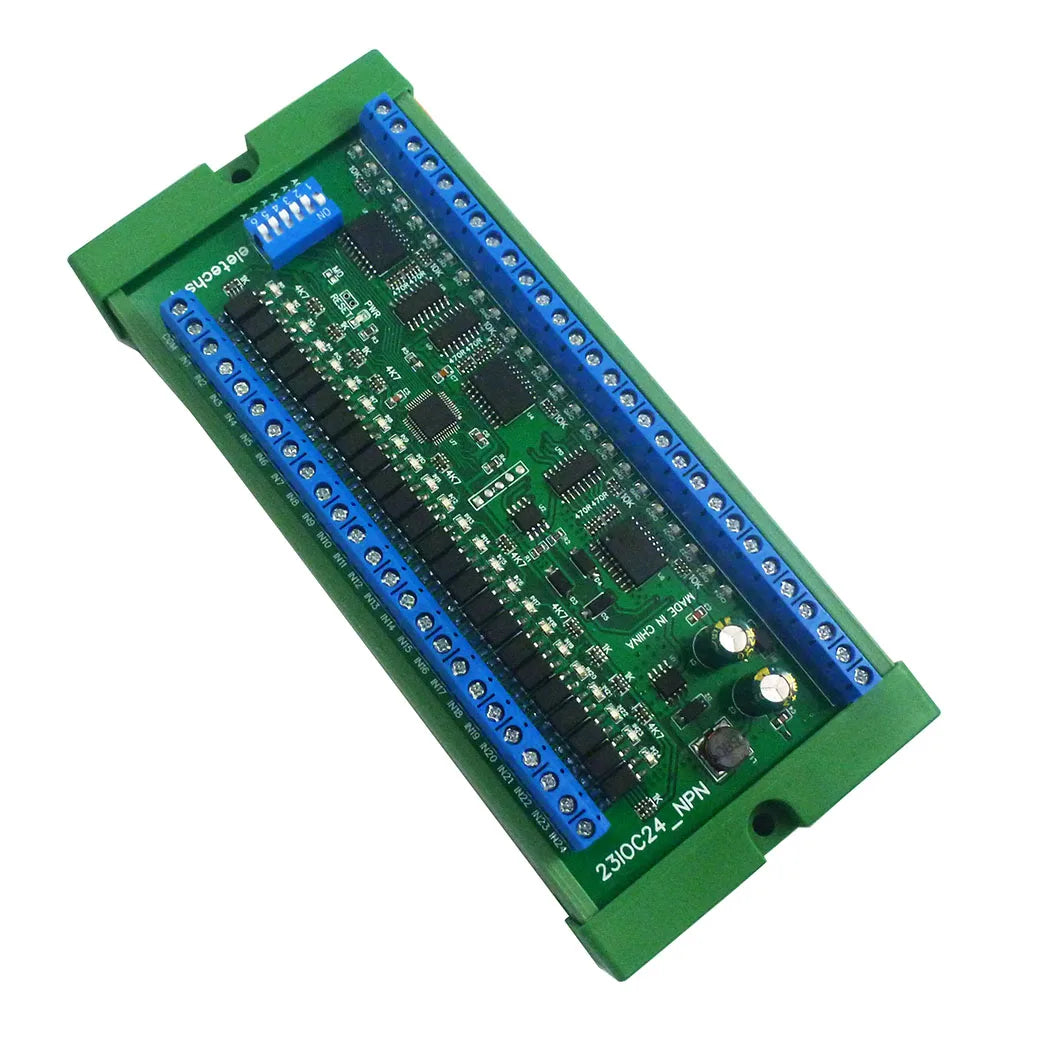

23IOC24 24-Channel RS485 Remote I/O Control Module – 24 Isolated Inputs & 24 MOSFET Outputs

1 Working voltage: DC 6.5-30V (9V 12V 24V)

2 Working current: 8-50MA

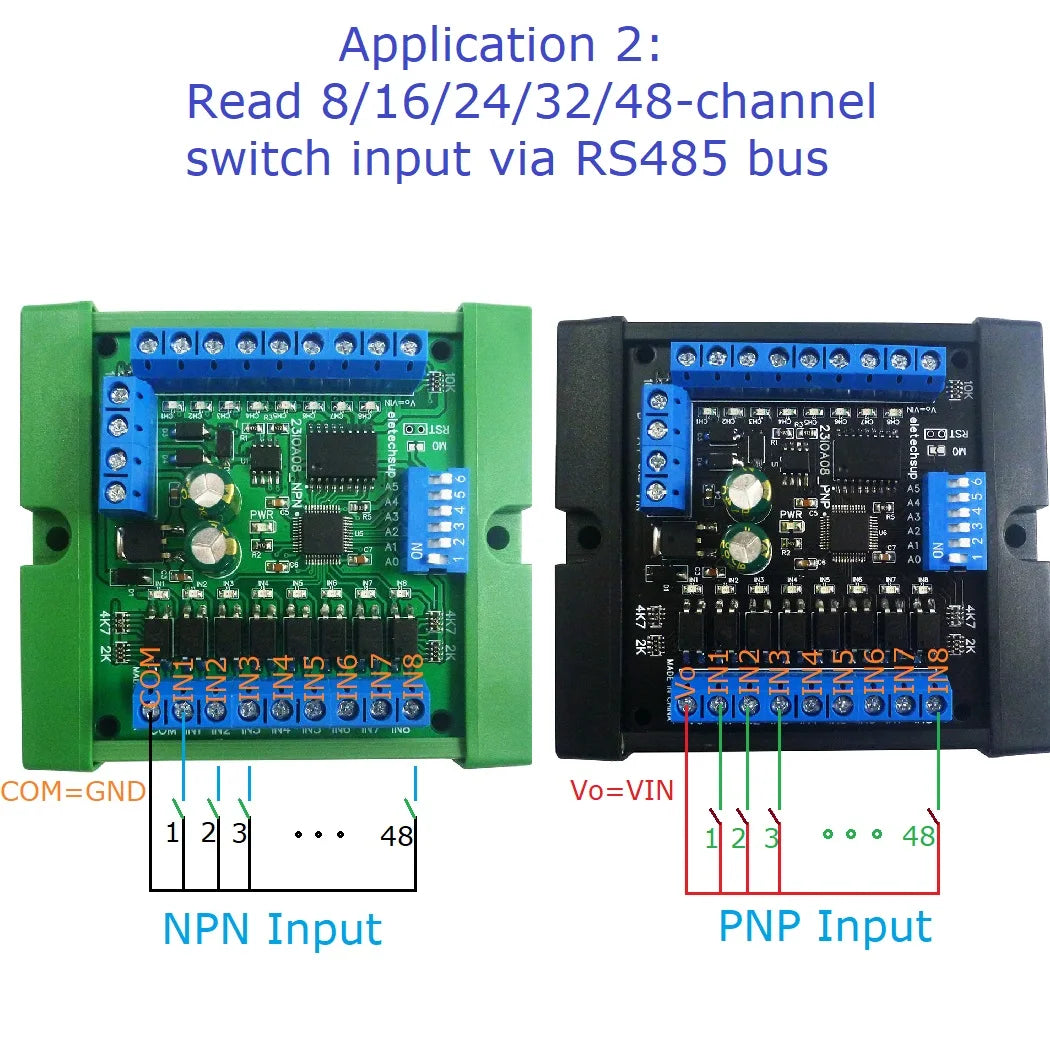

3 24CH optically isolated input ports, NPN input

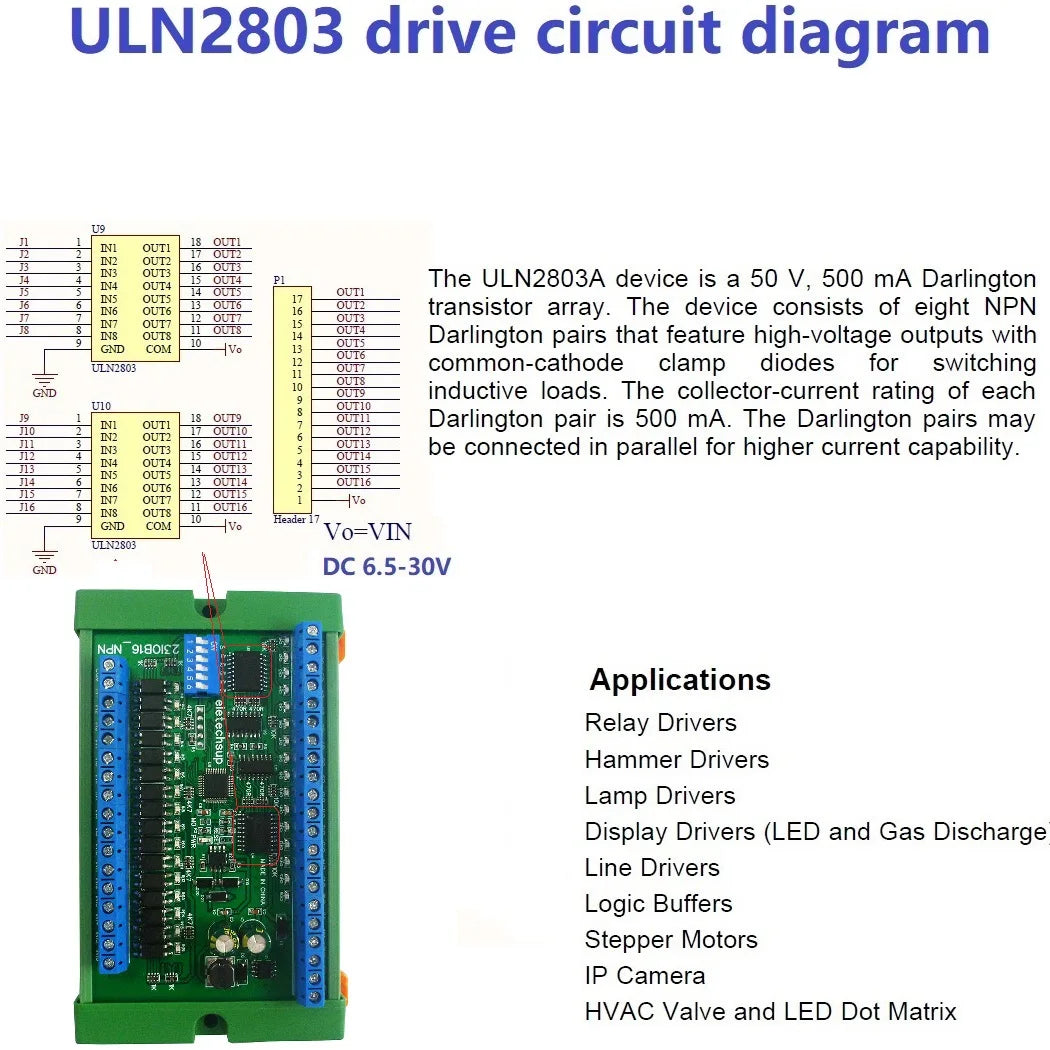

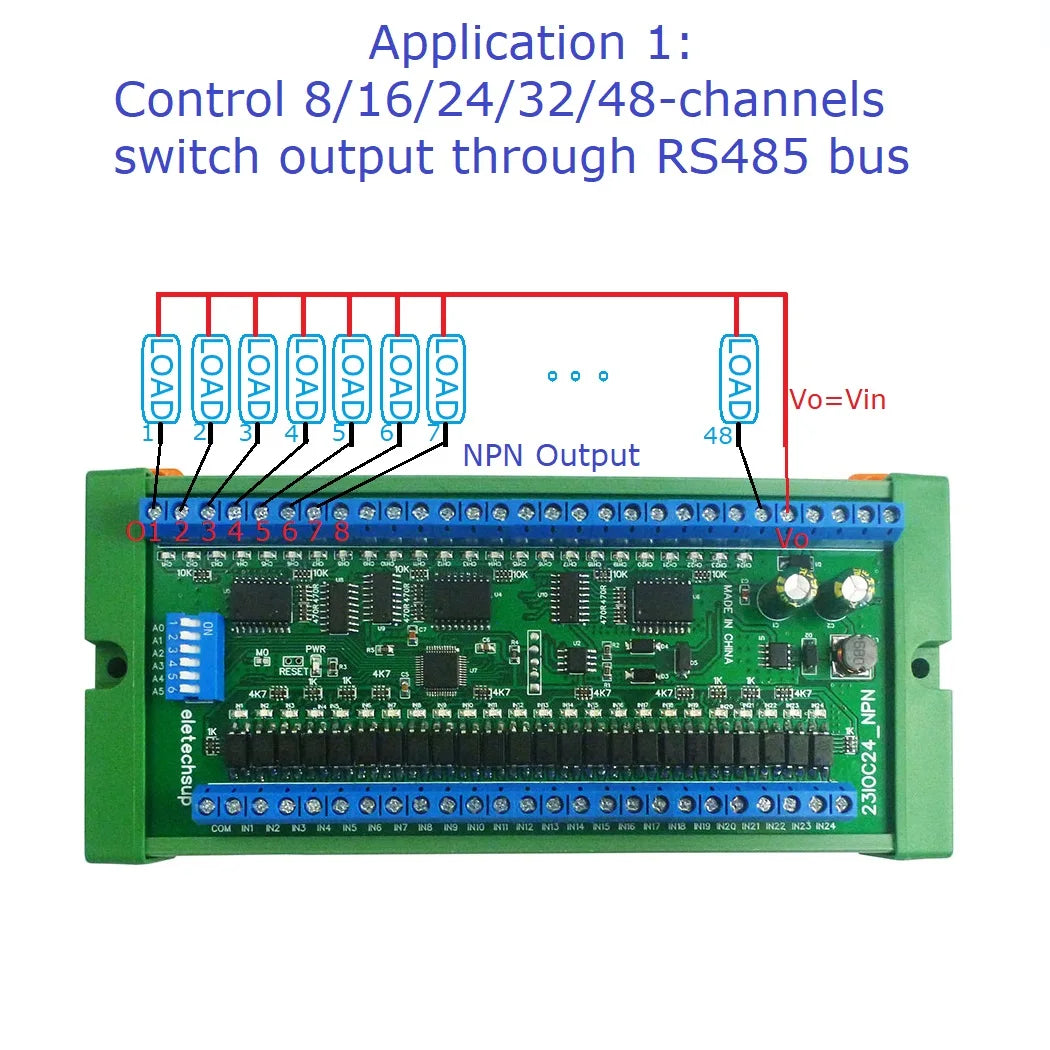

4 24CH Darlington transistor outputs (ULN2803 NPN output)

5 The default command has a variety of output modes: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

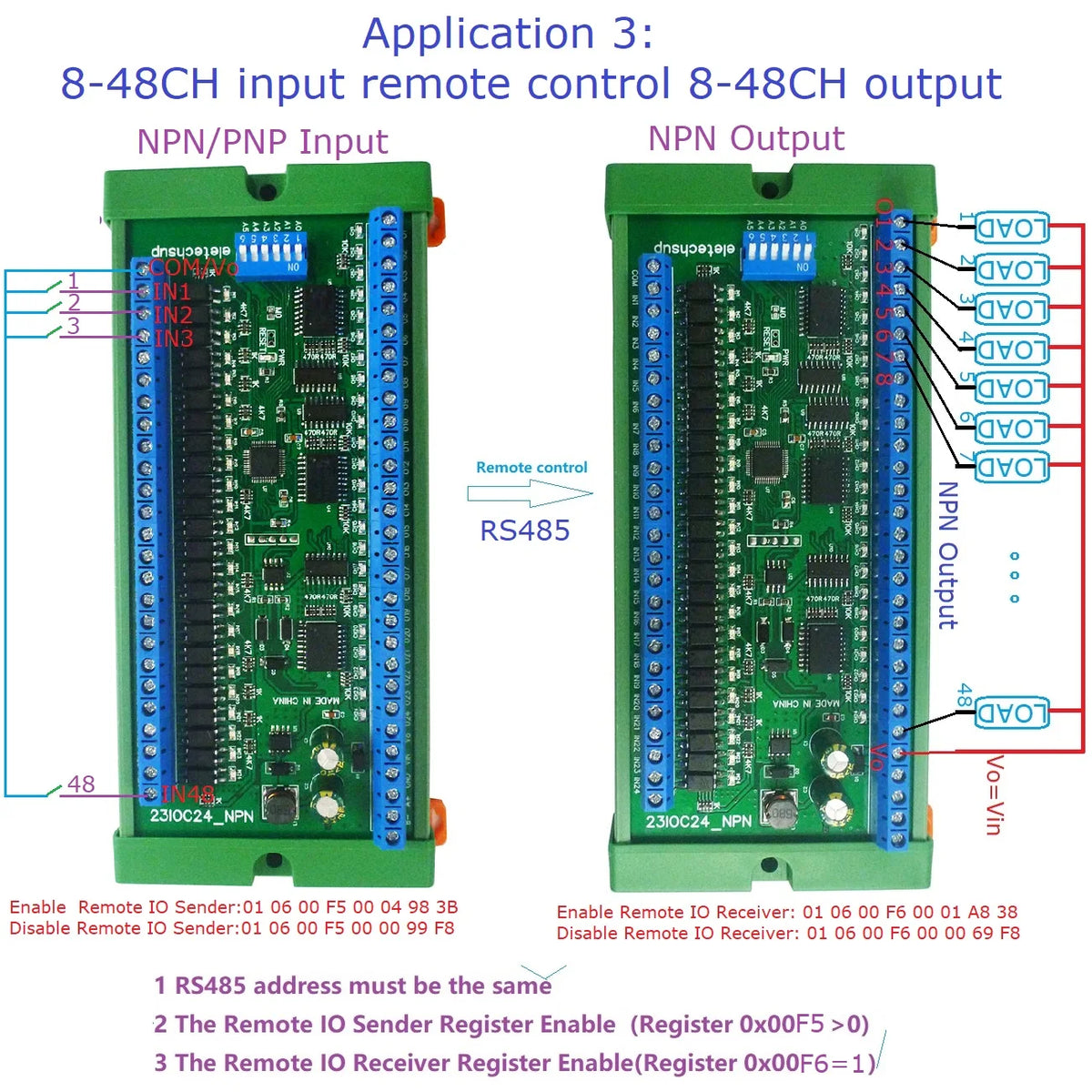

6 The input port can remotely control output port of another board via RS485 bus (relevant registers must be set)

7 MODBUS command 1 supports 03 06 16 function codes, MODBUS command 2 supports 01/02/03/05/06/15/16 function codes

8 The maximum delay of MODBUS command 1 is 255 seconds

9 In MODBUS command mode, up to 64 devices can be used in parallel

10 The default baud rate is 9600BPS, you can choose the baud rate by jumper:

1200/2400/4800/19200/38400/57600/115200BPS

11 Sizes (with box):173x80x30mm

12 Weight (with box):197g

13 Maximum load: the maximum load current of each channel is 300MA
