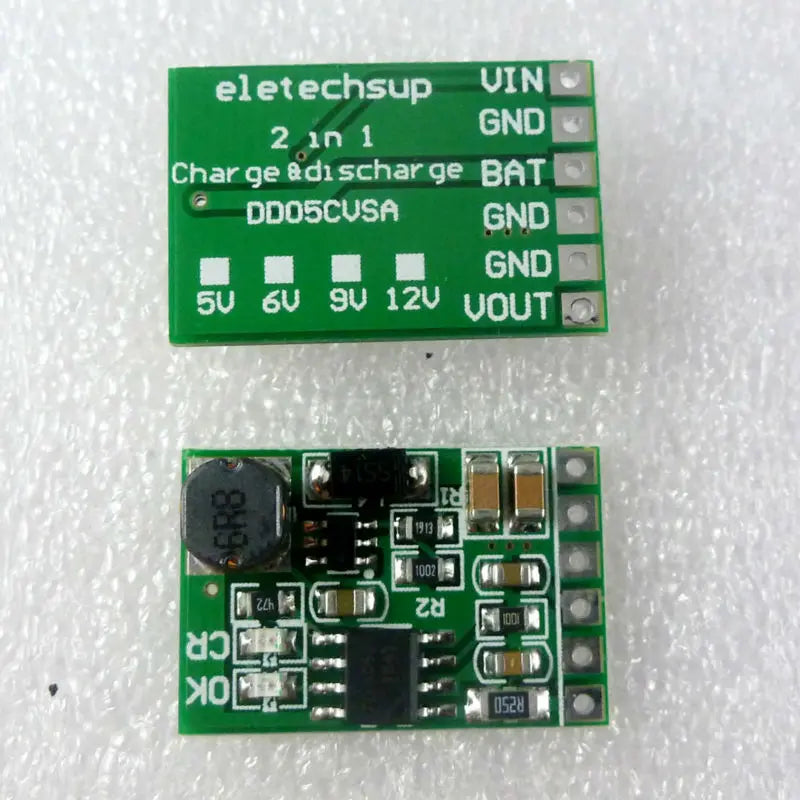

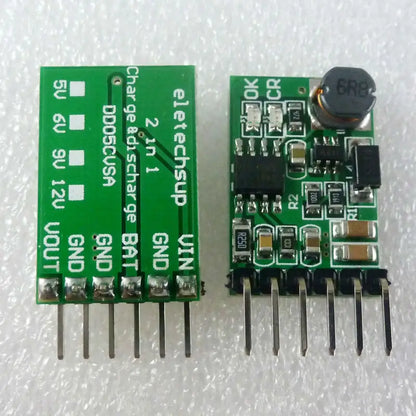

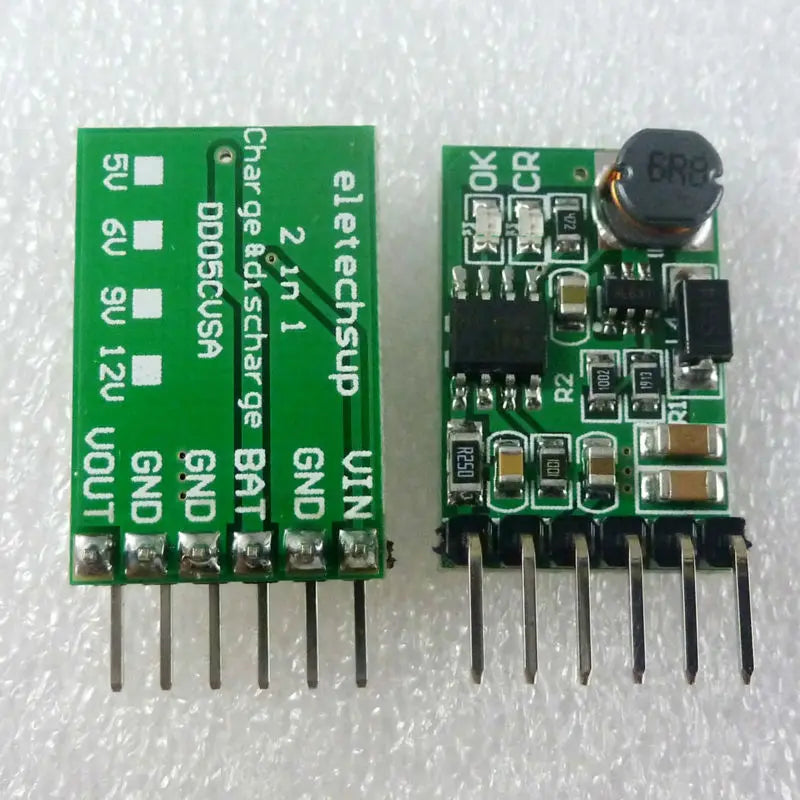

DD05CVSA 2-in-1 Charger Discharger Board – DC-DC Step-Up Module 4.5-8V Input to 5V Output for UPS Mobile Power DIY Projects

DD05CVSA 2-in-1 Charger Discharger Board – DC-DC Step-Up Module 4.5-8V Input to 5V Output for UPS Mobile Power DIY Projects

$9.99 USD
$9.99 USD $9.99 USD
Sale Sold out
Taxes included.







Product Name:
2 In 1 CH Discharger Board DC DC Converter Step-up Module Charge In 4.5-8V Boost Out 5V For UPS Mobile Power Diy





Packing list:




1 Pcs
DD05CVSA 2 in 1 charge and boost DC DC Converter


















Description:

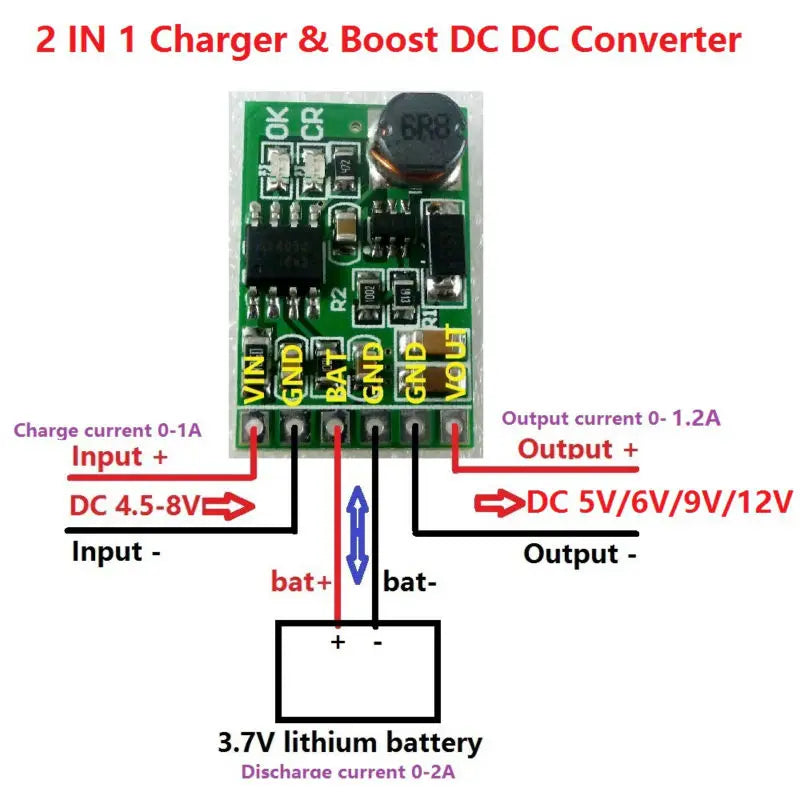

2 in 1 charge and Discharger(boost) modules











Charge voltage : DC 4.5V-8V(Recommend DC 5V)



Charging current : 0-1A



Full charge voltage : 4.2V+-2%.

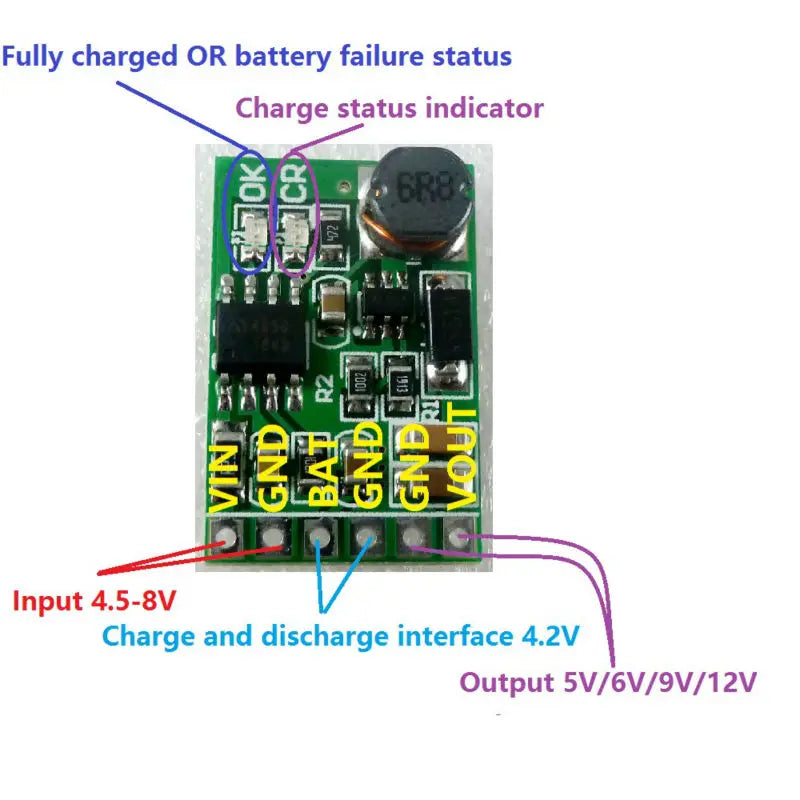

Led indicator : ''OK'' LED is fully charged OR battery failure status indicator;



''CR'' LED is charge status indicator










(Boost in)Discharge current : 0-2A;




(Boost in)Discharge quiescent current : 450uA




(Boost in)Discharge conversion efficiency : 78%-90%











(Boost out)Output current : 0-1.2A(5V),
0-1A(6V),0-0.66A(9V),0-0.5A(12V);










Operating ambient temperature : -40° to +85°



Storage temperature : -65° to +125°

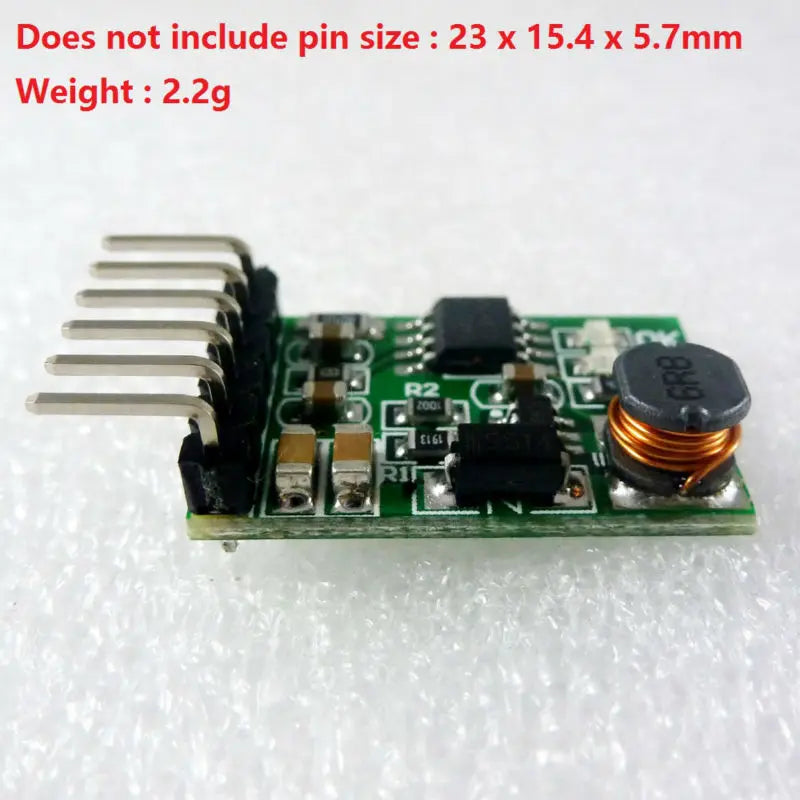

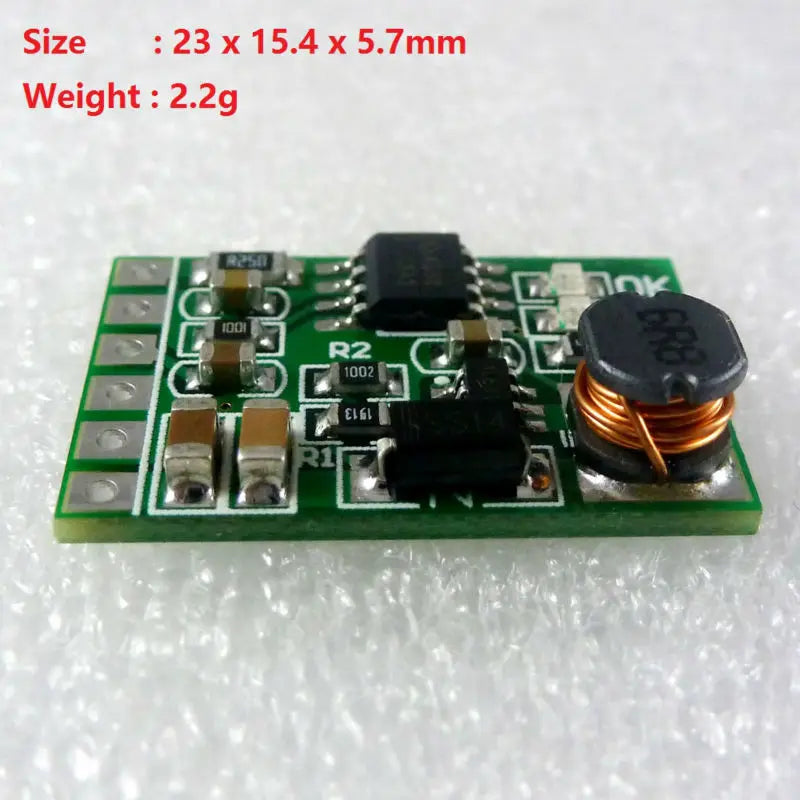

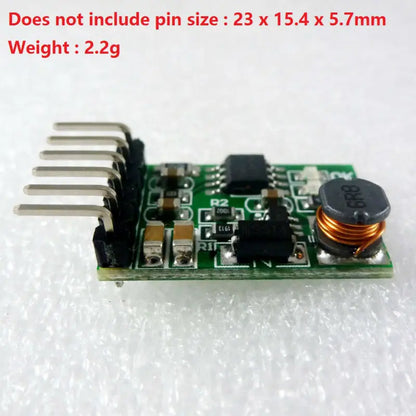

Does not include pin size : 23 x 15.4 x 5.7mm



Weight : 2.2g(with Pin),1.8g(no Pin)







Note :





This module without lithium battery over-discharge protection,




Matching protection board
Click here to buy












Applications:












Battery powered equipment



Lithium Battery 18650 14500



Mobile phone diy



UPS power supply equipment diy



Solar charging



MP3/MP4 player



Audio equipment



Video equipment



Portable Devices





Bluetooth Applications
