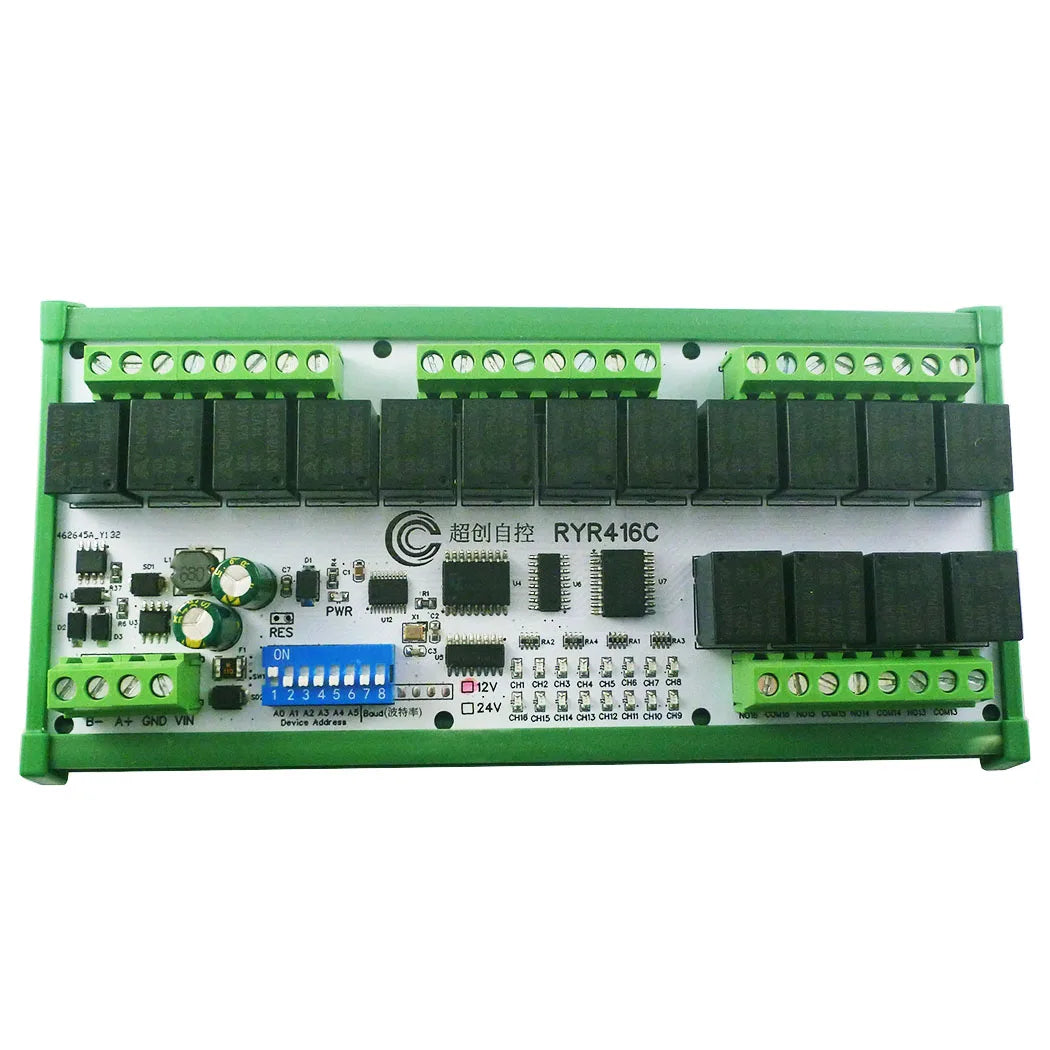

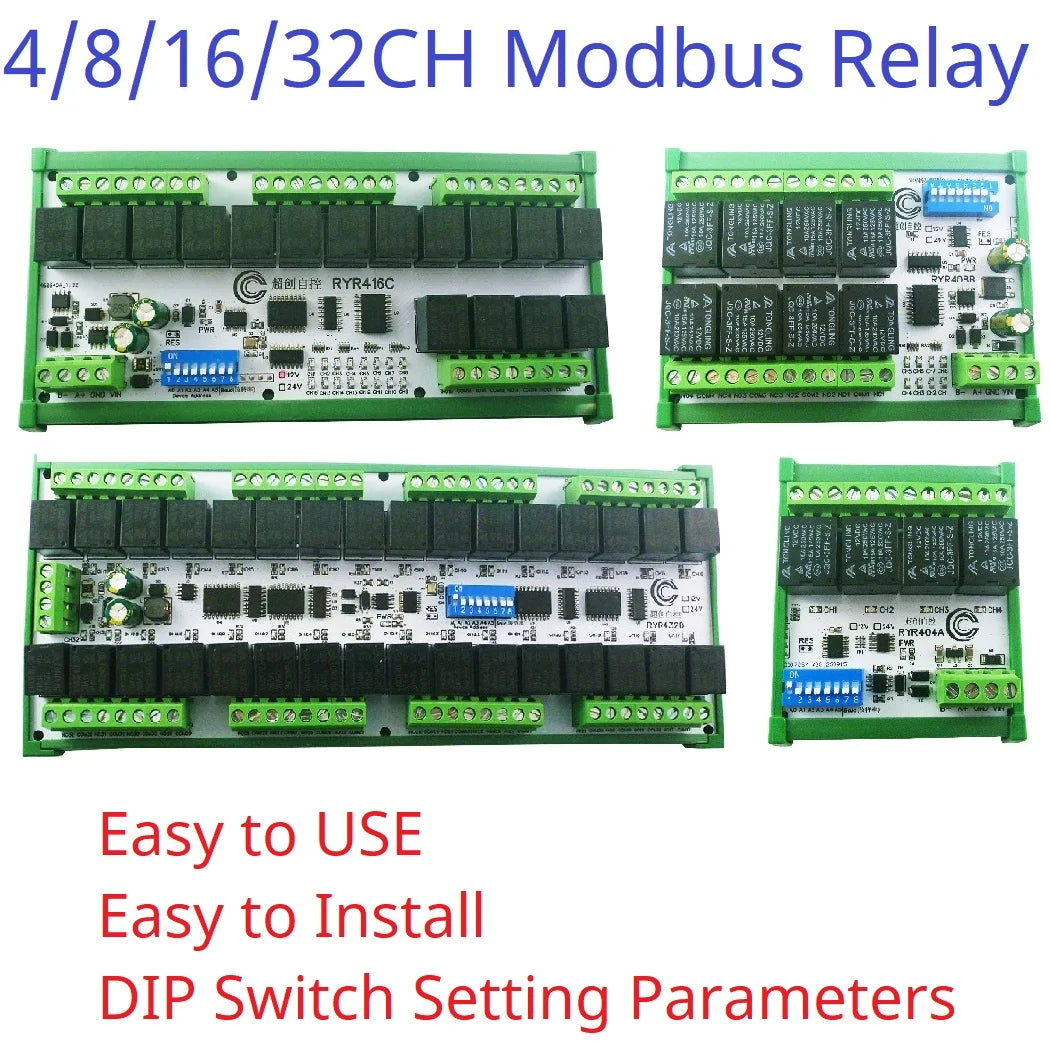

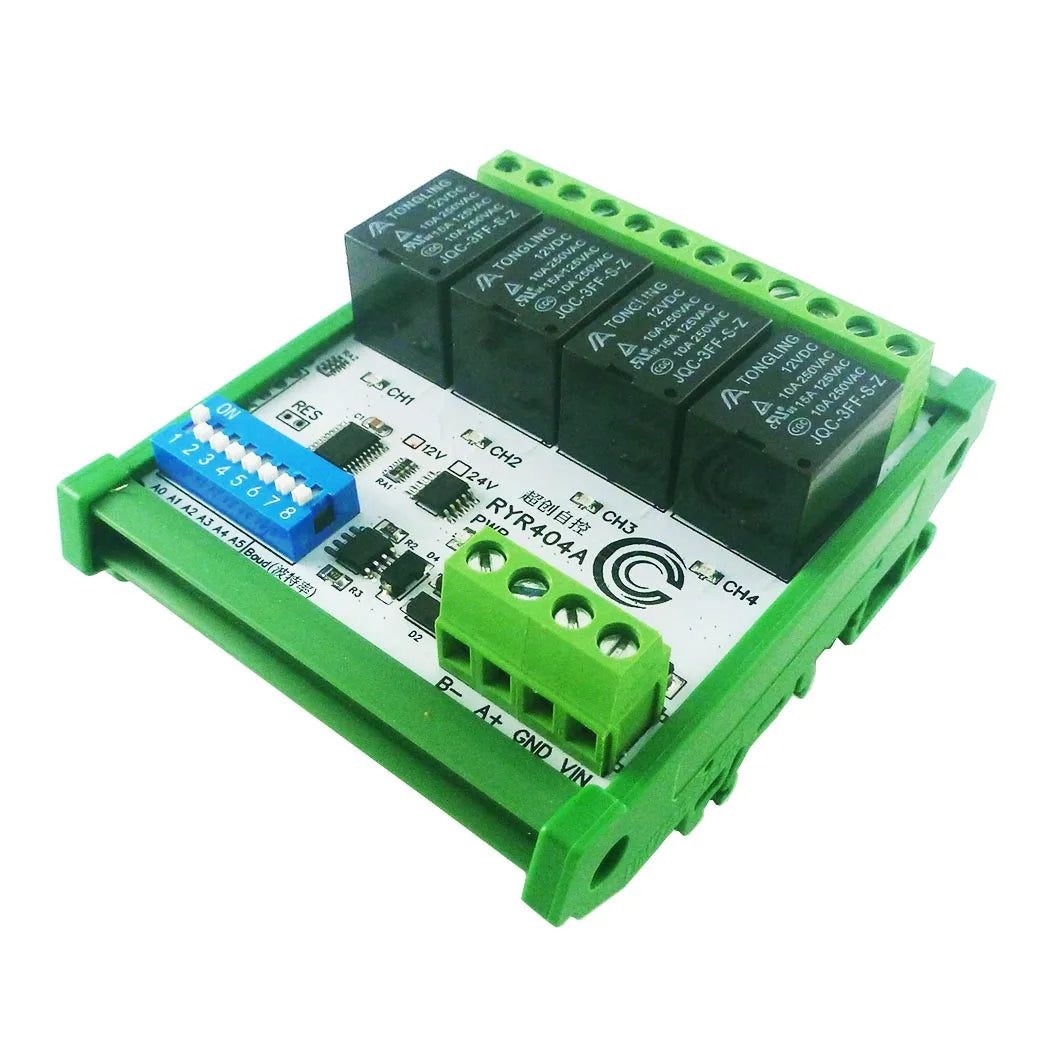

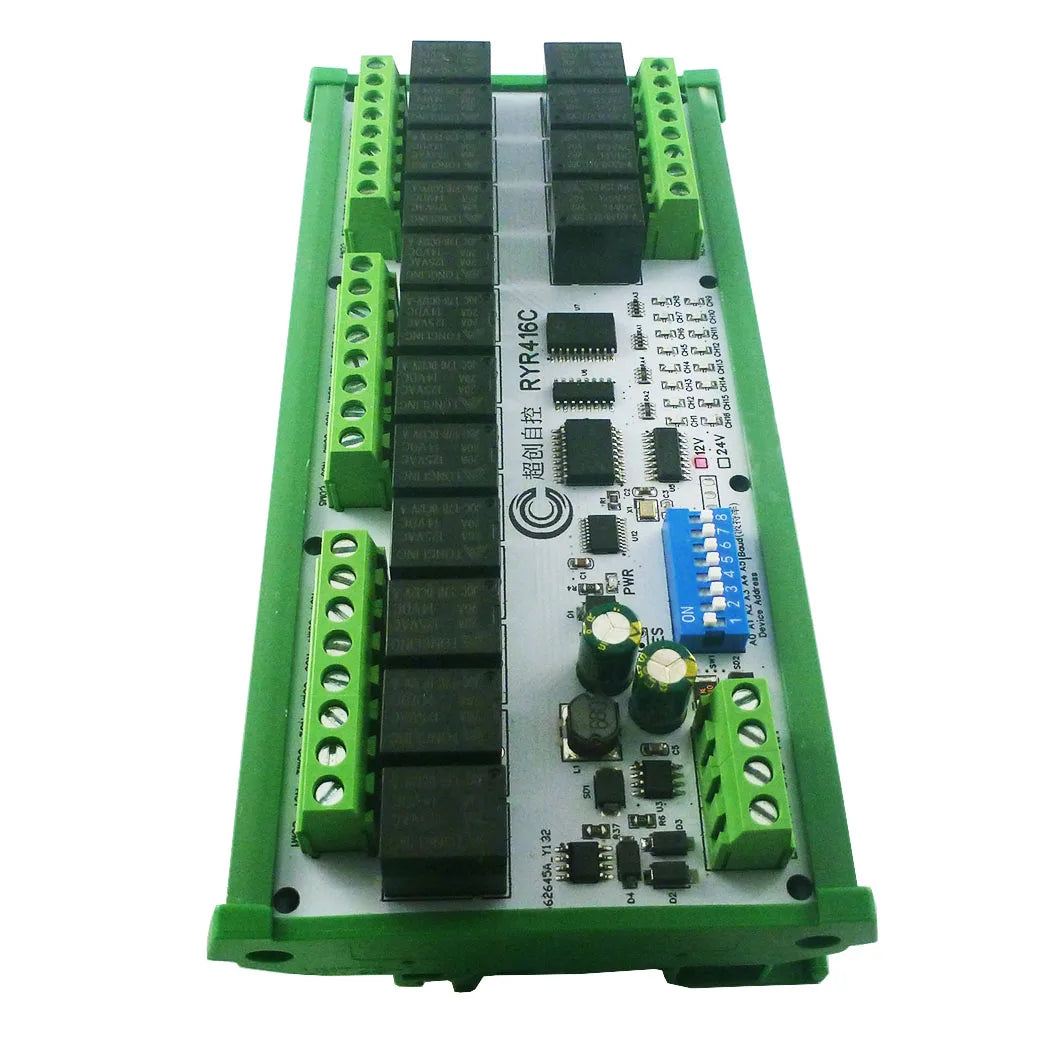

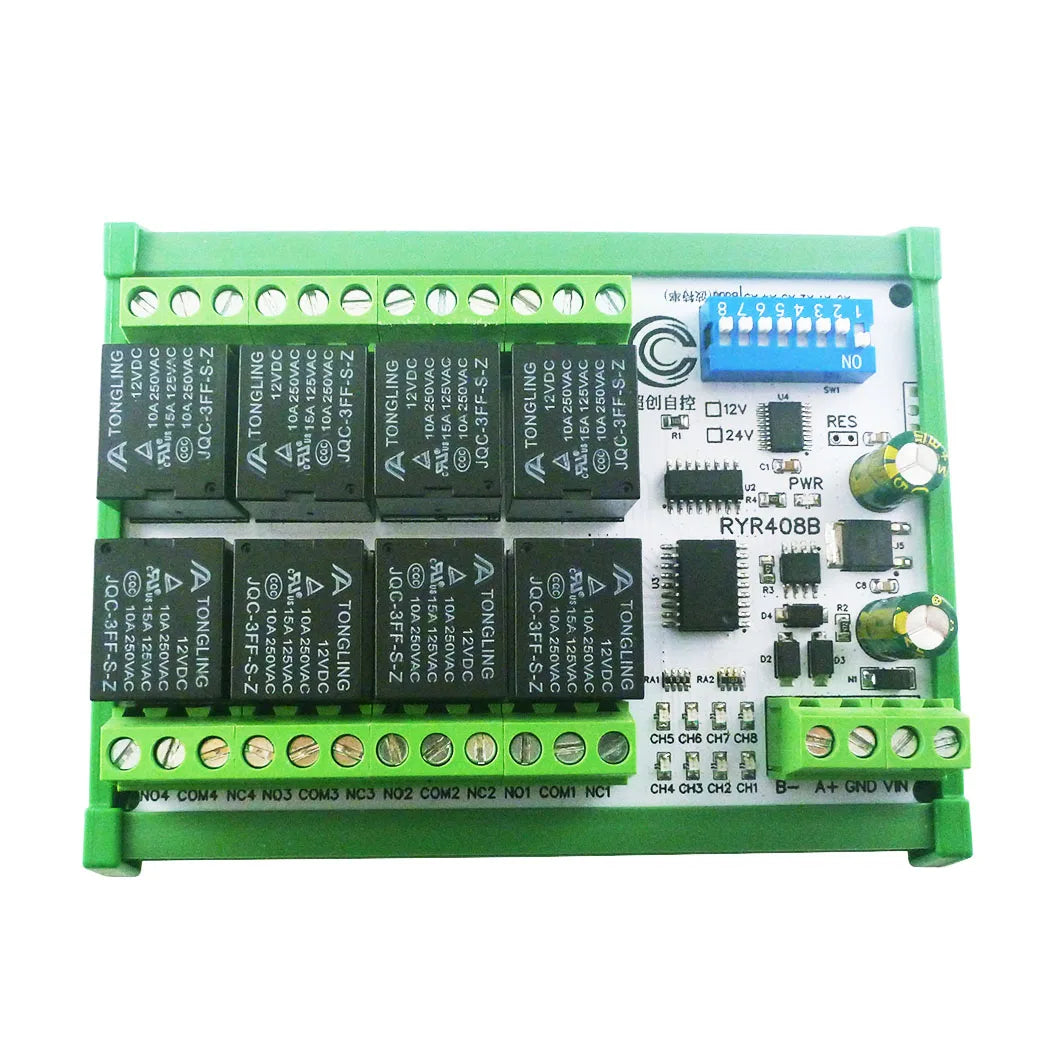

RYR404 RYR408B RYR416C RYR432D 4–32 Channel RS485 Relay Module, DC 12V/24V, Modbus RTU Control Board for PLC and HMI
RYR404 RYR408B RYR416C RYR432D 4–32 Channel RS485 Relay Module, DC 12V/24V, Modbus RTU Control Board for PLC and HMI
Regular price
$13.30 USD
Regular price
$17.10 USD
Sale price
$13.30 USD
Taxes included.

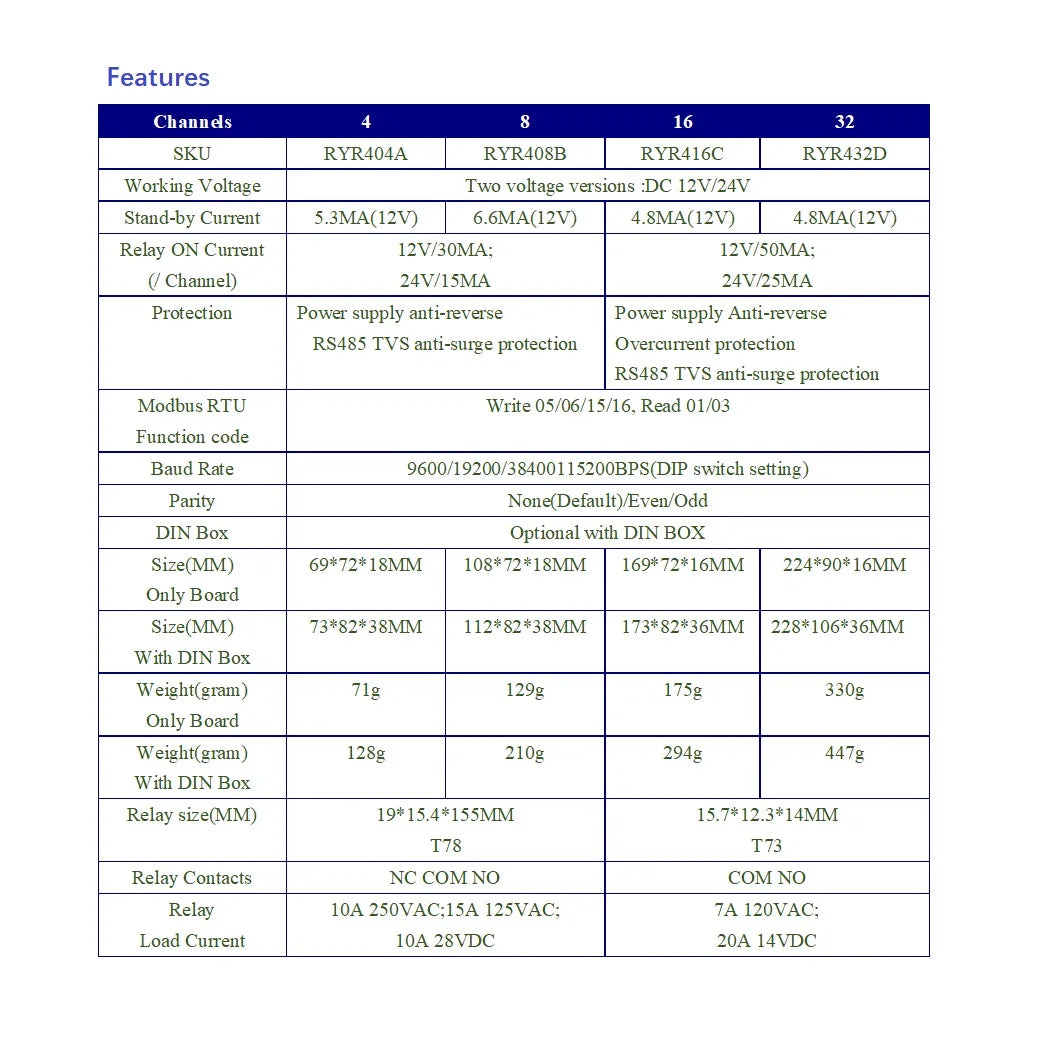

Description:
1: Working Voltage DC 12V/24V;
2: Standby current (all relays closed) 5MA, 1 relay ON 49MA, ...,32relay ON 1500MA
3: ''ON'' ''OFF'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

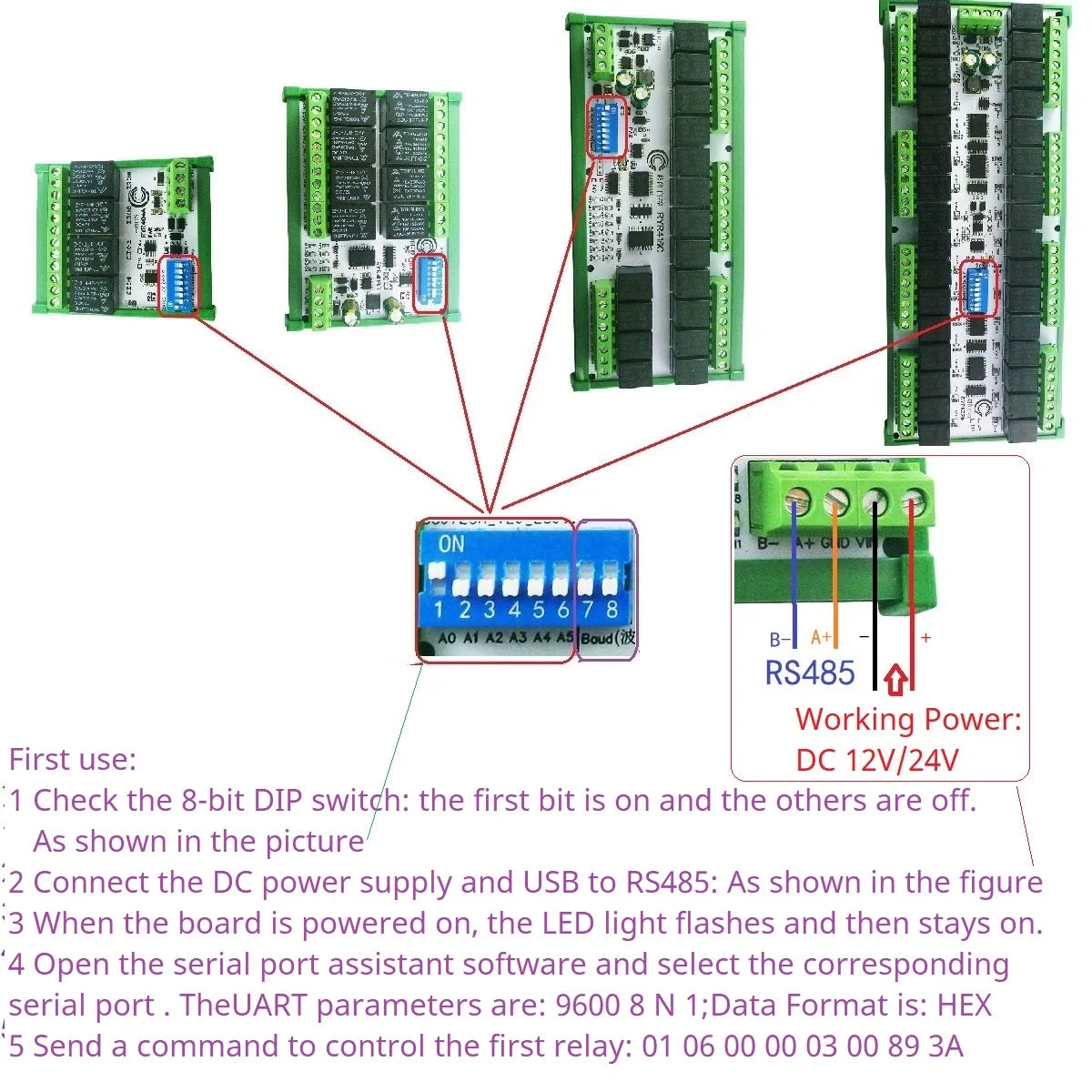

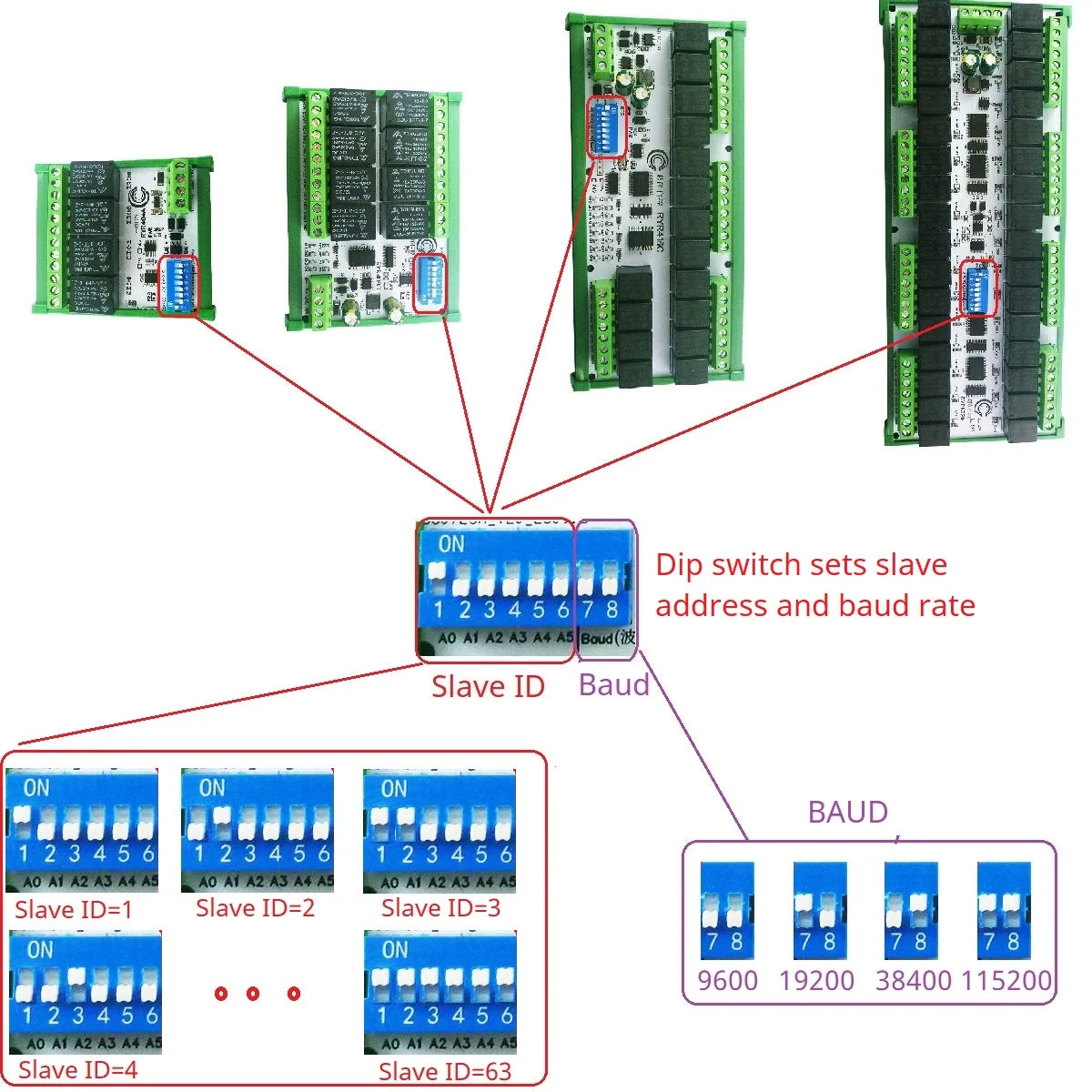

7 Set the Slave ID through the DIP Switch: 1-63 ID
8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
9 Parity :None(Default)/Even/Odd
For more information, please contact me
Application
1: Working Voltage DC 12V/24V;
2: Standby current (all relays closed) 5MA, 1 relay ON 49MA, ...,32relay ON 1500MA
3: ''ON'' ''OFF'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
7 Set the Slave ID through the DIP Switch: 1-63 ID
8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
9 Parity :None(Default)/Even/Odd
For more information, please contact me
Application

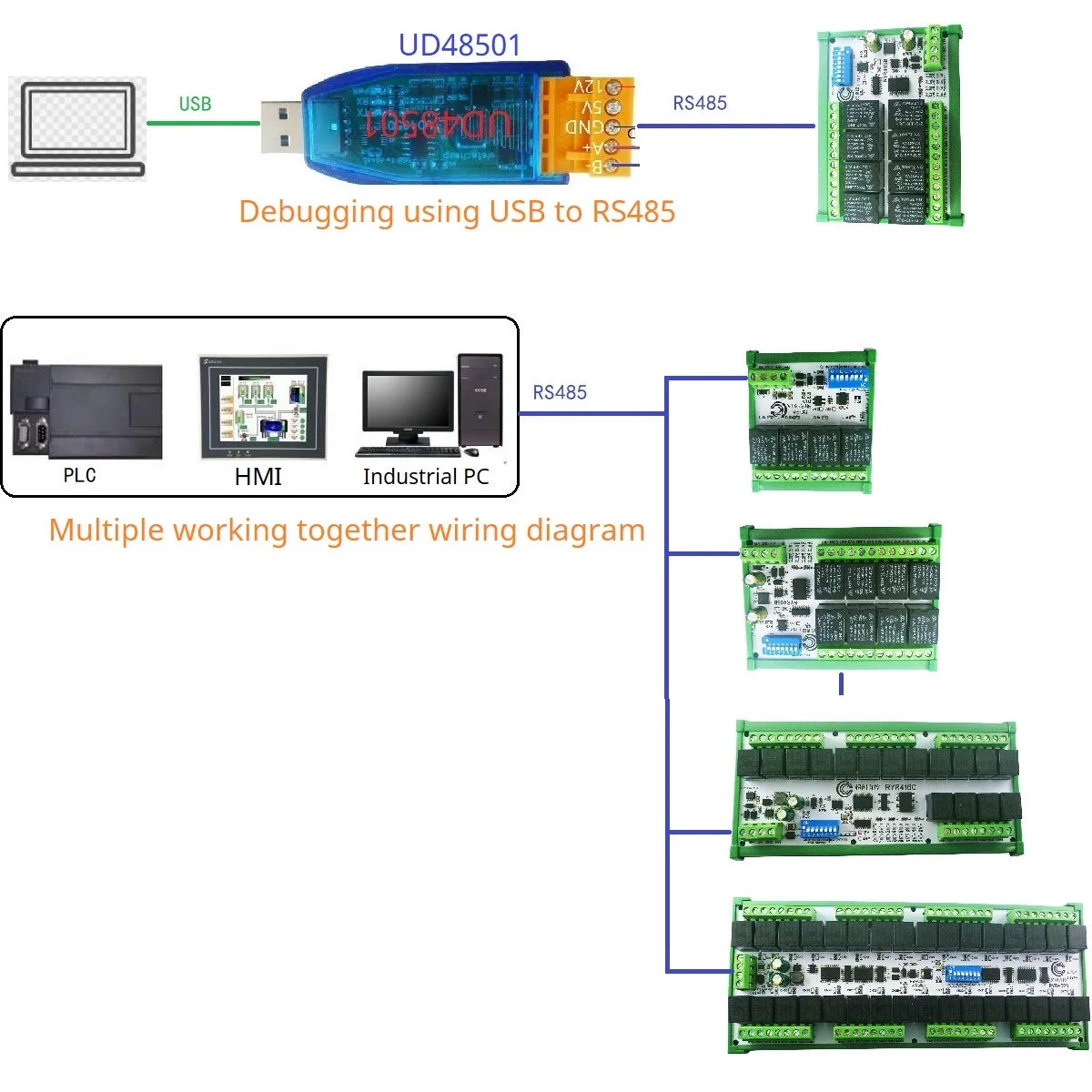

PLC IO Expansion Board
HMI Configuration Software
Smart Home,Home Automation ,Automated industry;
PTZ CCTV Camera
Security Monitoring
Identification system;
Automatic curtain control
LED Control
Farm water supply system
Stirring system
HMI Configuration Software
Smart Home,Home Automation ,Automated industry;
PTZ CCTV Camera
Security Monitoring
Identification system;
Automatic curtain control
LED Control
Farm water supply system
Stirring system
