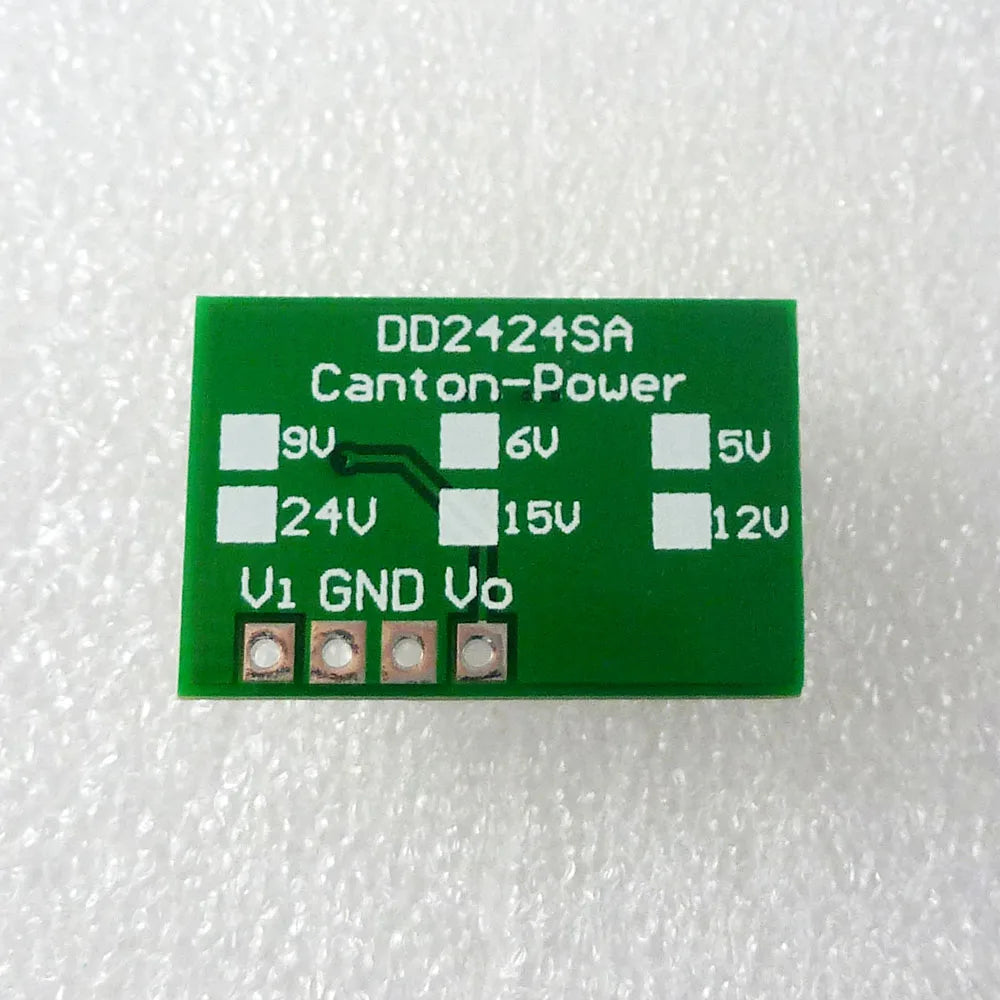

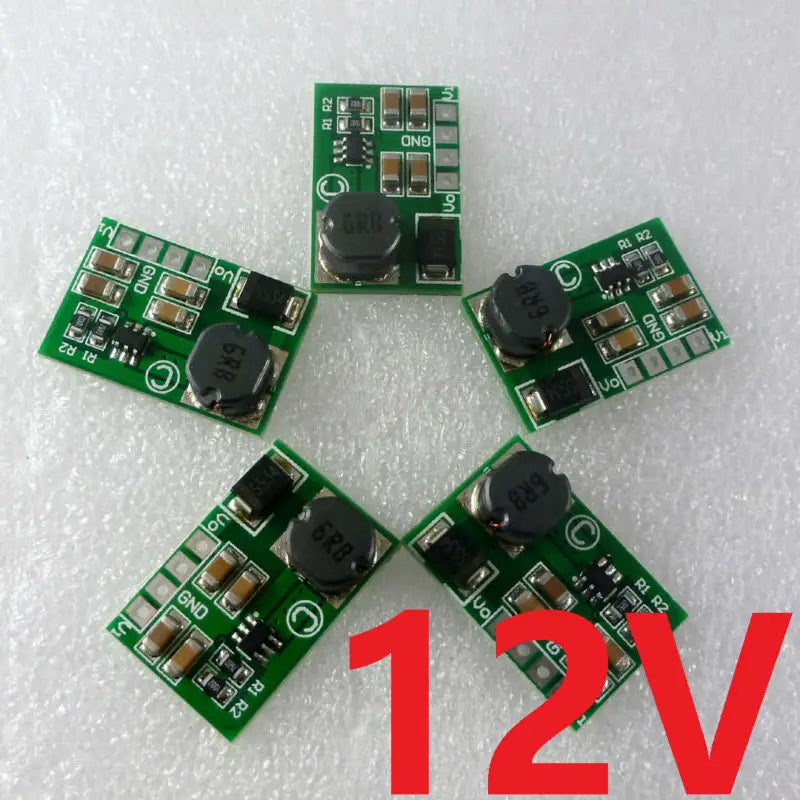

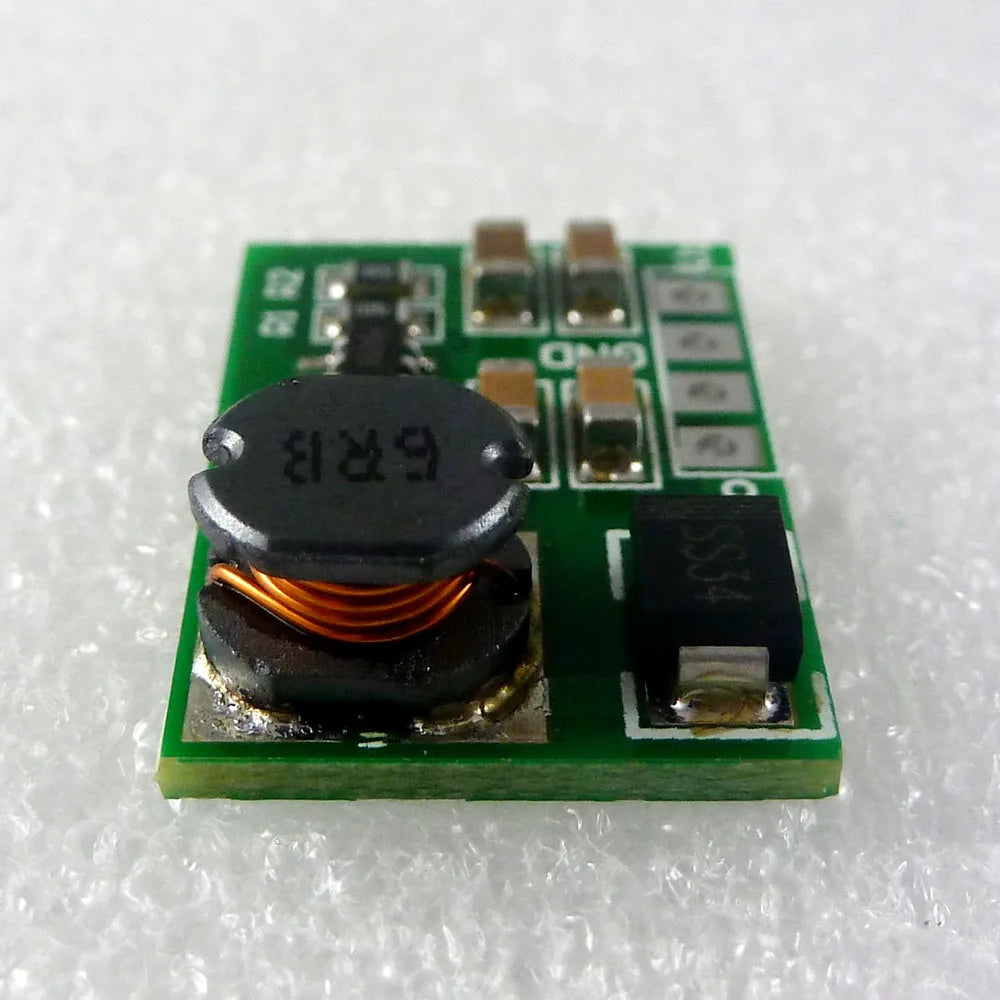

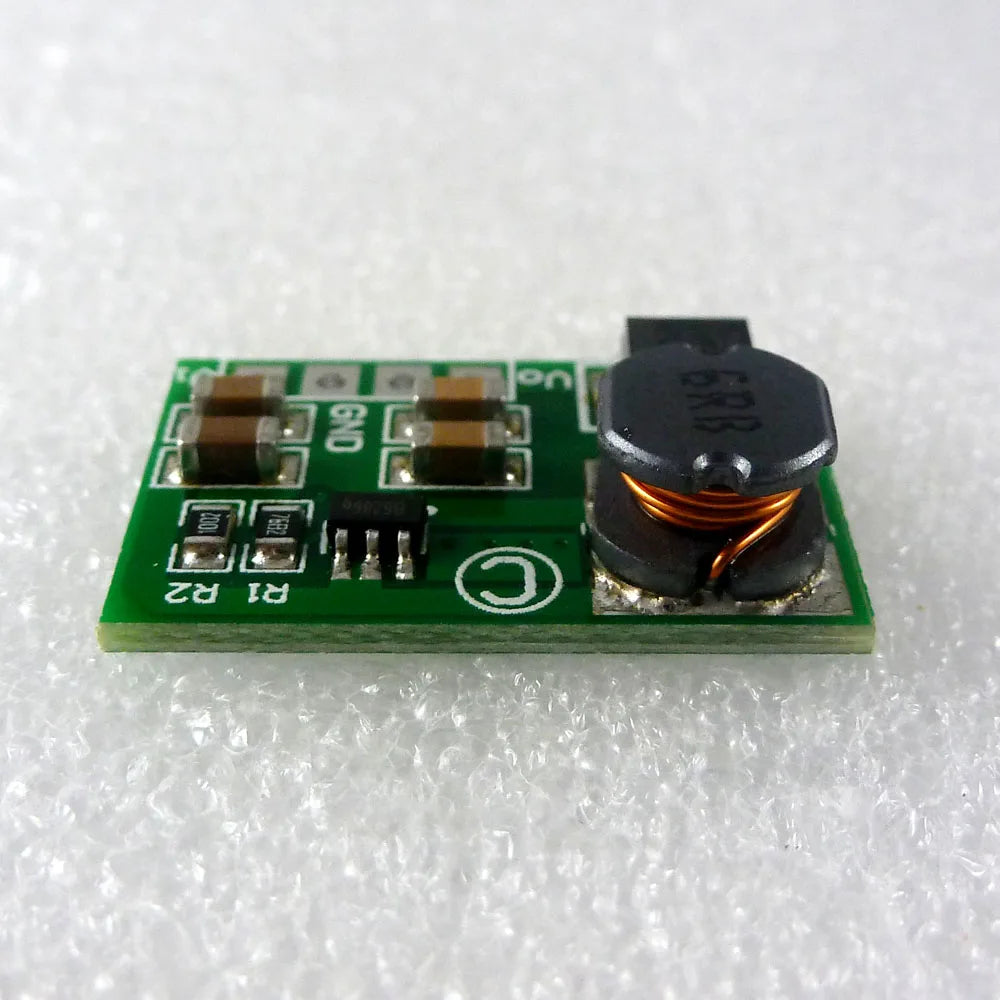

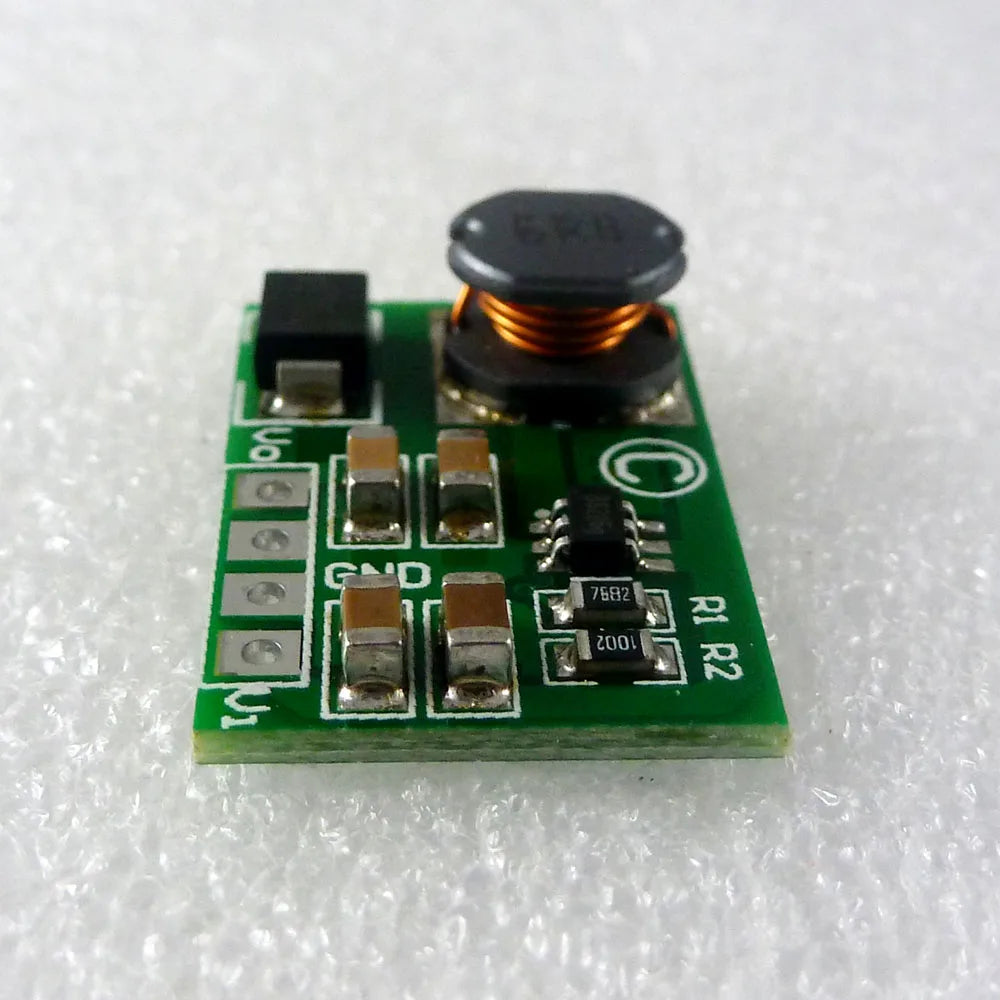

DD2424SA_12V 5-Pack 12V DC-DC Step-Up Boost Converter Power Supply Modules for PLC, RS485 and Smart Home Automation

DD2424SA_12V 5-Pack 12V DC-DC Step-Up Boost Converter Power Supply Modules for PLC, RS485 and Smart Home Automation

$9.95 USD
$15.27 USD $9.95 USD
Sale Sold out
Taxes included.


Product Name: 5 Pcs 12W 2-12V 5V to 12V DC-DC Step-up Converter Boost Module Power Supply Board For Smart Home PLC RS485


Packing list:


5 PCS 12W DD2424SA_12V 2V-12V TO 12V DC DC Step-up Converter Module








Description:

Input voltage DC 2 ~ 12V,output DC 12V±4% (No-load voltage is 12-12.4V)

Internal 4A Switch Current Limit.

DC DC Boost Converter Module working frequency 1.2MHZ.

up to 96% Efficiency (usually is 70%-94%)

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

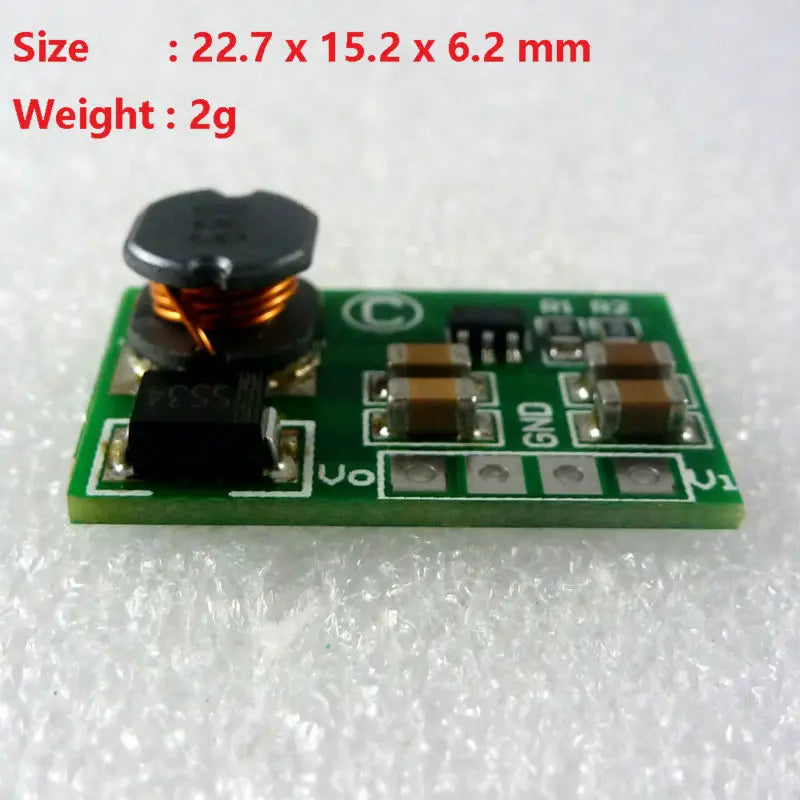

Size : 22mm x 15.2mm x 6.2mm

Weight : 2g




Applications

Battery powered equipment

Small power motors

IP Camera, Video camera,PTZ

Wifi Ethernet router

RS485 Modbus PLC

Toy car boat

Model aircraft



power bank
LED Lighting

315M 433M Wireless Relay
Wireless communication equipment



Multimeter Instrumentation


Attention :




This is a DC-DC voltage converter module,Must be noted when using:



1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Q & A:



Q : Why output voltage is less than the nominal voltage

A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
