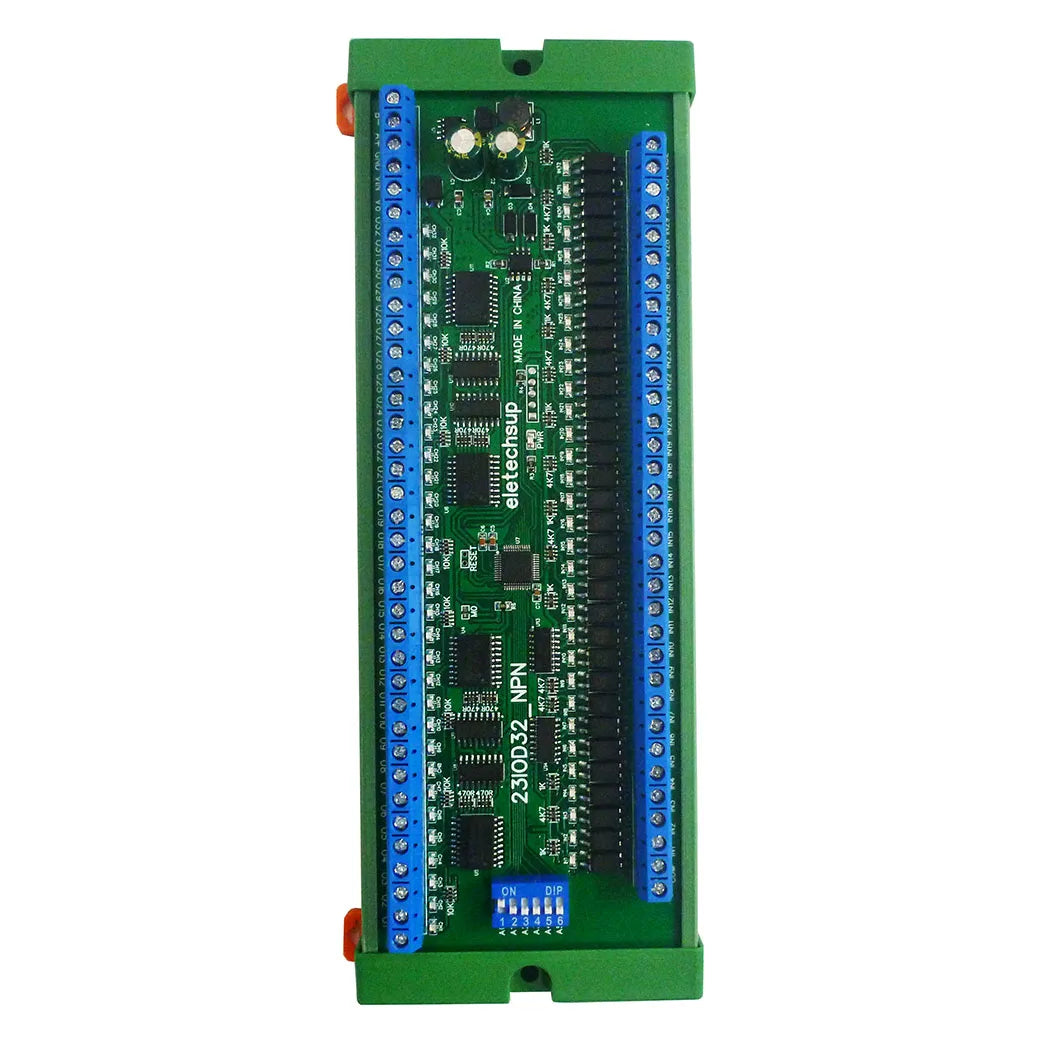

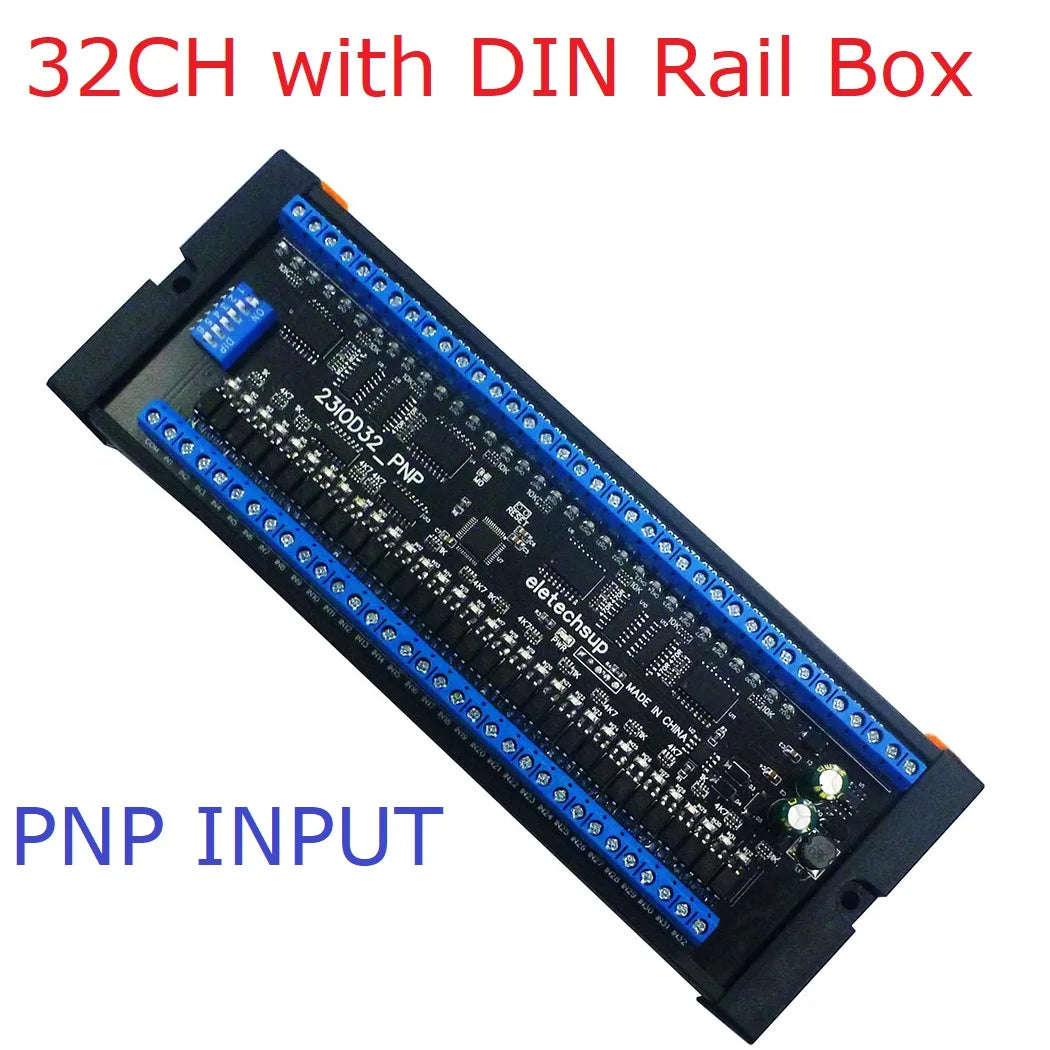

23IOD32 32CH RS485 Modbus RTU Remote IO Module – Optically Isolated Solid State Relay Board with NPN/PNP Input for PLC Expansion

1 Working voltage: DC 6.5-30V (9V 12V 24V)

2 Working current: 8-56MA

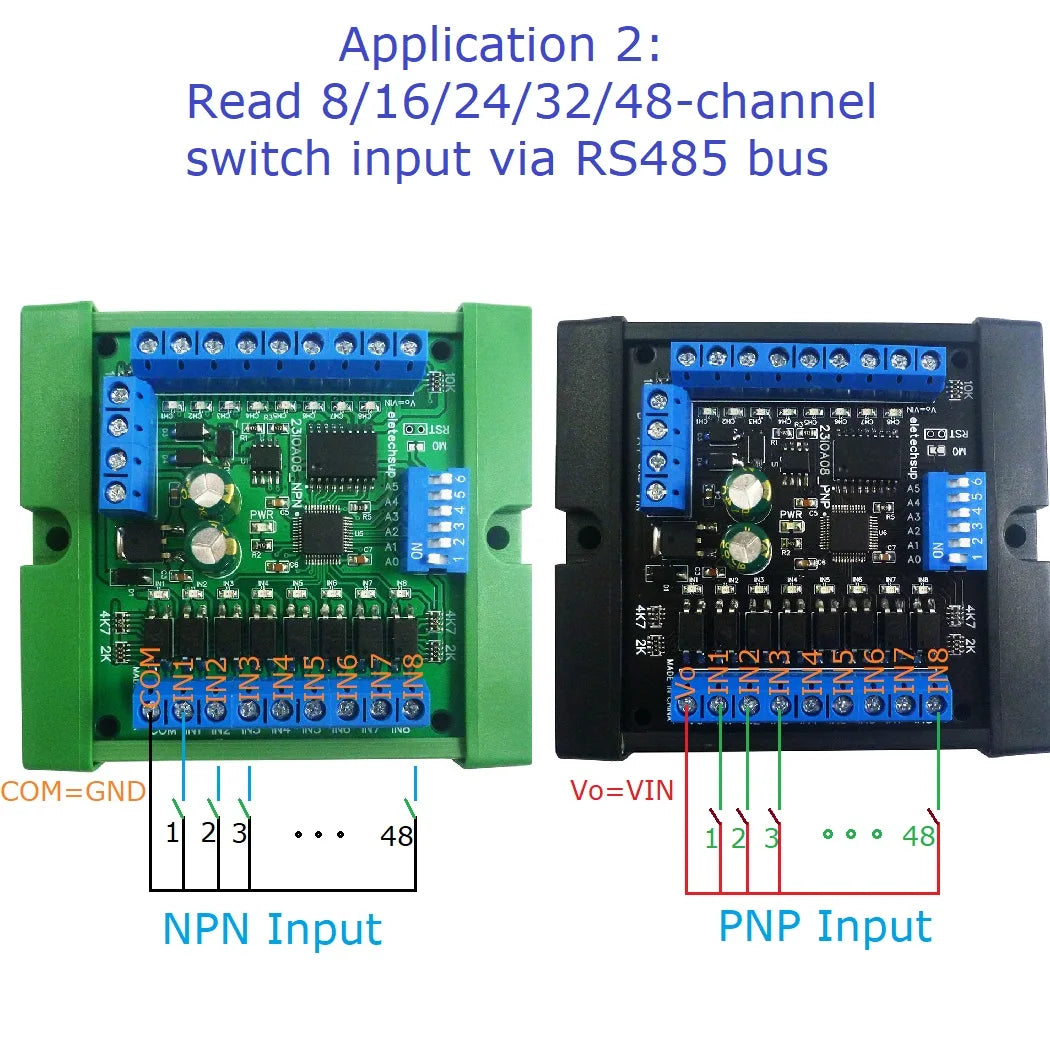

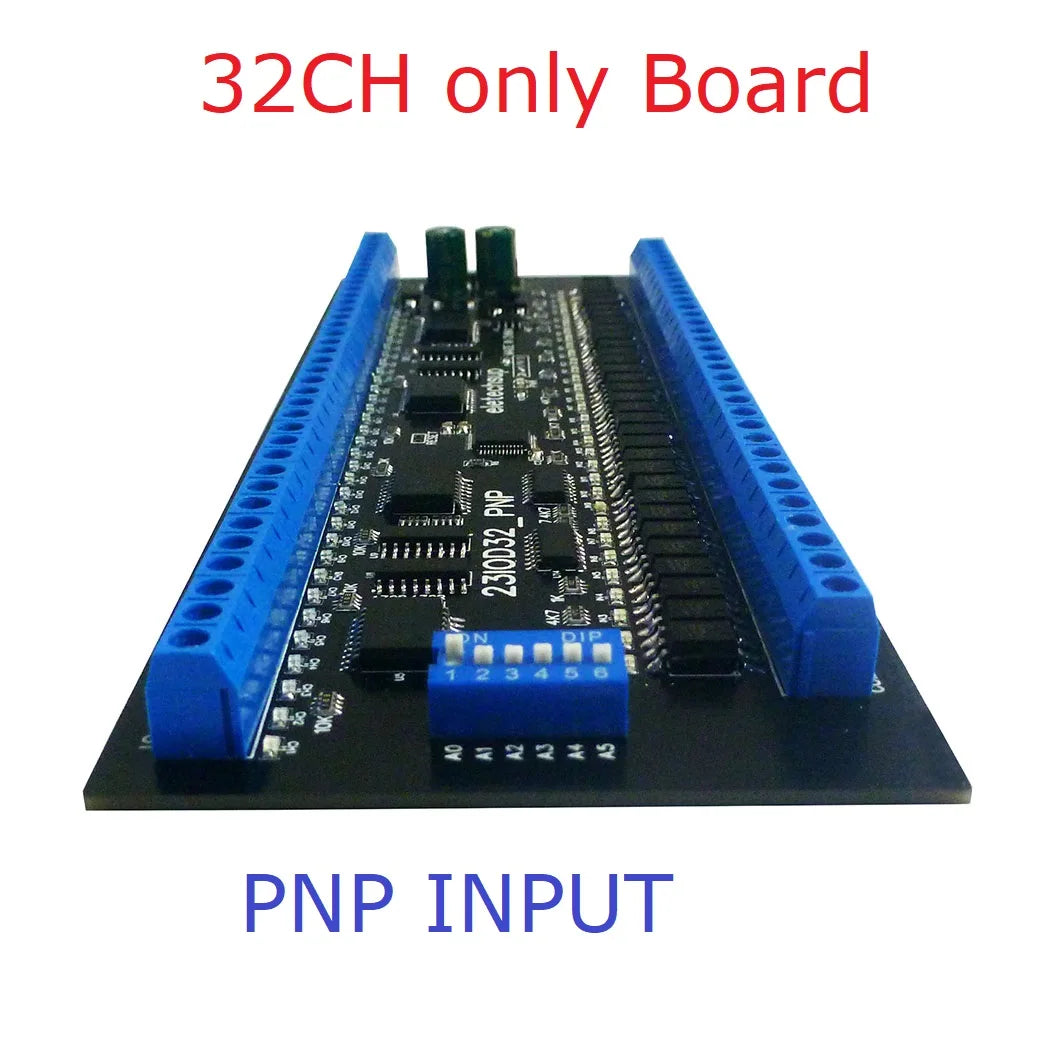

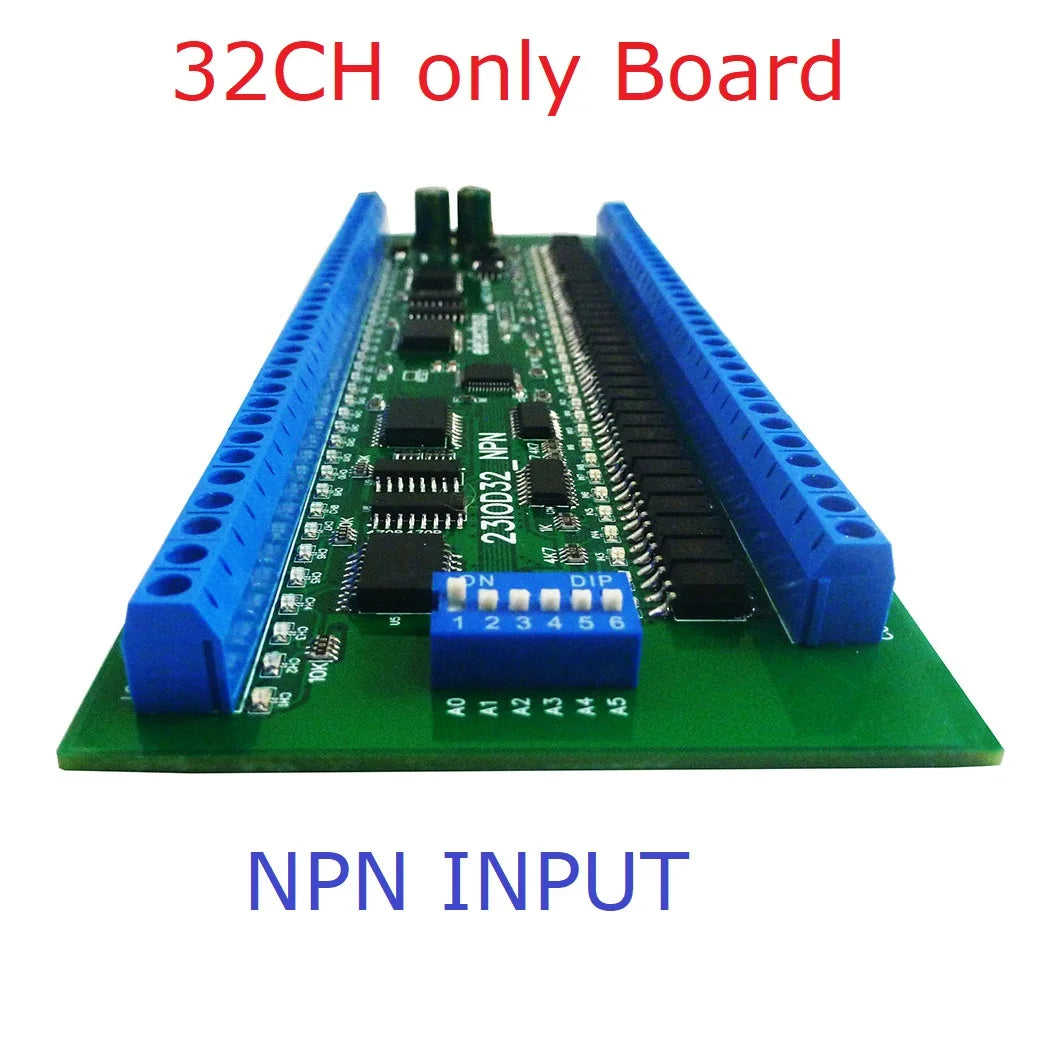

3 32CH Optically Isolated Input Ports, NPN/PNP input

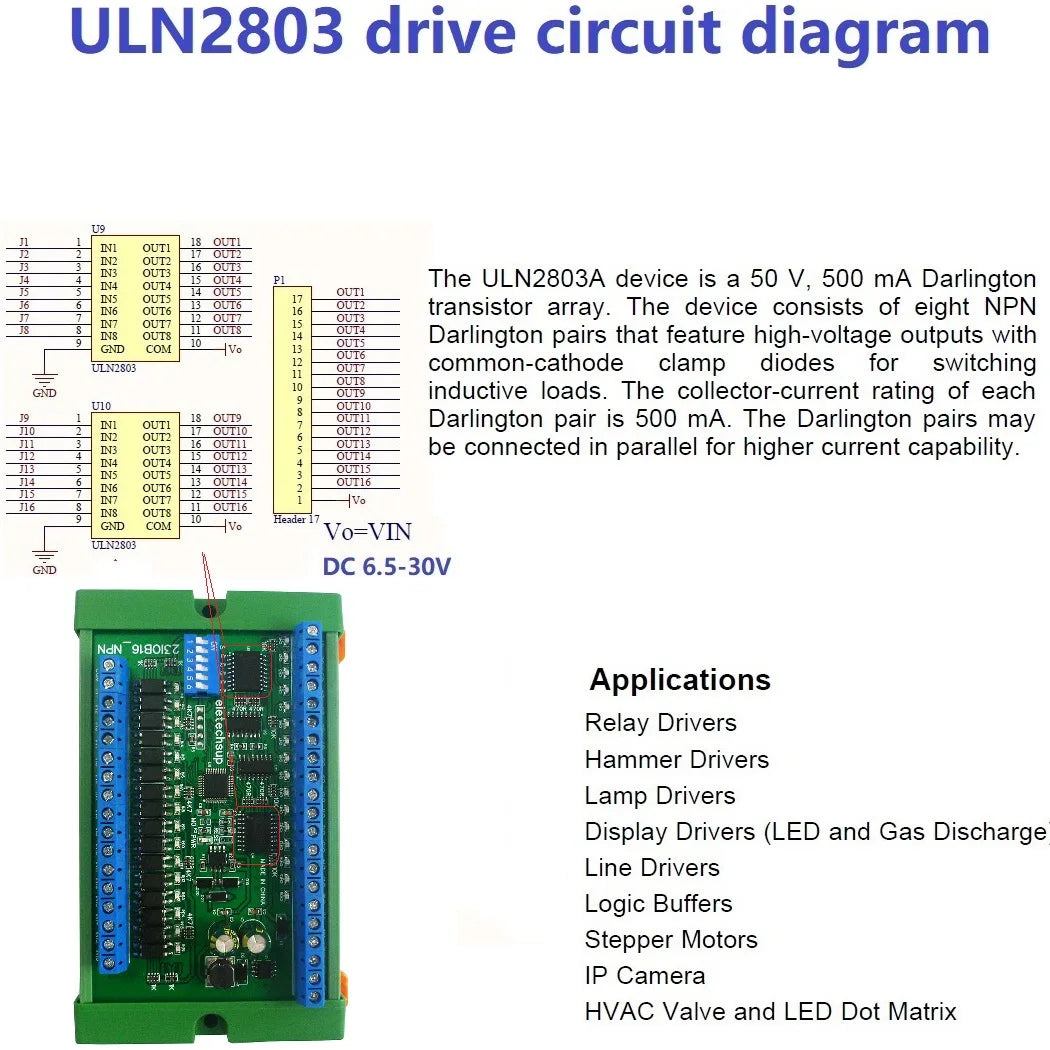

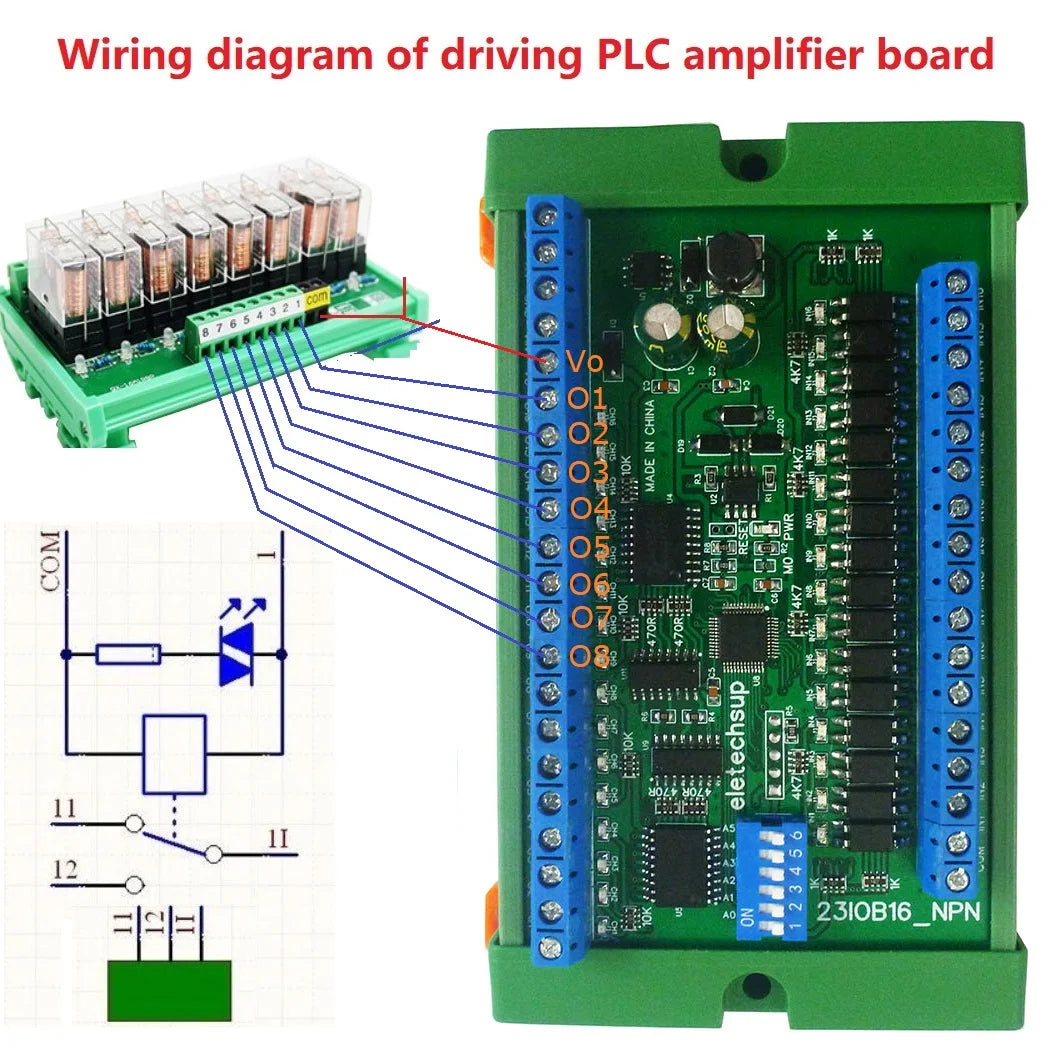

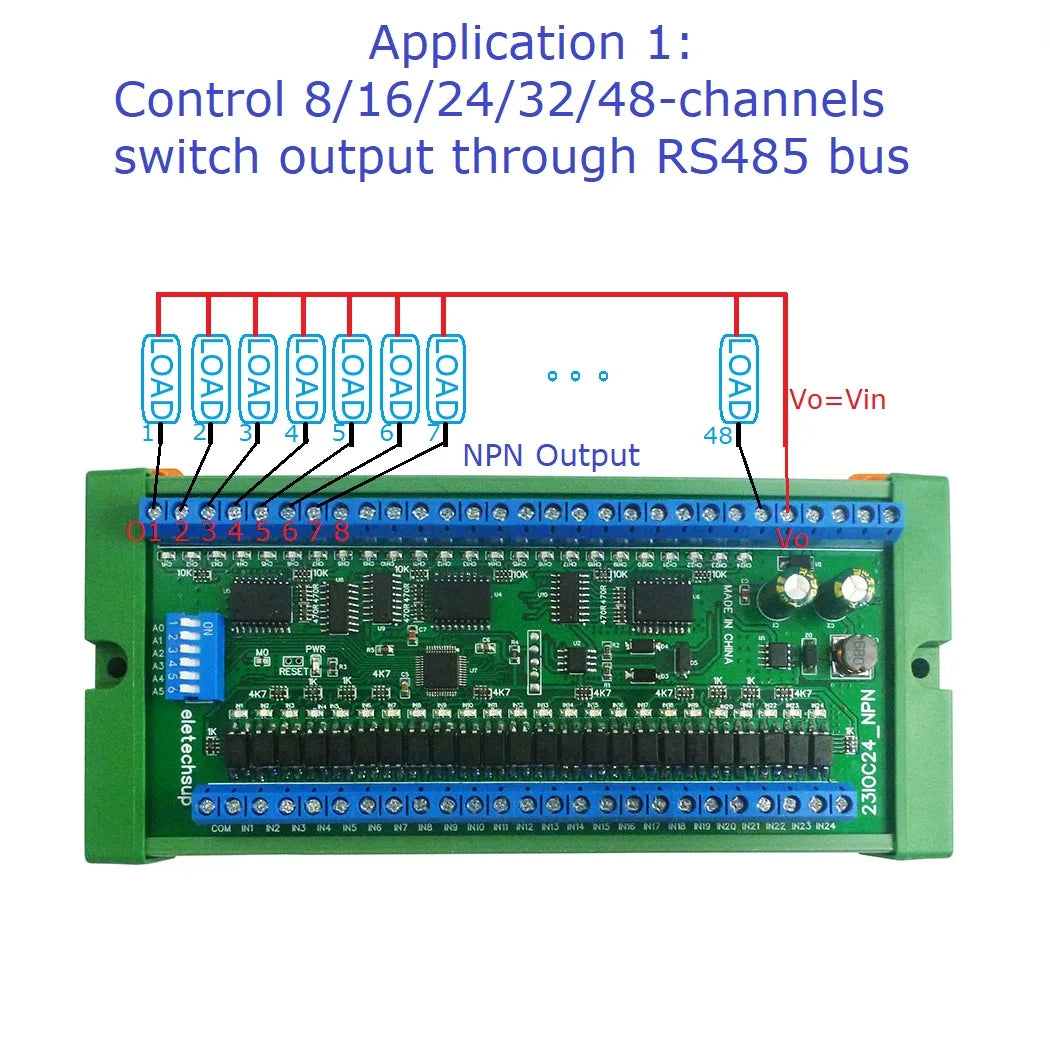

4 32CH Darlington Transistor Outputs (ULN2803 NPN output)



5 The default command has a variety of output modes: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands




6 The i

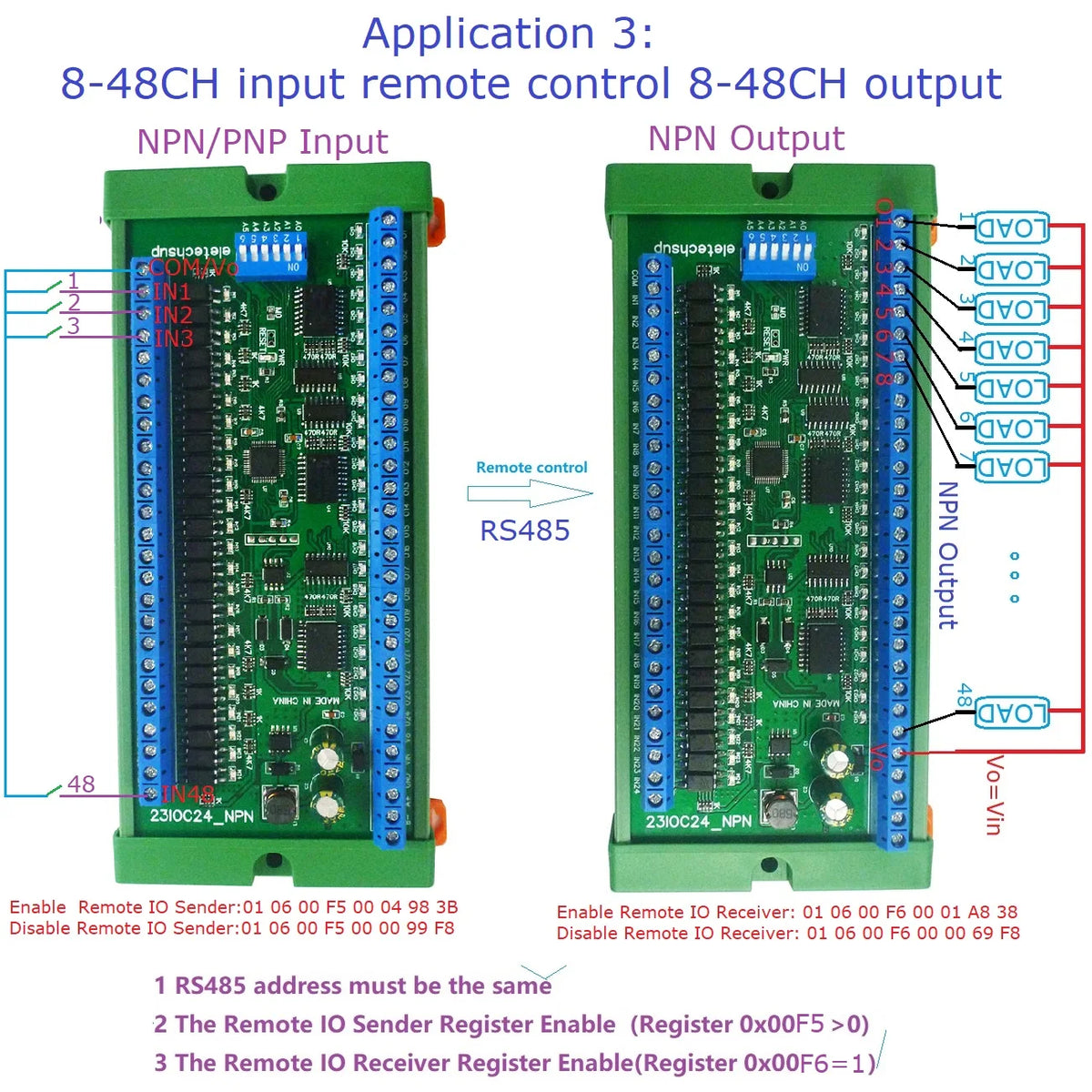

nput port can remotely control output port of another board via RS485 bus (relevant registers must be set)



7 MODBUS command 1 supports 03 06 16 function codes, MODBUS command 2 supports 01/02/03/05/06/15/16 function codes



8 The maximum delay of 1 MODBUS command is 255 seconds



9 In MODBUS command mode, up to 64 devices can be used in parallel



10 The default baud rate is 9600BPS, you can choose the baud rate by jumper:

1200/2400/4800/19200/38400/57600/115200BPS

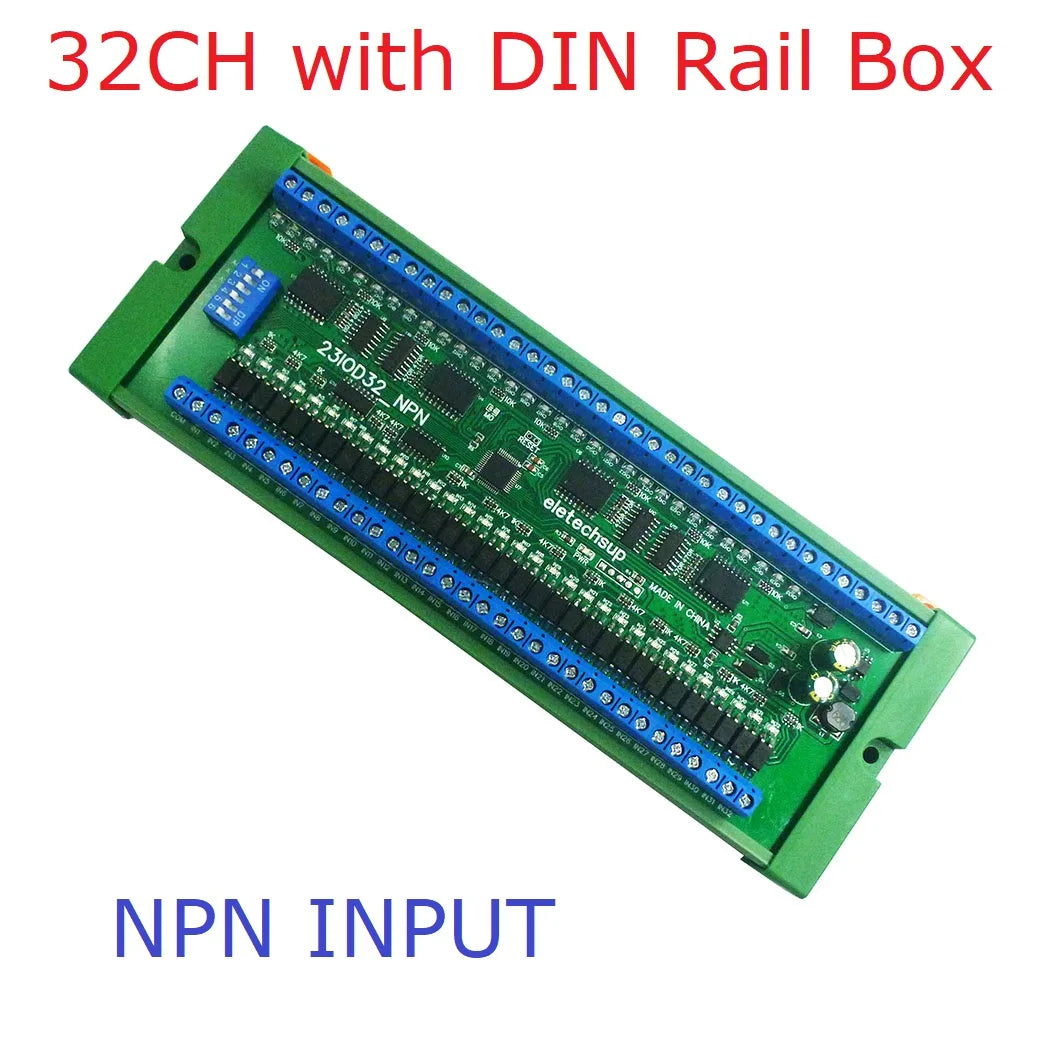

11 Sizes (with box):
215x80x30mm



12 Weight (with box): 246
g



13 Maximum load: the maximum load current of each channel is 300MA




For more information, please contact me
