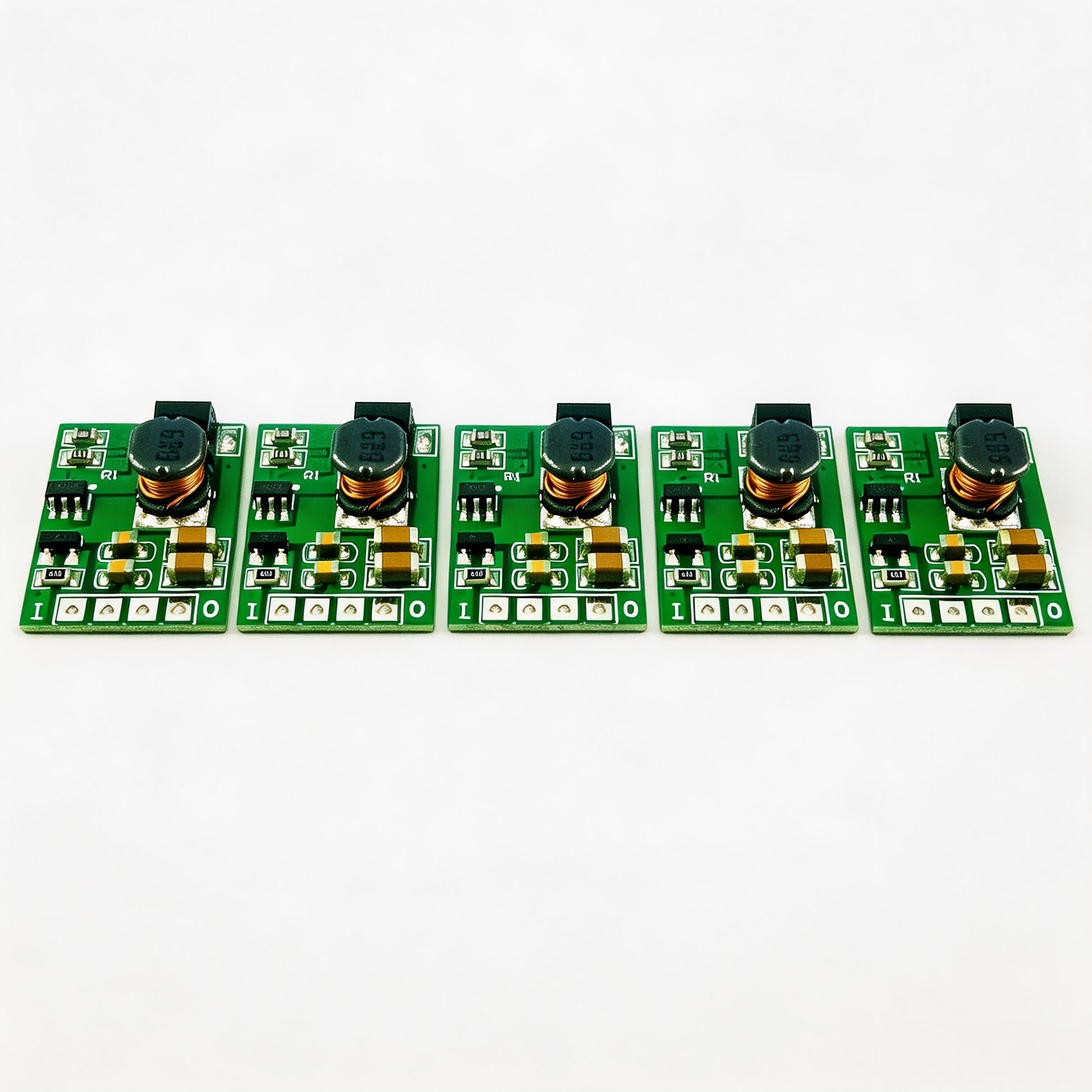

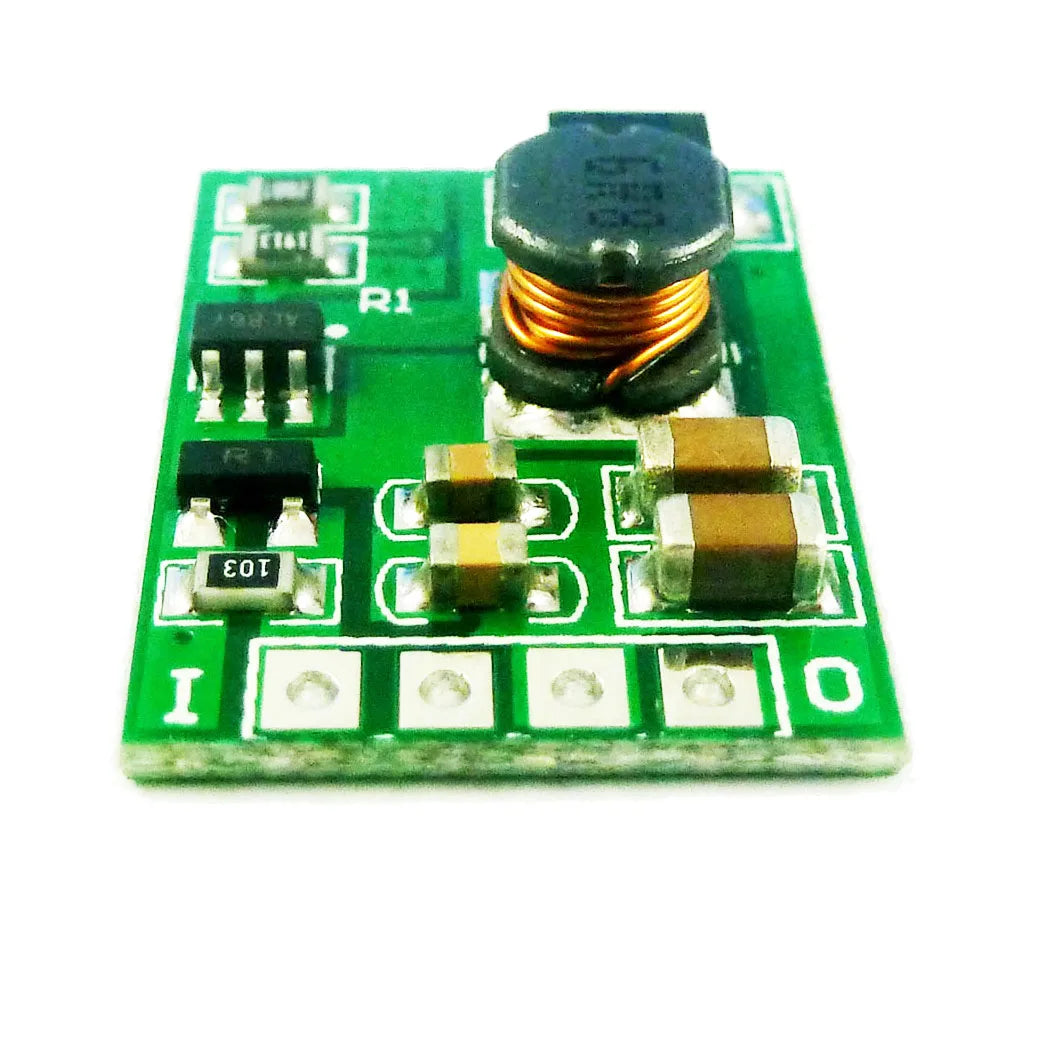

DDEN12MB 3.7V to 5V/6V/9V/12V DC-DC Boost Converter – Step-Up Voltage Regulator Module for 18650 Li-ion Li-Po Battery Portable Power DIY

$7.94 USD

~~$7.94 USD~~ $7.94 USD

Sale Sold out

Taxes included.

Description:

DC DC Boost Converter Module working frequency 1MHZ.

Up to 84% Efficiency

Quiescent current : Turn on output 0.4mA

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

Size(Does not include pin) : 20 x 15 x 6MM

Weight : 1.5g(no Pin)

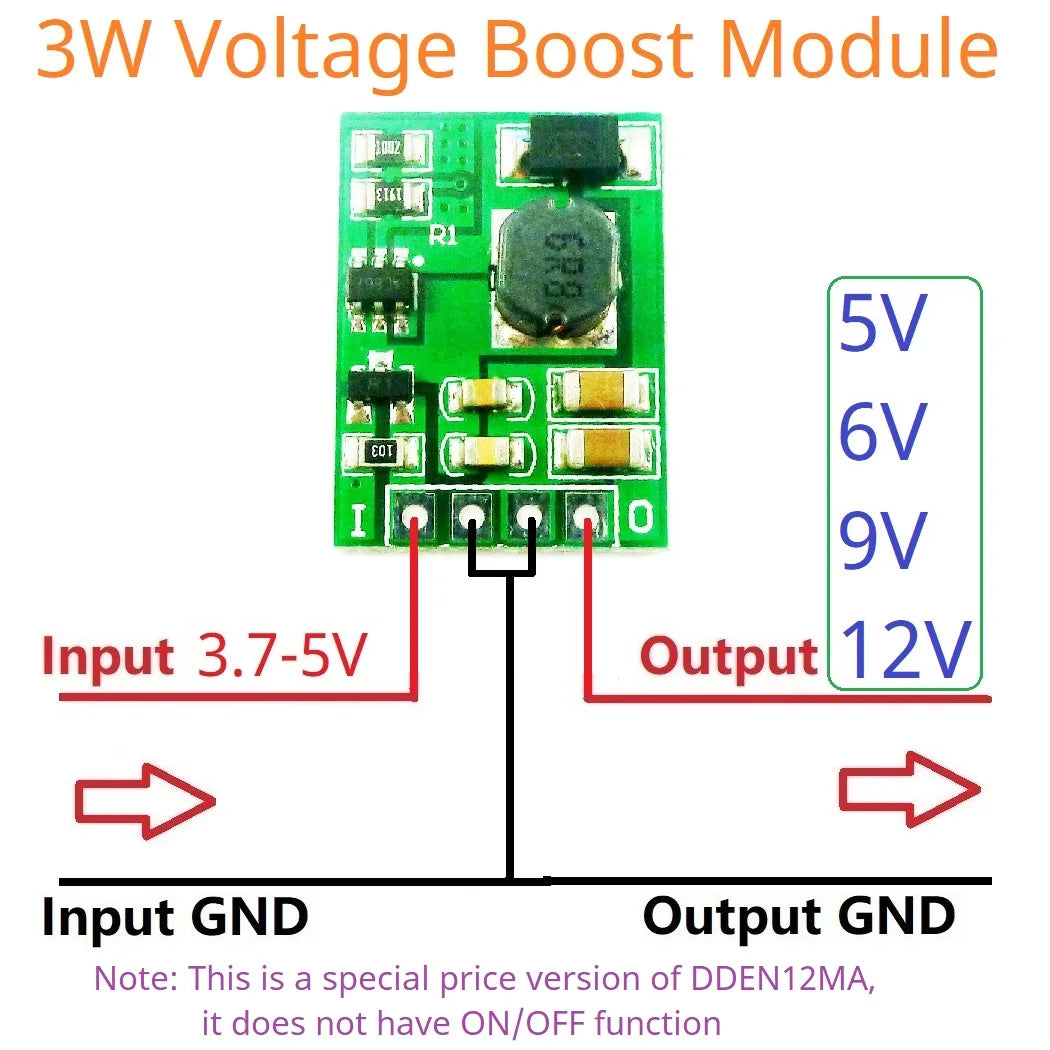

Note: This is a special price version of DDEN12MA, it does not have ON/OFF function,The maximum output function is only 3W

Protection :

Over current protection(OCP)

Over voltage protection(OVP)

Short circuit protection(SCP)

Over temperature protection(OTP)

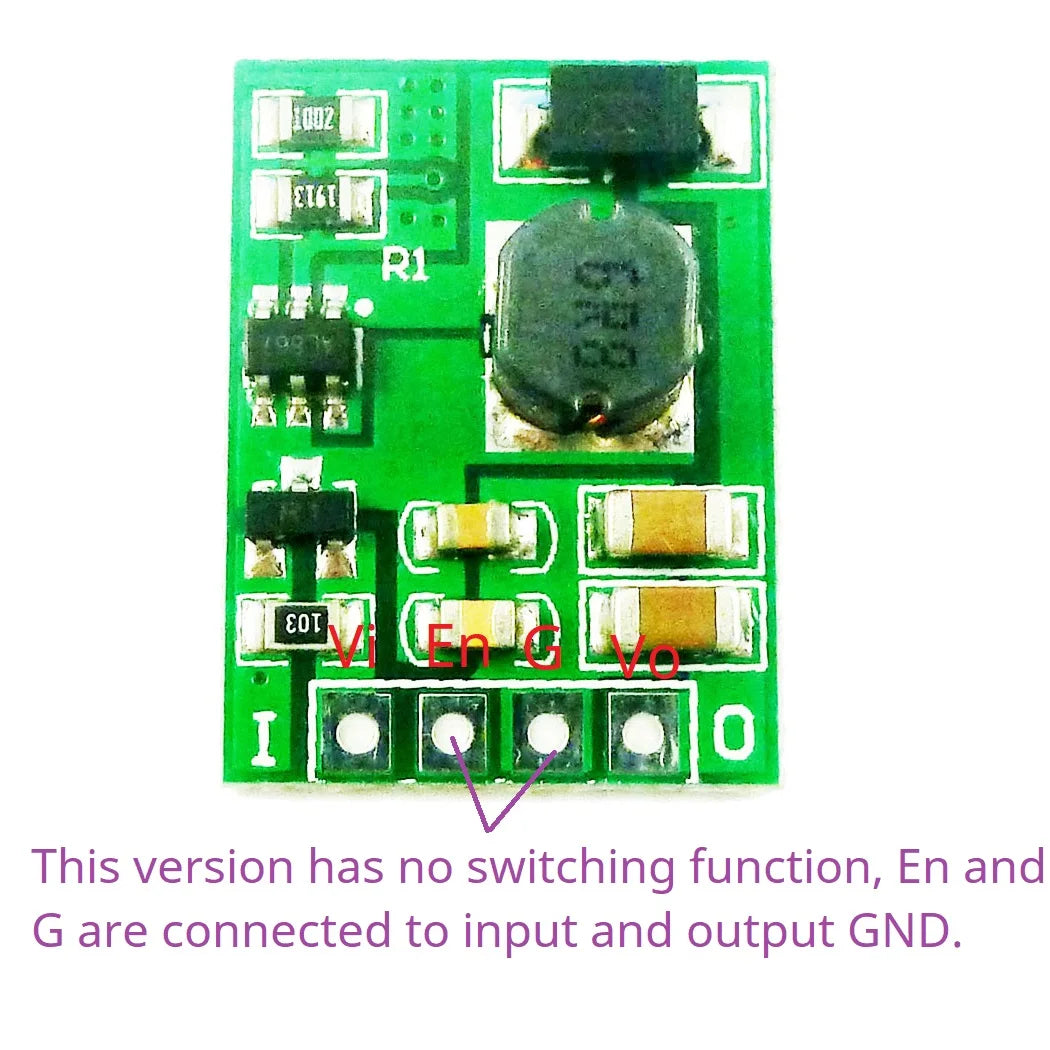

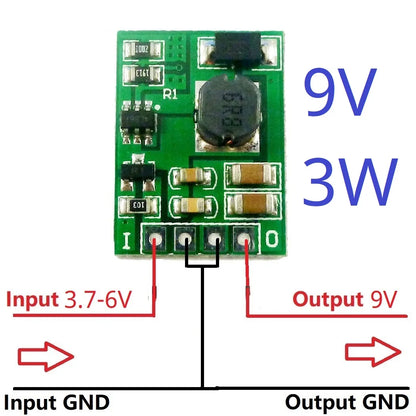

Pin description:

Vi : Input positive(+)

En : This function is invalid and can be connected to GND

G : Input and Output negative(GND/-)

Vo: Output positive(+)

Output 5V :

Input voltage DC 3.7 ~ 5V,output DC 5V±3%

Maximum output : 5V/600MA

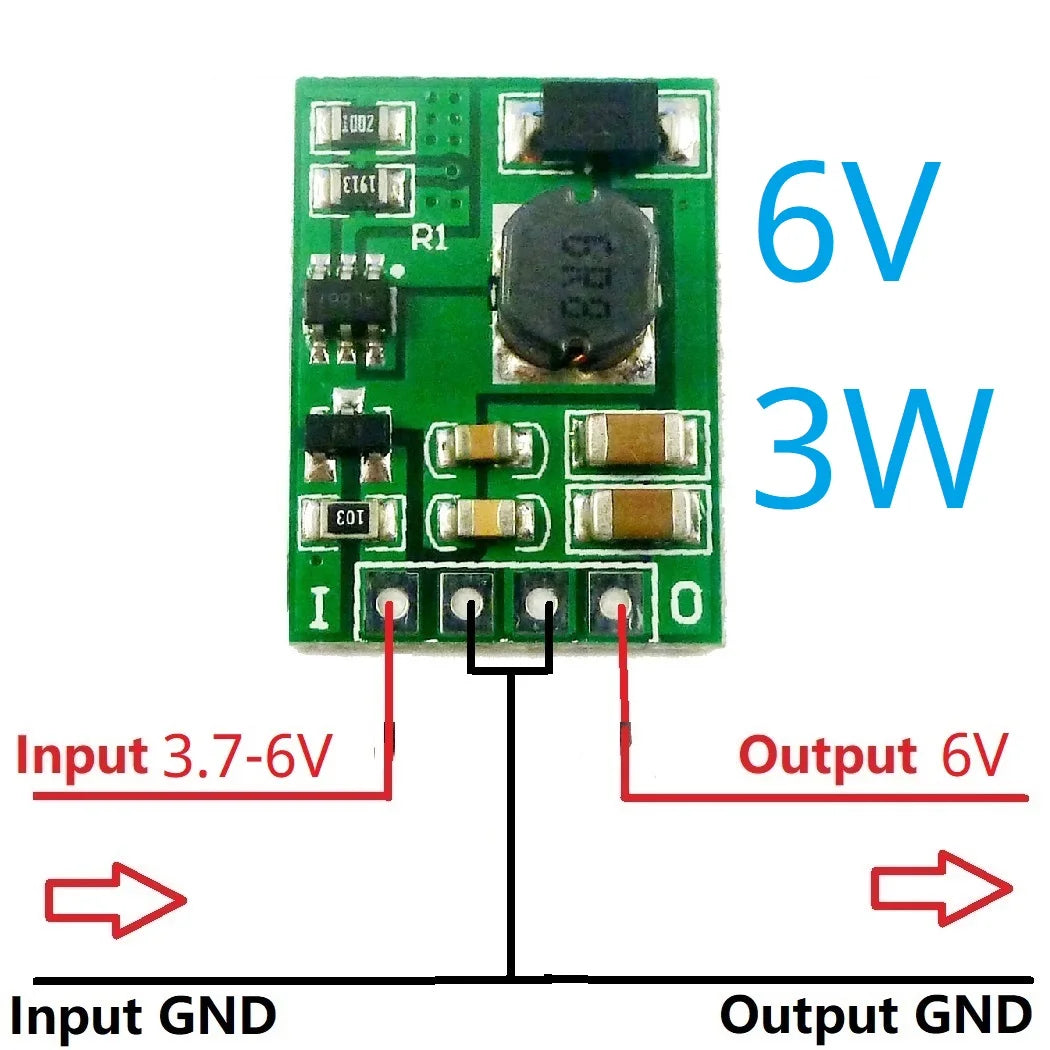

Output 6V :

Input voltage DC
3.7 ~ 6V,output DC 6V±3%

Maximum output : 6V/500MA

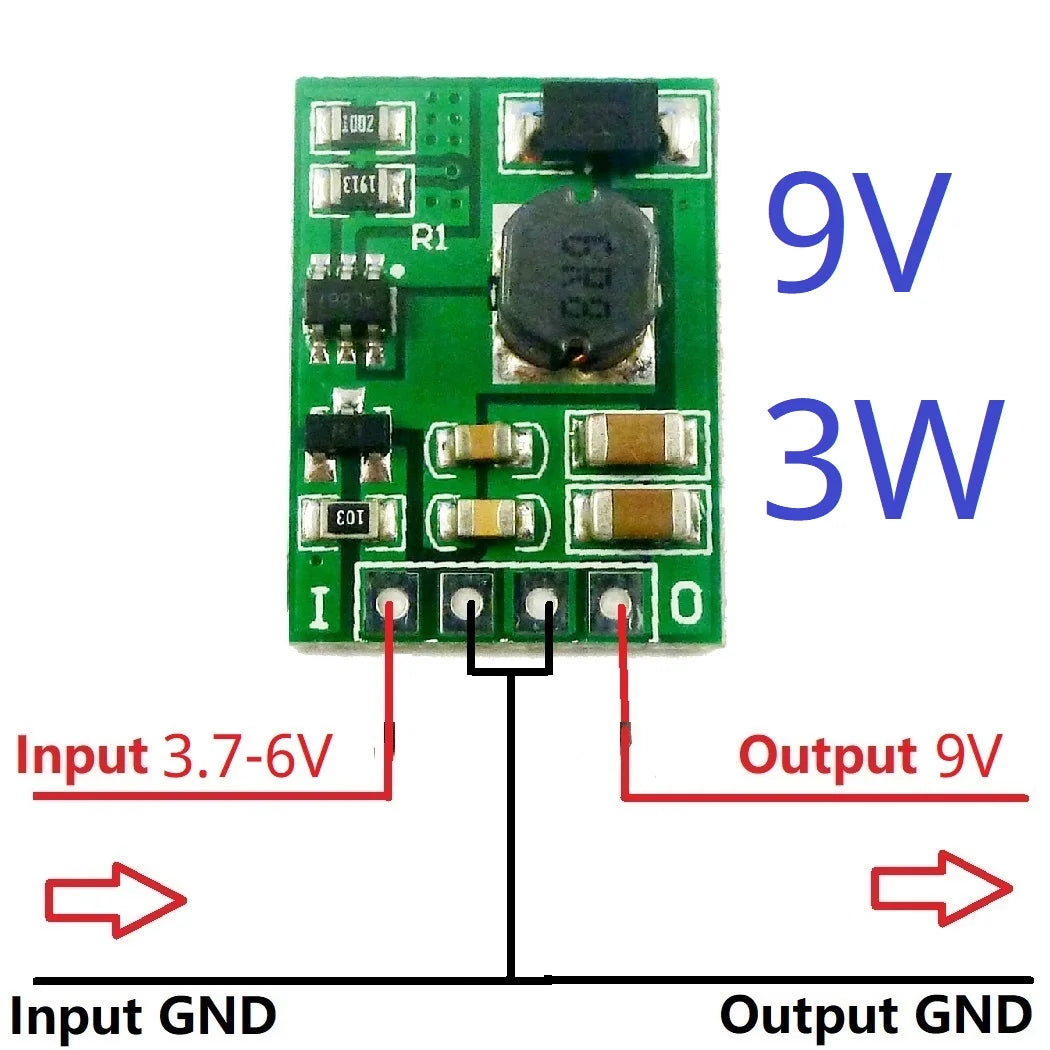

Output 9V :

Input voltage DC
3.7 ~ 6V,output DC 9V±3%

Maximum output : 9V/330MA

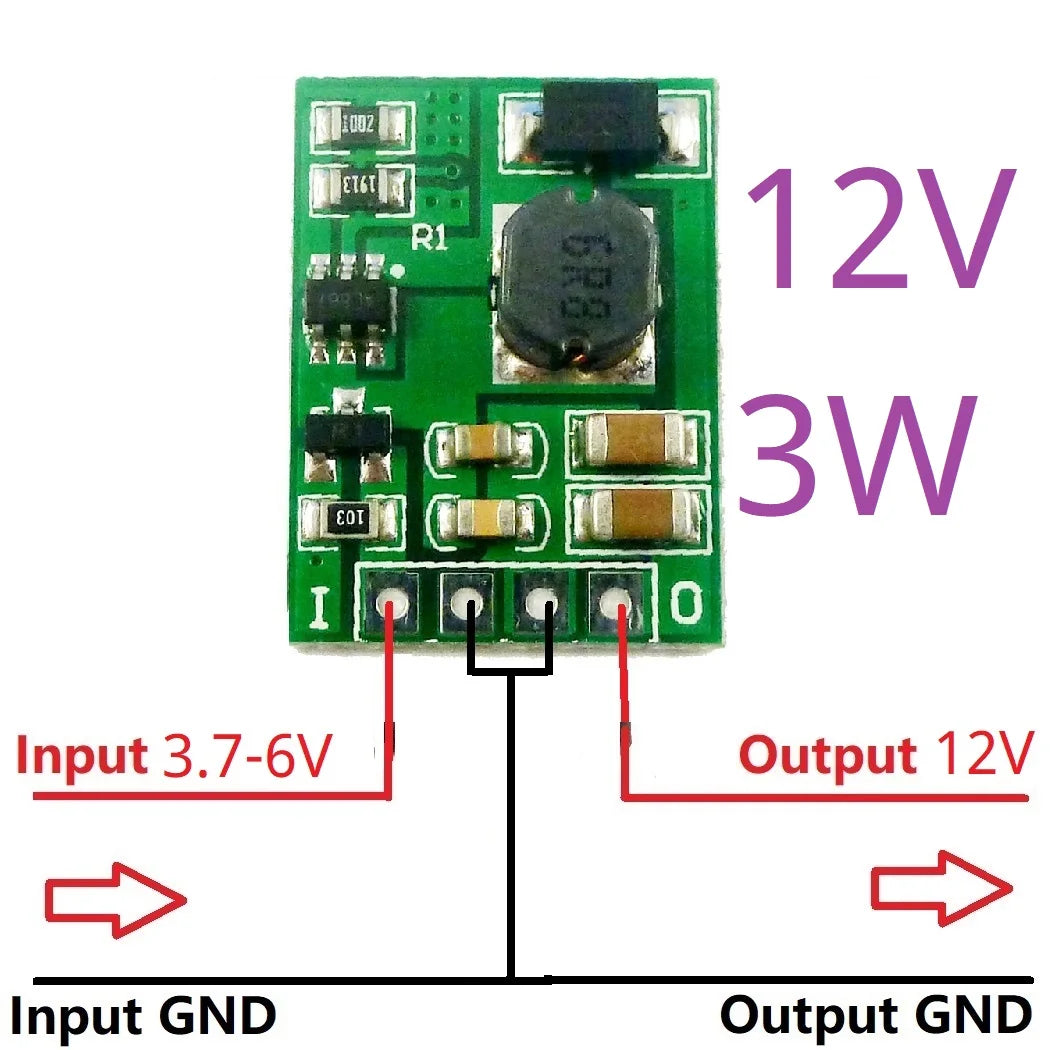

Output 12V :

Input voltage DC
3.7 ~ 6V,output DC 12V±3%

Maximum output : 12V/250MA

Applications

Battery powered equipment

Instrumentation, multimeter

Small power motors

PTZ Camera webcam

IP Camera

Toy car boat

Model aircraft

power bank

LED Lighting

WIFI Router

PLC RS485 devices
