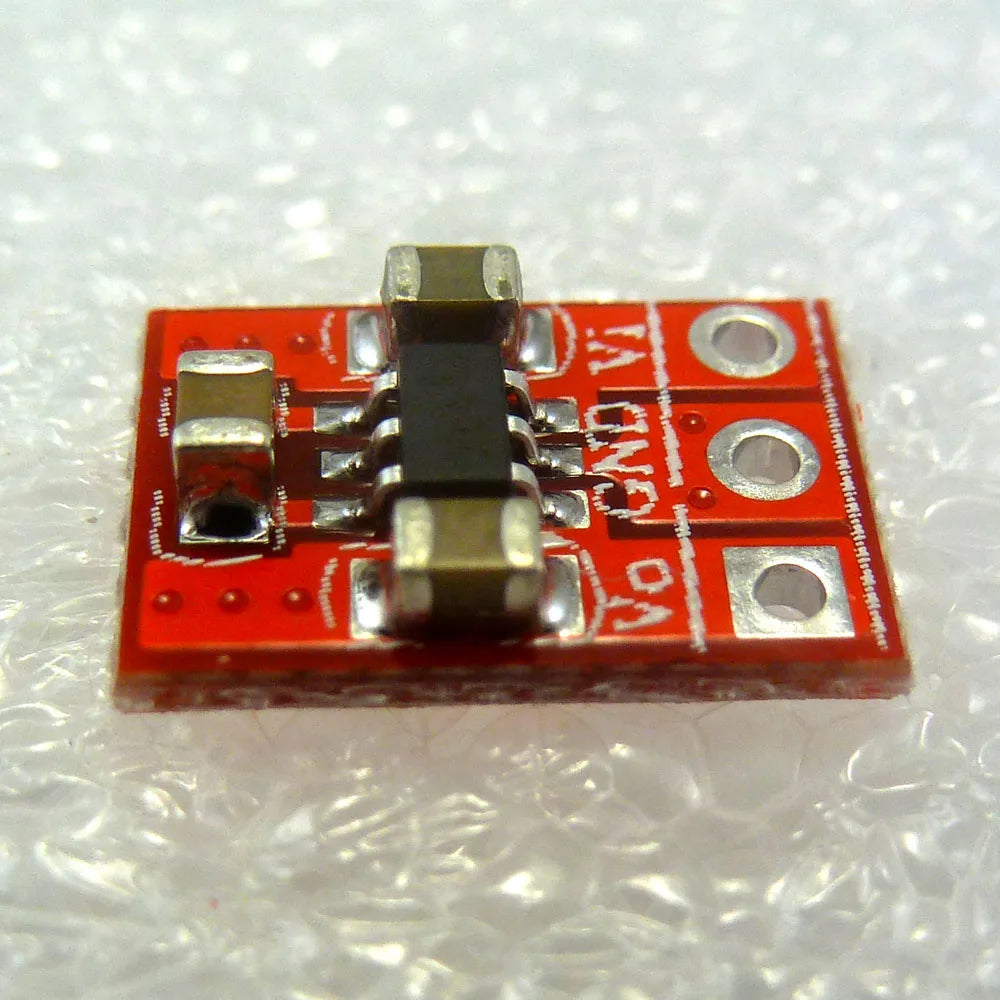

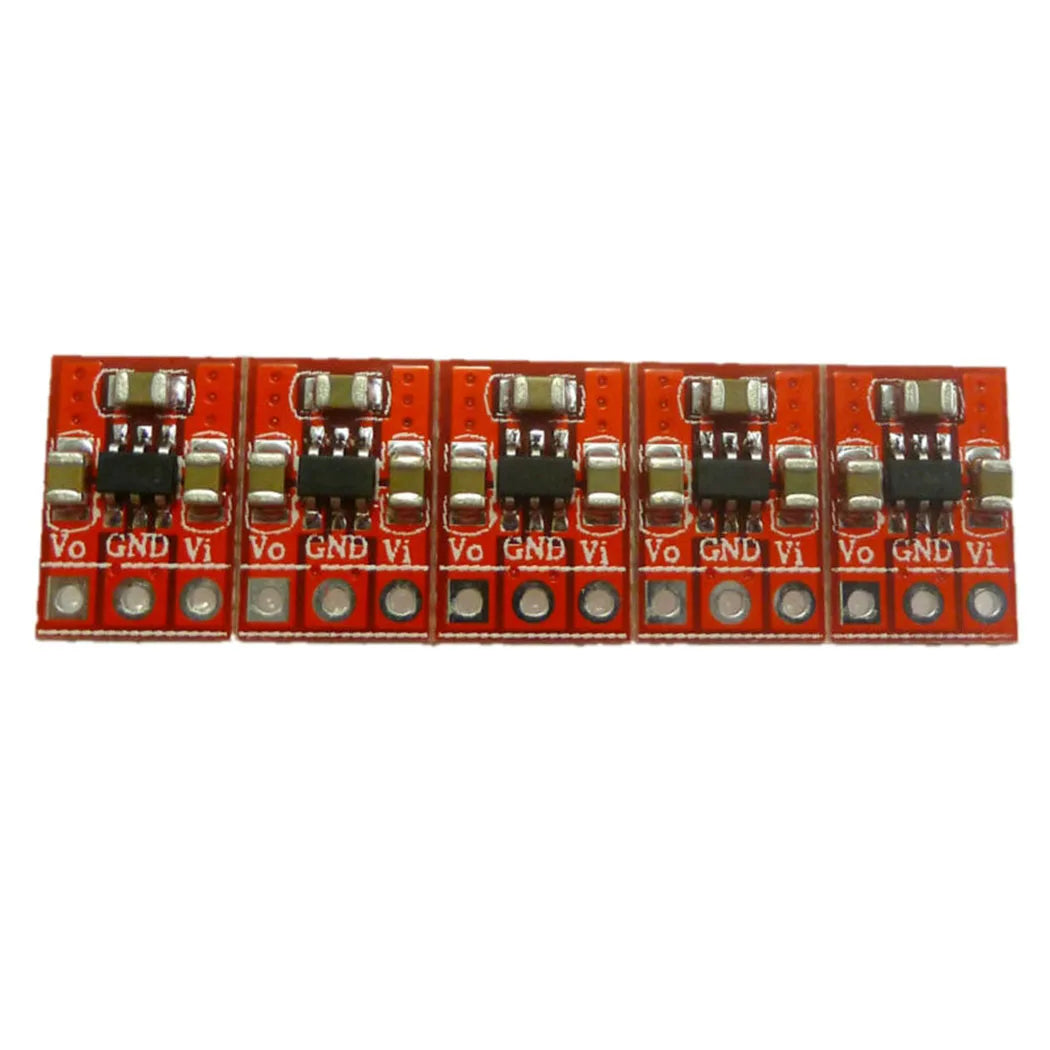

5Pcs DD0505MD 5V Boost Converter – 2.8-4.5V to 5V DC-DC Step-Up Power Module for USB 18650 Power Bank ESP8266 DS18B20 LCD
5Pcs DD0505MD 5V Boost Converter – 2.8-4.5V to 5V DC-DC Step-Up Power Module for USB 18650 Power Bank ESP8266 DS18B20 LCD
Regular price
$8.99 USD
Regular price
$8.99 USD
Sale price
$8.99 USD
Taxes included.
Packing list:
1 PCS DD0505MD SMD 250MA 2.7V-5V to 5V DC DC Boost Converter
This is a micro-power(
only 250MA
) DC-DC Step-Up Converter module.
Description:
Low Noise, Regulated Charge Pump DC/DC Converter
It produce a regulated output voltage from a 2.7V to 4.5V input with up to 250mA of output current
Fixed 5V+-4% Output
Voltage Input Range: 2.7~5V
Long time maximum output current 200mA
Short time maximum output current 250mA
working frequency 1.2MHz.
Short-Circuit Protection
No load input current : 1.8mA
2.54mm pin pitch, Arduiuo Breadboard MCU Development Board friendly

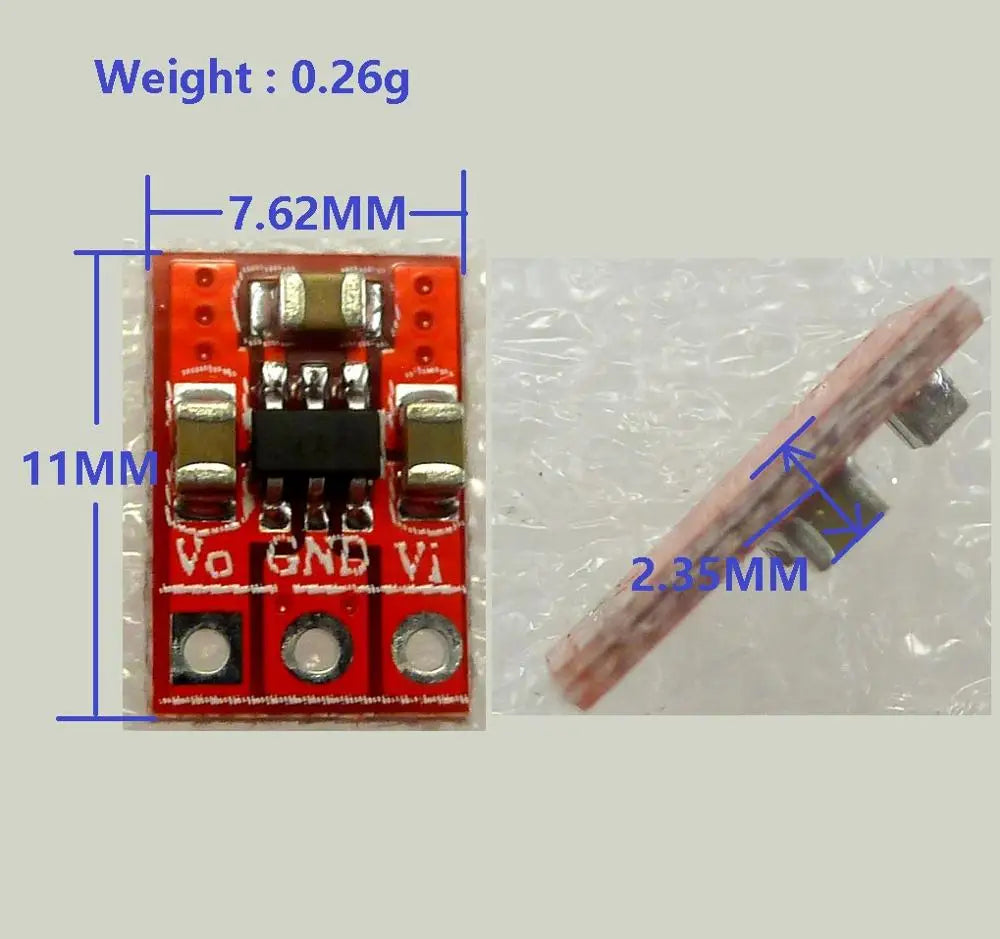

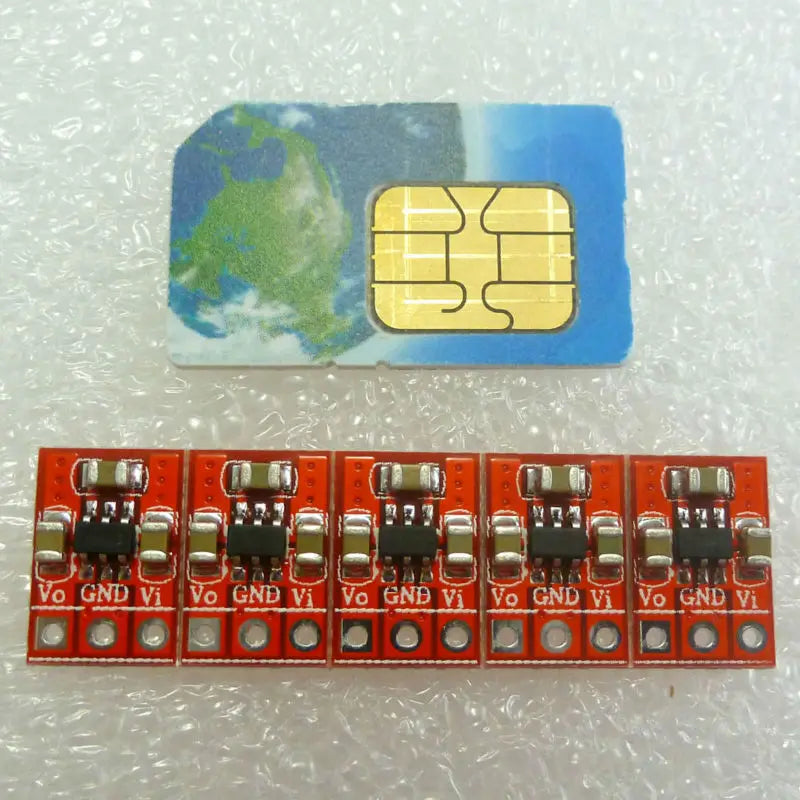

Size 11mm x 7.62mm x 2.4mm(
Very very small
)
Weight : about 0.26g(
Very very light
)
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
