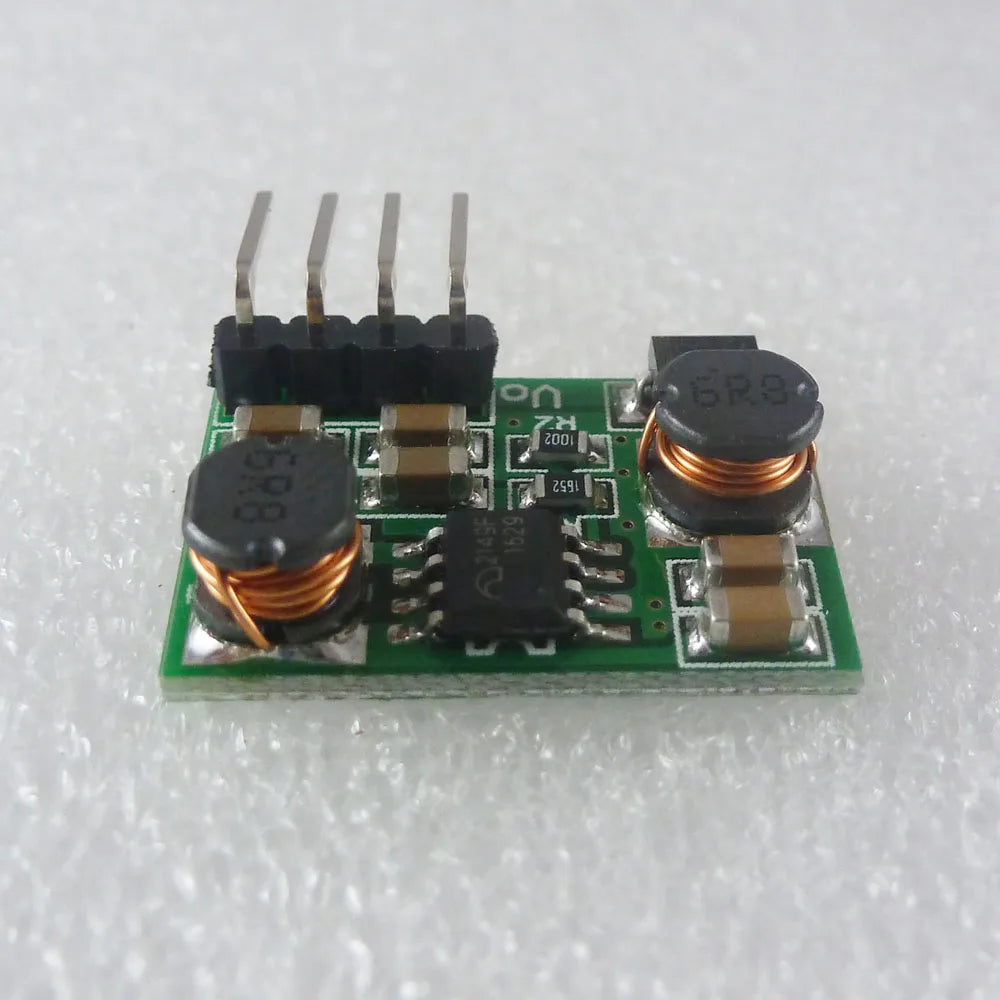

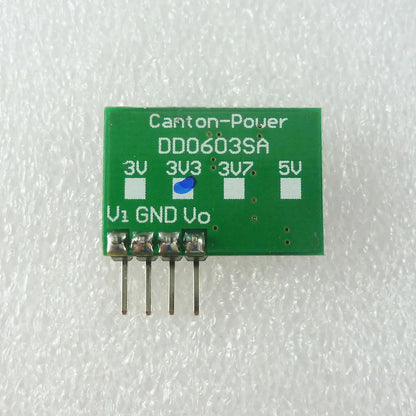

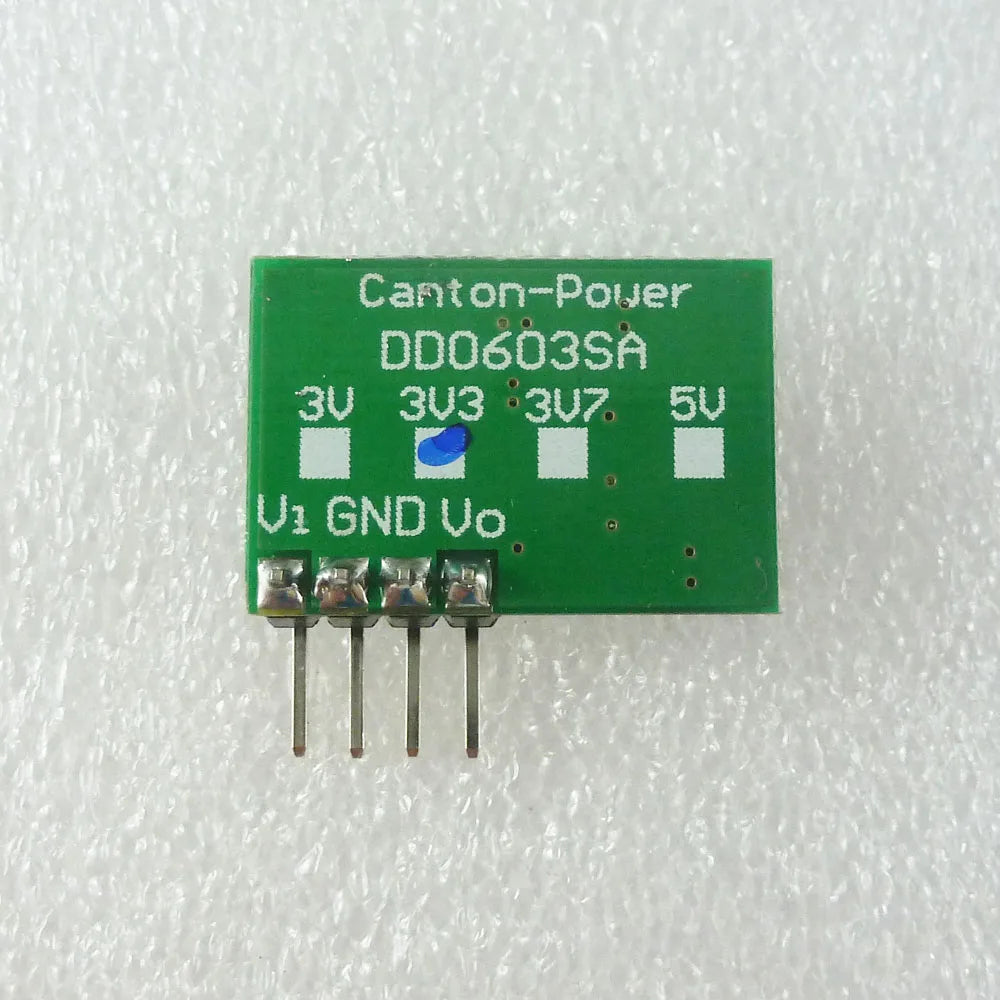

5Pcs DD0603SA_3V3 Auto Buck-Boost Converter – 0.8-6V to 3.3V 2-in-1 Step-Up Down Power Module for ESP8266 HC-05 CC1101 LED DIY

5Pcs DD0603SA_3V3 Auto Buck-Boost Converter – 0.8-6V to 3.3V 2-in-1 Step-Up Down Power Module for ESP8266 HC-05 CC1101 LED DIY

$12.17 USD
$12.17 USD $12.17 USD
Sale Sold out
Taxes included.






Product Name: 5 Pcs 2 In 1 DC DC Step-Down & Step-Up Converter 0.8V-6V to 3.3V Power for Wifi ESP8266 HC-05 CC1101 LED Module


Packing list:

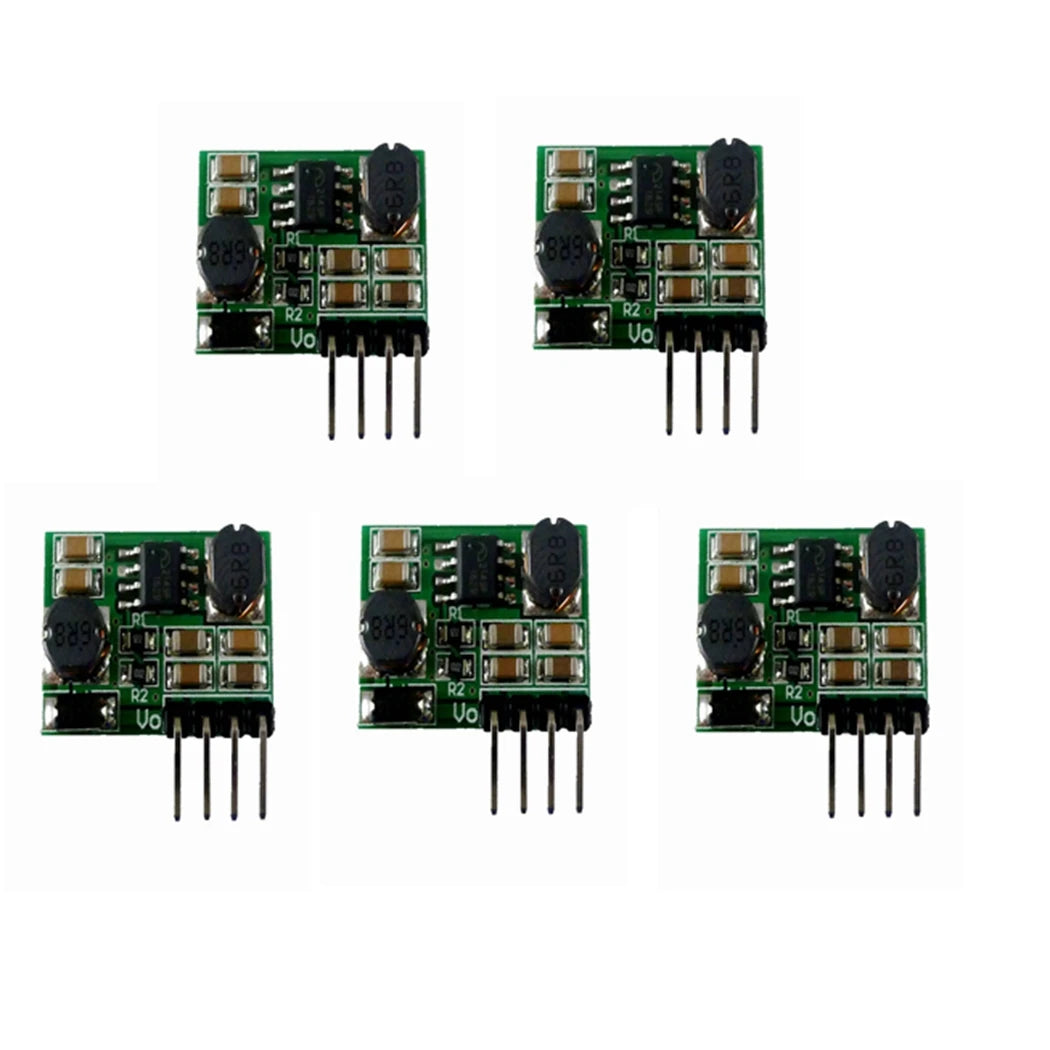

5 PCS DD0603SA_3V3 0.9-6V TO 3.3V DC DC Step-UP Step-Down Converter Board








Description:




Input voltage DC 0.9 ~ 6V, output DC 3.3V(+-5%)


The maximum input voltage can not exceed 6.5V


Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 61%-86% .


Operating temperature range : -25~+85 Degrees Celsius


Storage temperature range : -45~+125 Degrees Celsius


2.54mm pin pitch,MCU Development Board Breadboard friendly.


Size : 22mm x 15mm x 5.7mm(Very small)


Weight : 2.6g(Very light)











Applications


Battery powered equipment


Breadboard Power Supply


ARM FPGA CPLD MCU Development board


ESP8266 nrf24l01 atmega328


electrical tools


Small power motors


Camera, Video camera


Toy car


power bank


LED Lighting


Wireless communication equipment


Audio equipment


Attention :

This is a DC-DC voltage converter module,Must be noted when using:


1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Q & A:



Q : Why output voltage is less than the nominal voltage


A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
