DD3630TA 15W DC-DC Buck Converter – 8-32V to 3.3V/5V/6V/9V/12V Constant Current & Constant Voltage Module for LED Dimming Motor Speed Control
DD3630TA 15W DC-DC Buck Converter – 8-32V to 3.3V/5V/6V/9V/12V Constant Current & Constant Voltage Module for LED Dimming Motor Speed Control
Regular price
$4.46 USD
Regular price
$9.69 USD
Sale price
$4.46 USD
Taxes included.
Product Name : 2.5A Constant current & Constant voltage Module DC-DC Buck Converter 8-32V to 2-30V for LED Motor Driver
Packing list:
1 PCS
2.5A DC-DC Constant current & Constant voltage Module
Description:
Input voltage DC 8~32V,Output Voltage DC 2~30V adjustable;
Constant current adjustable: 0.2-2.5A
Maximum output current 2.5A(Maximum output power 15W)
DC-DC Step-Down Converter module,Constant current and constant voltage output.
Quiescent current: about 2.1mA

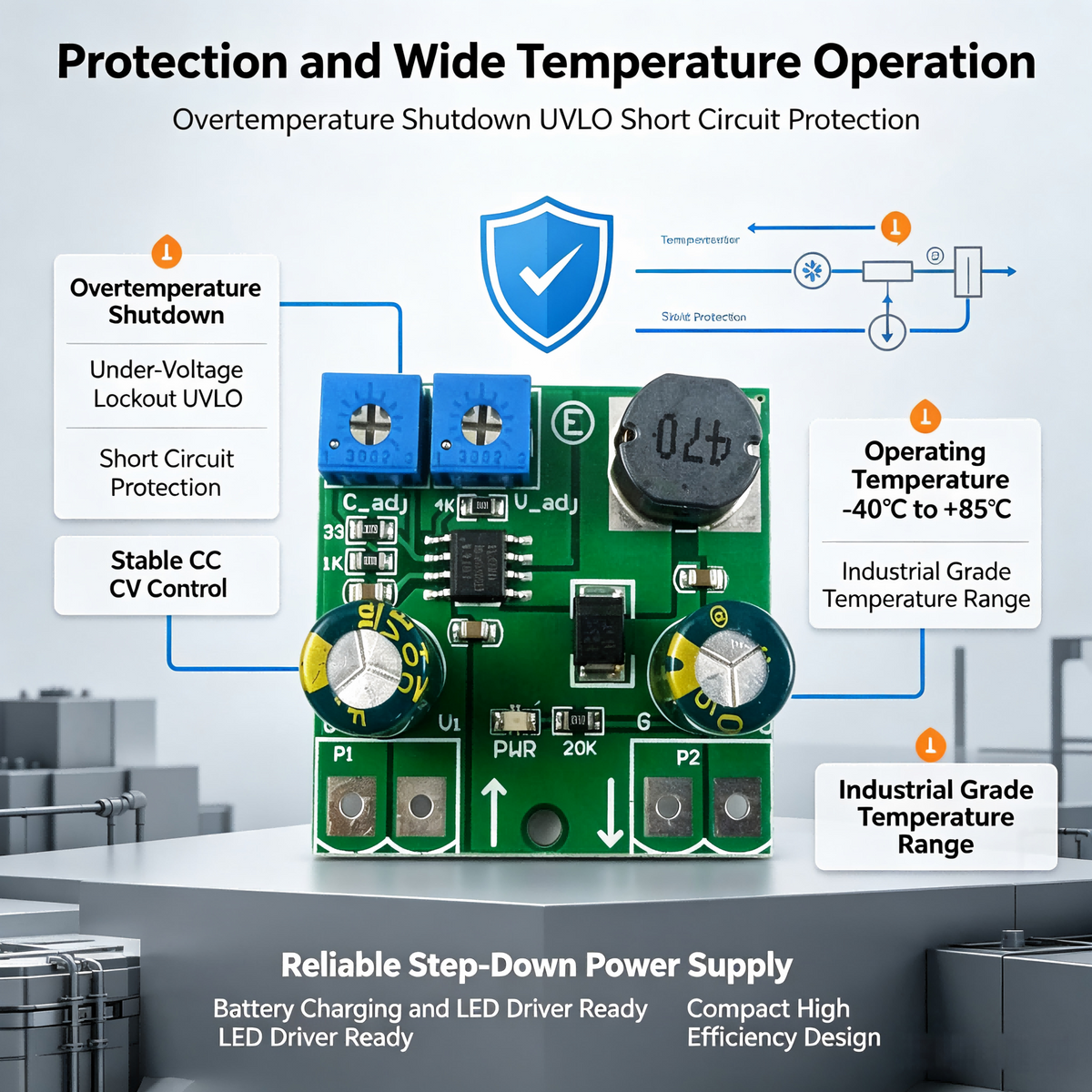

Overtemperature shutdown, Under-Voltage Lockout (UVLO), and short circuit protection.
Operating Temperature :–40°C to +85°C

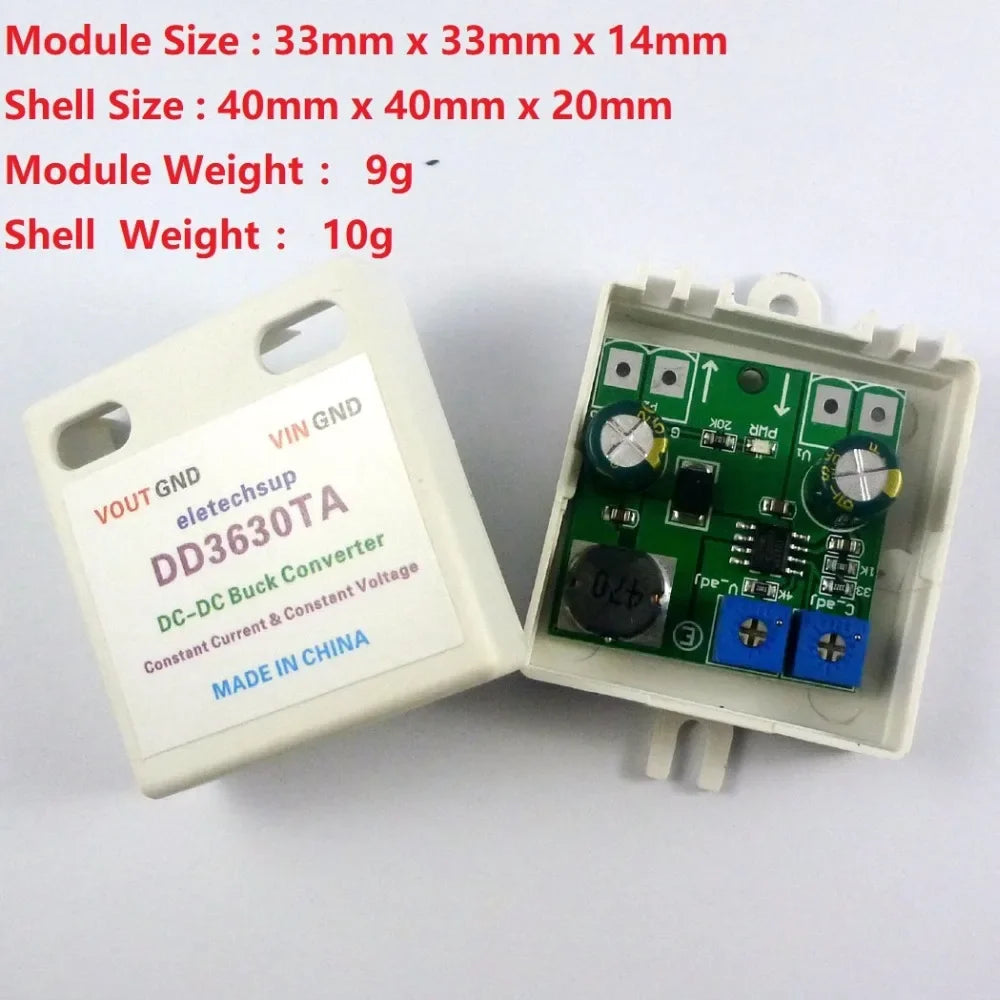

Module Size : 33mm x 33mm x 14mm
Shell Size : 40mm x 40mm x 20mm
Module Weight : 9g
Shell Weight : 10g

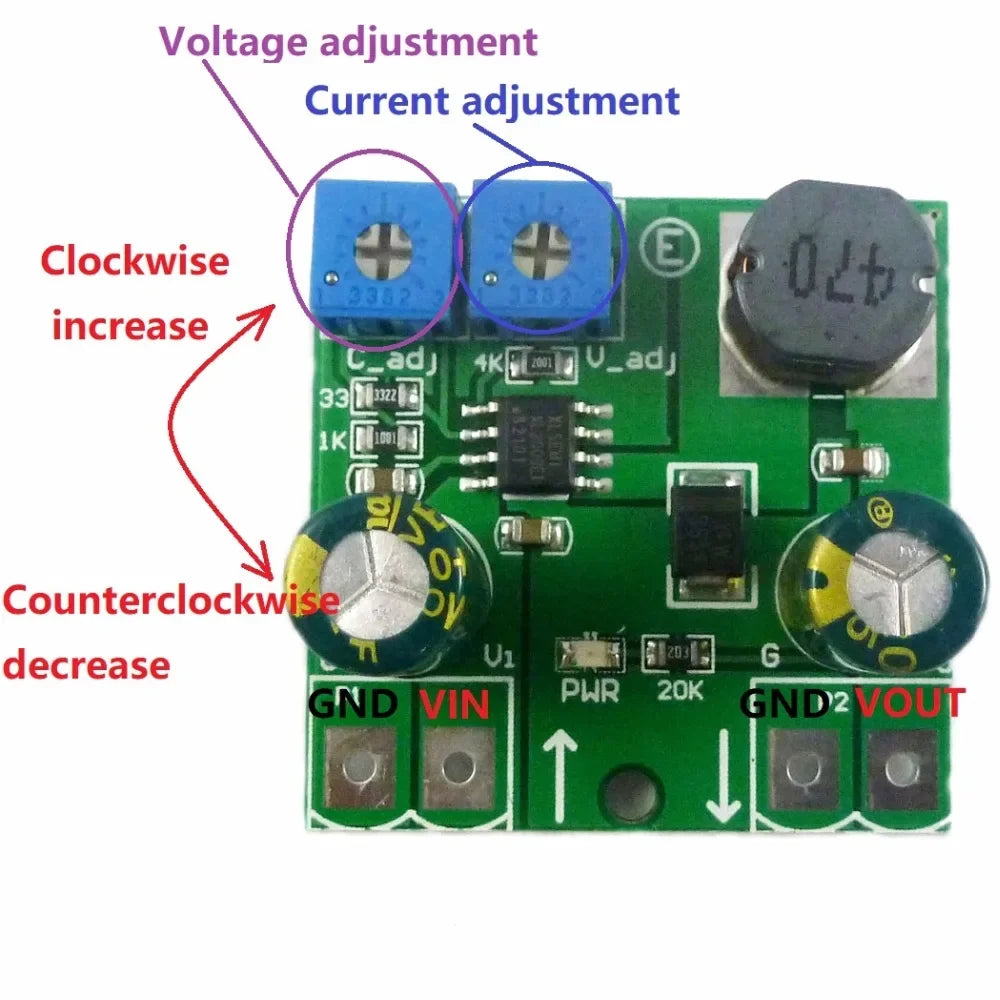

Adjustable resistance description:
V_adj : Adjustable voltage output DC 2-30V(Input Voltgae > Output Voltage),
Increase voltage clockwise and reduce voltage counterclockwise.
C_adj : Adjustable current output 0.2-2.5A(Input Power > Output Power),
Increase current clockwise and reduce current counterclockwise.
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Applications:
MCU ARM STM32 CPU FPGA/CPLD
CCTV camera
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
Relay/Motor drive
LED drive

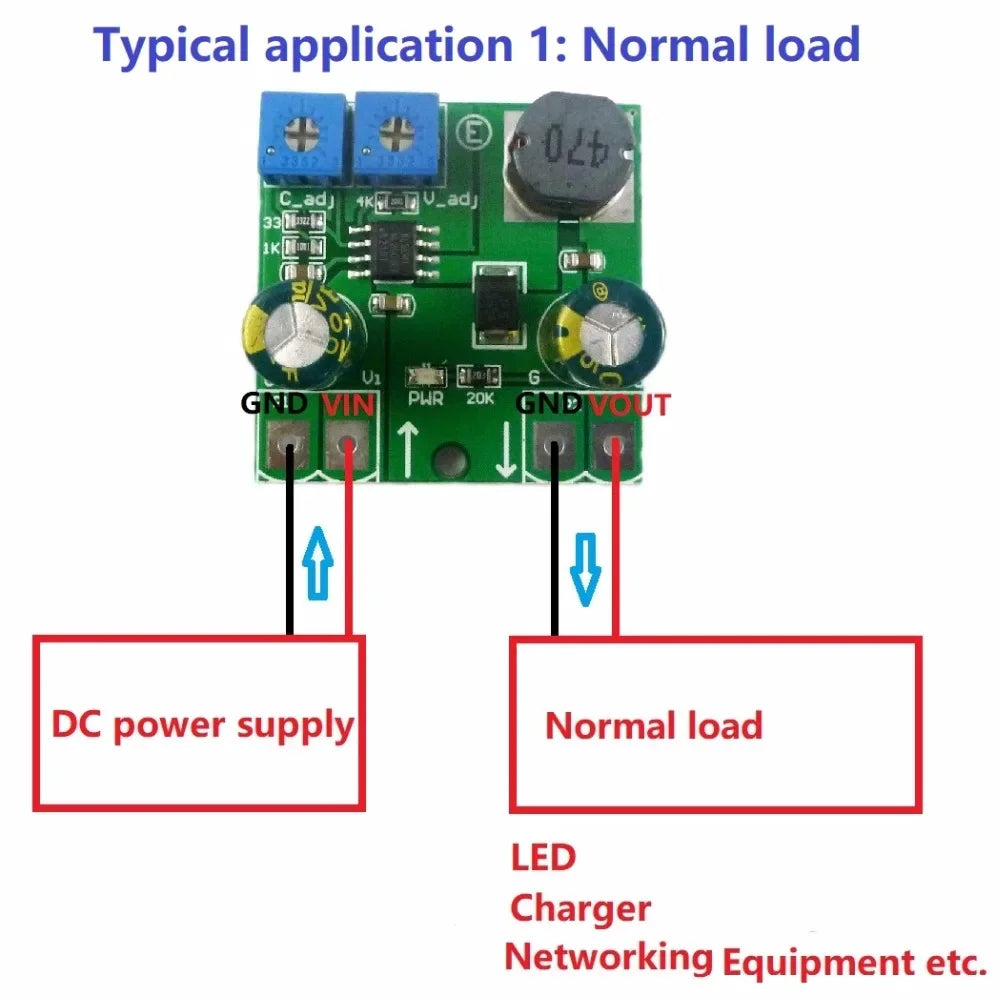

Typical application 1: Normal load(LED/Charger/Networking Equipment etc.)

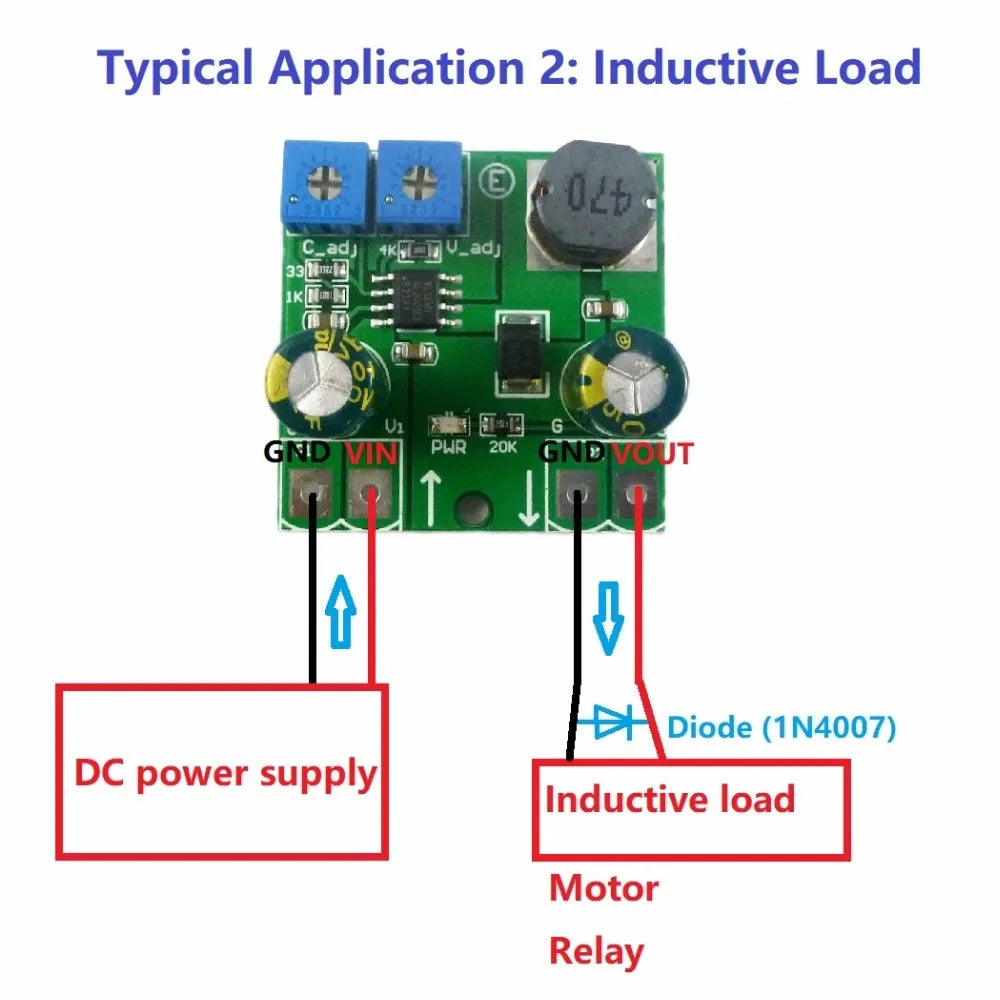

Typical application 2: Inductive load(Motor/Relay etc.)
