DN23E08/DN24F08 8DI-8AI-8DO IO Expansion Board for Arduino Nano V3.0 – RS485 Modbus RTU PLC Module with 4-20mA/0-10V Analog Input
DN23E08/DN24F08 8DI-8AI-8DO IO Expansion Board for Arduino Nano V3.0 – RS485 Modbus RTU PLC Module with 4-20mA/0-10V Analog Input
Regular price
$26.01 USD
Regular price
$26.01 USD
Sale price
$26.01 USD
Taxes included.
Product Name:
RS485 PLC IO Expanding Board for ARDUINO NANO with 8 Digital Inputs & 8 Analog Inputs (4-20MA, 0-5V/0-10V)
Package inlcuded(Ship according to the item you purchased):
1 PCS 8DI-8AI Button Digital Tube RS485 Expanding Board for NANO V3.0
Product Features:
1 Operating voltage: DC 12V/24V
2 Operating Current : Standby current (Digital tube OFF) 12MA, Standby current 49MA (Digital tube ON), 1 relay open 75MA, 2 relays open 105MA, 3 relays open 131MA, 4 relays open 163MA,5 relays open 184MA, 6 relays open 210MA, 7 relays open 256MA, 8 relays open 289MA

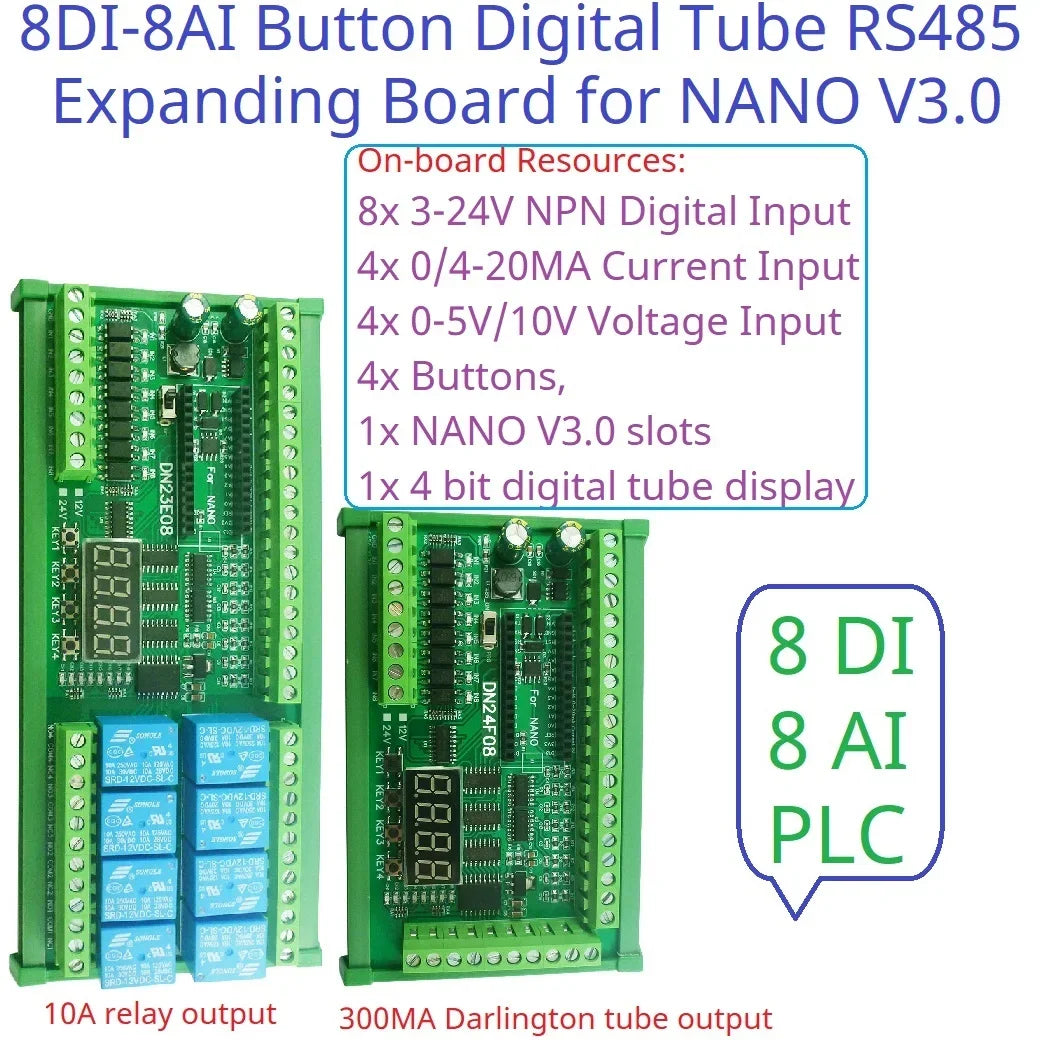

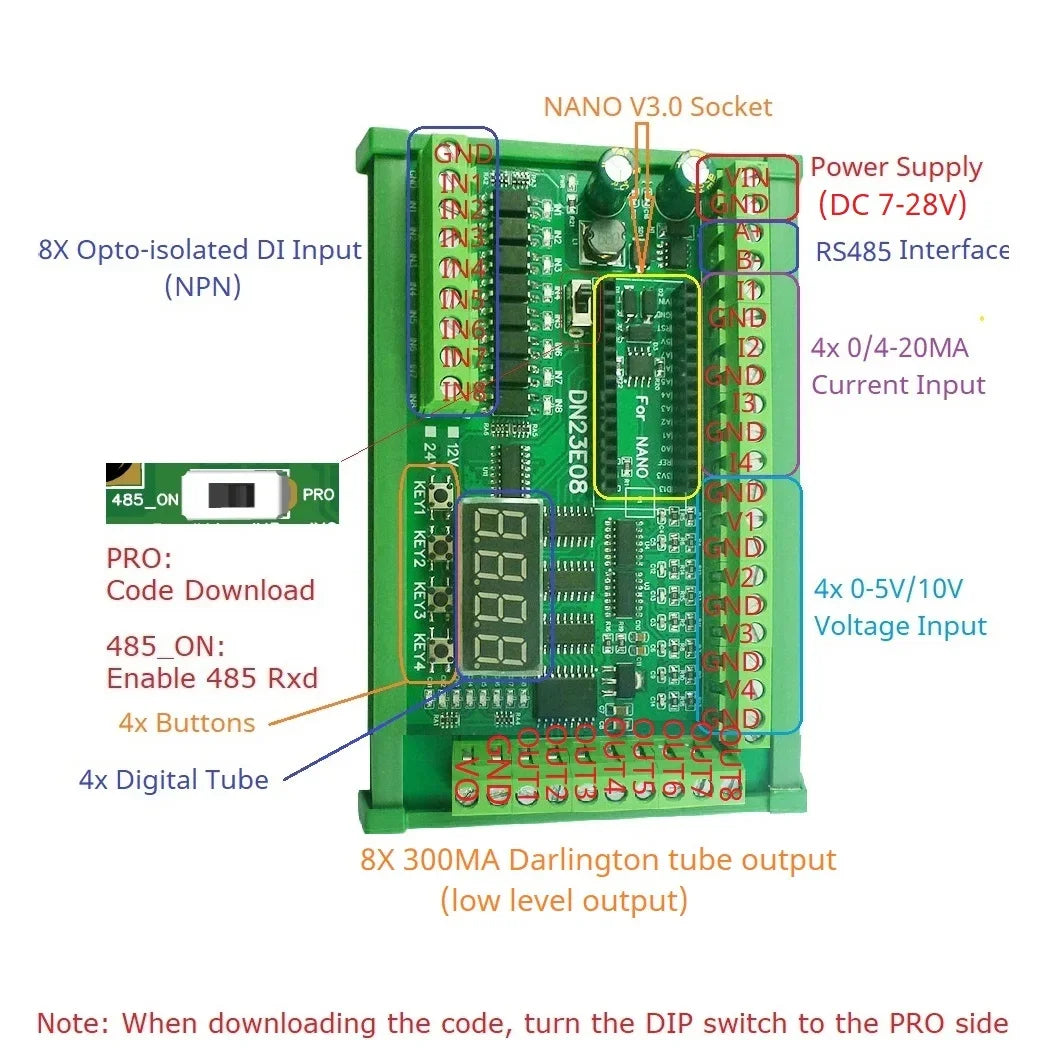

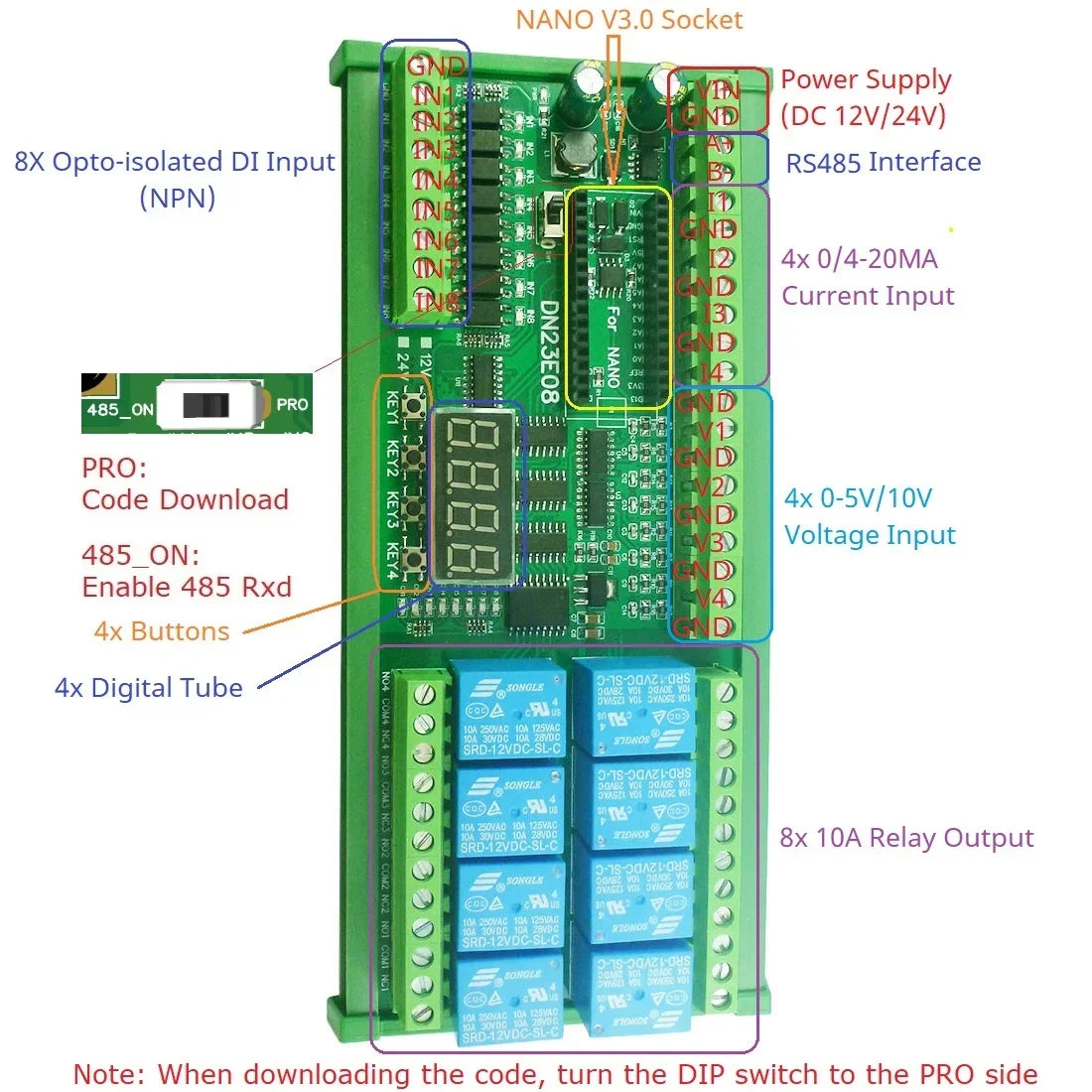

3 on-board resources: 1x RS485 Interface 8x opto-isolated inputs (low level trigger, NPN type), 4x 0/4-20MA Current Input,4x 0-5V/10V Voltage Input,4x buttons, 1x 4 bit digital tube display, 1x NANO V3.0 slots, 8x relay outputs(or 8x 300MA Darlington Tube Output)

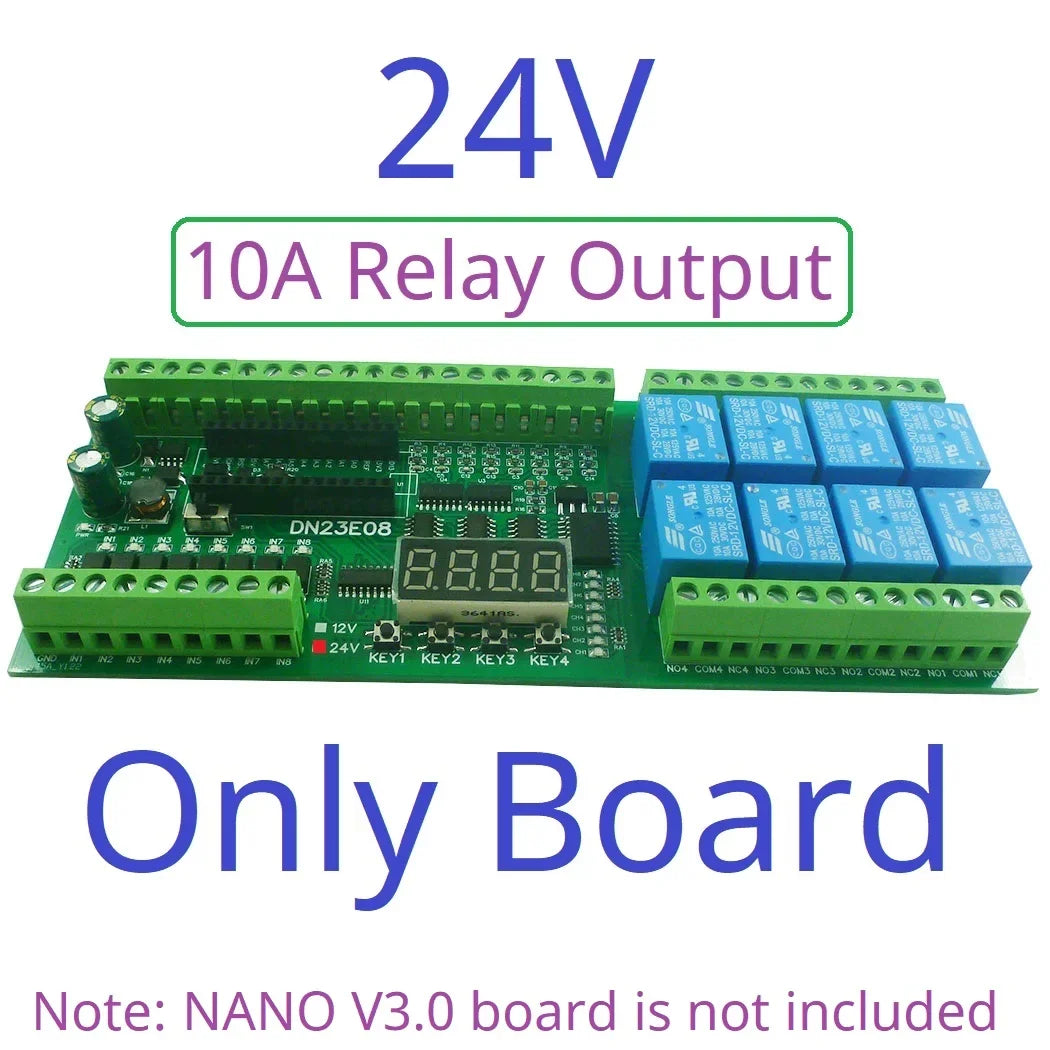

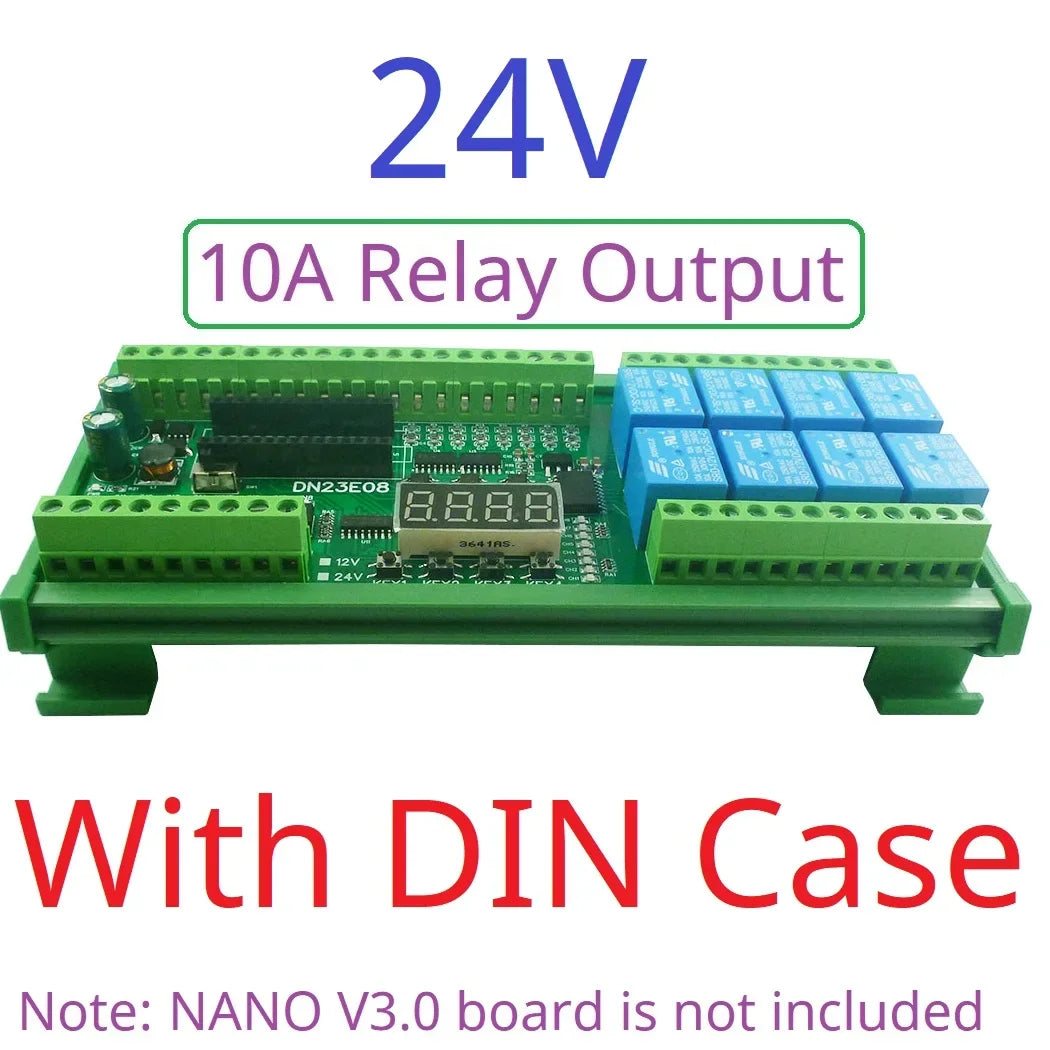

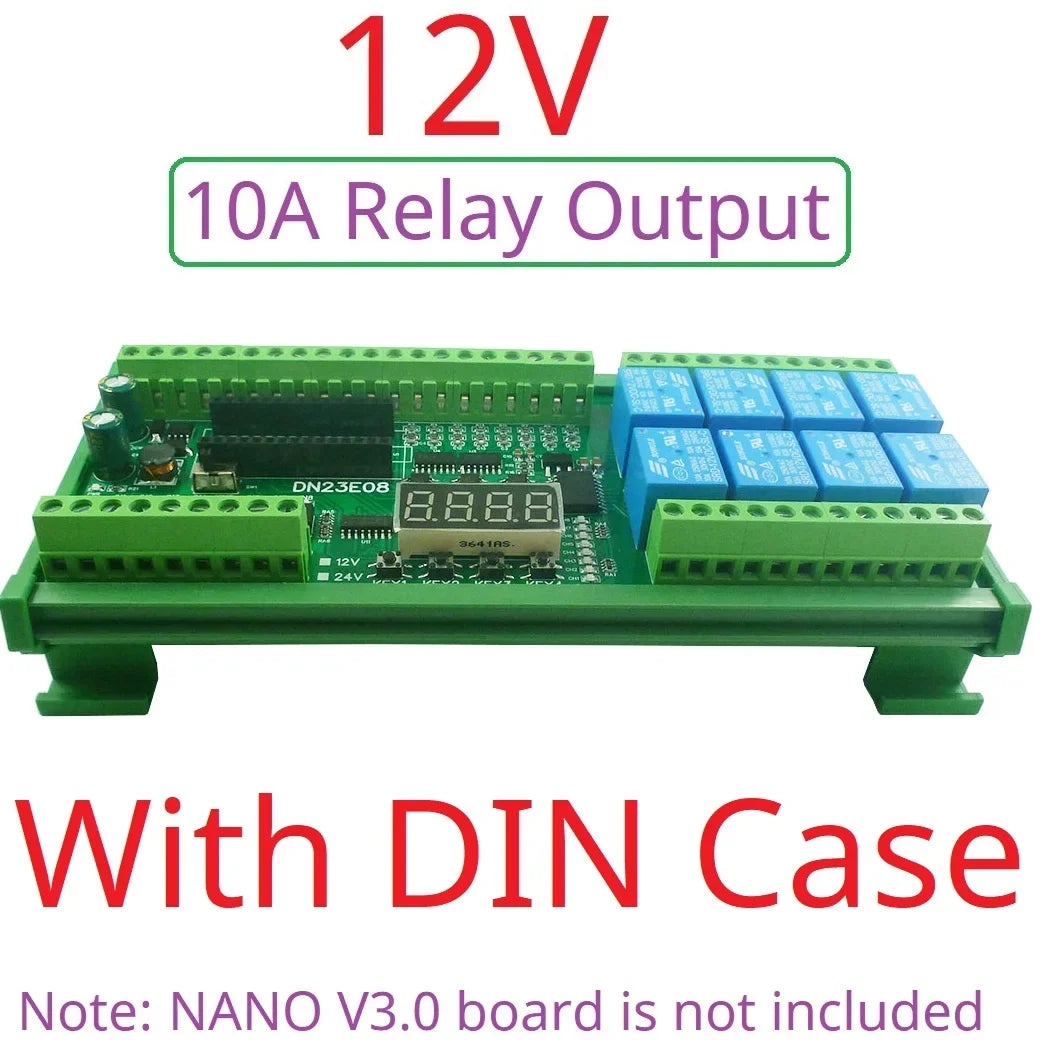

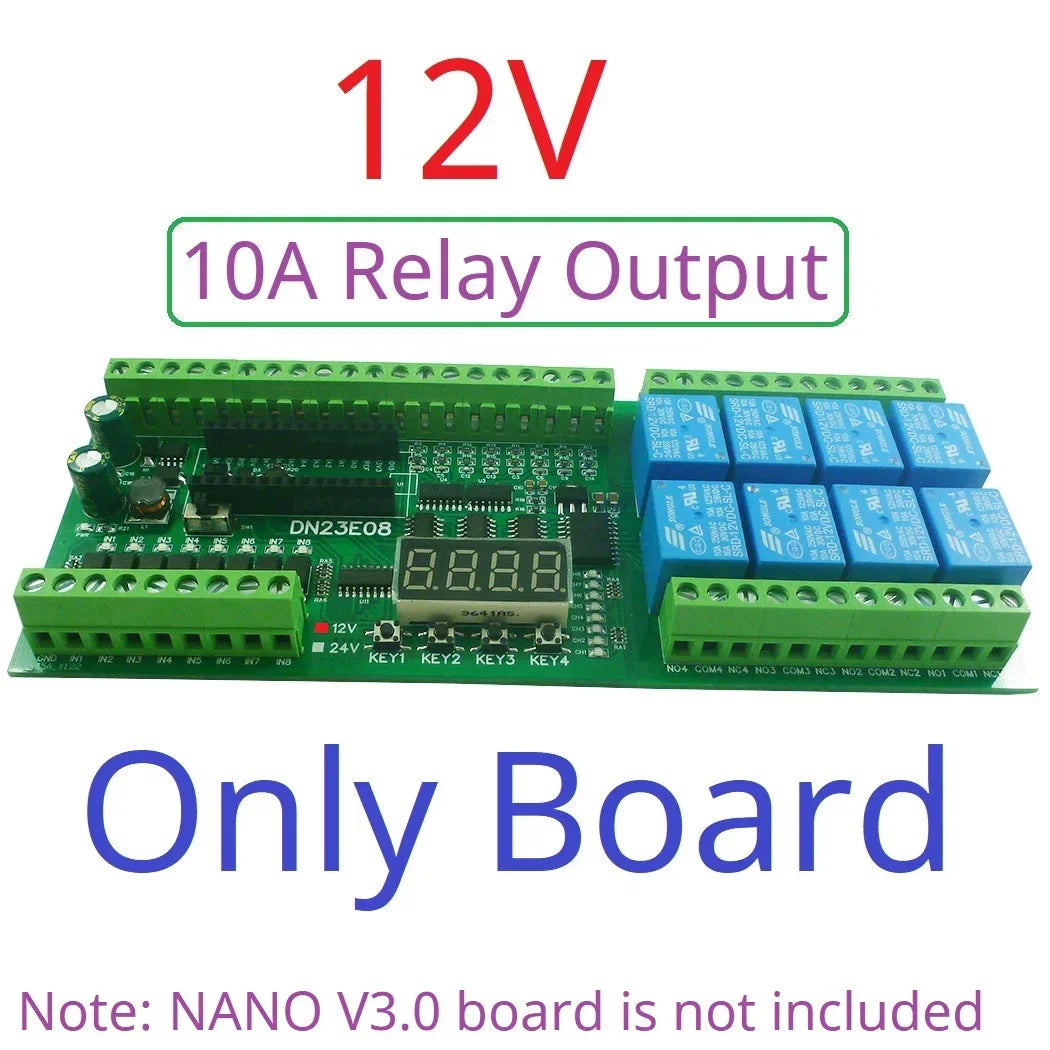

DN23E08
Relay Module:
4 size 180*72*19mm(Only Board)
5 Weight : 184g(Only Board), 312g(with shell)

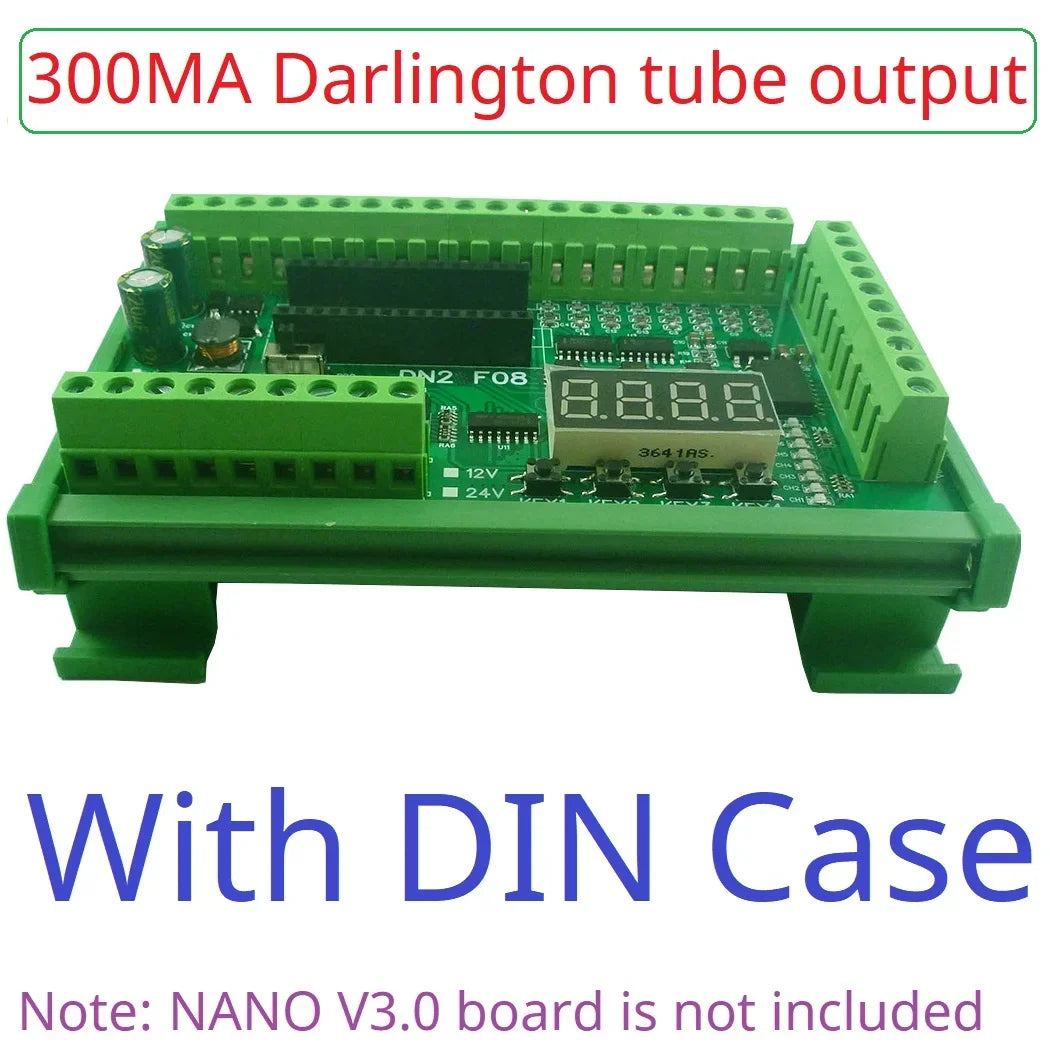

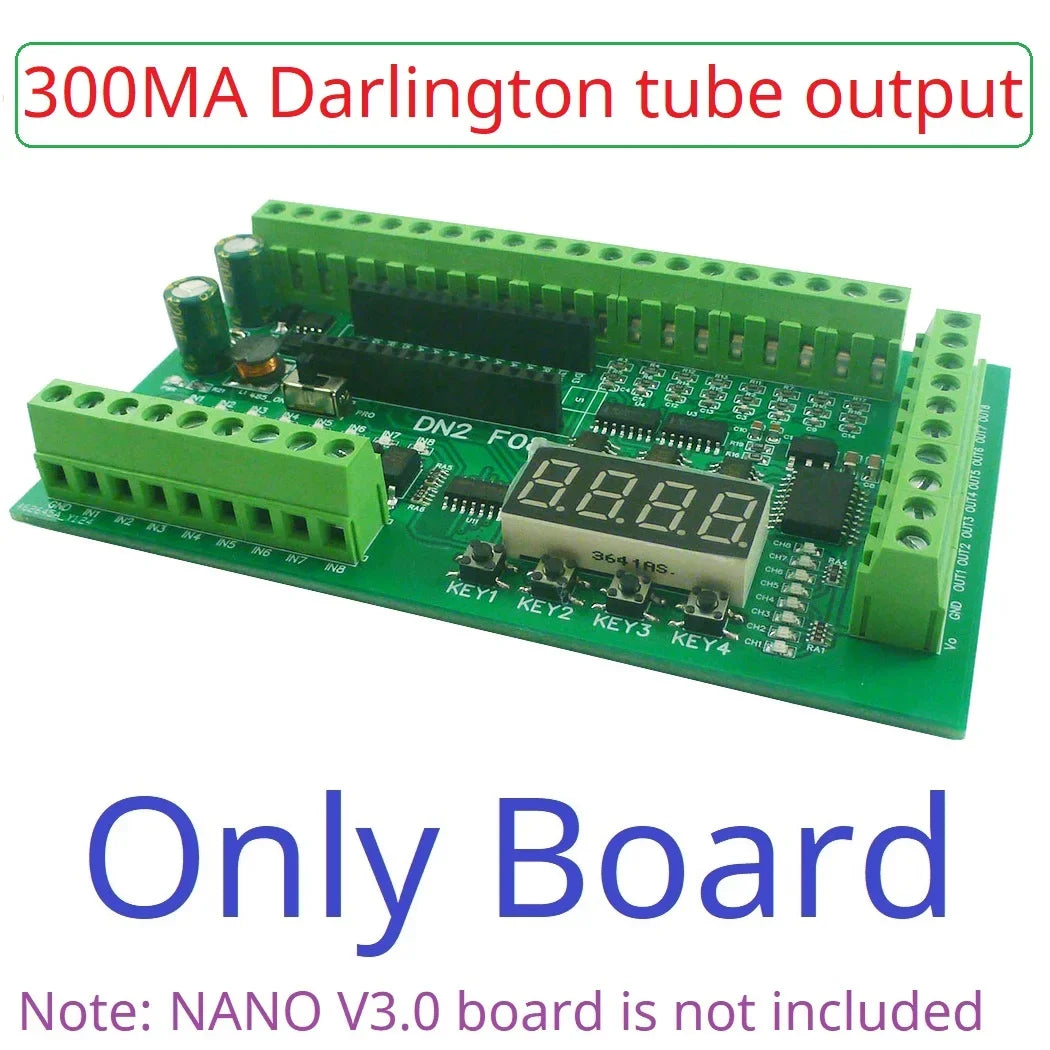

DN24F08
Darlington tube Module:
4 size 123*72*19mm(Only Board)
5 Weight : 91g(Only Board), 182g(with shell)
This is an expansion board based on NANO V3.0, and the code(sketch) we provide is only used to test the experimental hardware.
If you need more functionality, write your own code. We do not provide additional code(sketch) and technical support
How to use: See video '' DN23E08 DN24F08 Current_Voltage_RS485 Demo''
'' DN23E08 DN24F08 Delay Relay Demo''(You can search for videos on Googel)
Note: DN23E08/DN24F08

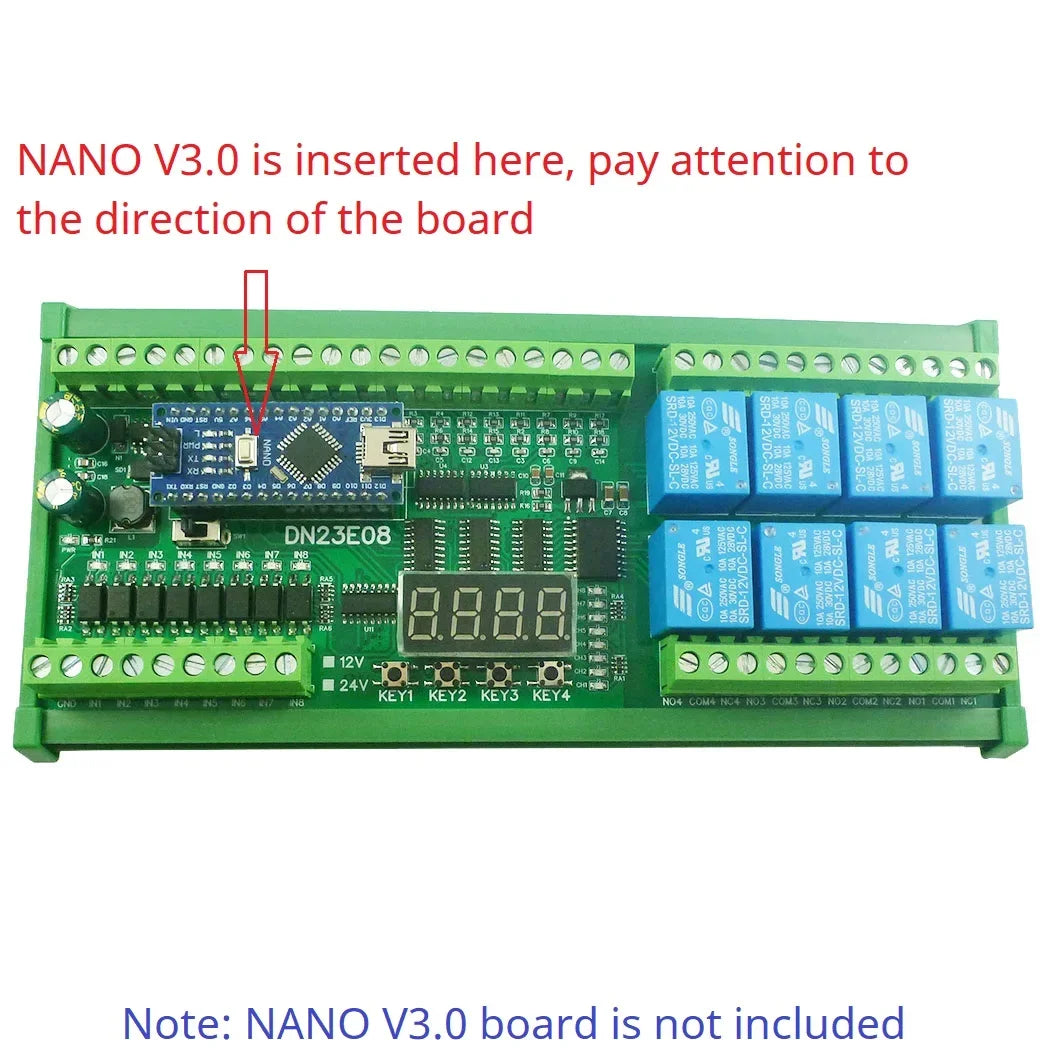

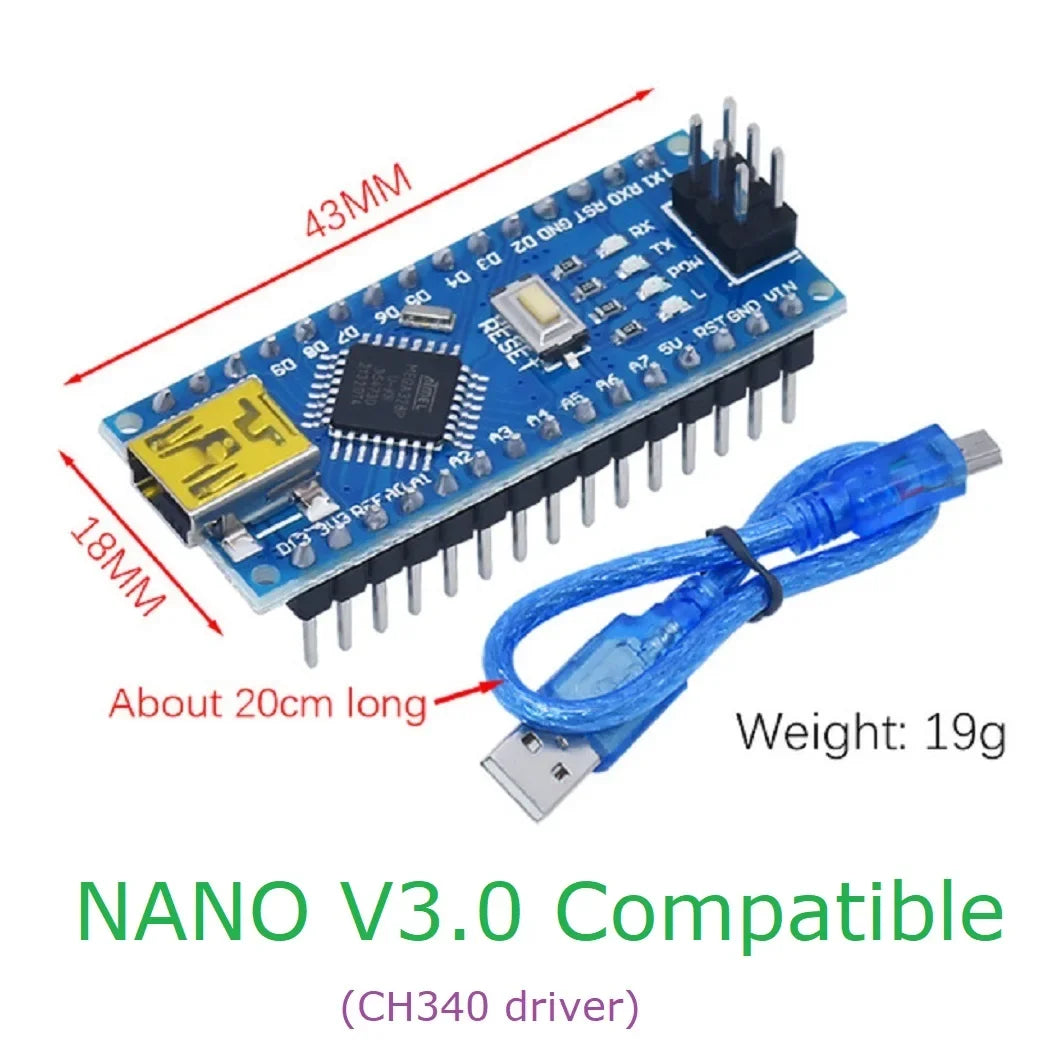

can not work independently, must be under the control of the NANO V3.0 board to work,If you do not have a NANO V3.0 board, purchase it separately or purchase a kit with NANO V3.0
Application examples:
As long as you write ARDUIUO code(sketch),You can use it to achieve a variety of delay timer function,such as:
RS485 Master-Slave Device(PLC MCU)
4x 0/4-20MA Current Collection,
4x 0-5V/10V Voltage Collection,
Motor forward and reverse,
Timing on,
Timing off,
Power-up delay,
Trigger delay,
Infinite loop delay,
A finite number of cyclic delays,
Power sequencer,
And so on.

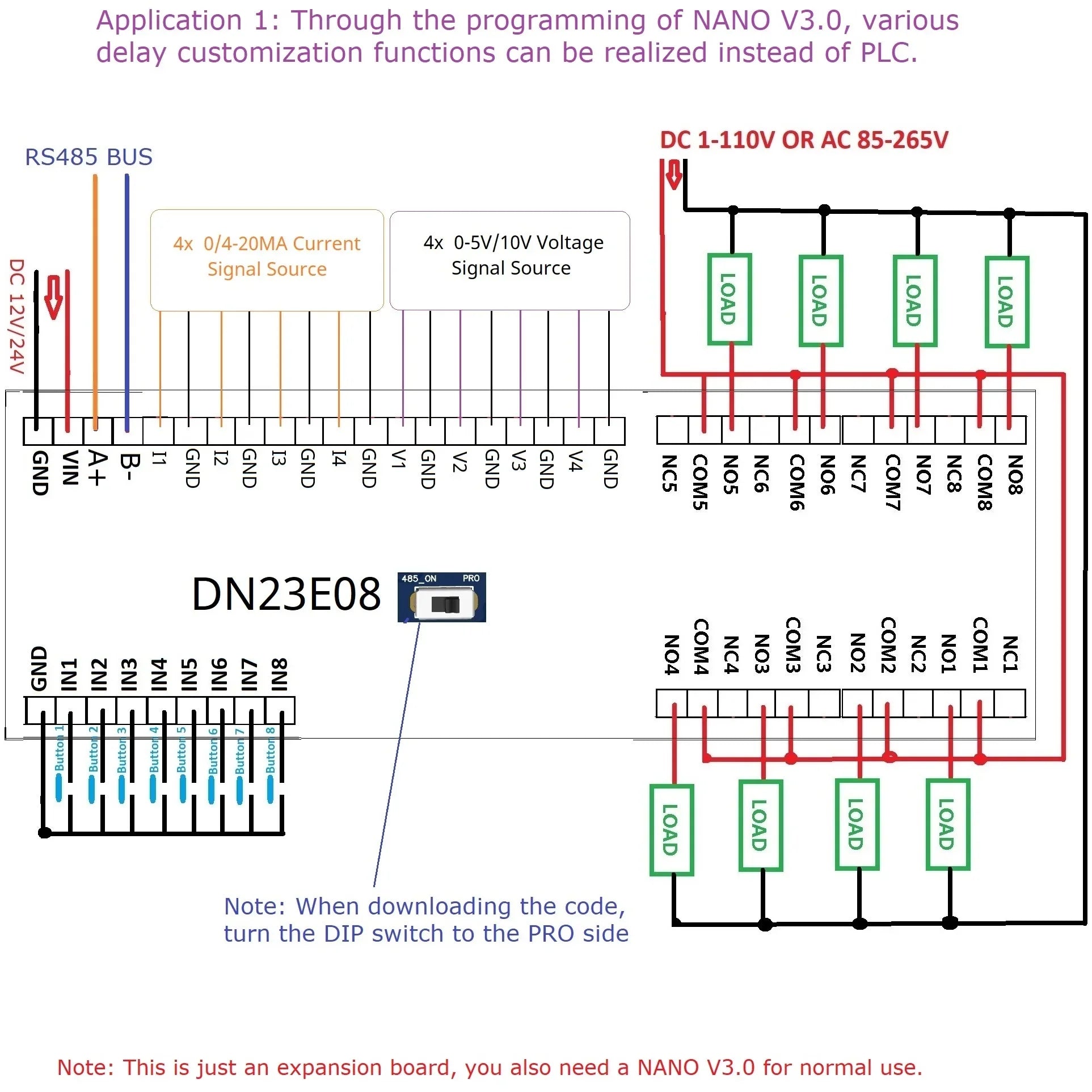

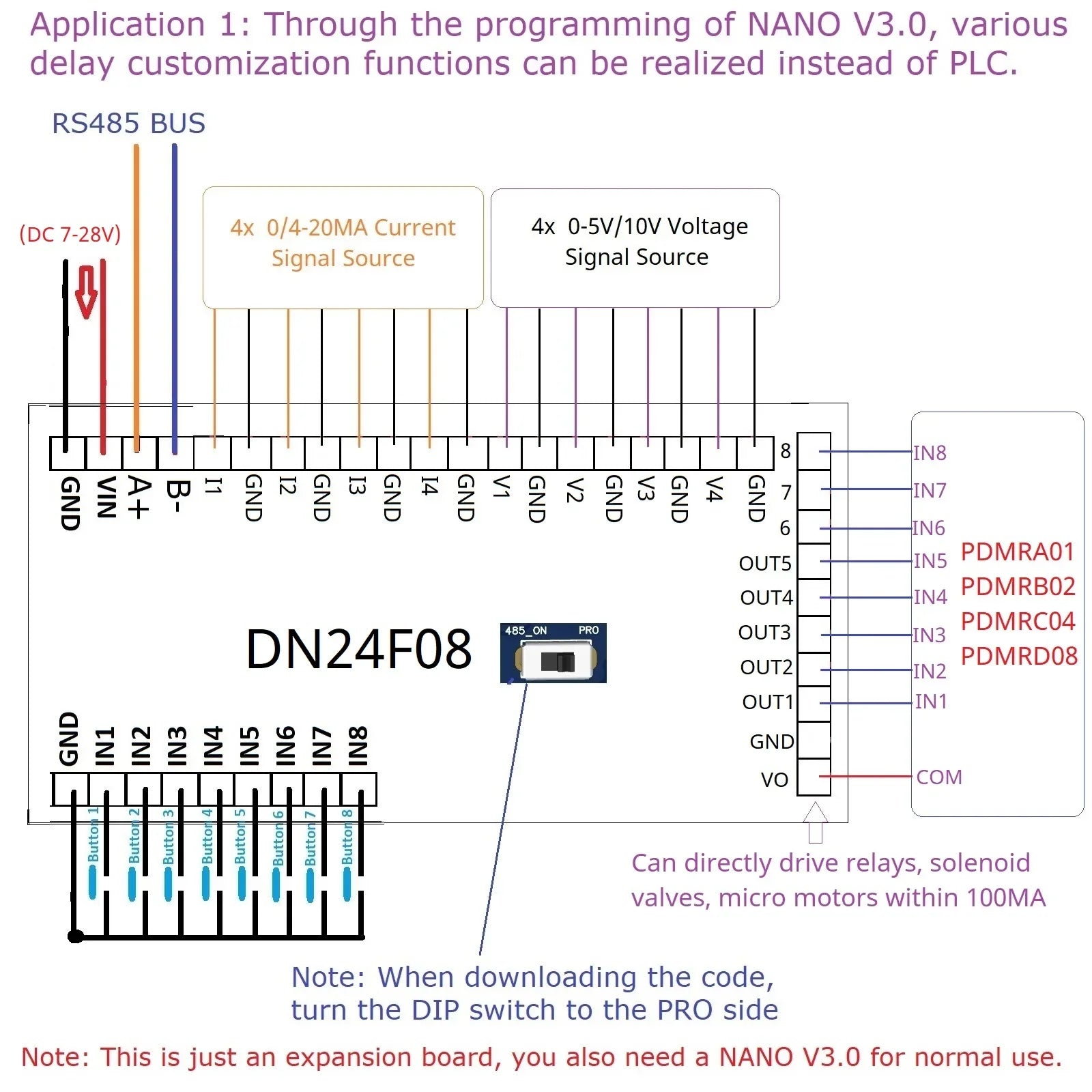

Application 1: Through the programming of NANO V3.0, various delay customization functions can be realized instead of PLC.
Application 2: It can be used as an RS485 master device instead of PLC/PC/touch screen to control various RS485 slave devices.
