This is a ESP32 S3 DIN Rail expansion board, which leads out all the IO ports.
Terminal spacing: 3.96mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.

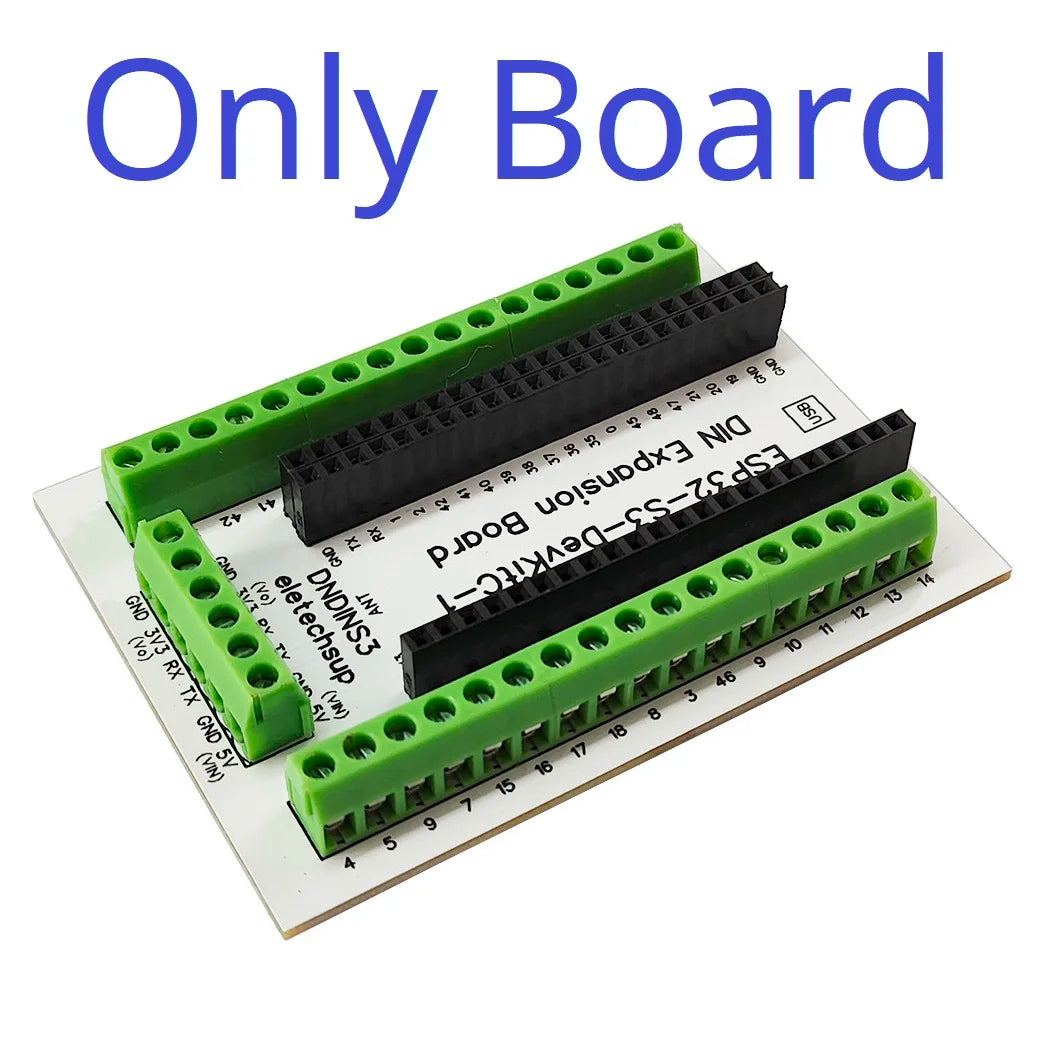

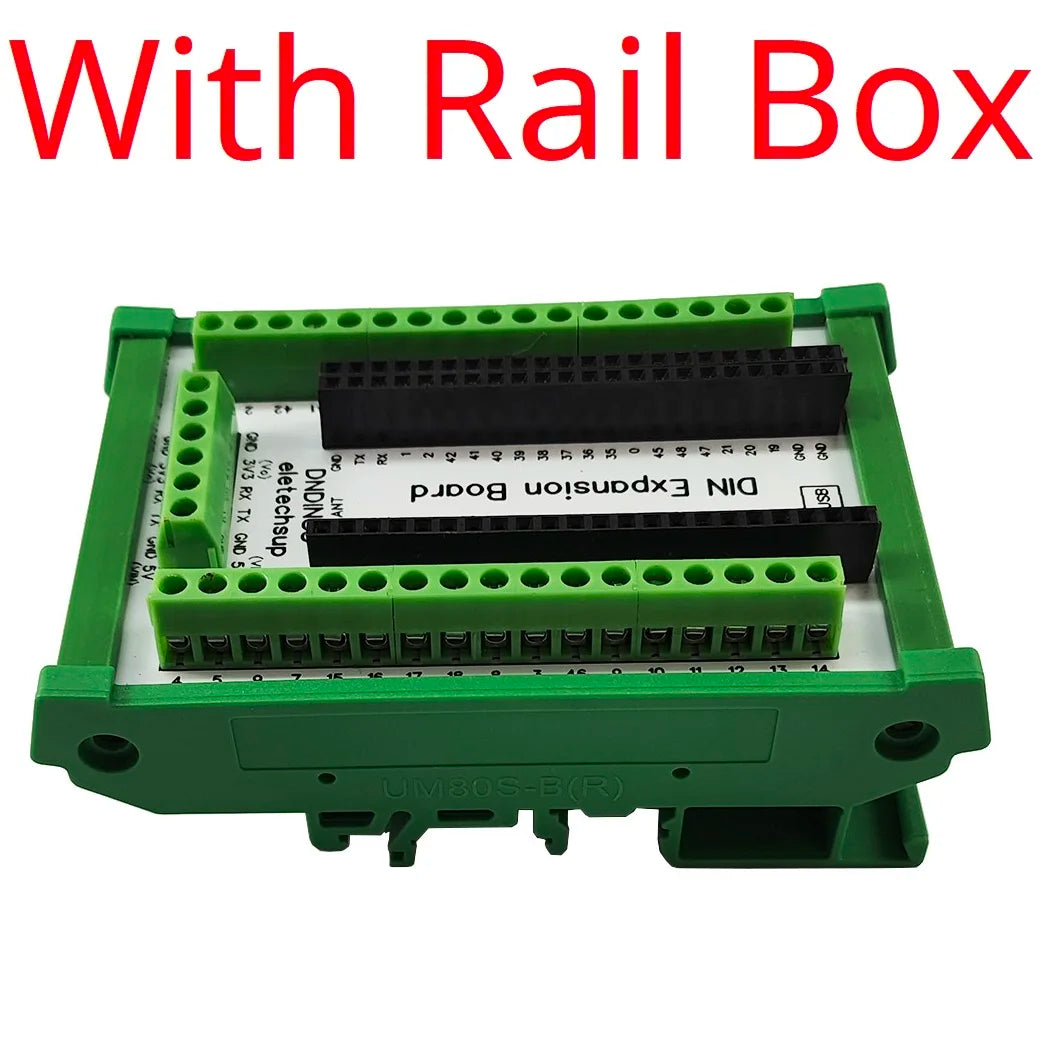

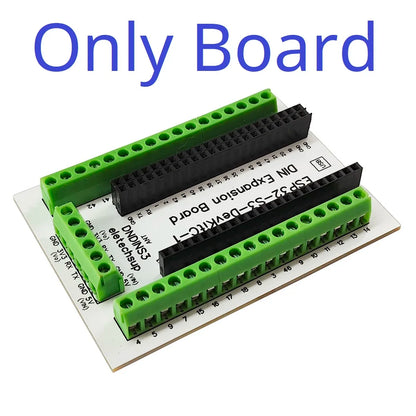

Size: 80 *58 * 9mm(only Board),95 *61 * 35mm(with Rail Box)
Weight: 41g(only Board),96g(with Rail Box)

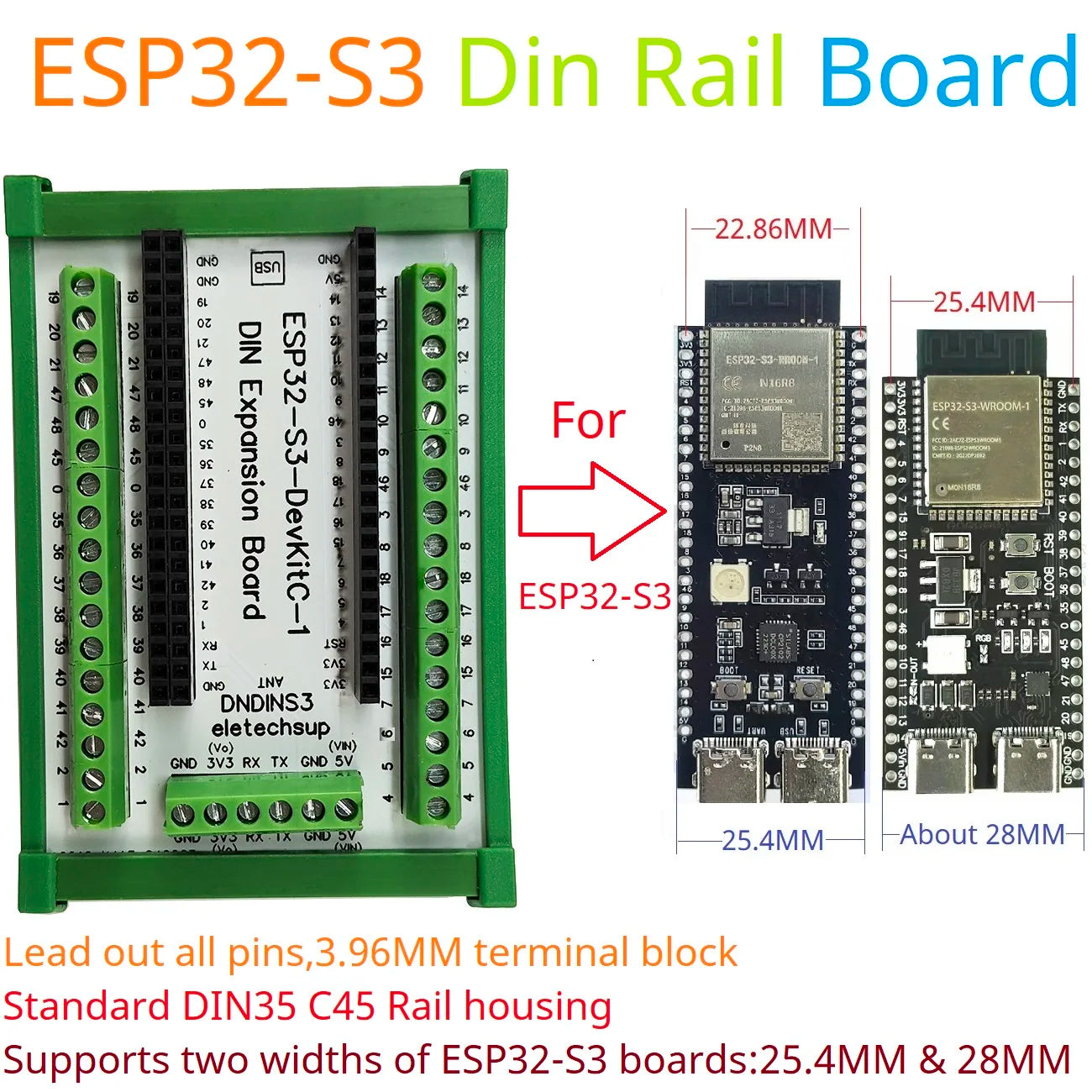

Lead out all pins(Except RST pin)
3.96MM terminal block
Standard DIN35 C45 Rail housing

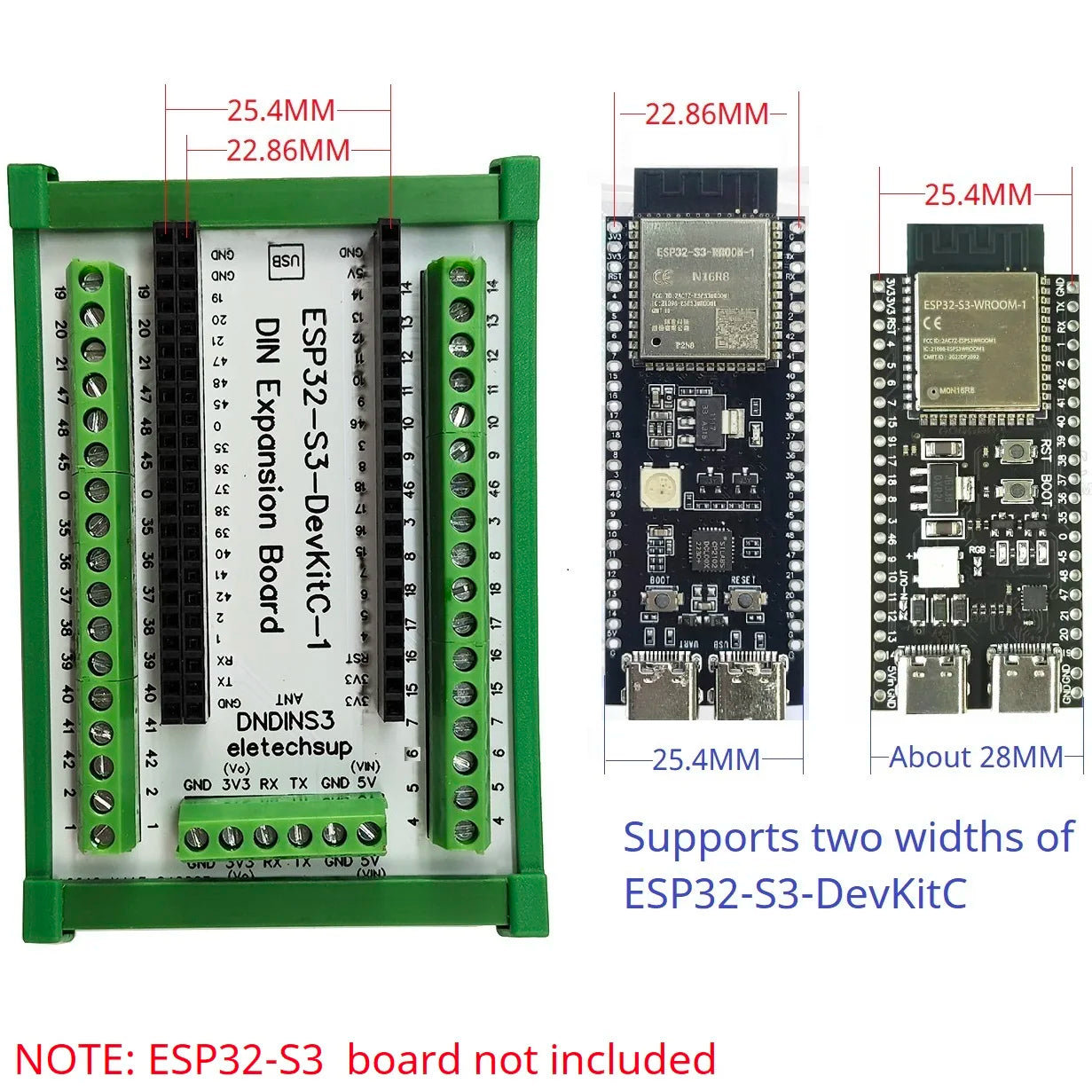

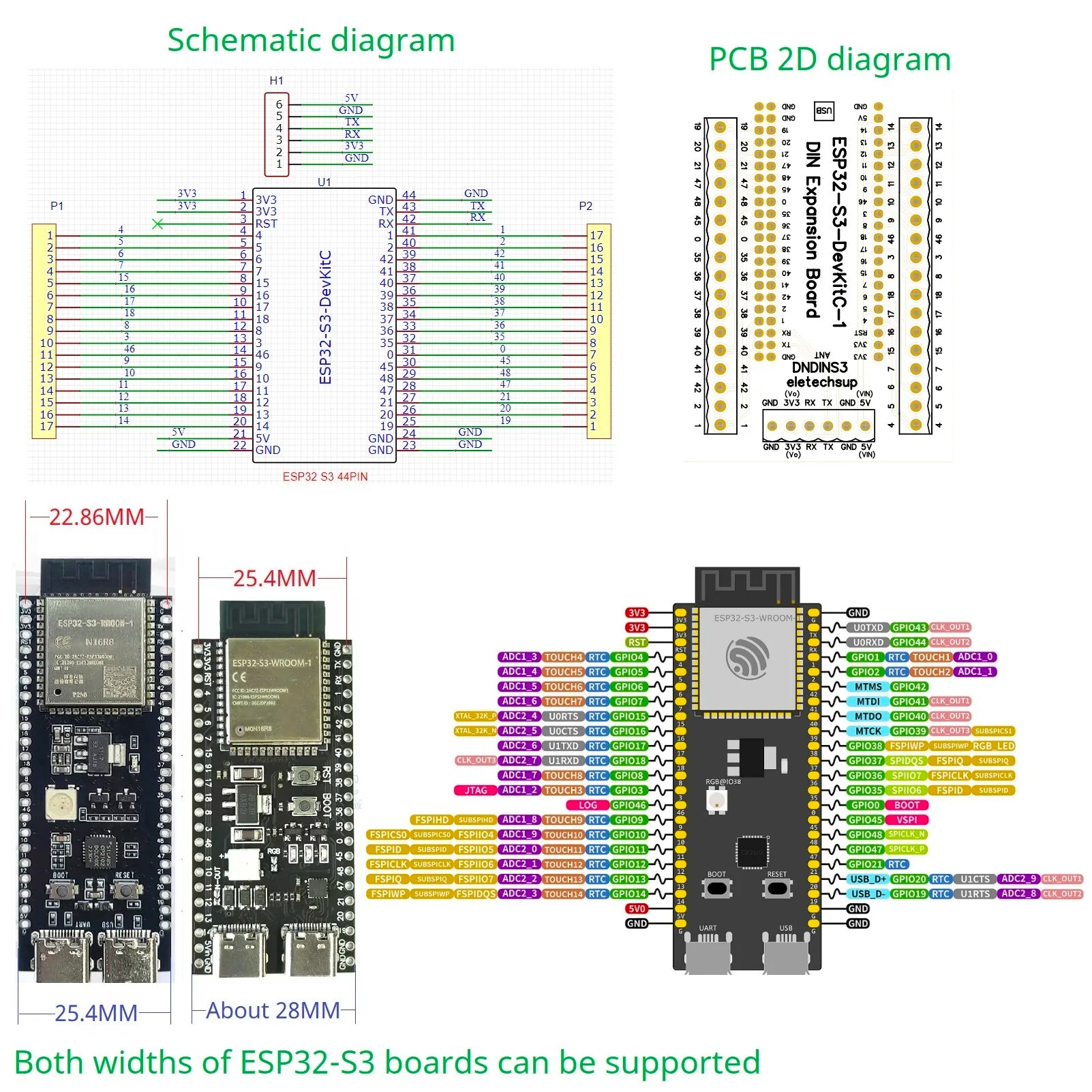

Supports two widths of ESP32-S3 boards:25.4MM & 28MM
Use:

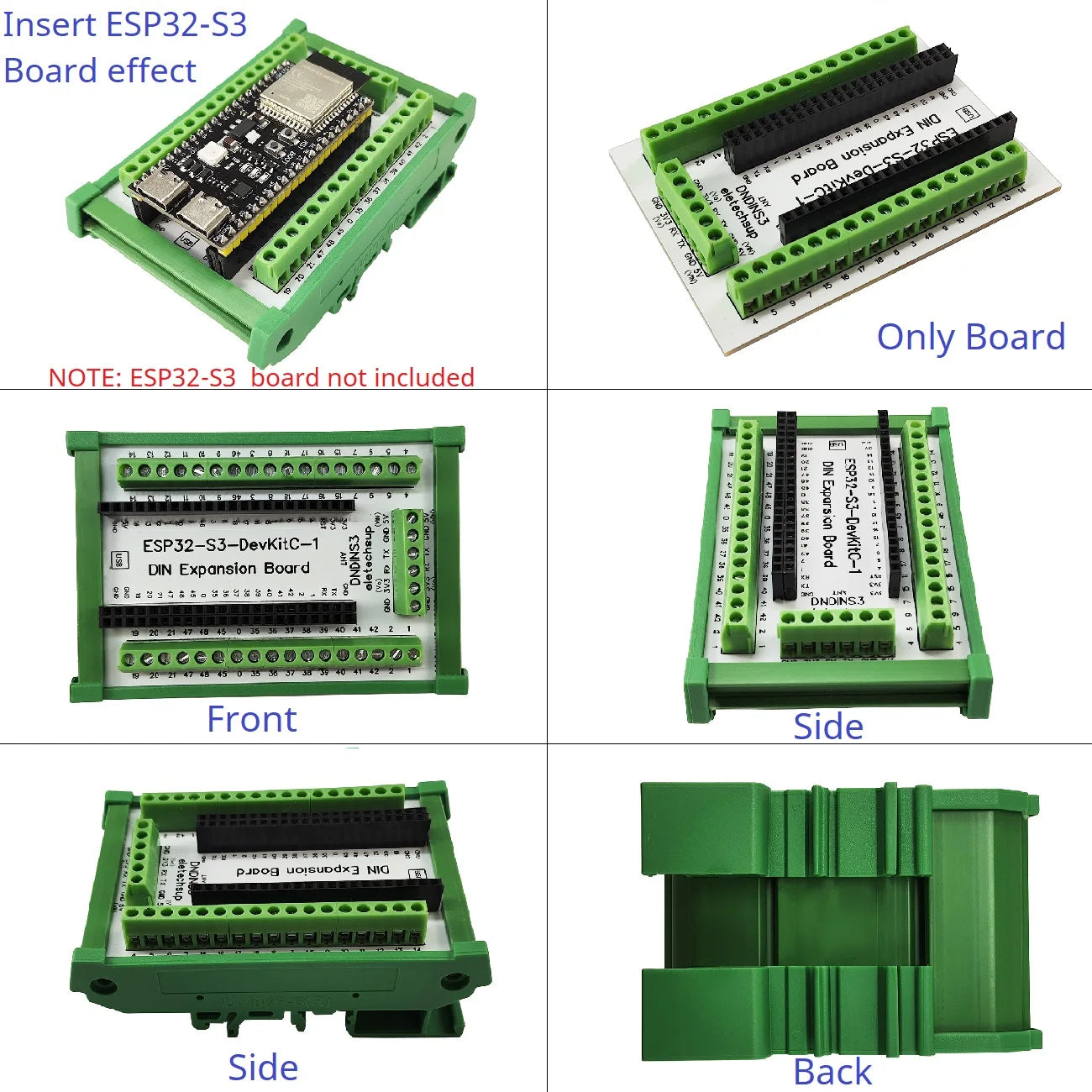

DIN Rail Mount Screw Terminal Adapter Module for ESP32 S3 Board.
With this adapter modules, you can easily extend your ESP32 projects to industrial control applications.
Notice:

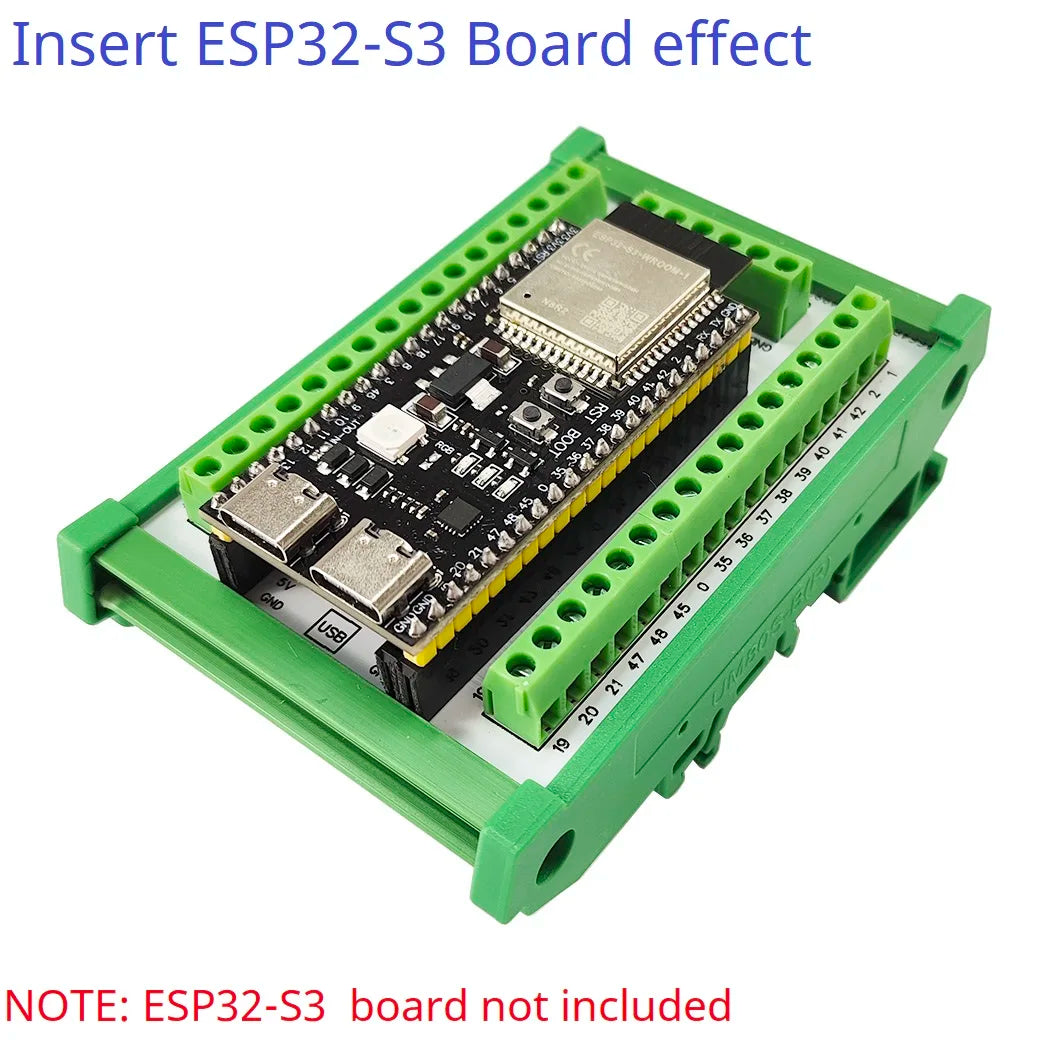

1 This product does not include the ESP32 S3 Board
2 Please use 44PIN ESP32 S3,Pin width 25.4MM (Board width about 28MM)

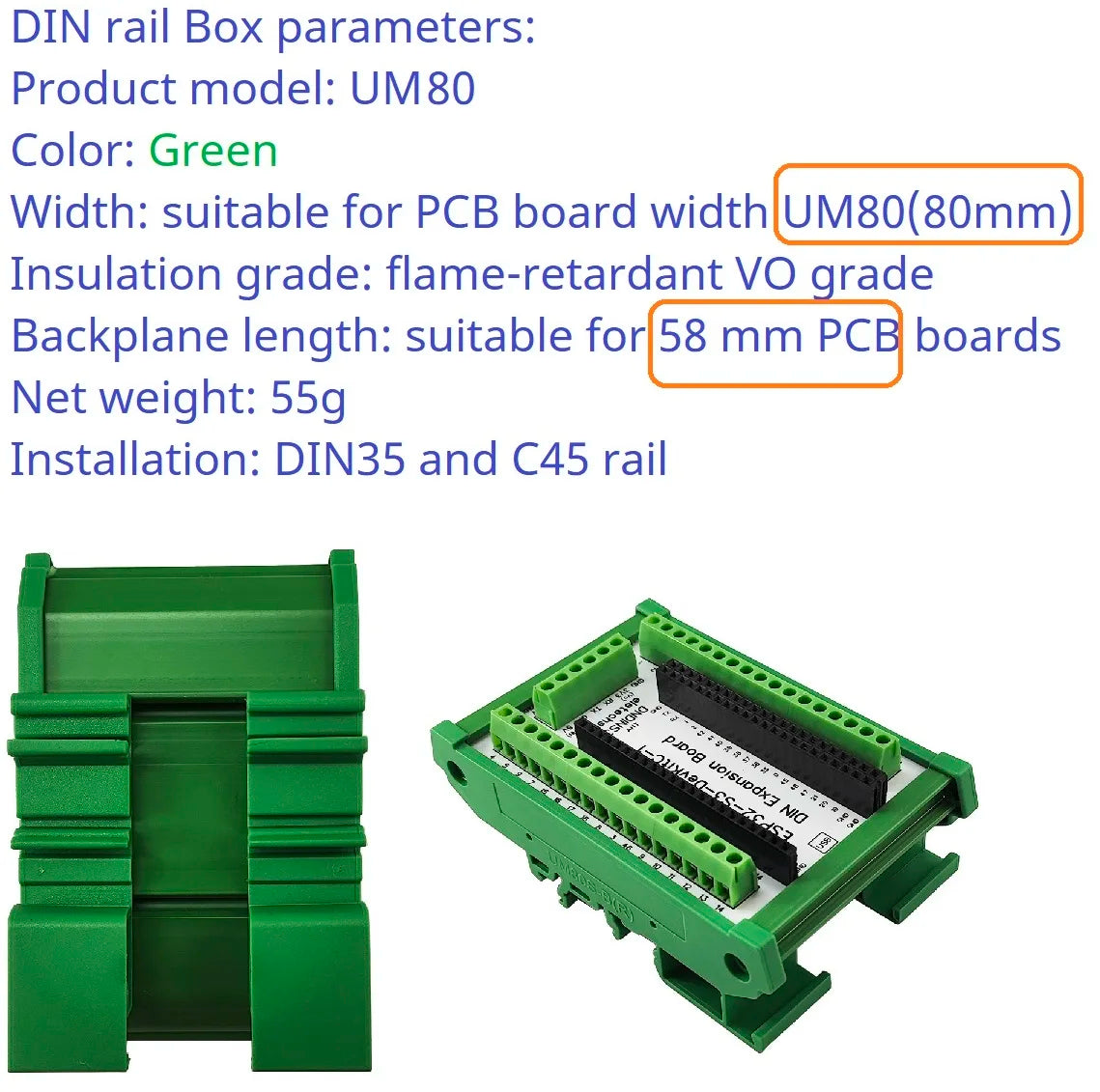

DIN rail Box parameters:
Product model: UM80
Color:
Green
Width: suitable for PCB board width UM80(80mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 58 mm PCB boards
Net weight: 55g
Installation: DIN35 and C45 rail
