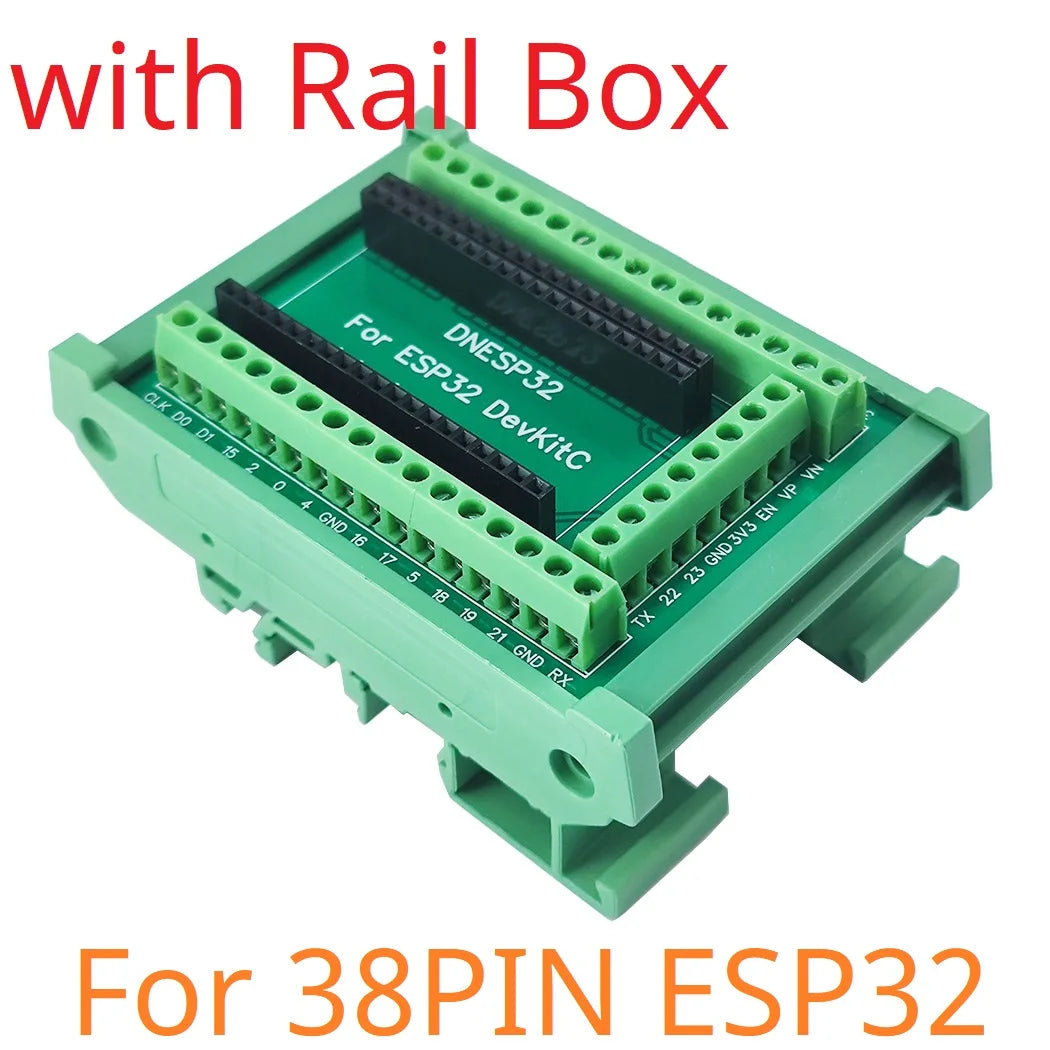

DNESA30/DNESP32 DIN Rail Mount Screw Terminal Adapter – 3.96mm Breakout Board for 30/38-Pin ESP32 WROOM-32 DevKitC with DIN35/C45 Rail

There are many specifications of ESP32 development boards on the market. We provide the most common 30PIN and 38PIN development boards with DIN Rail shells, and all ports are led out using 3.96MM terminal blocks.

Description:

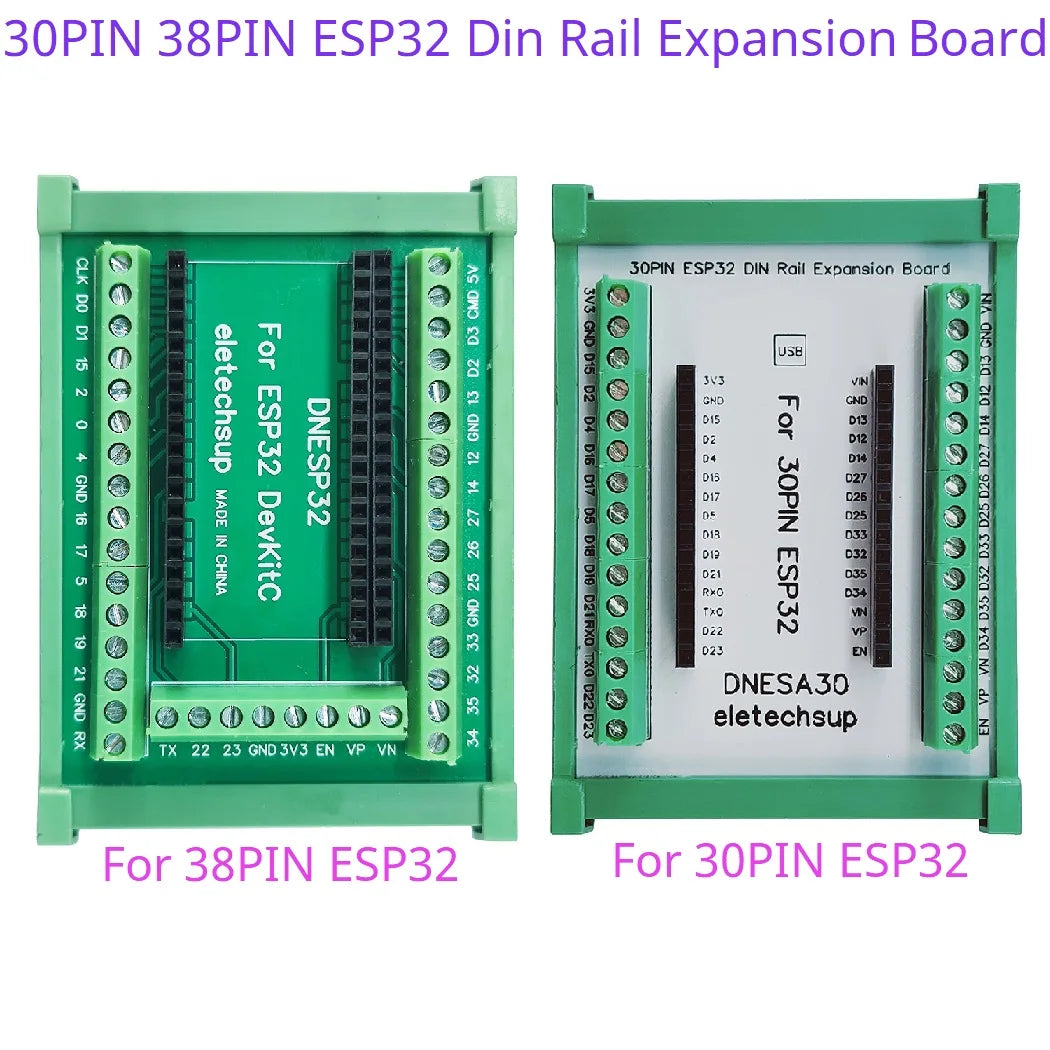

This is a 30PIN/38PIN ESP32 DIN Rail expansion board, which leads out all the IO ports.

Terminal spacing: 3.96mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.

Size: 72 *58 * 9mm(only Board),86 *60 * 35mm(with Rail Box)
Weight: 30g/38g(only Board),80g/88g(with Rail Box)

Use:
DIN Rail Mount Screw Terminal Adapter Module for 30/38 PIN ESP32 Board.
With this adapter modules, you can easily extend your ESP32 projects to industrial control applications.

Notice:

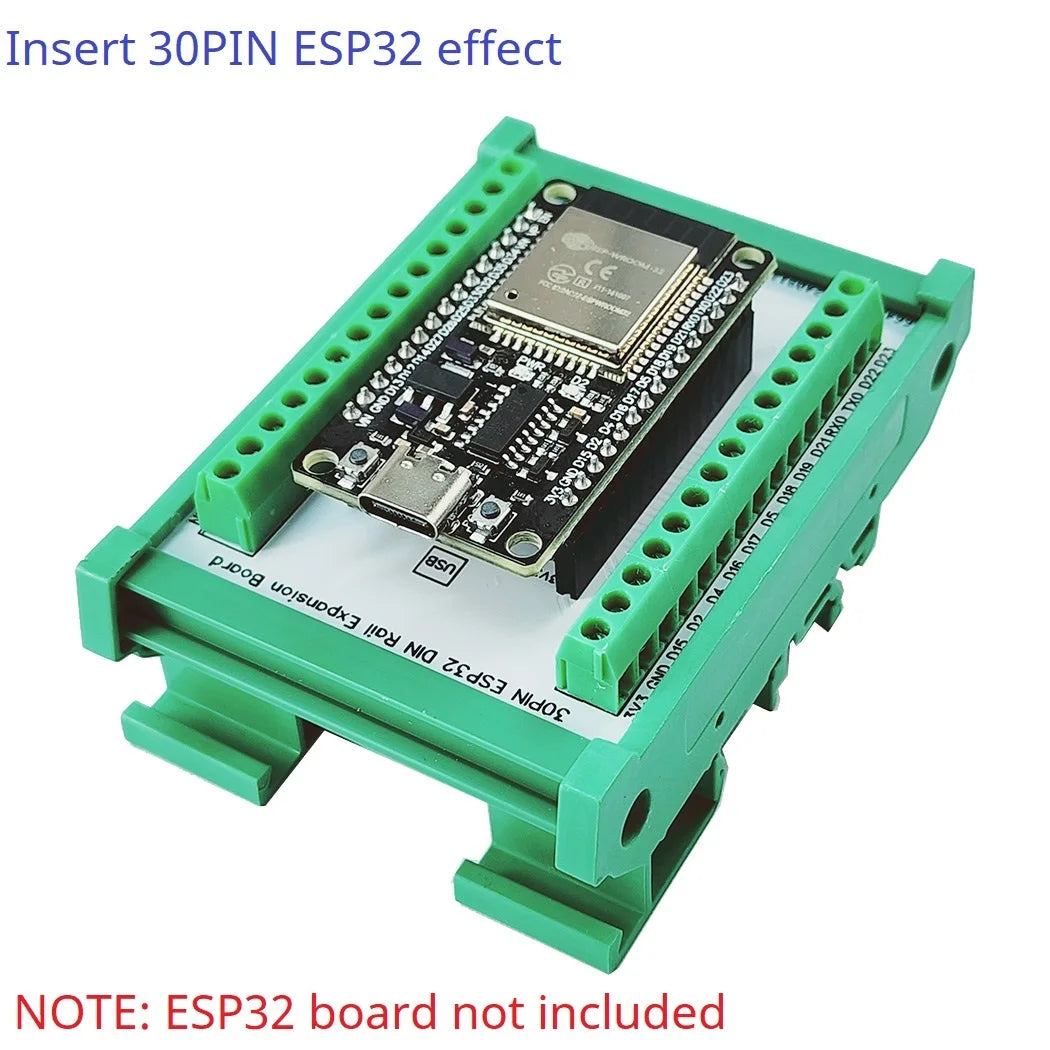

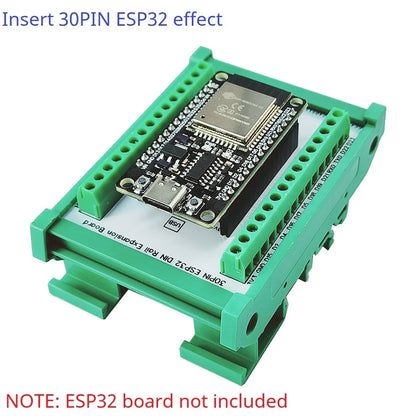

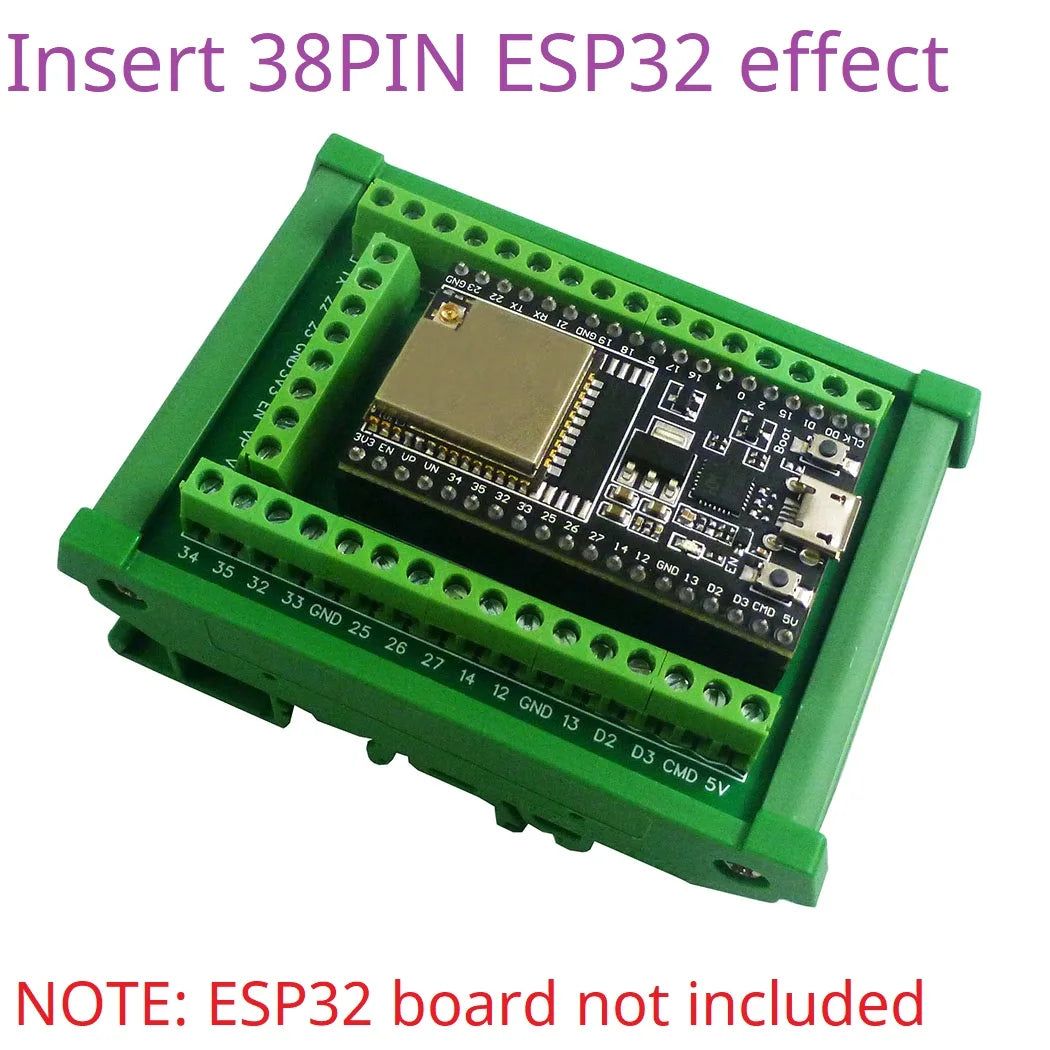

1 This product does not include the ESP32 Board

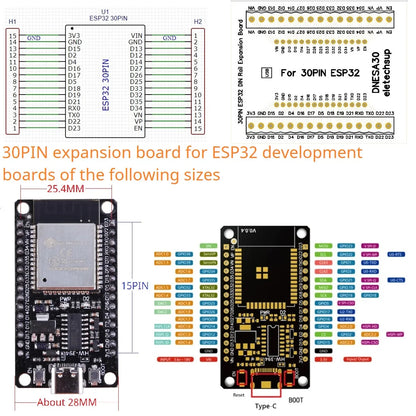

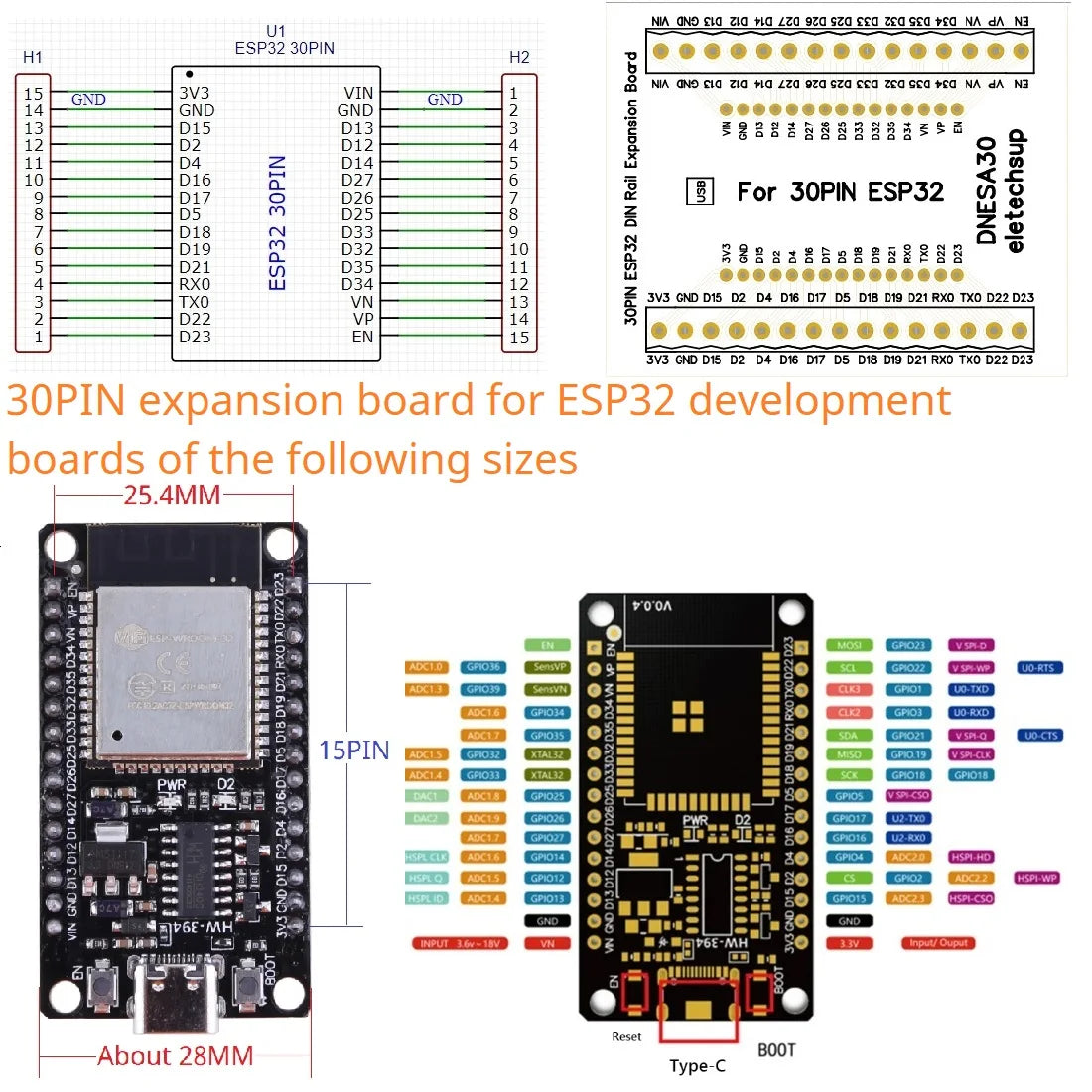

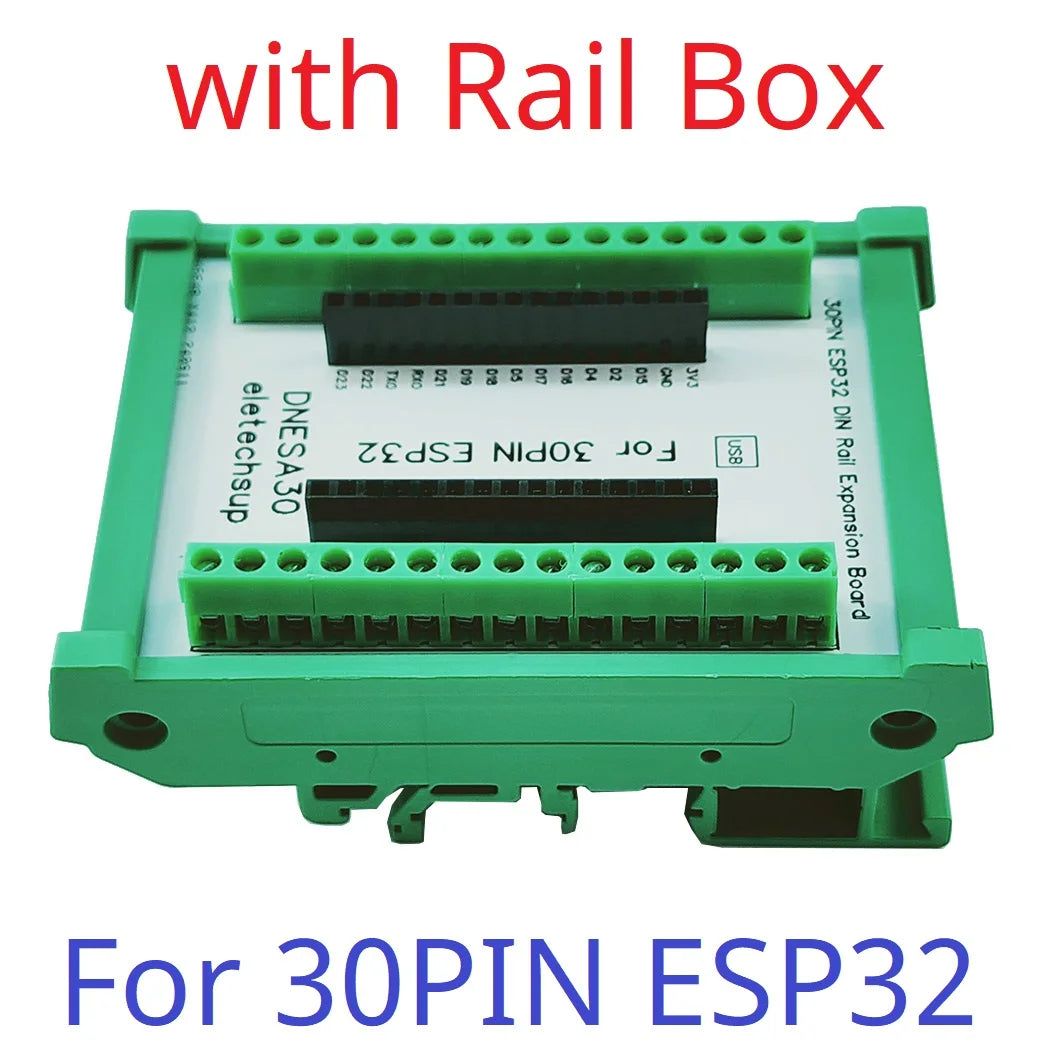

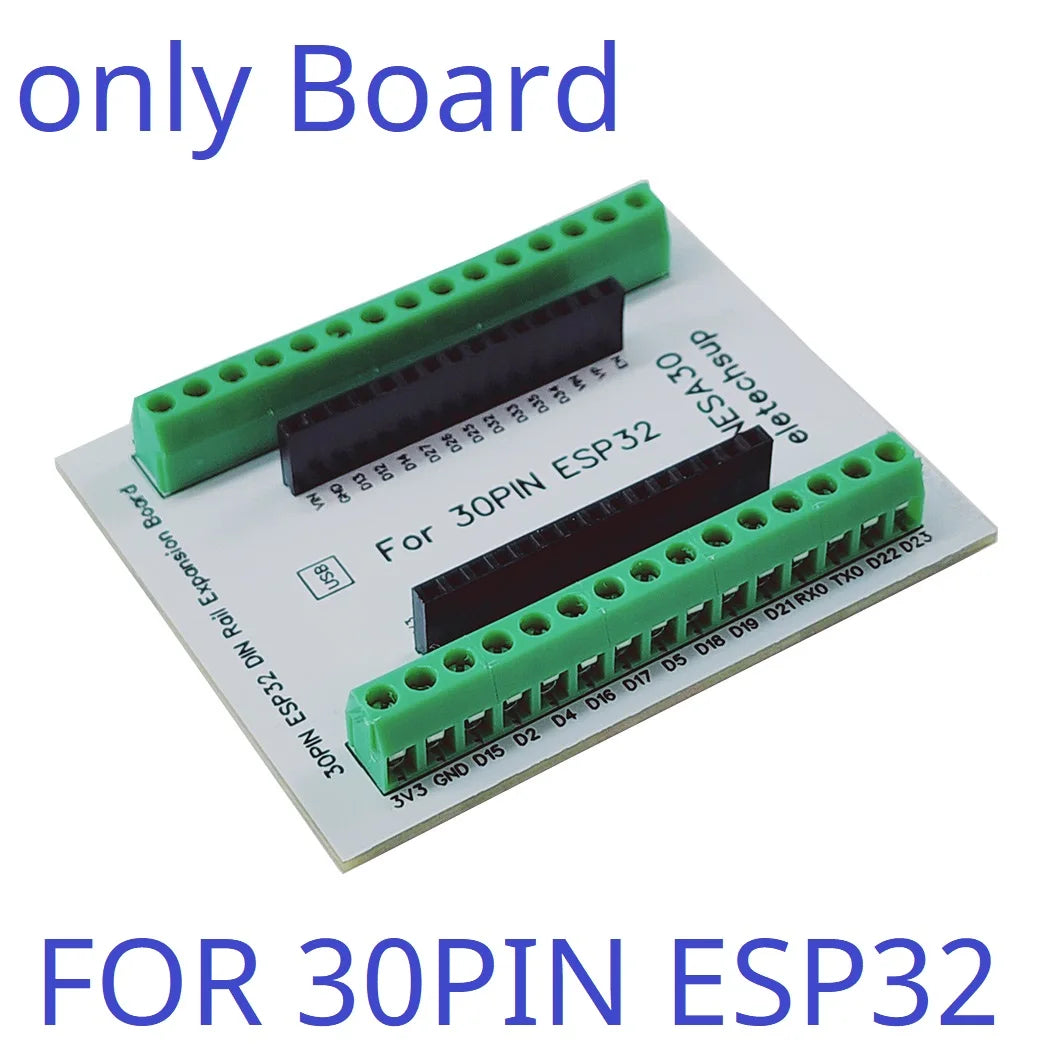

2 30PIN Version : Please use 30PIN ESP32,Pin width 25.4MM (Board width about 28MM)

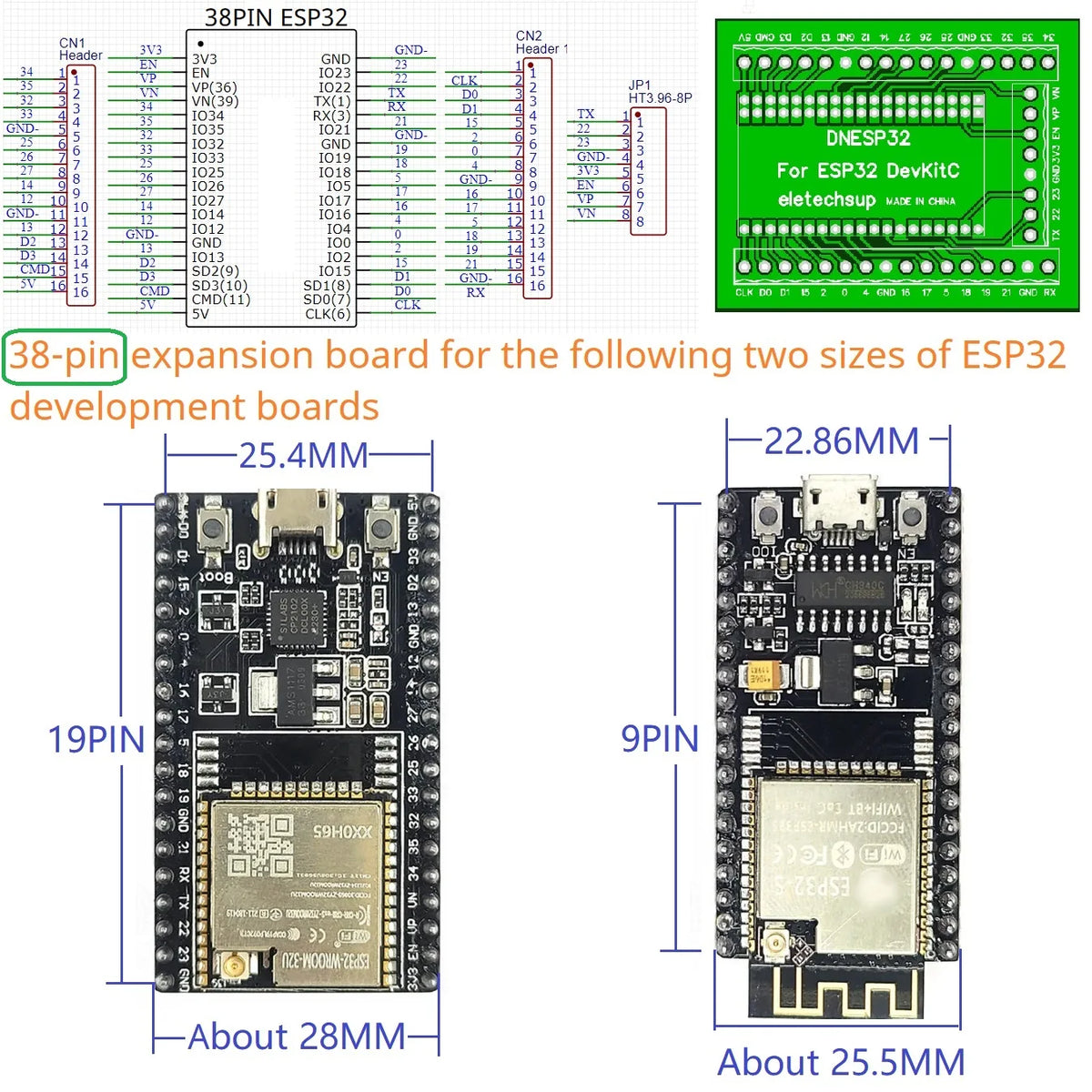

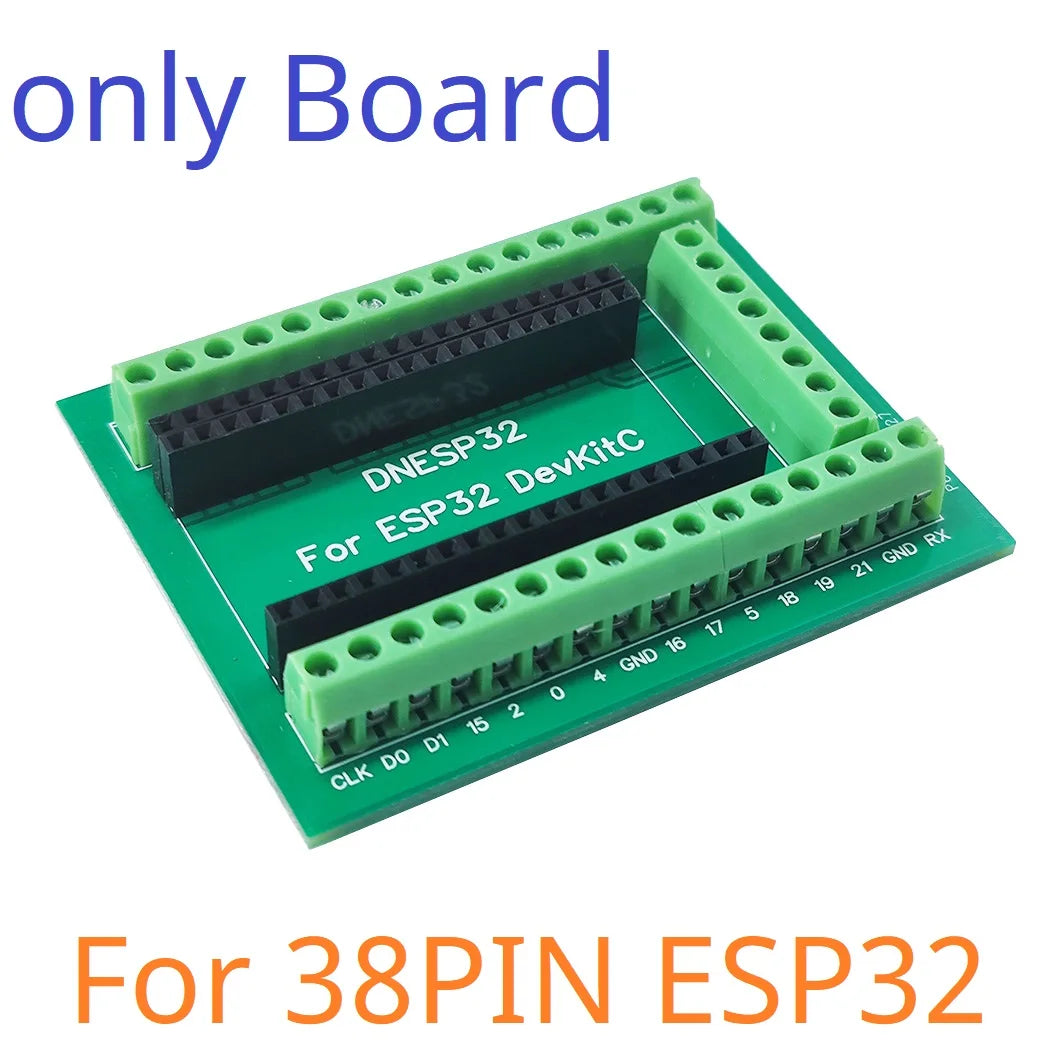

2 38PIN Version : Please use 38PIN ESP32,Pin width 25.4MM/22.86 (Board width about 28MM/25.5MM )

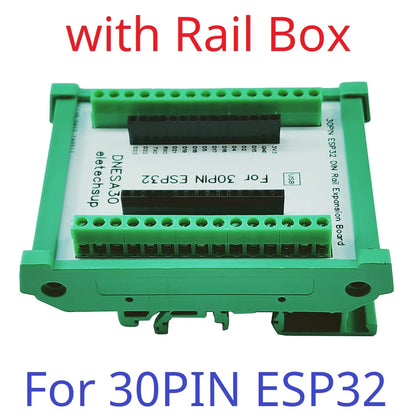

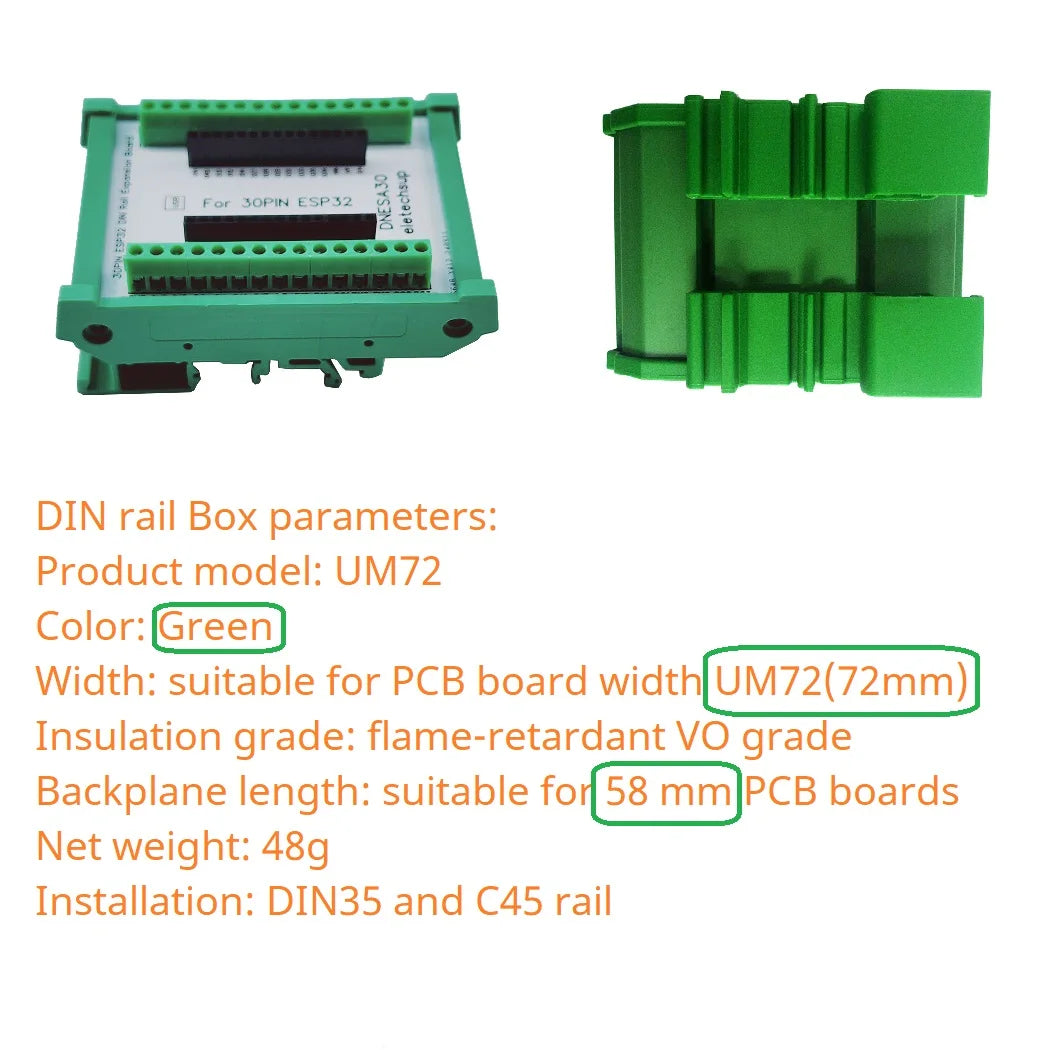

DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 58 mm PCB boards
Net weight: 48g
Installation: DIN35 and C45 rail
