DNESA30 ESP32 DIN Rail Mount Screw Terminal Adapter – 3.96mm Breakout Board for 30/38-Pin ESP32 WROOM-32 DevKitC with DIN35/C45 Rail

Must read before purchase:
30PIN ESP32 is a very common ESP32 development board. eletechsup specially designed a DIN Rail expansion board for this version. Before purchasing, please read the description in detail to ensure that this expansion board is compatible with your ESP32 board.



Description:

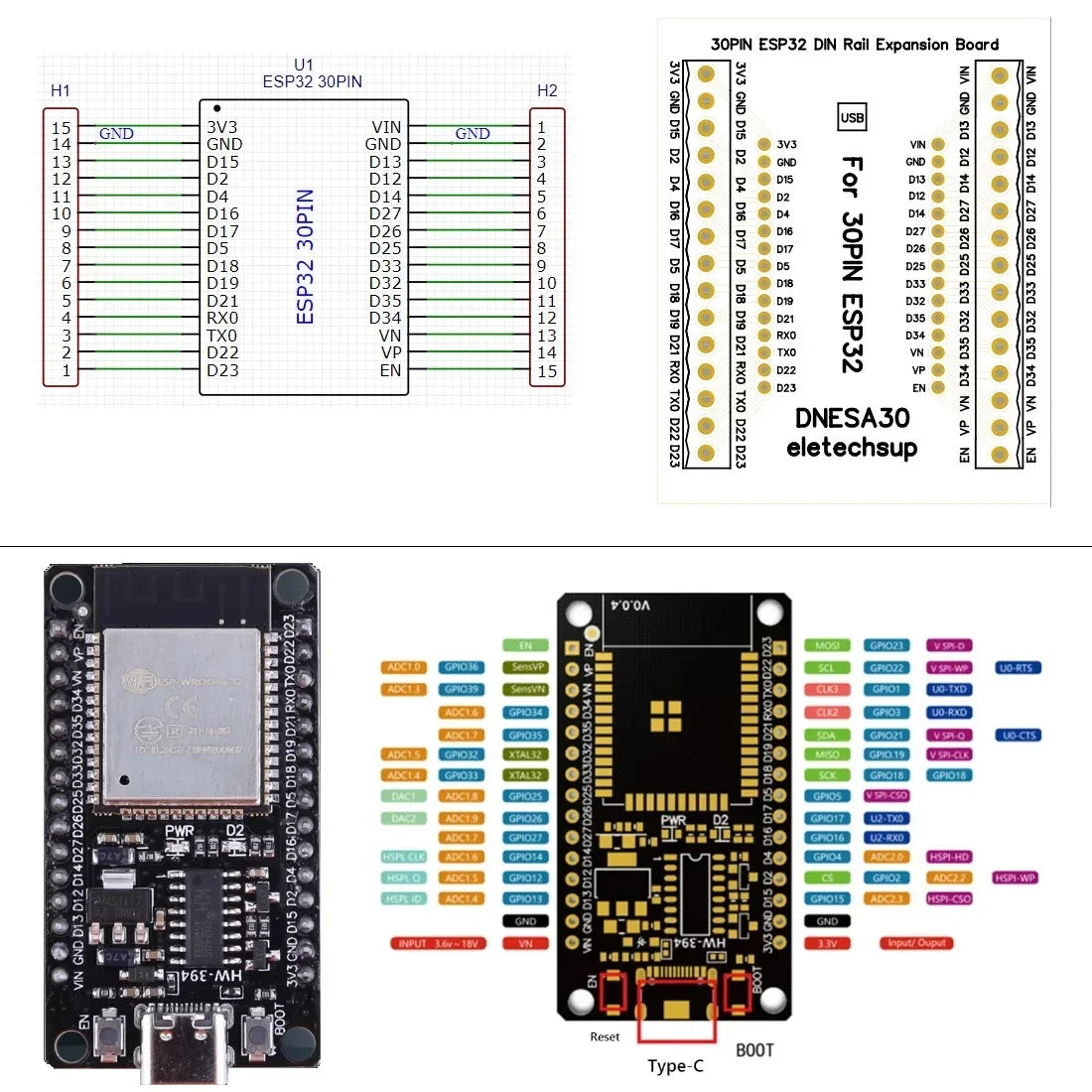

This is a 30PIN ESP32 DIN Rail expansion board, which leads out all the IO ports. Using this expansion board, it is easy to embed the ESP32 board into a device with a DIN rail.




Terminal spacing: 3.96mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.

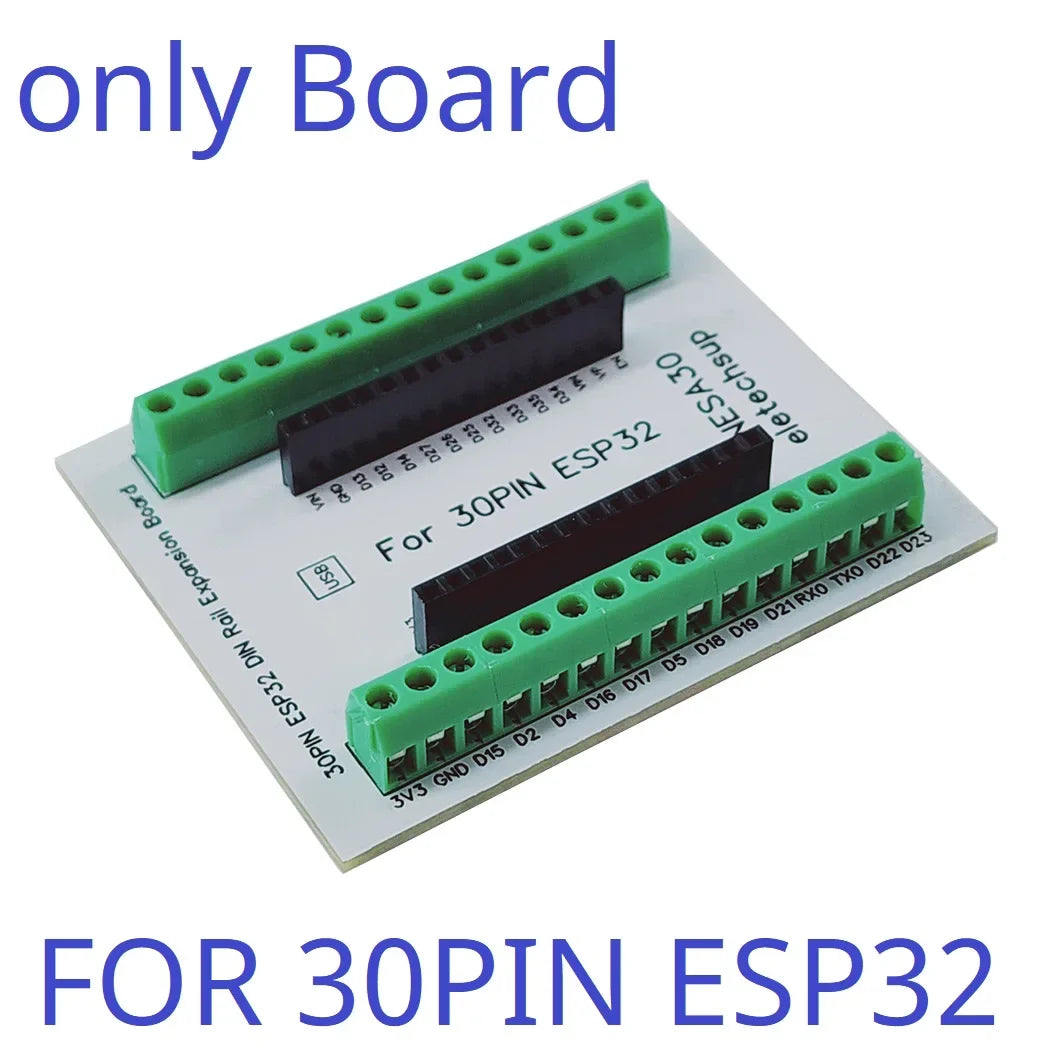

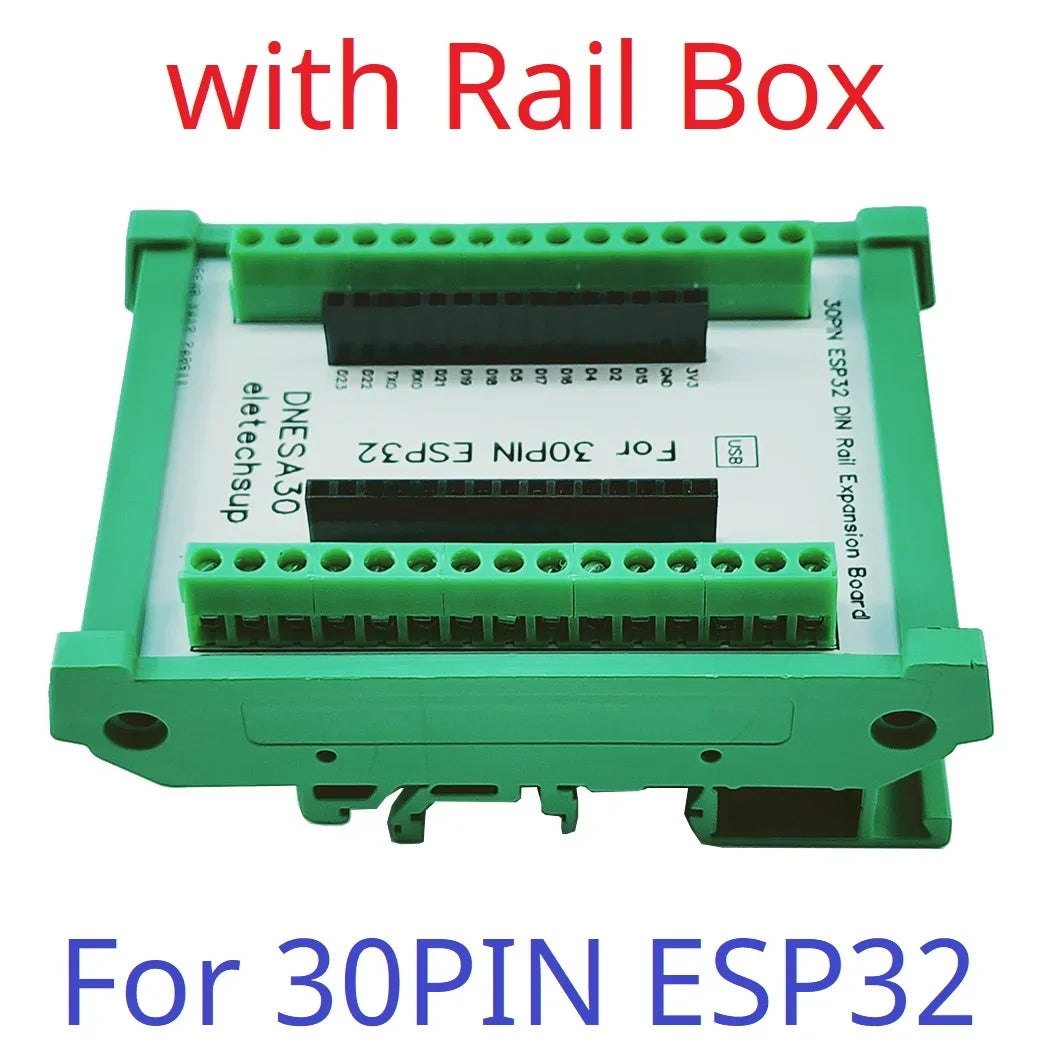

Size: 72 *58 * 9mm(only Board),86 *60 * 35mm(with Rail Box)
Weight: 30g(only Board),80g(with Rail Box)

Use:

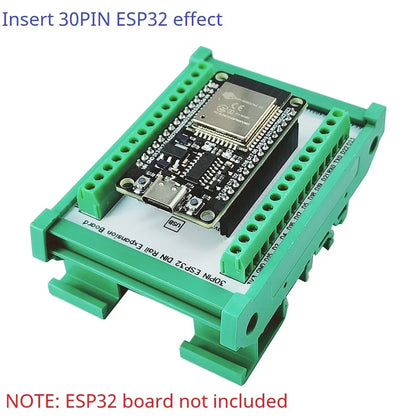

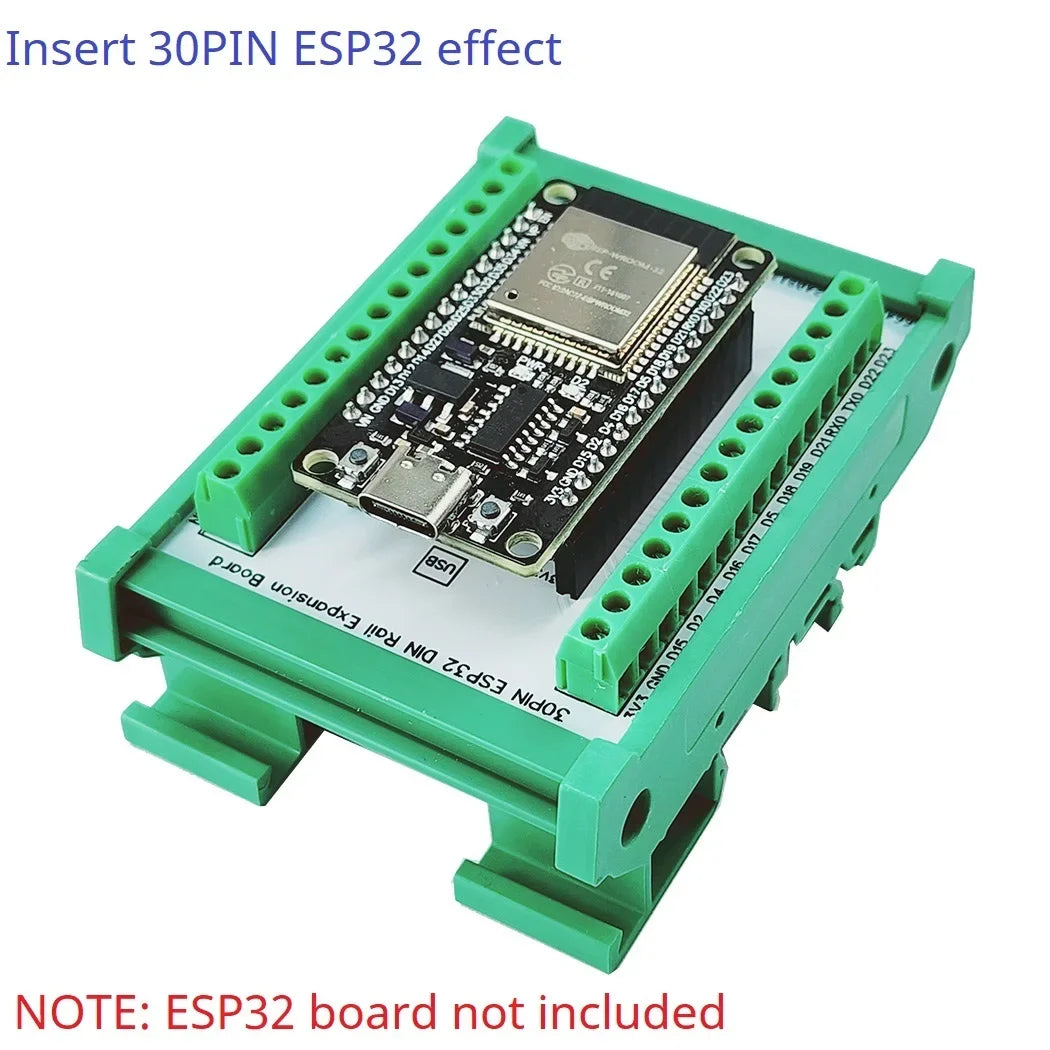

DIN Rail Mount Screw Terminal Adapter Module for 30 PIN ESP32 Board.
With this adapter modules, you can easily extend your ESP32 projects to industrial control applications.




Notice:
1 This product does not include the ESP32 Board

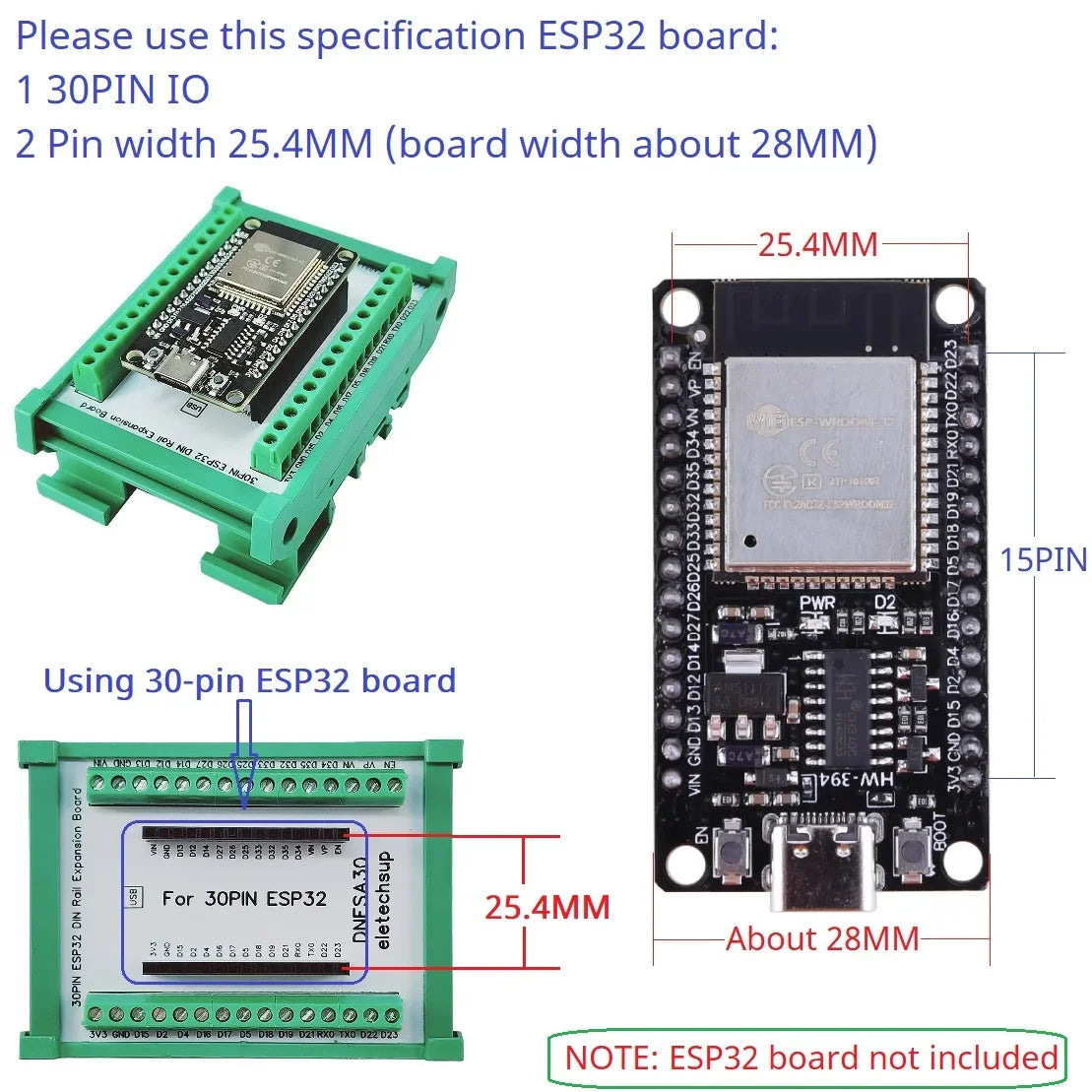

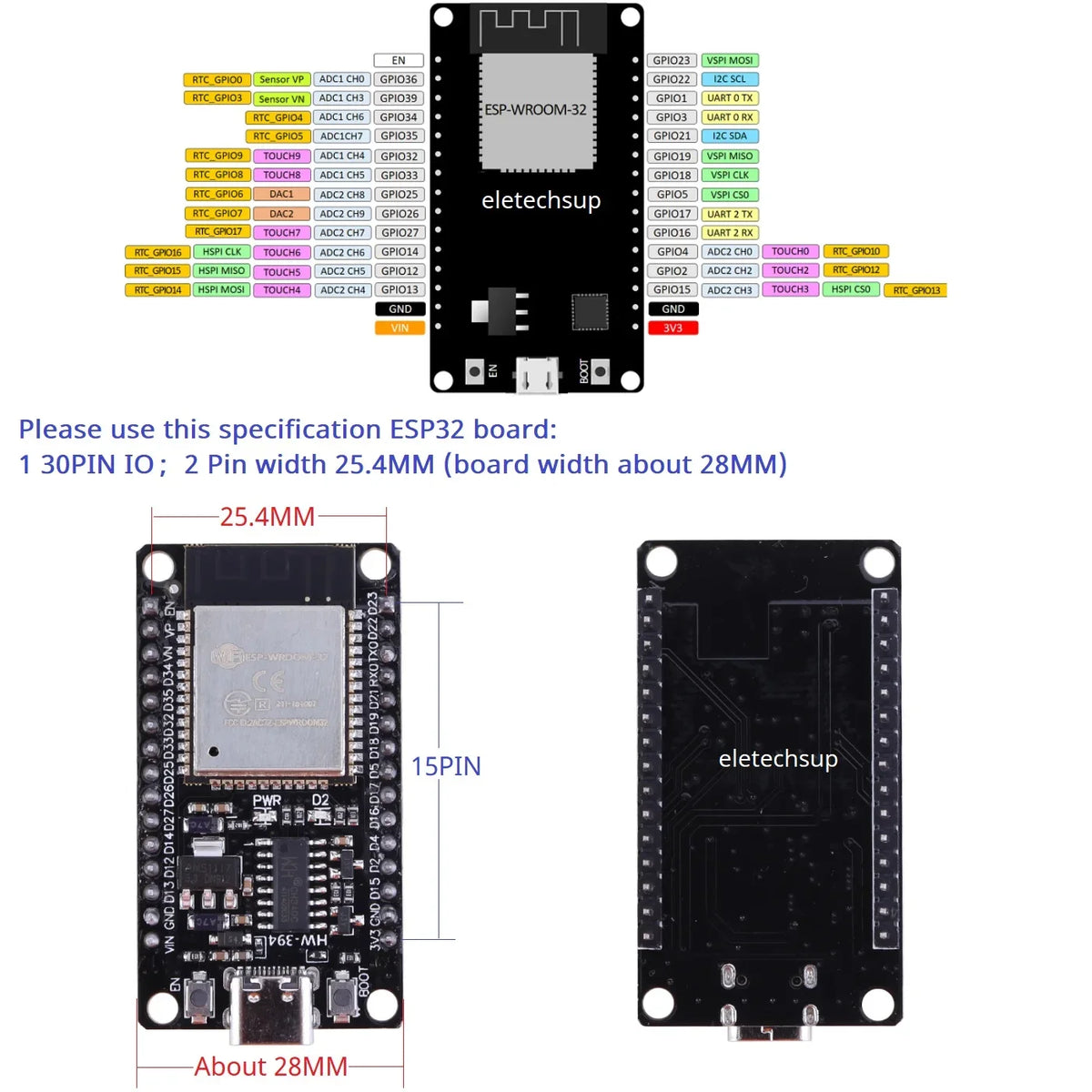

2 Please use 30PIN ESP32,Pin width 25.4MM (Board width about 28MM)

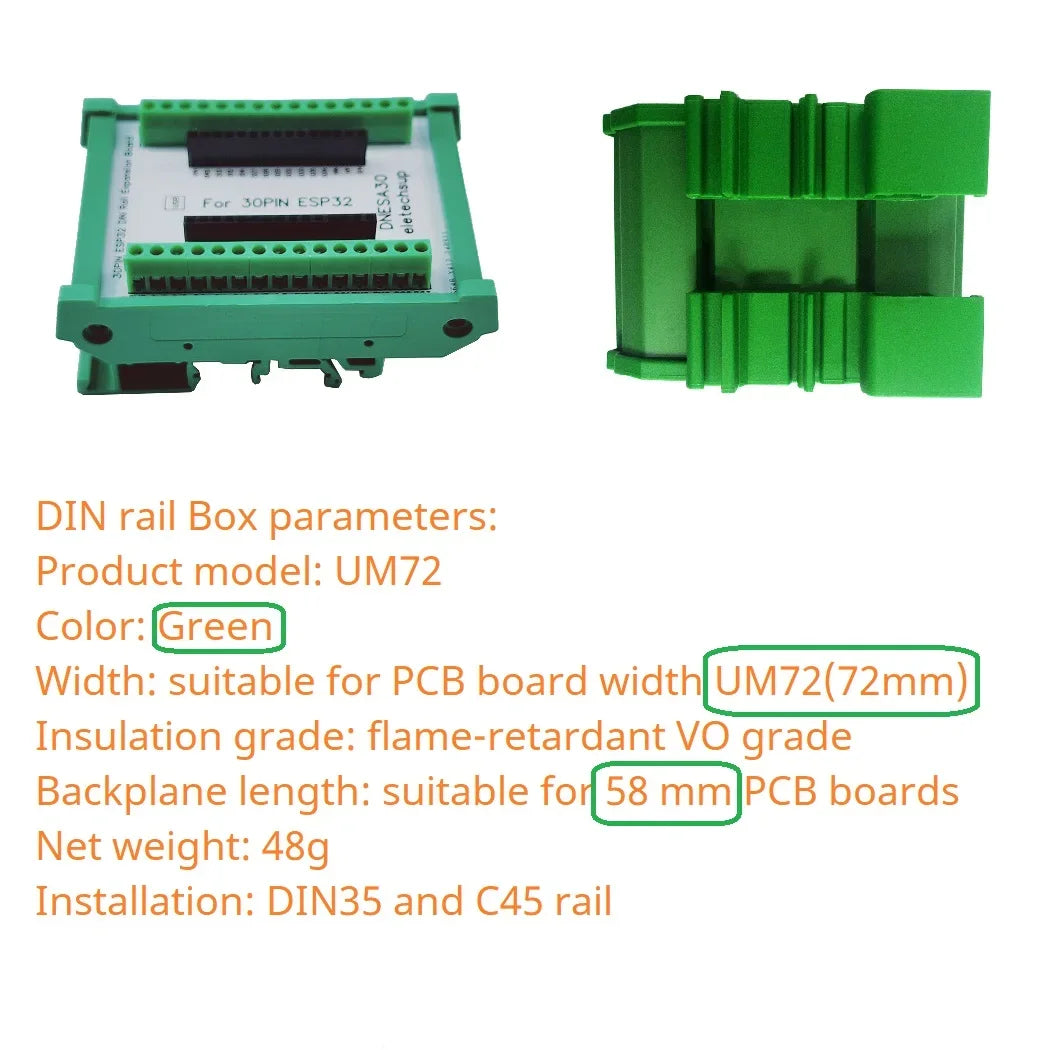

DIN rail Box parameters:

Product model: UM72

Color:
Green

Width: suitable for PCB board width UM72(72mm)

Insulation grade: flame-retardant VO grade

Backplane length: suitable for 58 mm PCB boards

Net weight: 48g

Installation: DIN35 and C45 rail
