DR26F01 DPDT Self-Locking Relay Module – DC 7-40V 5A Bistable Latching Switch with Low Pulse Trigger for Motor Reverse Polarity Control
DR26F01 DPDT Self-Locking Relay Module – DC 7-40V 5A Bistable Latching Switch with Low Pulse Trigger for Motor Reverse Polarity Control
Regular price
$9.28 USD
Regular price
$9.28 USD
Sale price
$9.28 USD
Taxes included.
Description:

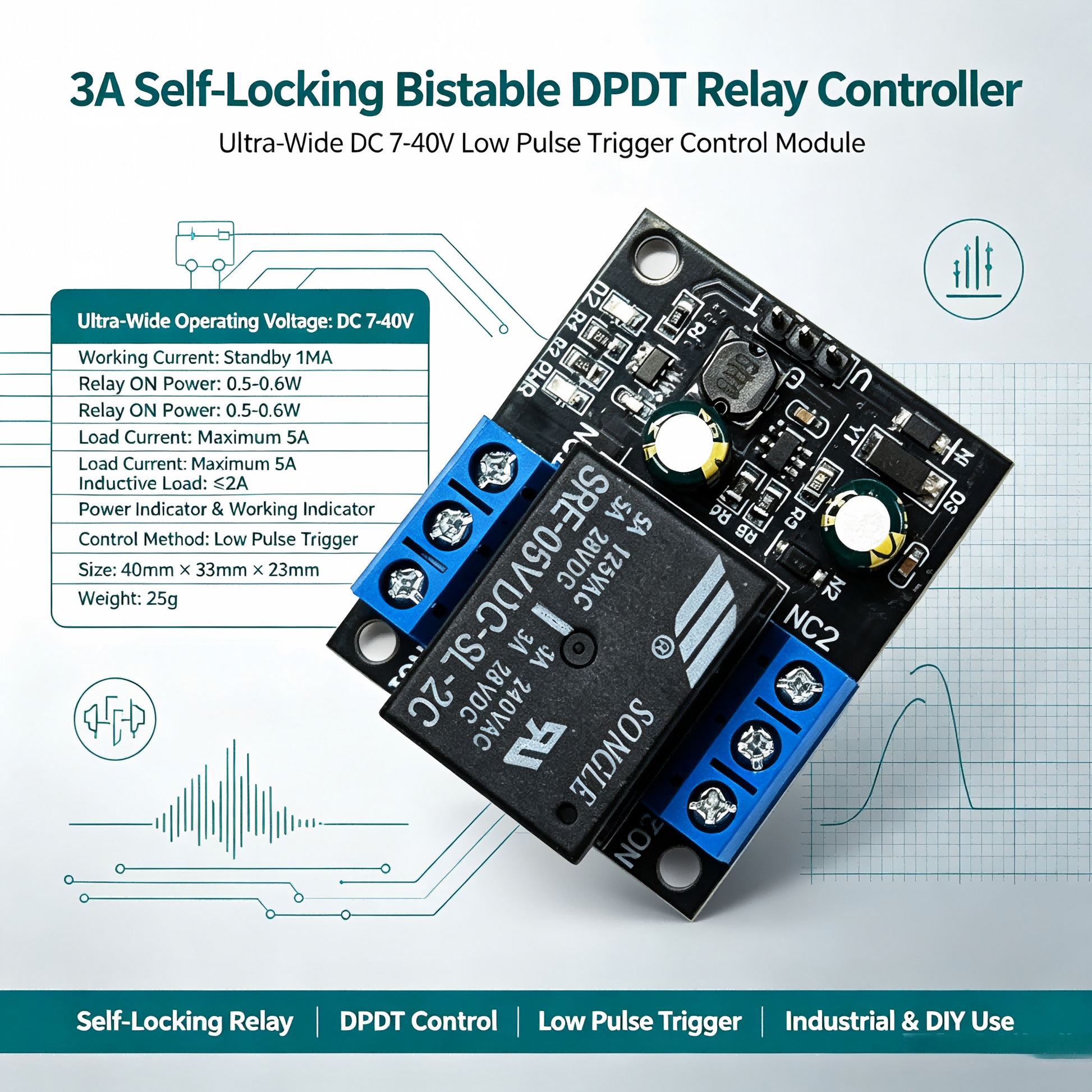

3A Self-locking (Bistable) DPDT Relay controller
1 Ultra-wide operating voltage:DC 7-40V
2 Working current:Standby 1MA;Relay ON power: 0.5-0.6W;
3 Load current: Maximum 5A(Inductive load <=2A)
4 Power indicator AND Working indicator
5 Control method : low pulse trigger
6 Size: 40mm X 33mm X 23mm
7 Weight: 25 g

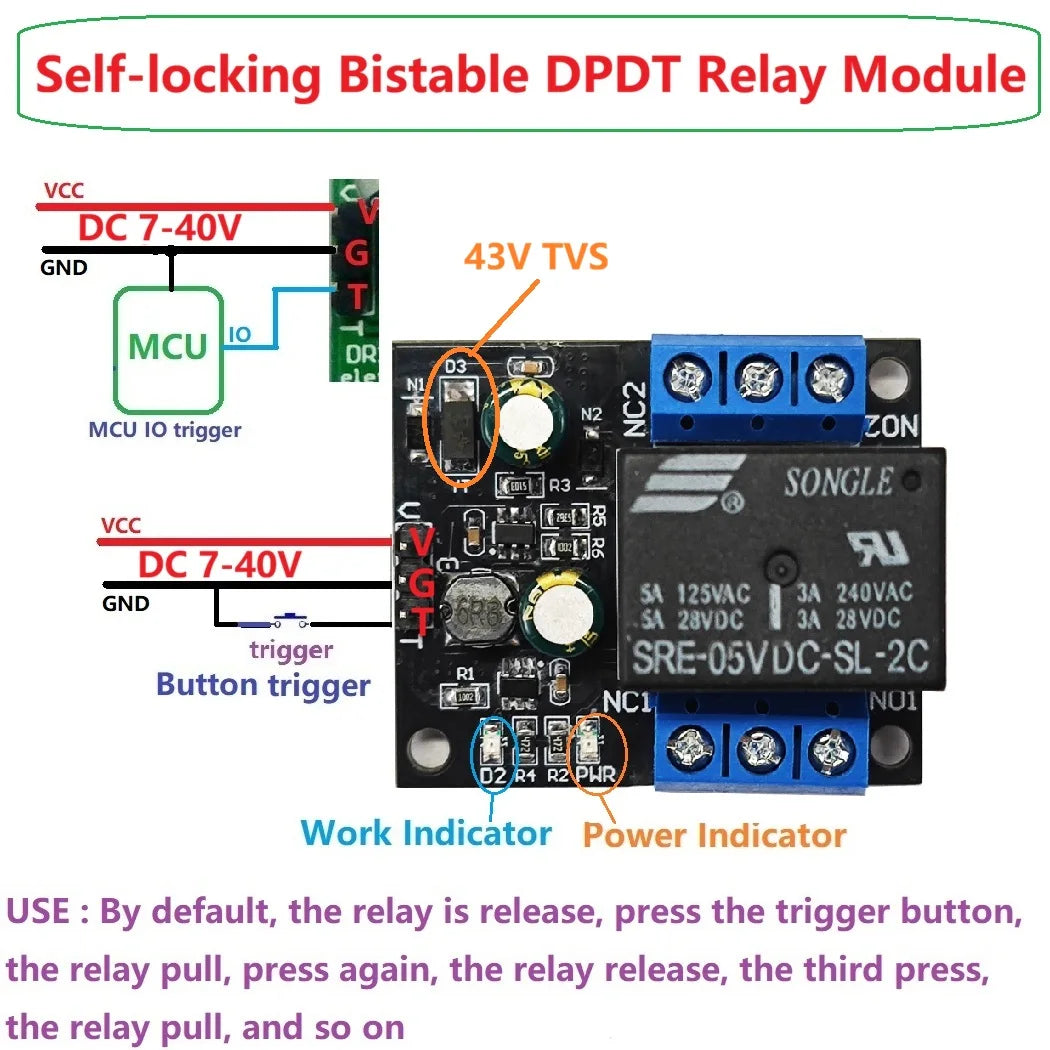

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
Module interface:
1. V positive power supply (VCC)
2. G negative power supply (GND)
3. T : Low pulse trigger(0.2-2 second low pulse trigger)
DPDT Relay outputs:
1. NO1: normally open relay interface
2. COM1: Common Interface Relays
3. NC1: normally closed relay interface
4. NO2: normally open relay interface
5. COM2: Common Interface Relays
6. NC2: normally closed relay interface
How to use:
By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
There are 5 working modes depending on the wiring method.

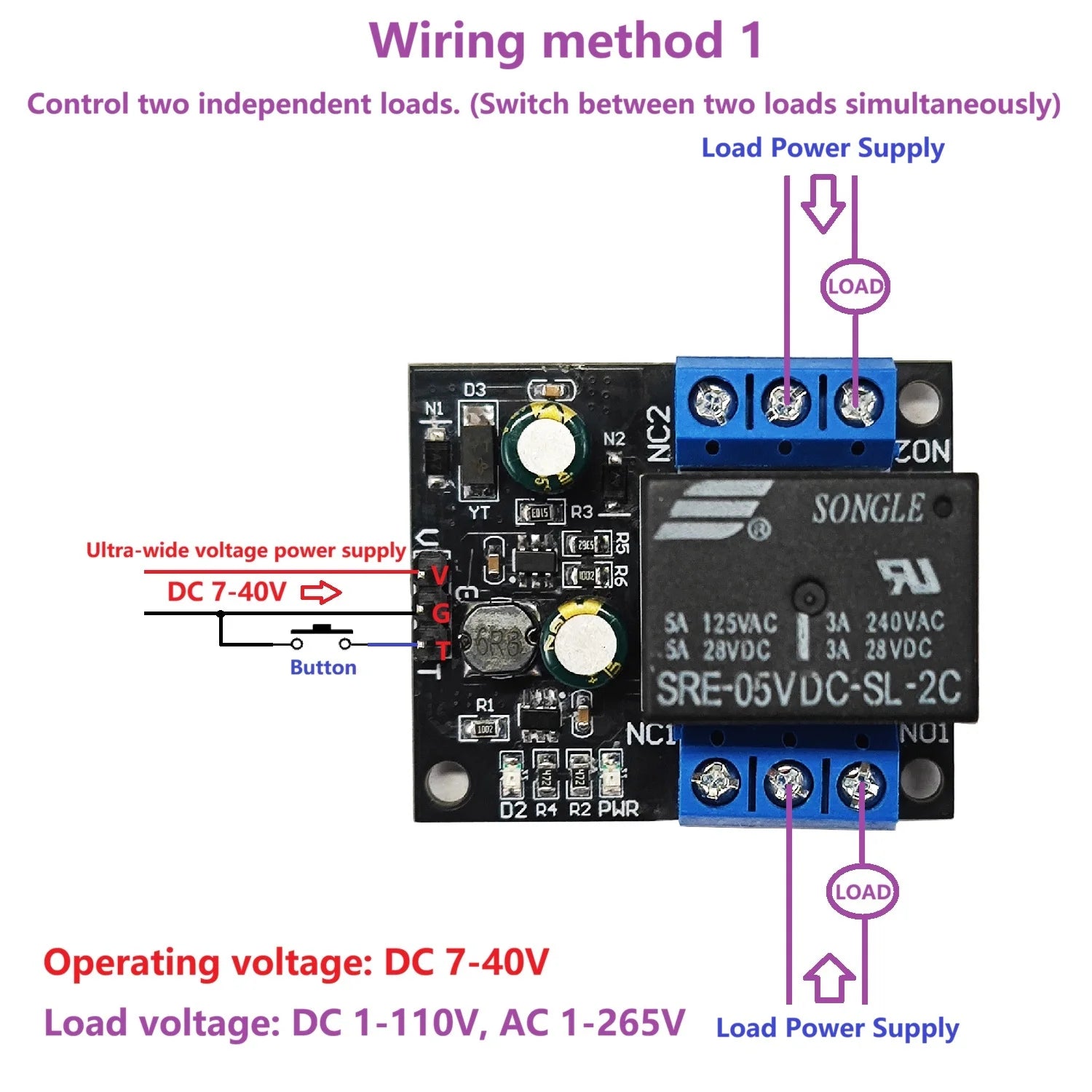

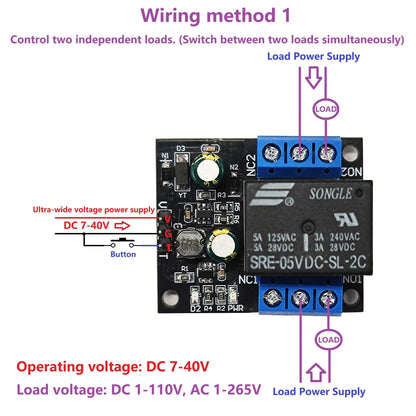

1. Control two independent loads. (Switch between two loads simultaneously)

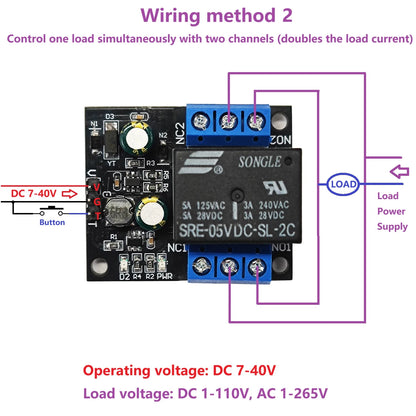

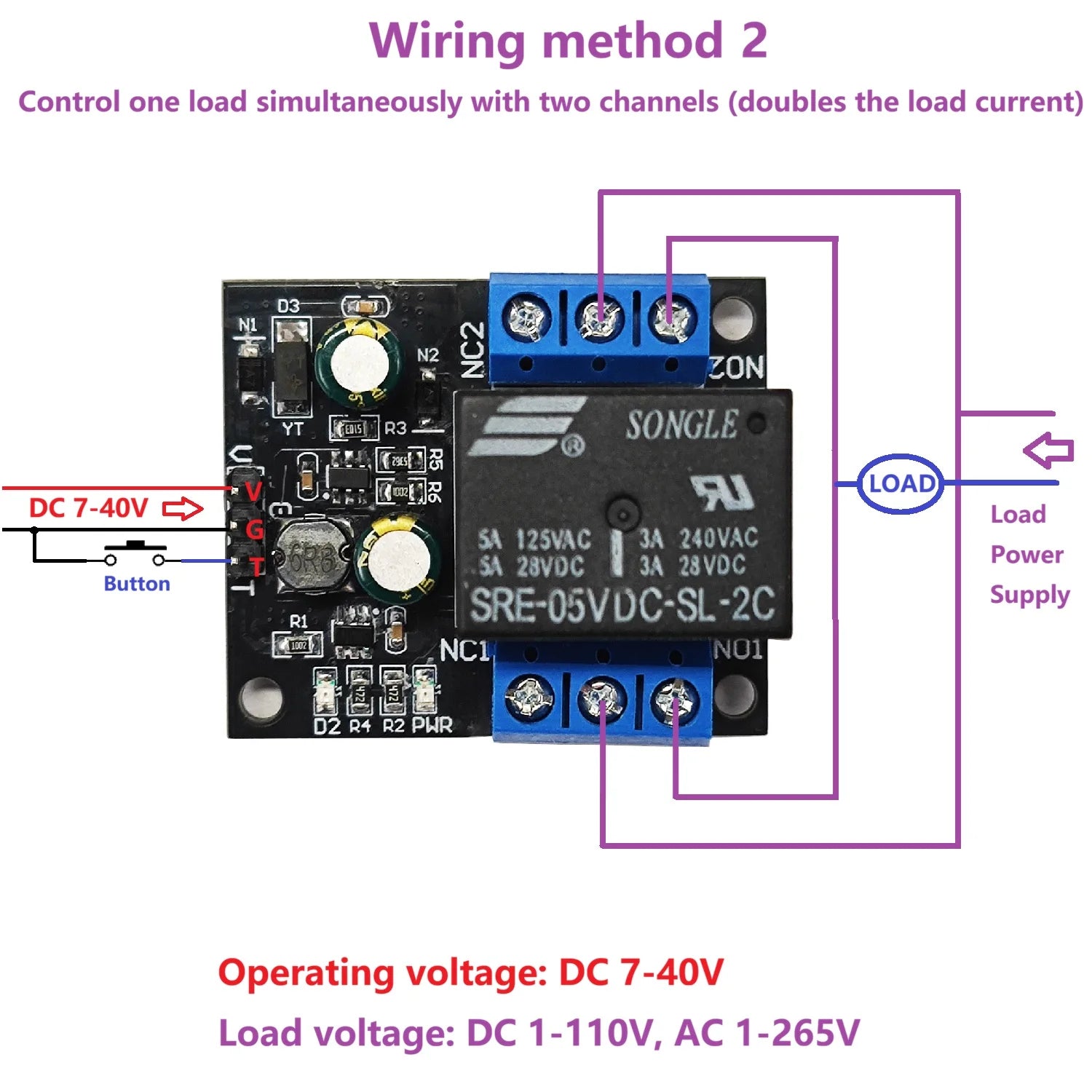

2. Control one load simultaneously with two channels (doubles the load current)

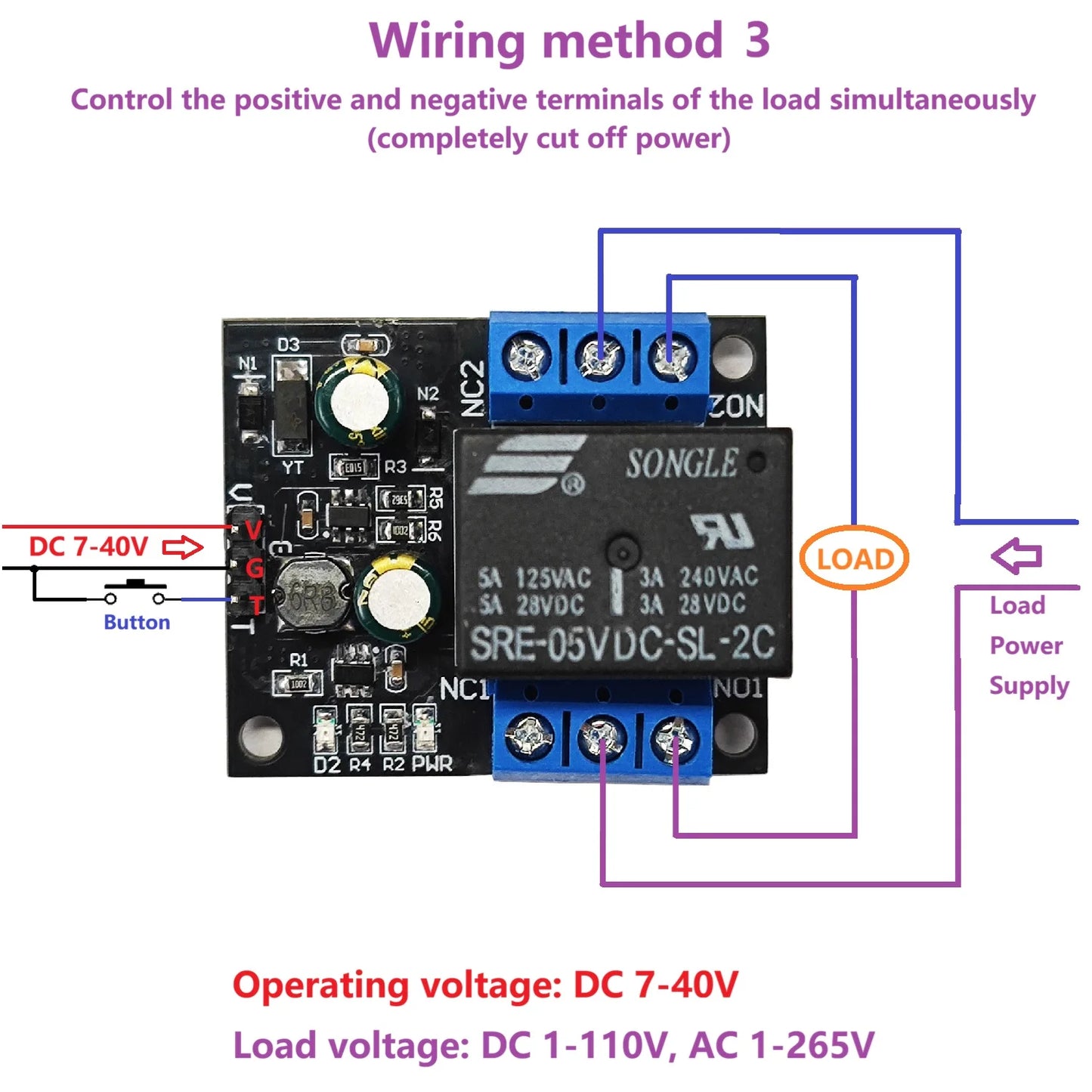

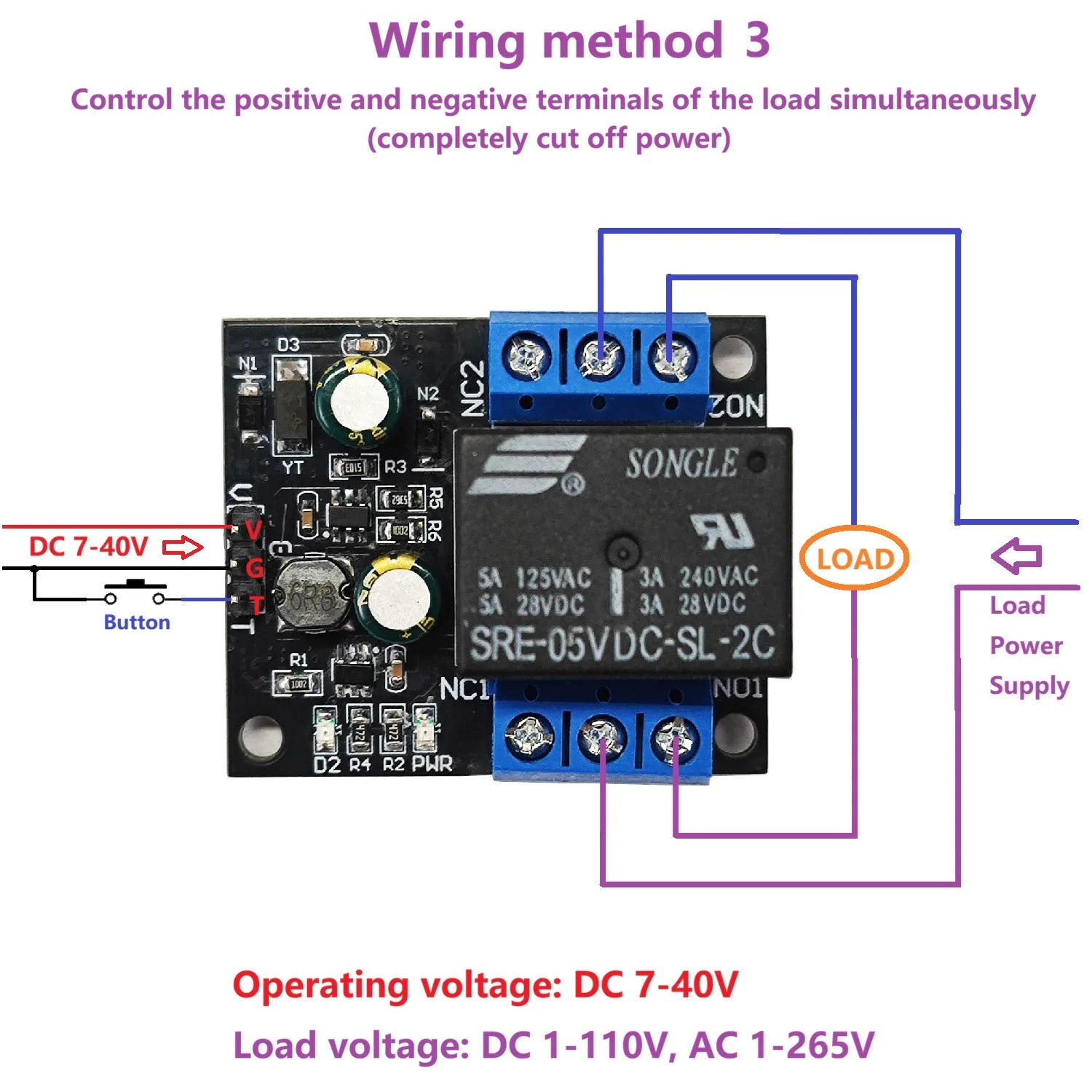

3. Control the positive and negative terminals of the load simultaneously (completely cut off power)

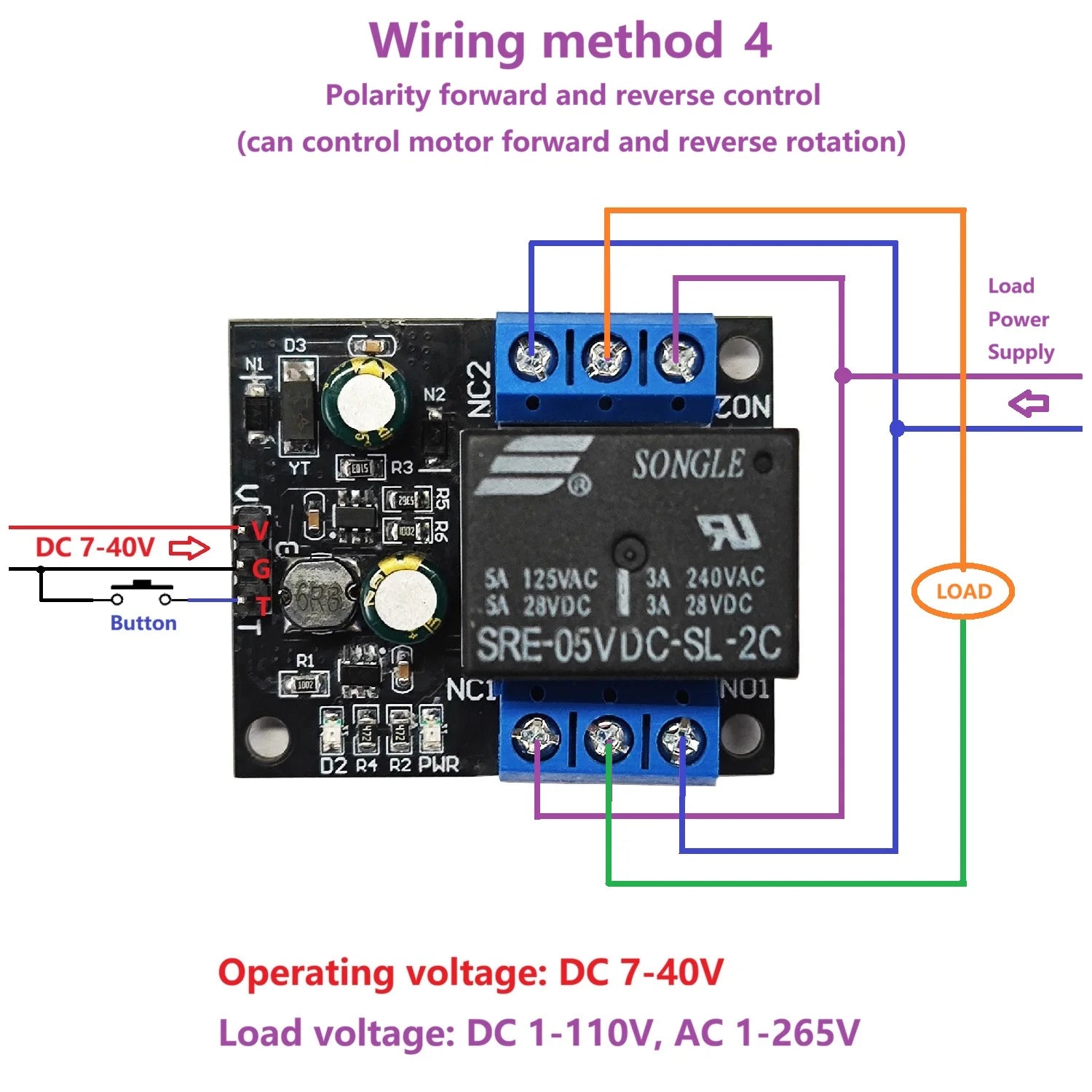

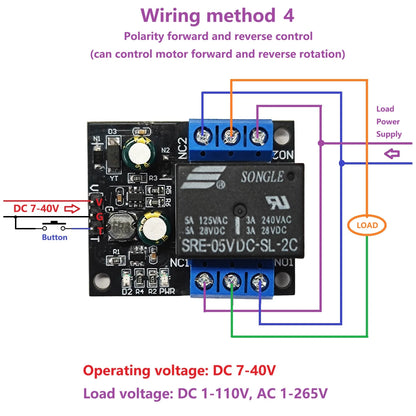

4. Polarity forward and reverse control (can control motor forward and reverse rotation)

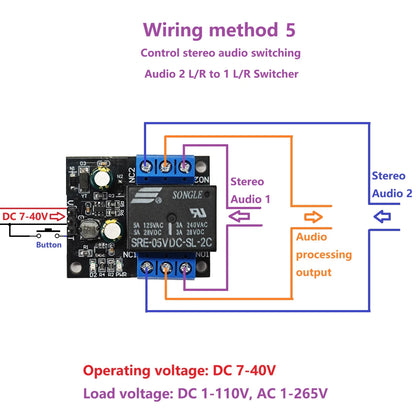

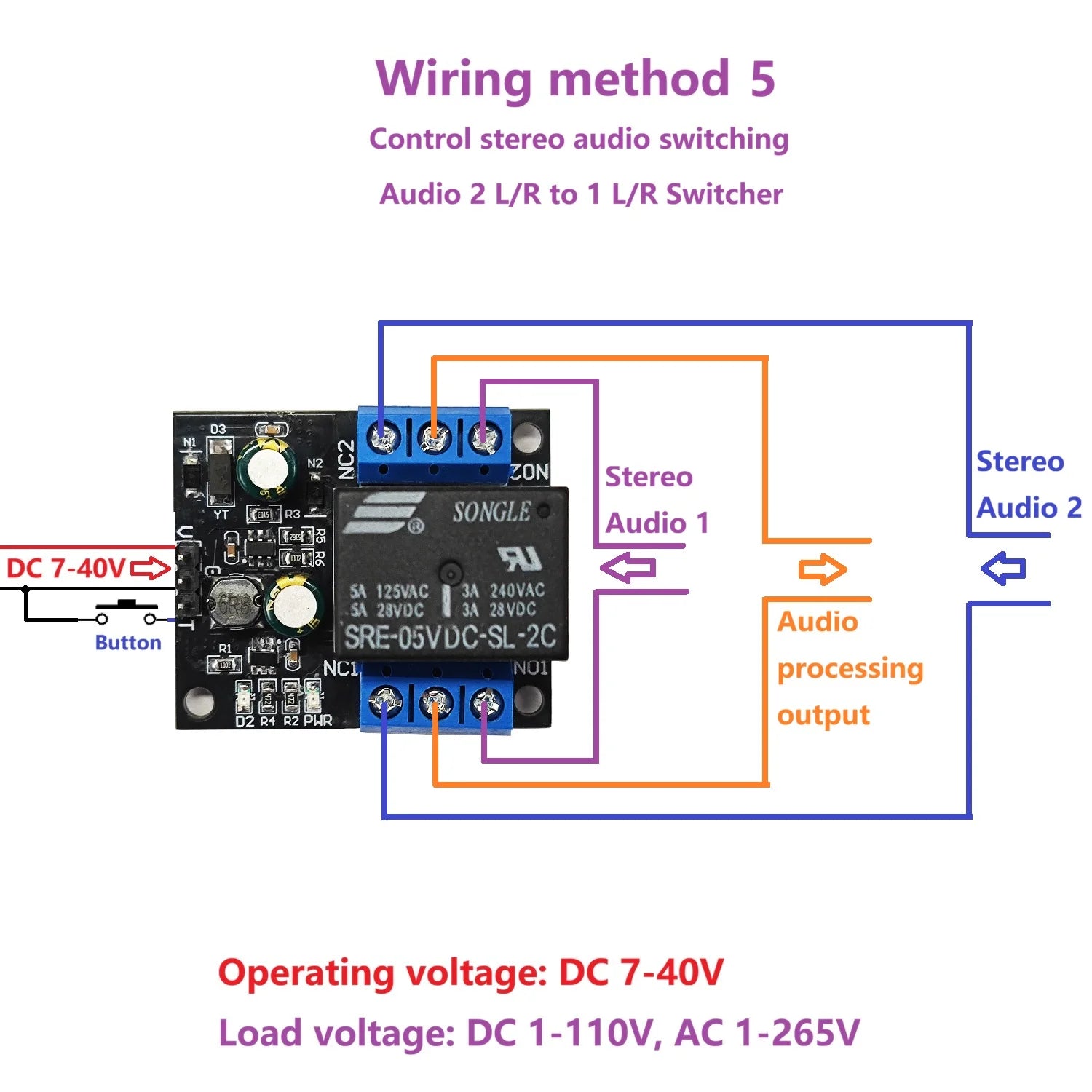

5. Control stereo audio switching
Typical applications:
Automotive electronics
Industrial equipment
AC DC Motor
LED lighting
Smart Home / Home Automation
Emergency lighting
MCU development board
Toy car
Audio Mixer
