IO15B01 6A Flip-Flop Latch Switch Module – 2.5-6V Bistable Self-Locking Trigger Board with ＜10μA Standby for Solar Panel LED Motor

IO15B01 6A Flip-Flop Latch Switch Module – 2.5-6V Bistable Self-Locking Trigger Board with ＜10μA Standby for Solar Panel LED Motor

$9.73 USD
$9.73 USD $9.73 USD
Sale Sold out
Taxes included.


Product Name:


3/5PCS 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module for Solar Panel


Packing list:

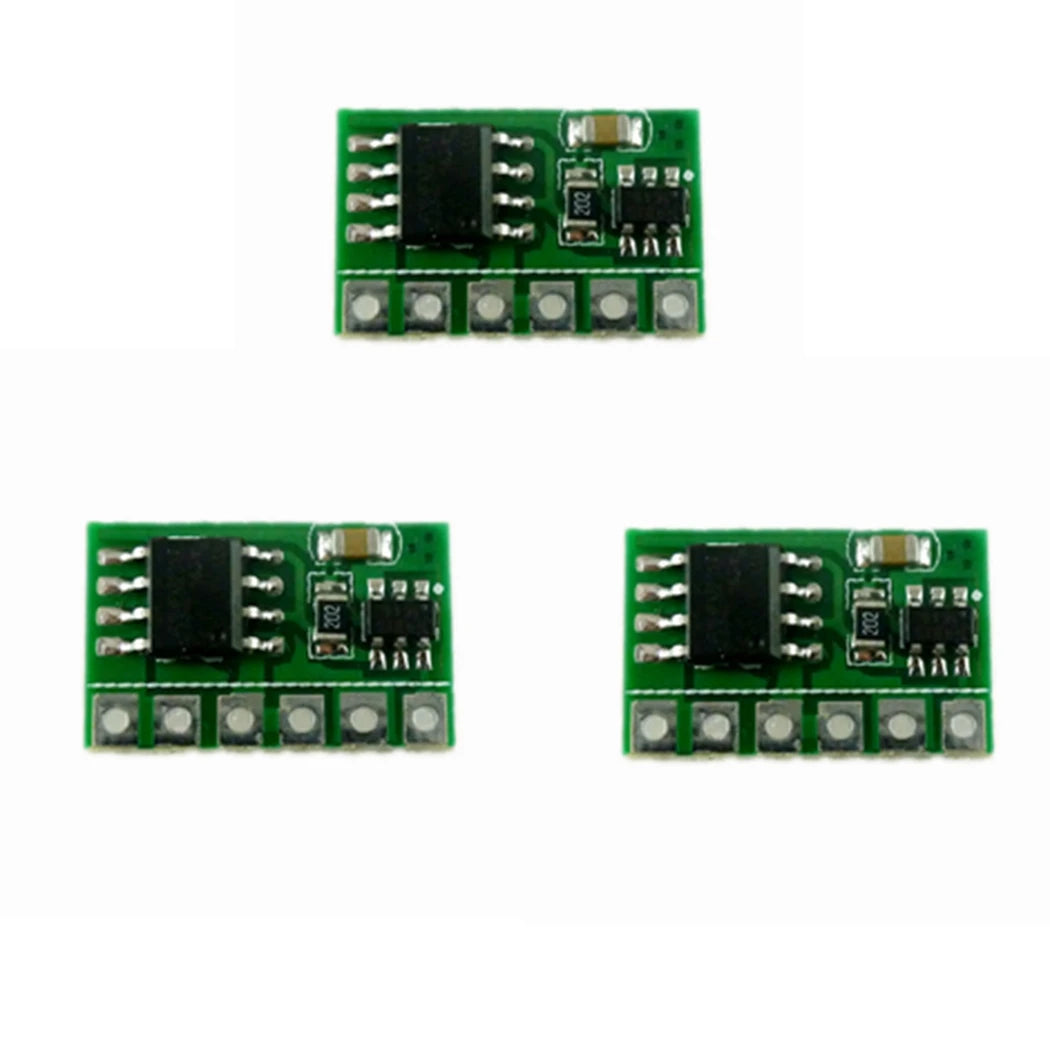

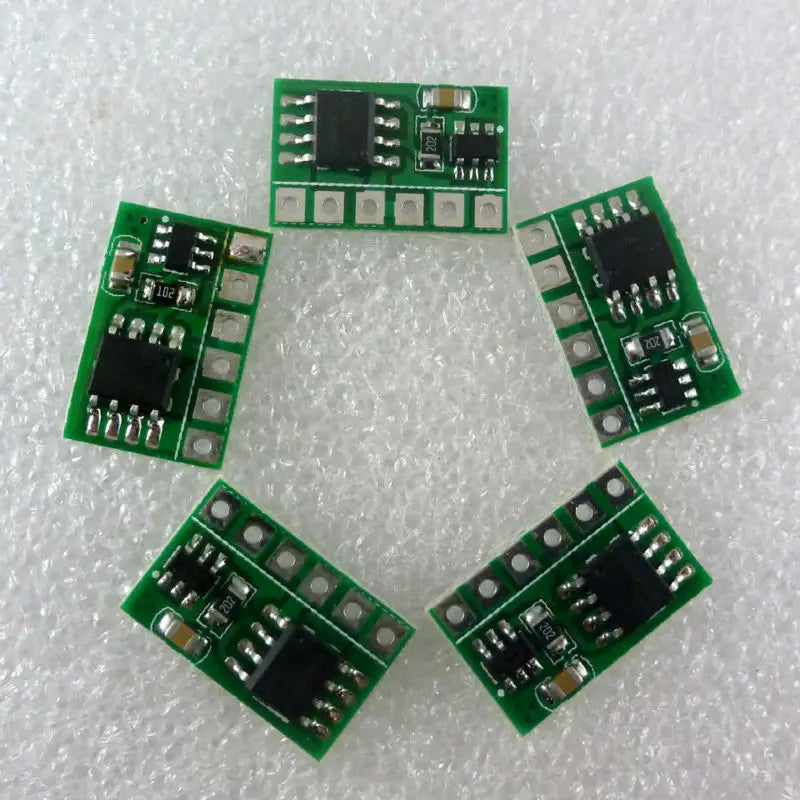

3/5 PCS
2.5-6V 6A Bistable Self-locking Trigger Switch












Description:

Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.

Low standby power consumption, high output power.

Electrical parameters:

Power supply voltage:DC 2.5V-6V

Standby current:less than 10uA

Driver IC is Dual P-channel MOSFET MEM2313,Maximum drive current is 6A

Allowing continuous output current:

5A(5V-6V)

4A(3.7V-5V)

2A(2.5V-3.7V)

Pin pitch 2.54mm.

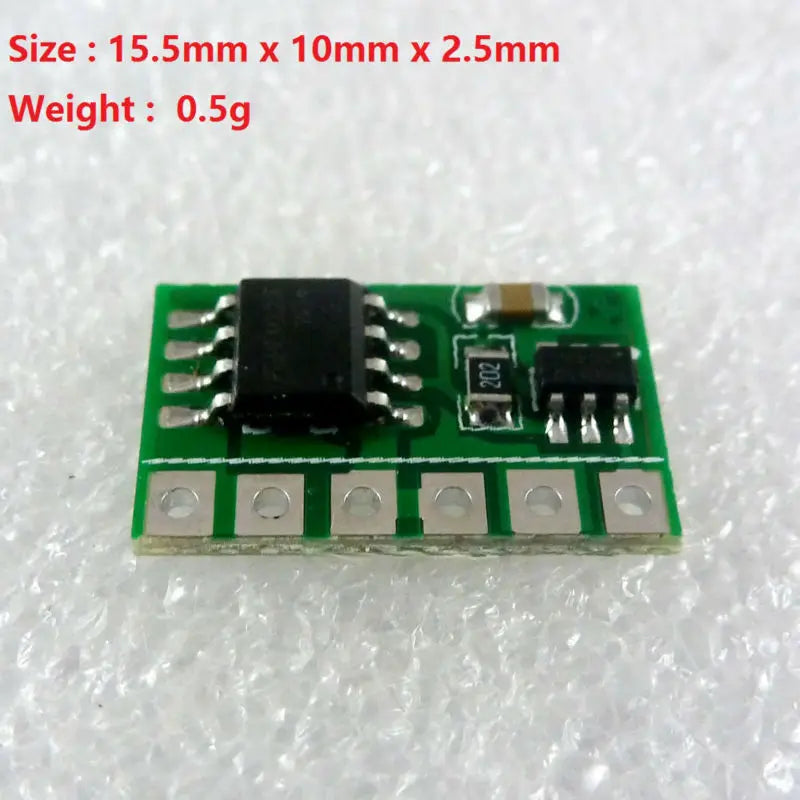

Size:5.5mm x 10mm x 2.5mm.

Weight : 0.5g

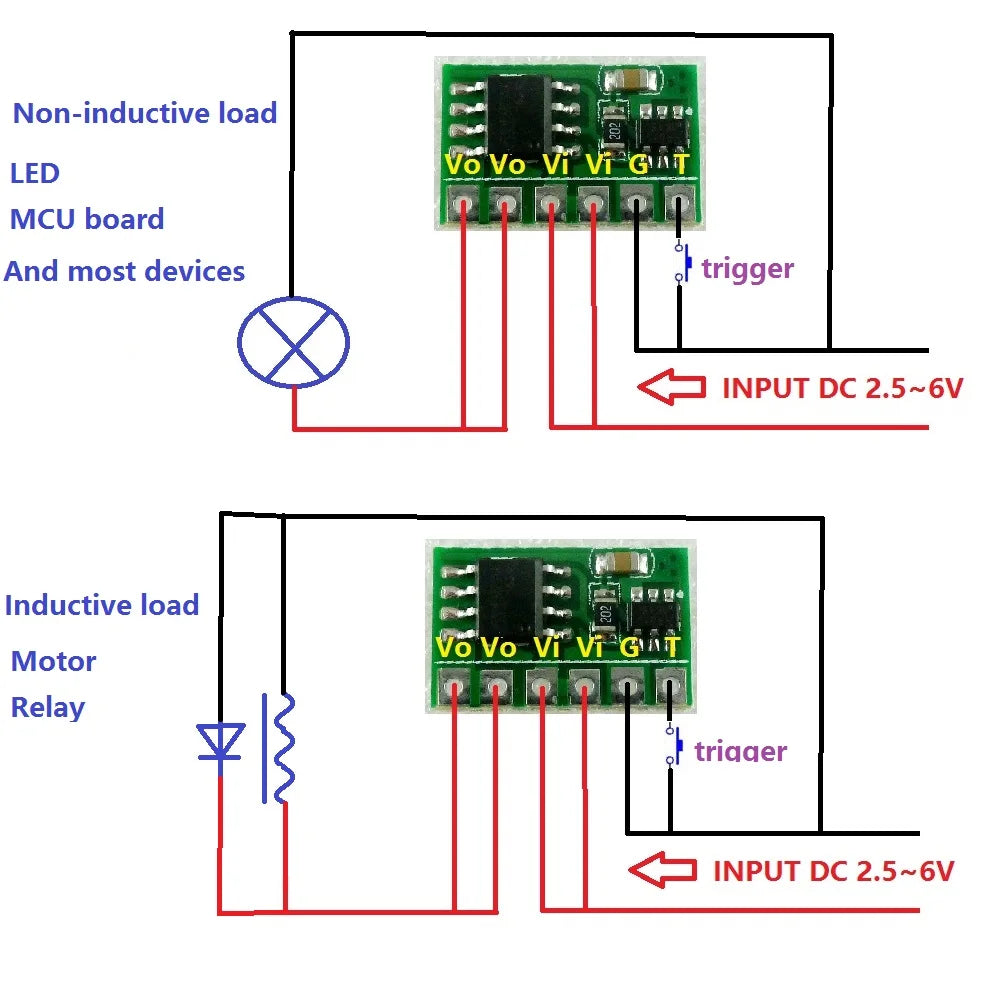

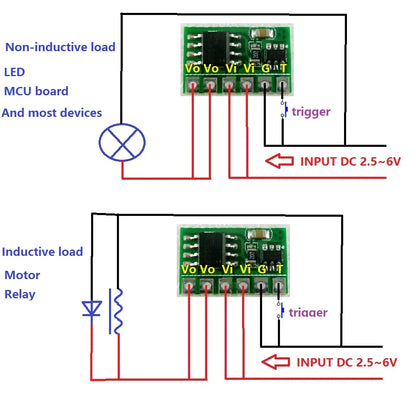

Note:inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.

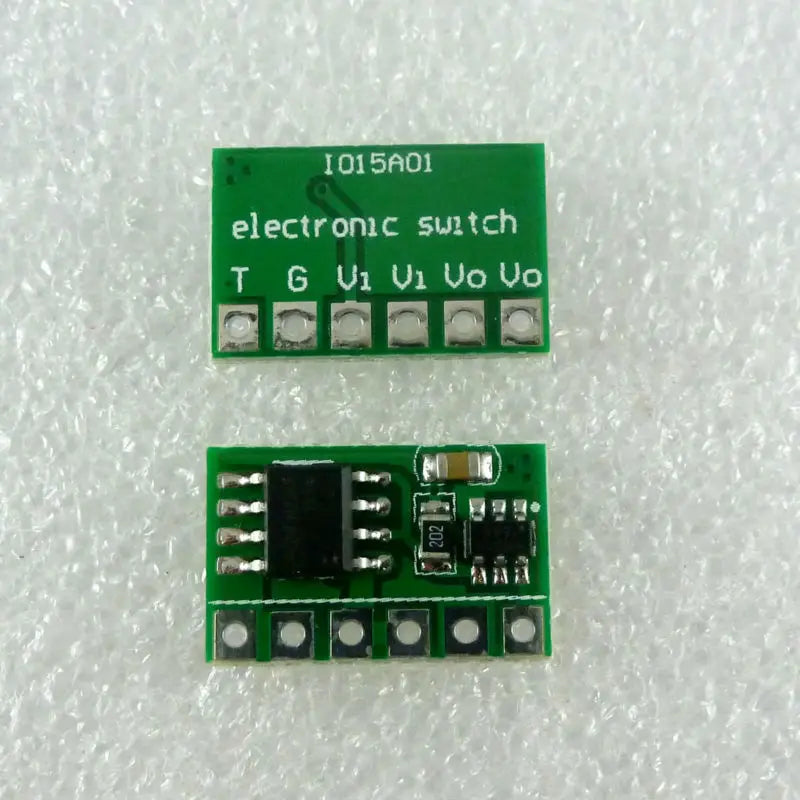

Pin description:

Vo:output;

Vi:power supply;

G:power ground.

T:trigger signal input terminal;

Applications:

MCU Development Board

Motor

mobile power

LED Lighting


5V Relay

esp8266 WIFI MODULE

mobile power

Solar battery
