IO26G04 4CH Multifunction Delay Relay Module – DC 5V/12V/24V Timer Switch with Flip-Flop Latch Self-Locking Interlock for PLC Power Sequencer
IO26G04 4CH Multifunction Delay Relay Module – DC 5V/12V/24V Timer Switch with Flip-Flop Latch Self-Locking Interlock for PLC Power Sequencer
Regular price
$9.16 USD
Regular price
$9.16 USD
Sale price
$9.16 USD
Taxes included.

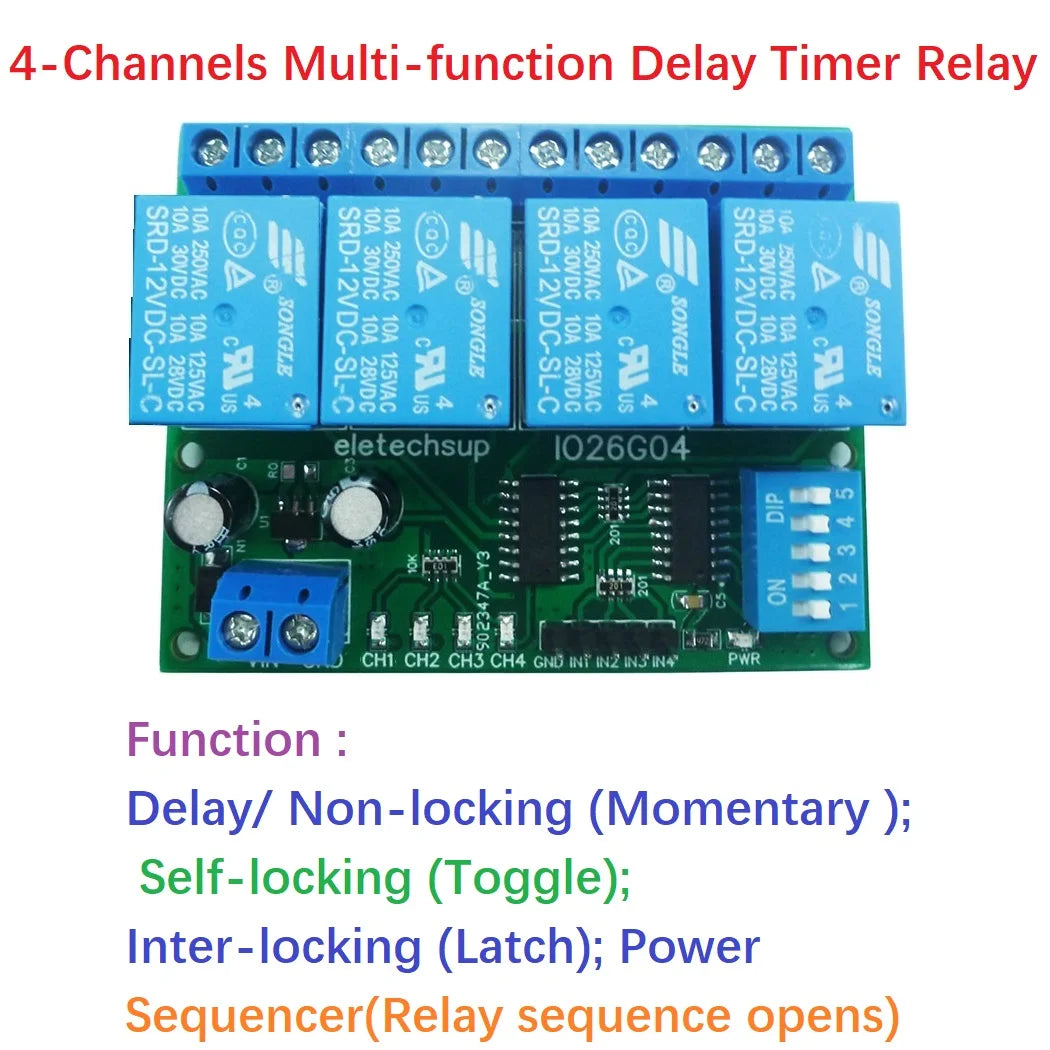

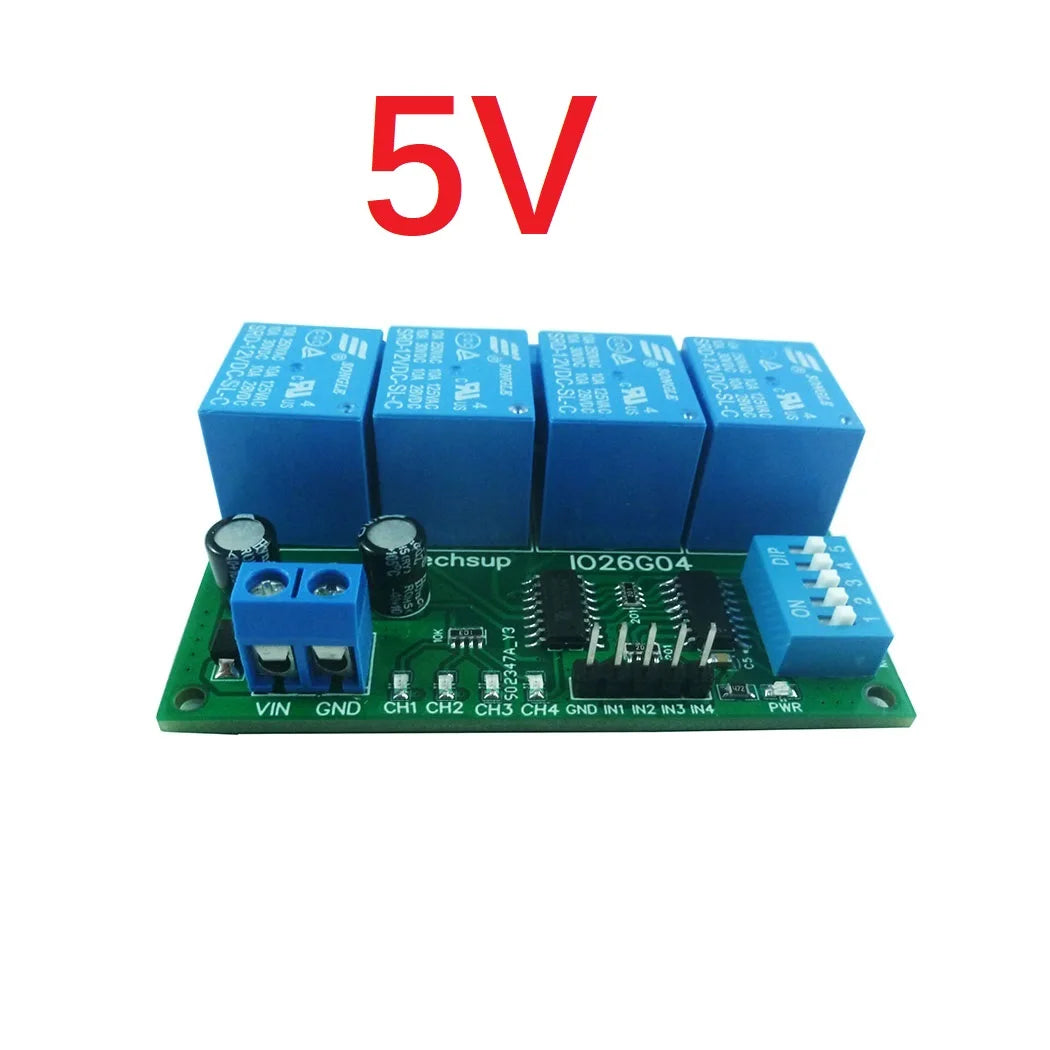

Product Name: 4ch DC 5V 12V 24V Multifunction Delay Relay Time Switch Turn on/off PLC Module Power Conditioner Sequencer
Package inlcuded:
1 PCS
IO26G04

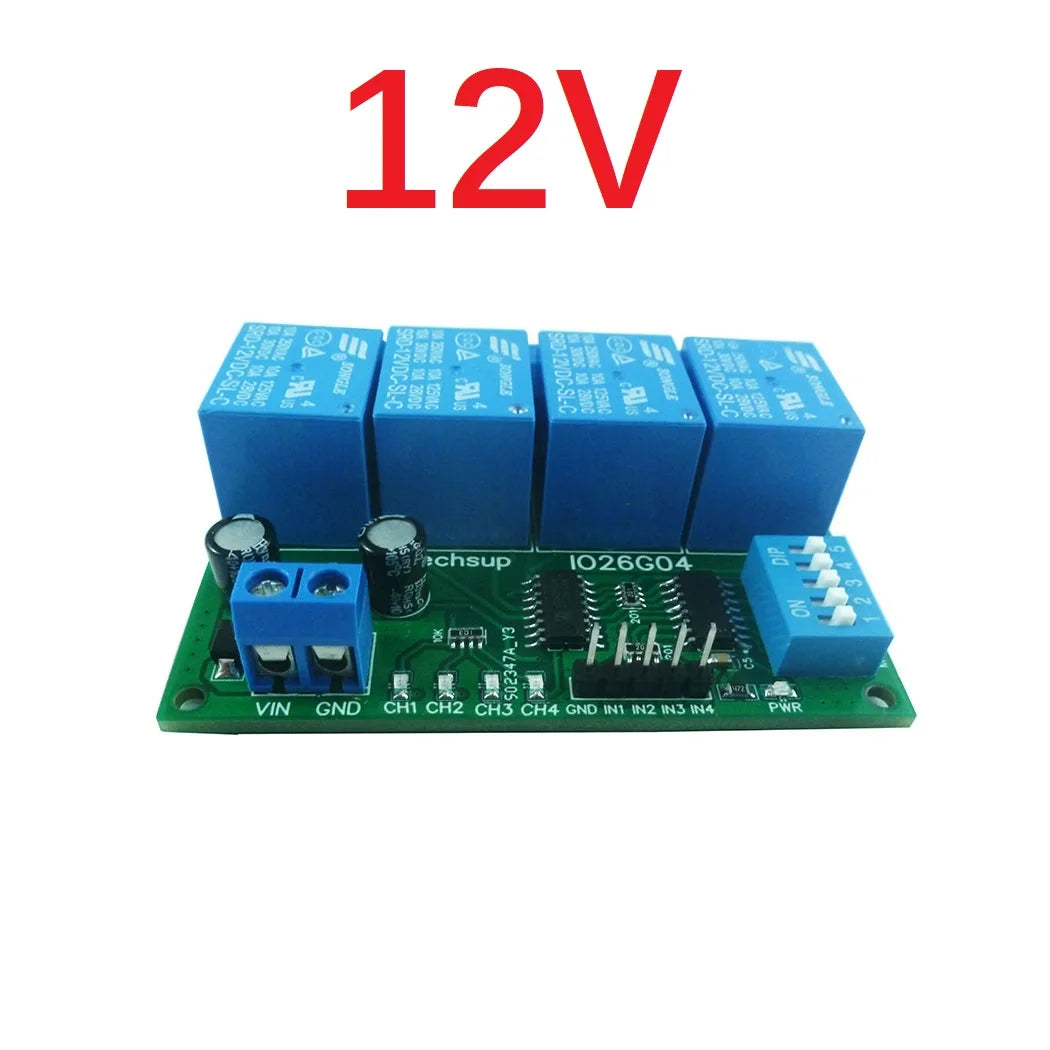

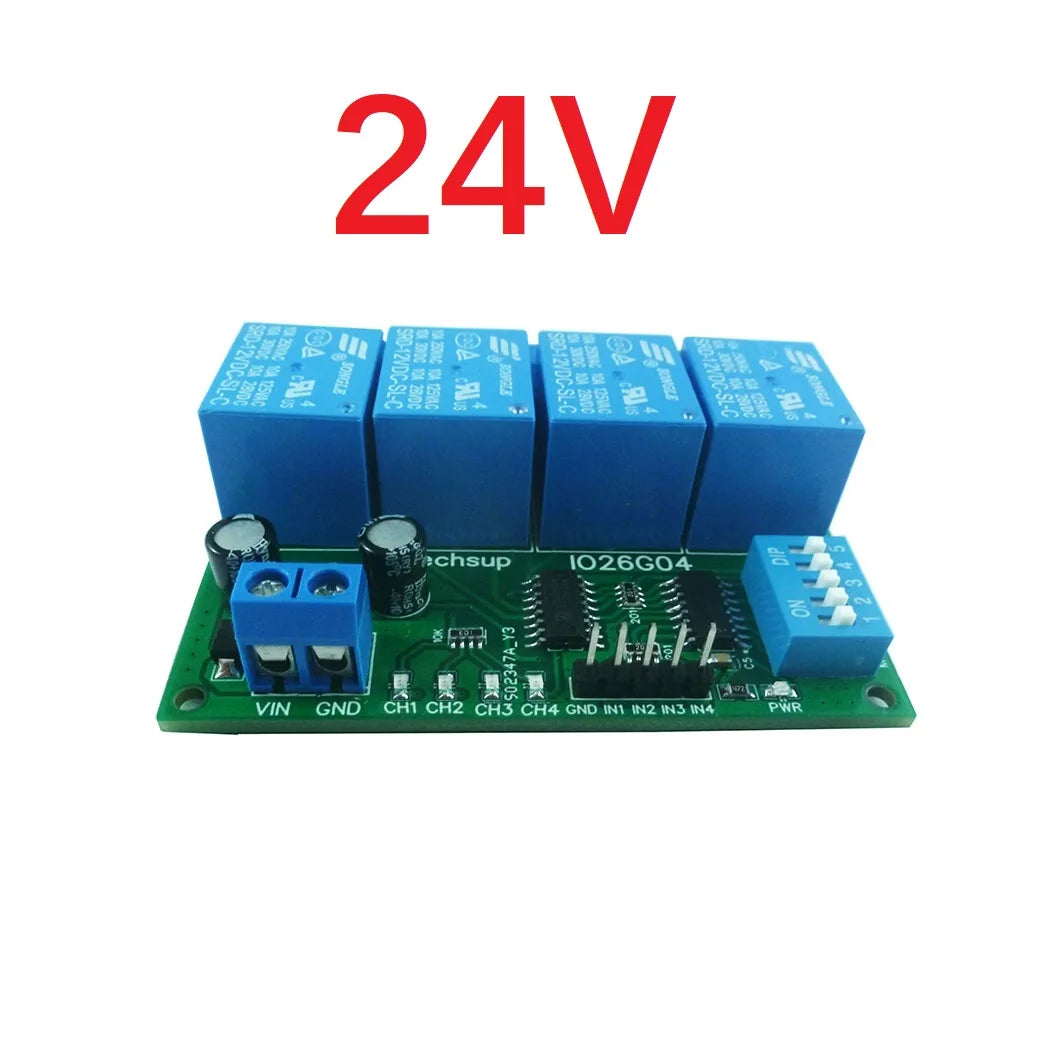

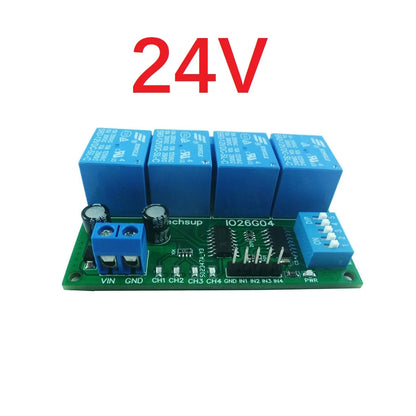

DC 5V/12V/24V 4ch Dip Switch Delay relay module
Product Specifications:
1 Operating voltage: DC 12V(DC 5V/ 24V Optional)
2 Operating Current(DC 12V) : Standby current 4MA, 1 relay open 32MA, 2 relays open 59MA, 3 relays open 85MA, 4 relays open 114MA;
3 Size: 68 x 53.5 x 20 mm
4 Weight : 57g
5 Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A
Product Features:
4 channel relay, each channel independently triggered independent delay, do not interfere with each other.

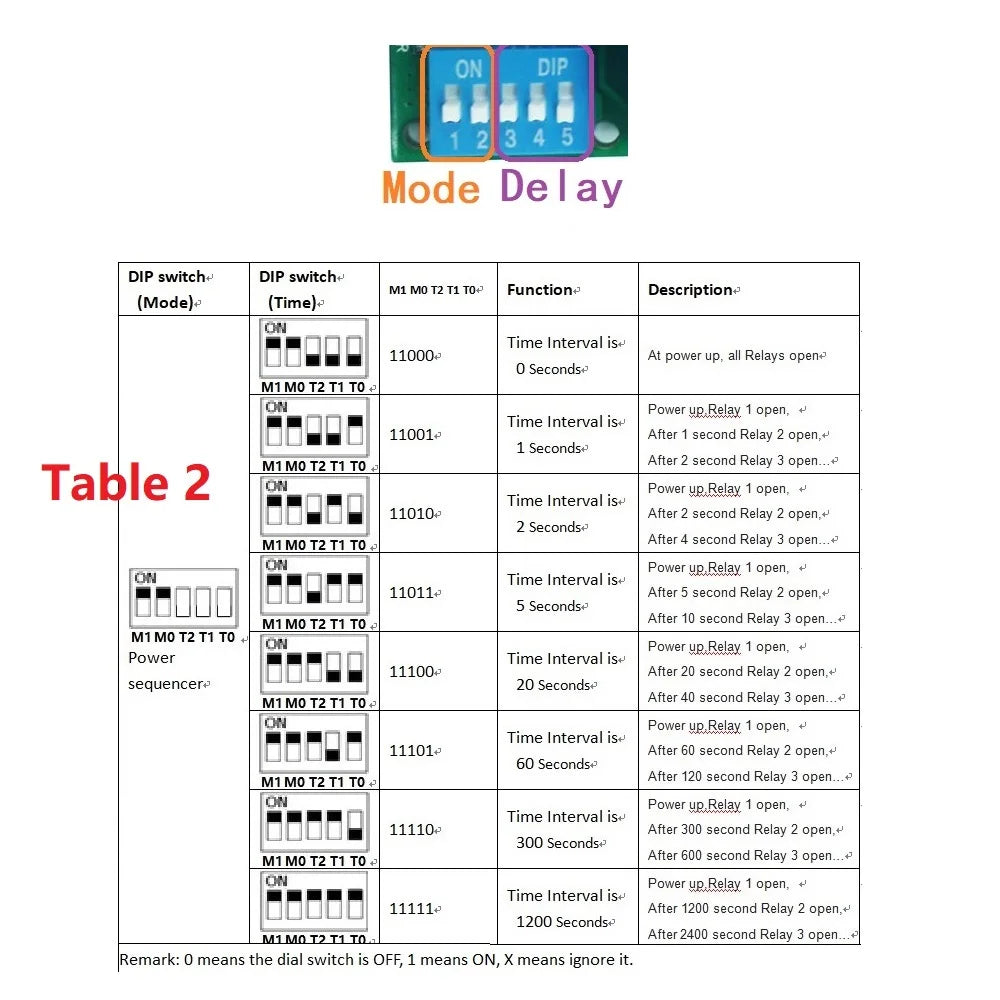

4 kinds of Functional mode: Delay/ Non-locking (Momentary ); Self-locking (Toggle); Inter-locking (Latch); Power sequencer(Relay sequence opens)
Low pulse trigger(Connect to the power supply GND via the trigger button or low level control via the MCU IO port)

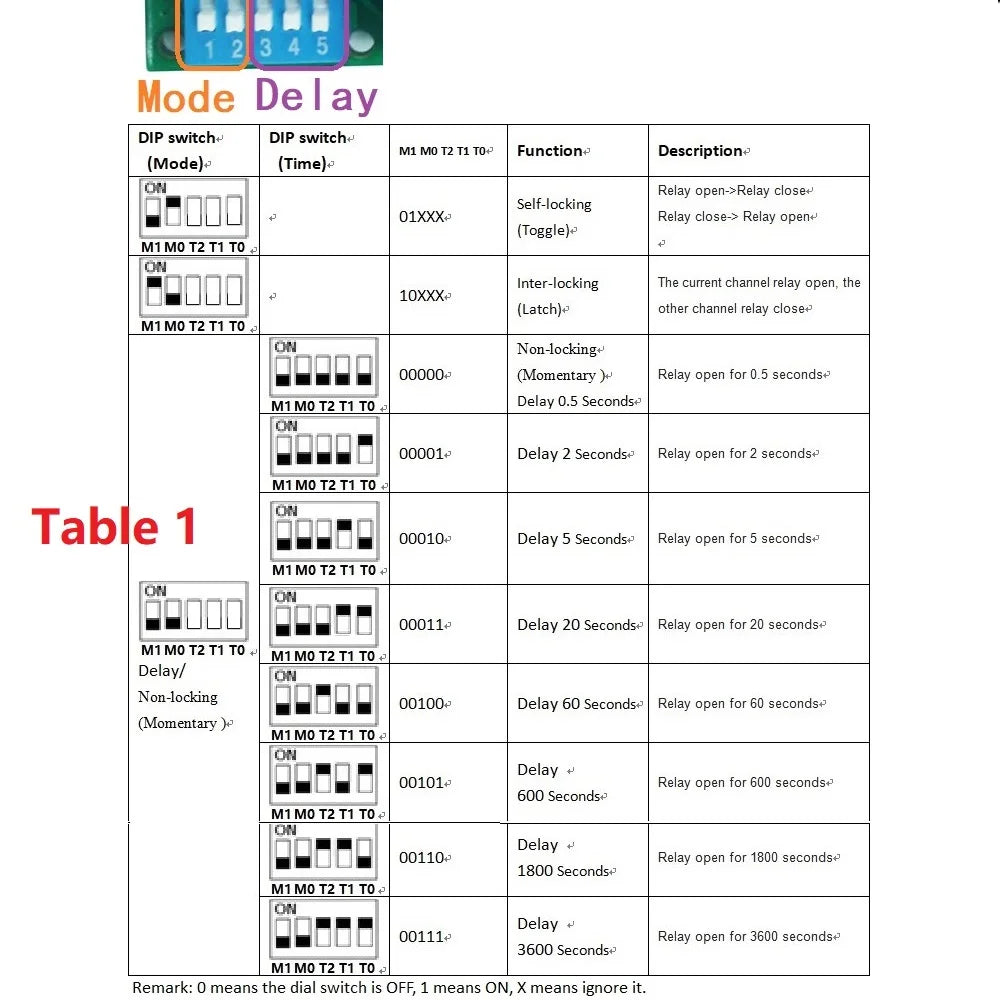

The function mode and delay time are selected by the DIP switch.
Noun resolved:

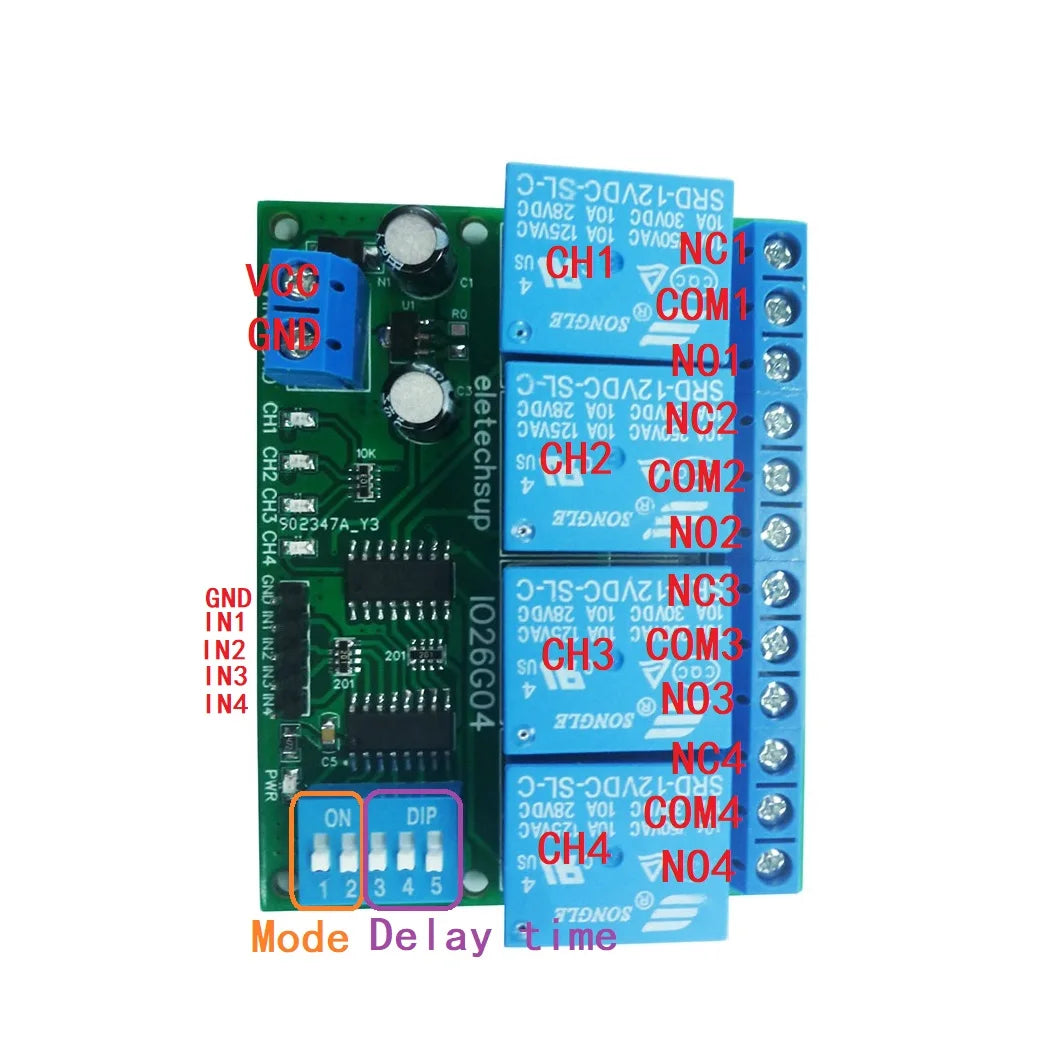

NO : Relay normally open contact
COM : Relay common contact
NC : Relay normally closed contact
Relay open: COM connect NO.
Relay close: COM disconnect NO.
Typical applications:
Automotive electronics
AC DC Motor
Audio amplifier Sequential power up.
Power Conditioner/Sequencer
Smart Home
Emergency lighting
MCU development board
Toy car
UNO MEGA2560
Car delay power off function
how to use:

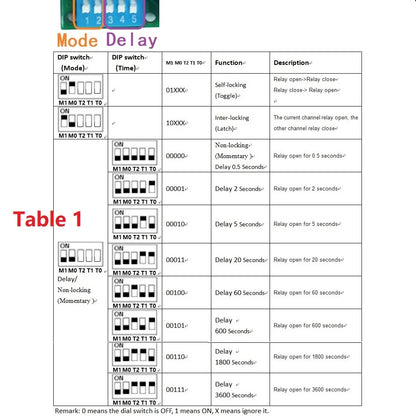

Select the desired function mode and delay time via the DIP switch on the board.
Note: Re-power up after changing the Dip switch
Wiring diagram:

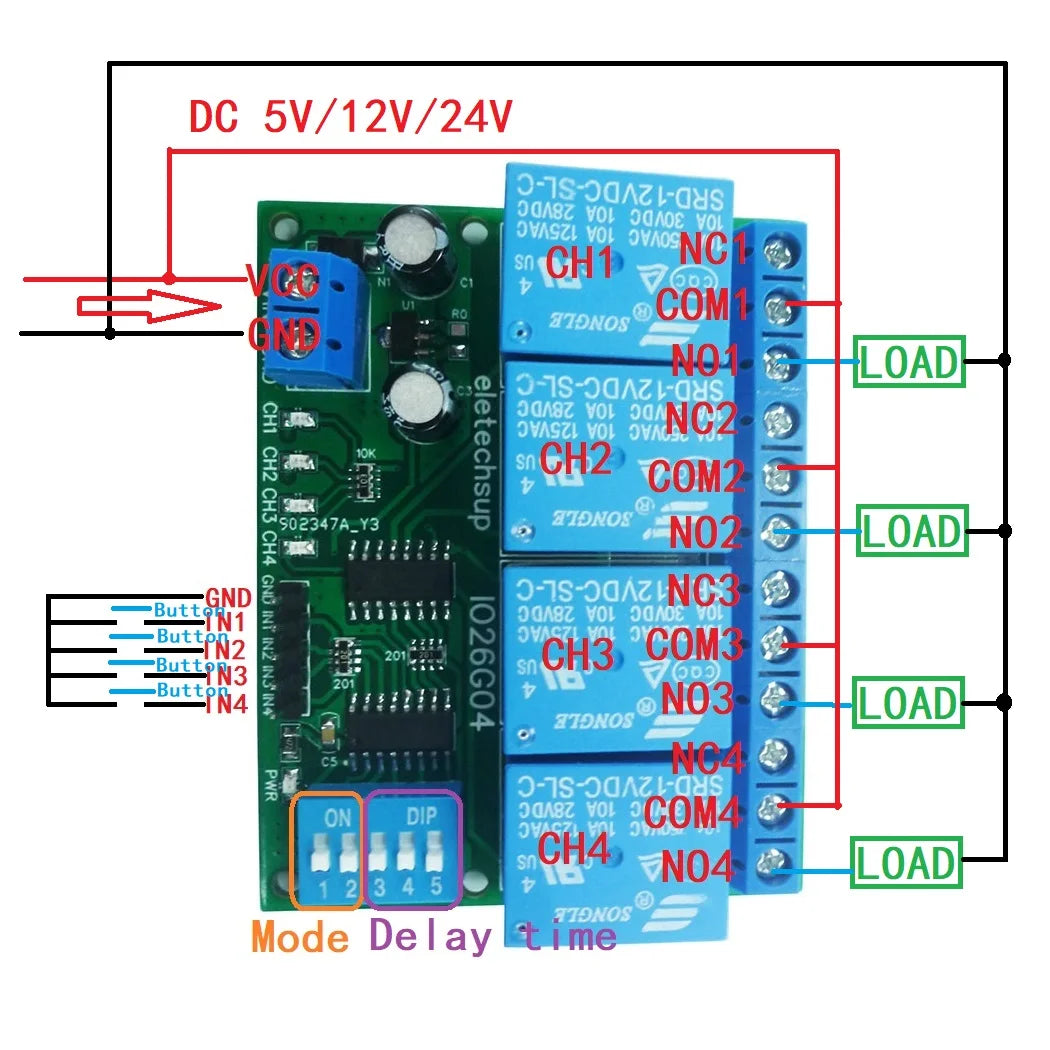

1 DC 12V Control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, toy car and
other DC 12V equipment

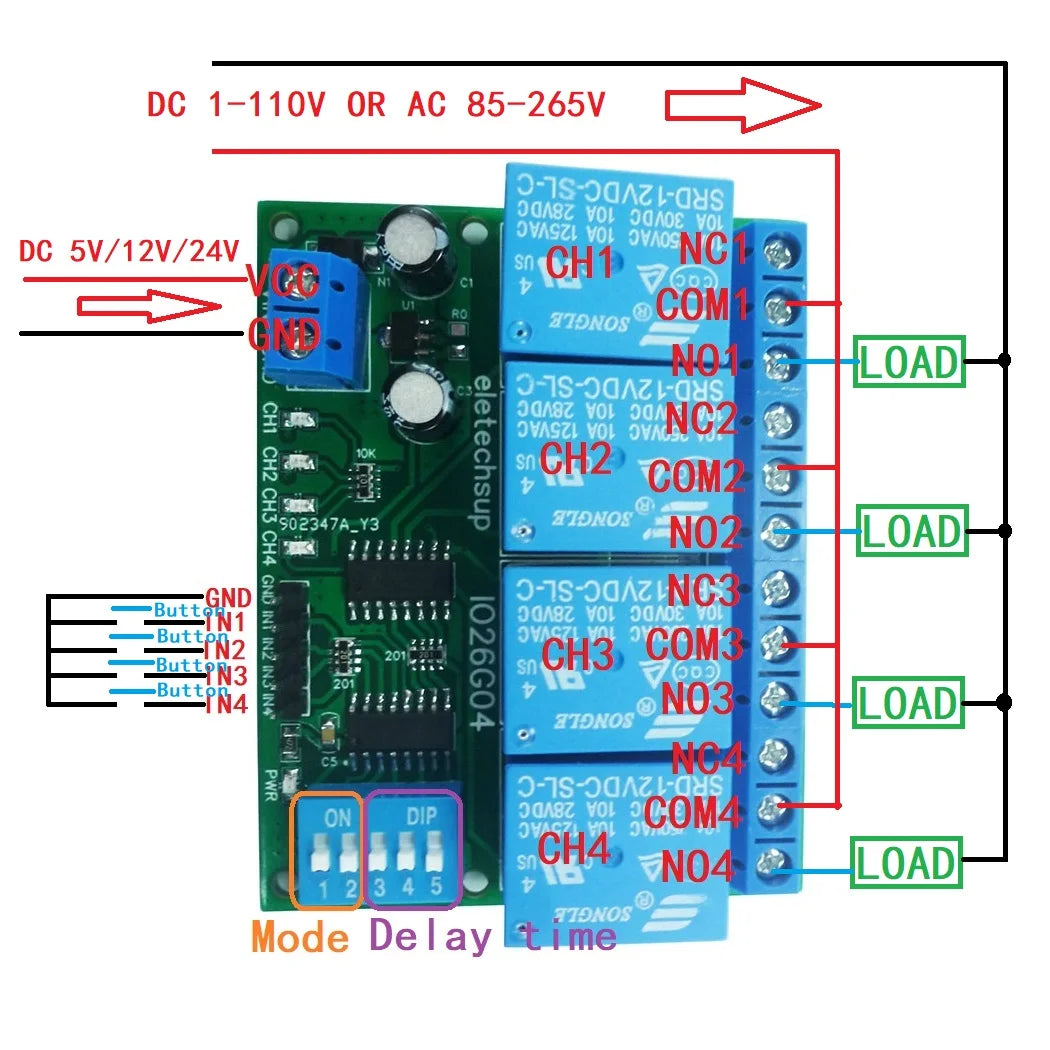

2 DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and other DC AC equipment
