N4KTA01 K-Type Thermocouple to RS485 Converter – -200 to 1350°C Modbus RTU Digital Temperature Measurement Board for PLC Industrial Automation
N4KTA01 K-Type Thermocouple to RS485 Converter – -200 to 1350°C Modbus RTU Digital Temperature Measurement Board for PLC Industrial Automation

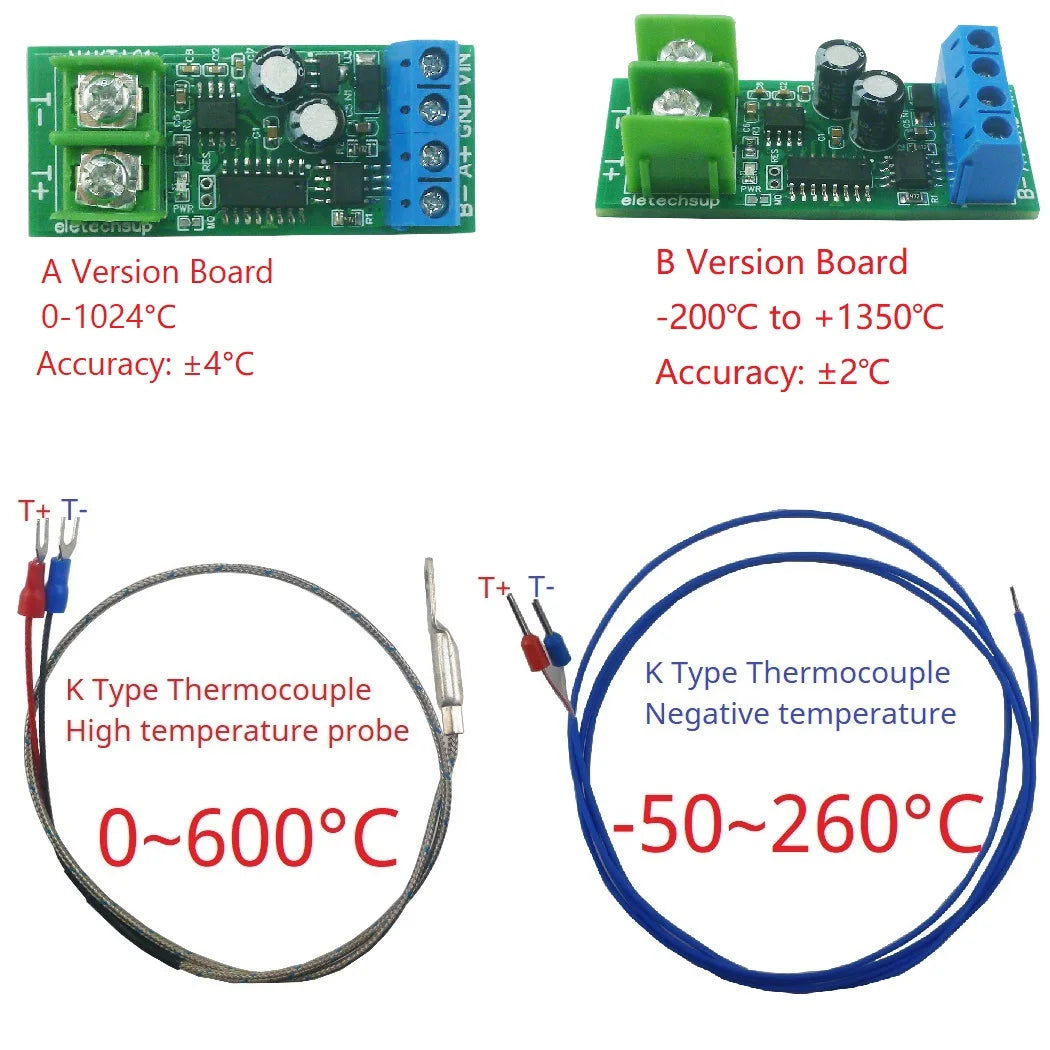

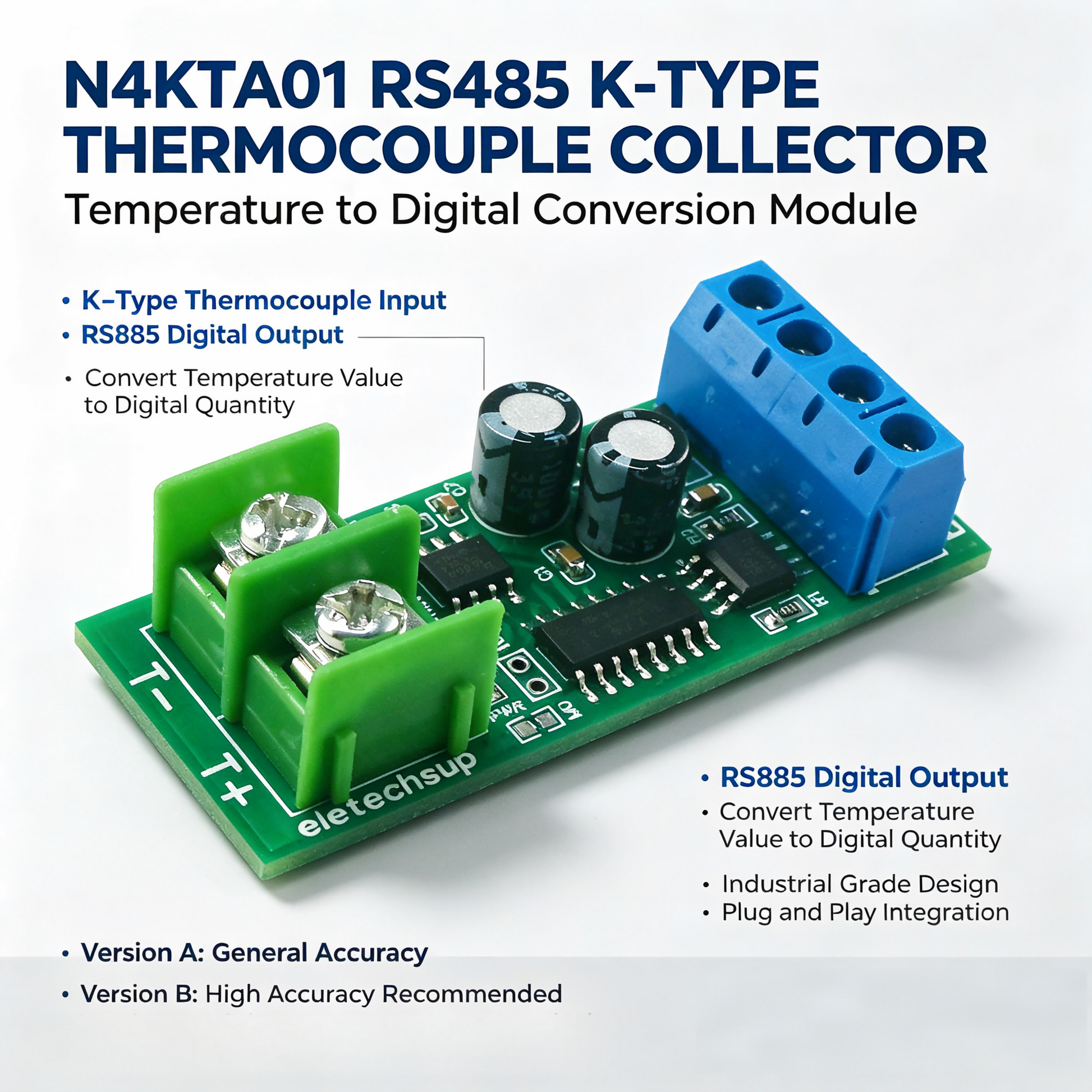

N4KTA01 is the RS485 K-type thermocouple collector developed and produced for the first time by eletechsup. Through this module, the temperature value of the K thermocouple can be converted into a digital quantity and transmitted through RS485. If the accuracy requirements are not high, you can use version A. If the accuracy requirements are high, it is recommended to use version B.
Function:

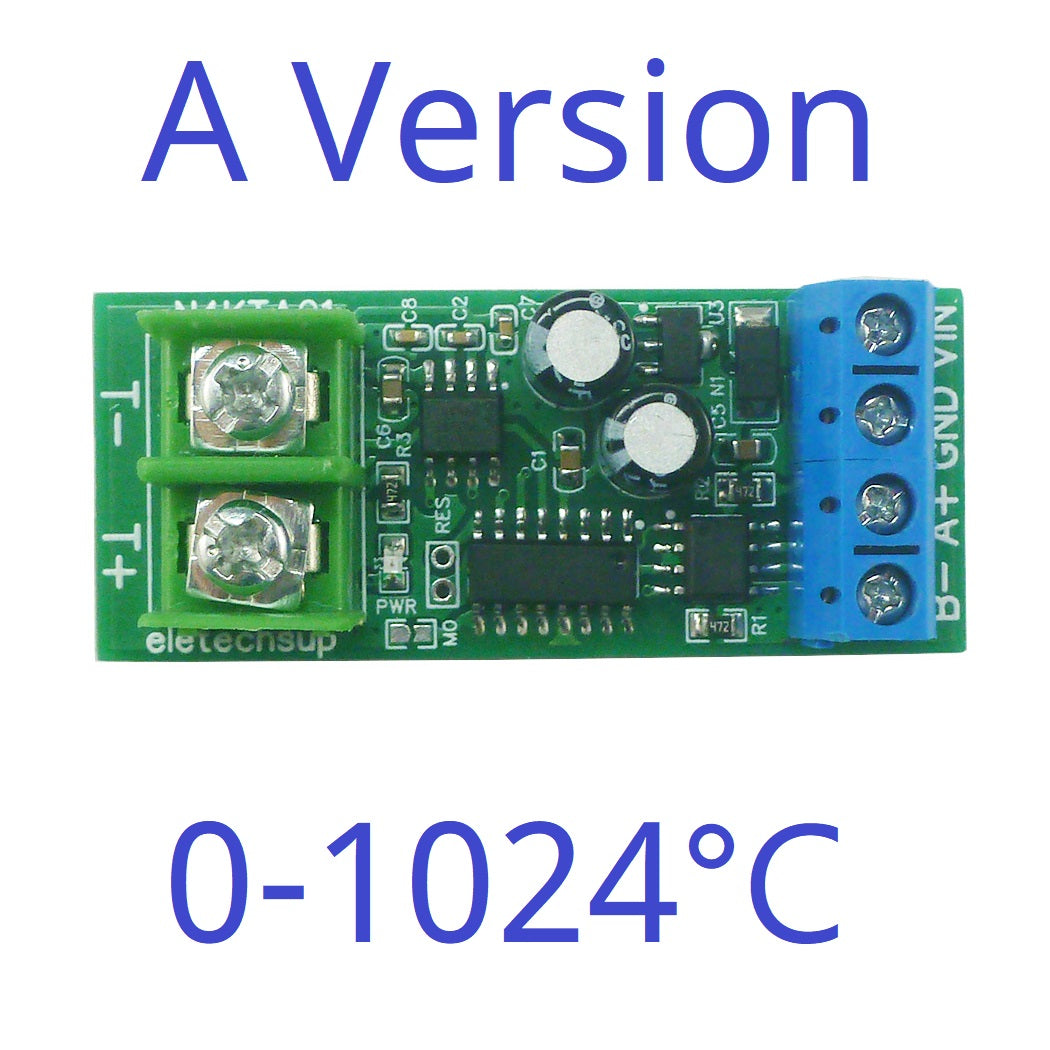

A version module:

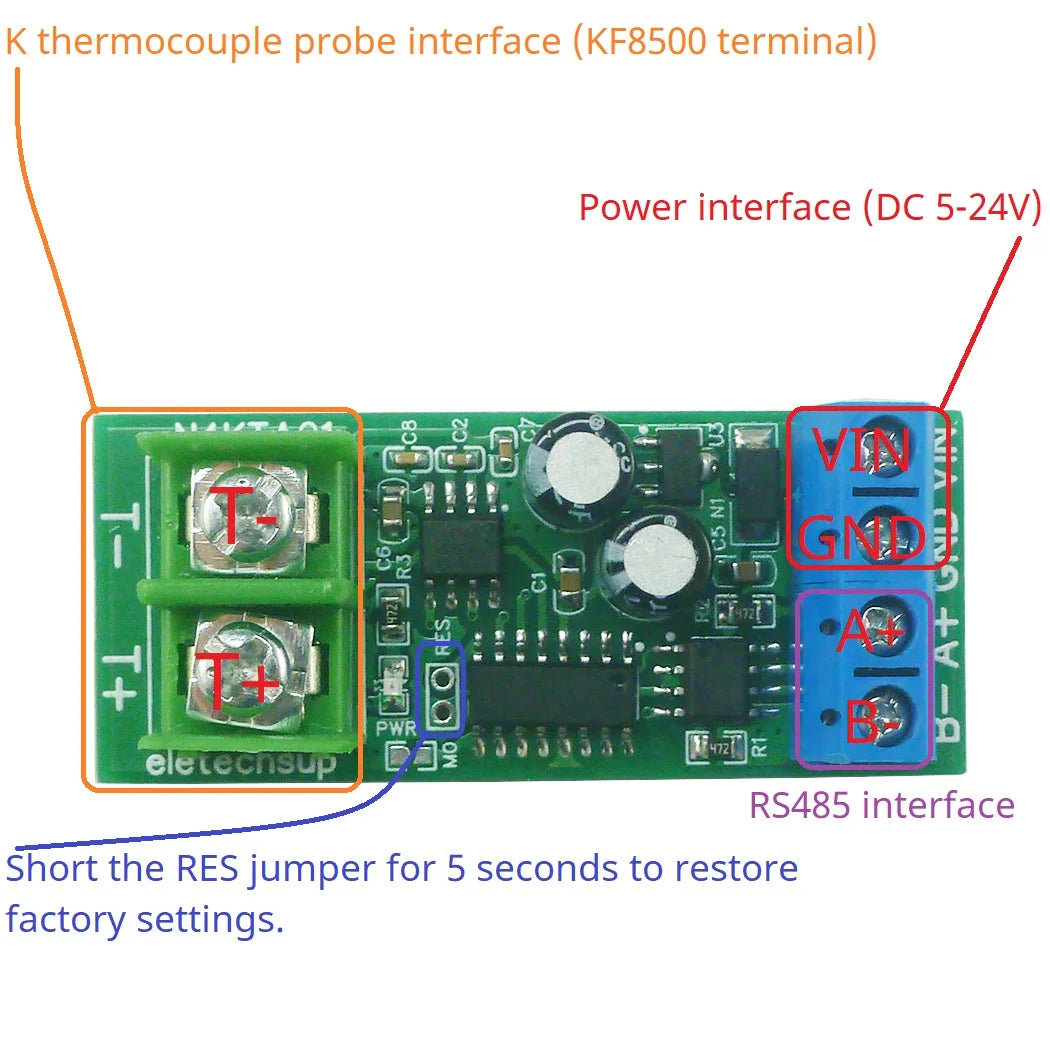

Power supply : DC 5-24V (Recommended 5V 9V 12V)
Working current: 5-7MA
Temperature measurement chip: MAX6675ISA+
Temperature measurement range: 0-1024℃
Resolution: 12 bits, 0.25°C resolution
Accuracy: The thermocouple has an accuracy of ±4℃( 0℃ to +700℃),Accuracy is poor.
MODBUS RTU protocol, 03/04 read command, 06/16 write command.
RS485 bus interface, Default baud rate 9600BPS

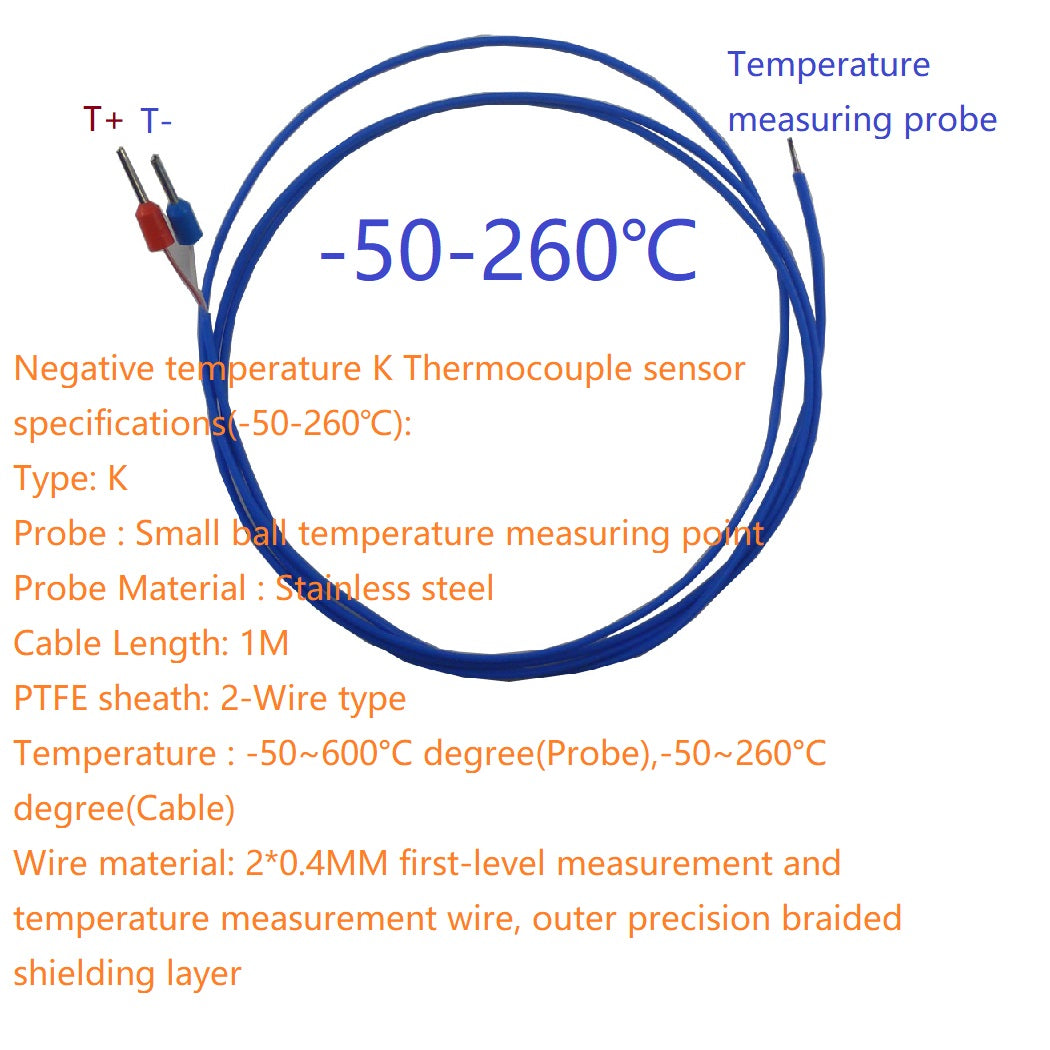

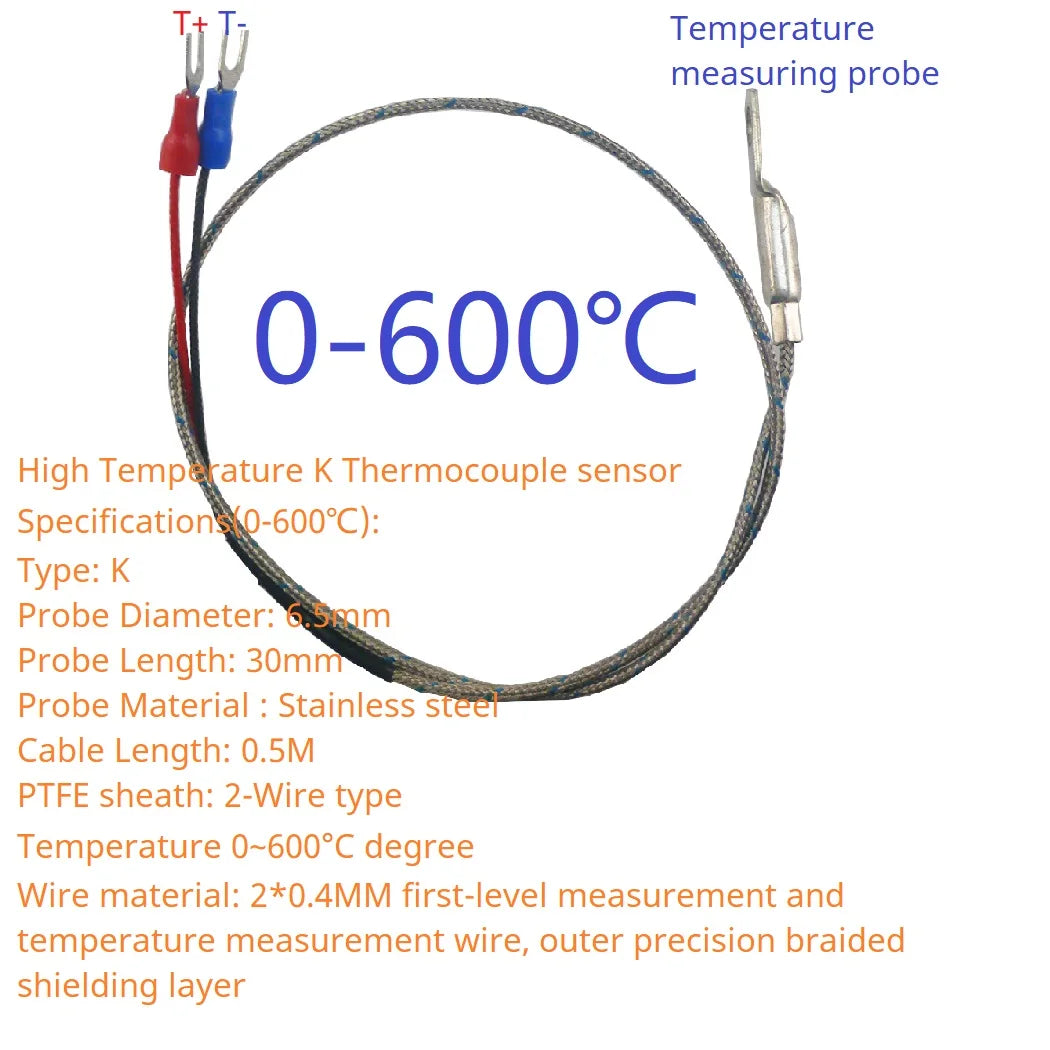

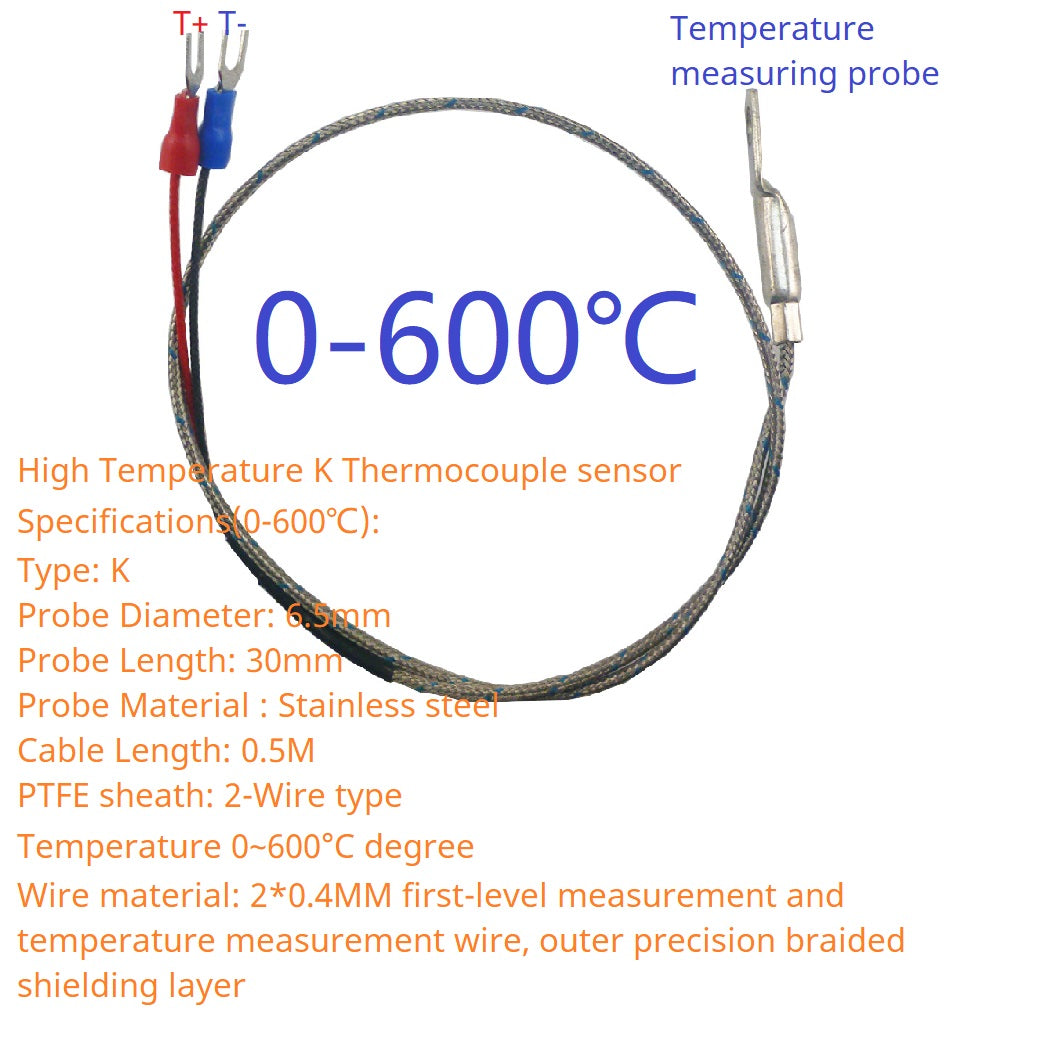

Compatible sensor: K-type thermocouple
Dimensions: 52 X 22 X 15MM
Weight: 11grams

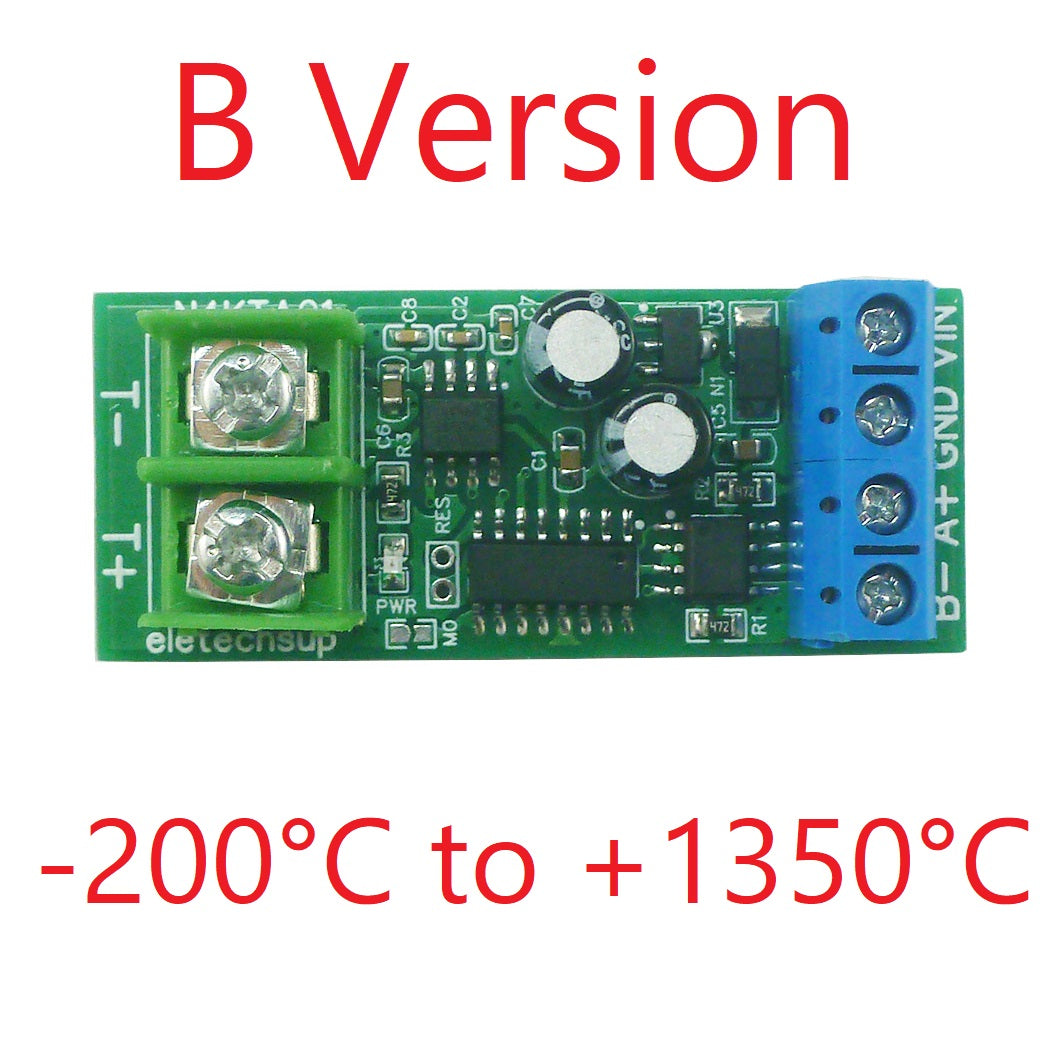

B version module:
Power supply voltage: DC 5-24V (recommended 5V 9V 12V)
Working current: 5-7MA
Temperature measurement chip: MAX31855KASA+
Temperature measurement range: -200℃ to +1350℃
Resolution: 14 bits, 0.25°C resolution
Accuracy: The thermocouple has an accuracy of ±2℃( -200℃to +700℃),Accuracy is relatively good.
MODBUS RTU protocol, 03/04 read command, 06/16 write command.
RS485 bus interface, default baud rate 9600BPS
Compatible sensor: K-type thermocouple
Dimensions: 52 X 22 X 15MM
Weight: 11 grams
