LFUPSMA 2-in-1 LiFePO4 UPS Module – 3.2V to 5V/9V/12V Boost Converter with Battery Charger for Arduino ESP32 ESP8266 WiFi IoT

LFUPSMA is a 3.2V LiFePO4 battery charging and discharging integrated module designed and produced by eletechsup. By connecting the battery, it can be used as a low-power 5V 9V 12V UPS. Be sure to read all instructions carefully before use and connect according to the wiring diagram (typical application).

3.2V LiFePO4 Battery Charge and Discharger(boost) modules

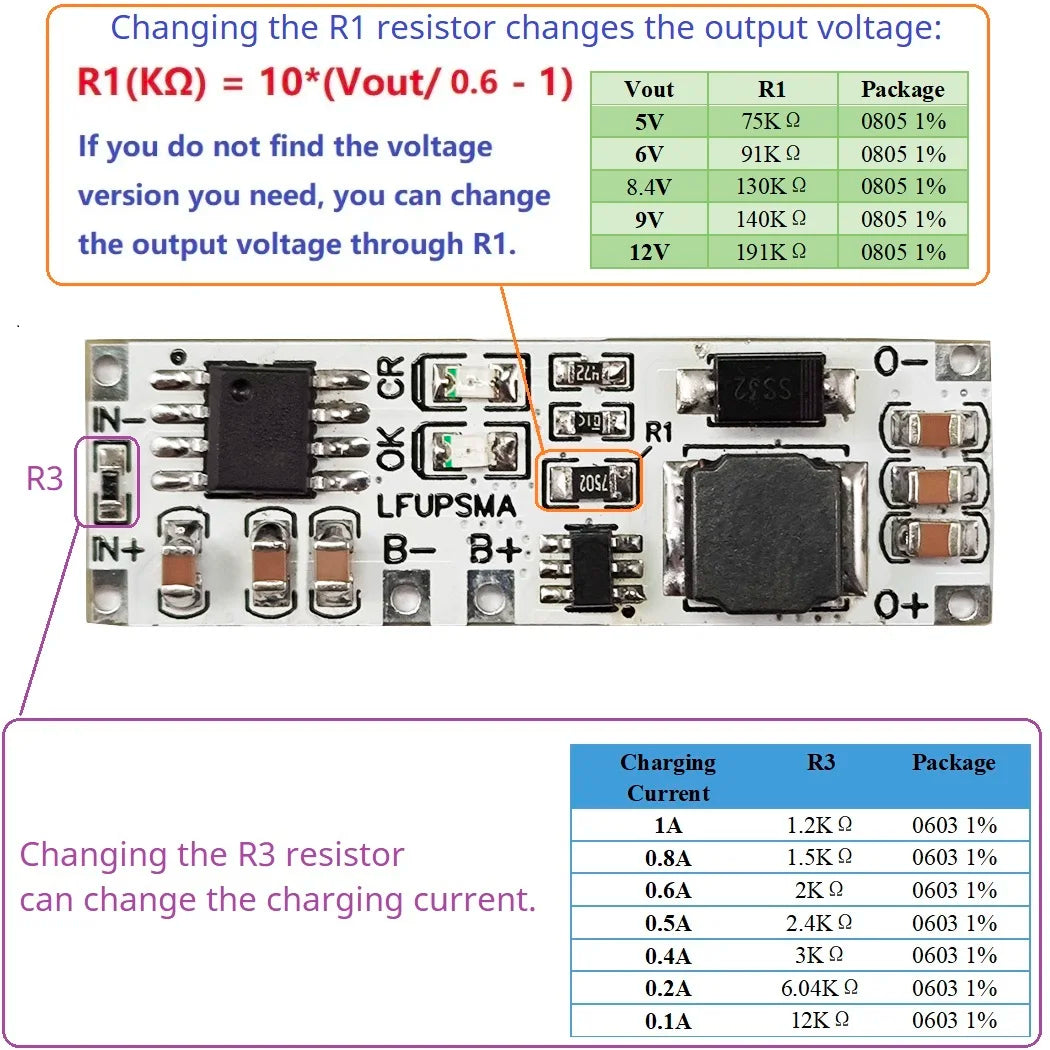

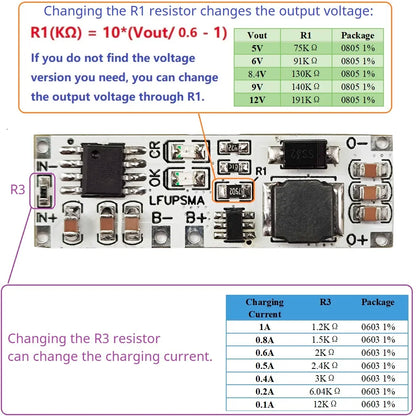

Charging Function:

Charge voltage : DC 5V
Charging current : 1A
Full charge voltage : 3.6V+-1.5%.

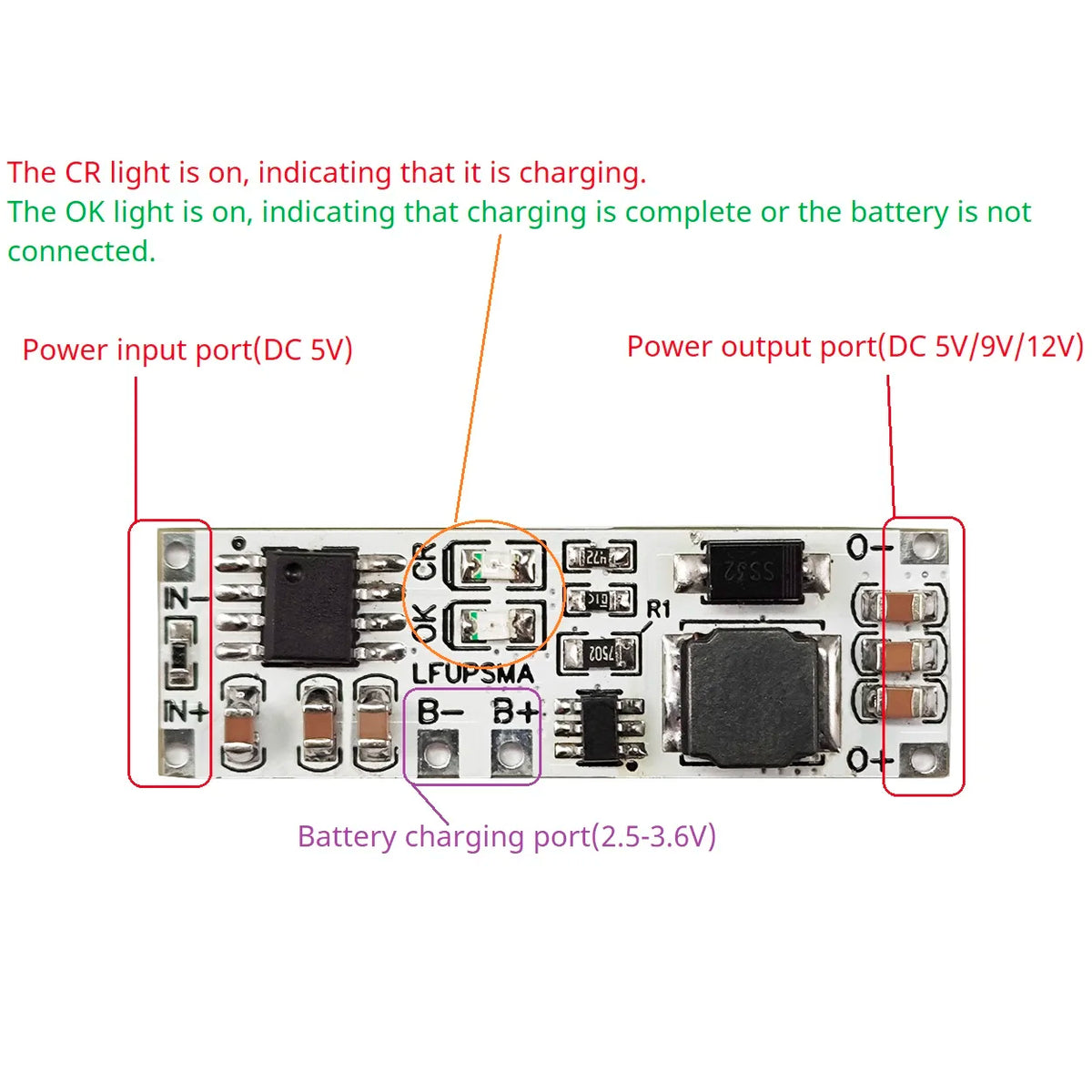

Led indicator : ''OK'' LED is fully charged OR battery failure status indicator;
''CR'' LED is charge status indicator

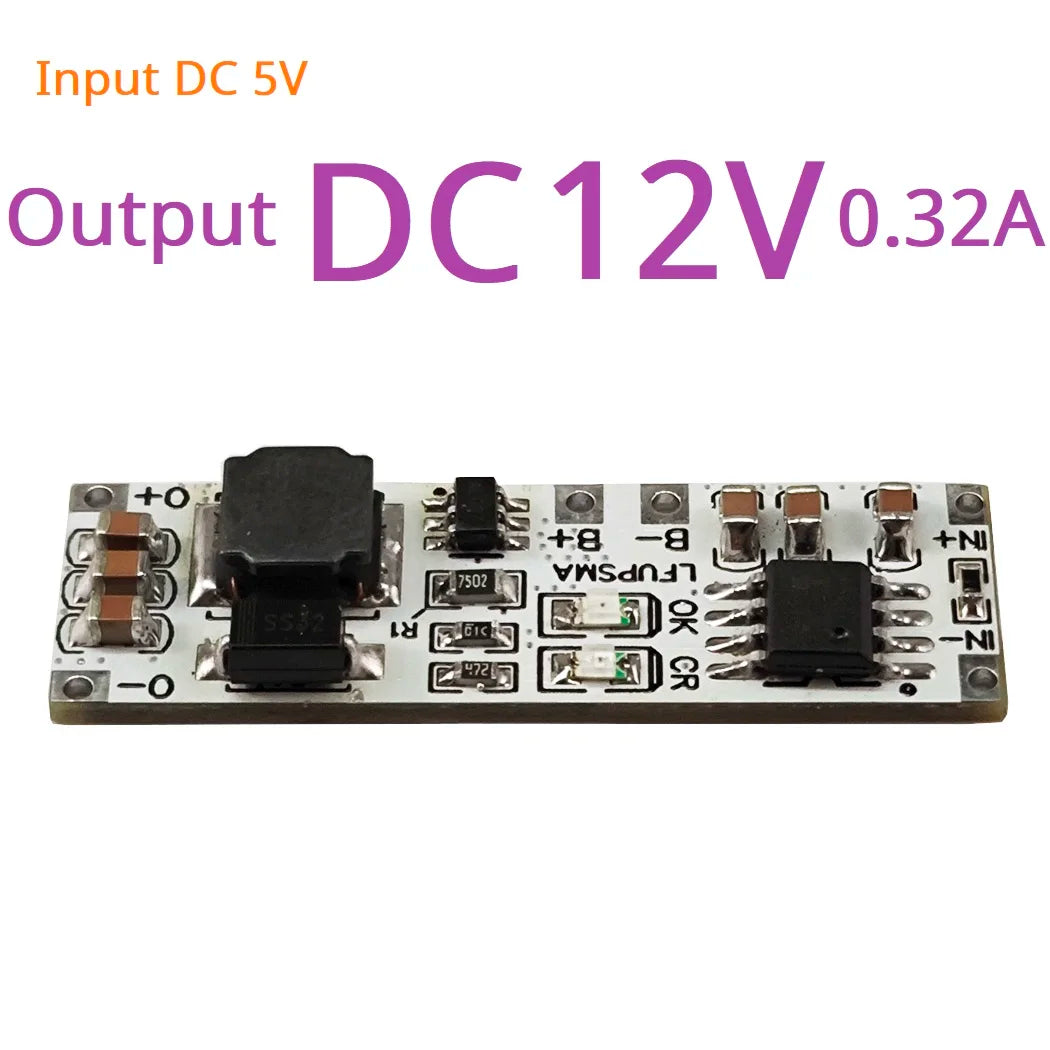

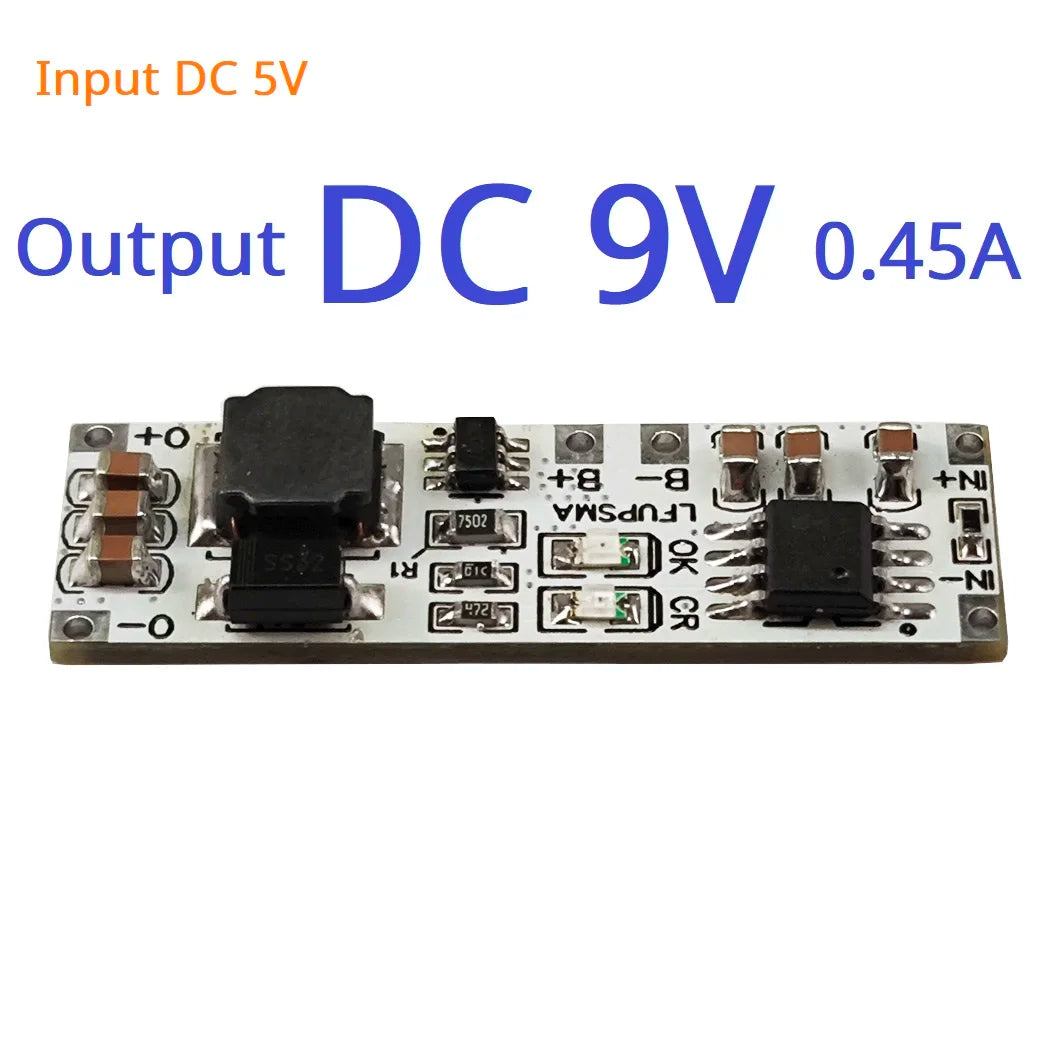

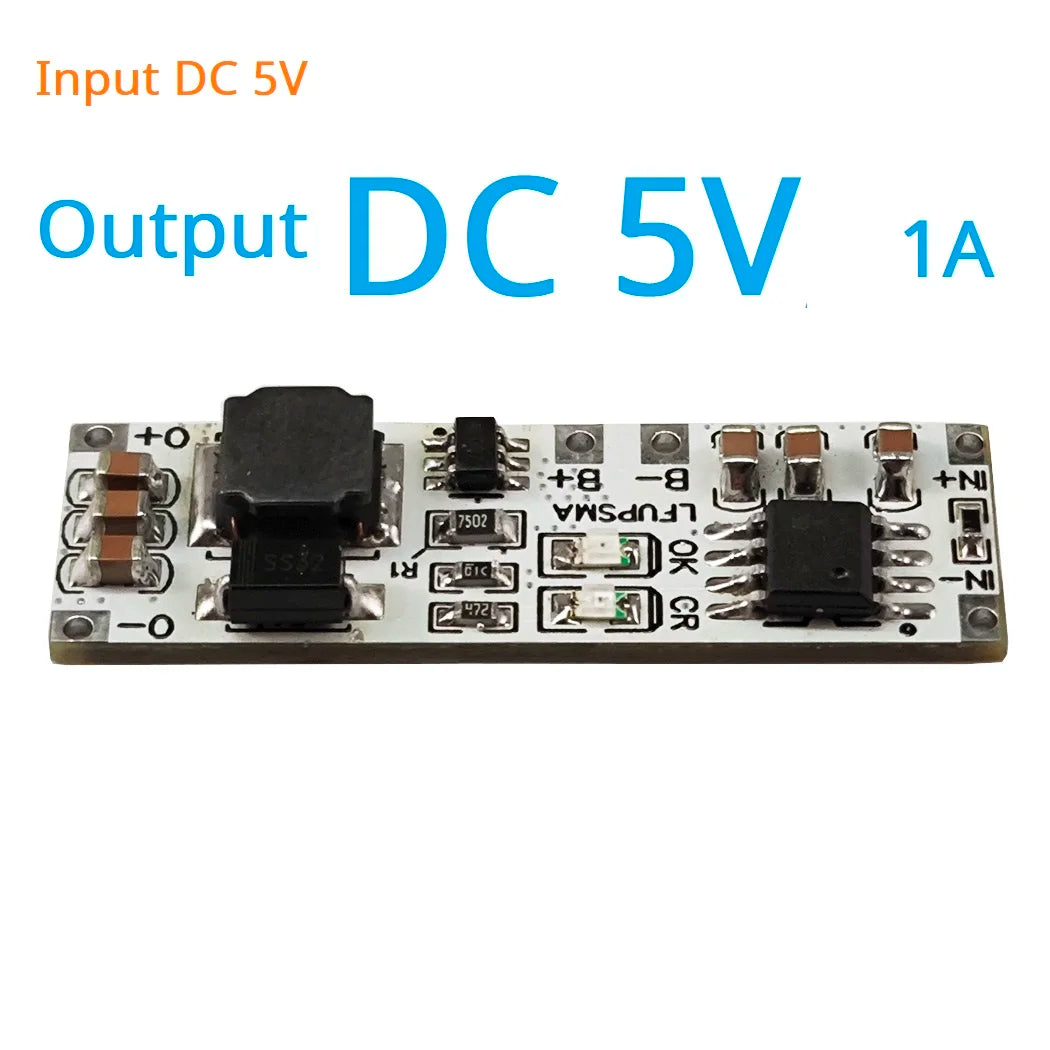

Discharge Function (boost):
(Boost in)Discharge current : 1A;
(Boost in)Discharge quiescent current : 450uA
(Boost in)Discharge conversion efficiency : 78%-90%
(Boost out)Output current : 1A(5V),0.45A(9V),0.32A(12V);

Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°

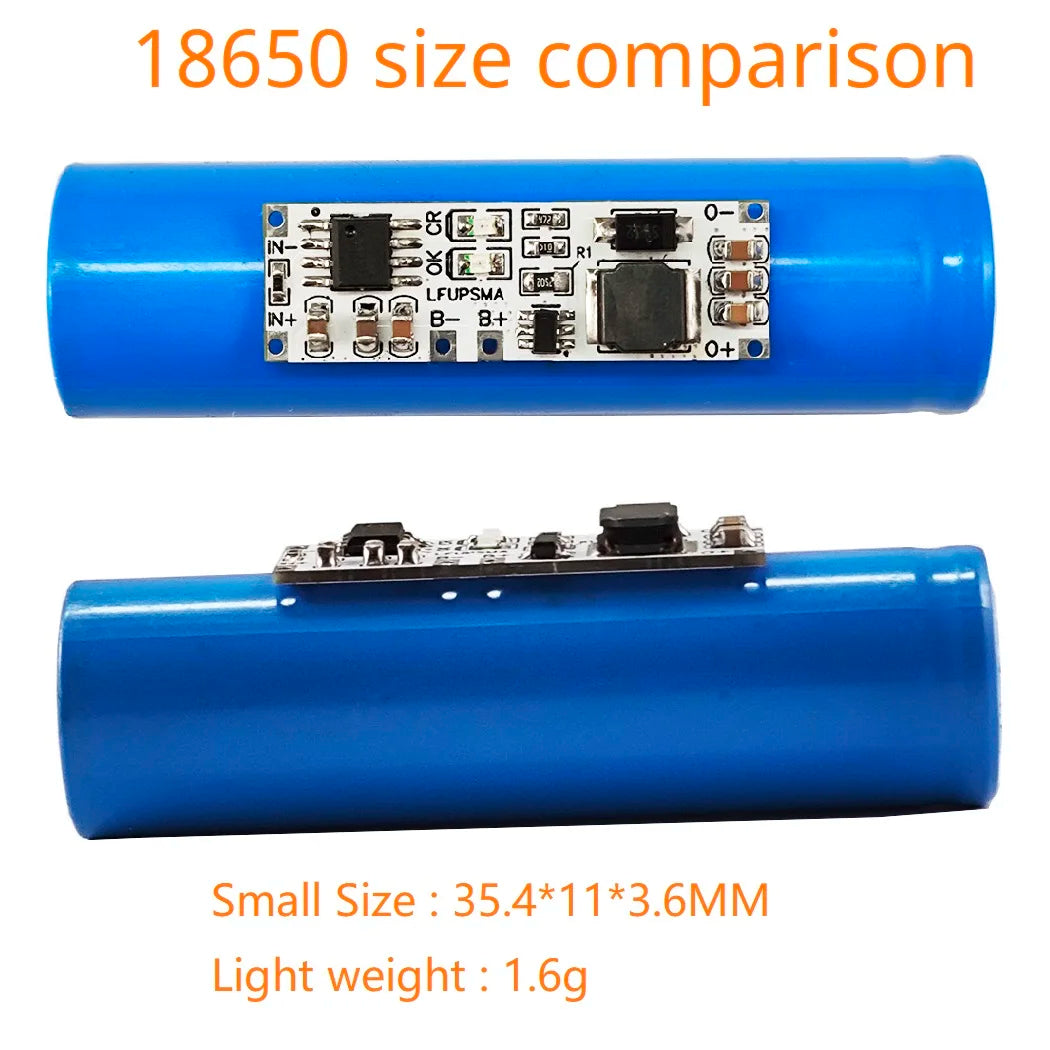

Small Size : 35.4*11*3.6MM
Light weight : 1.6g

Charging Features:
Complete Charge Management for Single Cell LiFePO4 Battery
Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge
Constant-Current/Constant-Voltage/ConstantTemperature Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating.
Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed
C/10 Charge Termination
Automatic Recharge
Battery Temperature Sensing

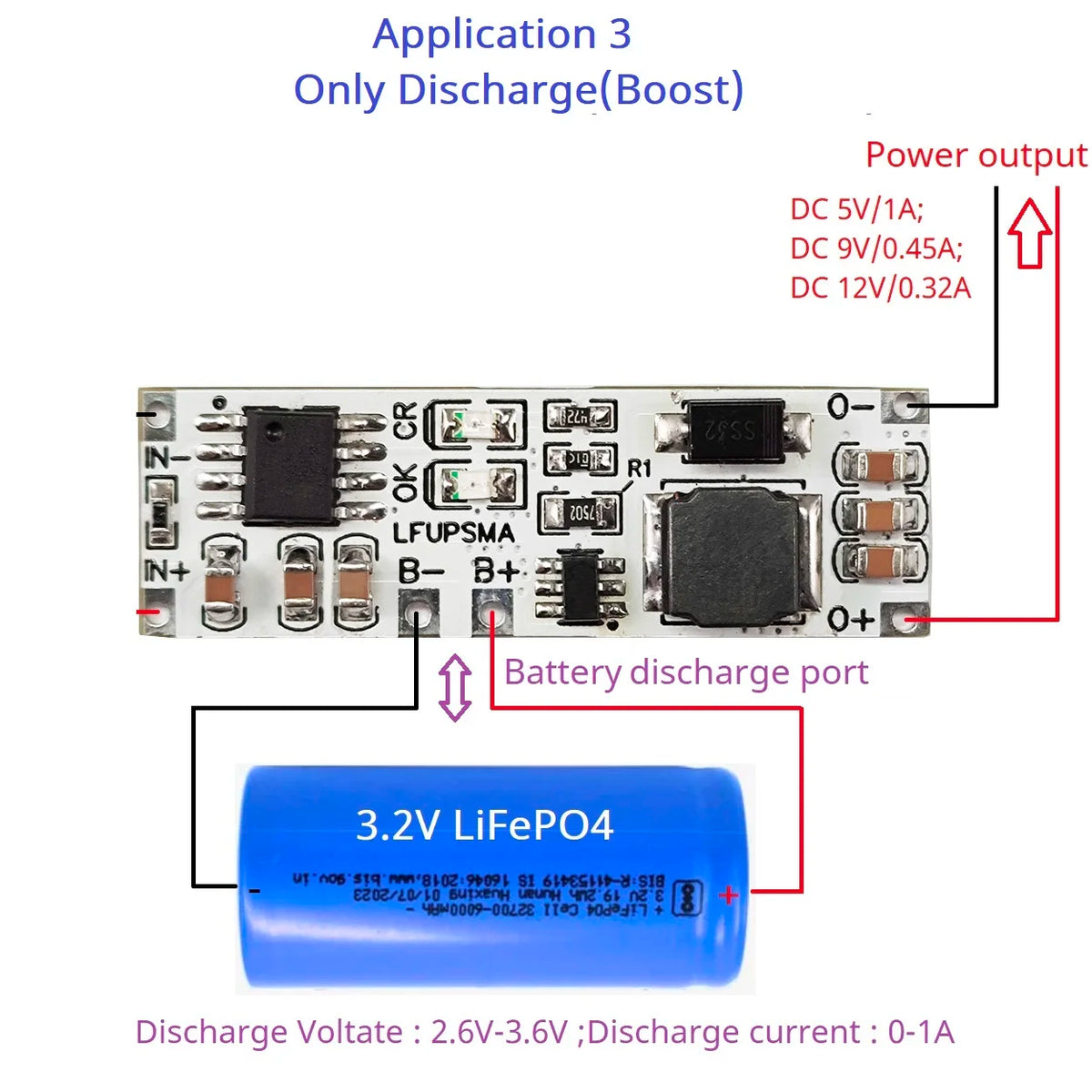

Discharge Protection(boost):
Over current protection(OCP)
Over voltage protection(OVP)
Short circuit protection(SCP)
Over temperature protection(OTP)

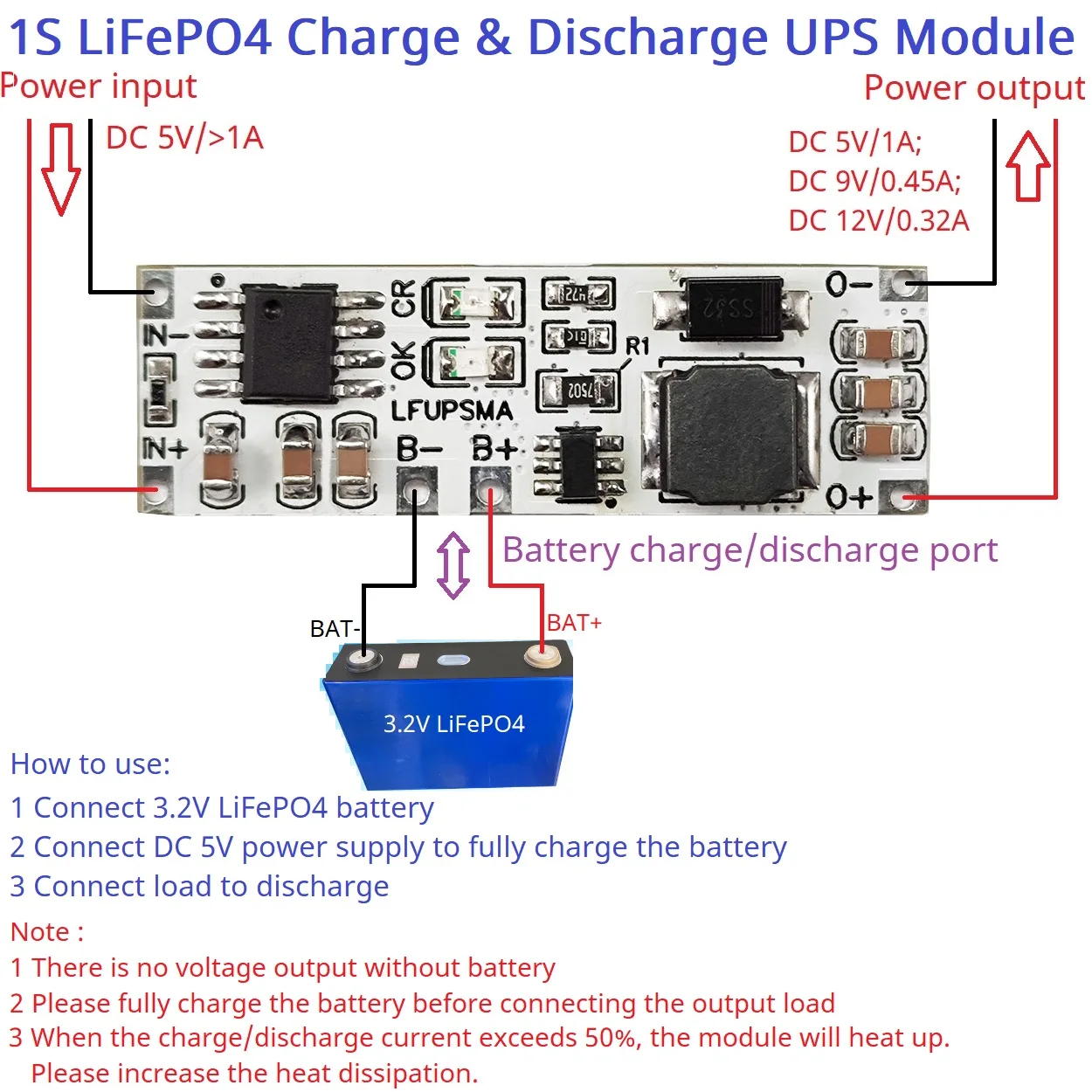

How to use:

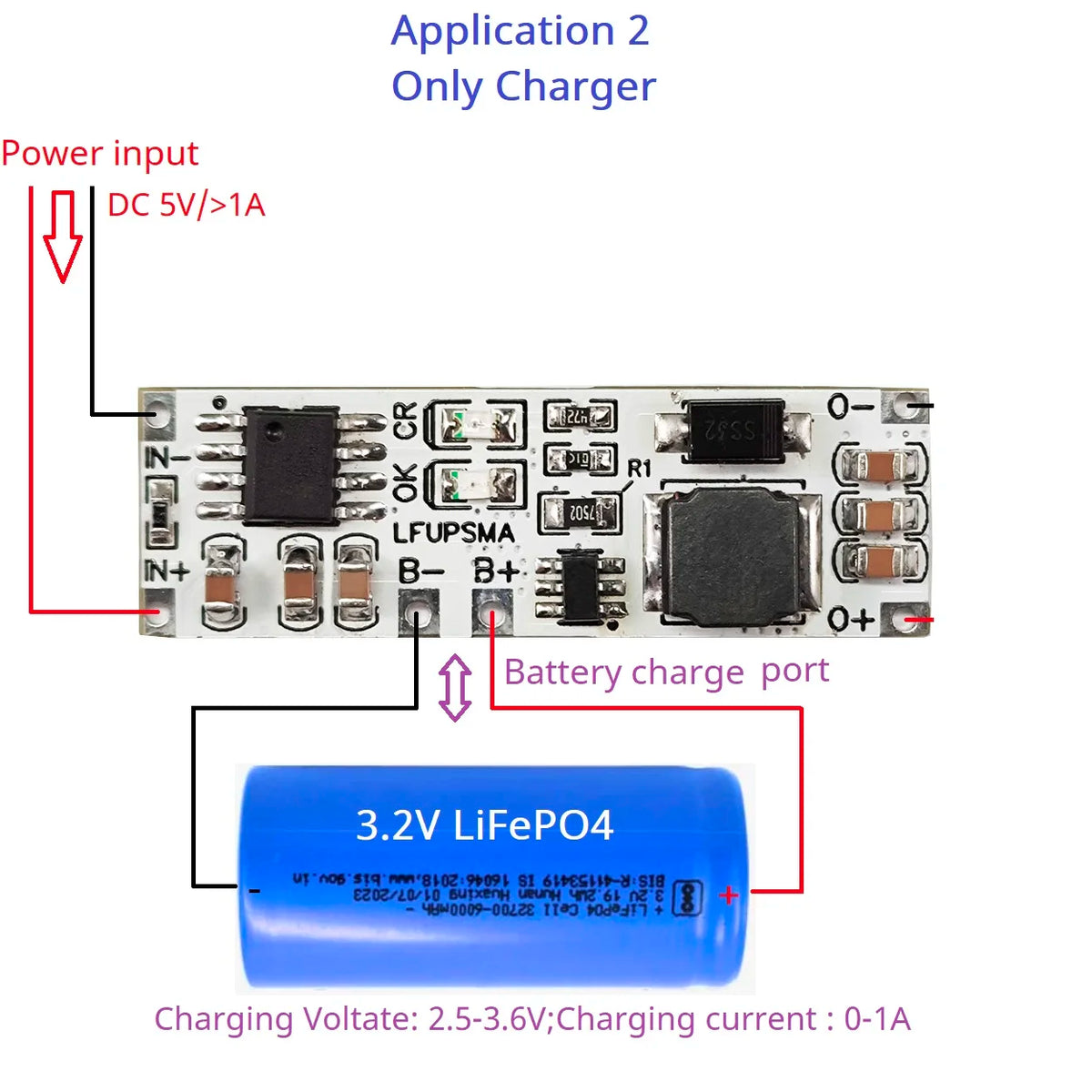

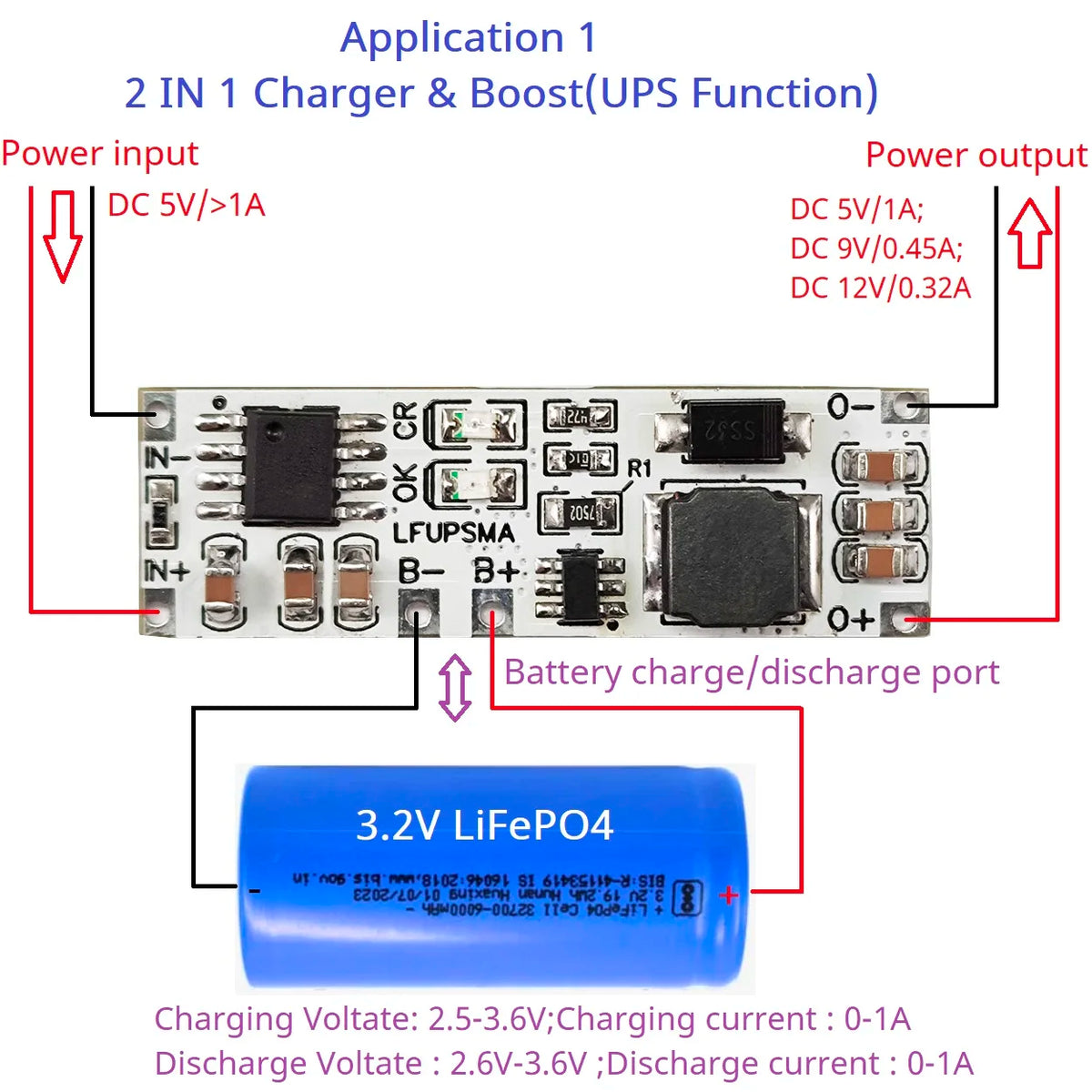

1 Connect 3.2V LiFePO4 battery
2 Connect DC 5V power supply to fully charge the battery
3 Connect load to discharge

Note :
1 There is no voltage output without battery
2 Please fully charge the battery before connecting the output load
3 When the charge/discharge current exceeds 50%, the module will heat up. Please increase the heat dissipation.


Applications:

3.2V Battery powered equipment
1S LiFePO4 Battery 18650 32700
UPS power supply equipment diy
Solar charging
MP3/MP4 player
Audio equipment
Video equipment
Portable Devices
Bluetooth/Wifi Applications
Open Source Hardware(ESP32 ESP8266)
