CE014 Mini DC-DC Boost Converter 5V to 12V – Step-Up Power Supply Module for LED Relay DIY Breadboard Arduino Projects
CE014 Mini DC-DC Boost Converter 5V to 12V – Step-Up Power Supply Module for LED Relay DIY Breadboard Arduino Projects
Regular price
$8.04 USD
Regular price
$8.04 USD
Sale price
$8.04 USD
Taxes included.

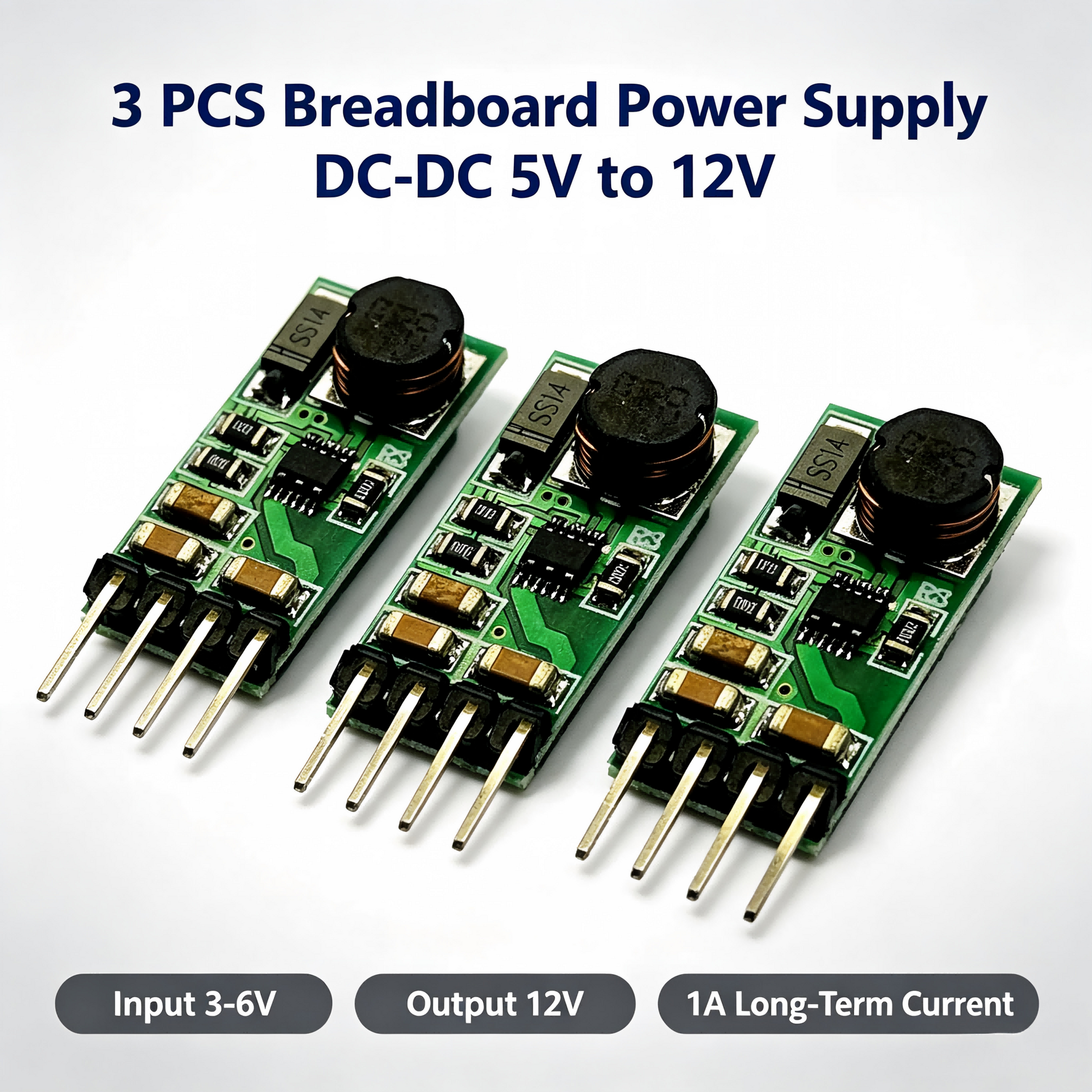

Packing list:

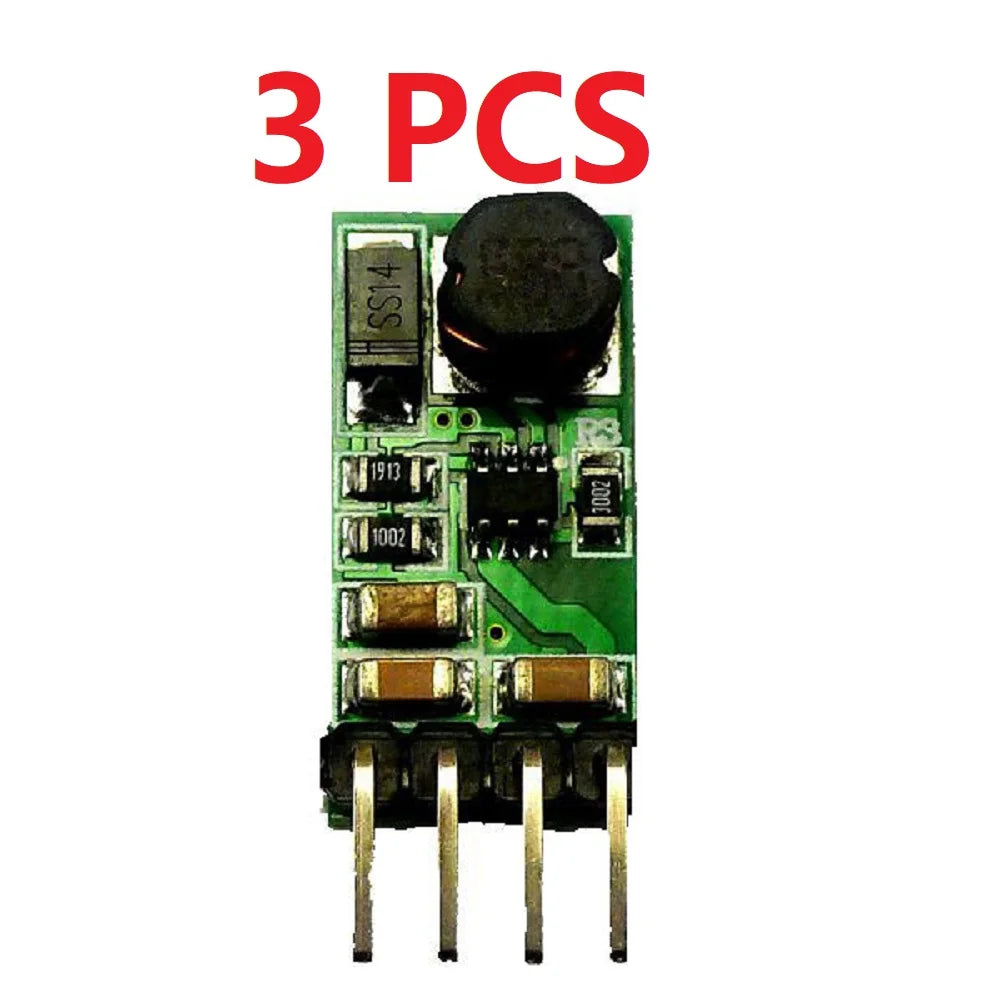

3 pcs Breadboard Power Supply DC-DC 5V to 12V
Description:

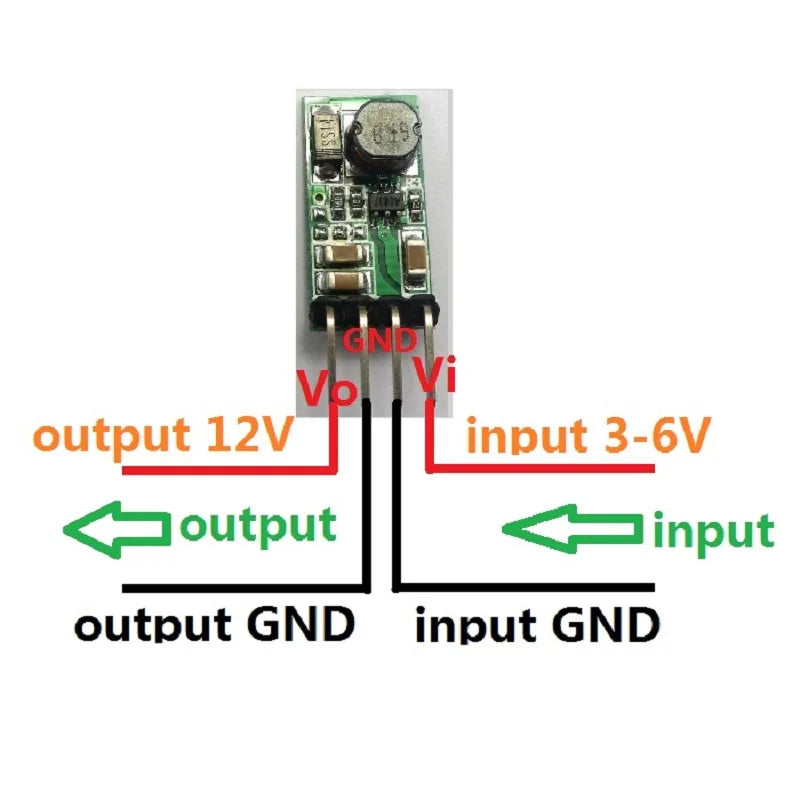

Input voltage 3~6V, output 12V (deviation +-5%)
Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 80-90%
Start Voltage 2.8V, Output Current 50MA
INPUT 3V 1A; OUTPUT 12V 220MA
INPUT 3.3V 1A; OUTPUT 12V 250MA
INPUT 3.7V 1A; OUTPUT 12V 280MA
INPUT 4.5V 1A; OUTPUT 12V 340MA
INPUT 5V 1A; OUTPUT 12V 370MA
INPUT 6V 1A; OUTPUT 12V 450MA
DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
2.54mm pin pitch,Arduiuo UNO MEGA2560 DUE Breadboard XILINX ALTERA LATTICE FPGA/C
PLD AVR
Development Board
friendly.
Excluding Pin Size 20.5mm x 10.16mm x 5.6mm(Very small)
Weight : about 1.4g(Very light)
Applications:
12V wifi router
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR STM32 Breadboard etc
PLC Modbus RS485
12V Low Power LED Lighting
12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

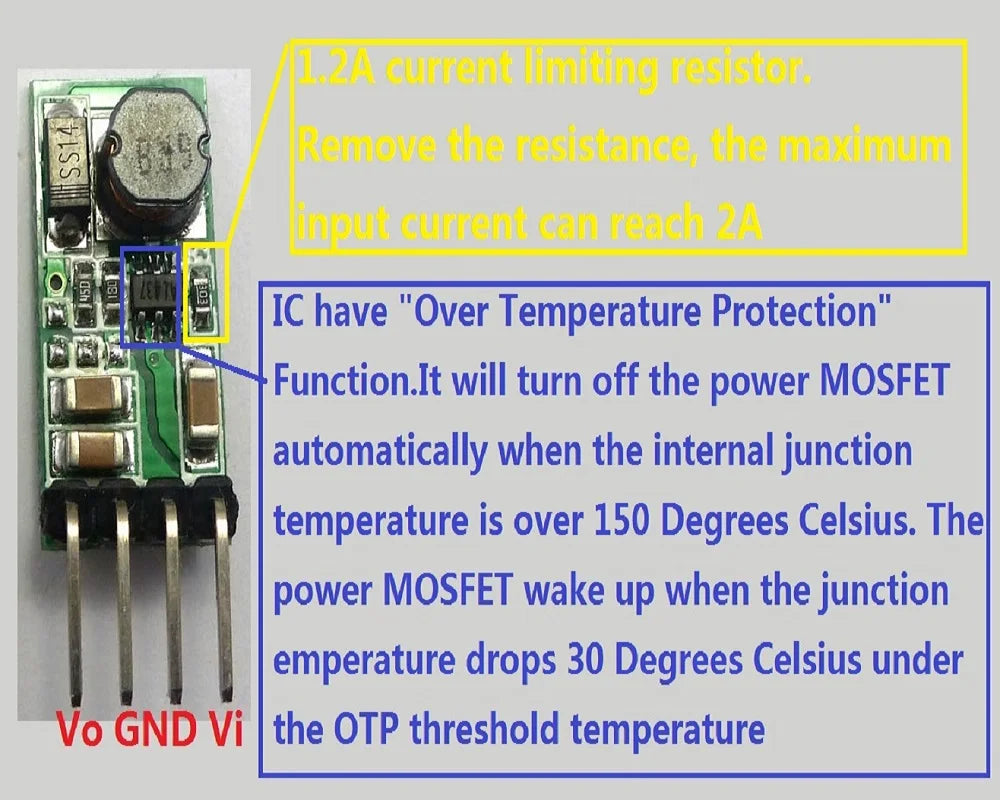

1.2A current limiting resistor,Remove the resistance, the maximum input current can reach 2A.
But IC have ''Over Temperature Protection'' Function.It will turn off the power MOSFET automatically when the internal junction temperature is over 150 Degrees Celsius. The power MOSFET wake up when the junction emperature drops 30 Degrees Celsius under the OTP threshold temperature
