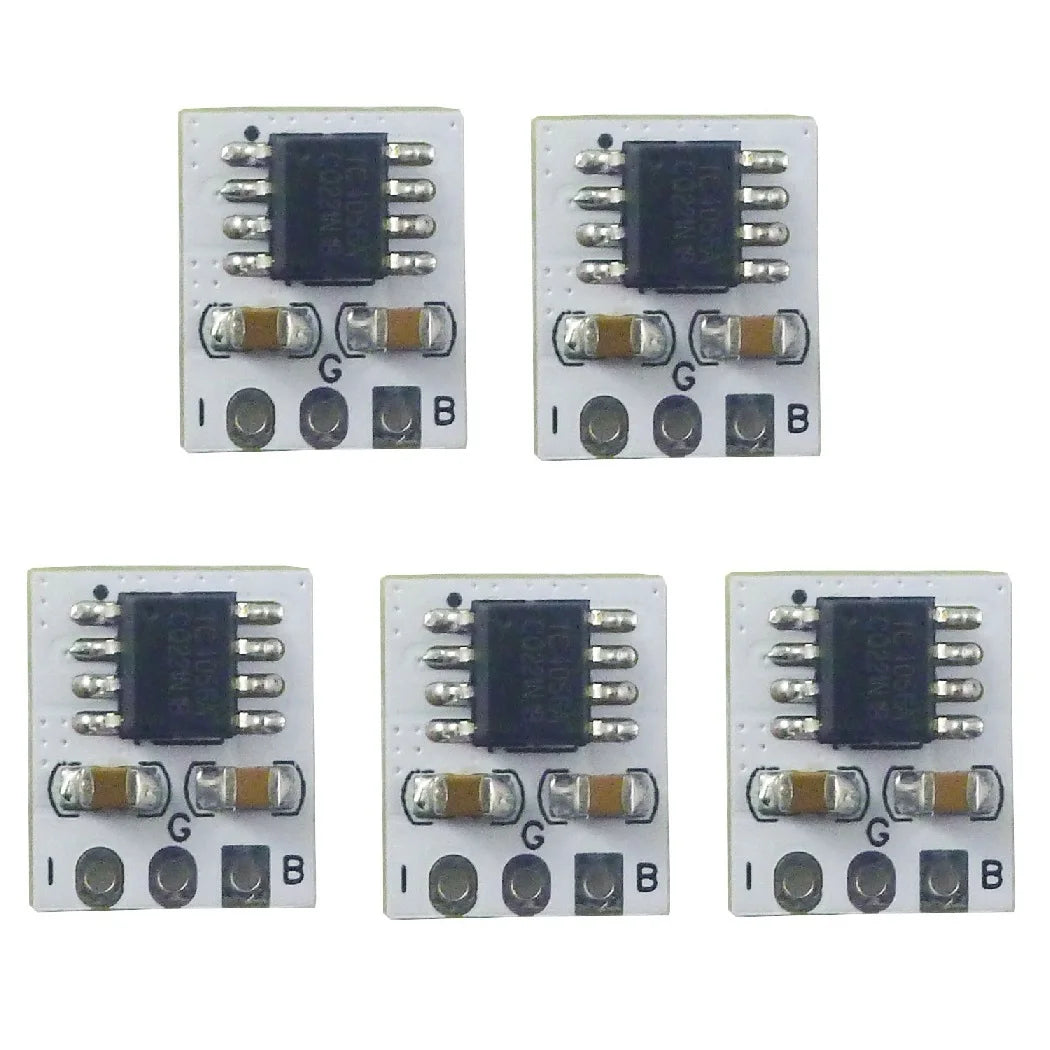

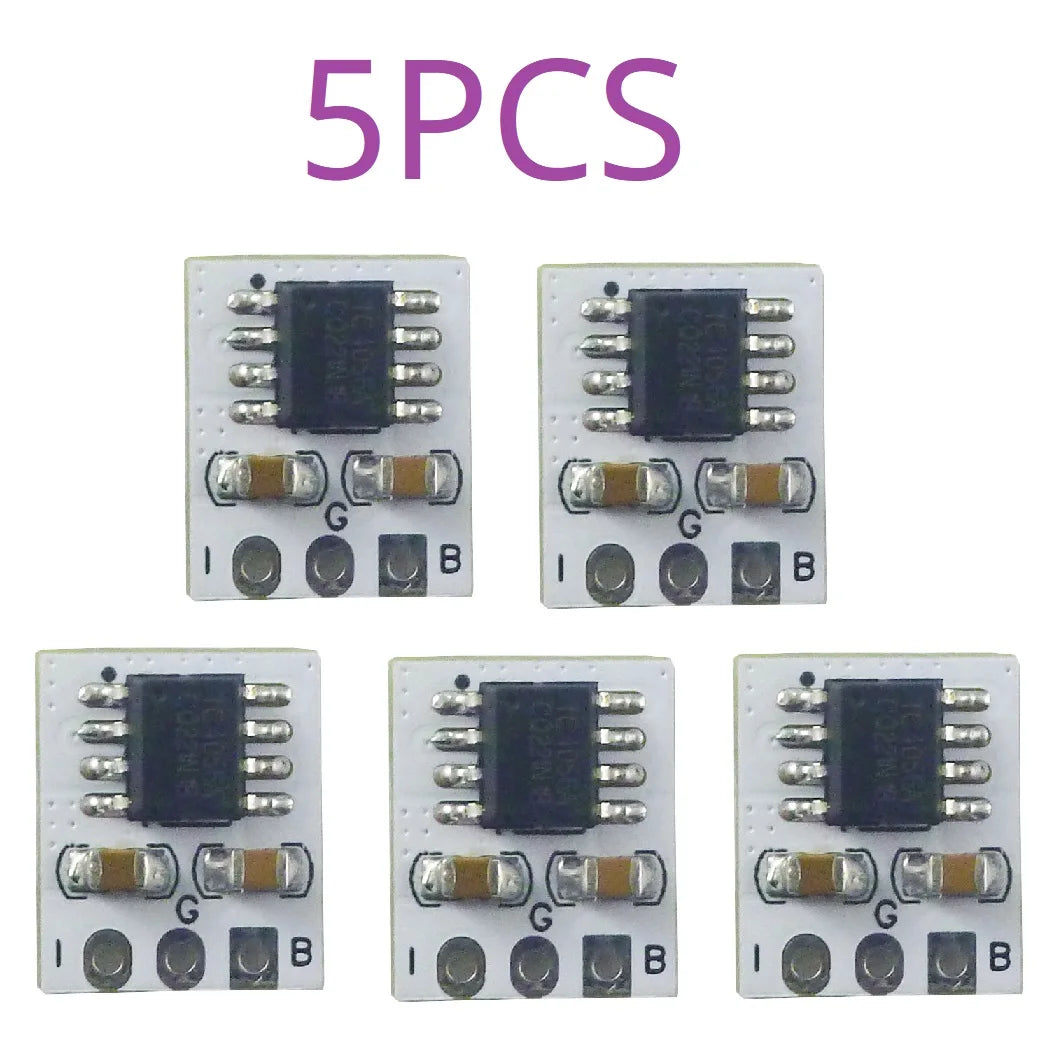

DD08CRMB Portable Mini Lithium Battery Charger Module – BMS 18650/21700/4680 Charging Board with Automatic Recharge & Overcharge Protection for DIY Power Bank
DD08CRMB Portable Mini Lithium Battery Charger Module – BMS 18650/21700/4680 Charging Board with Automatic Recharge & Overcharge Protection for DIY Power Bank
Regular price
$2.19 USD
Regular price
$7.31 USD
Sale price
$2.19 USD
Taxes included.

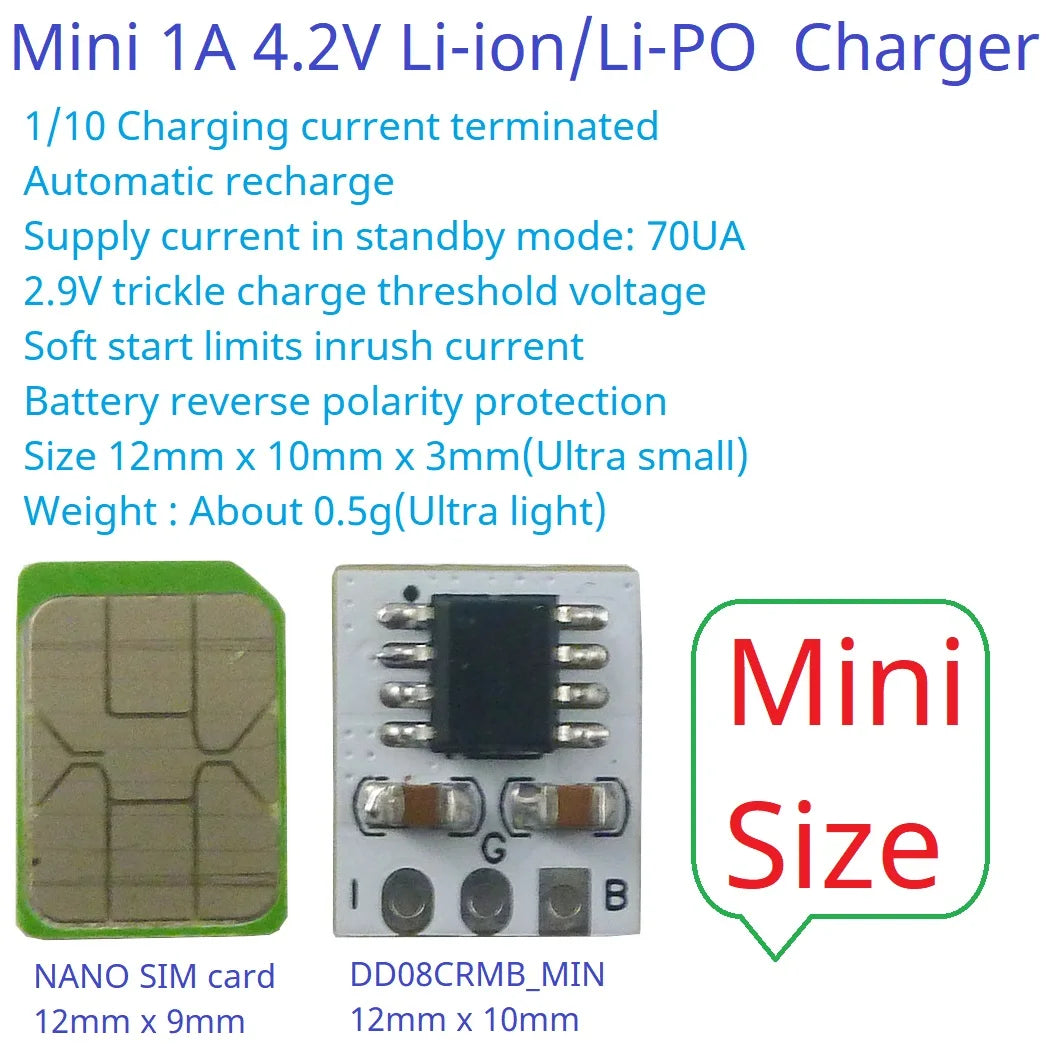

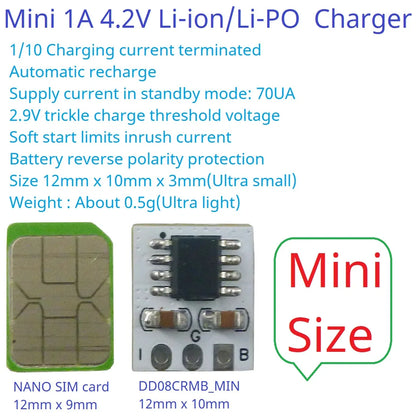

Feature:
1/10 Charging current terminated
Automatic recharge
Supply current in standby mode: 70UA
2.9V trickle charge threshold voltage
Soft start limits inrush current
Battery reverse polarity protection
Description:

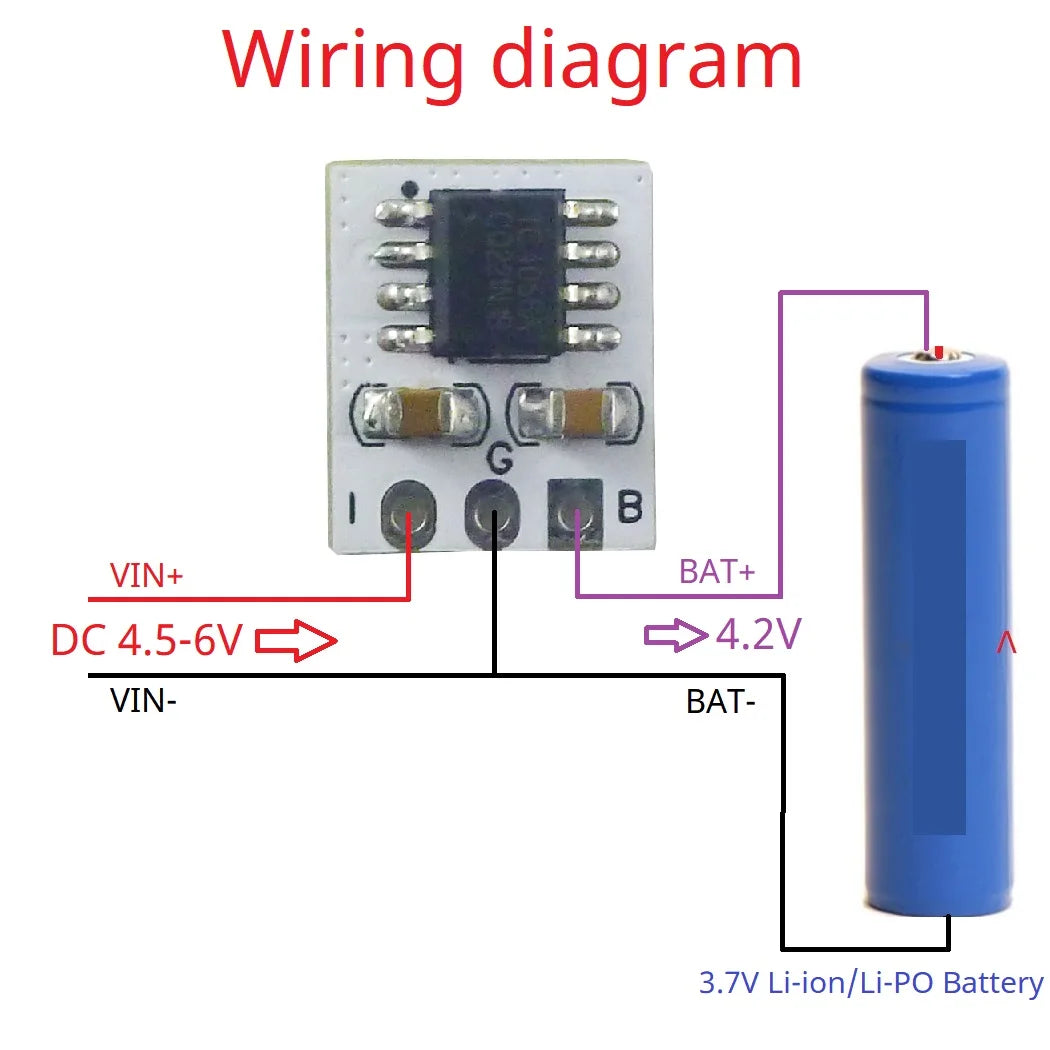

Input voltage : DC 4.5V-7V(Recommend DC 5V)
Maximum charging current : 1000MA(Can be changed by replacing the R1 resistor)
Full charge voltage : 4.2V+-1%.

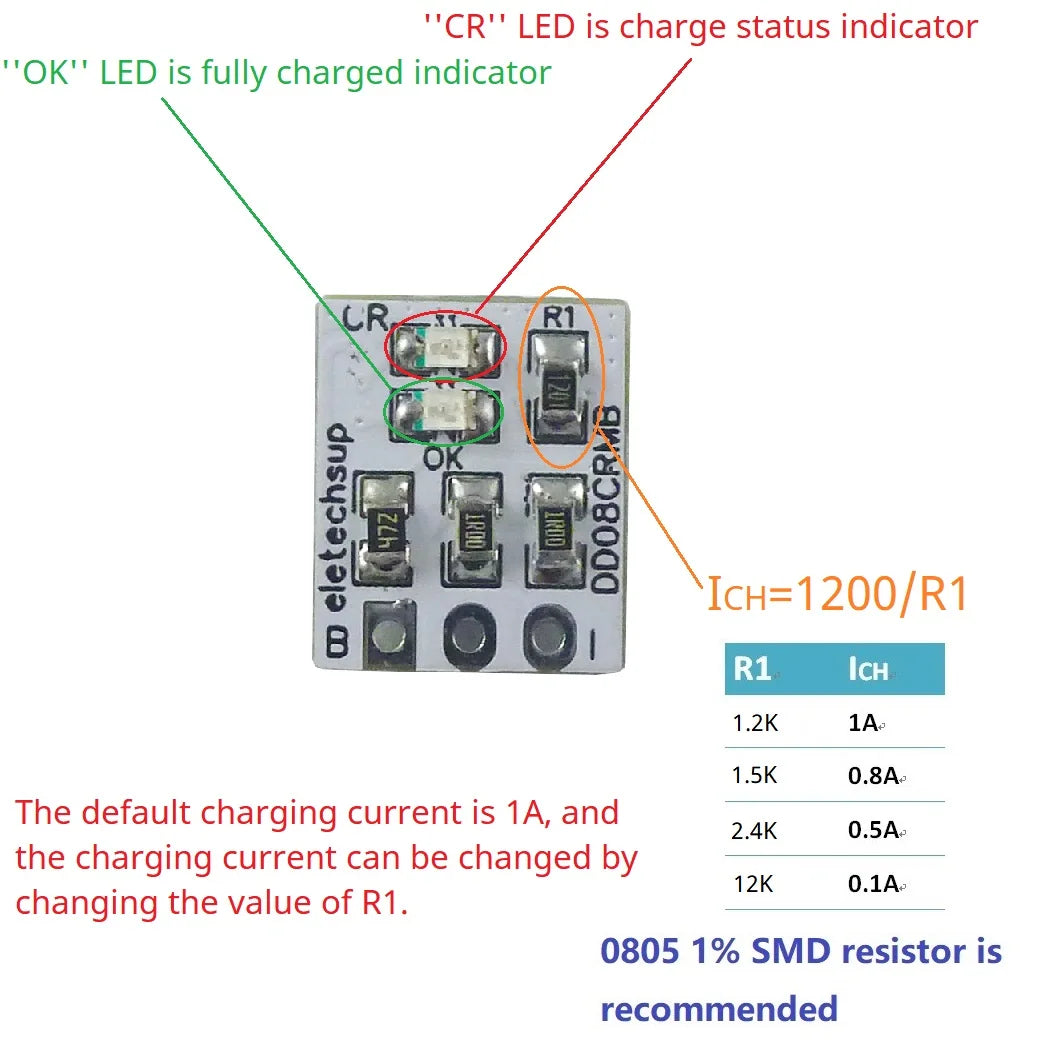

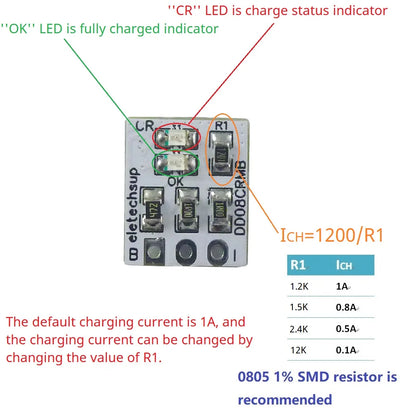

Led indicator : ''OK'' LED is fully charged OR battery failure status indicator;
''CR'' LED is charge status indicator
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +150°

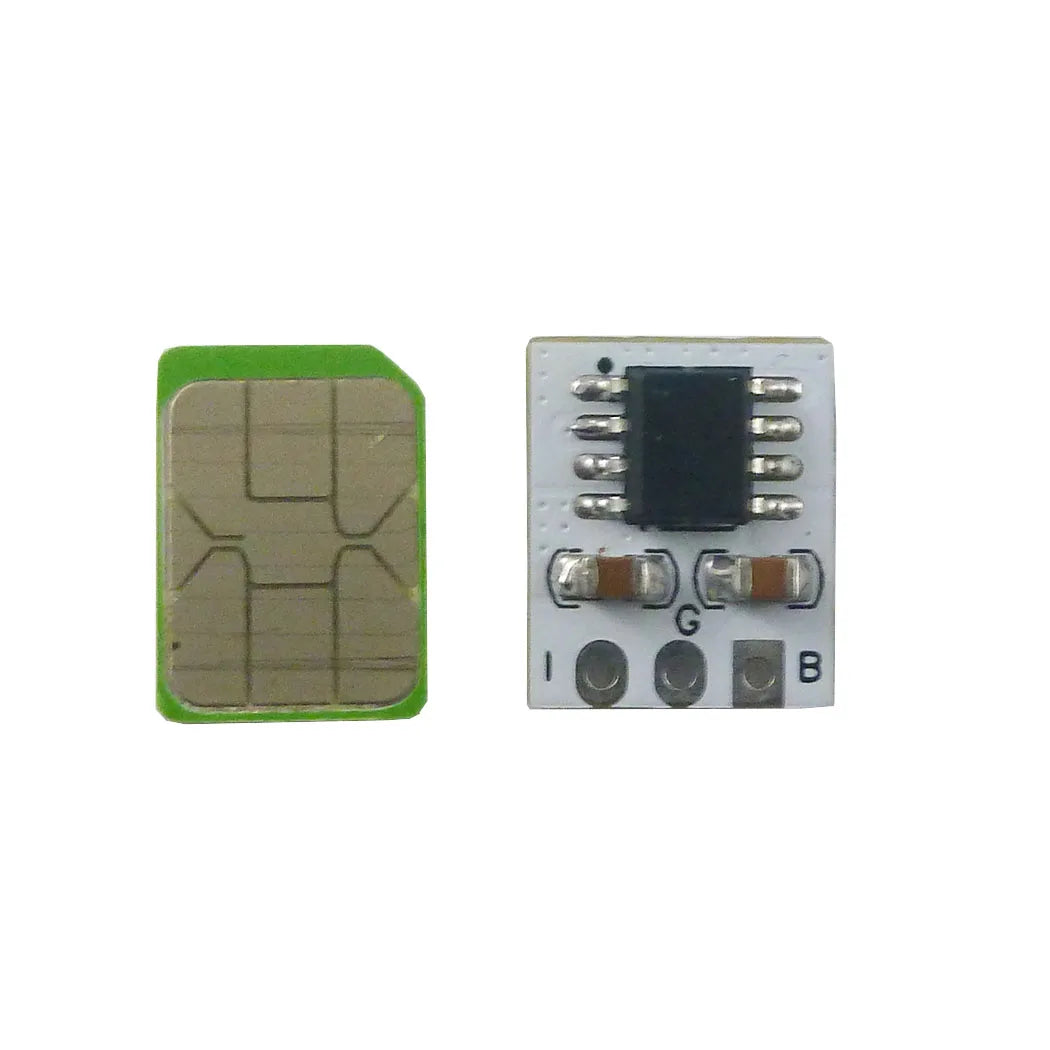

Size 12mm x 10mm x 3mm(Ultra small)
Weight : About 0.5g(Ultra light)
2.54MM pin can be inserted directly into the breadboard
Can be used DC 5-6V power supply charger(Such as Solar panels)Charging module comes with charge-management functions, will not overcharge or over discharge
Comes with rechargeable function,Will enter standby mode when fully charged.When the battery capacity is below 80%, the charging start.
Applications:
Battery powered equipment
Li-ion/Li-PO Lithium Battery 18650
Mobile phone
Solar charging
MP3/MP4 player
Audio equipment
Portable Devices
Bluetooth Applications
The charging current can be changed by changing the value of resistor R1
0805 1% SMD resistor is recommended
