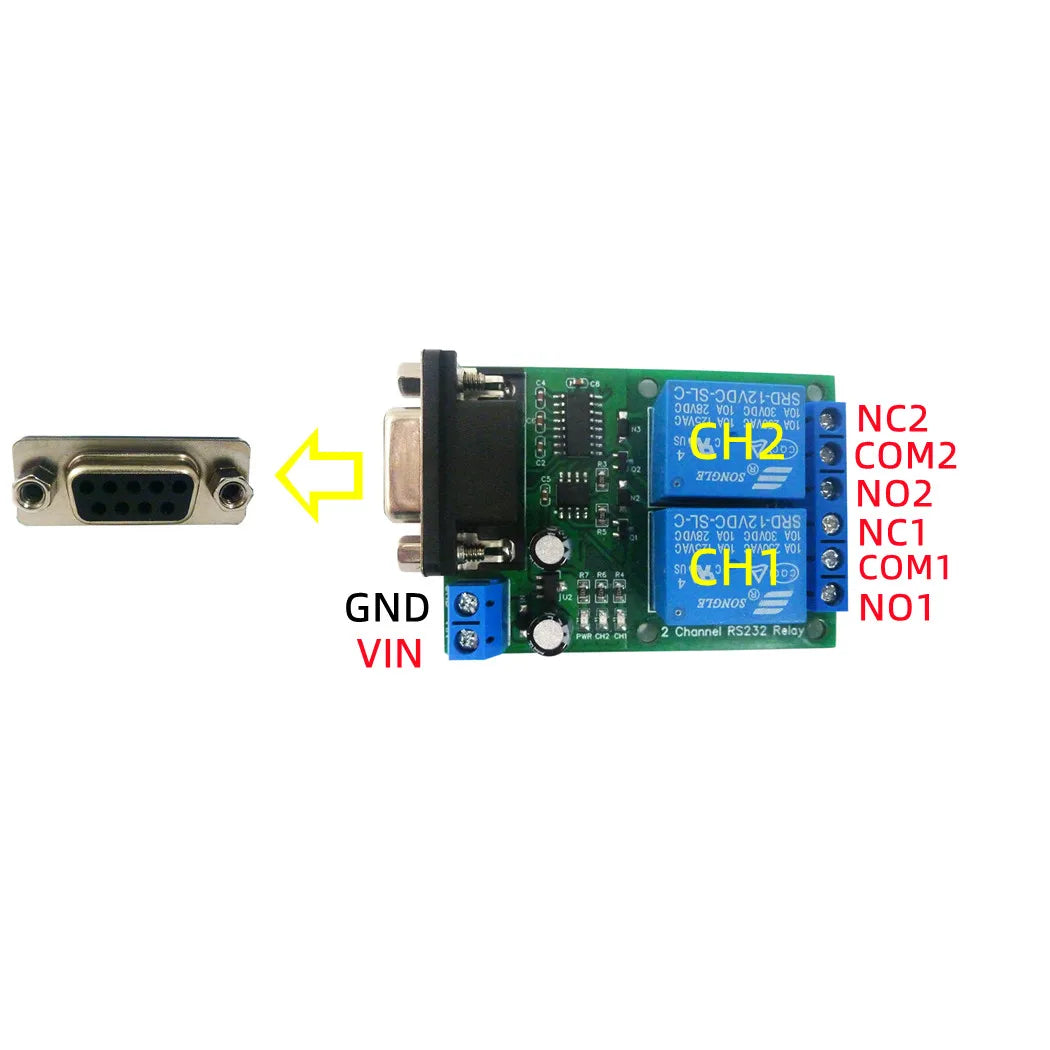

N228D02 2CH RS232 Relay Module – DC 12V/24V DB9 Serial Port Switch Board with 10A Output for PC PLC Motor LED PTZ Control
N228D02 2CH RS232 Relay Module – DC 12V/24V DB9 Serial Port Switch Board with 10A Output for PC PLC Motor LED PTZ Control
|
We are a professional manufacturer, if you don't find the product you need, please contact us directly. |
|||||||
|
Click the “View”or search SKU to find the product. |
|||||||
|
SKU |
IO Type |
Description |
View |
SKU |
IO Type |
Description |
View |
|
DO |
AI(Current and voltage) |
||||||
|
N229E01 |
1DO |
10A Relay/TTL/USB |
CTR4A01 |
1AI |
5A/10A/20A AC Transformer |
||
|
N4ROA01 |
1DO |
3A Relay |
N4VIA02 |
2AI |
1A/2A/5A Current Voltage |
||
|
N4ROB02 |
2DO |
3A Relay |
N43IC04 |
4AI |
0-10/20/50MA Current |
||
|
N428E02 |
2DO |
10A Relay |
N43VD04 |
4AI |
0-5/10/20V Voltage |
||
|
N228D02 |
2DO |
10A Relay |
AMAIE08 |
8AI |
0/4-20MA Current |
||
|
N4ROC04 |
4DO |
3A Relay |
AMVIF08 |
8AI |
0-5/10 Voltage |
||
|
R4M9B12 |
4DO |
3A MOS |
N4AIA08 |
8AI |
0/4-20MA Current |
||
|
N4ROD08 |
8DO |
3A Relay |
N4AIB16 |
16AI |
1 Voltage-15 Current |
||
|
N438B08 |
8DO |
10A Relay |
N4AIB16 |
24AI |
2 Voltage-22 Current |
||
|
N223B08 |
8DO |
10A Relay |
AI-DI-DO |
||||
|
AMROD08 |
8DO |
2A Relay |
R4D7G04 |
3AI-2DI-4DO |
10A Relay |
||
|
ET48A08 |
8DO |
10A Relay/NET |
AMIDJ14 |
6AI-4DI-4DO |
0.3A Mos |
||
|
N438C15 |
15DO |
10A Relay/RS232 |
AMVDK15 |
6AI-4DI-4DO |
0.3A Mos |
||
|
N4ROE16 |
16DO |
3A Relay |
R4A8H08 |
8AI-4DI-8DO |
10A Relay |
||
|
AMDOC16 |
16DO |
0.3A NPN |
N4A8I16 |
8AI-4DI-16DO |
0.3A Mos |
||
|
N4ROF32 |
32DO |
3A Relay |
N4A7K16 |
8AI-4DI-16DO |
0.3A Mos |
||
|
R4D5E32 |
32DO |
20A Relay/NET |
R4D6F20 |
2AI-2DI-20DO |
10A Relay |
||
|
DI |
|
|
|
AI(Temperature and humidity) |
|||
|
AMDIB16 |
16DI |
NPN/PNP Isolation |
N434E01 |
DS18B20/NTC(10K)/AHT20 |
|||
|
24DIA16 |
16DI |
NPN/PNP Isolation |
NT38D01 |
1 NTC |
10K NTC |
||
|
24DIB32 |
32DI |
NPN/PNP Isolation |
NT28B16 |
16 NTC |
10K/20K/50K/100K NTC |
||
|
24DIC48 |
48DI |
NPN/PNP Isolation |
PT21A01 |
1 PT100 |
-40~500 ℃ |
||
|
DI+DO |
|
|
|
PTA8C04 |
4 PT100 |
-40~500 ℃ |
|
|
10IOA01 |
1DI-1DO |
NPN(DI) /10A Relay(DO) |
AMPTI04 |
4 PT100 |
-40~300 ℃ |
||
|
10IOA02 |
2DI-2DO |
NPN(DI) /10A Relay(DO) |
PTA8D08 |
8 PT100 |
-40~500 ℃ |
||
|
10IOA04 |
4DI-4DO |
NPN(DI) /10A Relay(DO) |
PTA8E16 |
16 PT100 |
-40~500 ℃ |
||
|
CAROA04 |
4DI-4DO |
NPN/10A Relay /CAN |
AMDSG08 |
8 DS18B20 |
-55~125℃ |
||
|
N4RFA04 |
4DI-4DO |
NPN/10A Relay/433M |
SH34D16 |
16 SHT30 temperature and humidity |
|||
|
10IOA08 |
8DI-8DO |
NPN(DI) /10A Relay(DO) |
RS485 interface converter |
||||
|
AMIOA08 |
8DI-8DO |
NPN(DI) /0.3A Mos(DO) |
CAN4A02 |
CAN to RS485 Converter |
|||
|
SGIOB08 |
8DI-8DO |
NPN(DI) /0.3A Mos(DO) |
ET69C02 |
1 Ethernet to 1 RS485 Converter |
|||
|
23IOA08 |
8DI-8DO |
NPN(DI) /0.3A Mos(DO) |
ETHUB18 |
1 Ethernet to 8 RS485 Converter |
|||
|
CAROB08 |
8DI-8DO |
NPN/10A Relay /CAN |
R4HUB08 |
1 to 8 RS485 Hub/Repeater |
|||
|
10IOA12 |
12DI-12DO |
NPN(DI) /10A Relay(DO) |
RT5BF01 |
RS485 to 433M Wireless Converter |
|||
|
ETD8A12 |
12DI-12DO |
NPN/10A Relay/NET |
R2OPB03 |
RS232 to RS485 Converter |
|||
|
23IOB16 |
16DI-16DO |
NPN(DI) /0.3A Mos(DO) |
R2OPB03 |
RS485 to RS485 Isolator |
|||
|
N4D3E16 |
16DI-16DO |
NPN(DI) /0.3A Mos(DO) |
Other RS485 interface modules |
||||
|
CAROC16 |
16DI-16DO |
NPN/10A Relay /CAN |
RFIDA02 |
RS485/TTL232 13.56MHz RFID UID IC Card Reader |
|||
|
23IOC24 |
24DI-24DO |
NPN(DI) /0.3A Mos(DO) |
WG18A02 |
RS485 Modbus RTU Weight Sensor Electronic Scale |
|||
|
23IOD32 |
32DI-32DO |
NPN(DI) /0.3A Mos(DO) |
DM18A01 |
1/2/4CH RS485 1.8 Inch Digital Tube Module |
|||
|
23IOE48 |
48DI-48DO |
NPN(DI) /0.3A Mos(DO) |
PWM8A04 |
3 AO |
1Hz-20kHz PWM Generator |
||

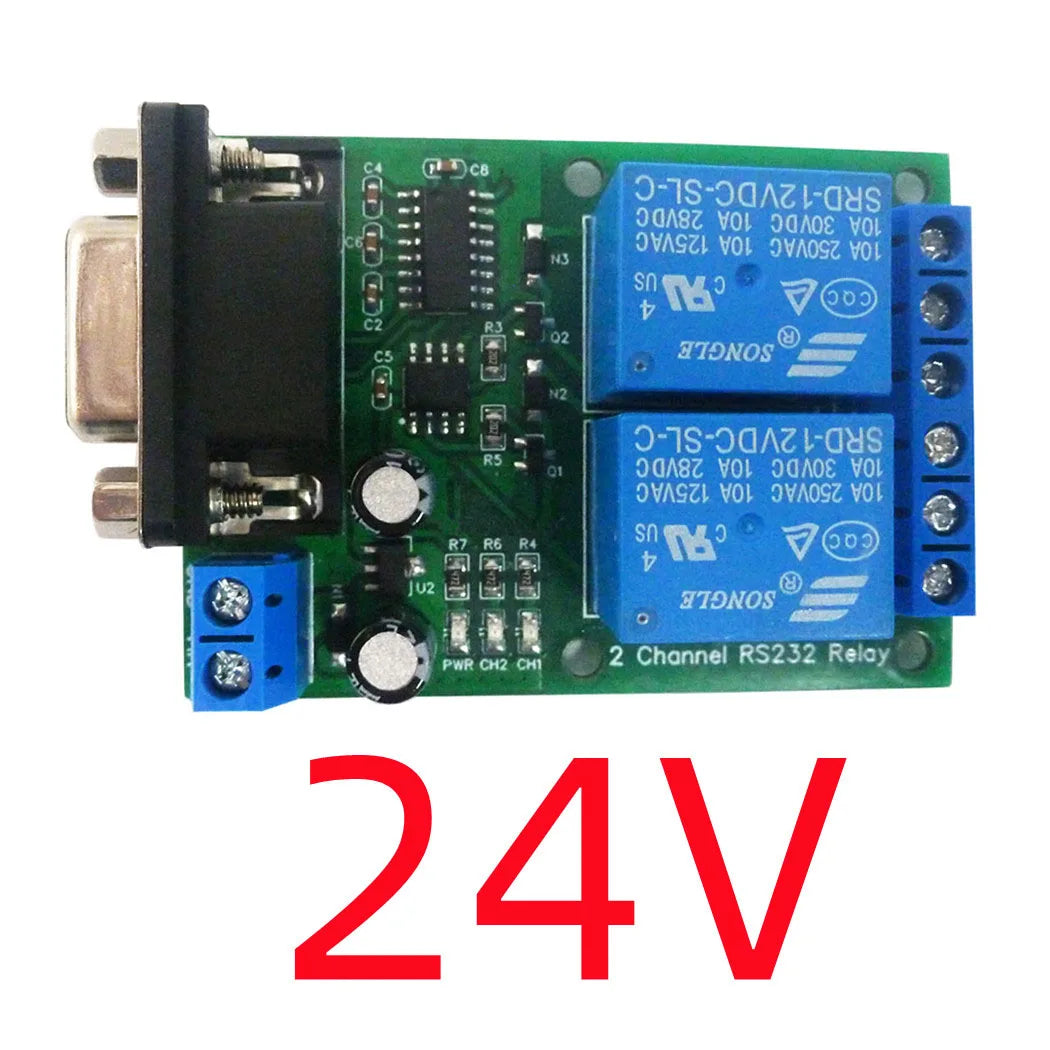

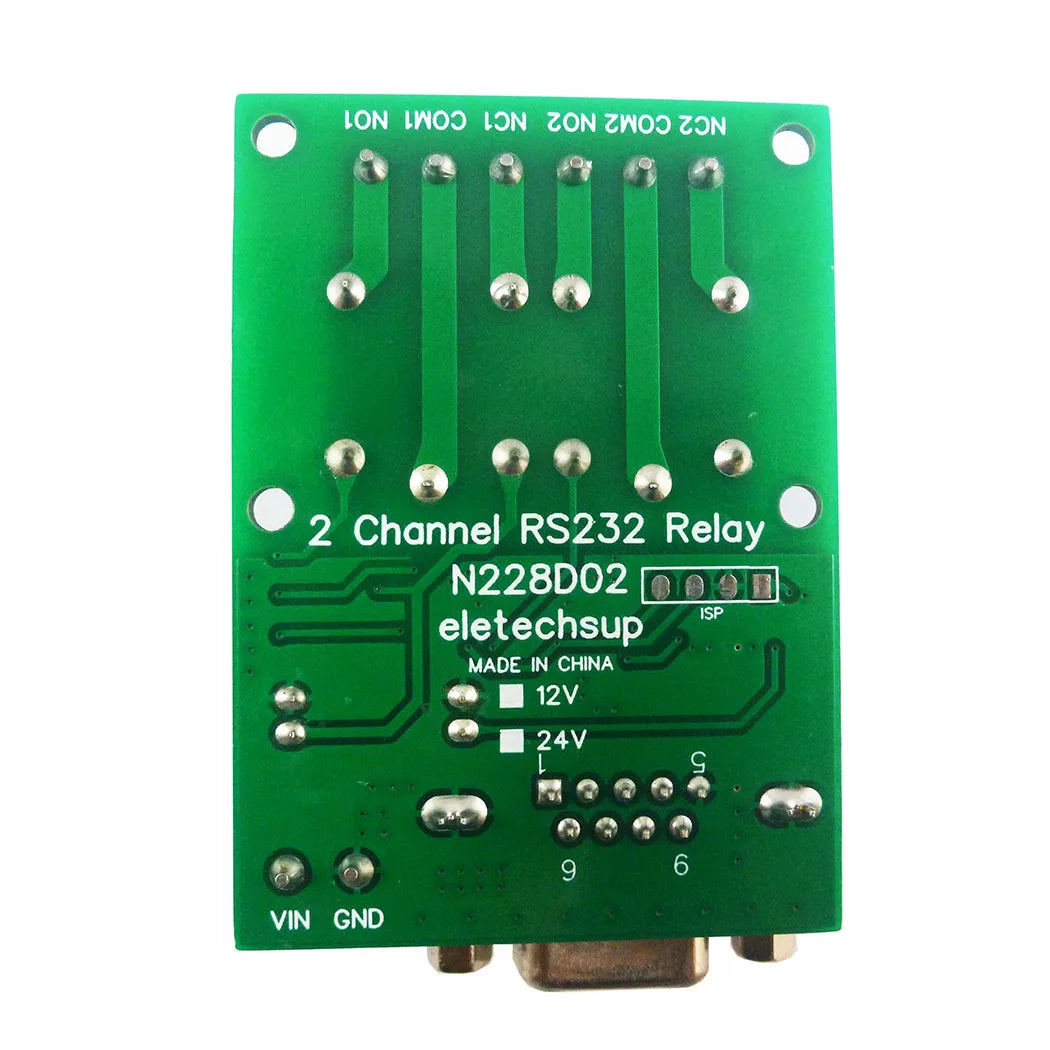

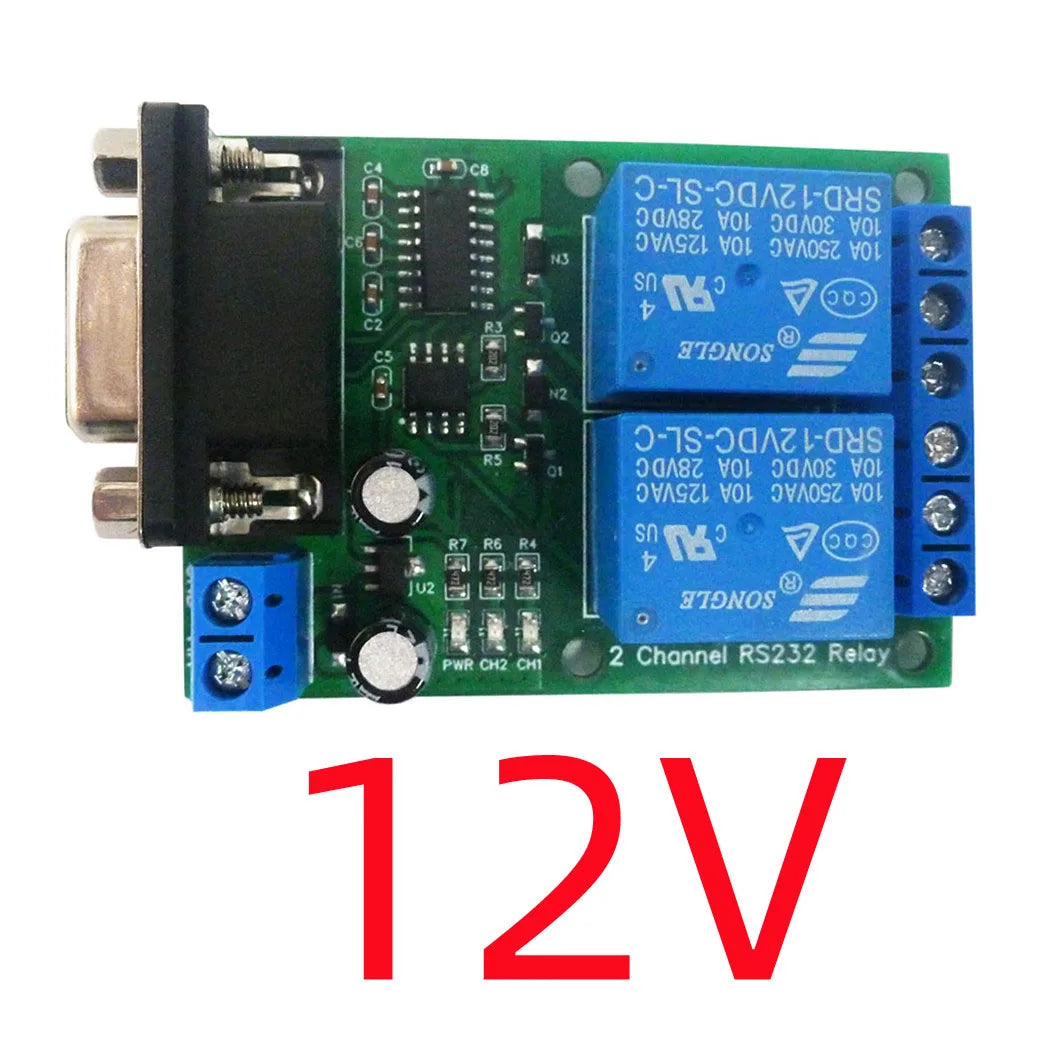

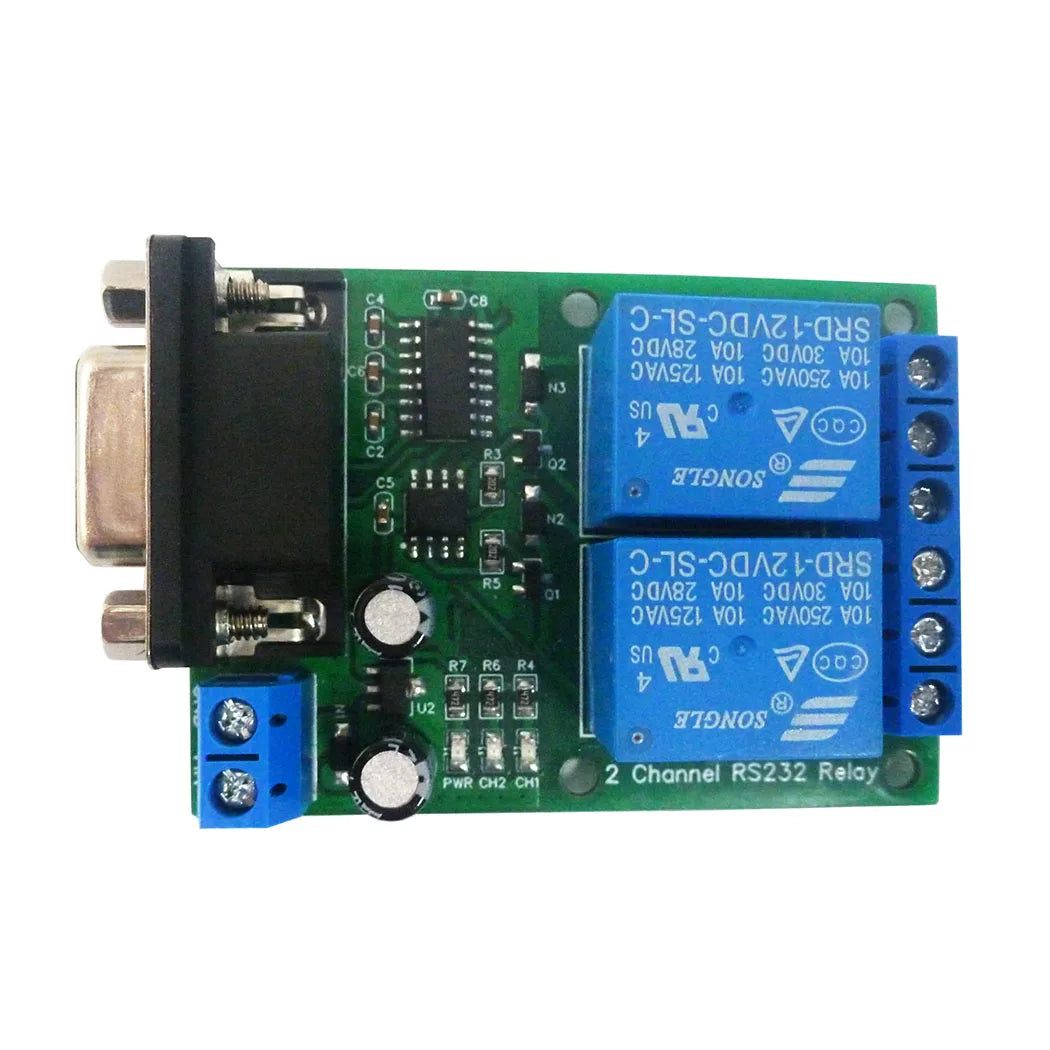

DC 12V 24V 2Ch DB9 UART Relay Module RS232 Serial Port Switch Board for PC PLC Motor LED PTZ
Package inlcuded
:
1PCS
2 channels DC12V 24V RS232 PC UART Relay Module
Product Features
1.Working voltage: DC 12V/24V;
2.Working current: Standby 12MA, 1 relay conducts 40MA, 2 relays conducts 67MA,
3.Relay output isolation;
4.The communication interface supports RS232 DB9 serial port;
5.Communication baud rate: 9600;
6.Communication control: use the provided command control;
7.Relay channel: 2;
8.With relay status indicator and power indicator;
9.With jog function, you can use the command to operate the relay to open for a period of time and automatically close.
Product Features
1. 2-channels relay controler;
2. RS232 serial input control;
3.The on/off status of the relay can be read;
4..Support self-locking mode (reverse state of relay, if relay NO and COM are closed, send this command to disconnect NO from COM, and vice versa);
5.
Support momentary mode
(relay NO is closed with COM, and disconnected after 200MS);
7.Support interlock mode (corresponding relay is closed, other relays are disconnected);
8.Support control single relay on/off operation
9.Support simultaneous control of multiple relay on/off operations.
The main parameters

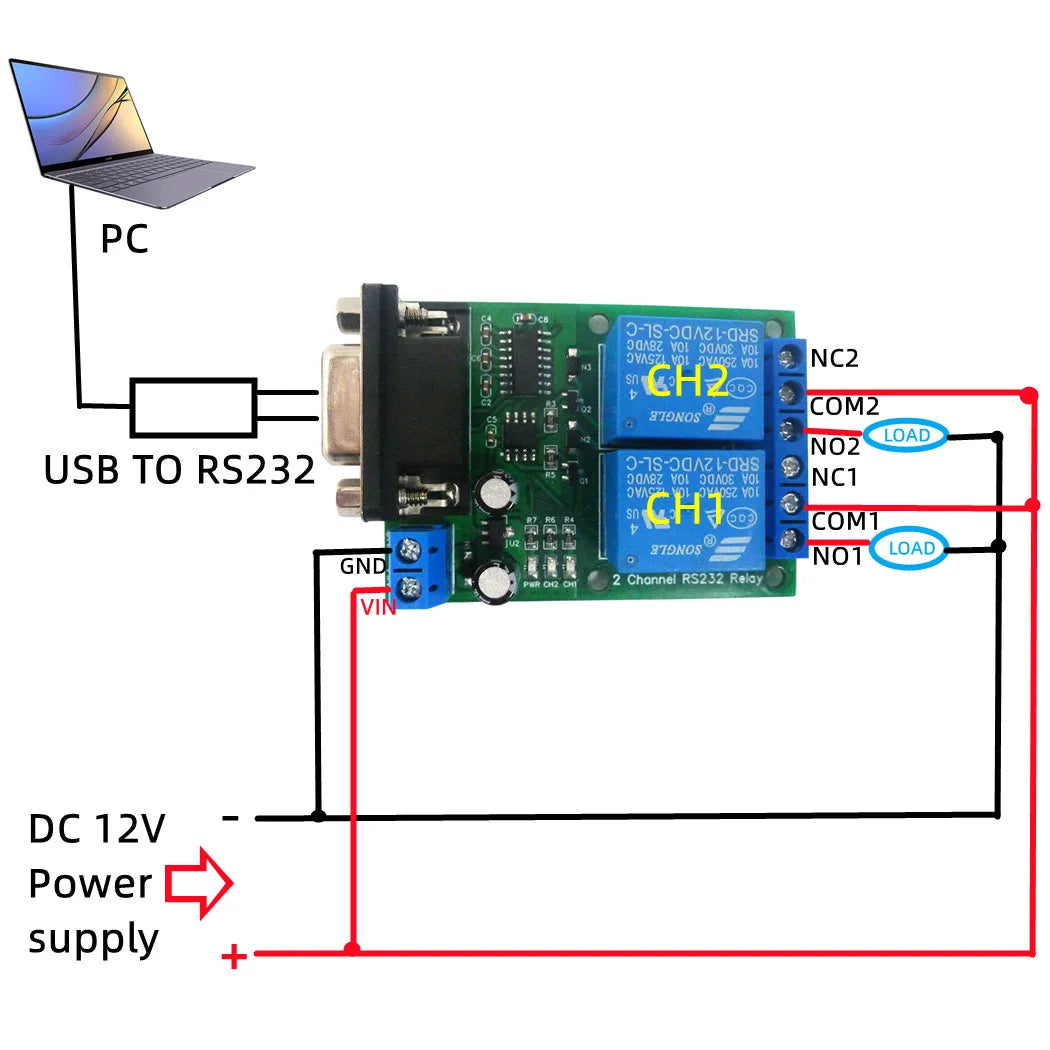

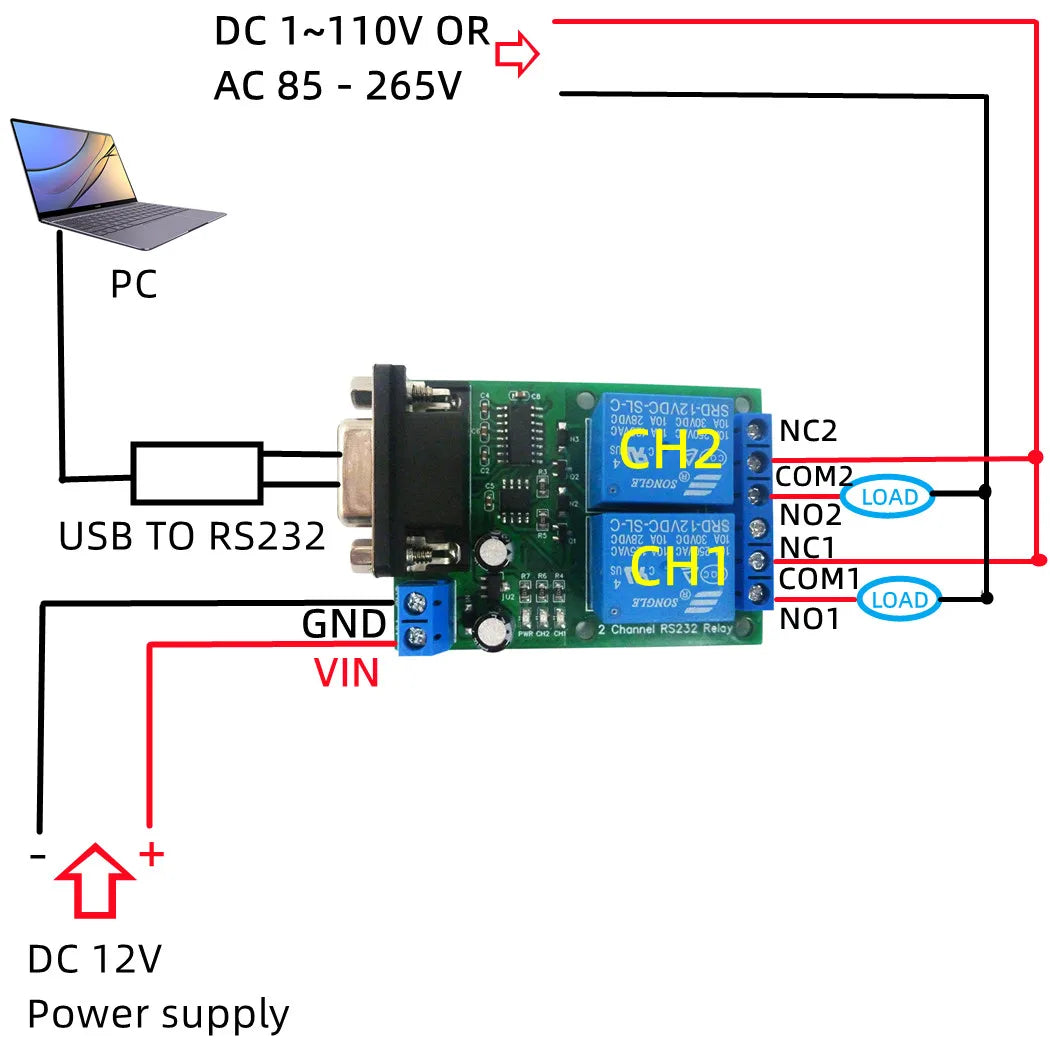

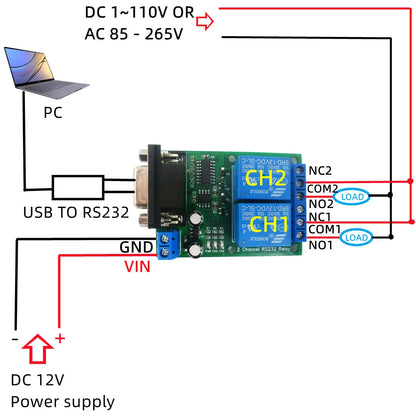

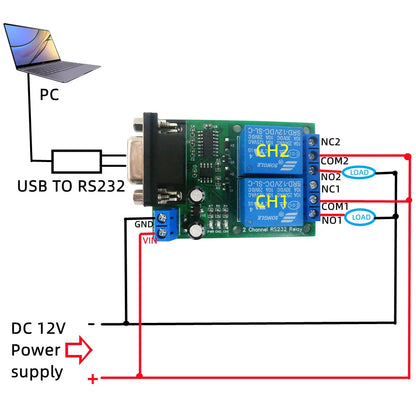

Wiring Diagram
Instructions For Use
Connect to the controller through a USB to RS232 module , connect the module to the PC, open the serial port debugging assistant, select the corresponding port, select the baud rate 9600, no parity, 8 data bits, 1 stop bit.

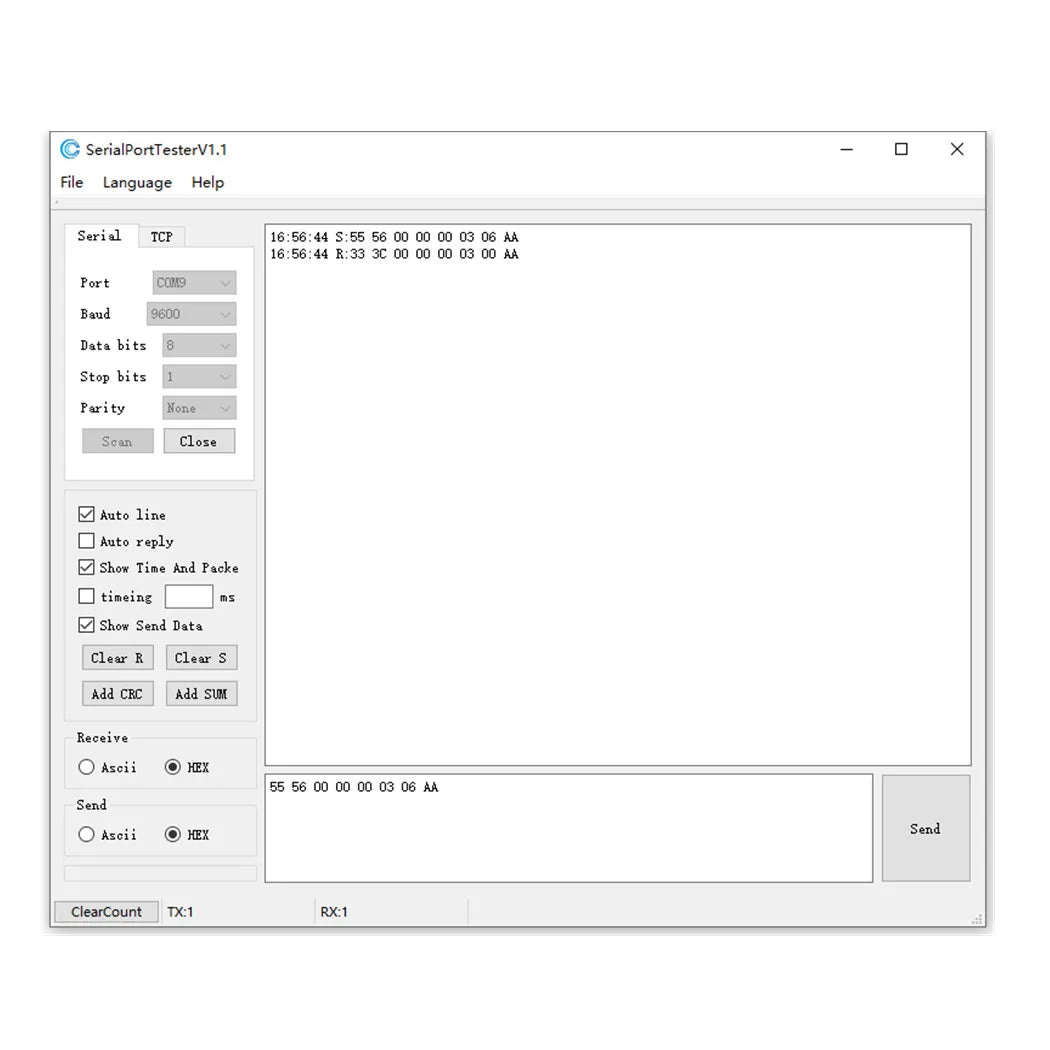

Example: To turn on all relays, send the command 55 56 00 00 00 03 06 AA, 0x5556 is the frame header, 0x000000 is the reserved byte, 0XFF is all relays, 0x06 is the command, which means multiple relays on/off operation, 0XAA As the terminator, the effect of sending the command is as shown below.
