N428E02 2CH RS485 Modbus RTU Relay Module – DC 12V 10A Serial Port Switch Board with 6 Commands for PLC PTZ Motor Industrial Control
N428E02 2CH RS485 Modbus RTU Relay Module – DC 12V 10A Serial Port Switch Board with 6 Commands for PLC PTZ Motor Industrial Control
|
We are a professional manufacturer, if you don't find the product you need, please contact us directly. |
|||||||
|
Click the “View”or search SKU to find the product. |
|||||||
|
SKU |
IO Type |
Description |
View |
SKU |
IO Type |
Description |
View |
|
DO |
AI(Current and voltage) |
||||||
|
N229E01 |
1DO |
10A Relay/TTL/USB |
CTR4A01 |
1AI |
5A/10A/20A AC Transformer |
||
|
N4ROA01 |
1DO |
3A Relay |
N4VIA02 |
2AI |
1A/2A/5A Current Voltage |
||
|
N4ROB02 |
2DO |
3A Relay |
N43IC04 |
4AI |
0-10/20/50MA Current |
||
|
N428E02 |
2DO |
10A Relay |
N43VD04 |
4AI |
0-5/10/20V Voltage |
||
|
N228D02 |
2DO |
10A Relay |
AMAIE08 |
8AI |
0/4-20MA Current |
||
|
N4ROC04 |
4DO |
3A Relay |
AMVIF08 |
8AI |
0-5/10 Voltage |
||
|
R4M9B12 |
4DO |
3A MOS |
N4AIA08 |
8AI |
0/4-20MA Current |
||
|
N4ROD08 |
8DO |
3A Relay |
N4AIB16 |
16AI |
1 Voltage-15 Current |
||
|
N438B08 |
8DO |
10A Relay |
N4AIB16 |
24AI |
2 Voltage-22 Current |
||
|
N223B08 |
8DO |
10A Relay |
AI-DI-DO |
||||
|
AMROD08 |
8DO |
2A Relay |
R4D7G04 |
3AI-2DI-4DO |
10A Relay |
||
|
ET48A08 |
8DO |
10A Relay/NET |
AMIDJ14 |
6AI-4DI-4DO |
0.3A Mos |
||
|
N438C15 |
15DO |
10A Relay/RS232 |
AMVDK15 |
6AI-4DI-4DO |
0.3A Mos |
||
|
N4ROE16 |
16DO |
3A Relay |
R4A8H08 |
8AI-4DI-8DO |
10A Relay |
||
|
AMDOC16 |
16DO |
0.3A NPN |
N4A8I16 |
8AI-4DI-16DO |
0.3A Mos |
||
|
N4ROF32 |
32DO |
3A Relay |
N4A7K16 |
8AI-4DI-16DO |
0.3A Mos |
||
|
R4D5E32 |
32DO |
20A Relay/NET |
R4D6F20 |
2AI-2DI-20DO |
10A Relay |
||
|
DI |
|
|
|
AI(Temperature and humidity) |
|||
|
AMDIB16 |
16DI |
NPN/PNP Isolation |
N434E01 |
DS18B20/NTC(10K)/AHT20 |
|||
|
24DIA16 |
16DI |
NPN/PNP Isolation |
NT38D01 |
1 NTC |
10K NTC |
||
|
24DIB32 |
32DI |
NPN/PNP Isolation |
NT28B16 |
16 NTC |
10K/20K/50K/100K NTC |
||
|
24DIC48 |
48DI |
NPN/PNP Isolation |
PT21A01 |
1 PT100 |
-40~500 ℃ |
||
|
DI+DO |
|
|
|
PTA8C04 |
4 PT100 |
-40~500 ℃ |
|
|
10IOA01 |
1DI-1DO |
NPN(DI) /10A Relay(DO) |
AMPTI04 |
4 PT100 |
-40~300 ℃ |
||
|
10IOA02 |
2DI-2DO |
NPN(DI) /10A Relay(DO) |
PTA8D08 |
8 PT100 |
-40~500 ℃ |
||
|
10IOA04 |
4DI-4DO |
NPN(DI) /10A Relay(DO) |
PTA8E16 |
16 PT100 |
-40~500 ℃ |
||
|
CAROA04 |
4DI-4DO |
NPN/10A Relay /CAN |
AMDSG08 |
8 DS18B20 |
-55~125℃ |
||
|
N4RFA04 |
4DI-4DO |
NPN/10A Relay/433M |
SH34D16 |
16 SHT30 temperature and humidity |
|||
|
10IOA08 |
8DI-8DO |
NPN(DI) /10A Relay(DO) |
RS485 interface converter |
||||
|
AMIOA08 |
8DI-8DO |
NPN(DI) /0.3A Mos(DO) |
CAN4A02 |
CAN to RS485 Converter |
|||
|
SGIOB08 |
8DI-8DO |
NPN(DI) /0.3A Mos(DO) |
ET69C02 |
1 Ethernet to 1 RS485 Converter |
|||
|
23IOA08 |
8DI-8DO |
NPN(DI) /0.3A Mos(DO) |
ETHUB18 |
1 Ethernet to 8 RS485 Converter |
|||
|
CAROB08 |
8DI-8DO |
NPN/10A Relay /CAN |
R4HUB08 |
1 to 8 RS485 Hub/Repeater |
|||
|
10IOA12 |
12DI-12DO |
NPN(DI) /10A Relay(DO) |
RT5BF01 |
RS485 to 433M Wireless Converter |
|||
|
ETD8A12 |
12DI-12DO |
NPN/10A Relay/NET |
R2OPB03 |
RS232 to RS485 Converter |
|||
|
23IOB16 |
16DI-16DO |
NPN(DI) /0.3A Mos(DO) |
R2OPB03 |
RS485 to RS485 Isolator |
|||
|
N4D3E16 |
16DI-16DO |
NPN(DI) /0.3A Mos(DO) |
Other RS485 interface modules |
||||
|
CAROC16 |
16DI-16DO |
NPN/10A Relay /CAN |
RFIDA02 |
RS485/TTL232 13.56MHz RFID UID IC Card Reader |
|||
|
23IOC24 |
24DI-24DO |
NPN(DI) /0.3A Mos(DO) |
WG18A02 |
RS485 Modbus RTU Weight Sensor Electronic Scale |
|||
|
23IOD32 |
32DI-32DO |
NPN(DI) /0.3A Mos(DO) |
DM18A01 |
1/2/4CH RS485 1.8 Inch Digital Tube Module |
|||
|
23IOE48 |
48DI-48DO |
NPN(DI) /0.3A Mos(DO) |
PWM8A04 |
3 AO |
1Hz-20kHz PWM Generator |
||
Product Name:
2ch 12VDC RS485 Modbus RTU Relay PC UART Serial Port Switch for Motor PLC Camera Industrial Control System
Package inlcuded:
1 PCS DC 12V 2-Channel RS485 Modbus Rtu Relay Board
Description:
1: Working voltage DC 12V;
2: Standby current (all relays closed) 10MA, 1 relay open 38MA, 2 relays open 67MA
3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
4: MODBUS RTU command, Support 03 06 16 function code
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
7 Under the MODBUS command mode, it can support up to 64 devices in parallel
8 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS
9 The parity can be none parity, even parity and odd parity
10 Size: 60*35*19mm
11 Weight: 32g
12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
For more information, please contact me
Application
PLC Output expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;

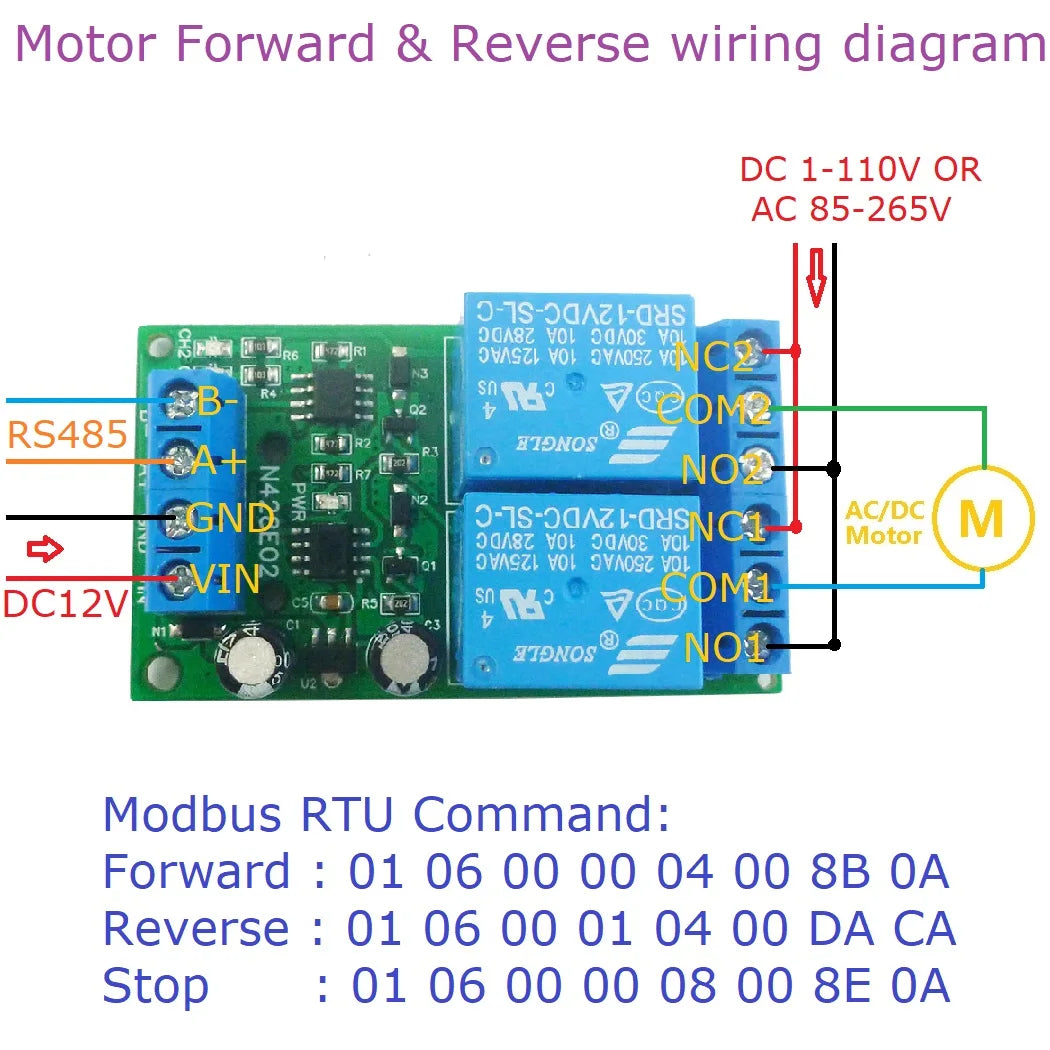

Motor FW & BW
Automatic curtain control

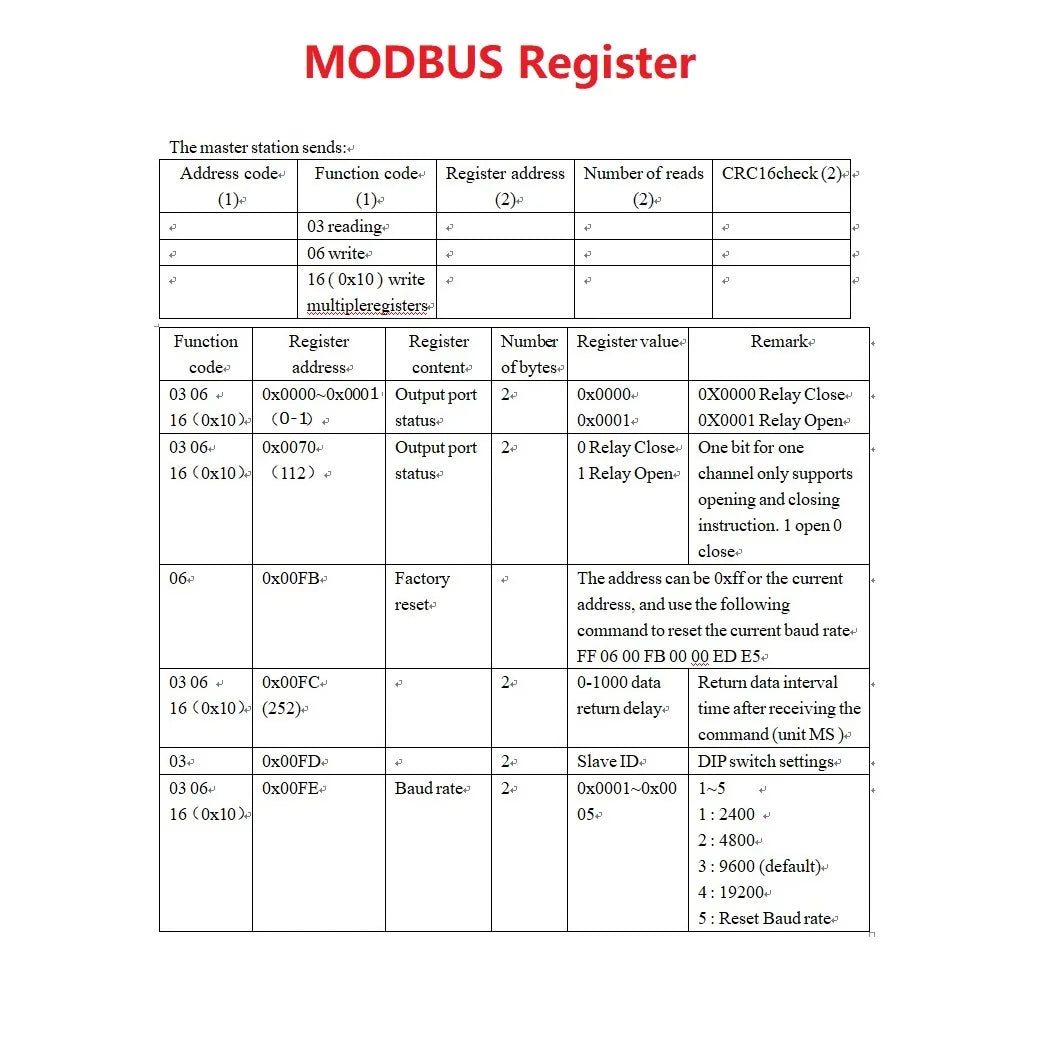

Modbus Rtu Register:
