N4CID08 N4CIE16 N4CIF24 8-24 Channel Industrial Analog Input Module – Modbus RTU 4-20mA/0-20mA/0-5V/0-10V Current Voltage Data Collector for PLC Sensor Monitoring

Product Name : 8-24AI 4-20MA/0-20MA/0-5V/0-10V Current Voltage Analog Collector RS485 Modbus Rtu Module Industrial Field Measurement Sensing

Package inlcuded:

1 PCS N4CID08_N4CIE16_N4CIF24 8-24CH RS485 Modbus Rtu Analog Input Collector Module

Features:

1 Working voltage: DC5V/ DC 12V(7-24V) two versions

2 Working current: standby 6-7MA, working current 12-20MA

3 Support standard Modbus RTU command, function code: write 06/16 read 03/04

4 With hardware reset function, RS485 with TVS anti-surge protection, anti-reverse power supply

5. In MODBUS command mode, up to 64 devices can be used in parallel

6 The default baud rate is 9600BPS, the baud rate can be selected by command 1200 2400 4800 19200 38400 57600 115200BPS

7 You can choose the check mode is no check, even check and odd check

8 You can set the data sending return time, the maximum can be set to 1000ms

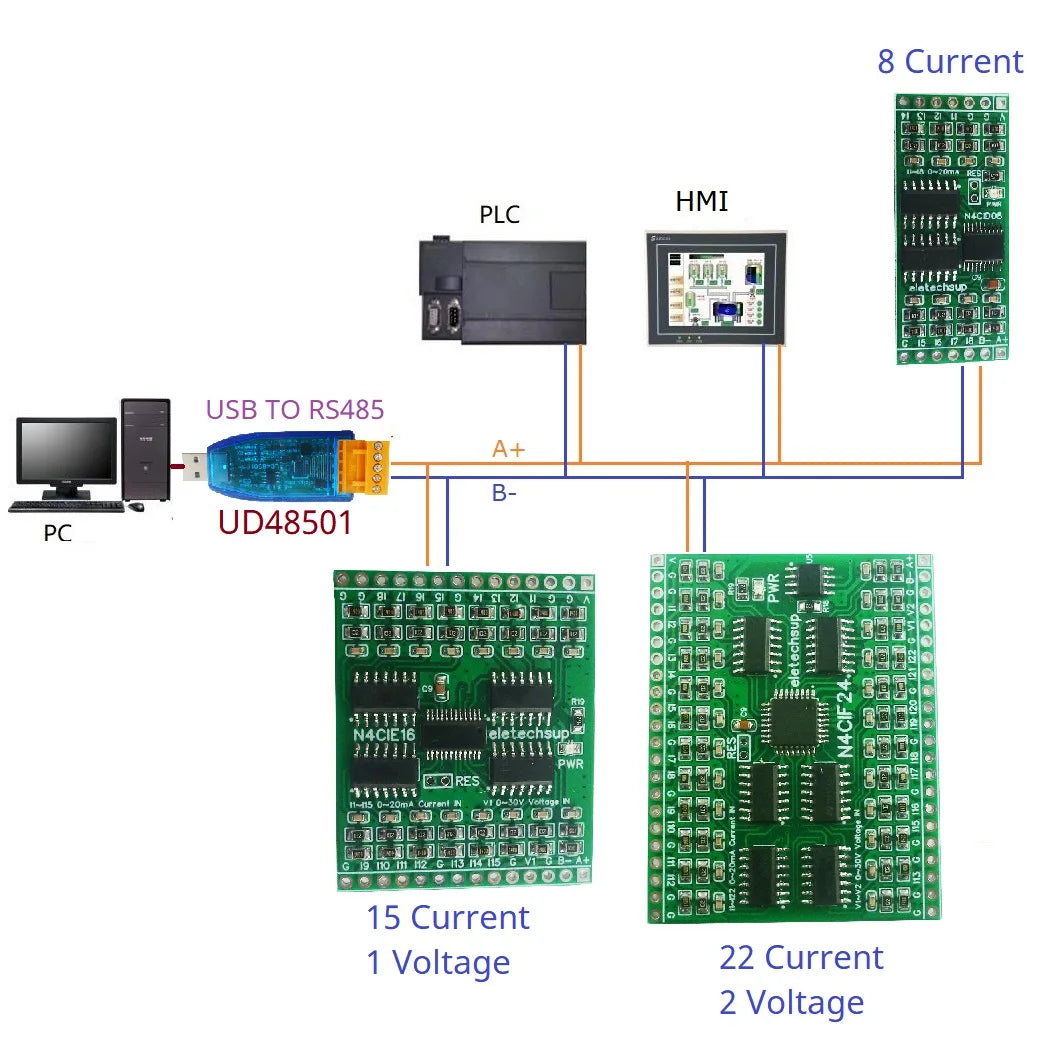

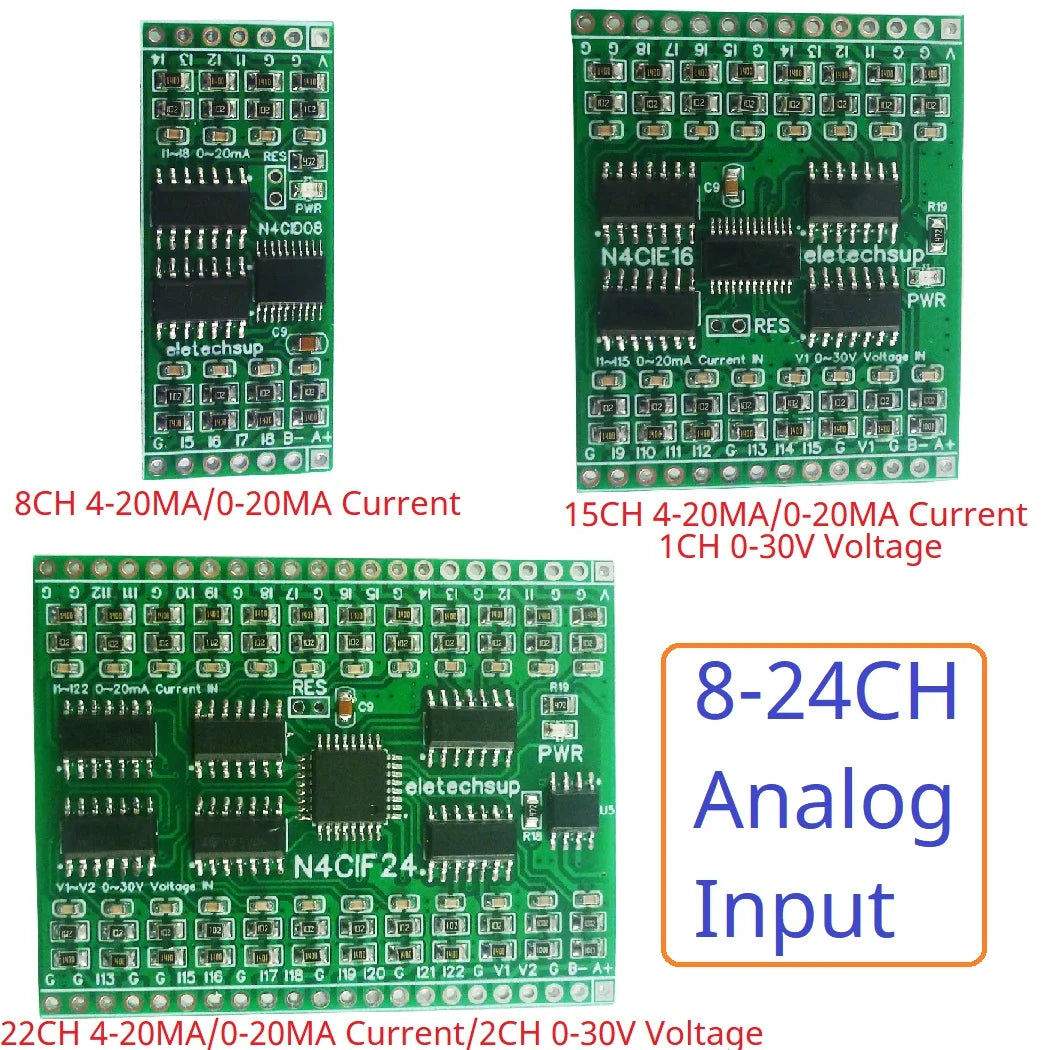

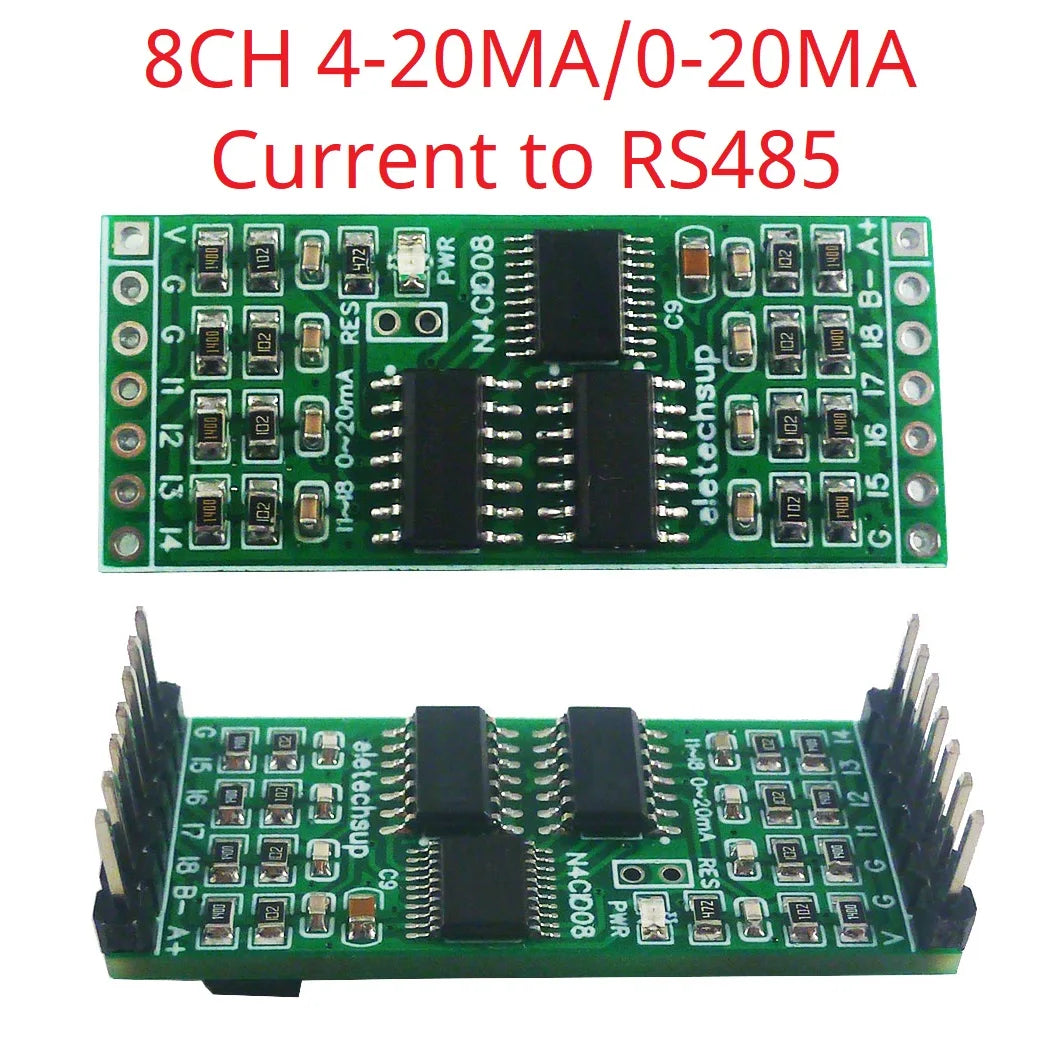

N4CID08 Version:

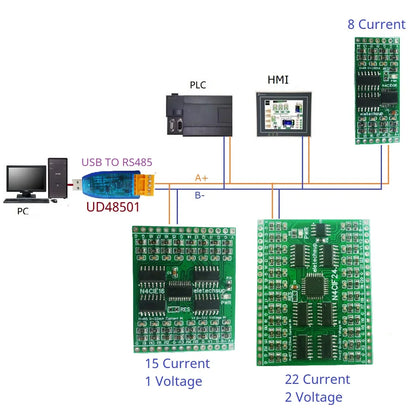

8-channel 0-20MA/4-20MA acquisition

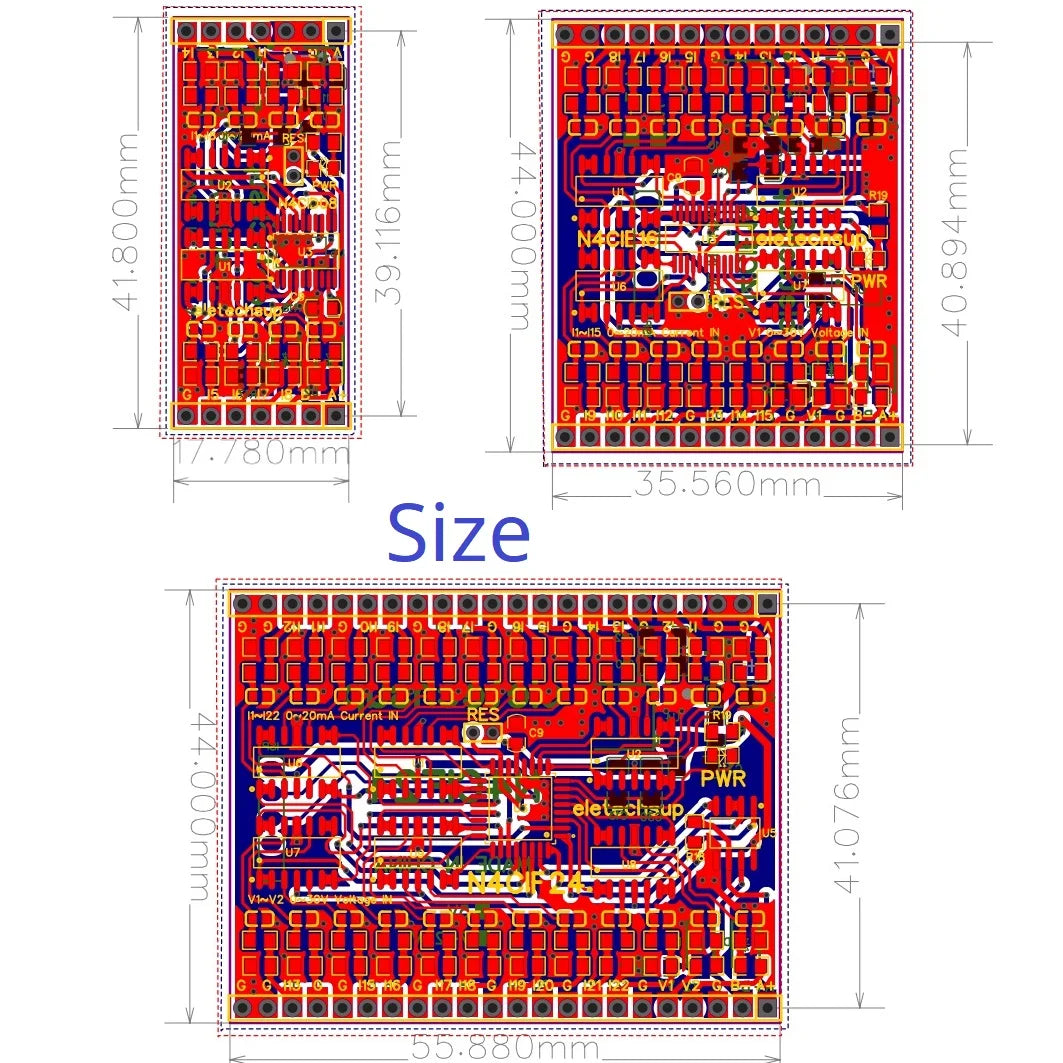

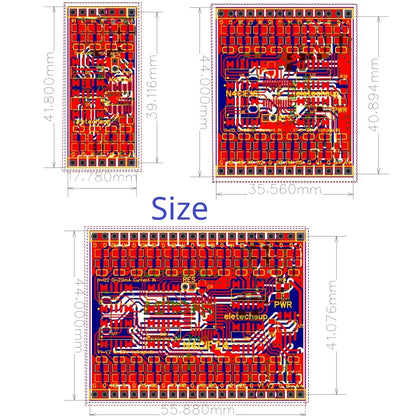

Size: 42 * 17.8 * 5mm ( only board) 42 * 17.8 * 11mm (with pin)
Weight: 4 grams (only board ); 4.6 grams (with pin)

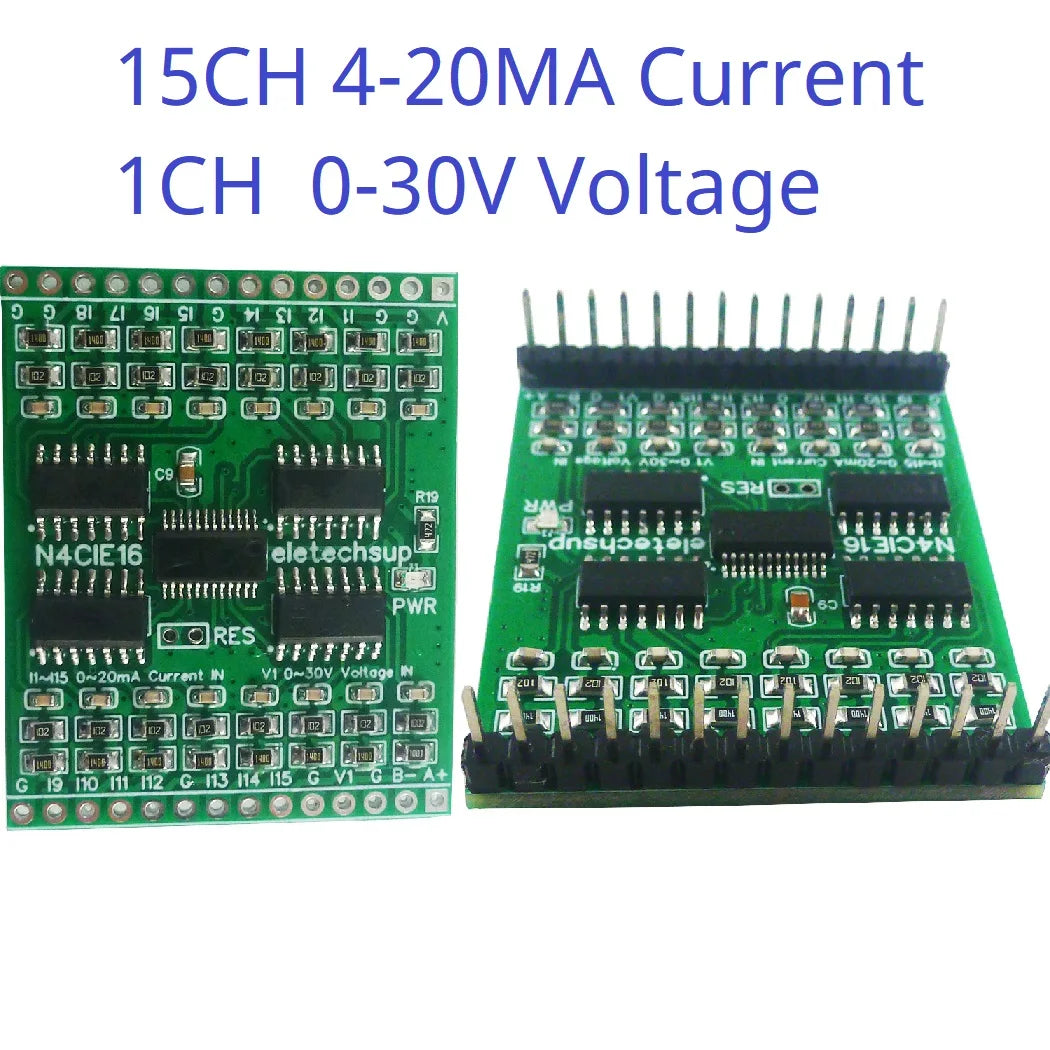

N4CIE16 Version:

15 channels 0-20MA/4-20MA acquisition and 1 channel 0-30V voltage acquisition;
Size: 44 * 35.6 * 5mm ( only board) 44* 35.6*11mmmm (with pin)
Weight: 7.6 grams (only board ); 9.2 grams (with pin)

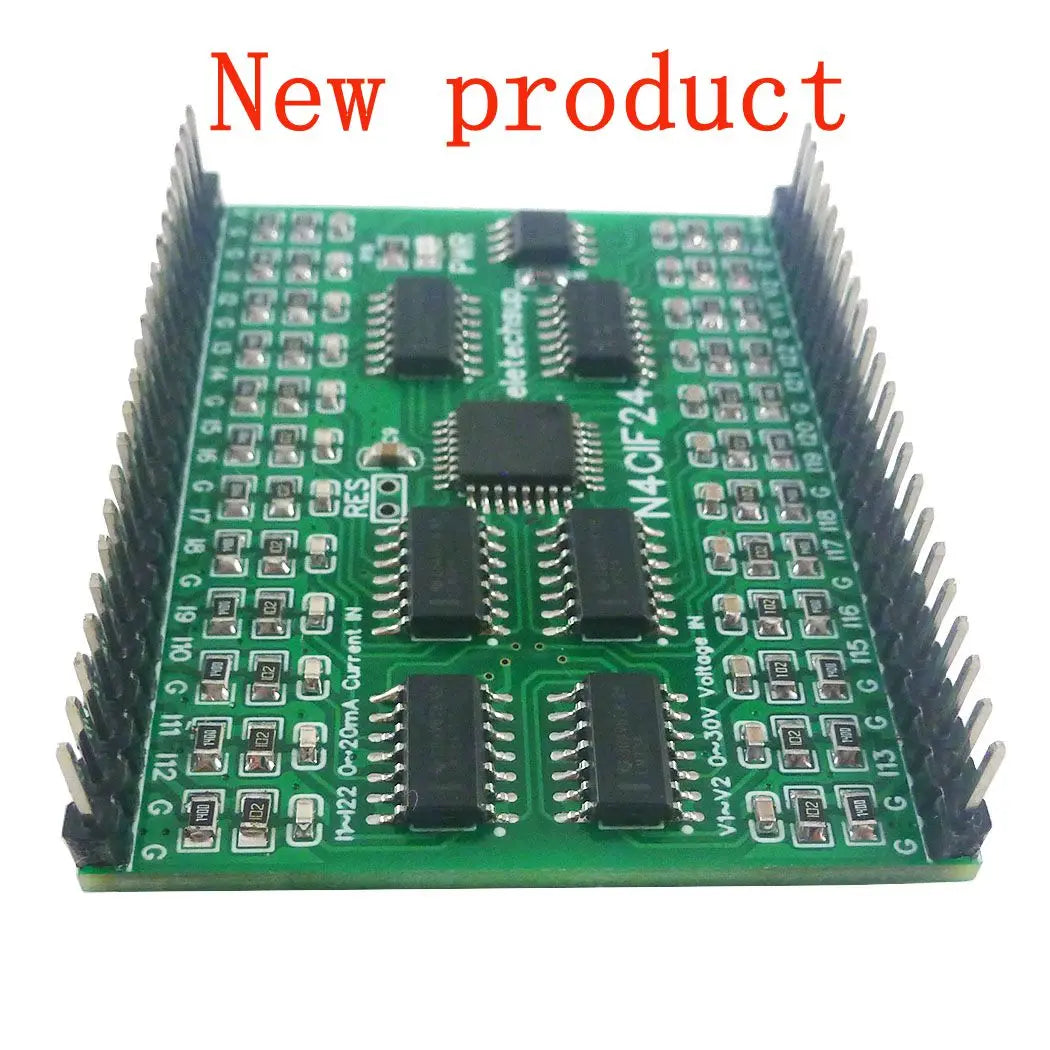

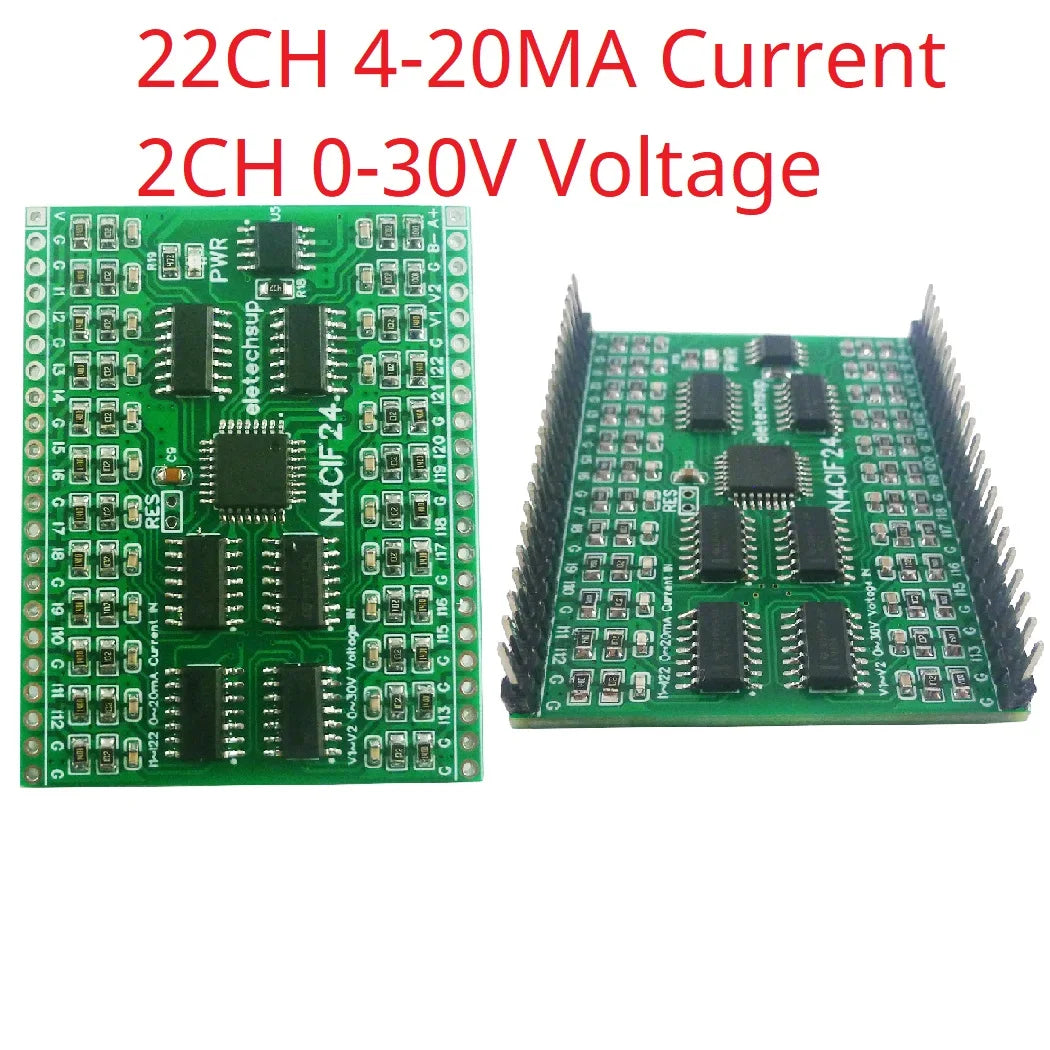

N4CIF24 Version:

22-channel 0-20MA/4-20MA acquisition and 2-channel 0-30V voltage acquisition;
Size: 44 * 55.9 * 5mm ( only board) 44* 55.9*11mm (with pin)
Weight: 11.2 grams (only board ); 13.7 grams (with pin)

This is a 2.54MM pin header version of the RS485 current collector, fully compatible with the terminal block version (N4AIA08 N4AIB16 N4AIC24).
The size is kept to a minimum while meeting the functional performance. It can be used as a core board and embedded into the base board.

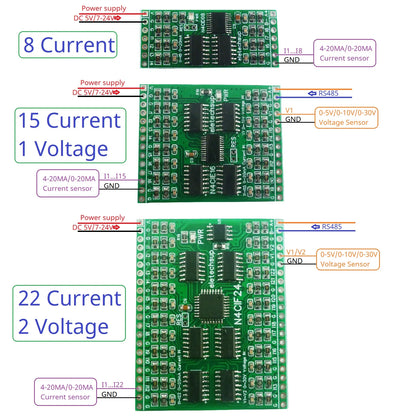

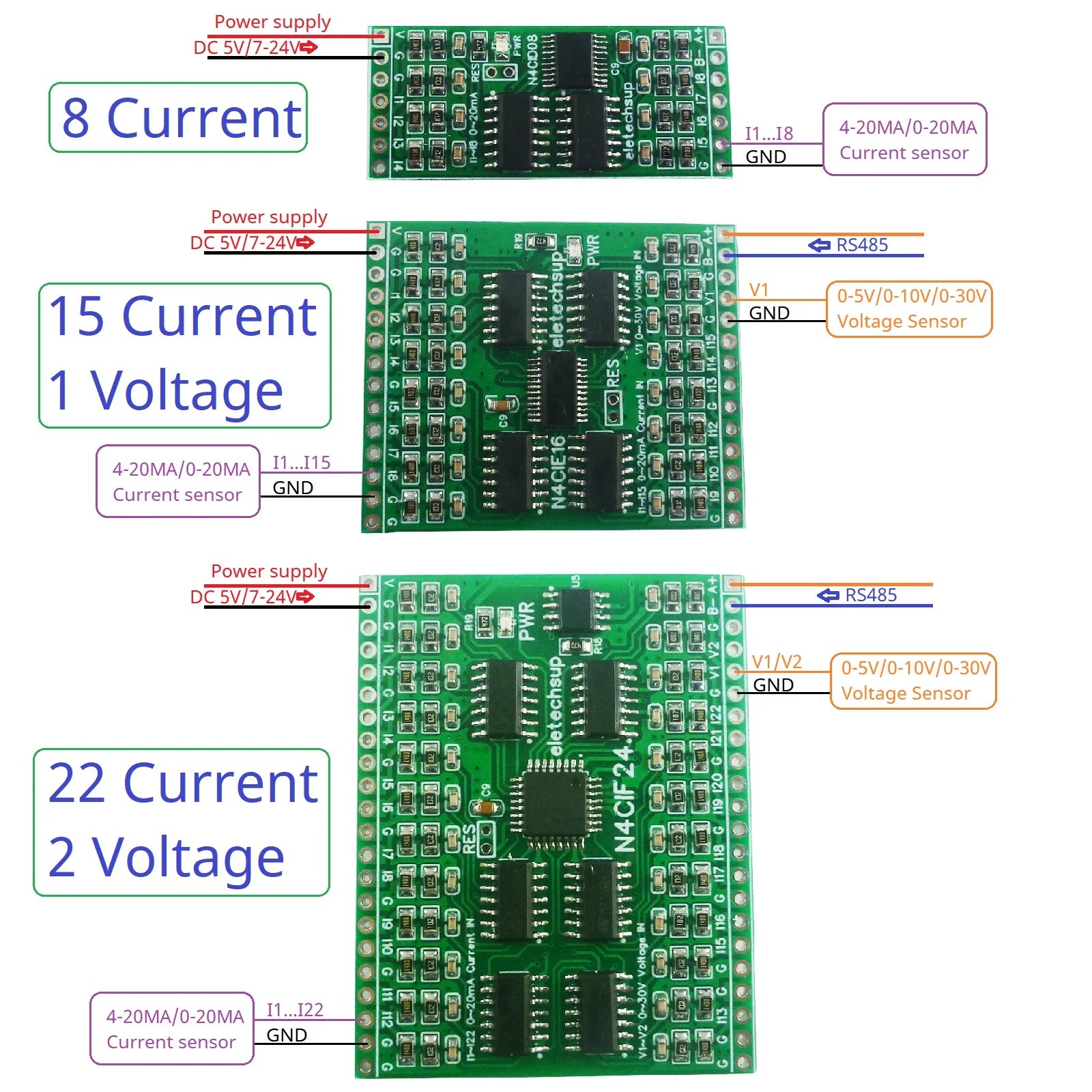

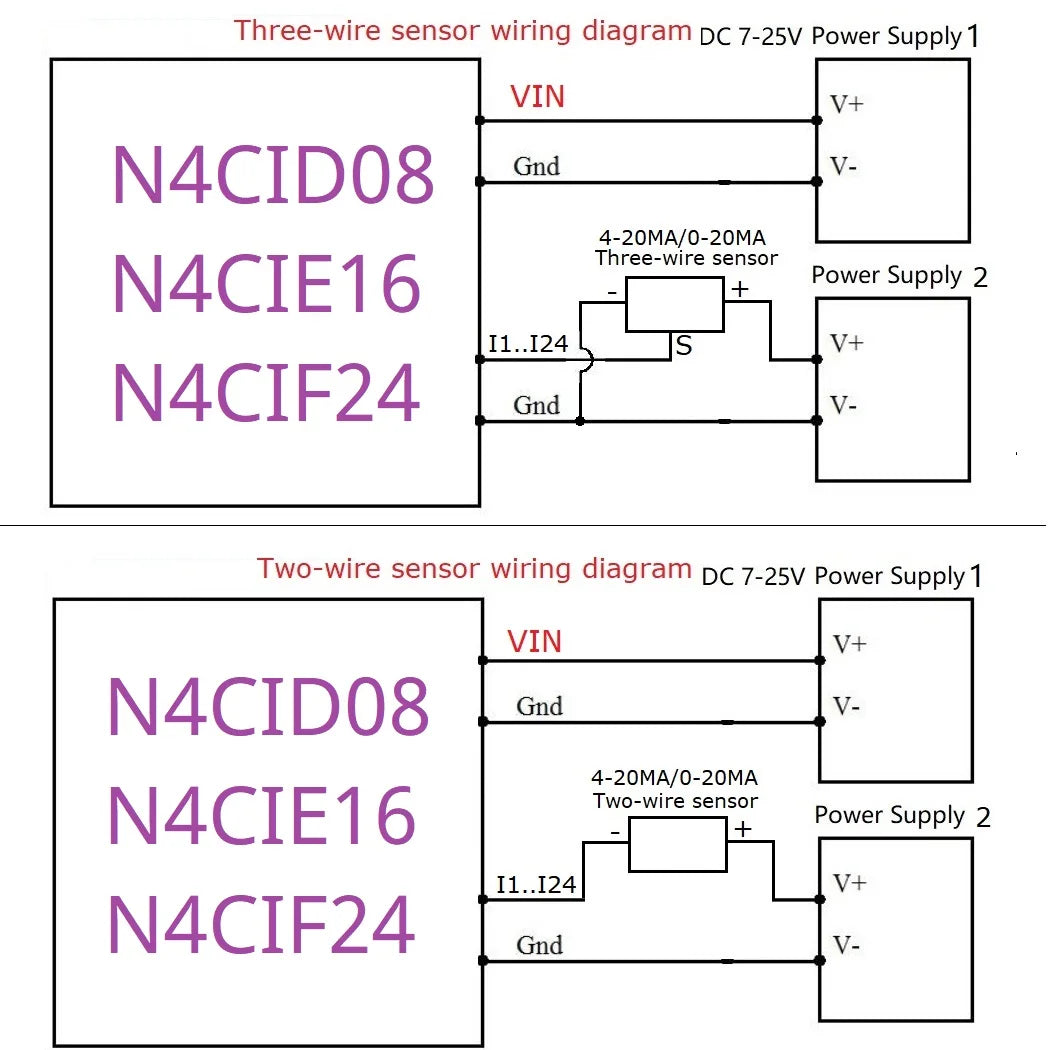

Interface definition:

VIN : Power input+
GND: Power input-
I1: Current input channel 1
I2: Current input channel 2
I3: Current input channel 3
I4: Current input channel 4
...
I22: Current input channel 22

V1: Voltage input channel 1

V2: Voltage input channel 2

A+: RS485 signal A+
B-: RS485 signal B-
