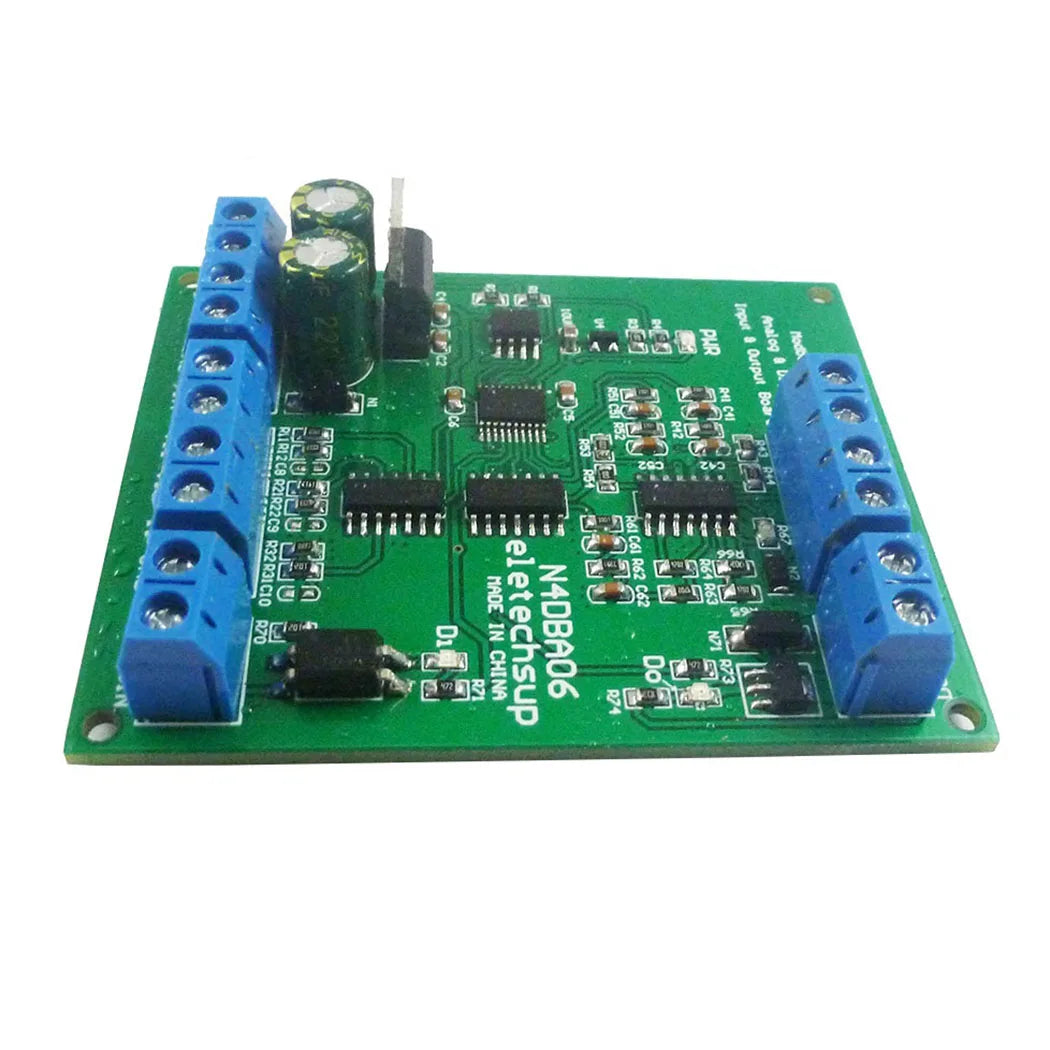

N4DBA06 8CH Signal Generator & Detector – 4-20mA/0-10V ADC DAC Converter with RS485 Modbus RTU IO Module for PLC

1Working voltage: DC 12 (DC 12-25V recommended power supply with small ripple)

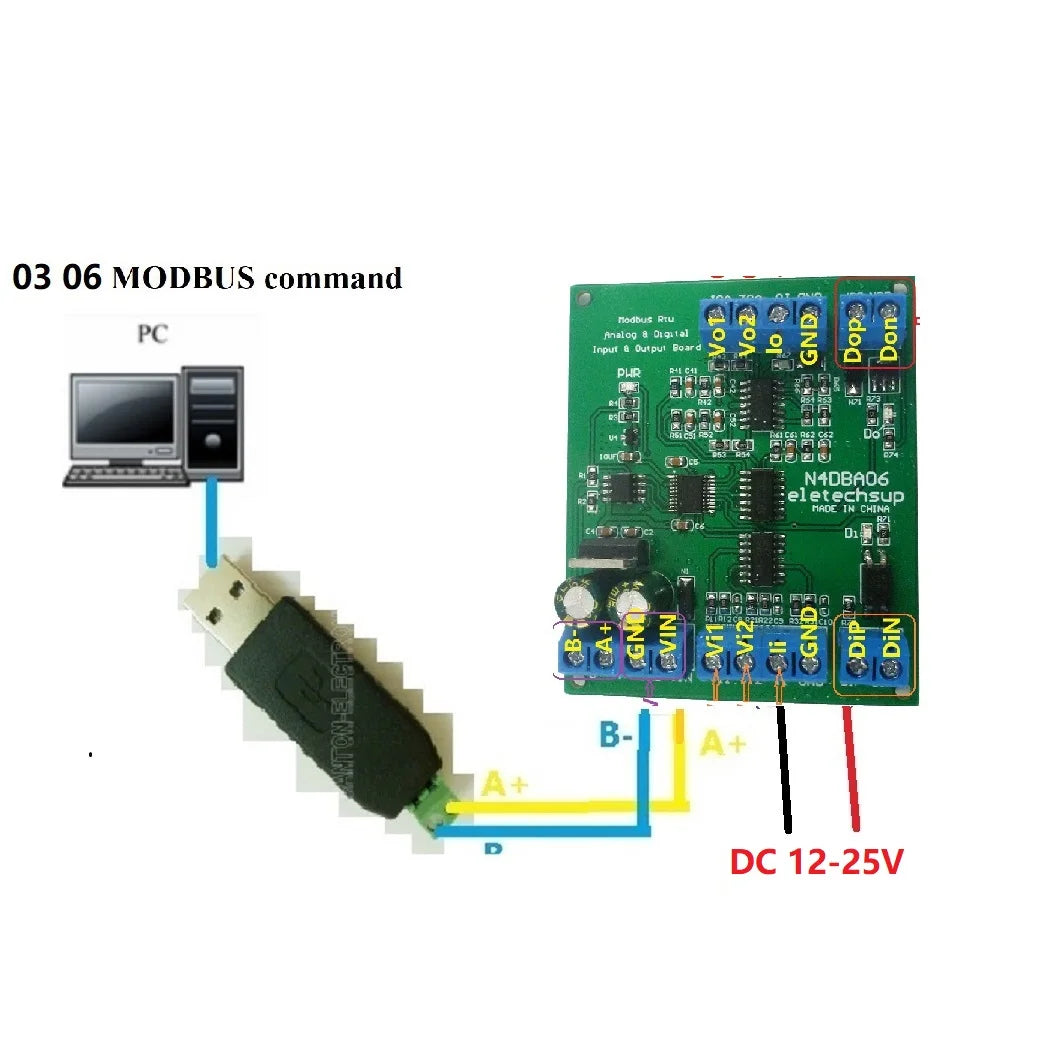

2 Working current: 14-34MA (Related to the output current)



3 MODBUS RTU instruction support 03 06 function code

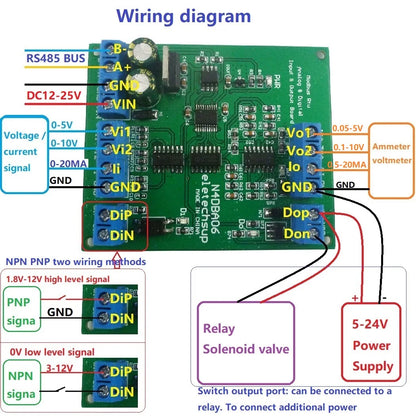

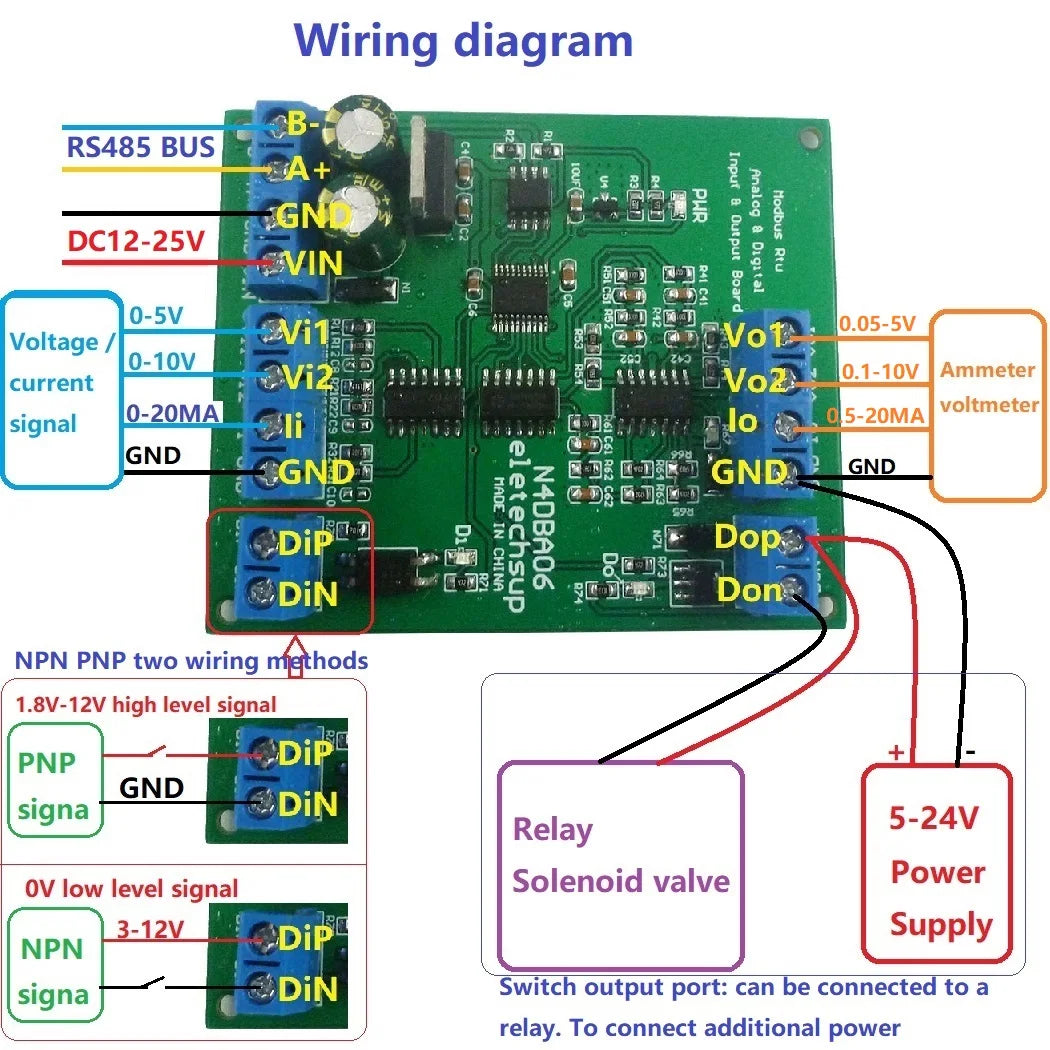

4 3 analog input channels, 1 switch input channel: Vi1 is 0-5V voltage input, Vi2 is 0-10V voltage input, Ii is 0-20MA current input; DiP DiN is switch input port (NPN/PNP Photoelectric isolation input)



5 3 analog output channels, 1 switch output channel: Vo1 is 0.05-5V voltage output (<20MA), Vo2 is 0.1-10V voltage output (<20MA), Io is 0.5-20MA current output; DoP DoN is Switch output port (maximum drive current 500MA, can directly drive relays and solenoid valves)



6 Voltage resolution is 0.01V, measurement accuracy is 1%; Current resolution is 0.01MA, measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated



7 MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;



8 Under the MODBUS command mode, it can support up to 247 devices in parallel

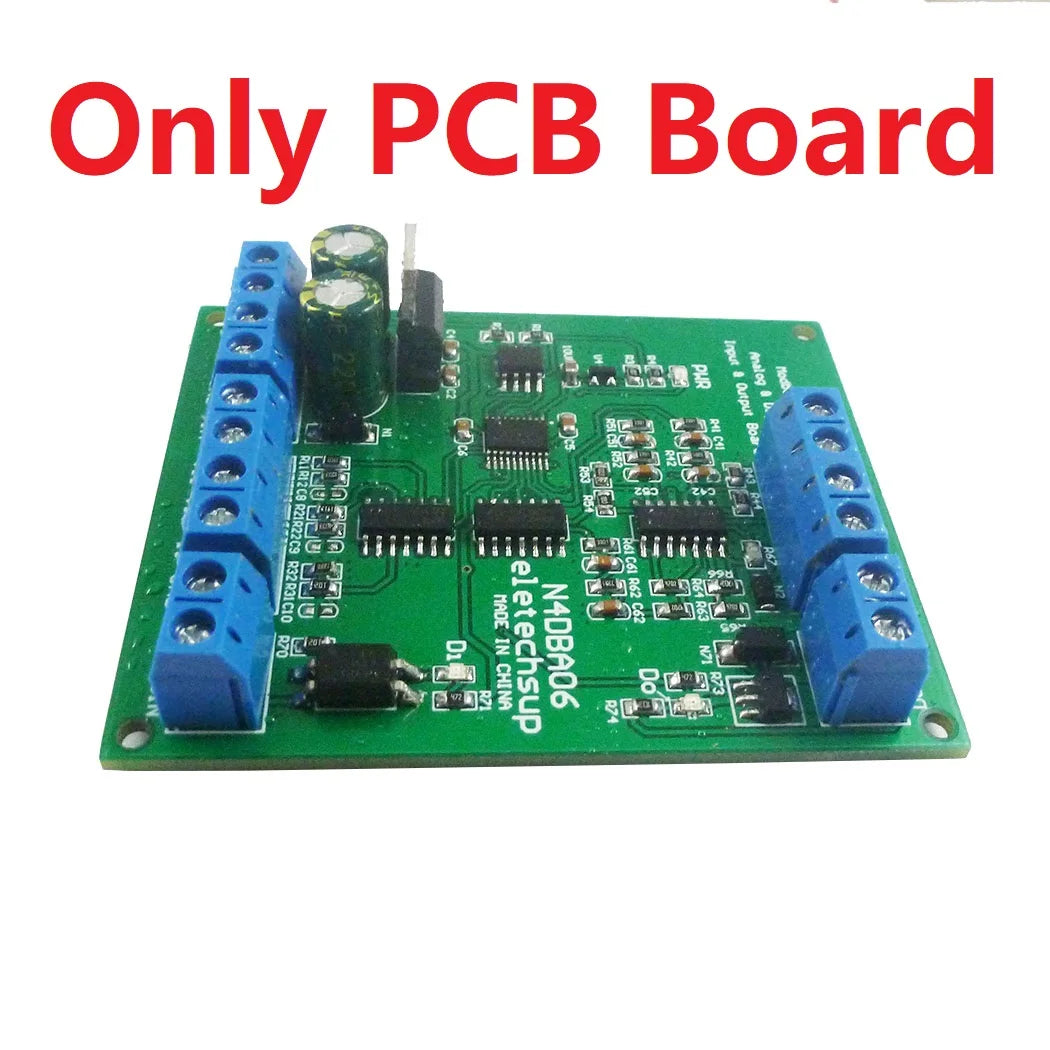

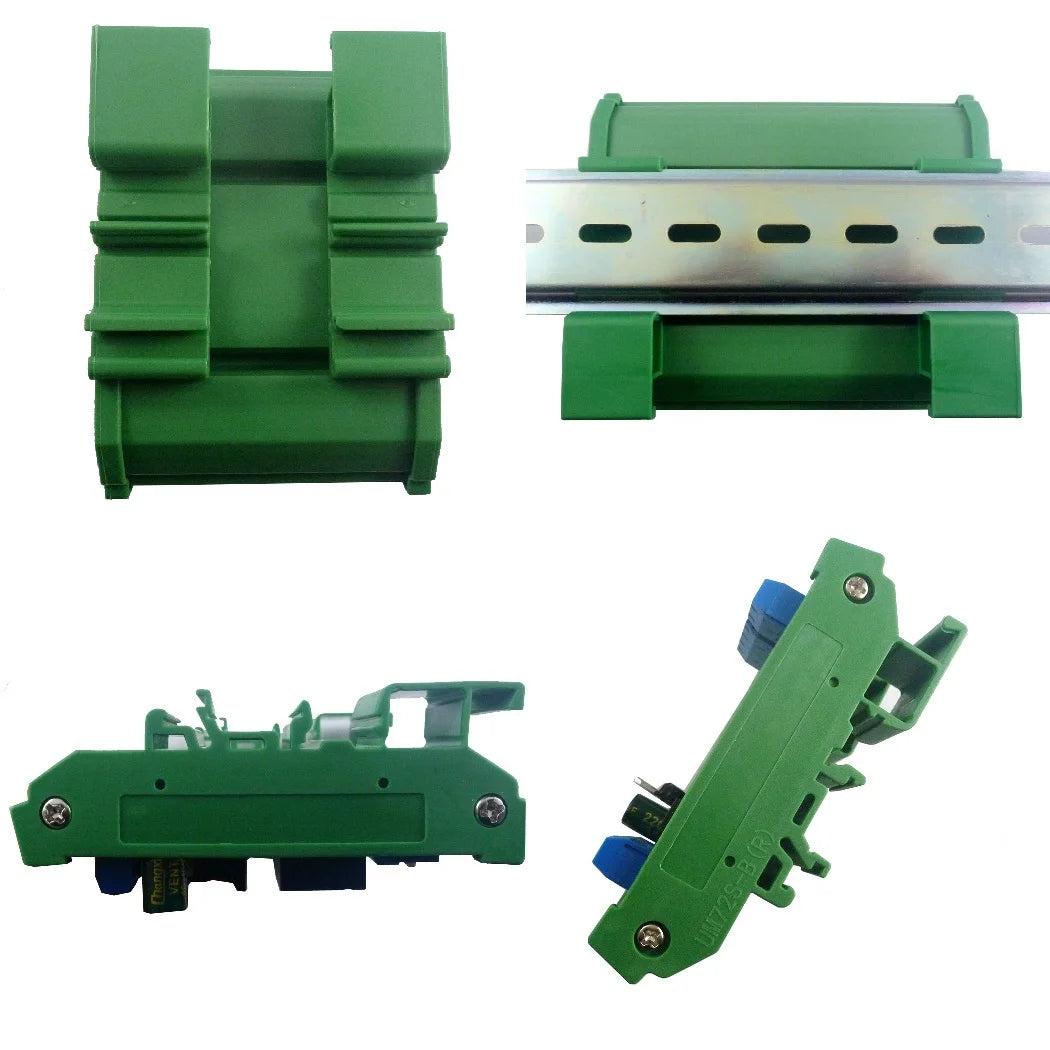

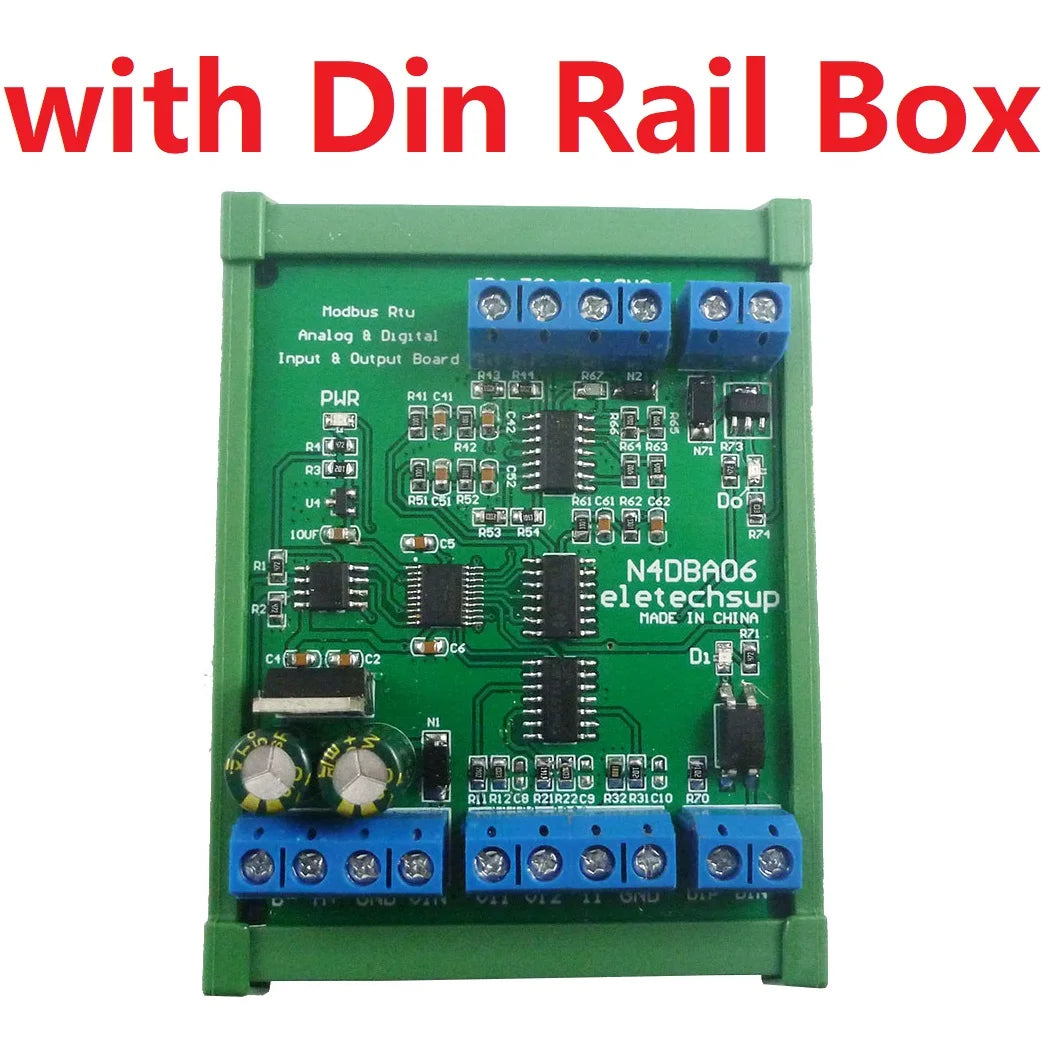

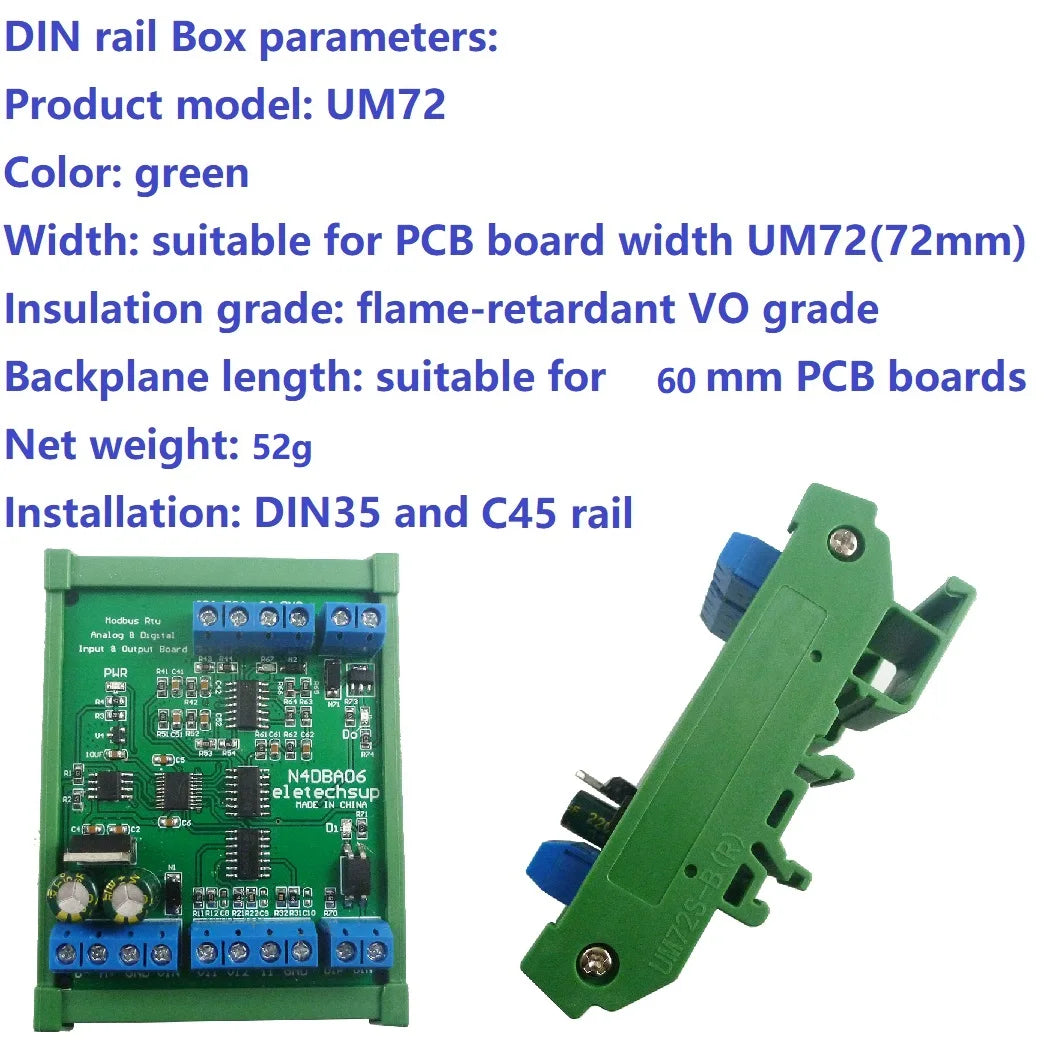

9 Size: 60 * 72 * 18mm (Only PCB Board); 63 * 87 * 42mm (with Din Rail Box)

10 Weight: 33g (Only PCB Board); 85g (with Din Rail Box)
