N4IOA01 RS485 to 4-20mA Signal Generator – Modbus RTU 03/06 DAC Analog Converter Module 12-24V for PLC Industrial Automation
N4IOA01 RS485 to 4-20mA Signal Generator – Modbus RTU 03/06 DAC Analog Converter Module 12-24V for PLC Industrial Automation
Product Name:1/4PCS DC 12V 24V RS485 to 4-20MA 0-20MA Current Signal Generator PWM To Current Analog Converter Modbus RTU 03 06 DAC Module
Package inlcuded:

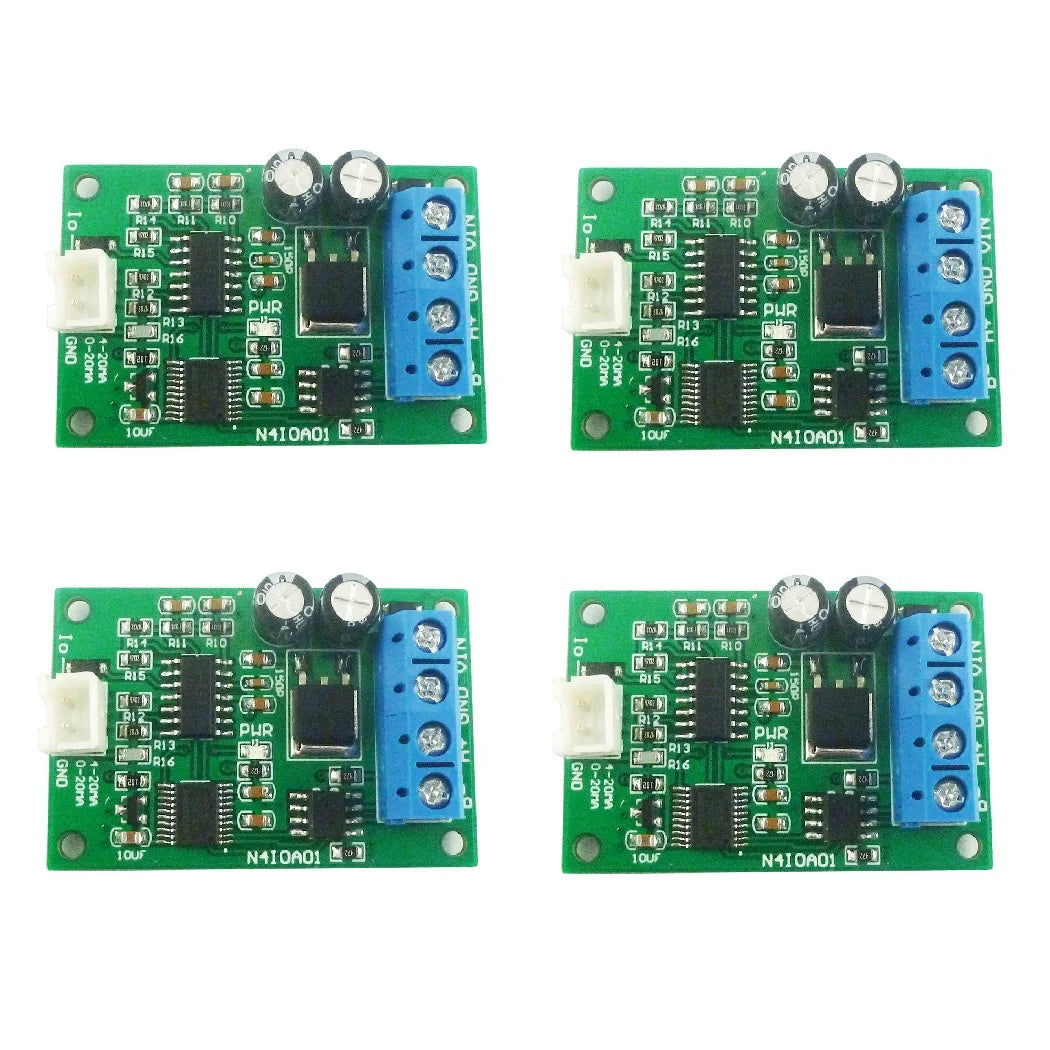

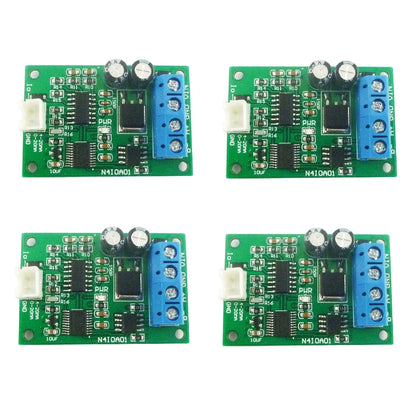

1/4 x N4IOA01 12-25V 1 Channel PWM DAC
RS485 to4-20MA Module
Description:
1: Operating Voltage : DC 12 (DC 12-25V), recommended power supply with small ripple
2: Operating Current : 12-32MA(Related to the output current)
3: MODBUS RTU Command support 03 06 function code
4: The output current range is 0.50-21.00MA (for 4-20MA) and the maximum output current capability is 21MA.
5: Current resolution is 0.01MA, output accuracy is 1%; if the error is greater than 1%, it can be calibrated
6 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter
7 :Under the MODBUS command mode, it can support up to 247 devices in parallel
8: The current output terminal open circuit (no load) output voltage is 10V
9 :Size: 45 * 35 * 15mm
10 :Weight: 10g
4-20MA/0-20MA Sensor
0-20MA/4-20MA Current Signal generator
Automated industry PLC
Smart Home,Home Automation ;
Identification system;
RS485 Remote monitoring;
Multimeter voltmeter

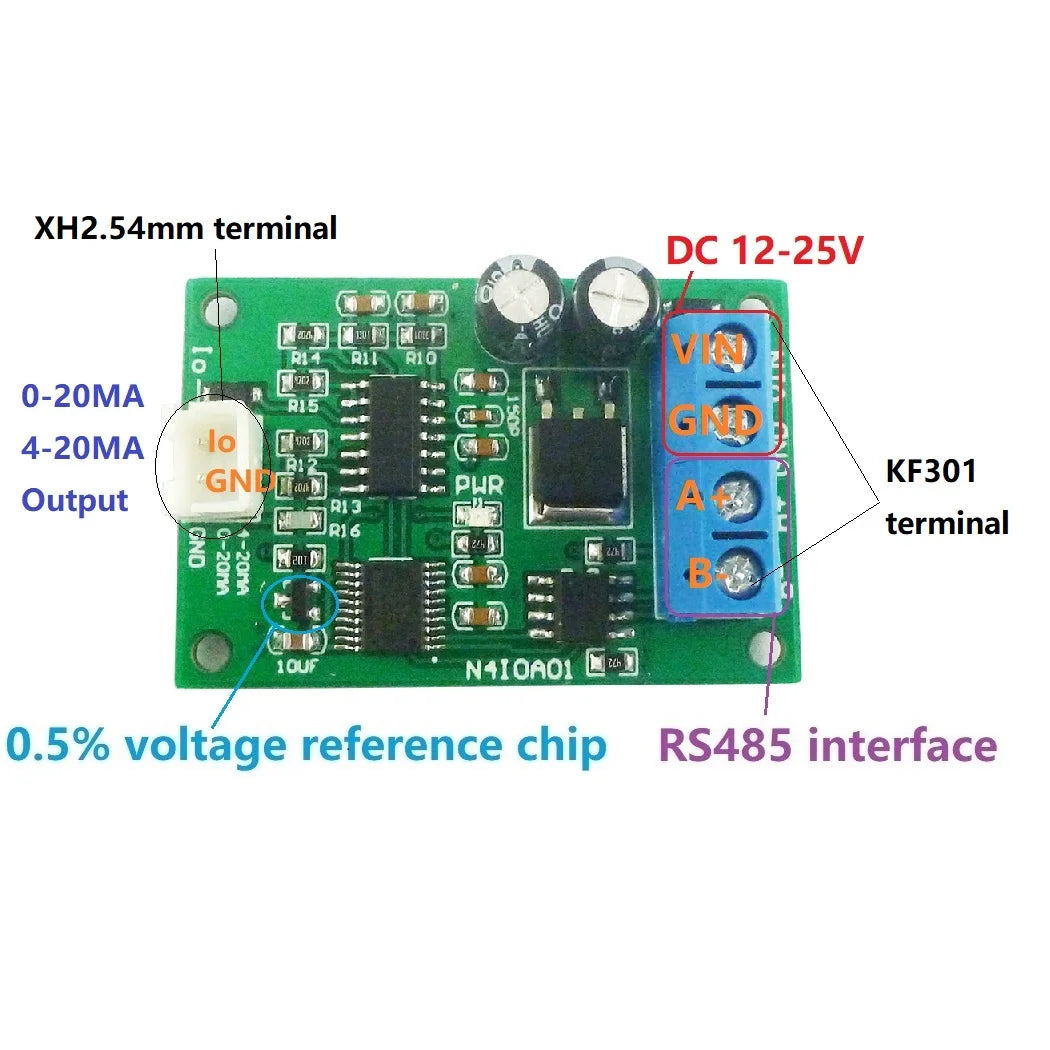

Interface introduction

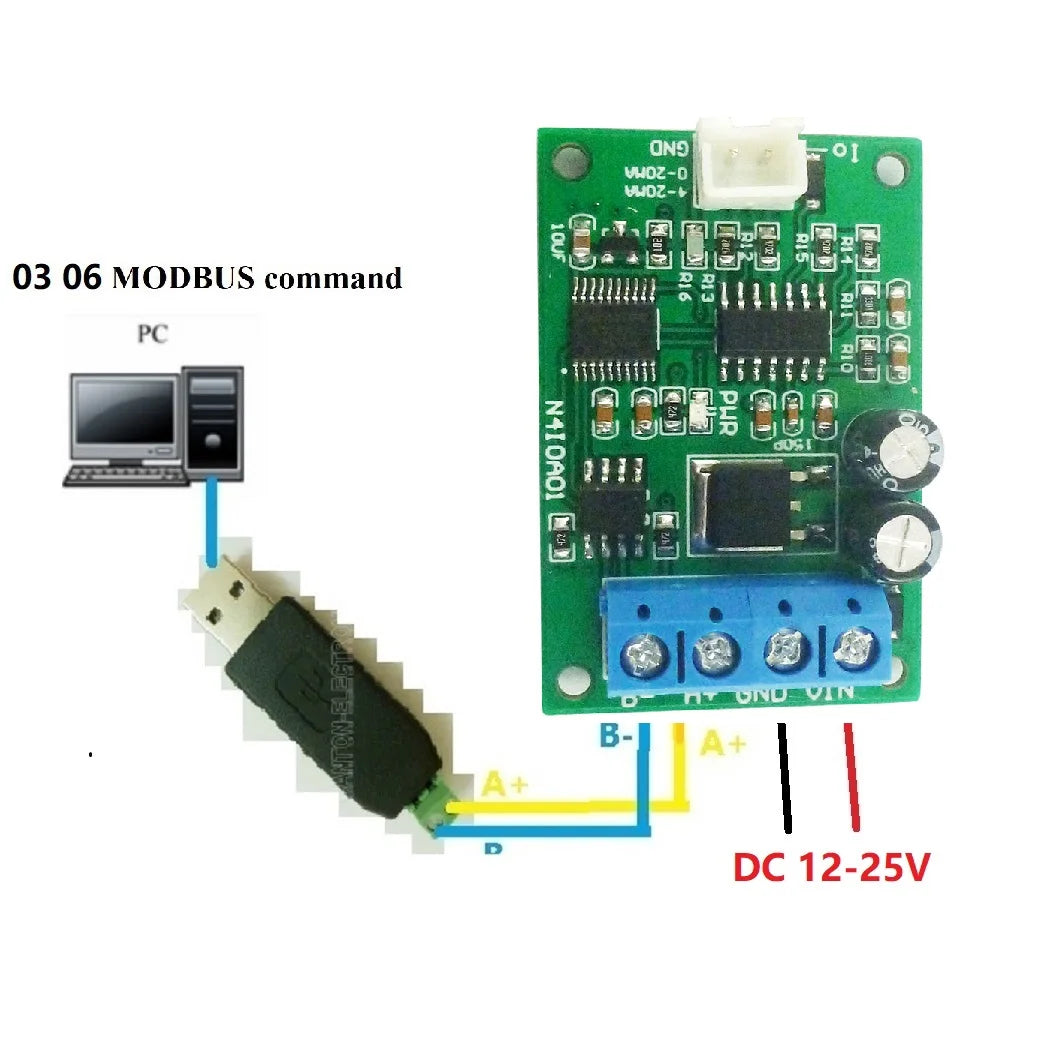

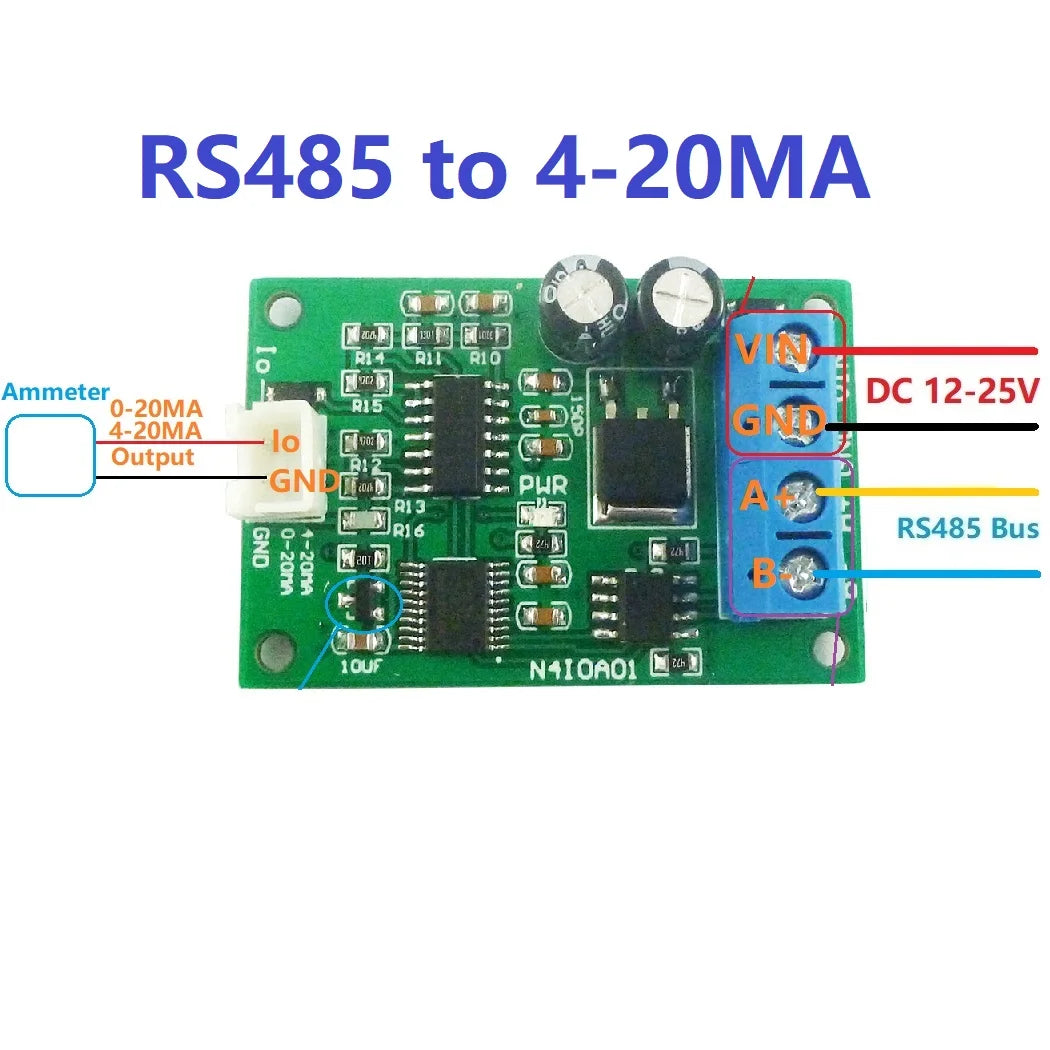

Wiring diagram
