N4ROD08 8CH Modbus RTU RS485 Relay Module – 3A Multifunction DIN Rail Controller with 8 Commands for PLC HMI Smart Home

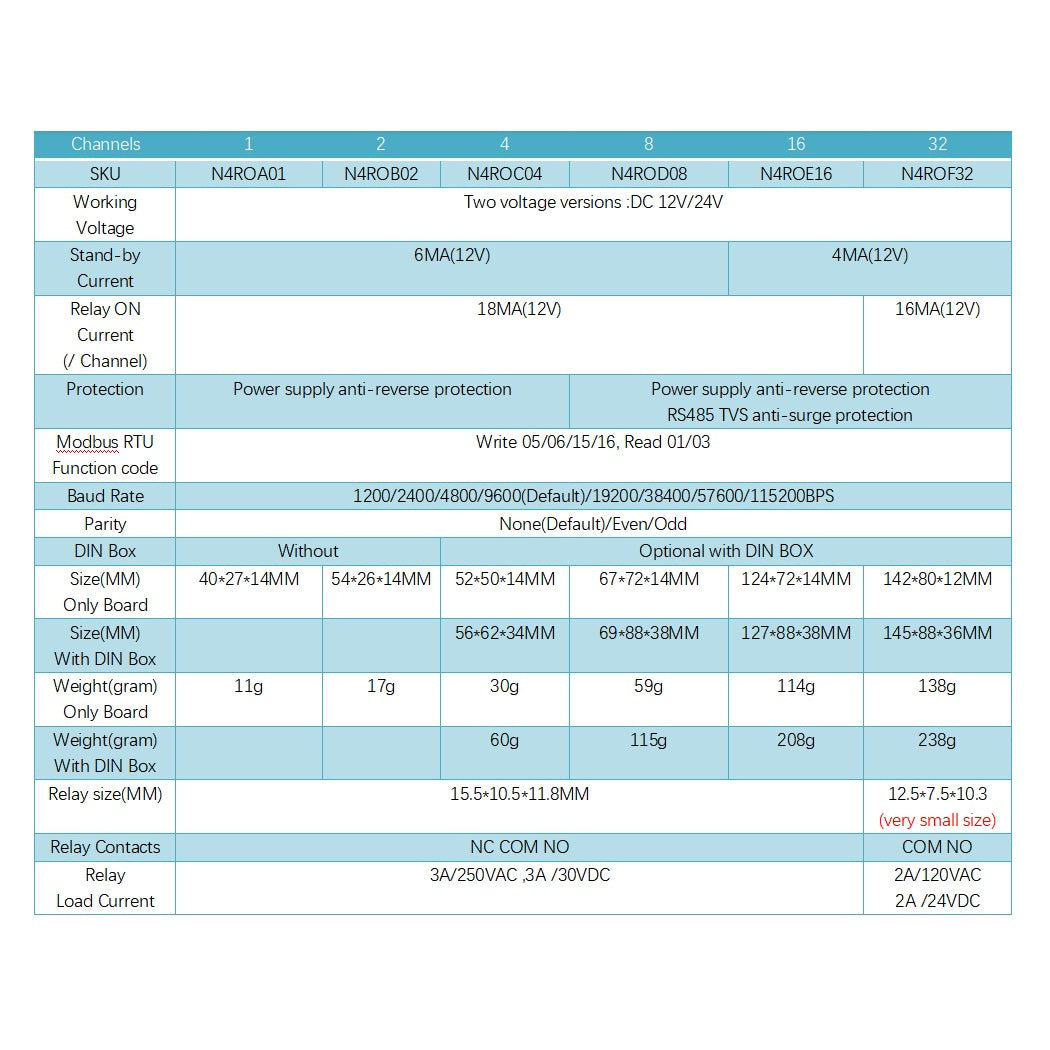

Description:

1: Working voltage DC 12V/24V;

2: Standby current (all relays closed) 6MA, 1 relay open 24MA, ...,8 relay open 150MA

3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all'' 8 Commands

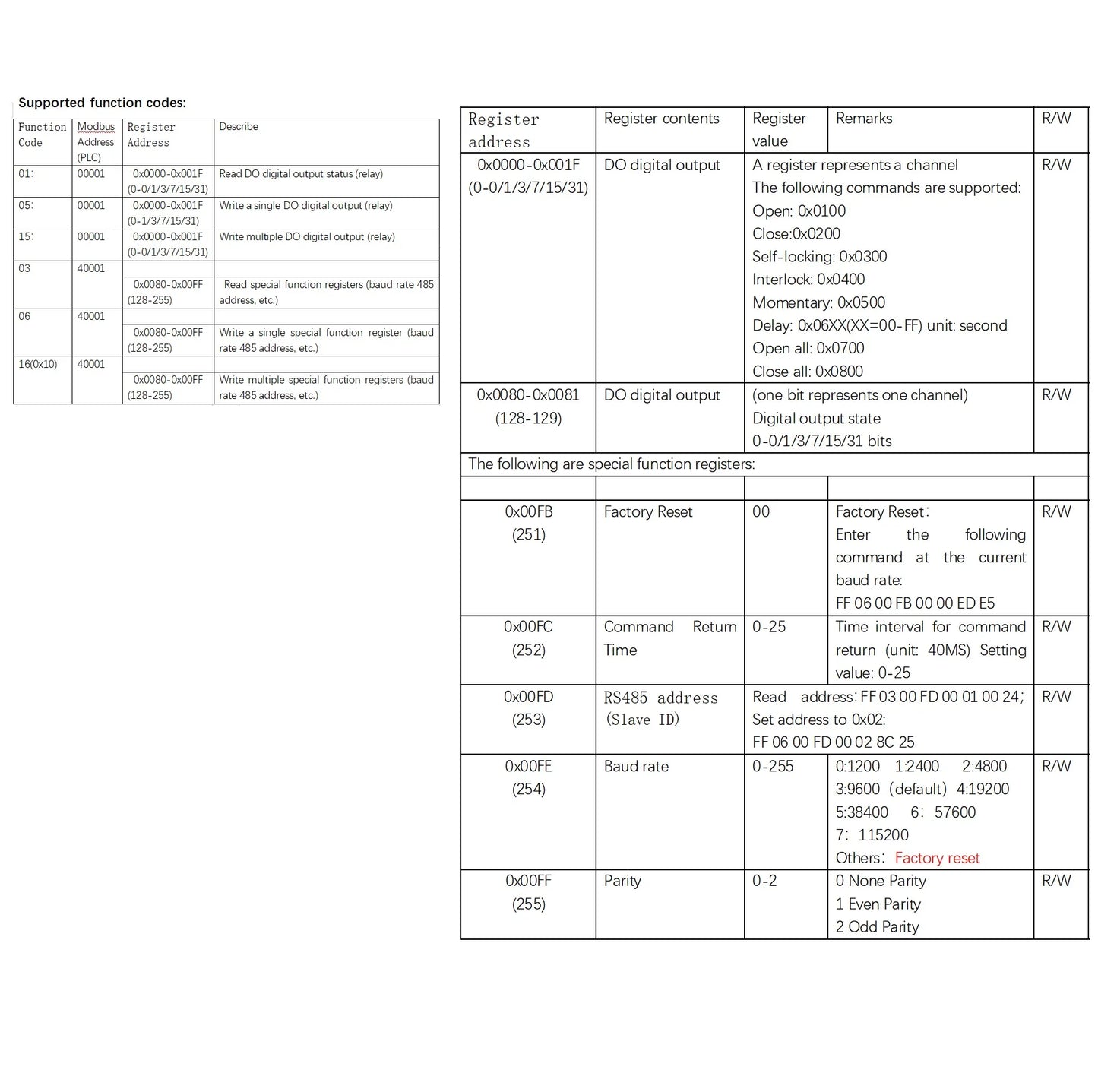

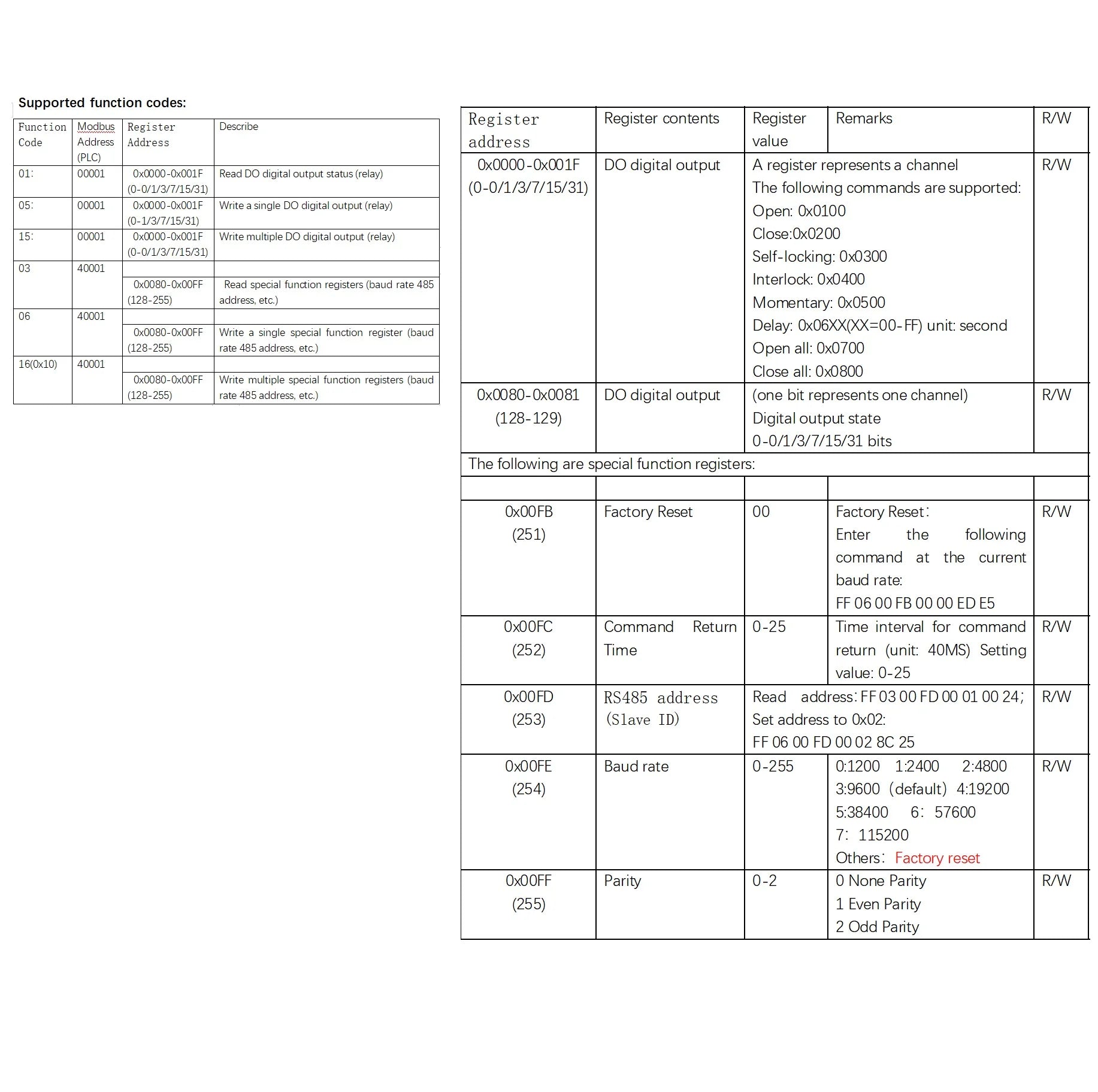

4: Standard MODBUS RTU command, Write 05/06/15/16, Read 01/03

5: Under the ''Delay'' command ,the maximum delay is 255 seconds;

6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

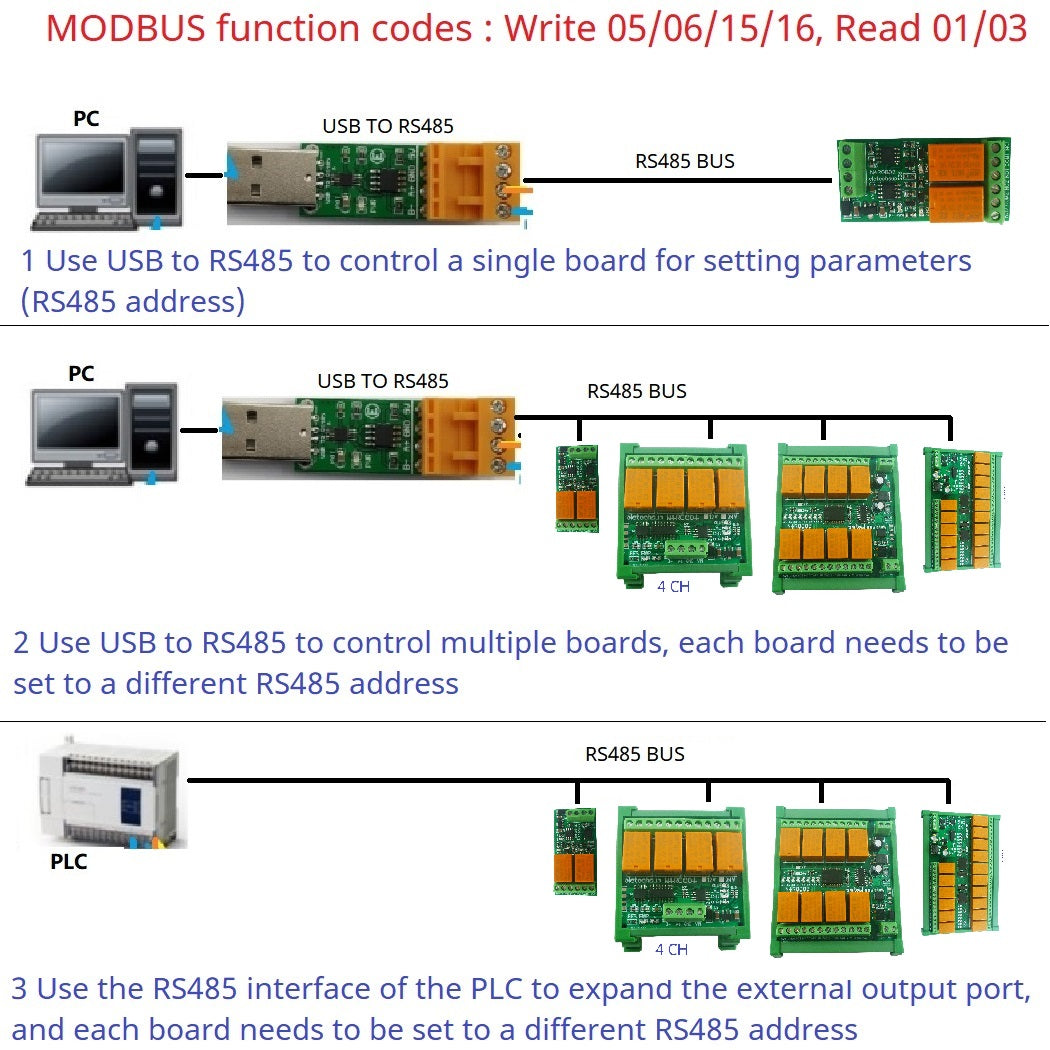

7 Under the MODBUS command mode, it can support up to 64 devices in parallel

8 Baud_rate : 1200/2400/4800/9600(Default)/19200/38400/57600/115200BP

9 Parity :None(Default)/Even/Odd

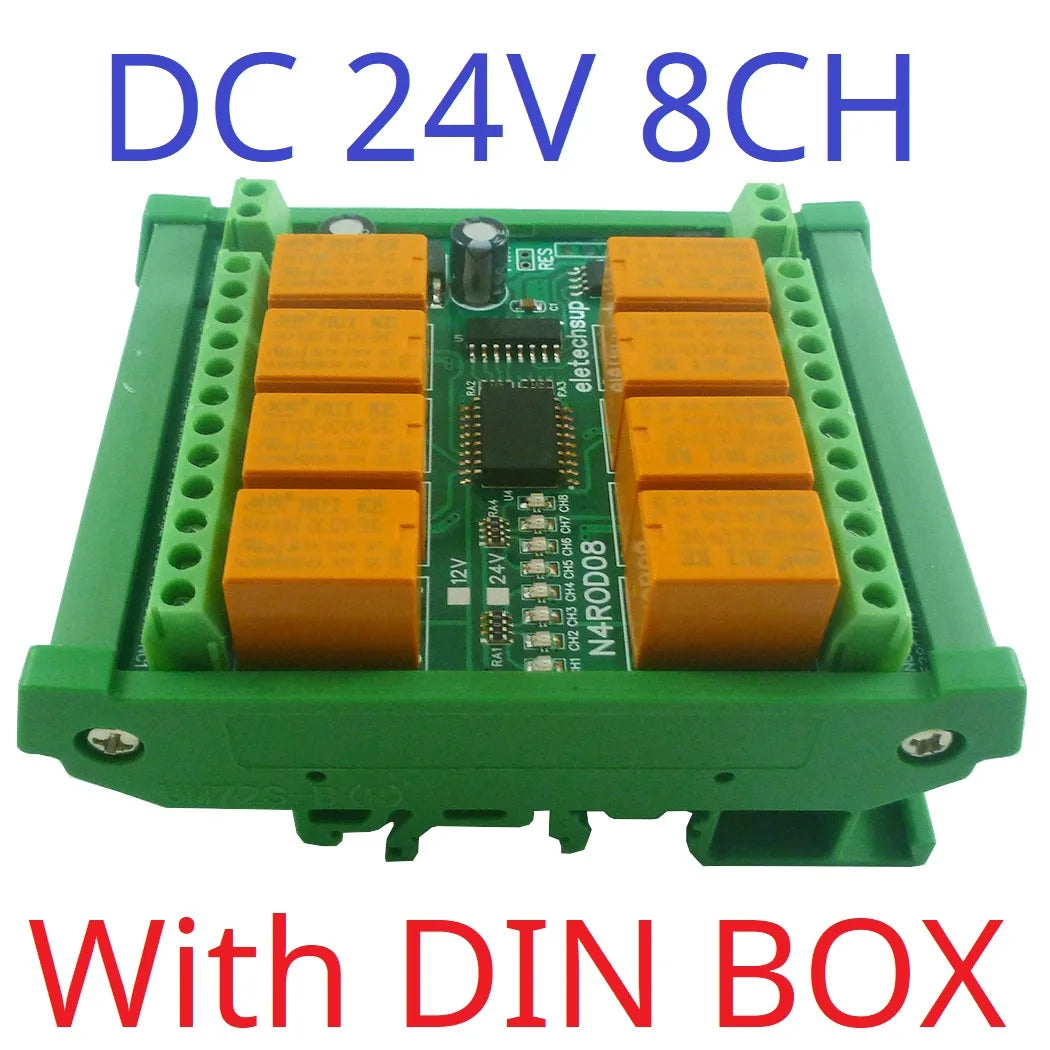

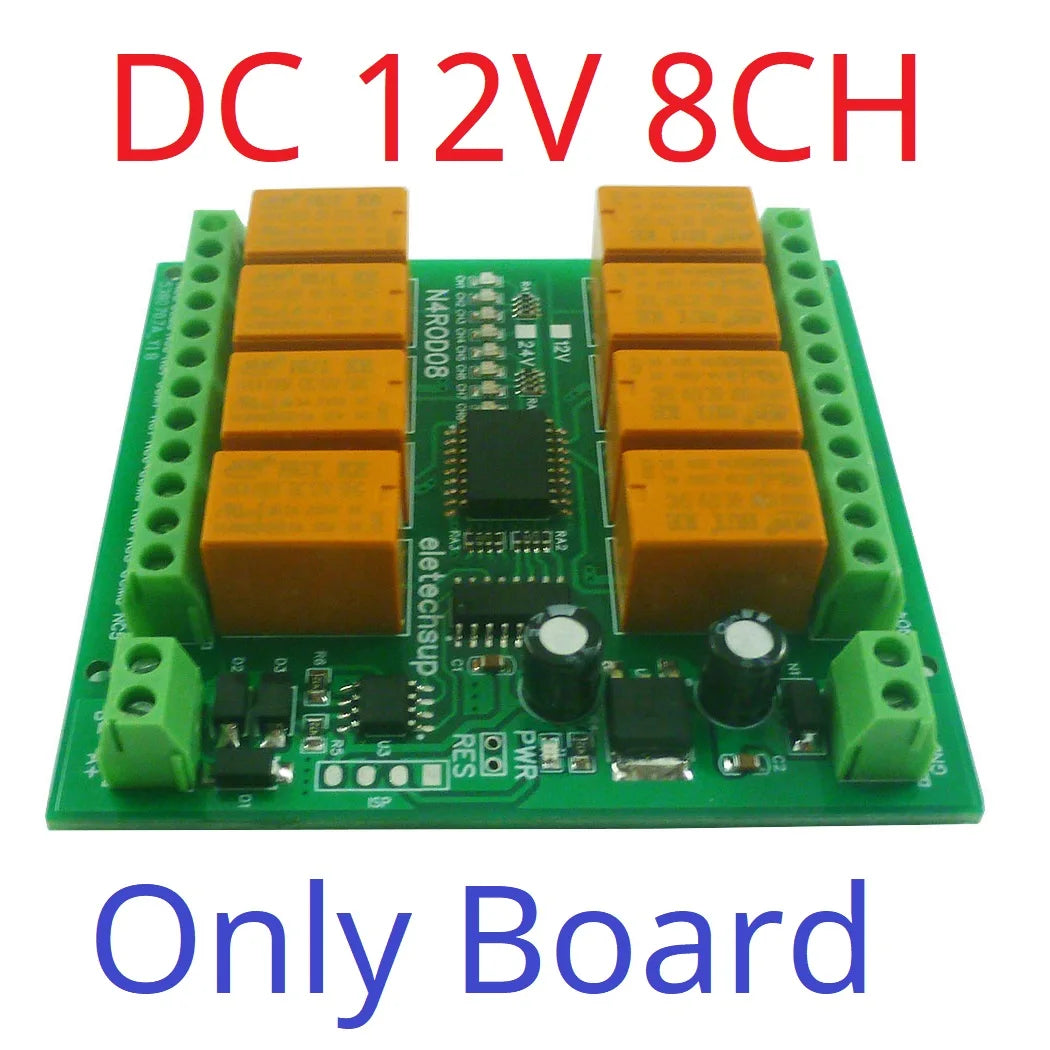

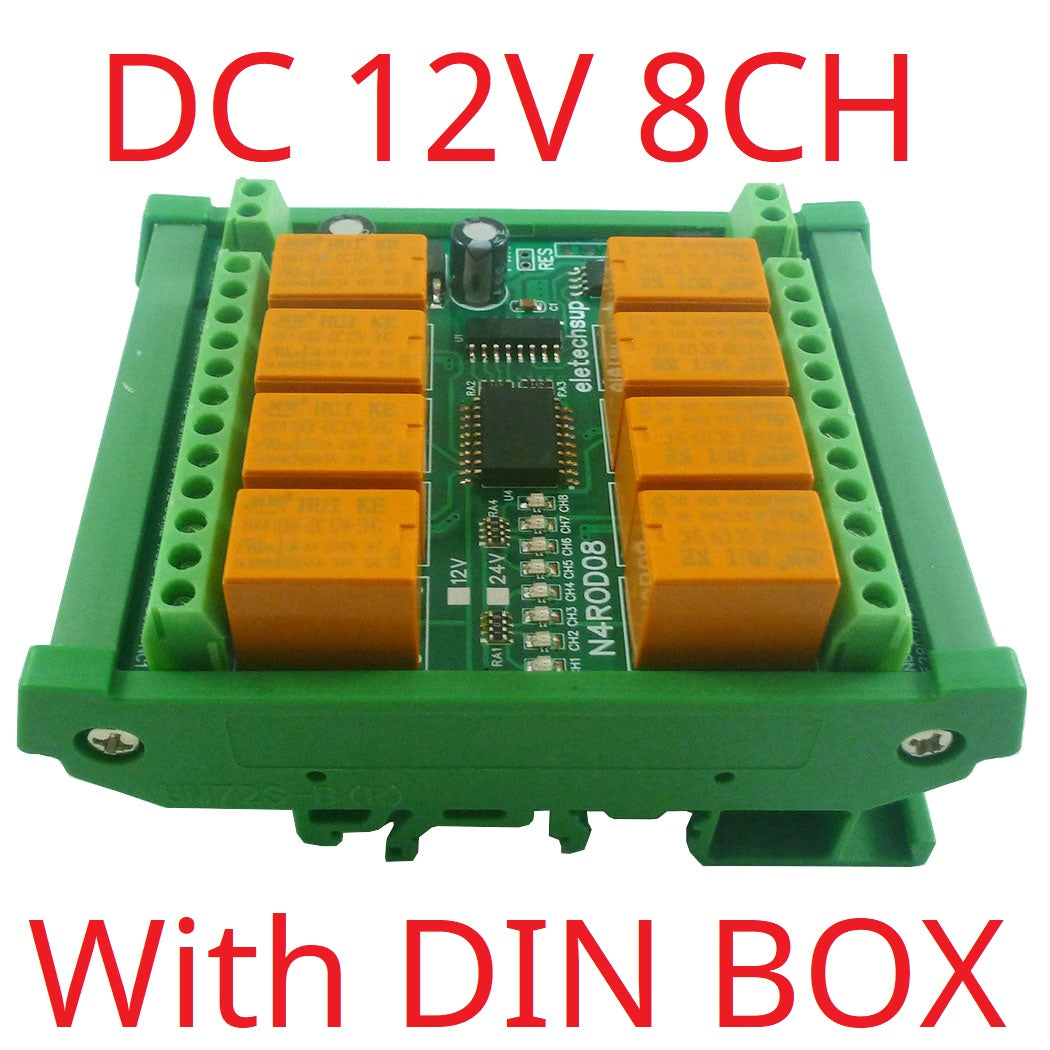

10 Size : 67*72*14MM(Only Board);69*88*38MM(With DIN Box);

11 Weight : 59g(Only Board),115g(With DIN Box)

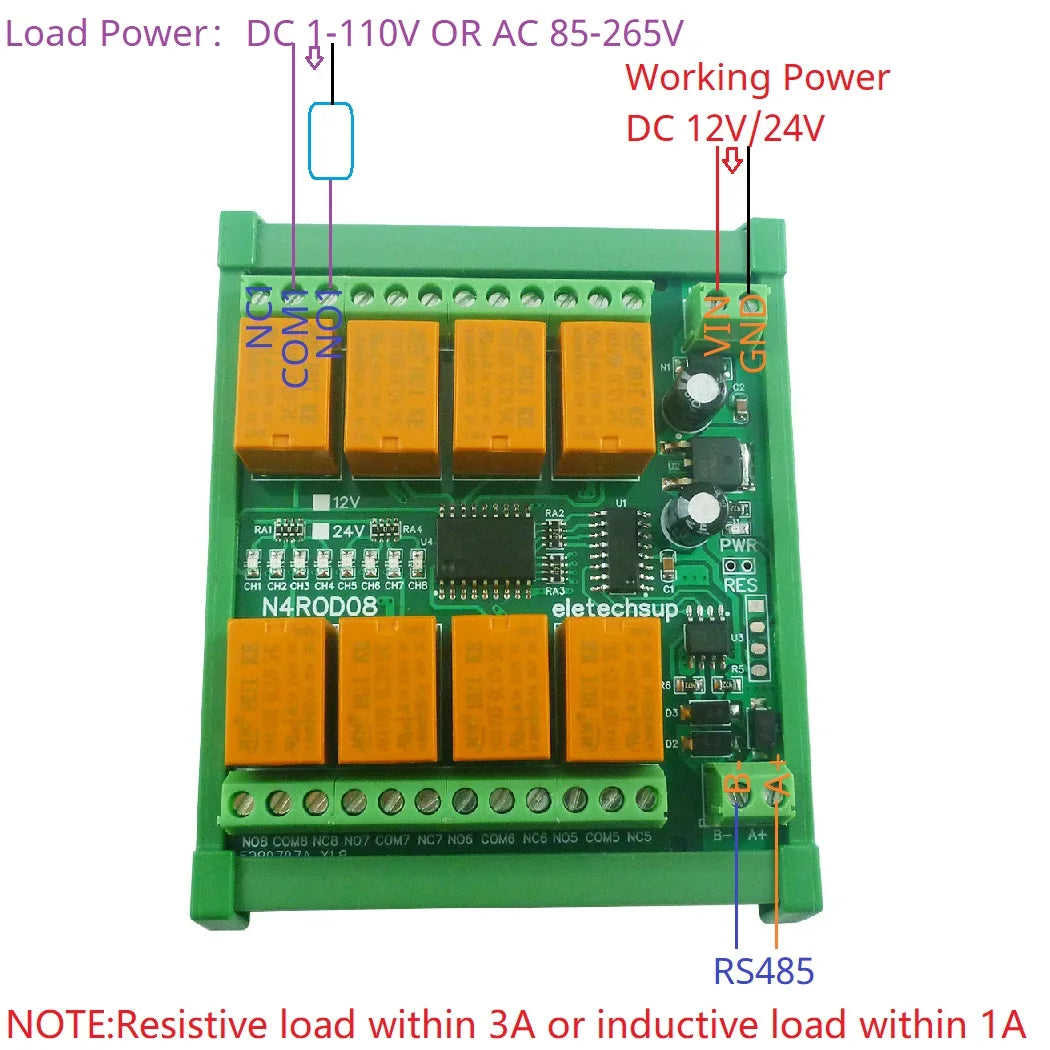

12 Maximum load: 3A/250VAC ,3A /30VDC(Resistive load within 3A or inductive load within 1A)

For more information, please contact me


Application

PLC Output expansion board


HMI Configuration Software


Smart Home,Home Automation ,Wiser Home;


PTZ CCTV Camera


Security Monitoring


Identification system;


Mini Motor FW & BW


Automatic curtain control


LED Control
