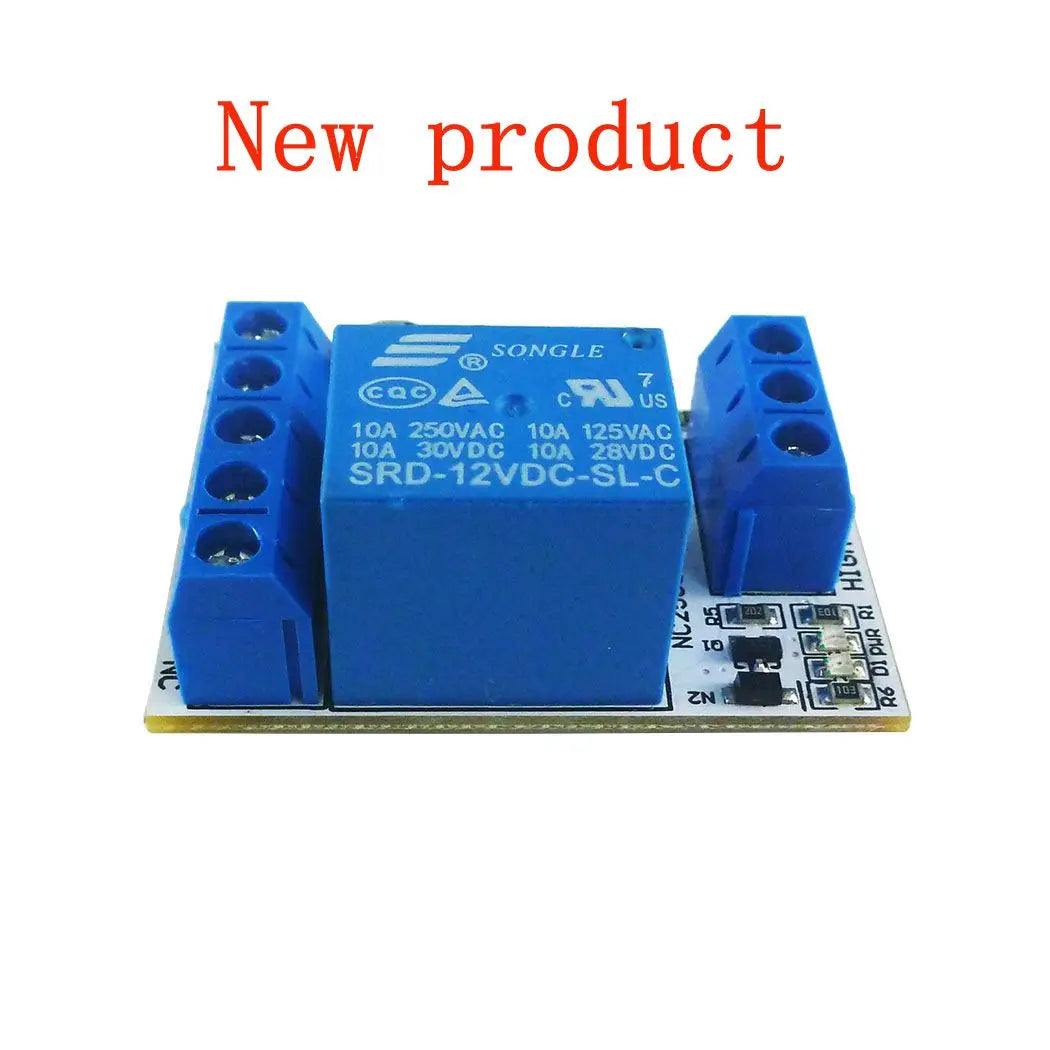

NC25C01 2-in-1 Automatic Water Supply & Drainage Controller – DC 12V Relay Module for Fish Tank Aquarium Water Tower Level Control







Description:

1 Working voltage: DC 12V(DC 10-15V)

2 Standby current 9MA

3 Working current 39MA

4 Size: 44mm X 29mm X 19mm

5 Weight: 19 g

6 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC




There are two purposes for connecting the NO and NC ports of the relay:

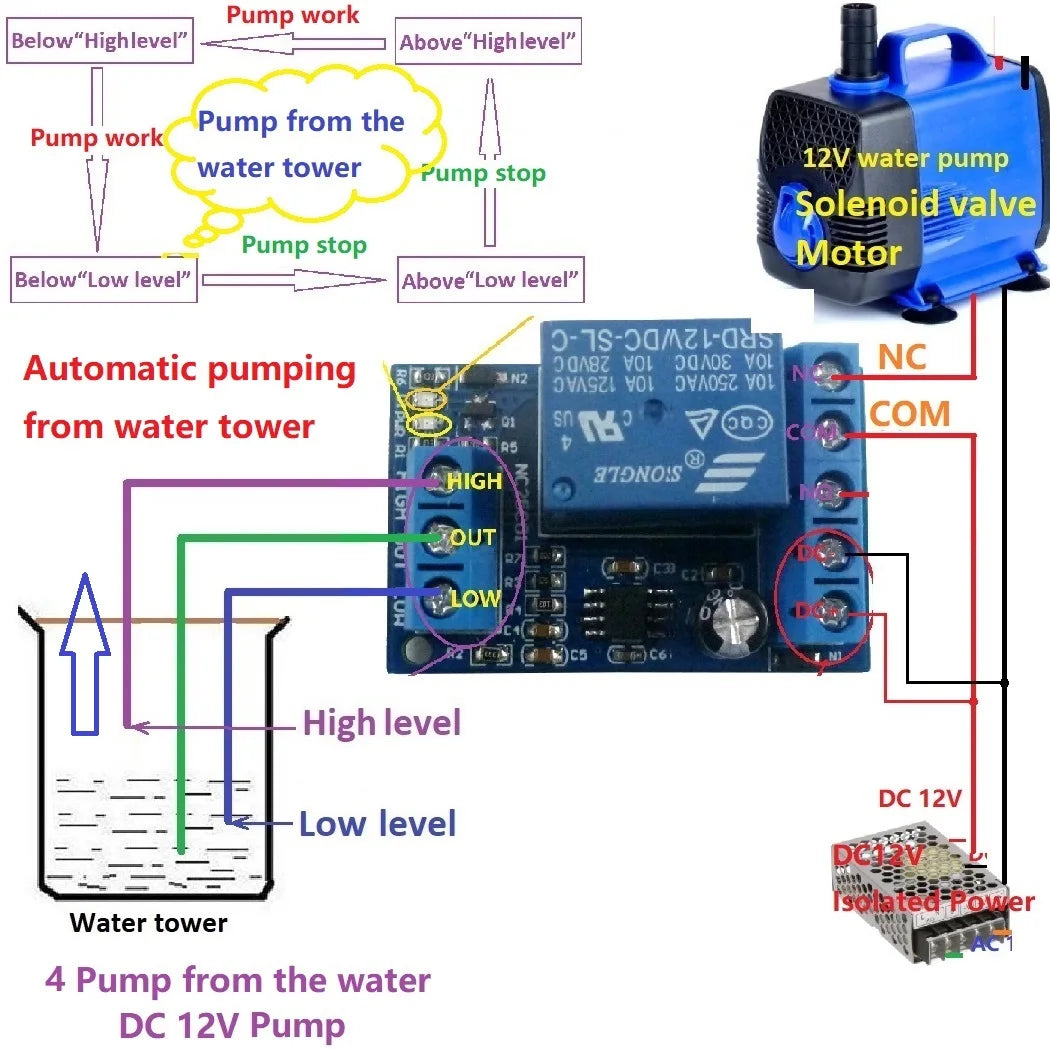

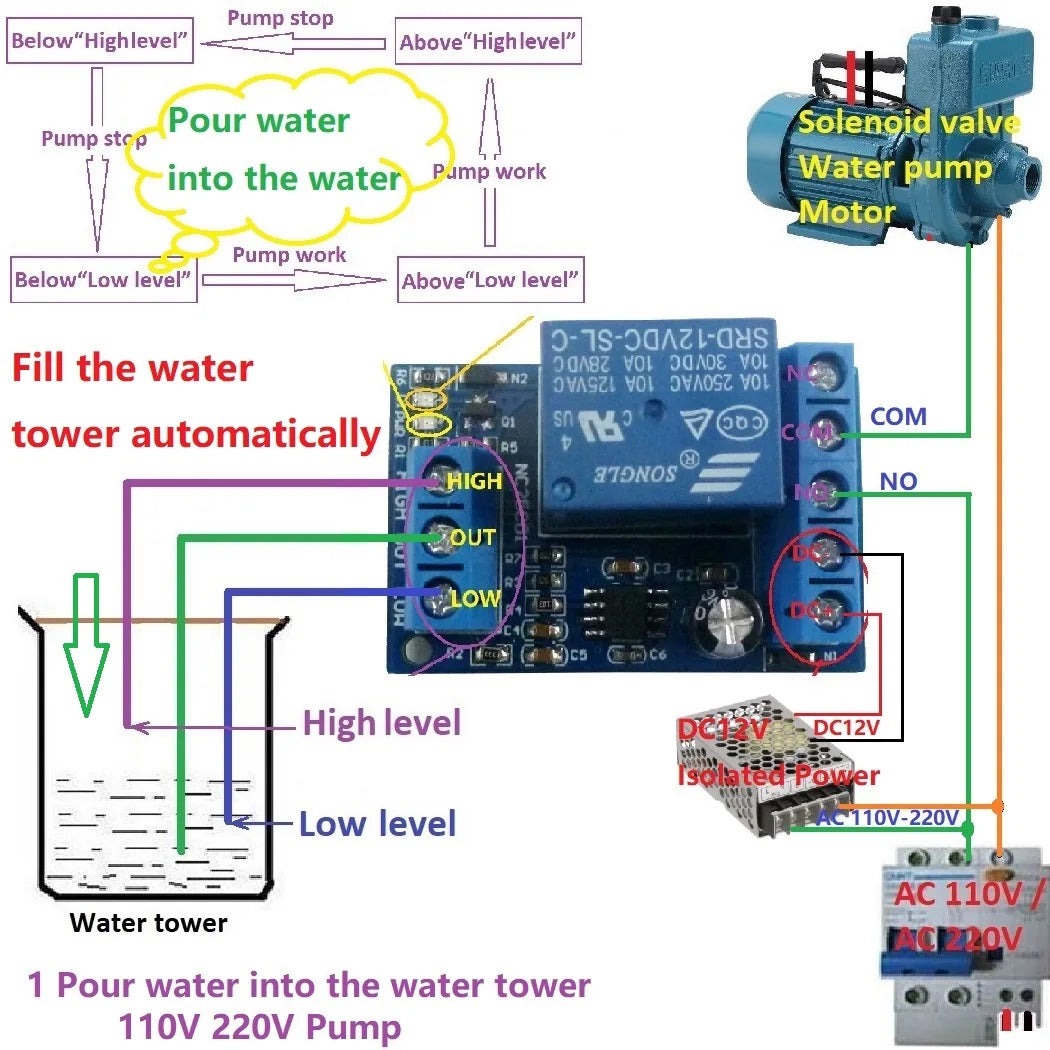

The water pump is connected to the COM NC port to automatically fill the water tower

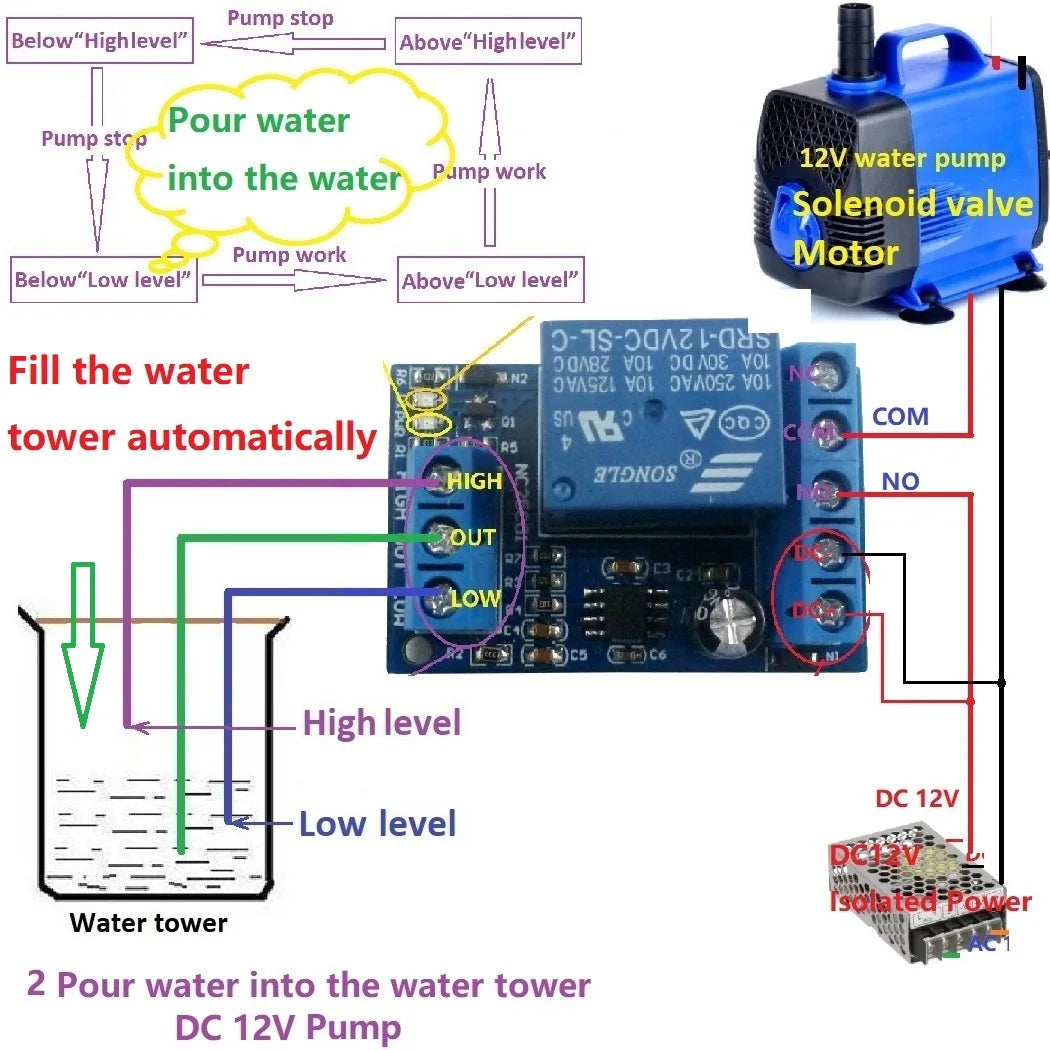

The water pump is connected to the COM NO port to automatically pump water from the water tower




Note:

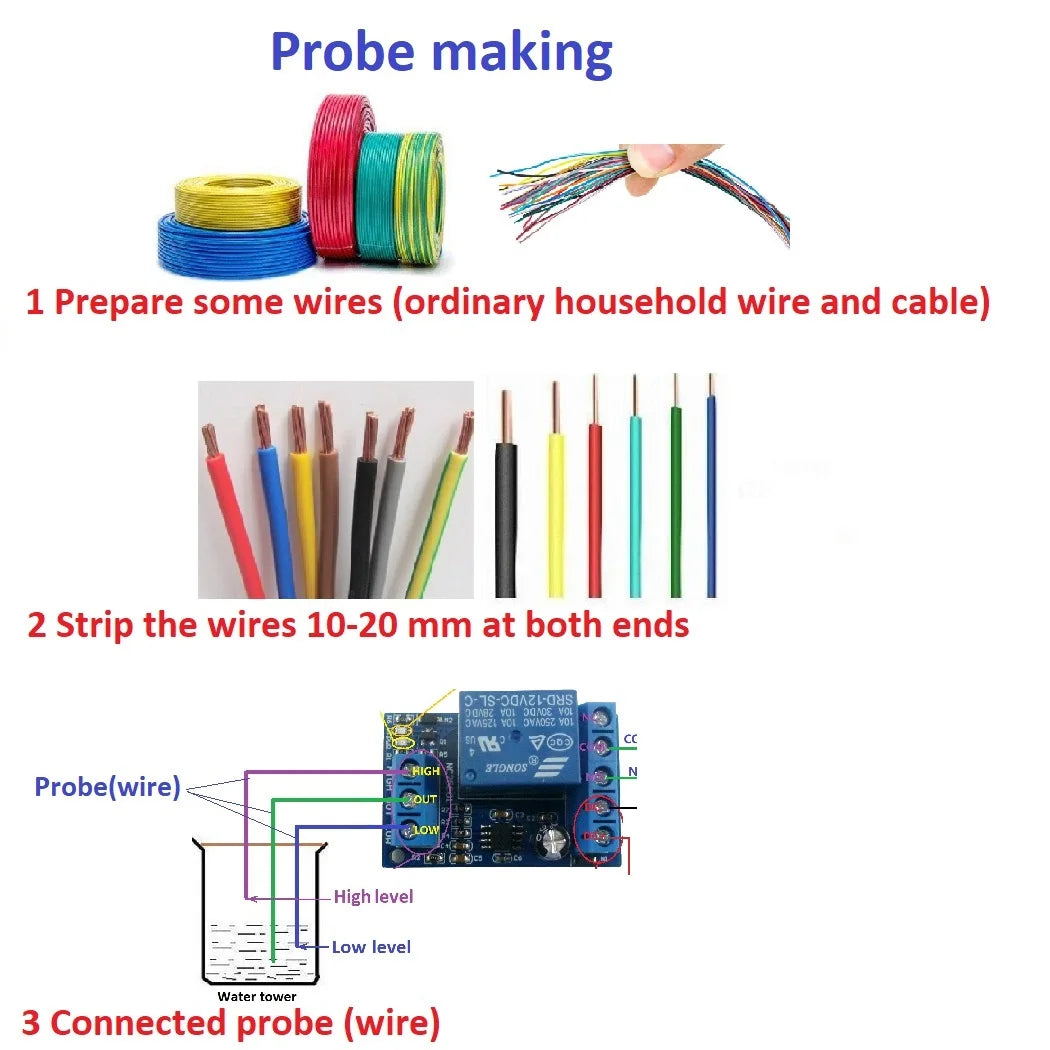

Package does not contain probe (wire).No need to use a dedicated probe, the probe can be made using household wires
For safety, use an DC power supply with good isolation





Application



Home water tower automatic water supply system

Aquarium Fish tank Water Changer System

Fill the water tower automatically

Automatic pumping from water tower

Conductive liquid automatic control

Automatic feeding system for poultry and livestock

Farm automatic water supply system

And other occasions that require automatic water supply and water exchange.

Solenoid valve water pump motor automatic control

Interface description:


HIGH : Upper limit probe
OUT : Output probe
LOW : Lower limit probe
DC+ : Power of positive
DC- : Power of negative
NC : Relay normally closed contact
COM : Relay common contact
NO : Relay normally open contact




Working principle(Fill the water tower automatically):


The water level rises: When the water level is lower than the ''Low level'', the water pump starts to supply water to the water tower; when the water level is higher than the ''High level'', the water pump stops supplying water.

Water level reduction: When the water level is lower than the ''High level'', the water pump does not work and the water level continues to decrease. When the water level is lower than the ''Low water level'', the water pump starts to supply water to the water tower.














Working principle(Automatic pumping from water tower):


Contrary to ''Fill the water tower automatically''
