ND03CPMB 1-Cell Li-ion Battery Protection Board – 3.7V/4.2V 3.5A Over Charge Discharge Overcurrent Protection Module for 18650 Li-Po

Product Name : mini 3.7V 4.2V 3.5A 1-Cell Li-ion Lithium Li-Polymer Battery Charger Over Charge Discharge Overcurrent Protection Board Module

Packing list:

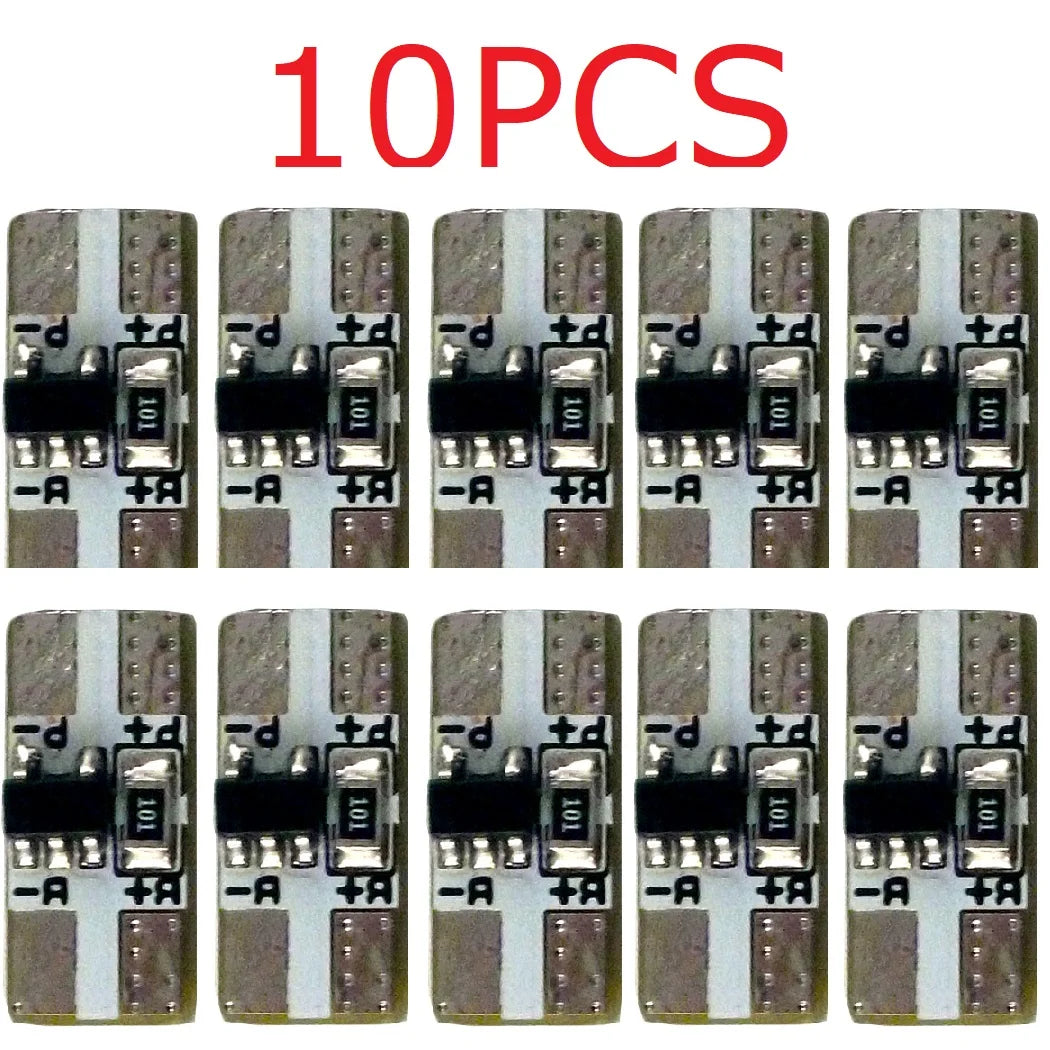

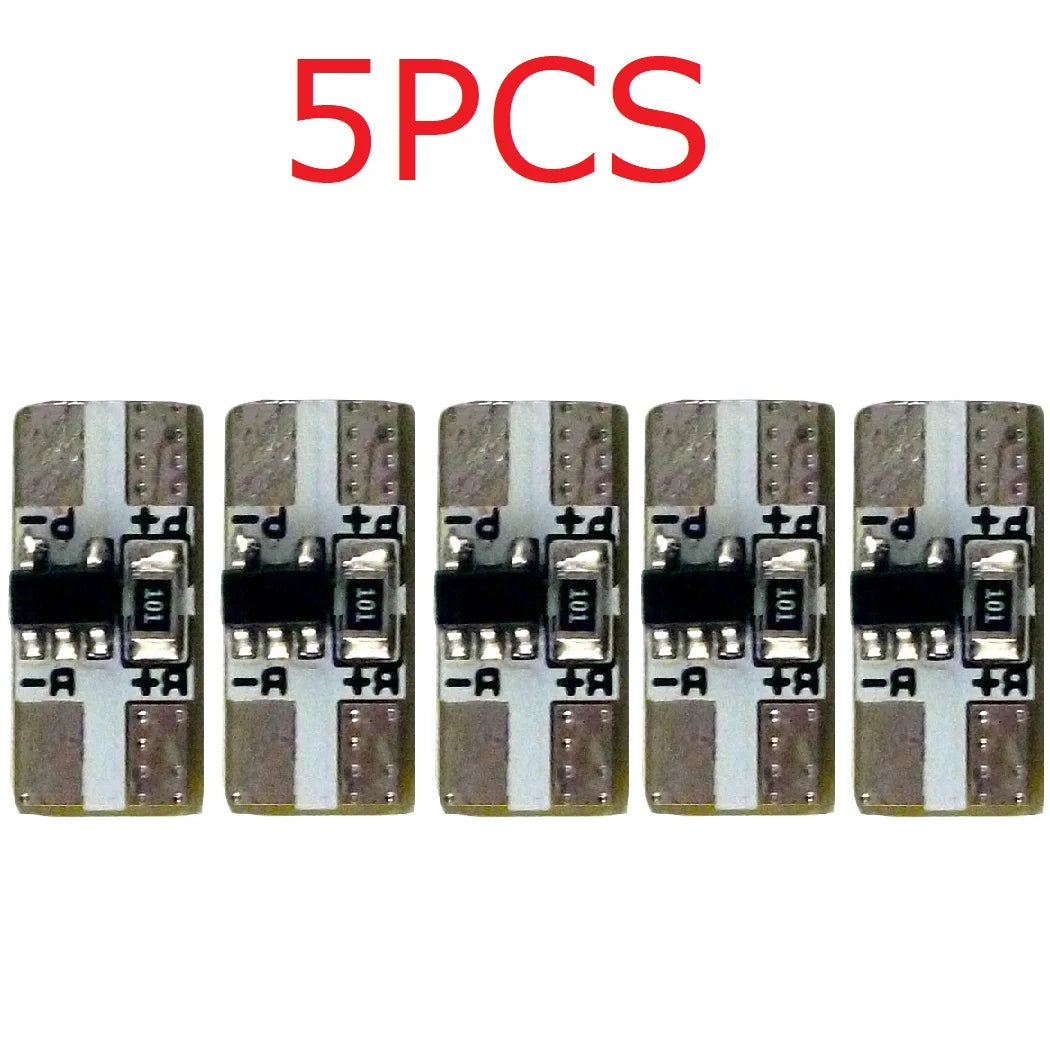

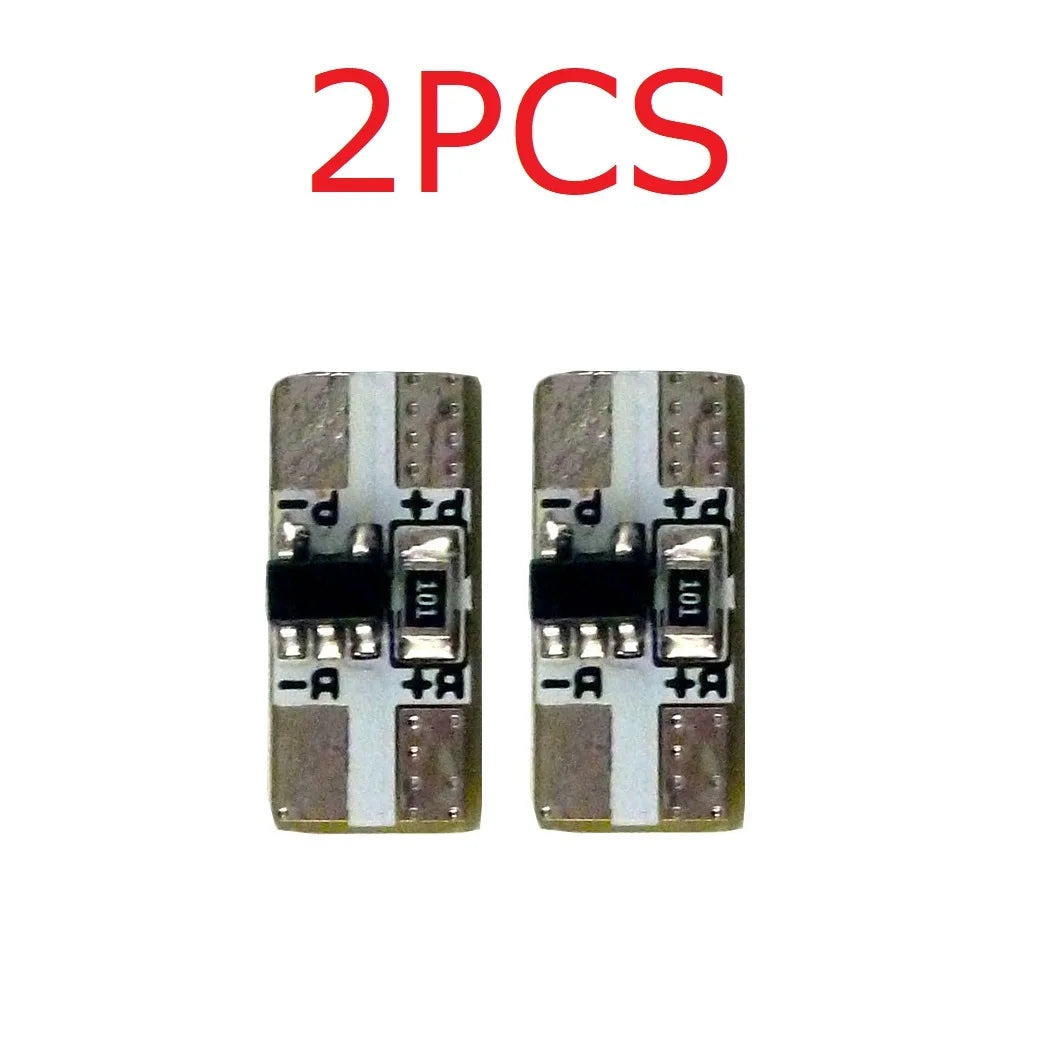

2/5/10 PCS 3.7V 4.2V 3.5A Charger Over Charge Protection Board

Description:

Functions:


Over Charge Protection


Over Discharge Protection


Short Circuit Protection


Overcurrent Protection



Parameters:


Over Charge Detection Voltage: 4.30±0.05V


Over Charge Release Voltage: 4.10±0.075V


Over Discharge Detection Voltage: 2.44±0.075V


Overvoltage discharge recovery threshold:2.825±0.075V


Continuous load current: 3.5A


Overcurrent protection : 4±0.2A

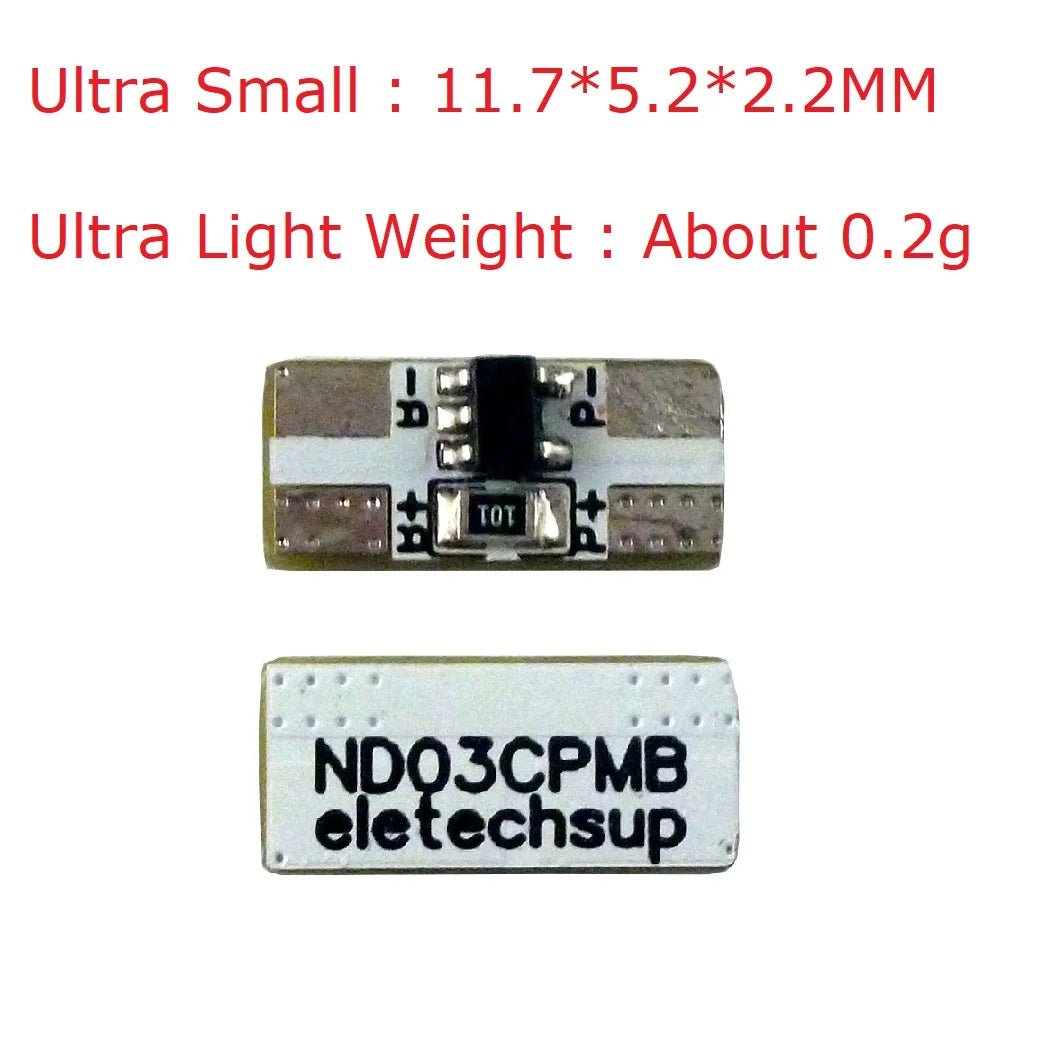

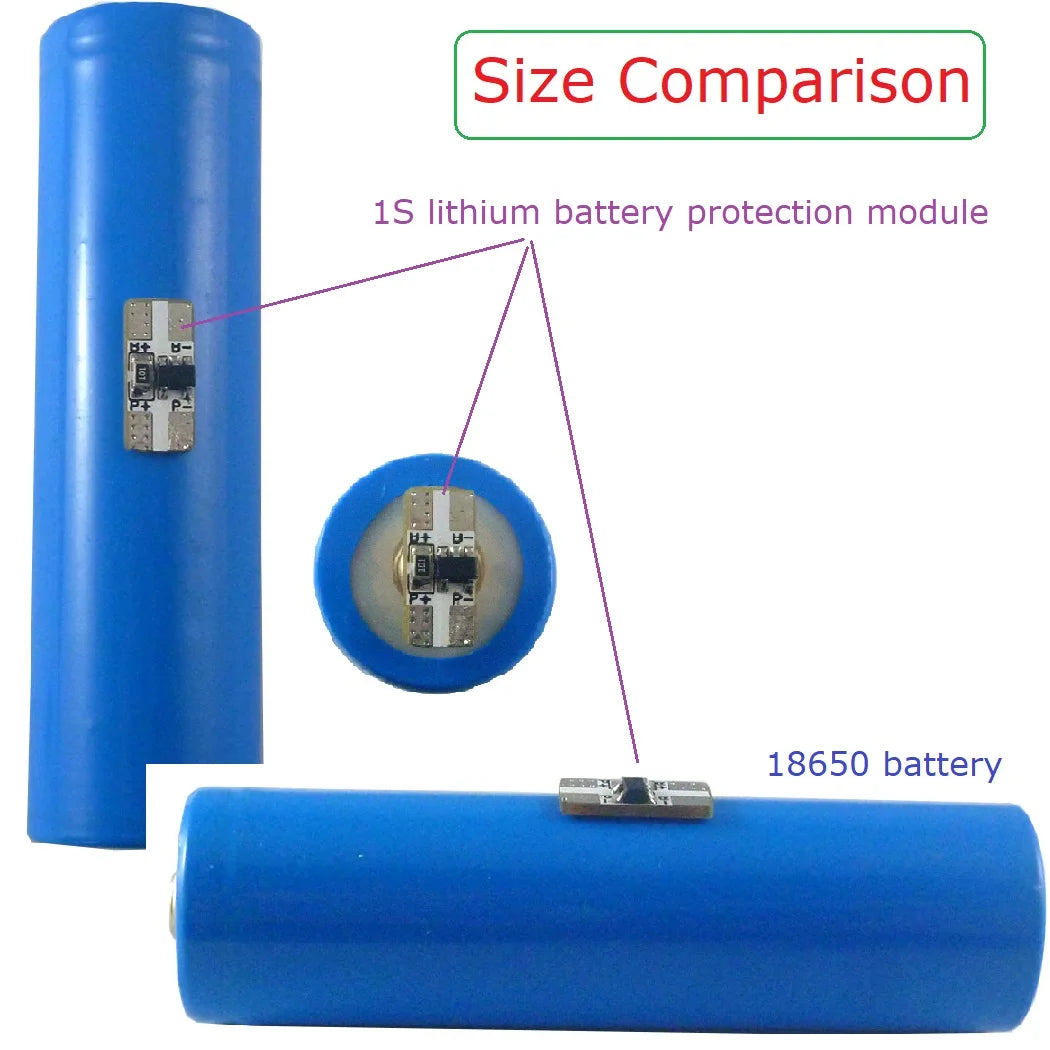

Size : 11.7*5.2*2.1MM


Weight : <0.2g

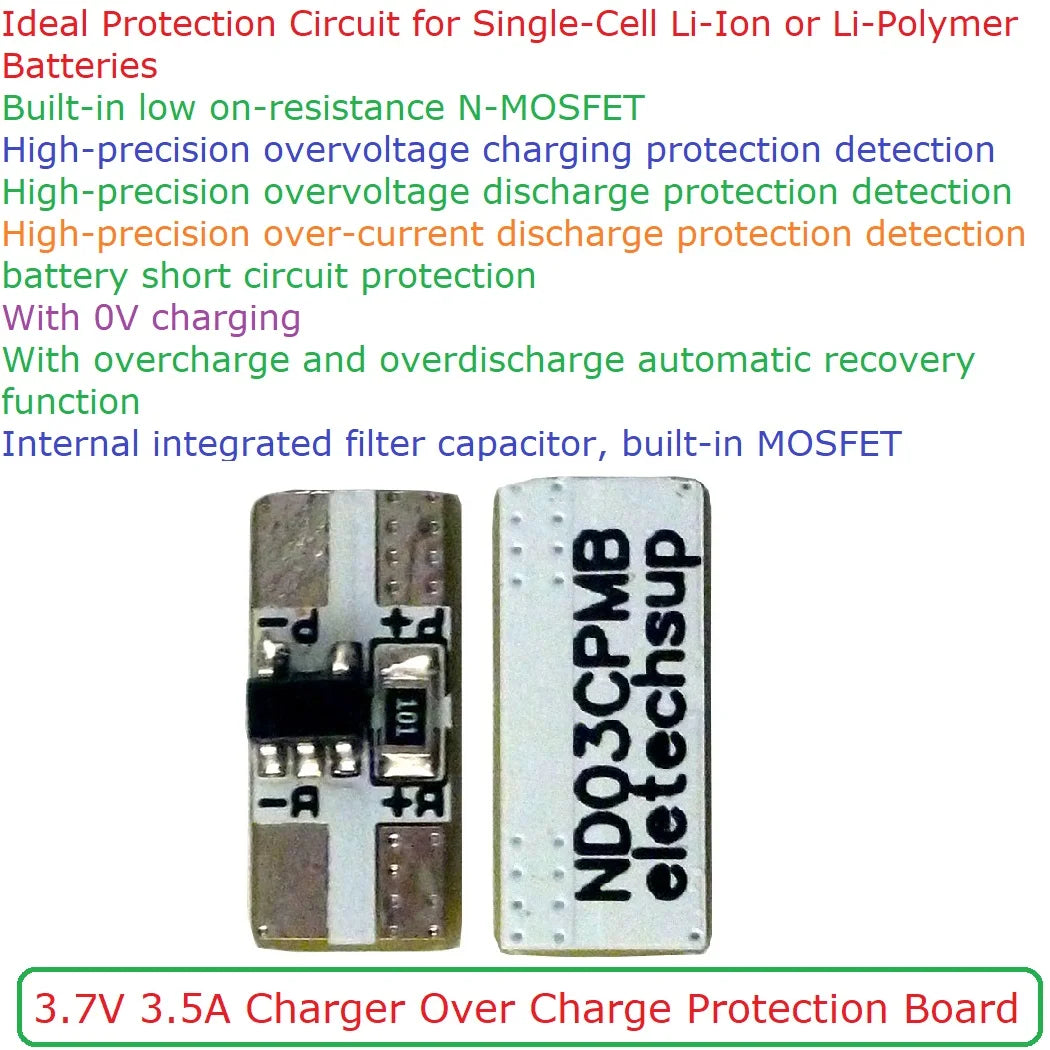

Ideal Protection Circuit for Single-Cell Li-Ion or Li-Polymer Batteries
Built-in low on-resistance N-MOSFET
High-precision overvoltage charging protection detection
High-precision overvoltage discharge protection detection
High-precision over-current discharge protection detection
battery short circuit protection
With 0V charging
With overcharge and overdischarge automatic recovery function
Internal integrated filter capacitor, built-in MOSFET




Note: Please charge the first time, activate the protection board. Otherwise there is no voltage output



Pin Description:

B- connected to battery negative

B+ connected to battery positive

P+ Connect the charger/load positive

P- Connect the charger/load negative




Applications
3.7V lithium battery 18650
TP4056 Charging module

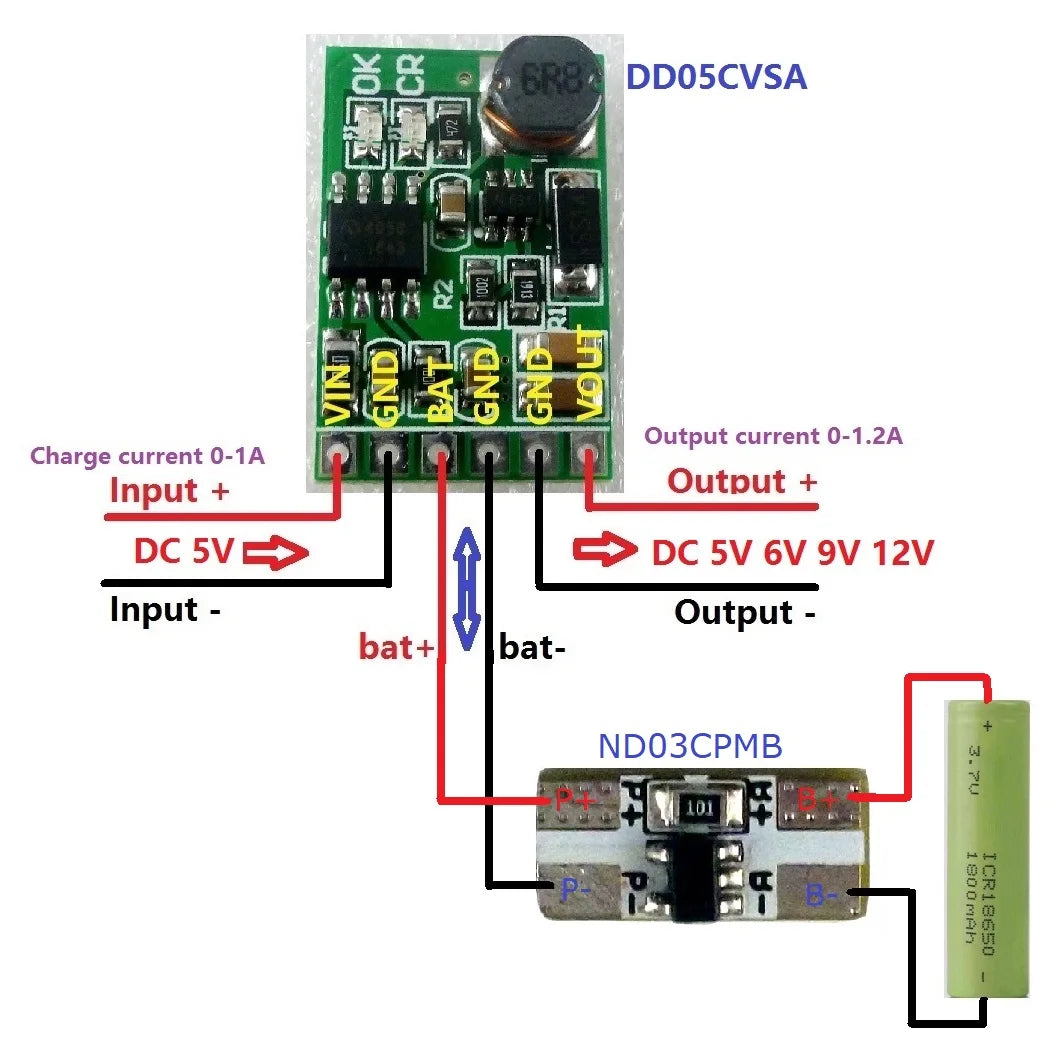

DD04CVSA DD05CVSA Module

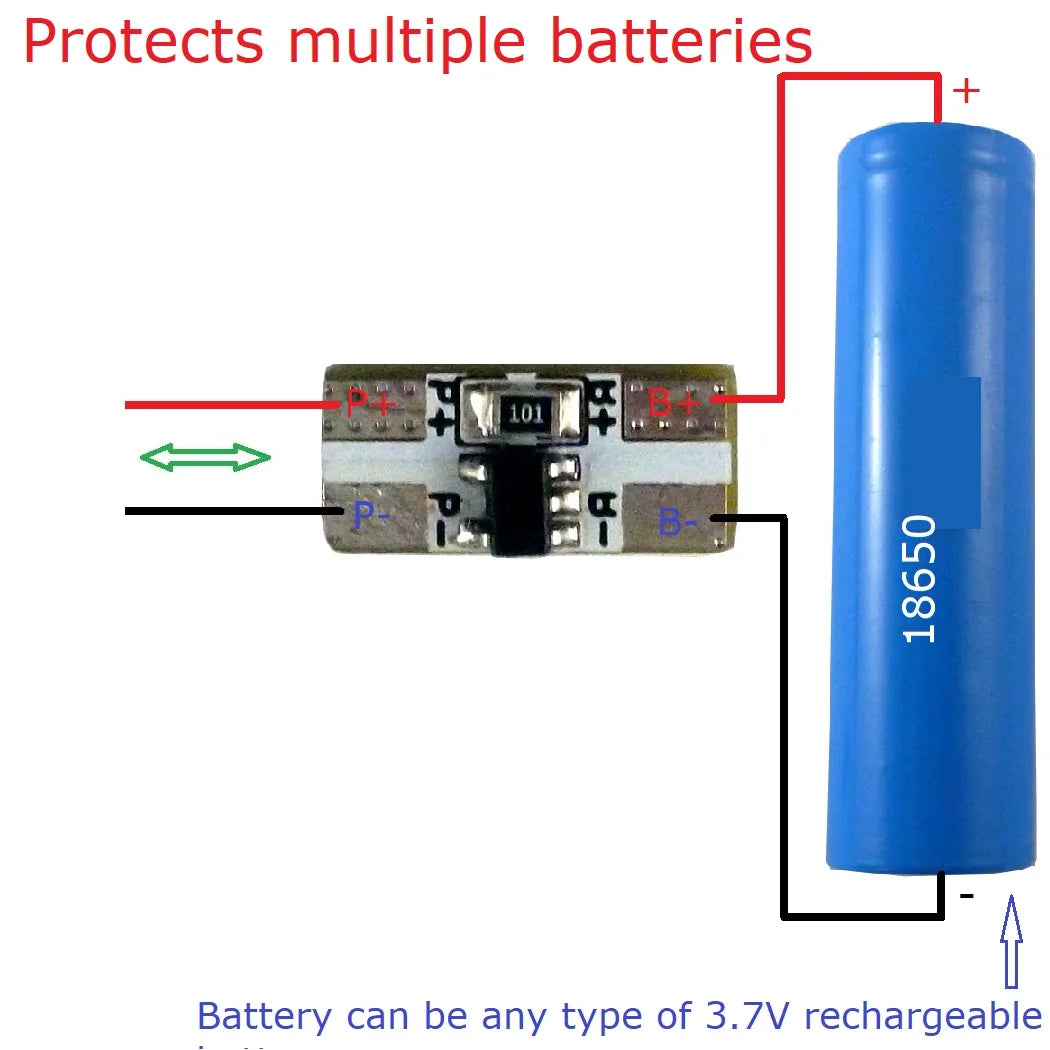

Protects single 3.7V lithium battery:

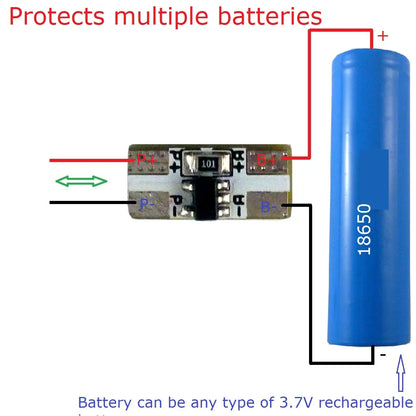

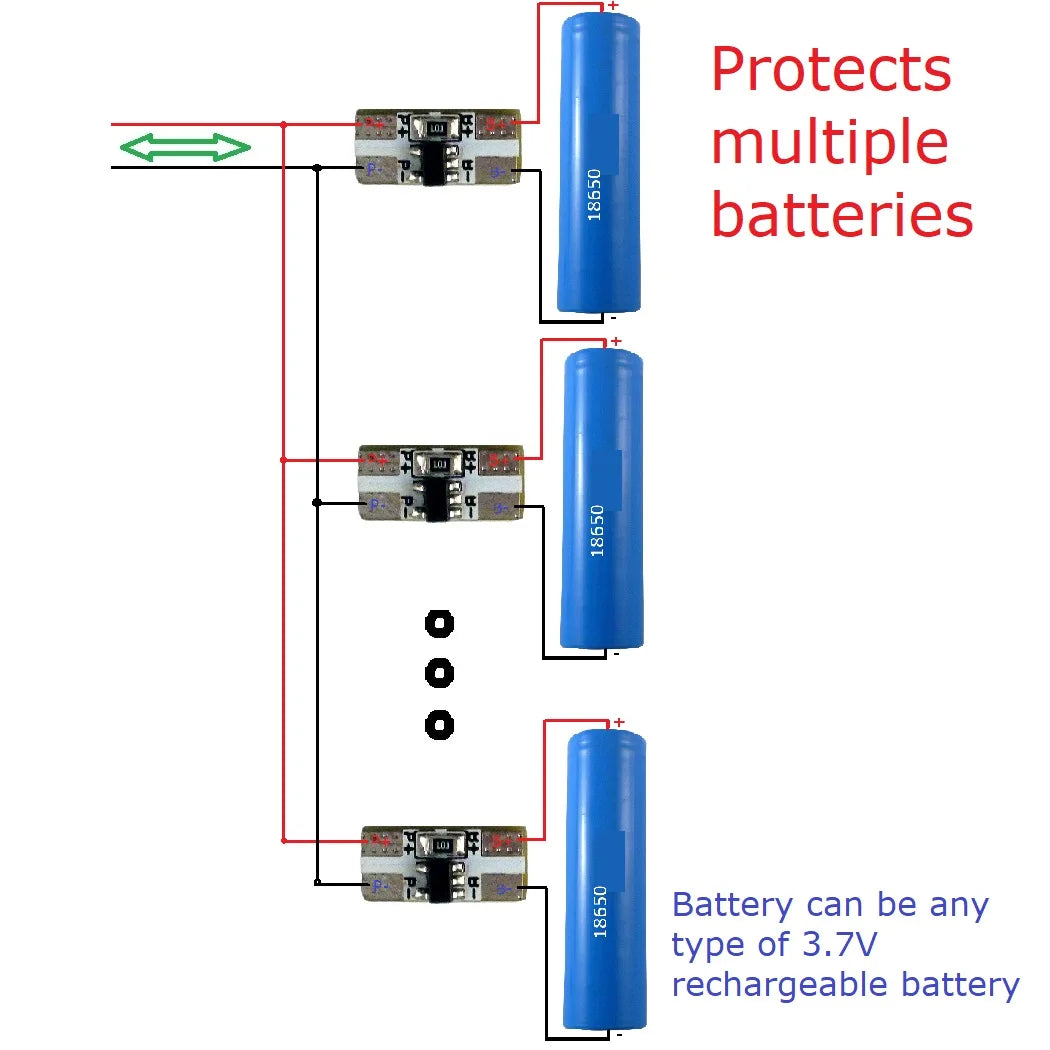

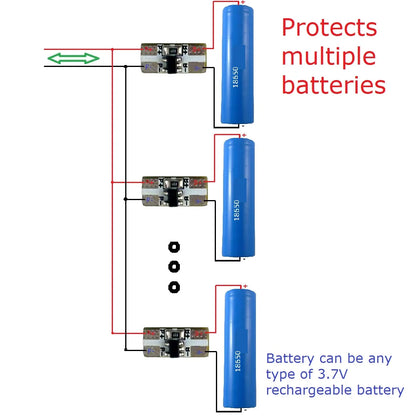

Protect multiple 3.7V lithium batteries (no more than 10pcs recommended):




DIY mobile power:
