NT48A08/NT48B20/NT48C32 8-32CH RS485 Temperature Collector – Modbus RTU AI Remote IO Module with 10K B3950 NTC Sensor for PLC SCADA

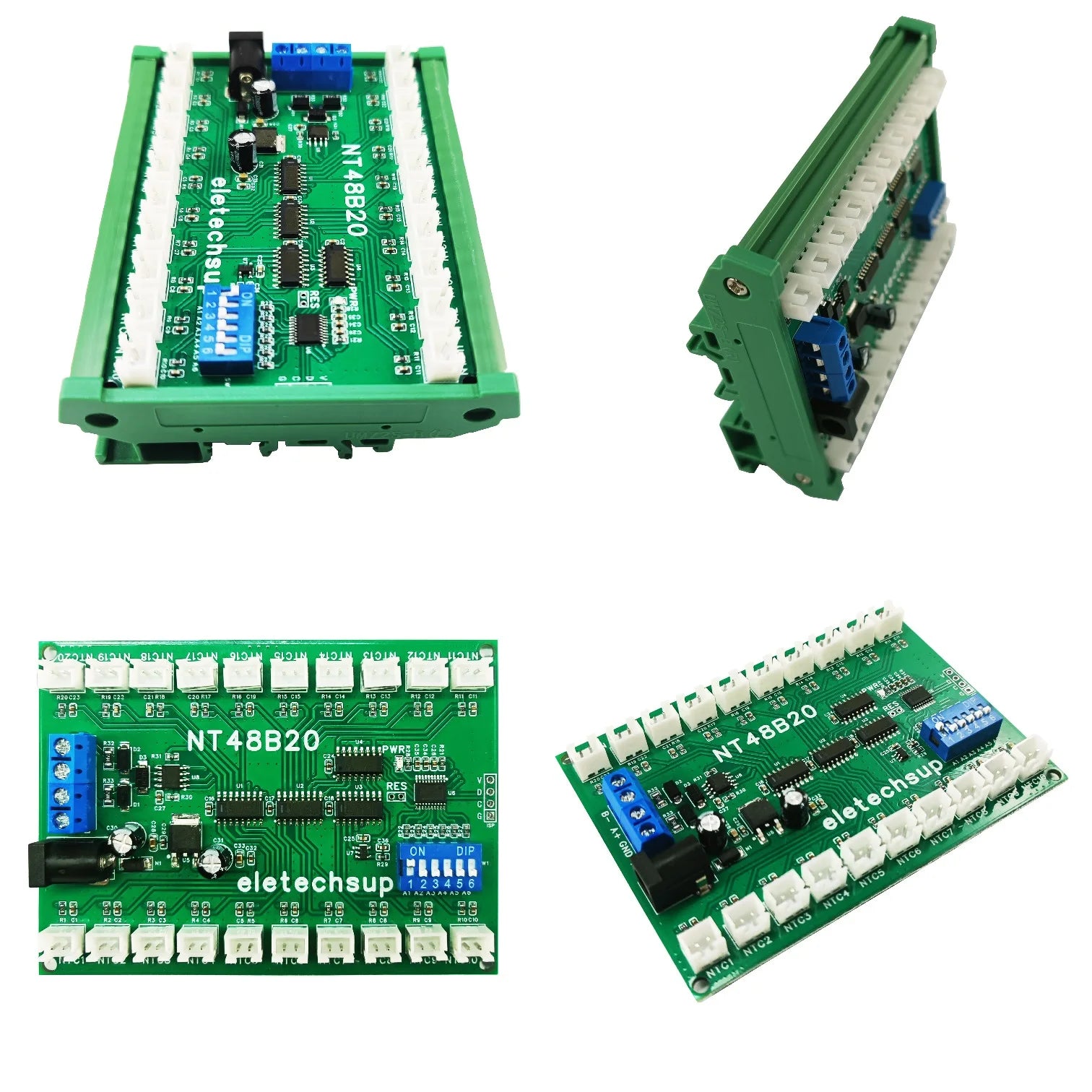

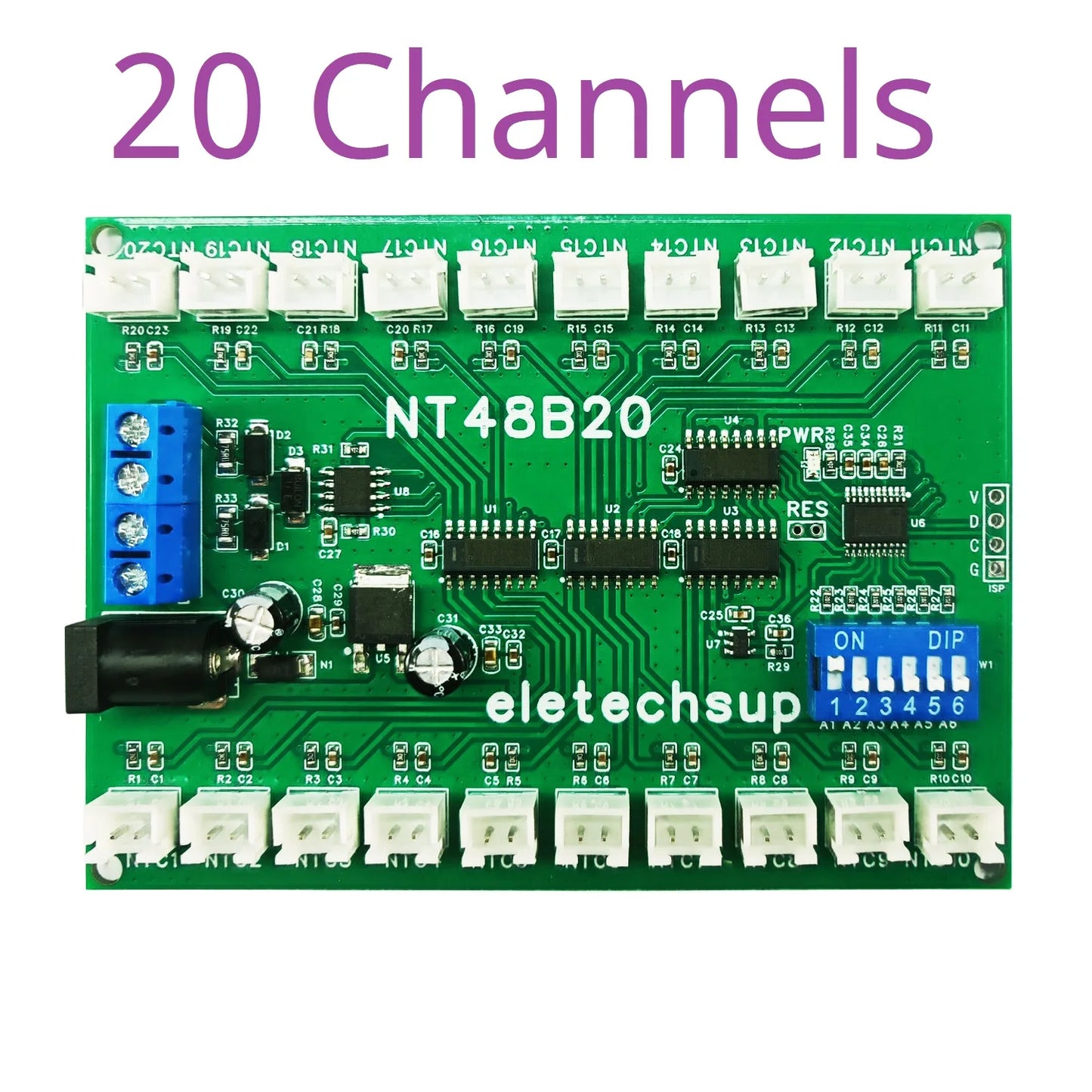

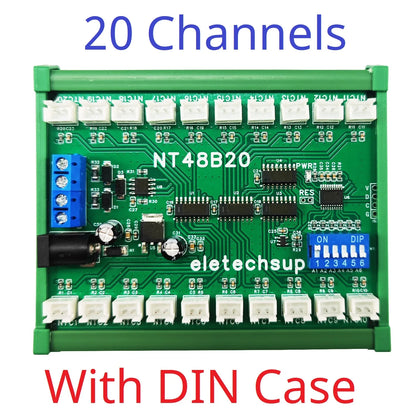

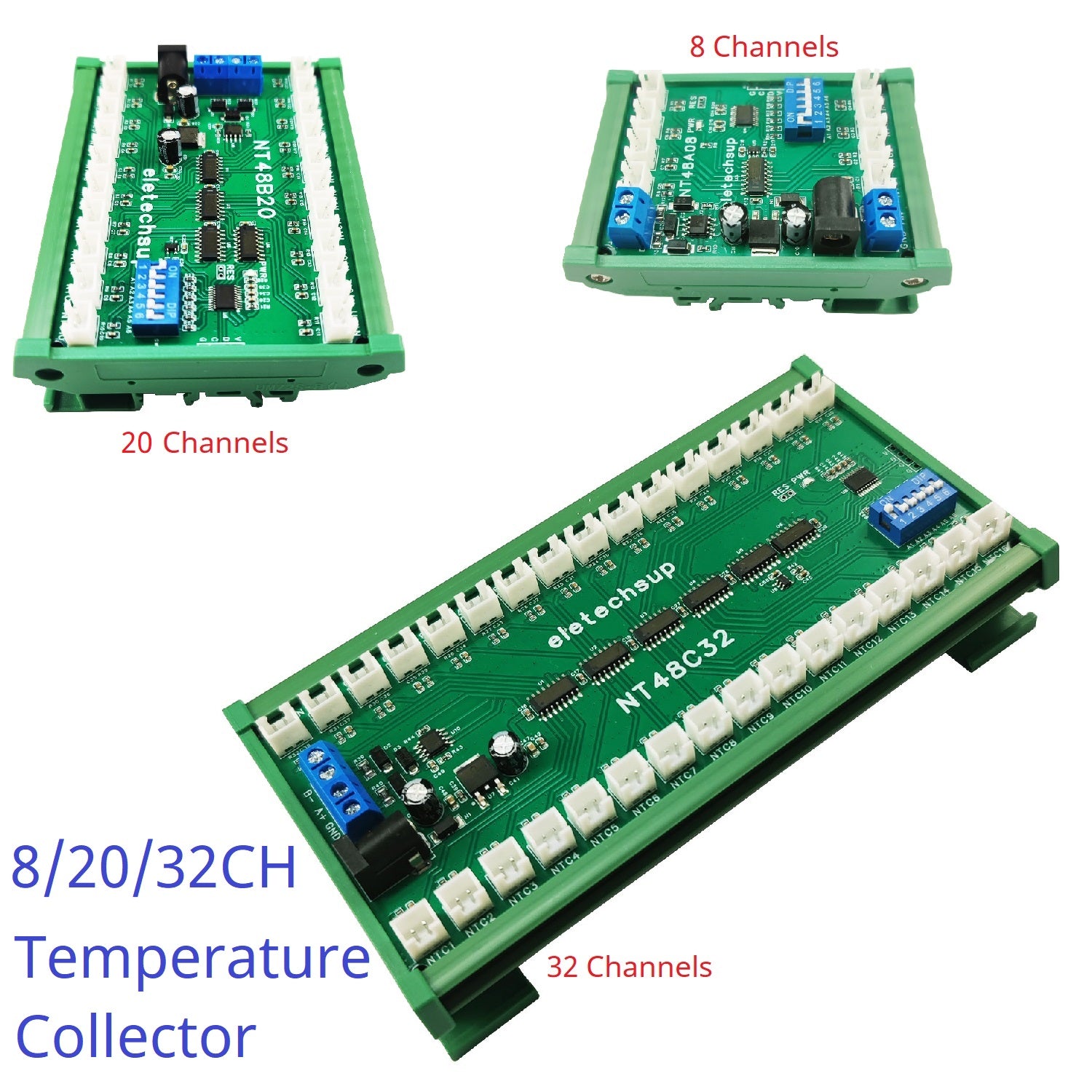

NT48A08 NT48B20 NT48C32 is the new version of RS485 NTC temperature collector from eletechsup. It has 8/20/32 channel versions to choose from. It can simultaneously measure the temperature of up to 32 channels or the resistance value of conventional resistors.

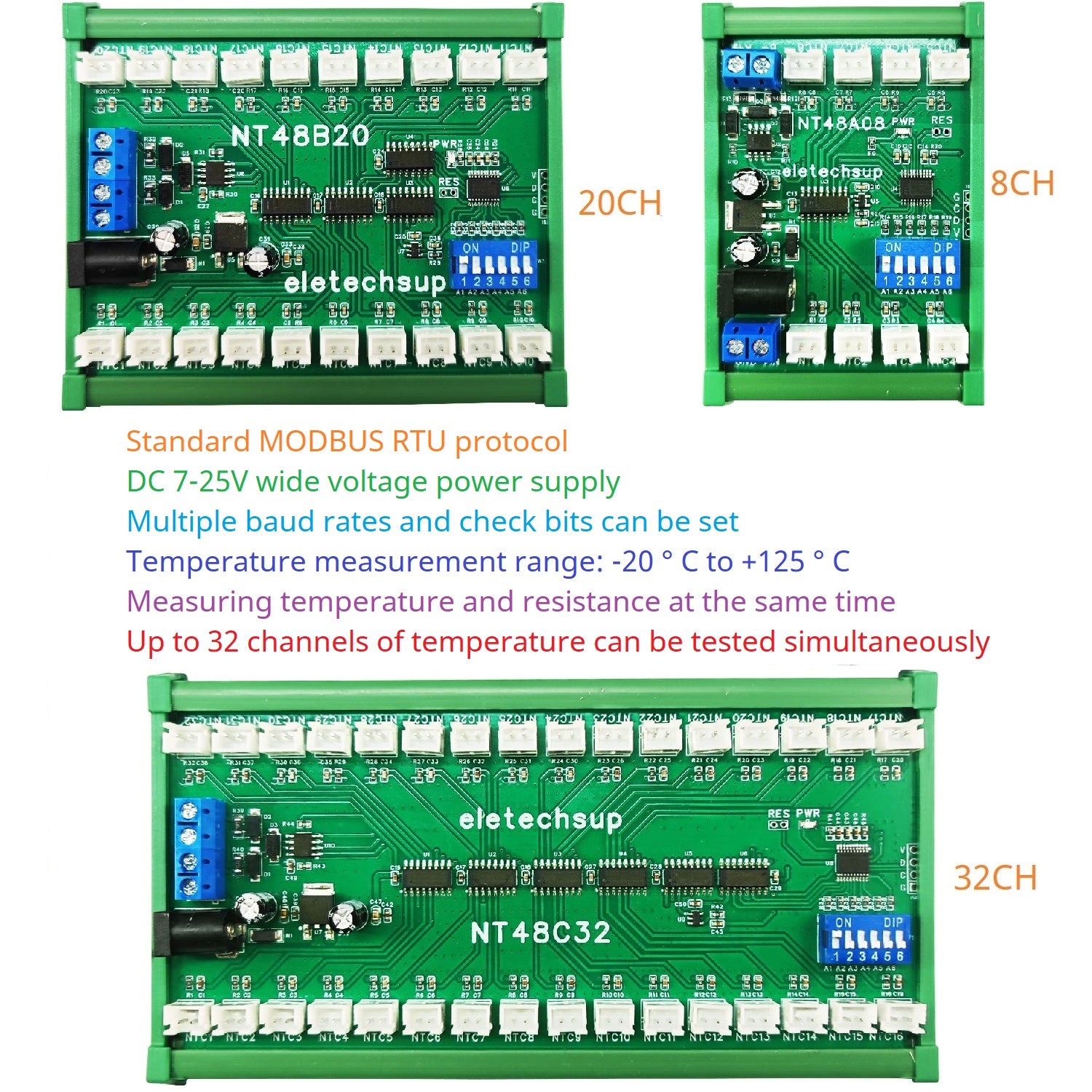

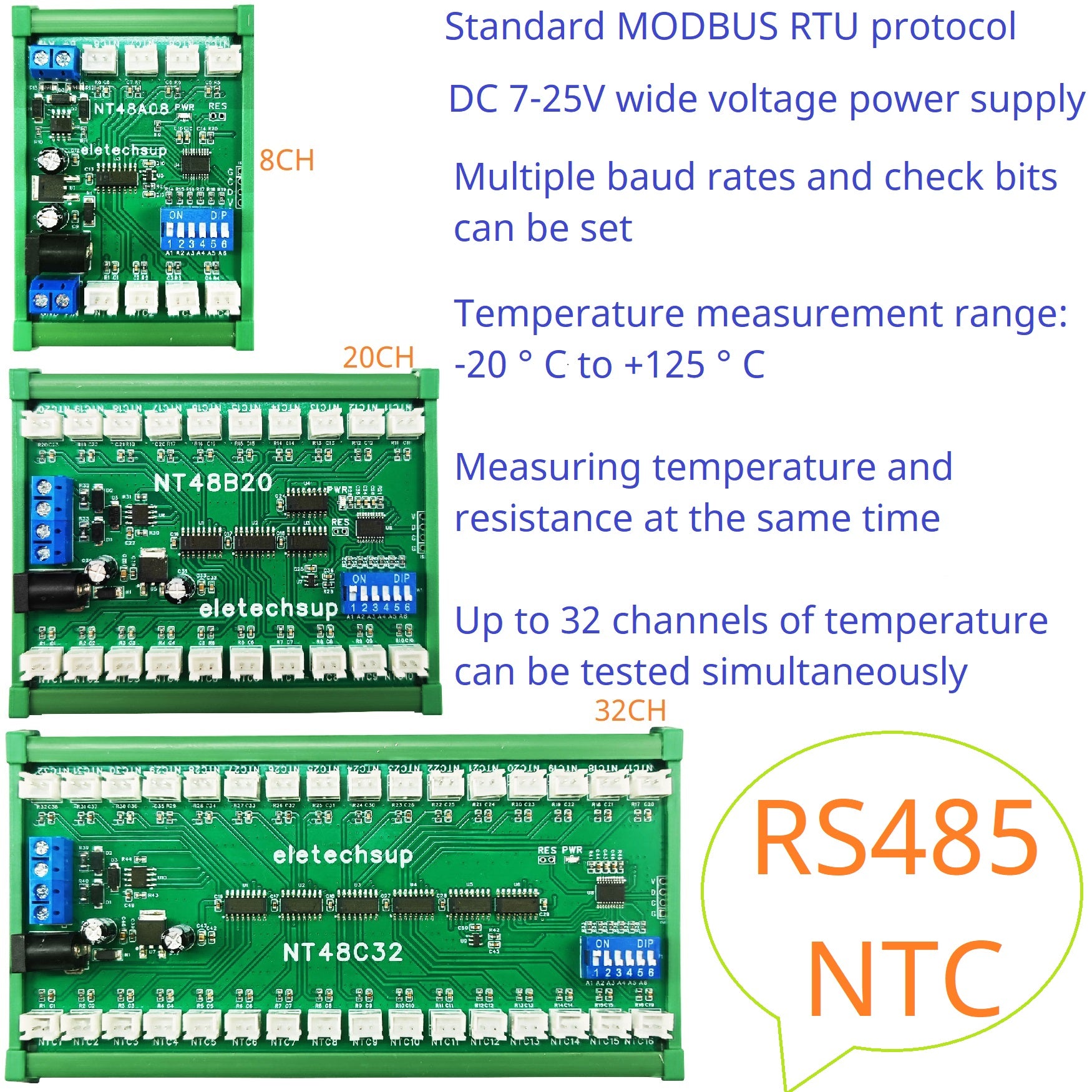

Features:
Standard MODBUS RTU protocol
DC 7-25V wide voltage power supply
Multiple baud rates and check bits can be set
Temperature measurement range: -20 ° C to +125 ° C
Measuring temperature and resistance at the same time
Up to 32 channels of temperature can be tested simultaneously

Description:

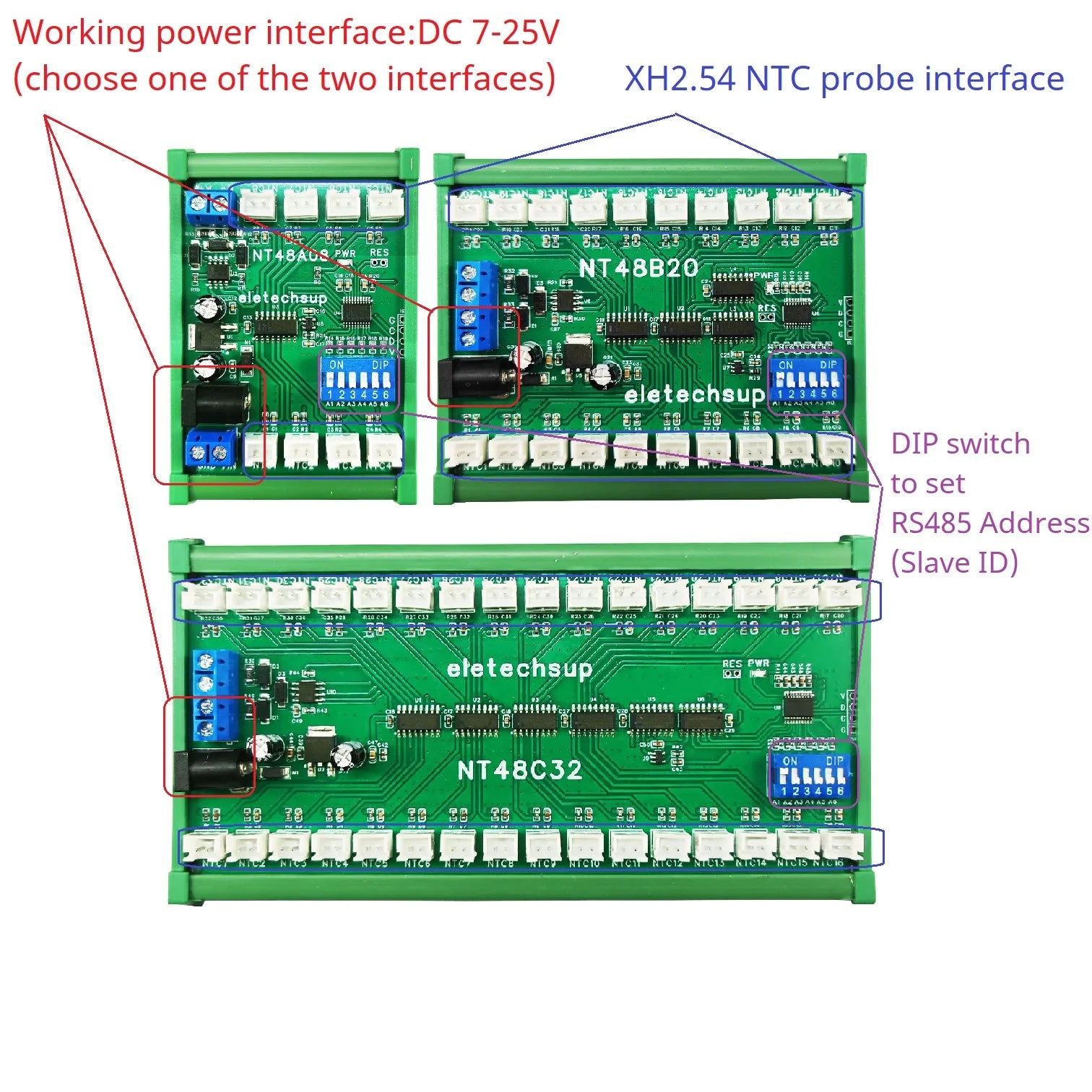

1: Operating Voltage : DC 7-25V(DC 9V 12V 15V 24V)
2: Operating Current :10-30MA(depending on the number of external NTCs)
3: MODBUS RTU Command support 03 04 06 16 function code
4: The default baud rate is 9600BPS, the baud rate can be selected by command 2400 4800 19200 38400 57600 115200BPS
5 You can choose the parity mode is no parity, even parity and odd parity

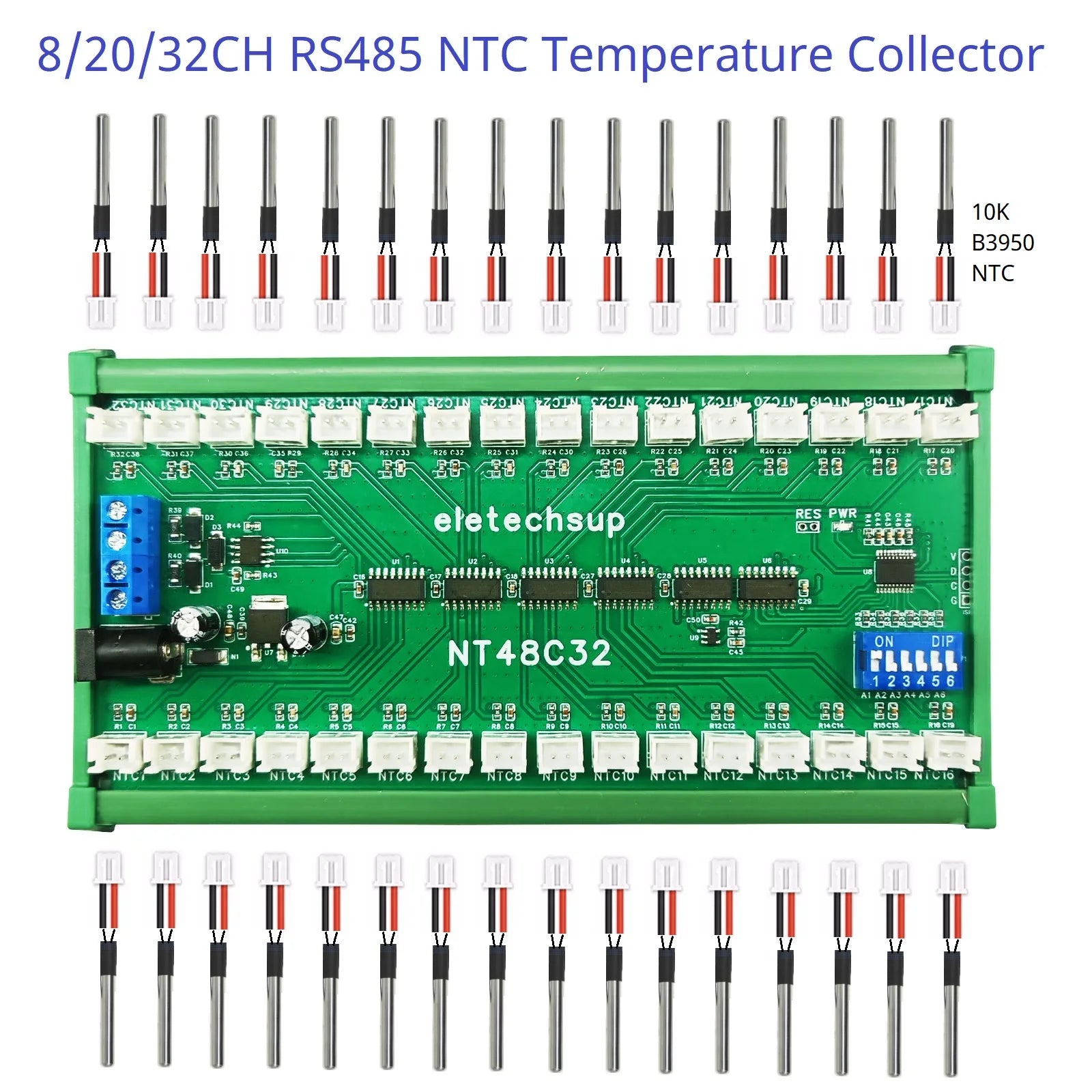

6:Adapted sensor:10K B3950 1% NTC thermistor, Up to 8/20/32 NTC sensors can be connected at the same time
7:Temperature measurement range (using our NTC sensor): -20 ° C to +125 ° C.
8:Temperature measurement accuracy (using our NTC sensor): 1%.

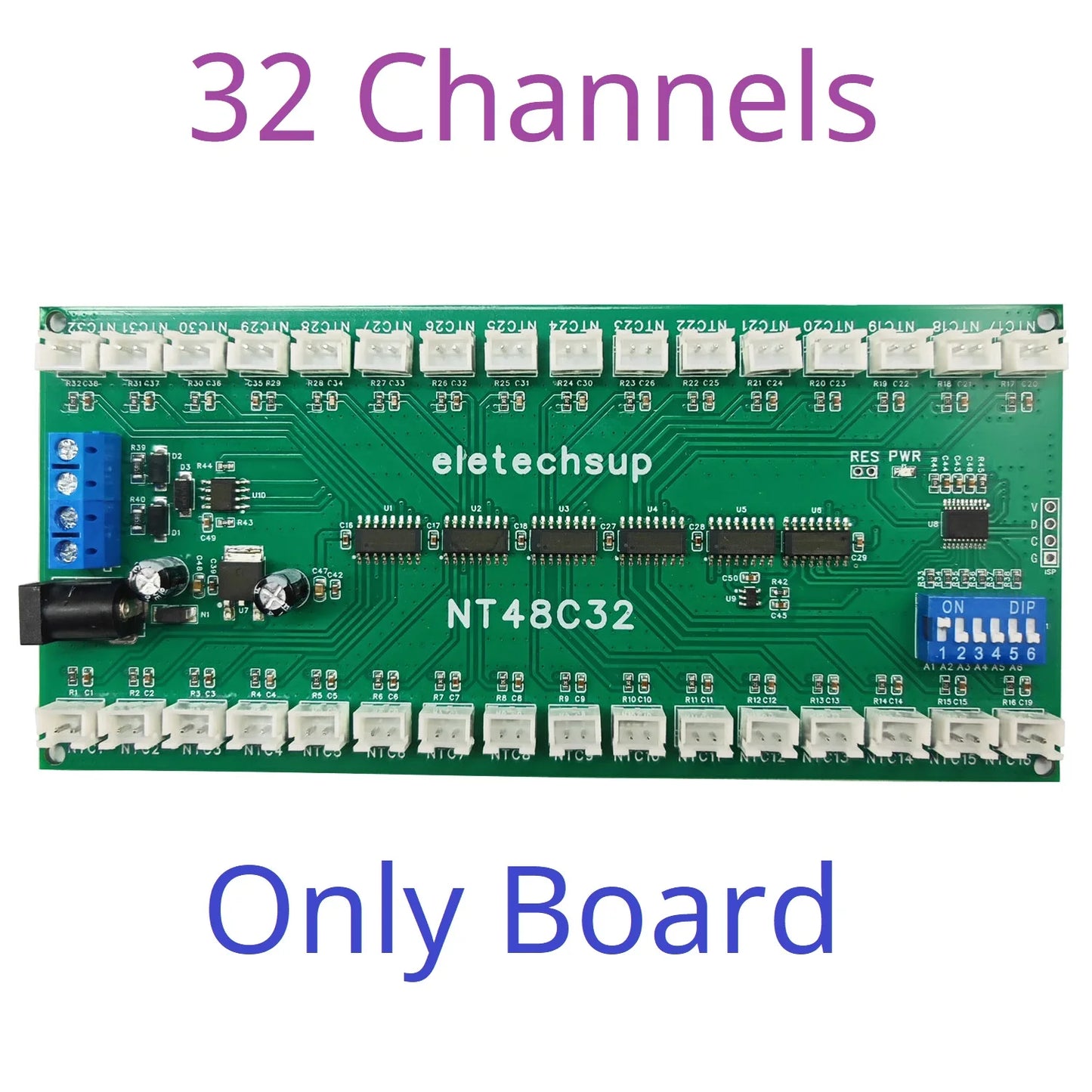

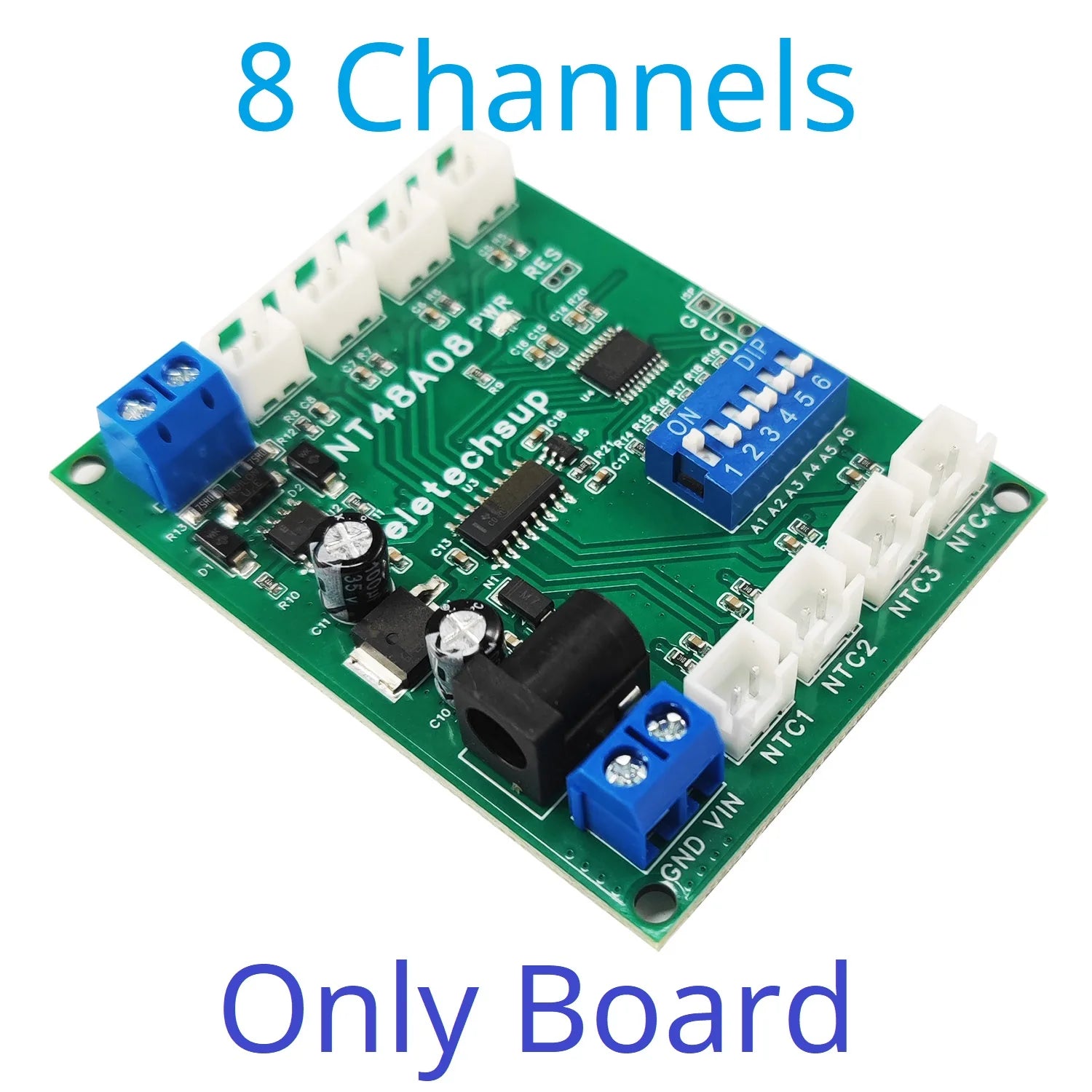

9 Only Board Size: 8CH 72*55*15MM,20CH 99*72*15MM,156*72*15MM

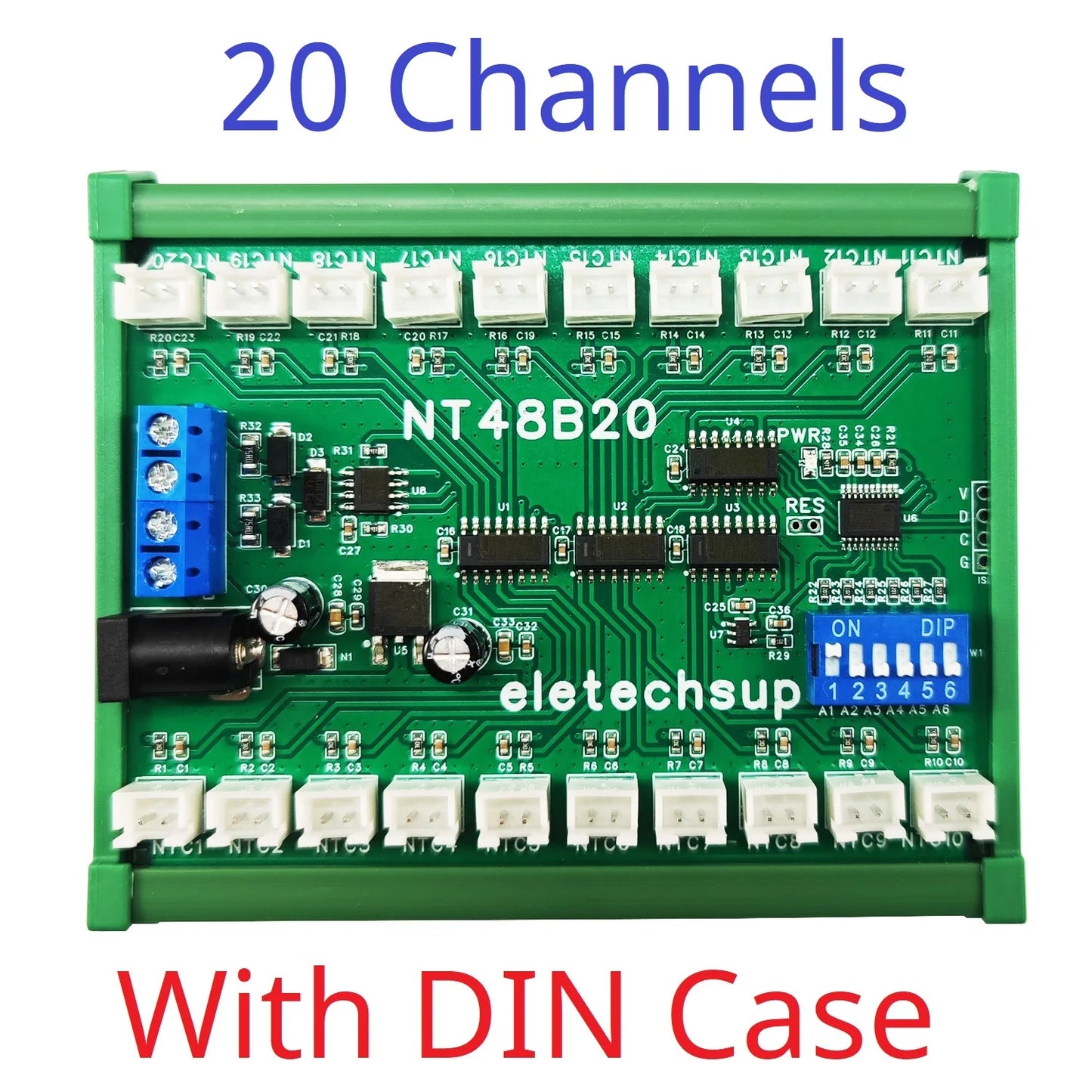

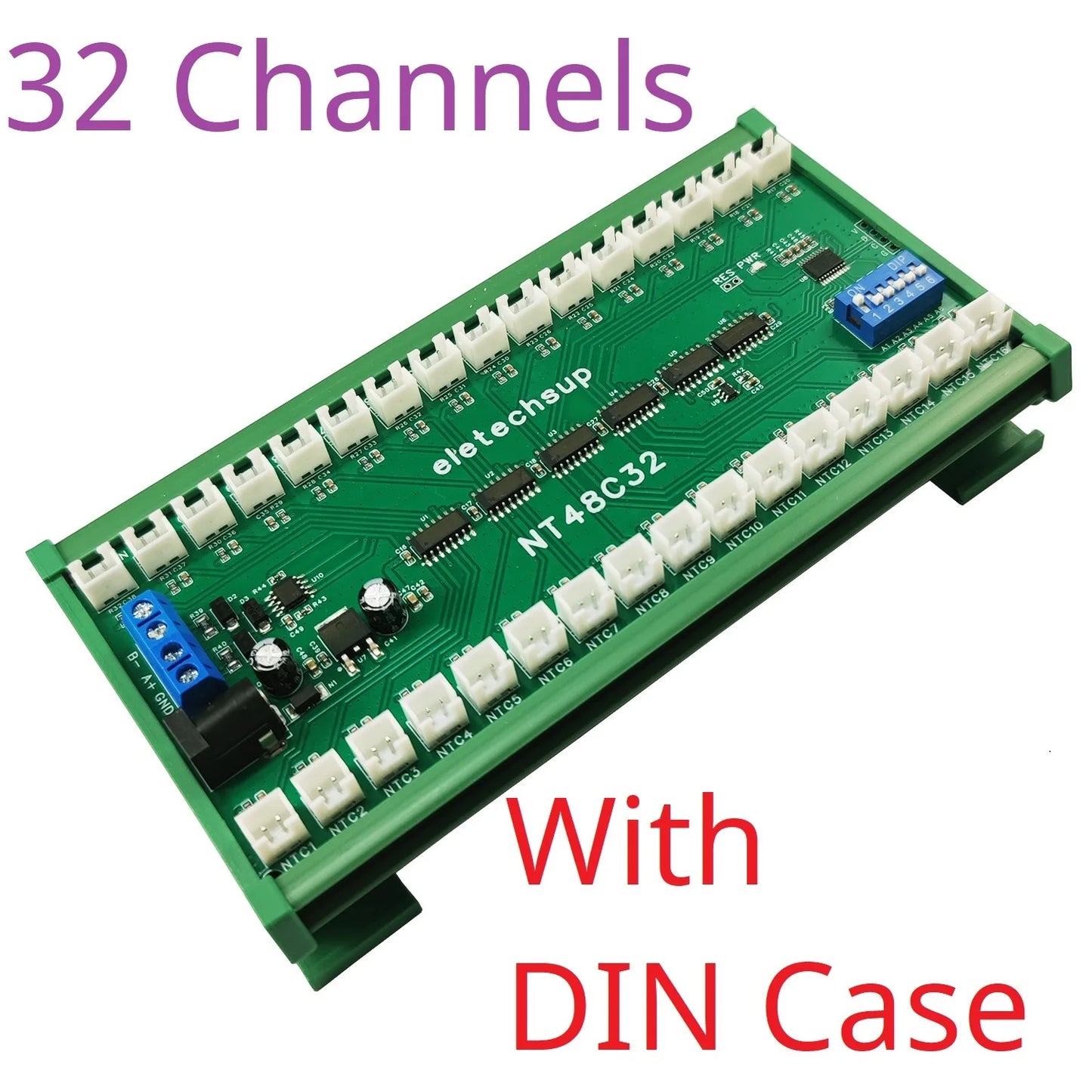

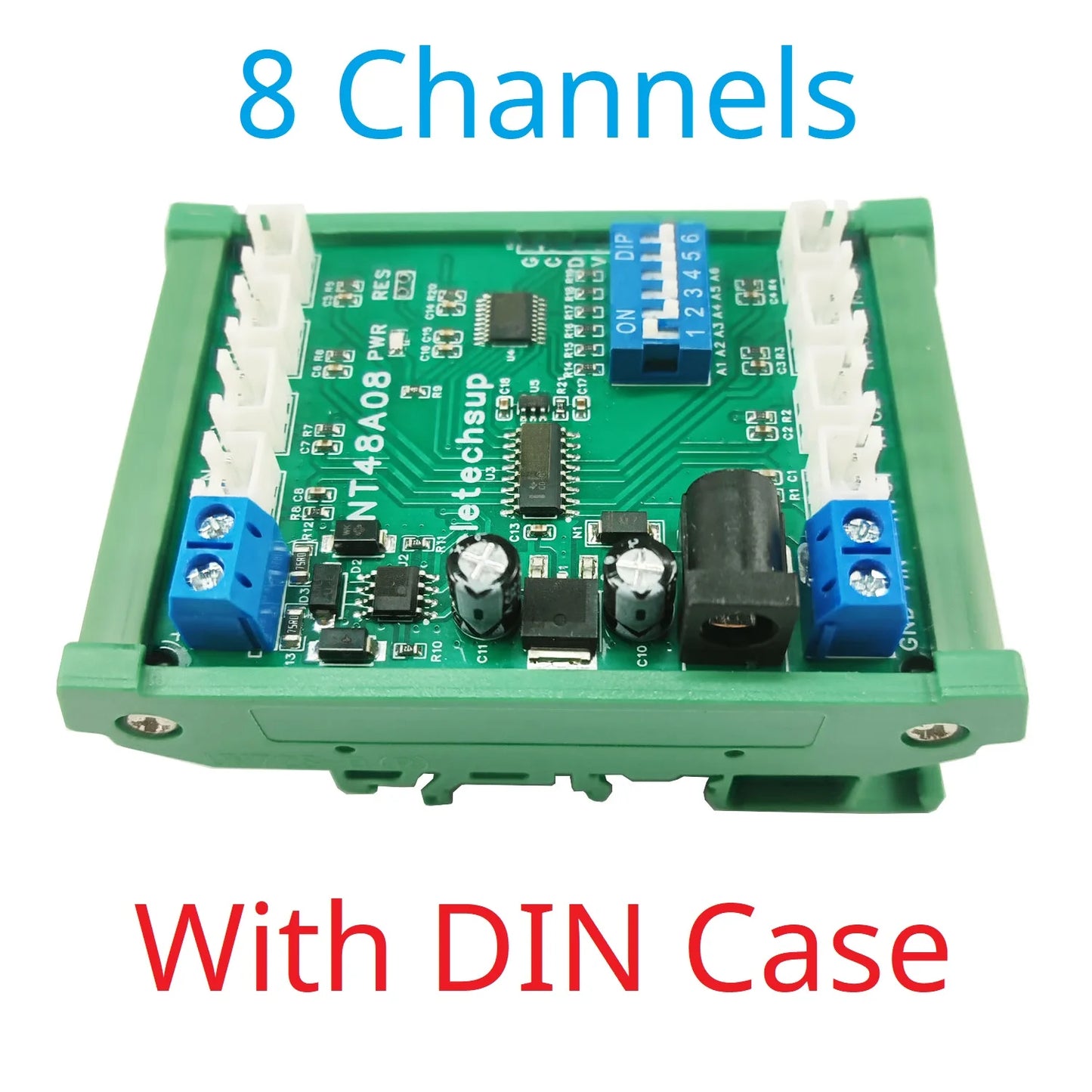

10 With DIN Case Size: 8CH 87*57*34MM,20CH 102*87*34MM,159*87*34MM
11 Only Board Weight: 8CH 23g,20CH 38g,32CH 56g
12 With DIN Case Weight:8CH 73g,20CH 114g,32CH 171g

NT28B16 can be used to measure temperature with NTC, and it can also be used to measure common resistance value. Temperature measurement range: -40-125℃;Resistance measurement range: 1K-100KΩ.

Modbus RTU Command Please refer to : ''NT48A08 NT48B20 NT48C32 MODBUS RTU Commamd''

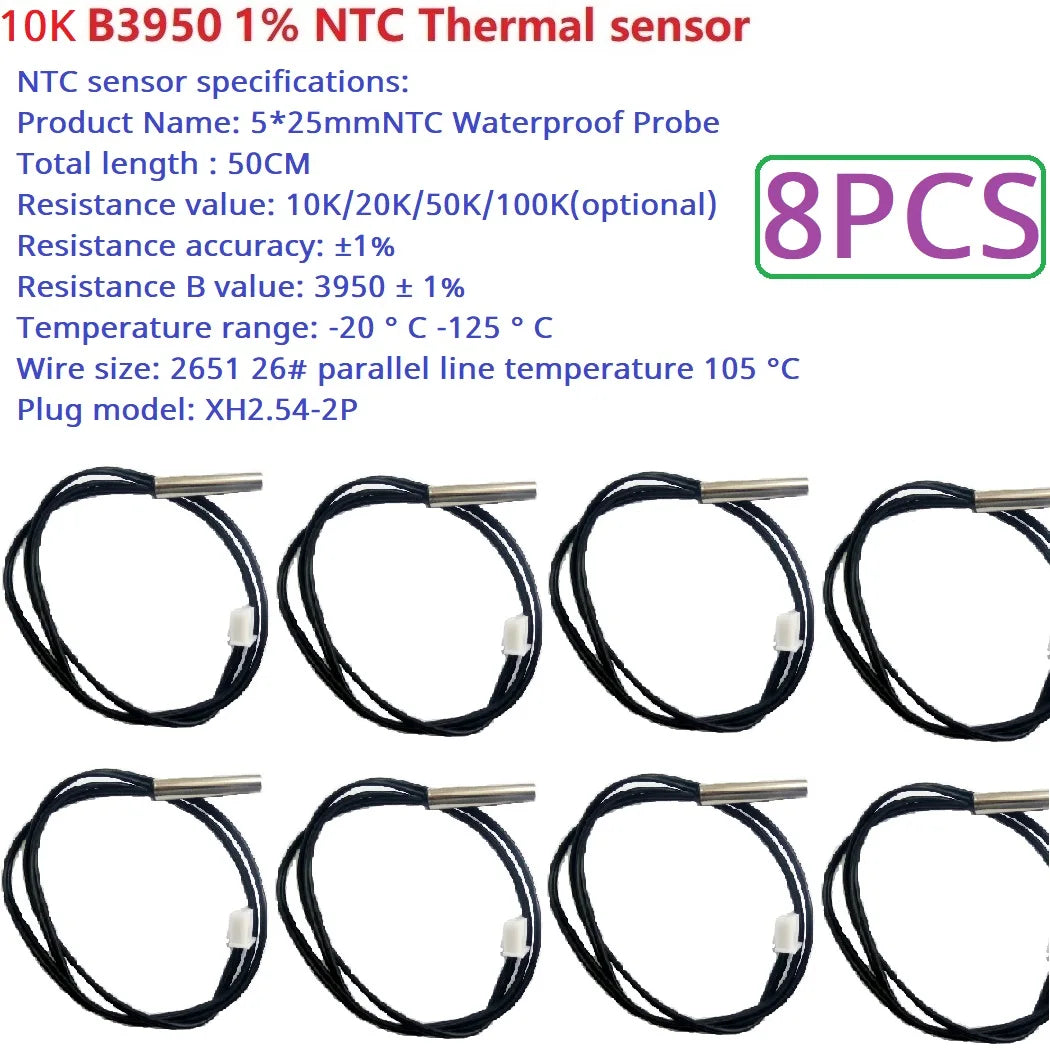

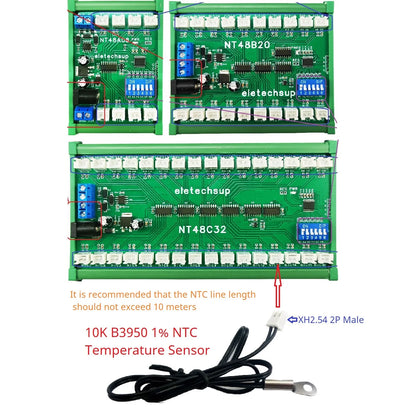

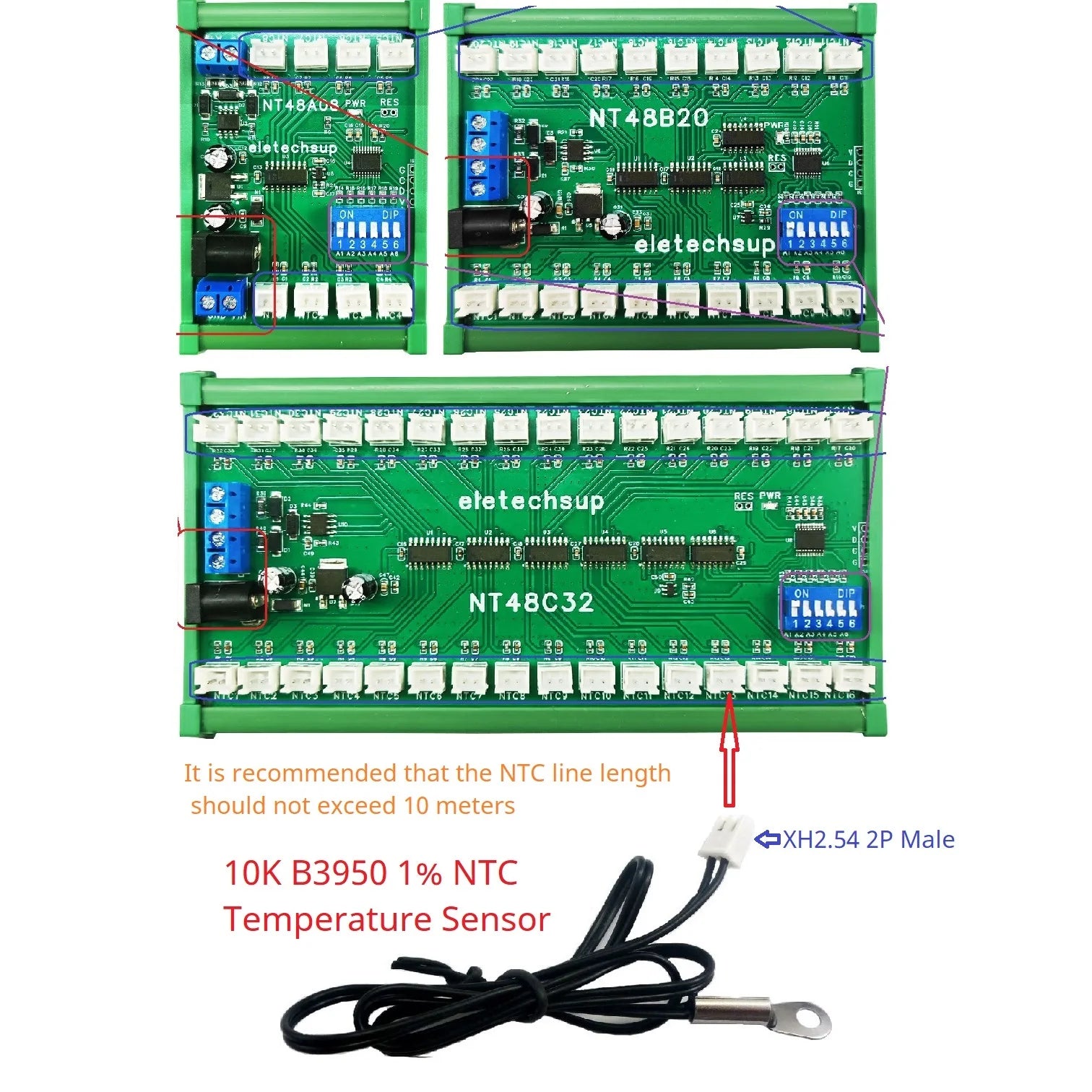

NTC sensor specifications:
Product Name: 5*25mm NTC Waterproof Probe
Total length : 50CM
Resistance value: 10K
Resistance accuracy: ±1%
Resistance B value: 3950 ± 1%
Temperature range: -20 ° C -125 ° C
Wire size: 2651 26# parallel line temperature 105 °C
Plug model: XH2.54-2P

Note:
This module does not have an NTC sensor. The NTC sensor needs to be purchased separately (10K B3950 1%);The module's measured resistance value is 1%, and the theoretical temperature range is -273s~200°C. The final temperature measurement accuracy and temperature range are determined by NTC thermistor.
