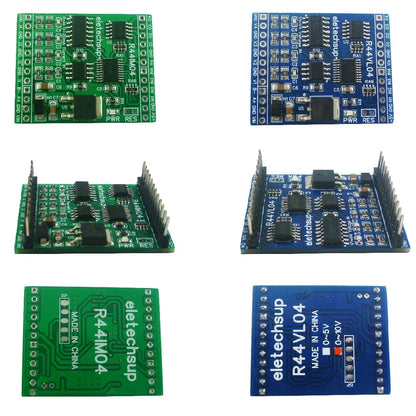

R44IM04/R44VL04 12CH RS485 Modbus RTU Mixed IO Module – 4AI 4DI 4DO Analog Digital Remote I/O Board for PLC Inverter Converter

Package inlcuded:


1PCS DC 7-25V 12CH Mixed IO Module(4 Analog Input 4 Digital Input 4 Digital output )

Features:

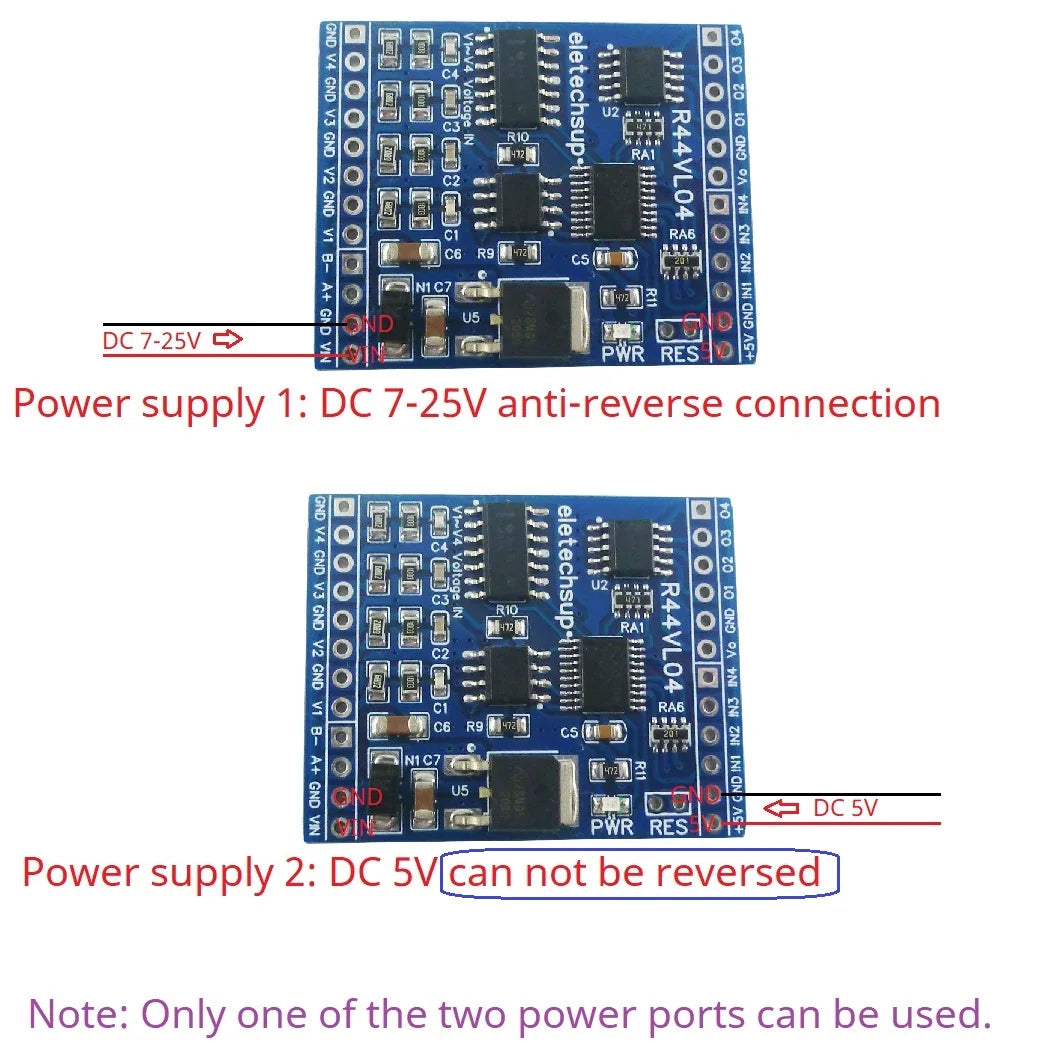

1 Working voltage: DC 7-25V

2 Working current: 11-31MA

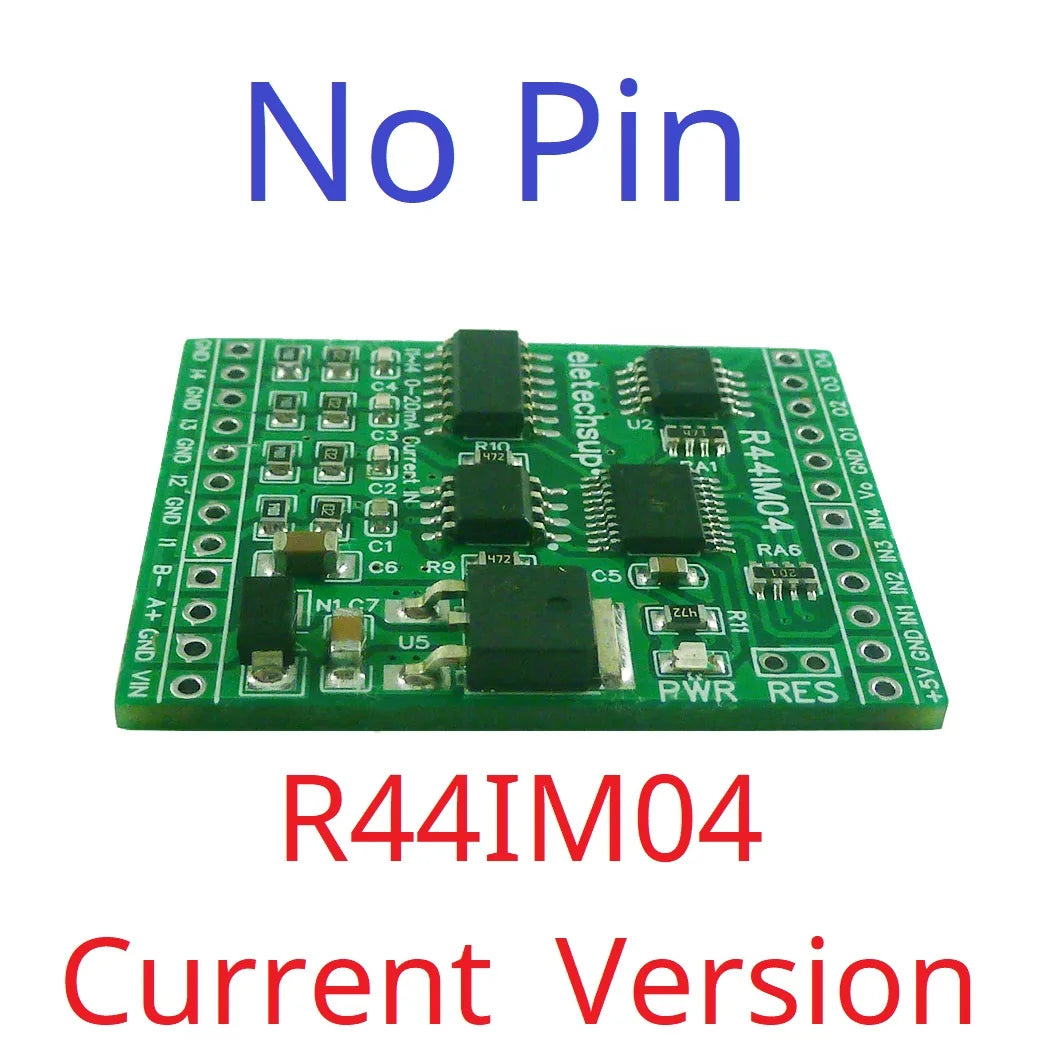

3 R44IM04 Current Version: 4-channel 0-20MA/4-20MA current analog input, 4-channel NPN 3-5V TTL Input, 4-channel 300MA MOS Output (NPN)

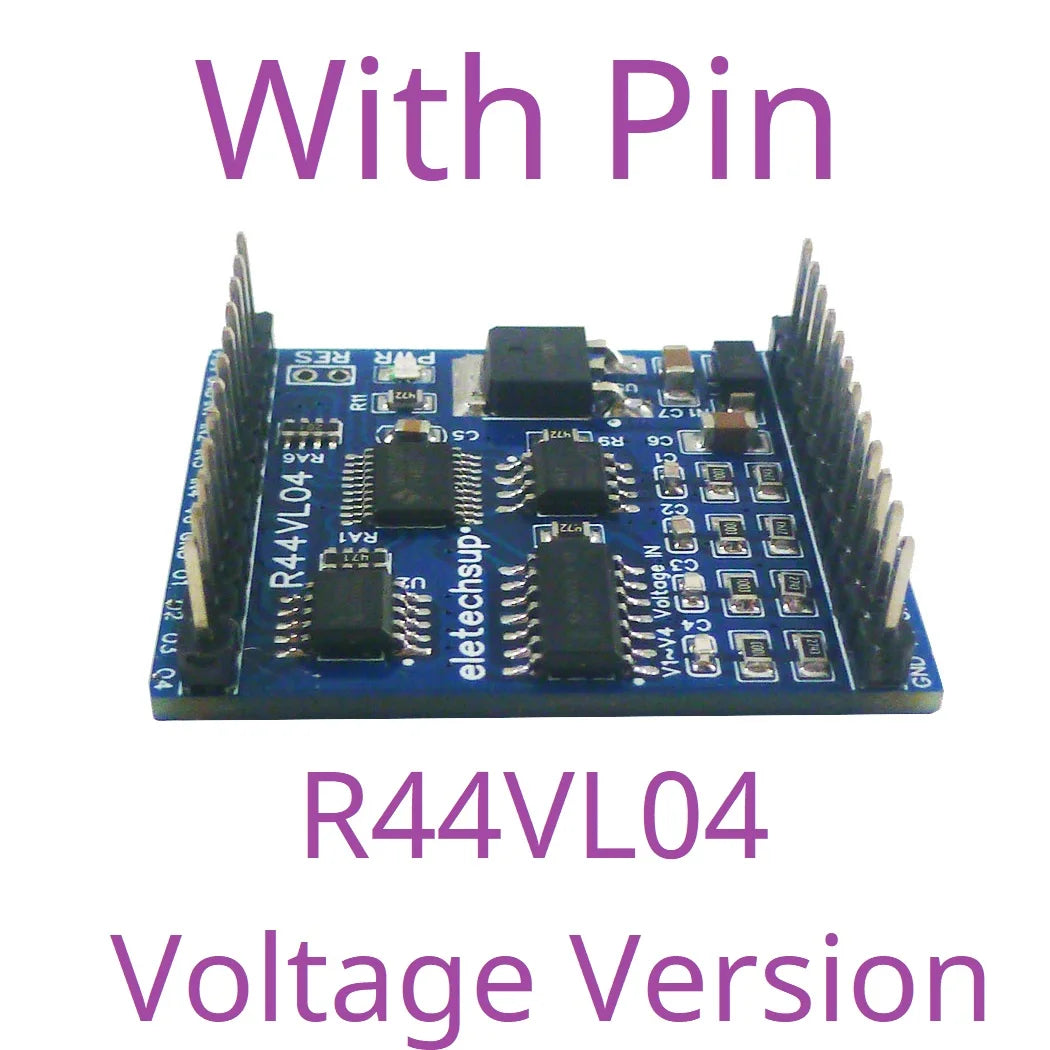

4 R44VL04 Voltage Version: 4-channel 0-5V/0-10V voltage analog input, 4-channel NPN 3-5V TTL Input, 4-channel 300MA MOS Output (NPN)

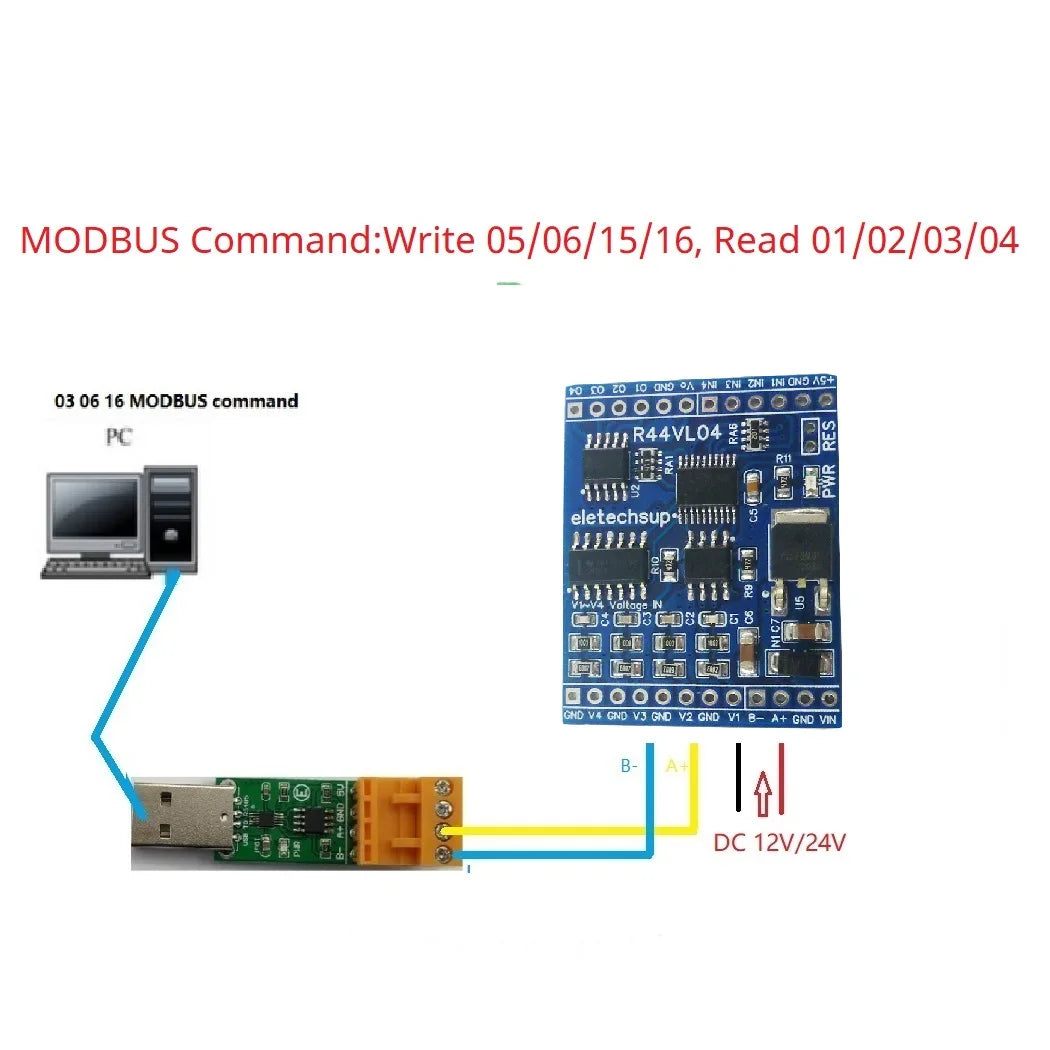

5 Support standard Modbus RTU command, function code: write 05/06/15/16 read 01/02/03/04
6 With hardware restore factory settings function, with TVS anti-surge protection

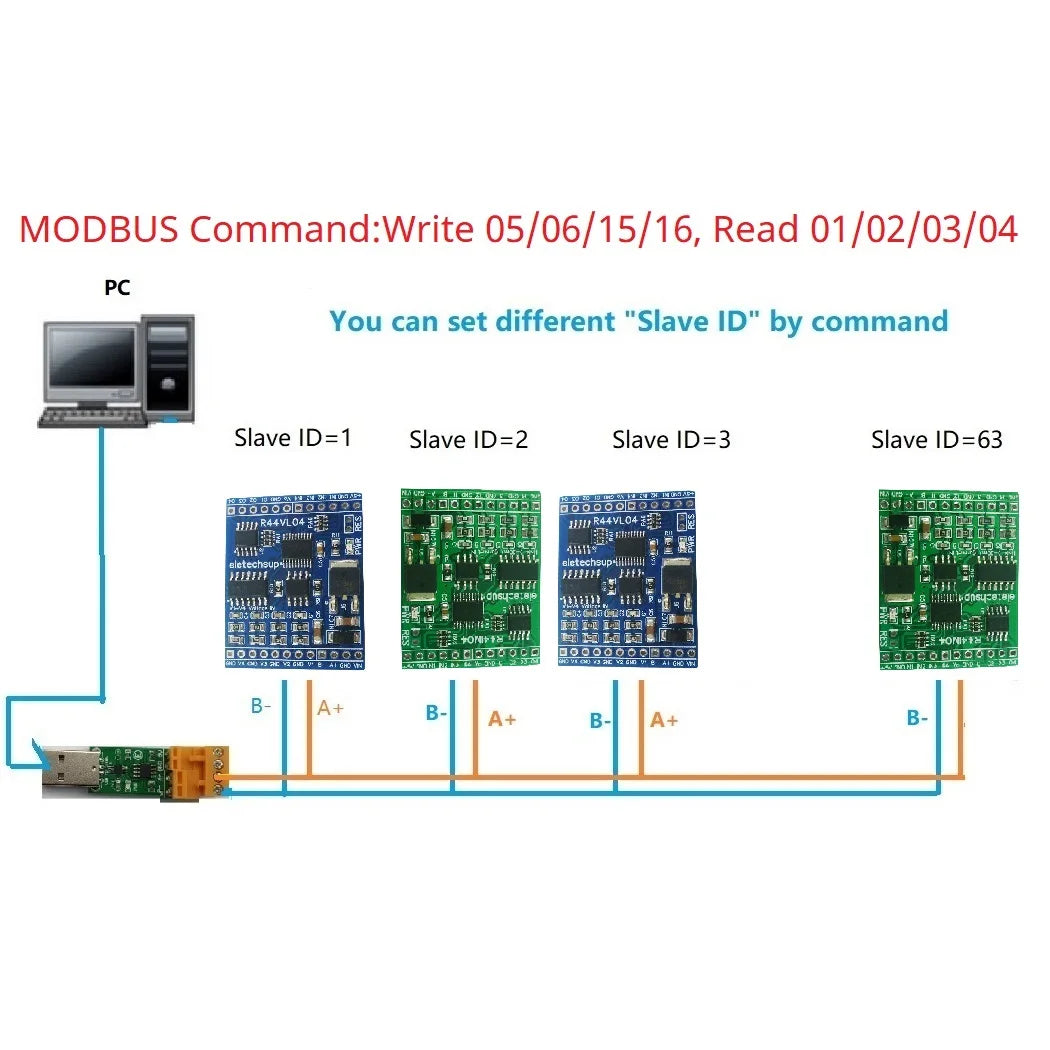

7 In MODBUS command mode, it can support up to 64 devices in parallel
8 The default baud rate is 9600BPS, the baud rate can be selected by command 2400 4800 19200 38400 57600 115200BPS
9 You can choose the parity mode is no parity, even parity and odd parity
10 You can set the data sending return time, the maximum can be set to 1000ms
11 Size 38 * 30.5 * 4mm
12 Weight: 5 grams
13 Maximum load: 500MA Darlington output (NPN)

For more information, please contact me

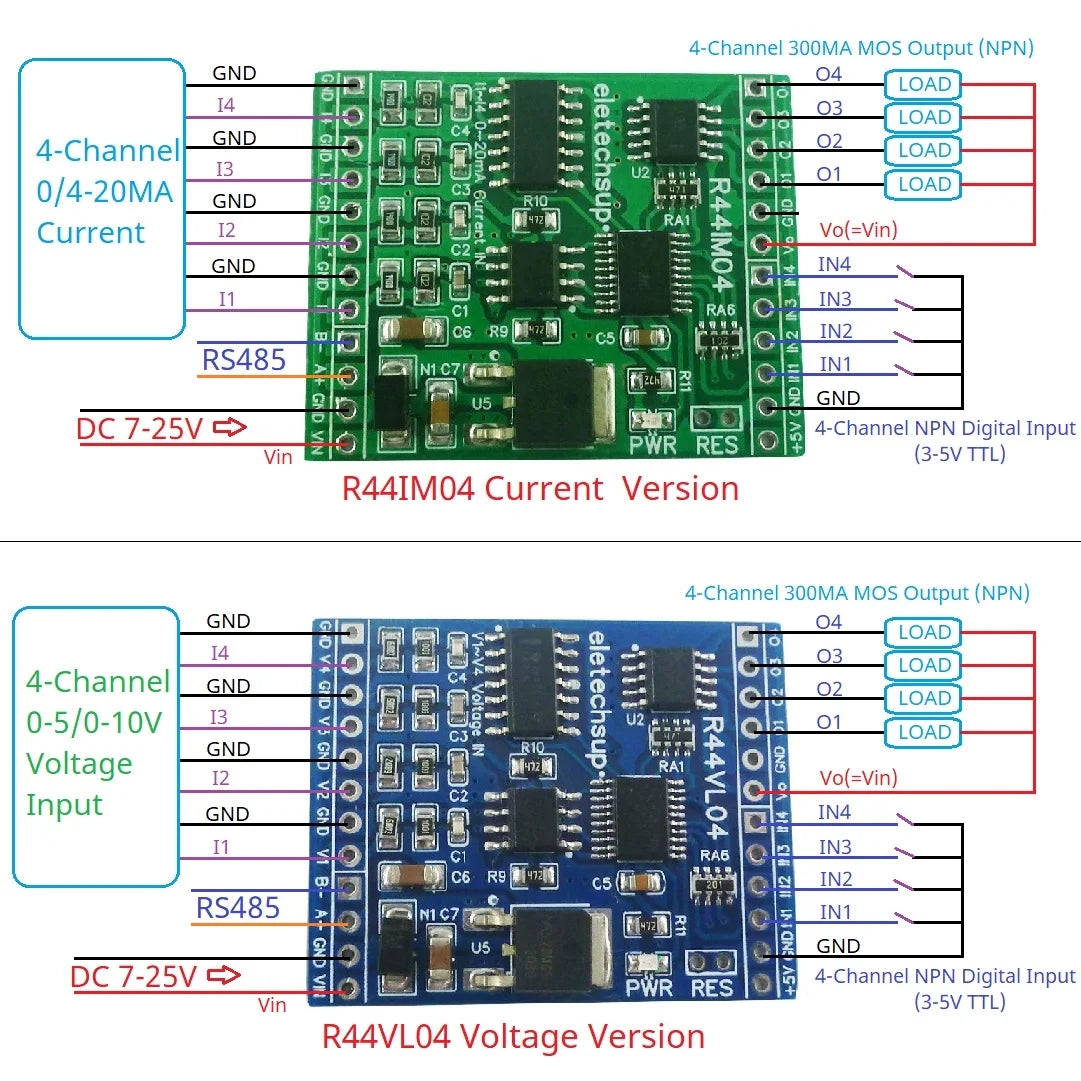

Wiring Diagram:

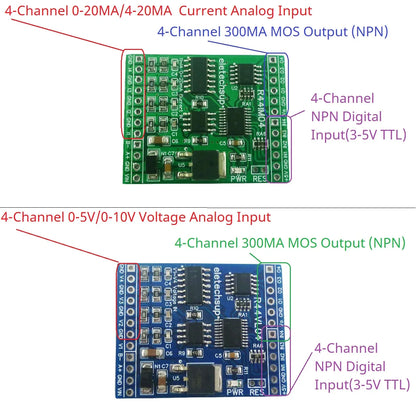

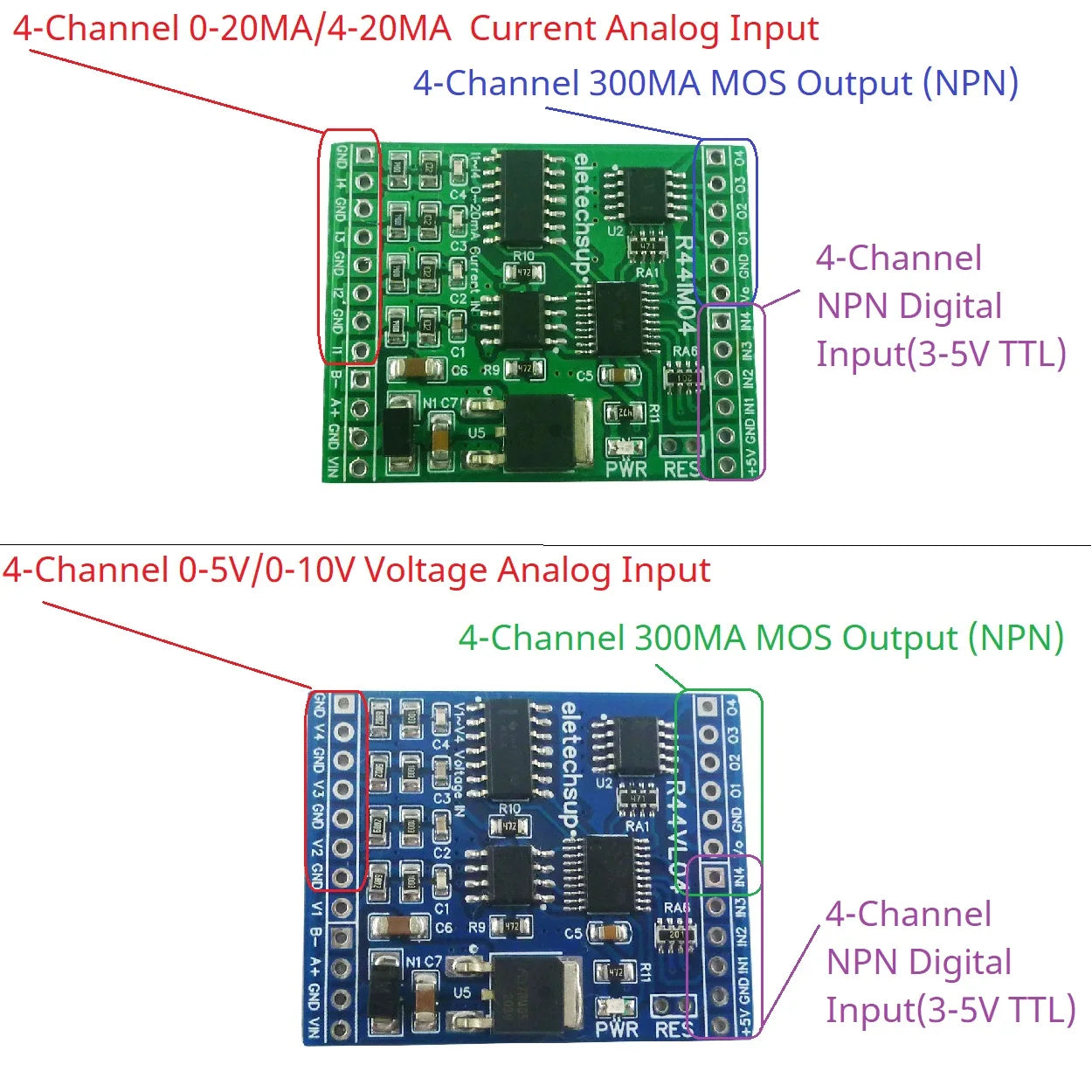

4CH 0-10V voltage analog input (R44VL04 ) / 4CH 0-20MA current analog input (R44IM04 )
4CH NPN 3-5V TTL Input
4CH 300MA MOS Output (NPN)
