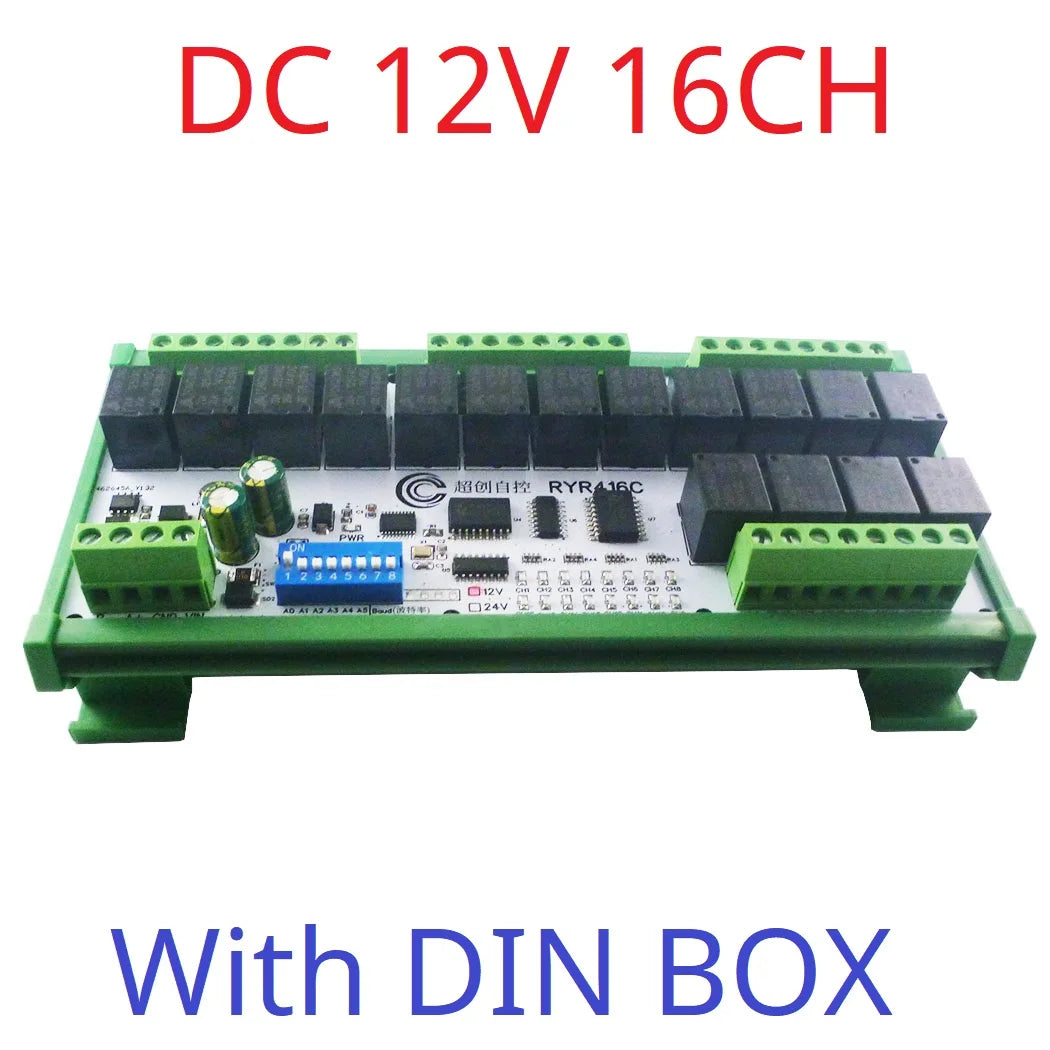

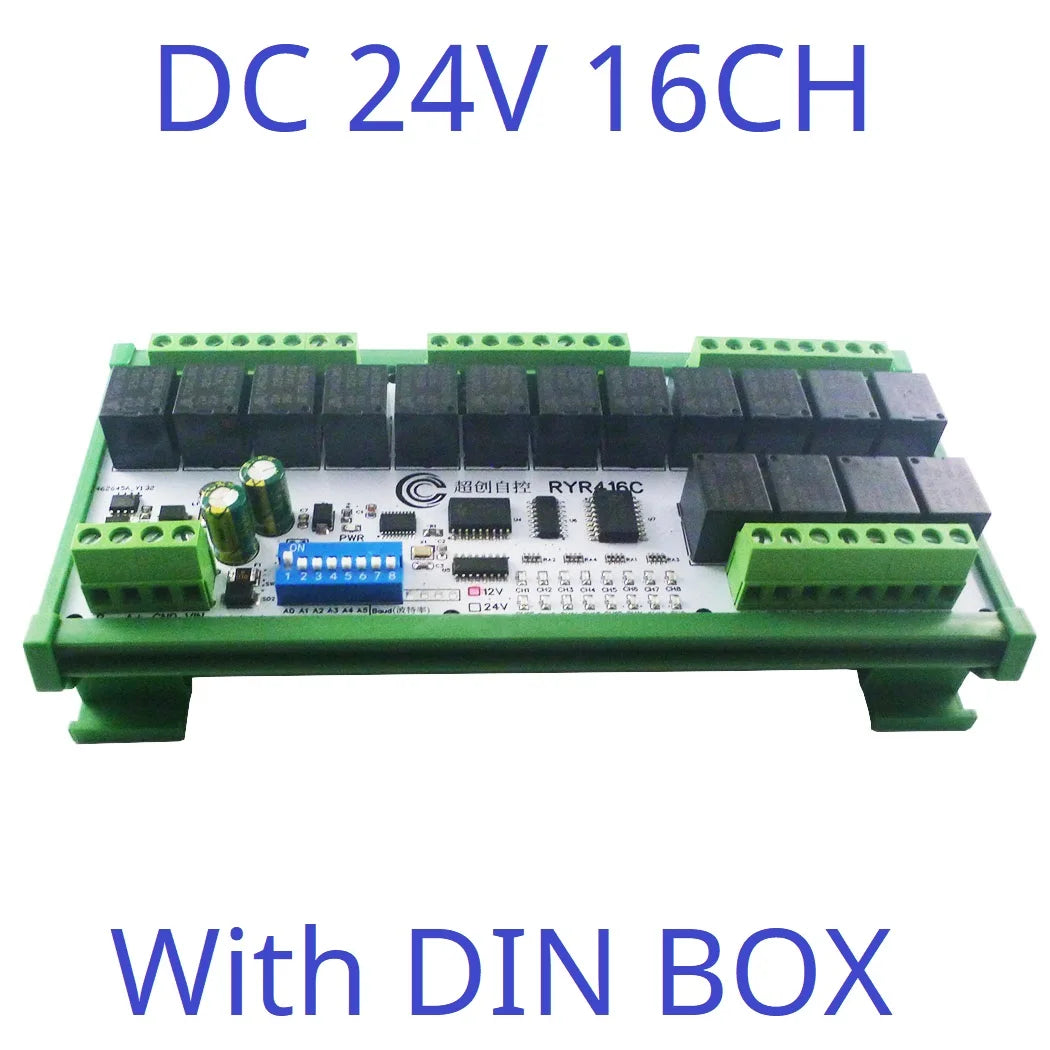

R4D3B16 16CH RS485 Modbus RTU Relay Module – DC 12V/24V Multifunction IO Expansion Board with 10A Output for PLC HMI Smart Home
R4D3B16 16CH RS485 Modbus RTU Relay Module – DC 12V/24V Multifunction IO Expansion Board with 10A Output for PLC HMI Smart Home
Regular price
$27.96 USD
Regular price
$27.96 USD
Sale price
$27.96 USD
Taxes included.

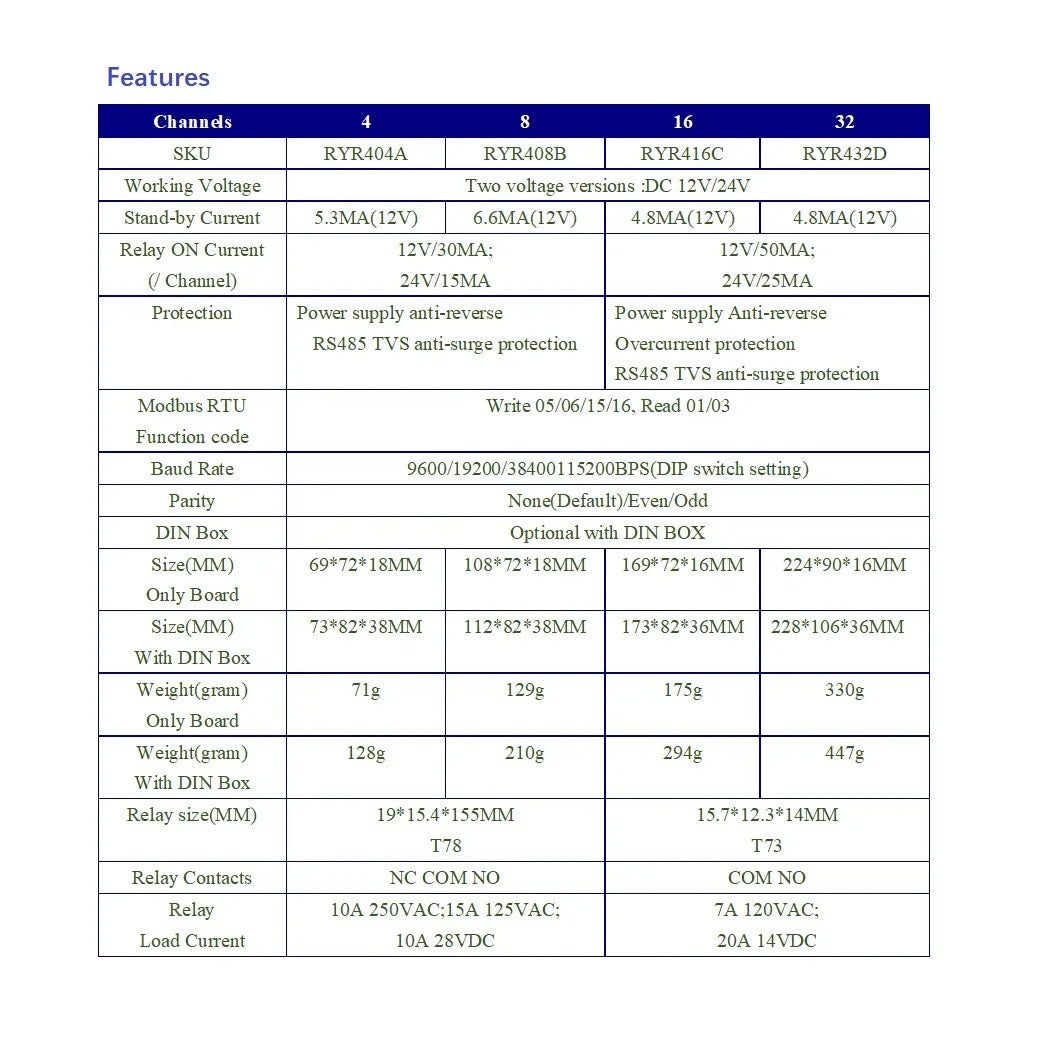

Description:
1: Working Voltage DC 12V/24V;
2: Standby current (all relays closed) 4.8MA, 1 relay open 50MA, ...,16 relay open 800MA
3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;

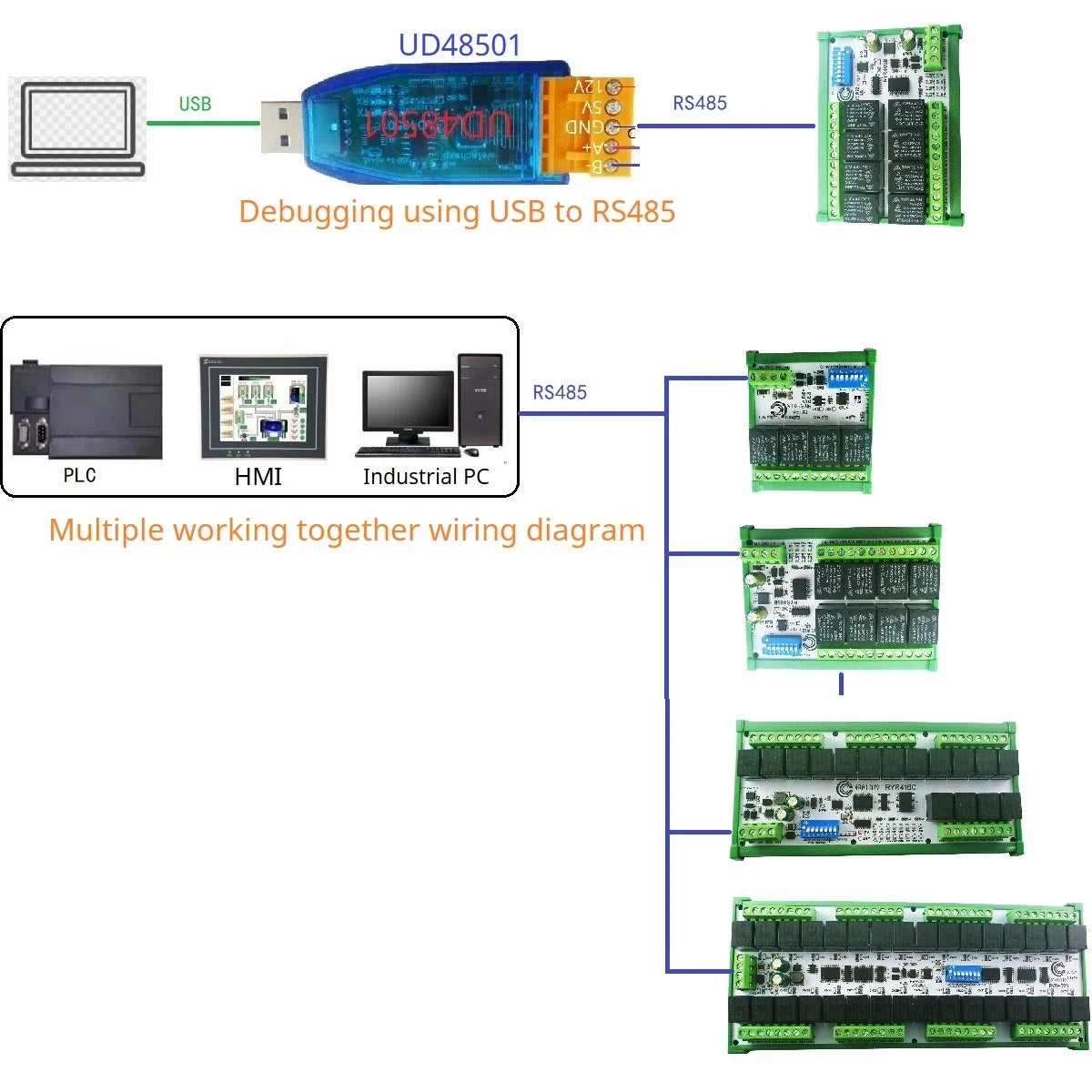

6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

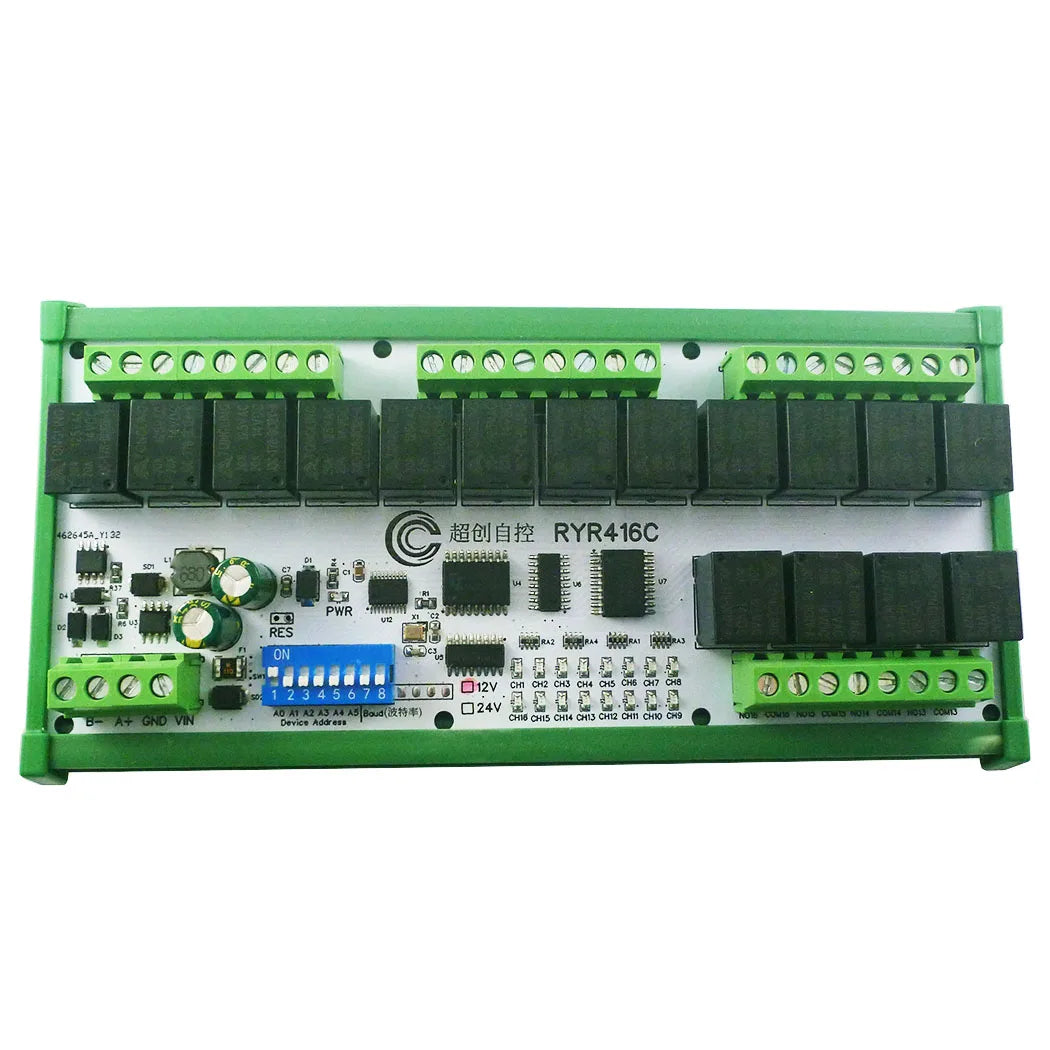

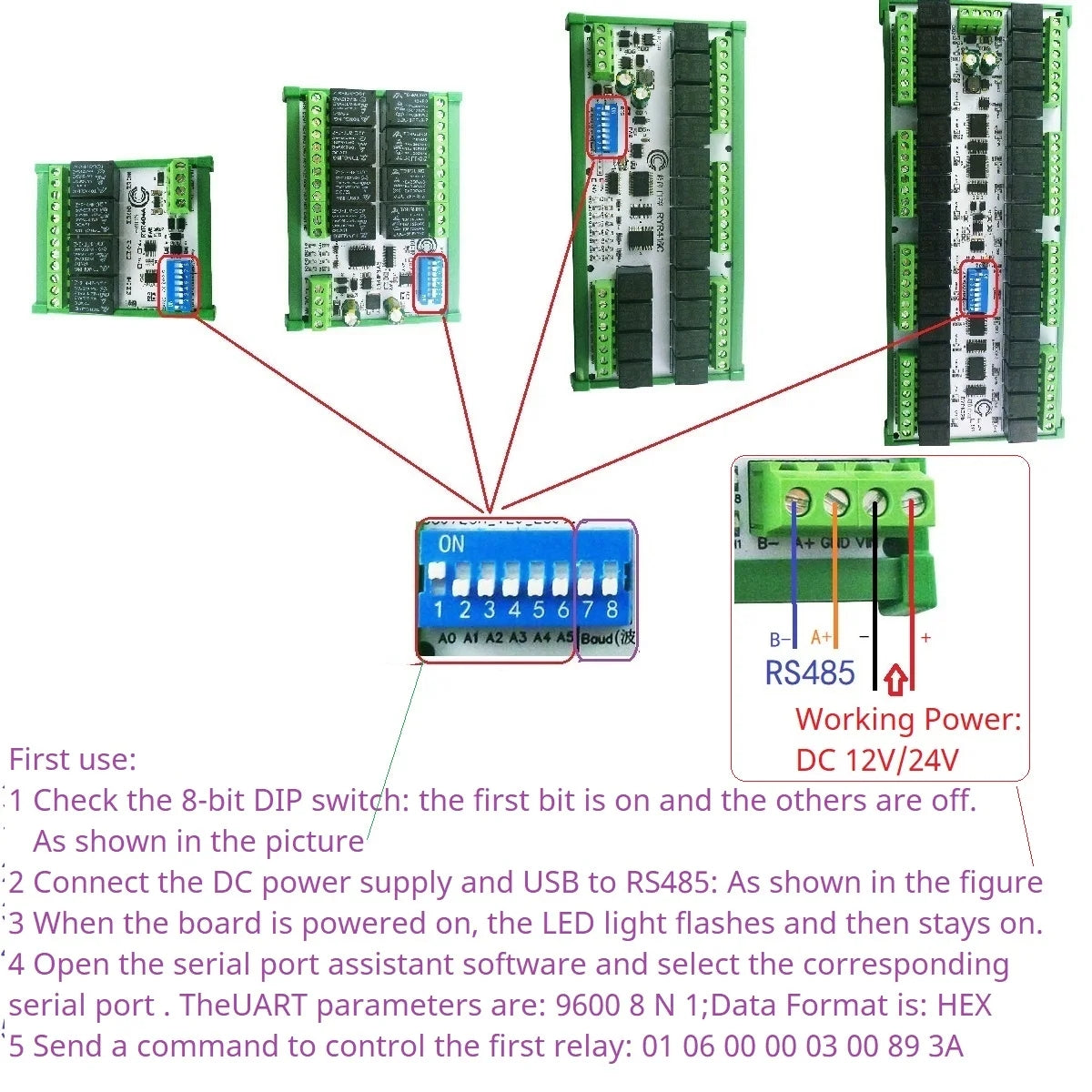

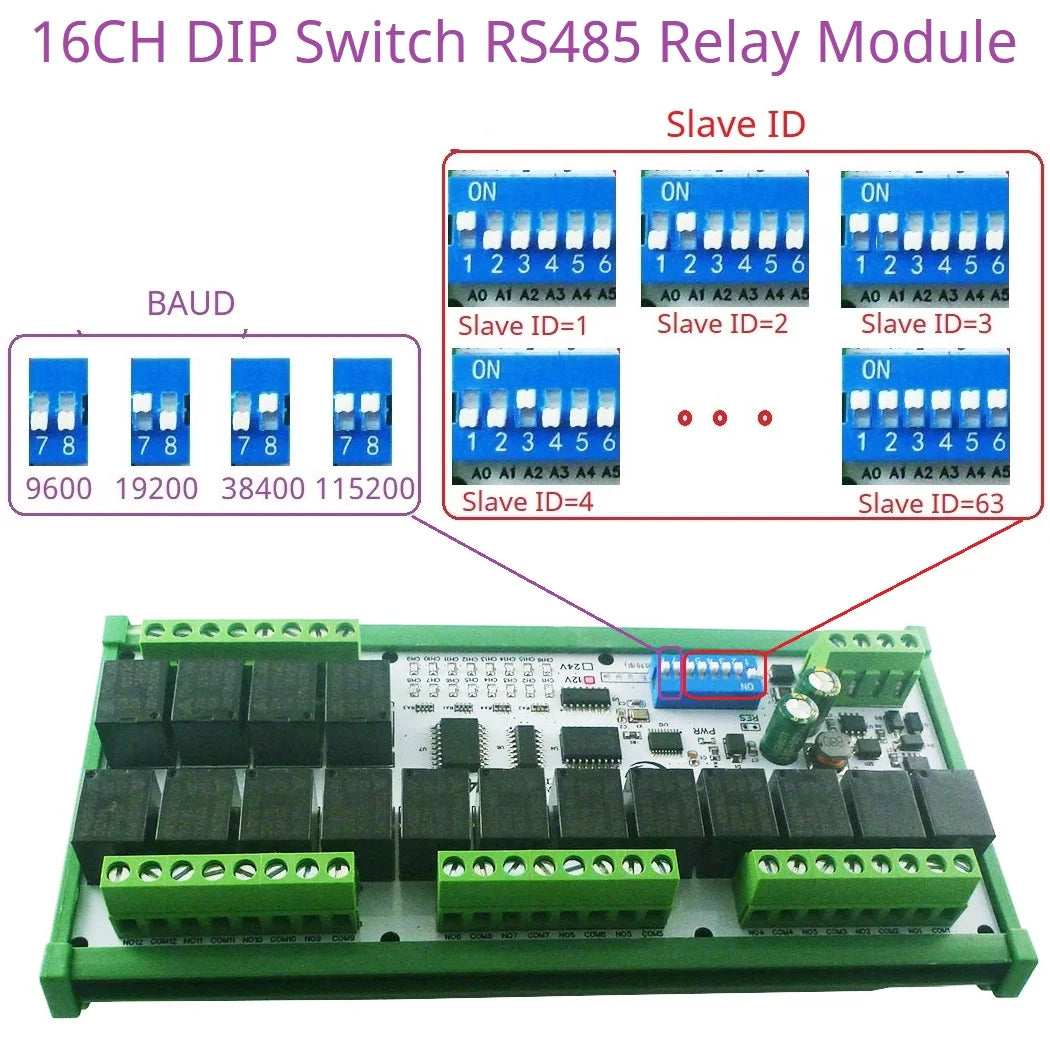

7 Set the Slave ID through the DIP Switch: 1-63 ID
8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
9 Parity :None(Default)/Even/Odd

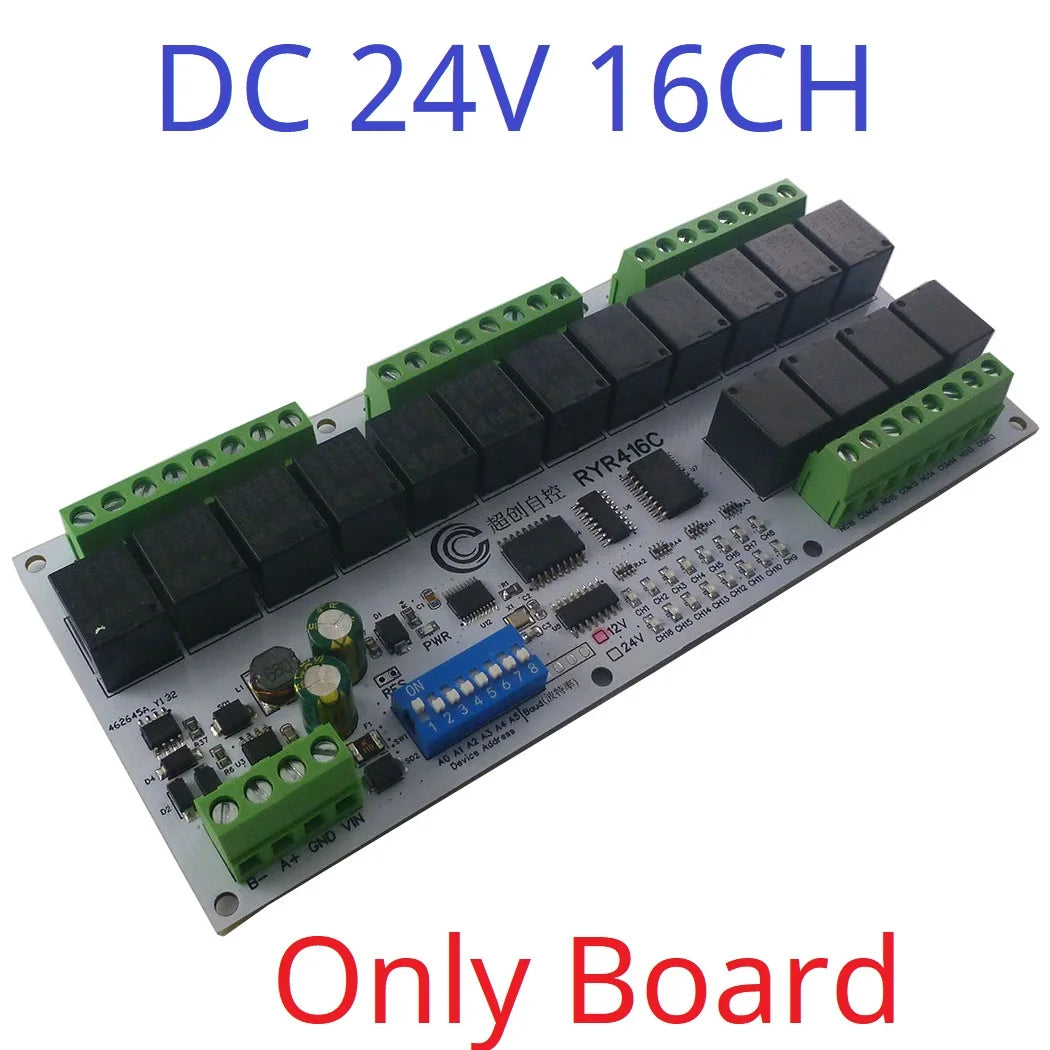

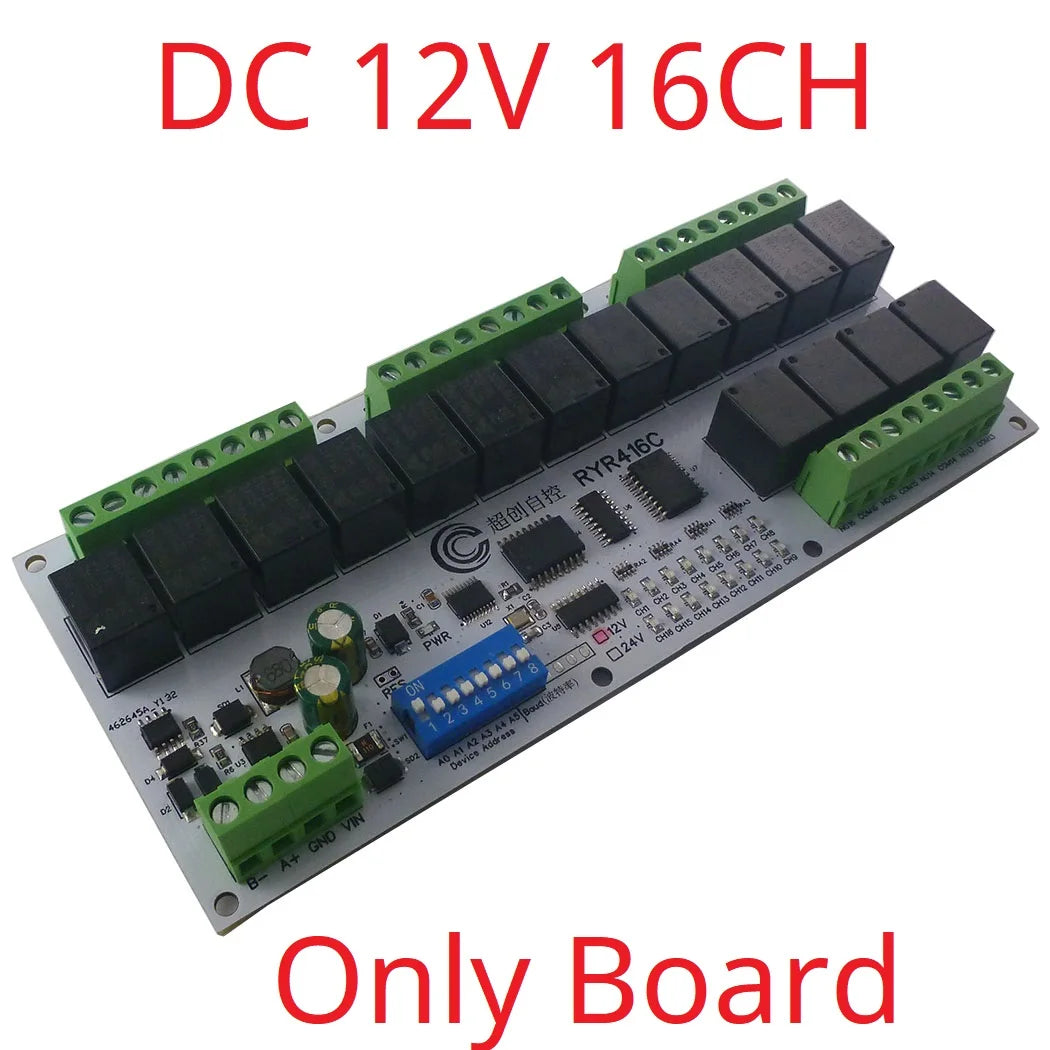

10 Size :
169*72*16MM
(Only Board);

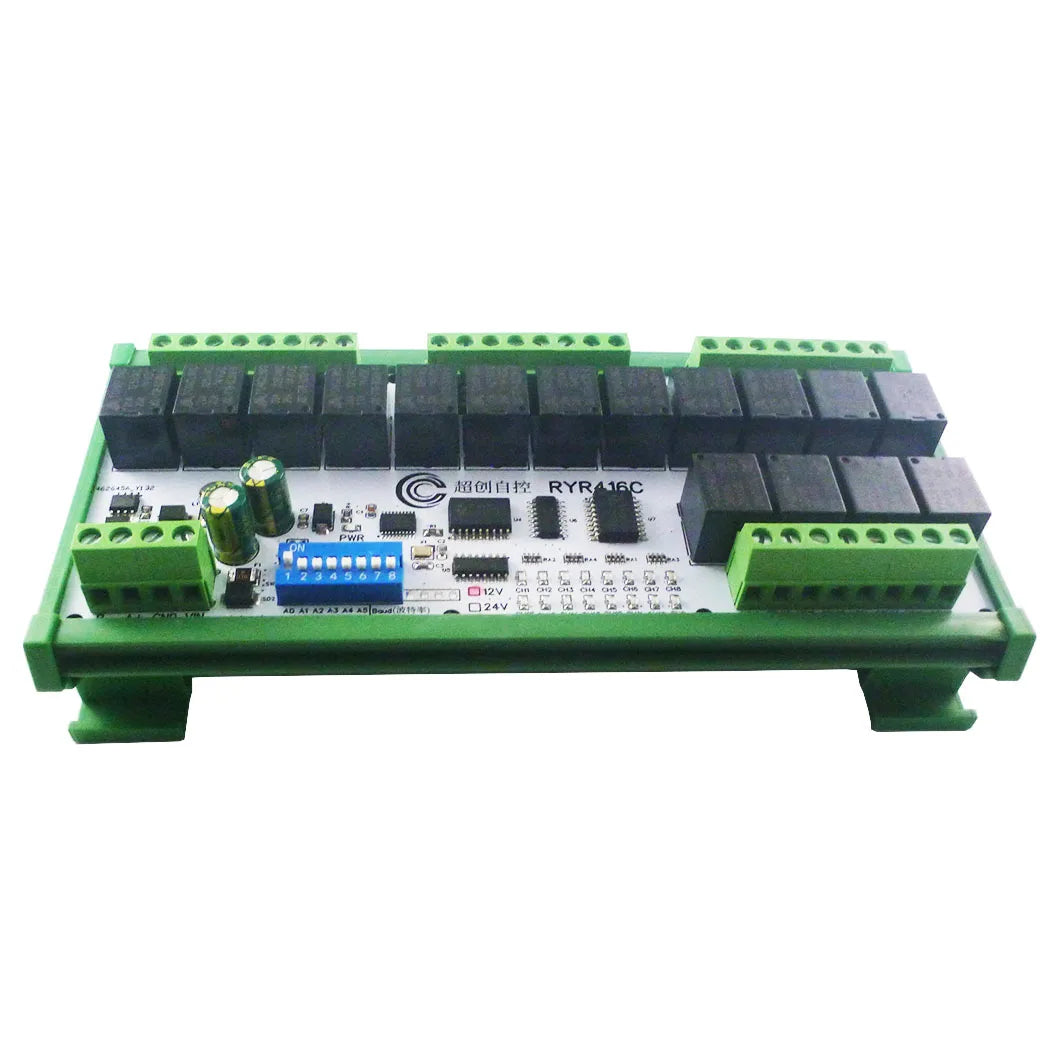

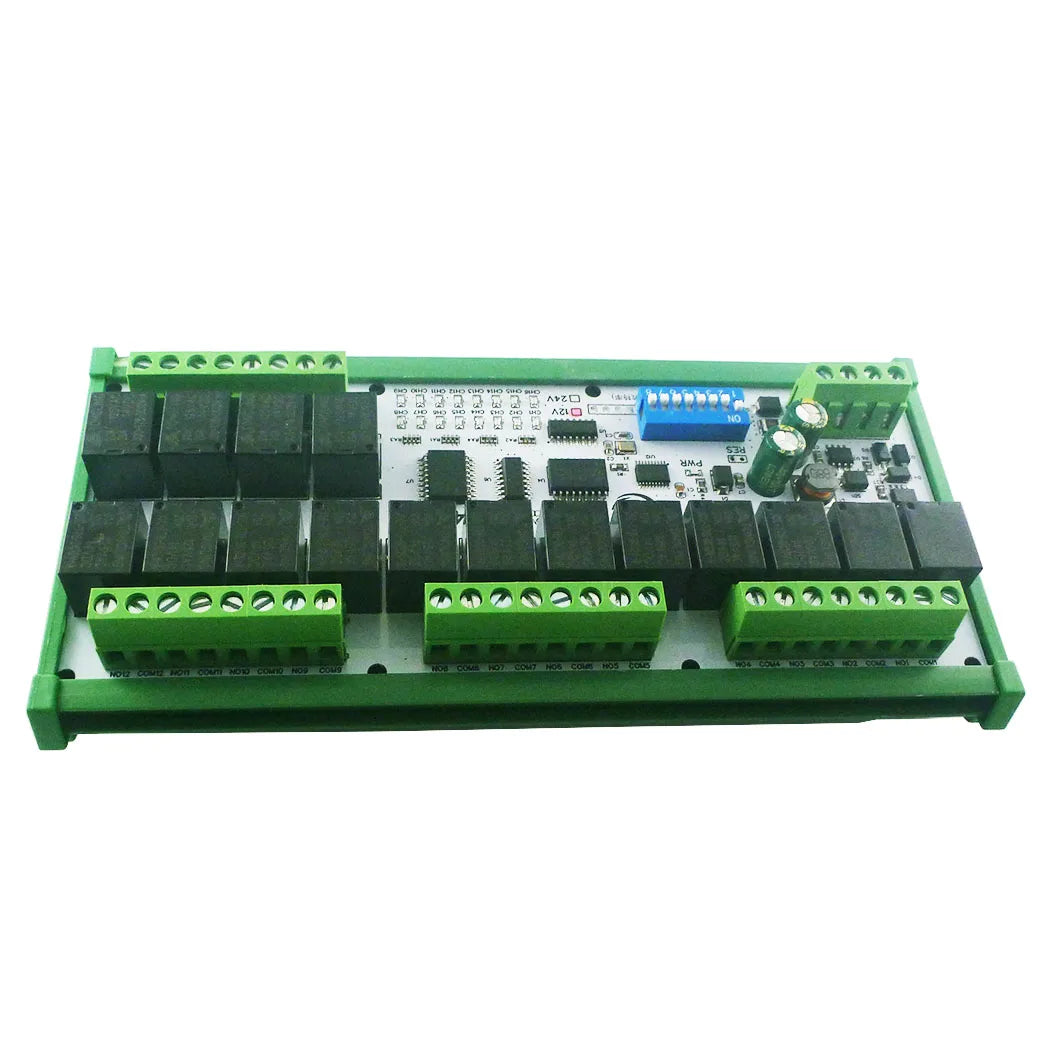

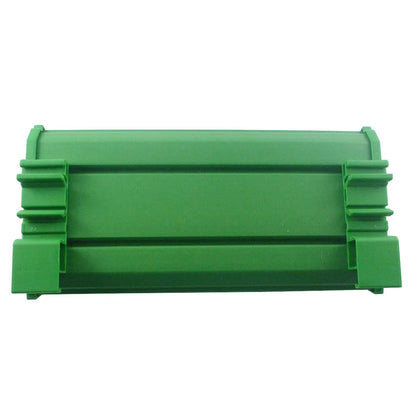

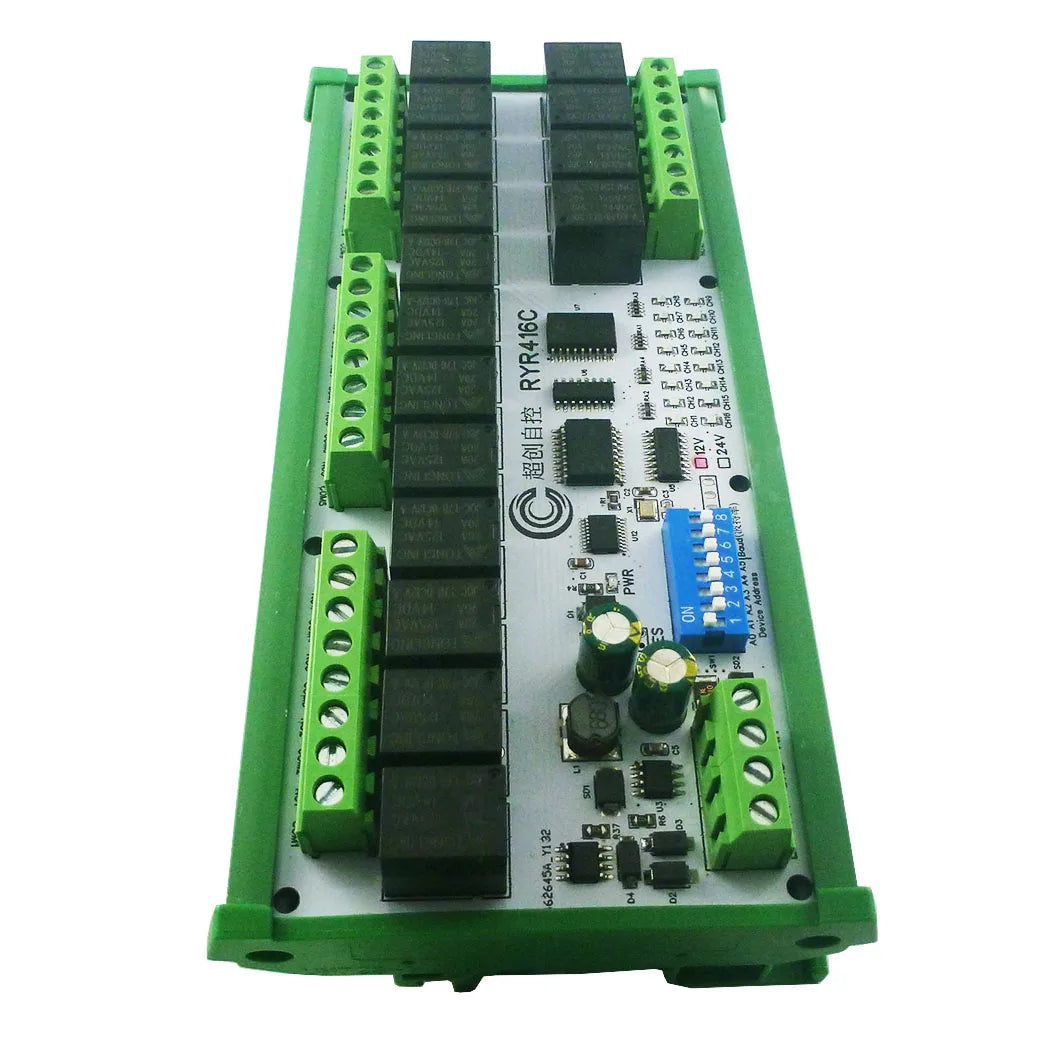

173*82*36MM

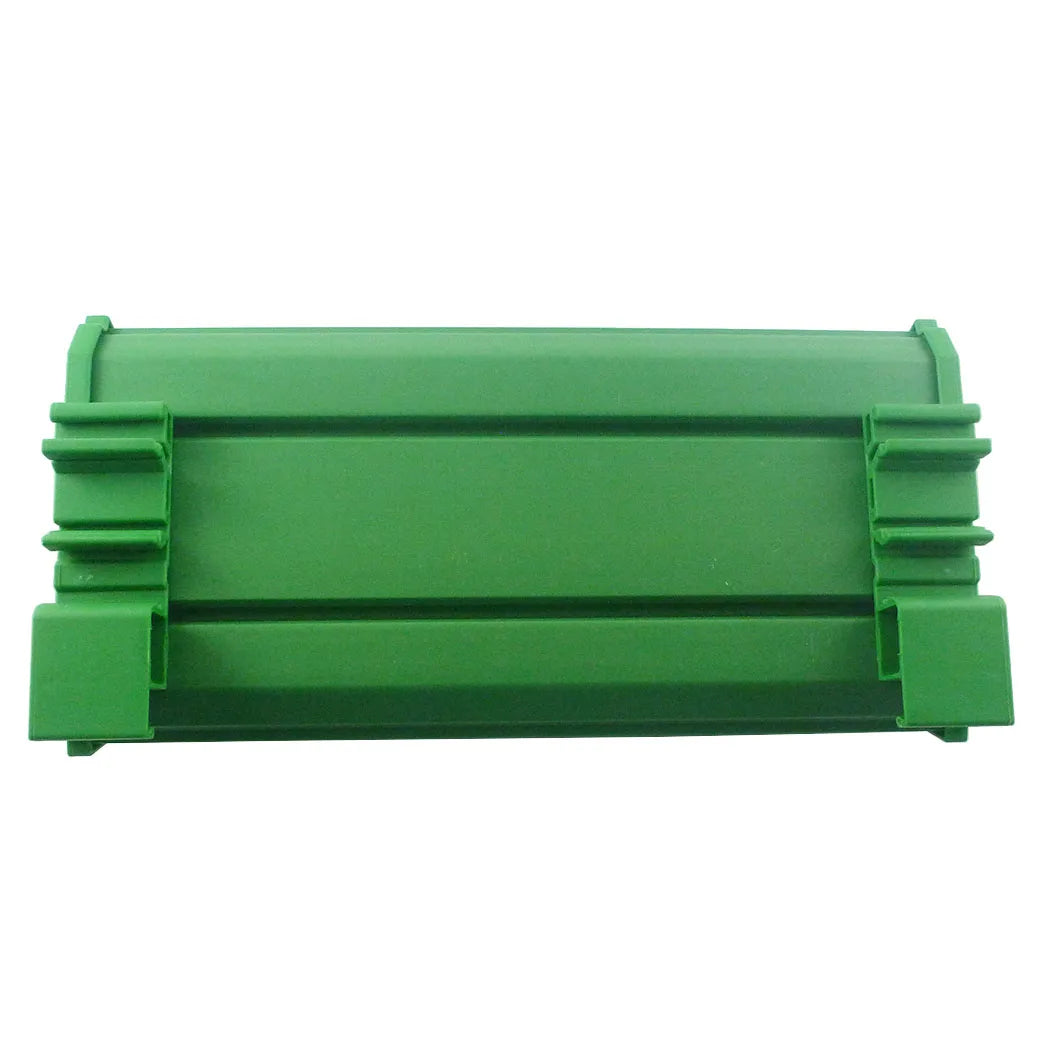

(With DIN Box);
11 Weight : 175g(Only Board),294g(With DIN Box)
12 Maximum load: 7A 120VAC;10A 28VDC
For more information, please contact me
Application
PLC DO Expansion Board
HMI Configuration Software
Smart Home,Home Automation ,Automated industry;
PTZ CCTV Camera
Security Monitoring
Identification system;
Automatic curtain control
LED Control
Farm water supply system
Stirring system
