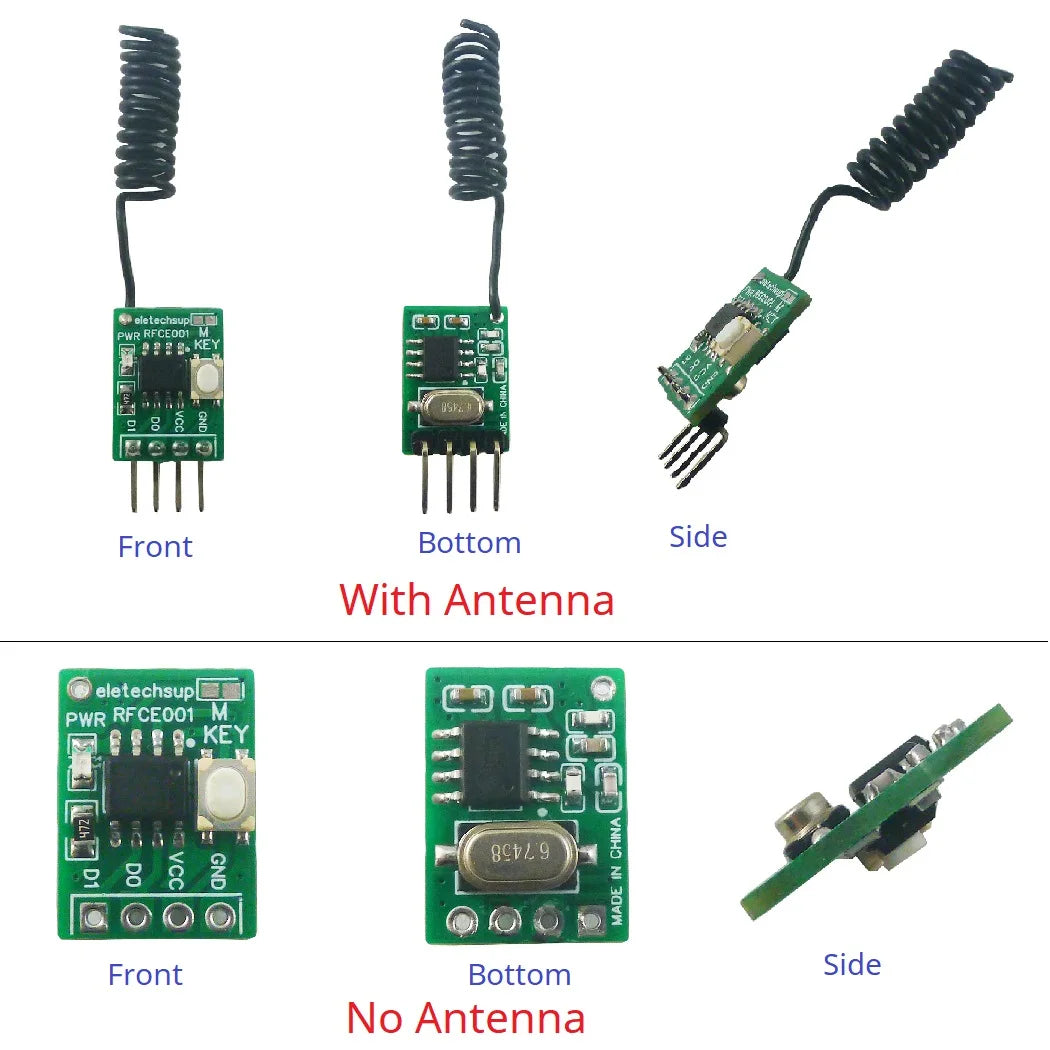

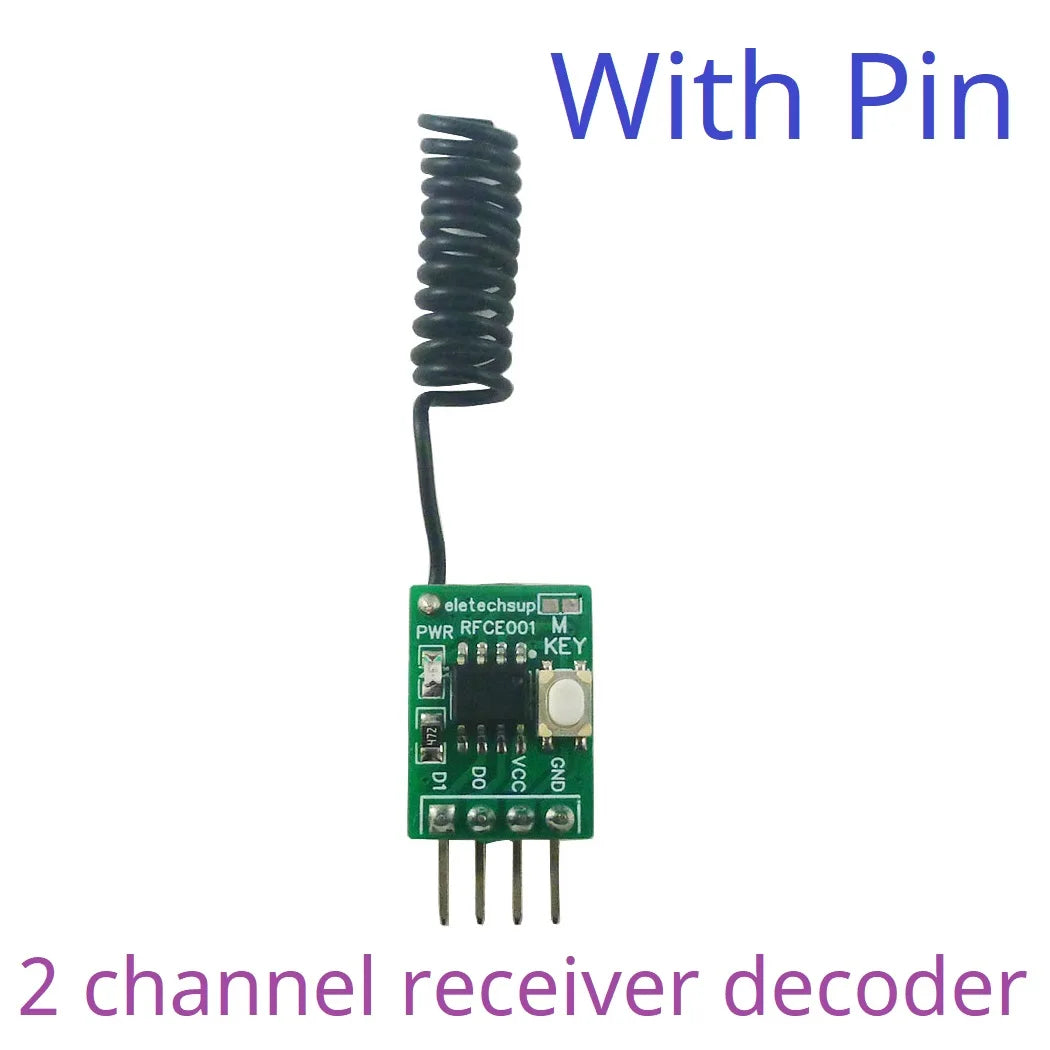

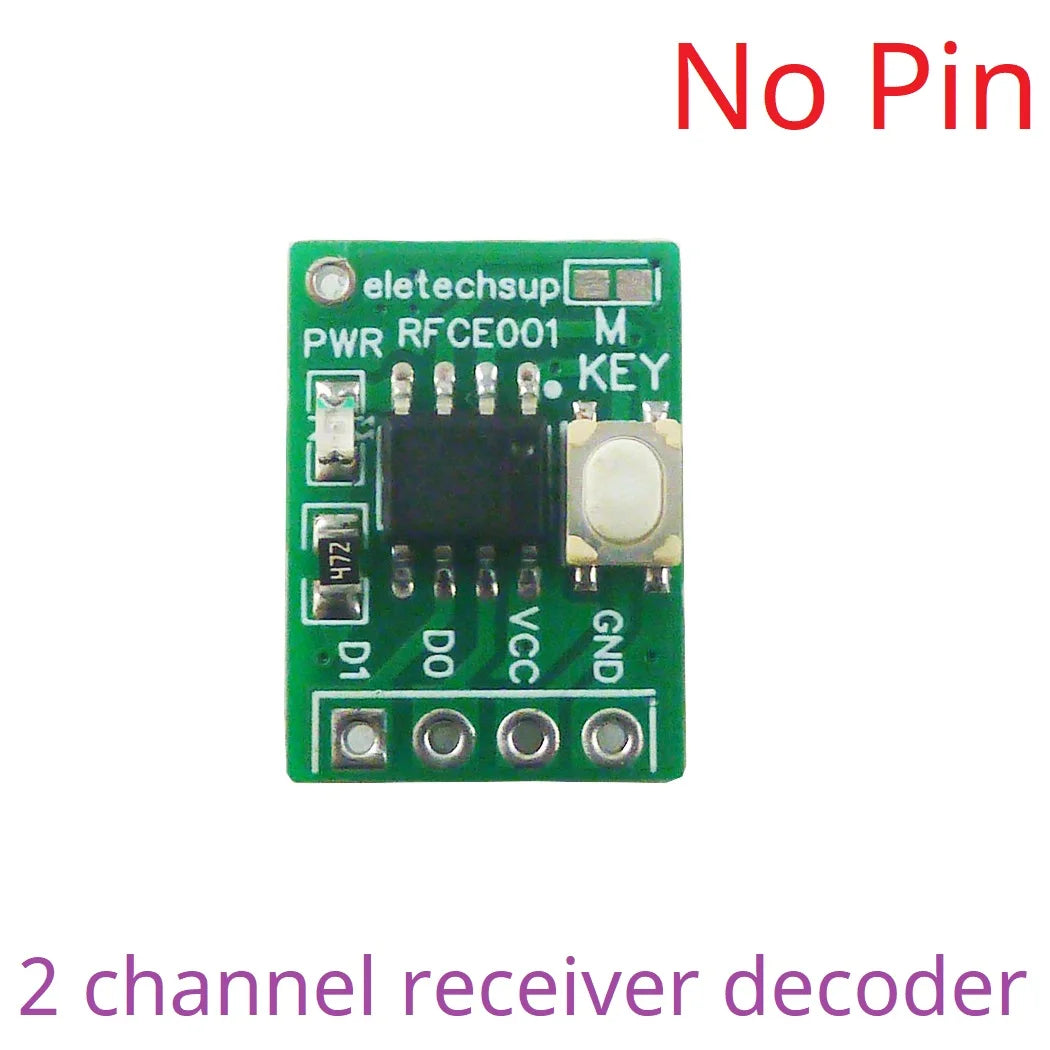

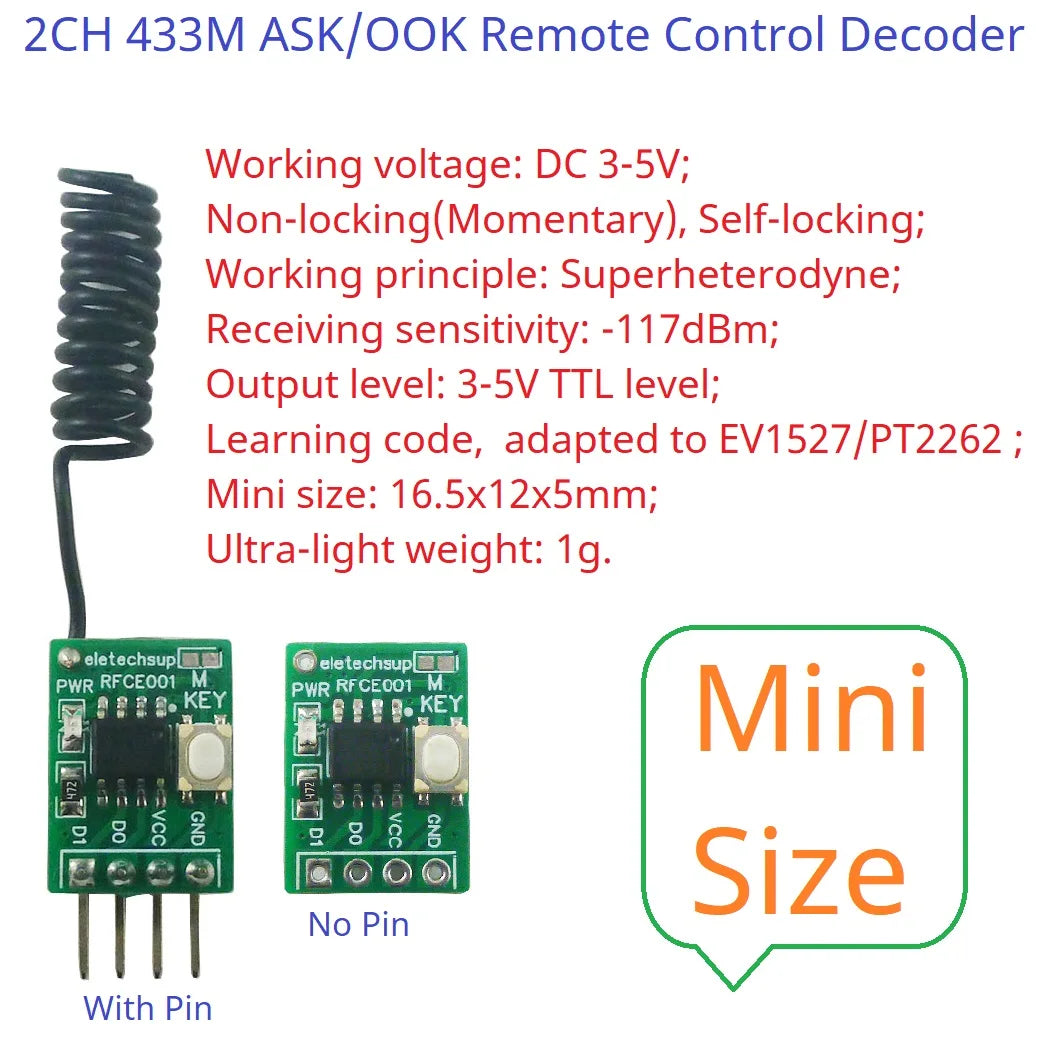

RFCE001 Mini 2CH 433M UHF Wireless Receiver – EV1527/PT2262/2264 Decoder Module with ASK OOK Learning & Fixed Code for Smart Home

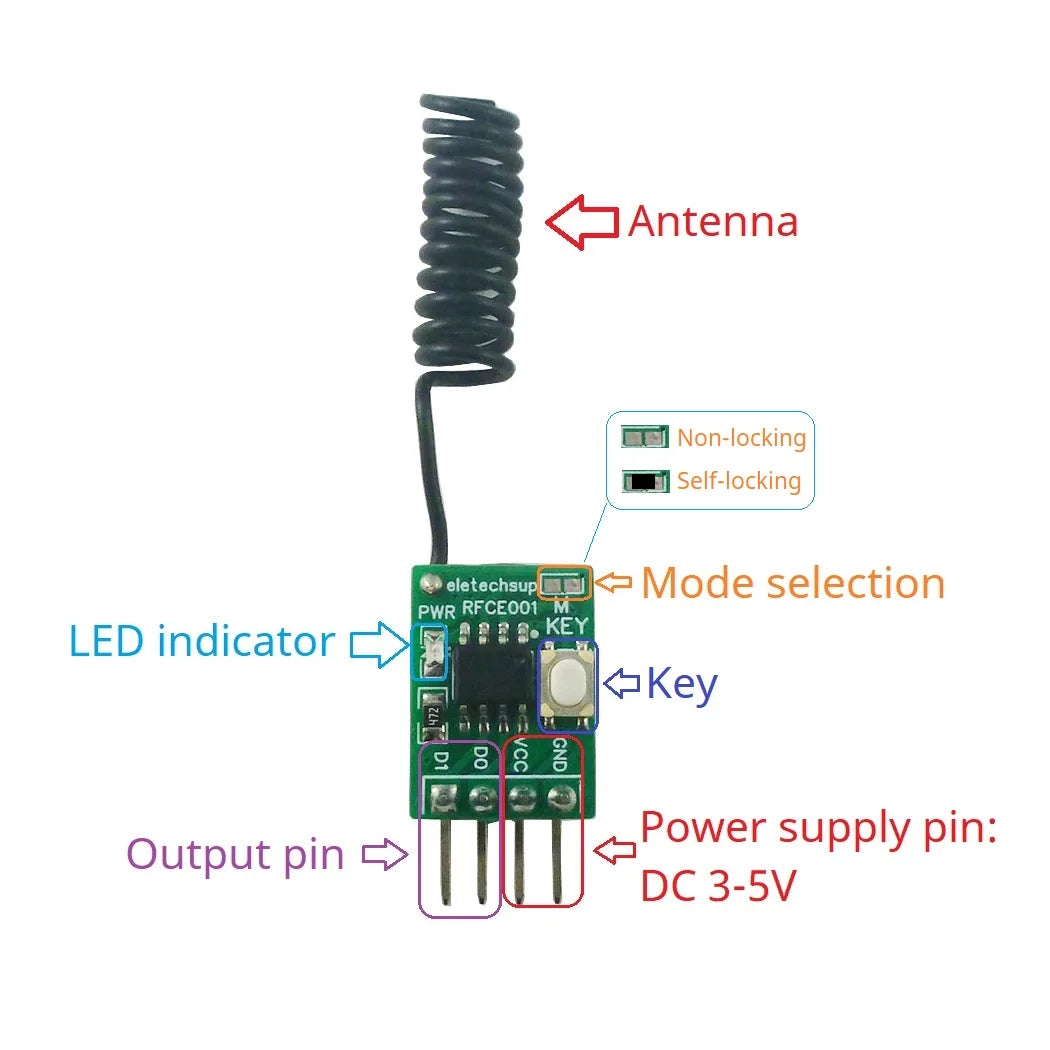

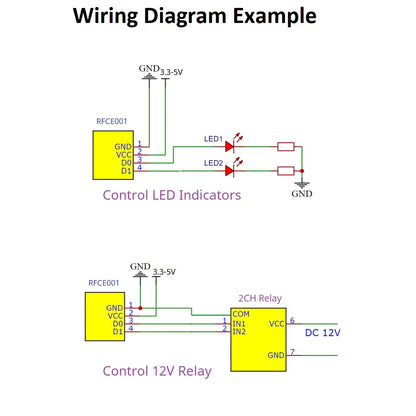

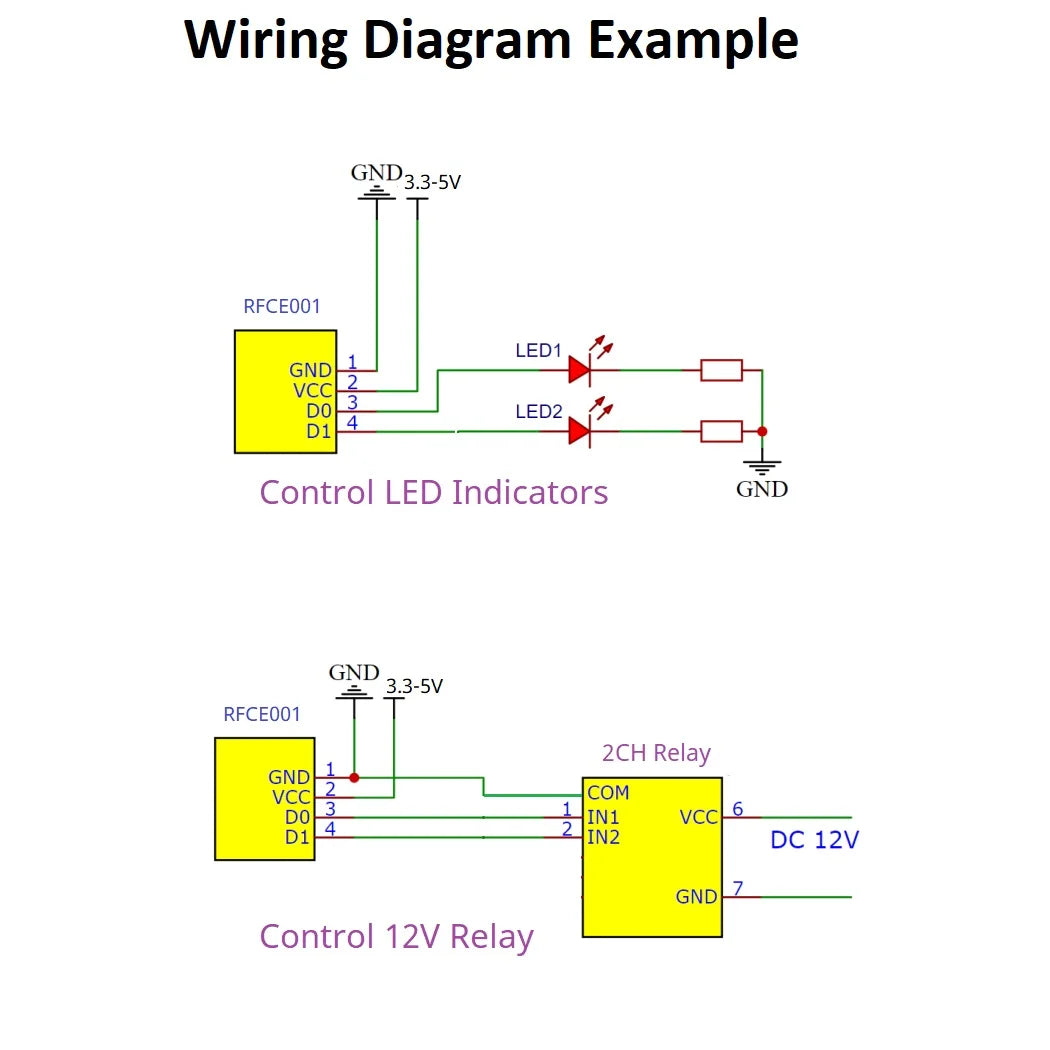

Pin description

GND: GND pin, DC 3-5V power supply negative;

VCC: VCC pin, DC 3-5V power supply positive ;

D0 : Channel 1 output, active high;

D1 : Channel 2 output, active high;

Adapter remote control (learning remote control)


After powering on, the LED light (PWR) flashes once and then goes off. When receiving a valid remote control (EV1527/PT2262) key value, the LED will flash quickly.

Adaptation (learning):
1 Press the KEY button, the LED light turns on
2 Press button 1 to be learned, the LED will flash quickly, button 1 is learned successfully, and the LED will remain on.
3 Press button 2 to be learned, the LED flashes quickly, and button 2 is learned successfully. The LED goes off and exits the learning state.
The adaptation (learning) process must be completed within 15 seconds

Clear the code: Press and hold the KEY button, the LED will light up, and after about 8 seconds the LED will go out, indicating that the code clearing is completed (note: none of the previously saved remote controls will exist after clearing the code.

Note: The LED light (PWR) is always off and will flash only when a valid signal is received.

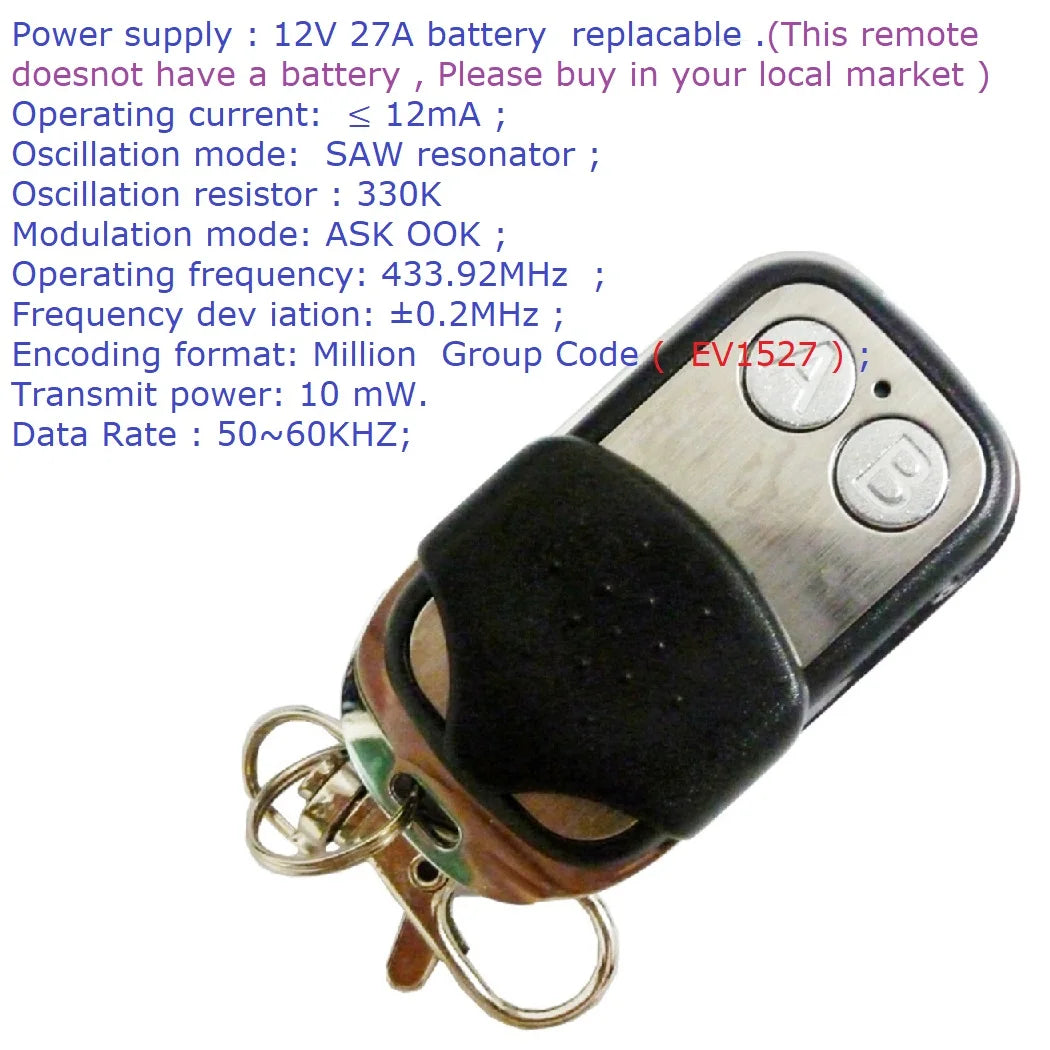

433M 2 Button EV1527 Remote Control:


Technical Data :
Power supply : 12V 27A battery replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 12mA ;
Oscillation mode: SAW resonator ;
Oscillation resistor : 330K
Modulation mode:ASK OOK ;
Operating frequency:433.92MHz ;
Frequency deviation:±0.2MHz;
Encoding format: Million Group Code ( EV1527 ) ;
Transmit power:10 mW.
Data Rate : 50~60KHZ;
