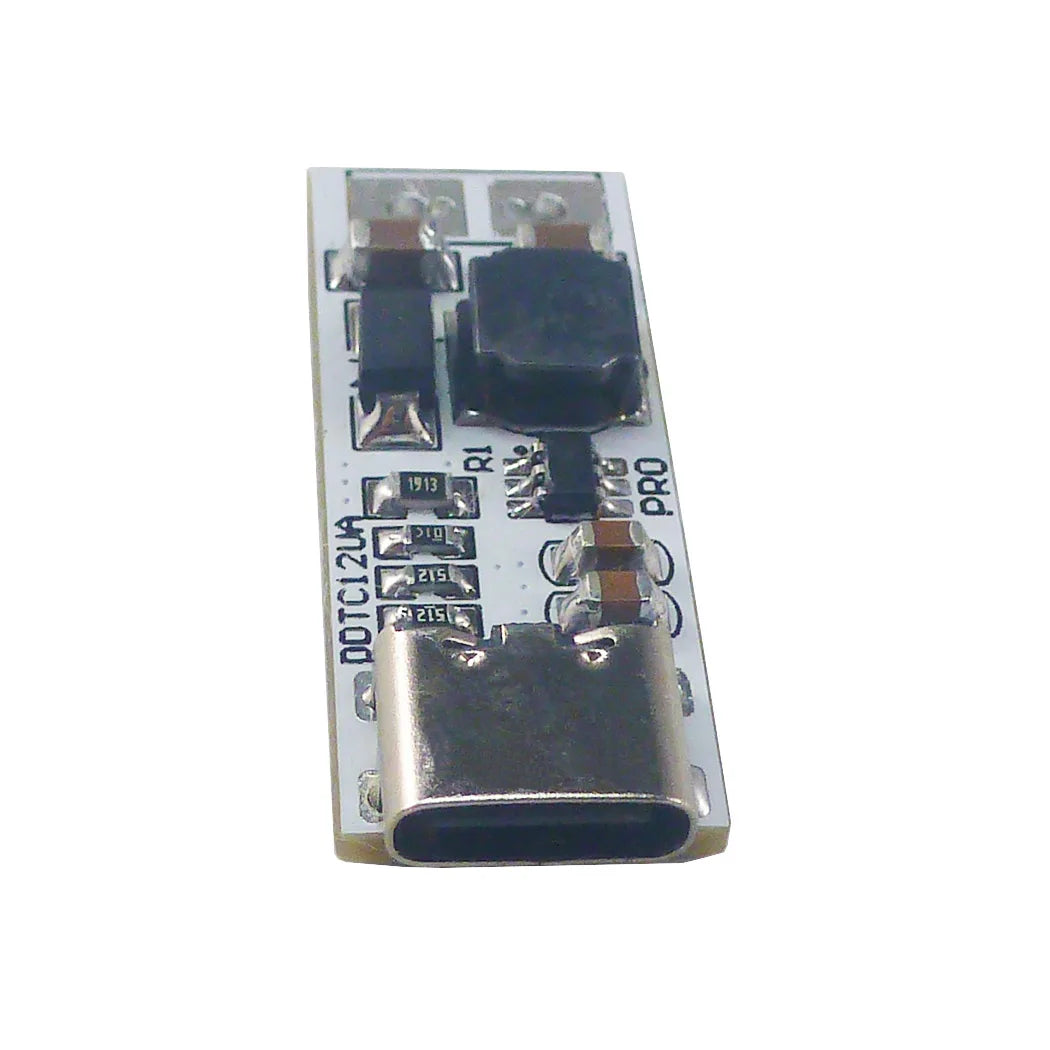

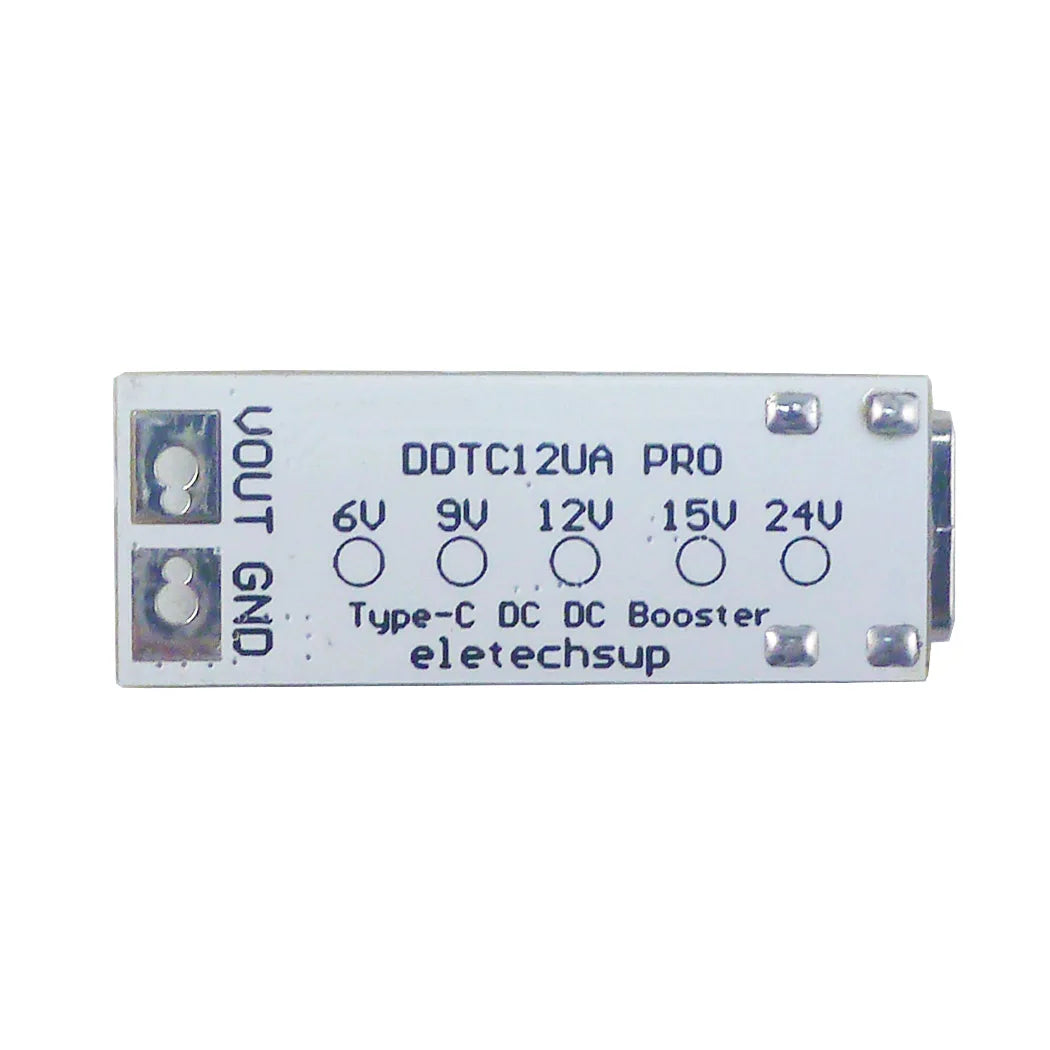

Full Function Type-C PD/QC Boost Converter – USB 5V to 6V/9V/12V/15V/24V 9W DC-DC Step-Up Module for Arduino Smart Home Speaker

Features:

Up to 94% Efficiency (usually is 83%-93%)

Quiescent Current (PFM) : 0.1uA
Quiescent Current (PWM): 1.5mA

Automatic Pulse Frequency Modulation Mode at Light Loads

Under voltage lockout,Current limiting,Thermal overload protection

Operating temperature range : -40~+125 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

Size : 31mm x 11.5mm x 4.6mm
Weight : 2g

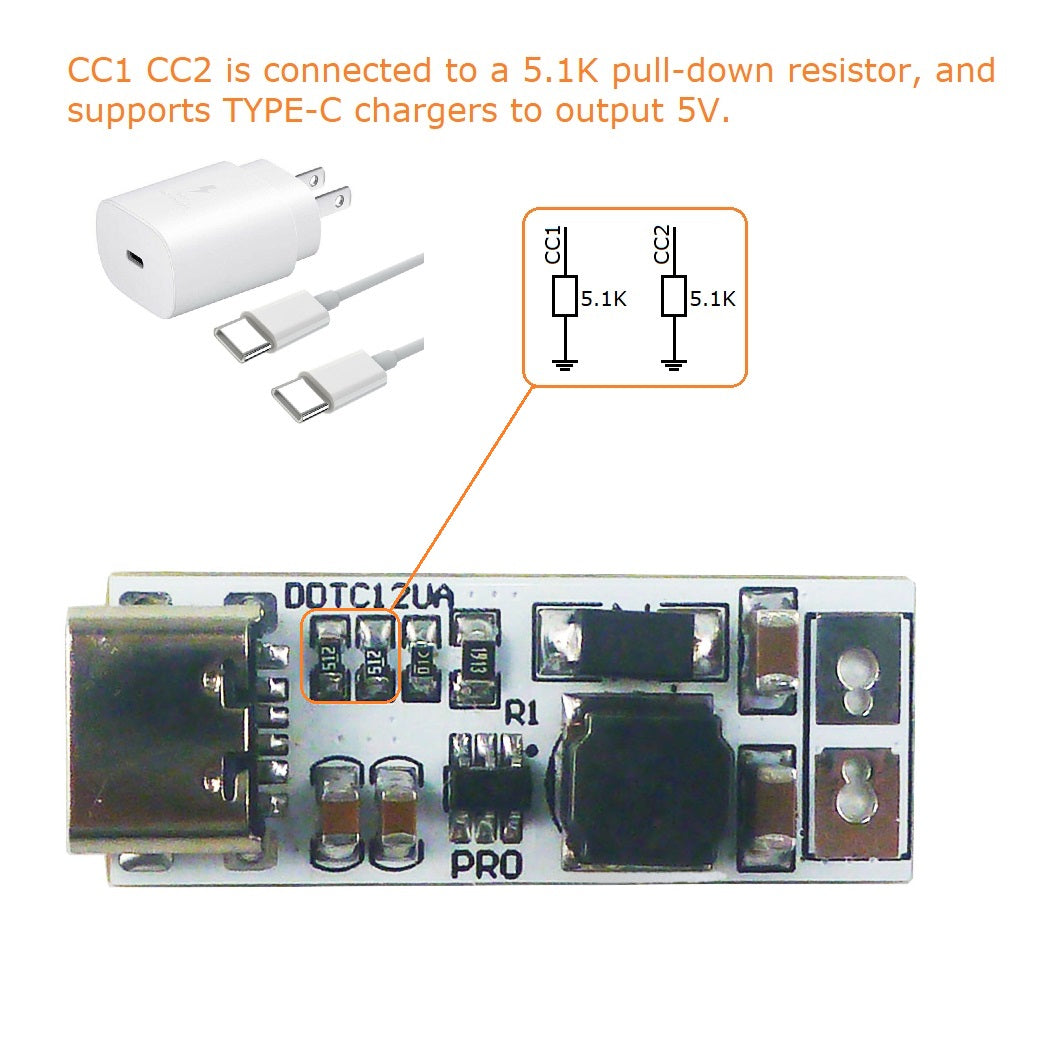

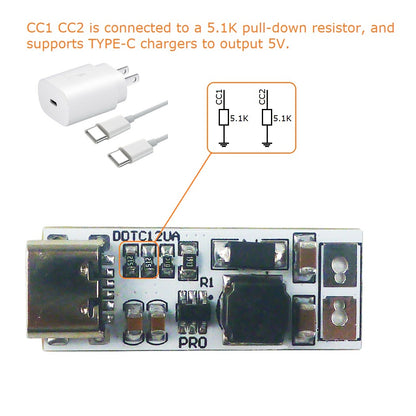

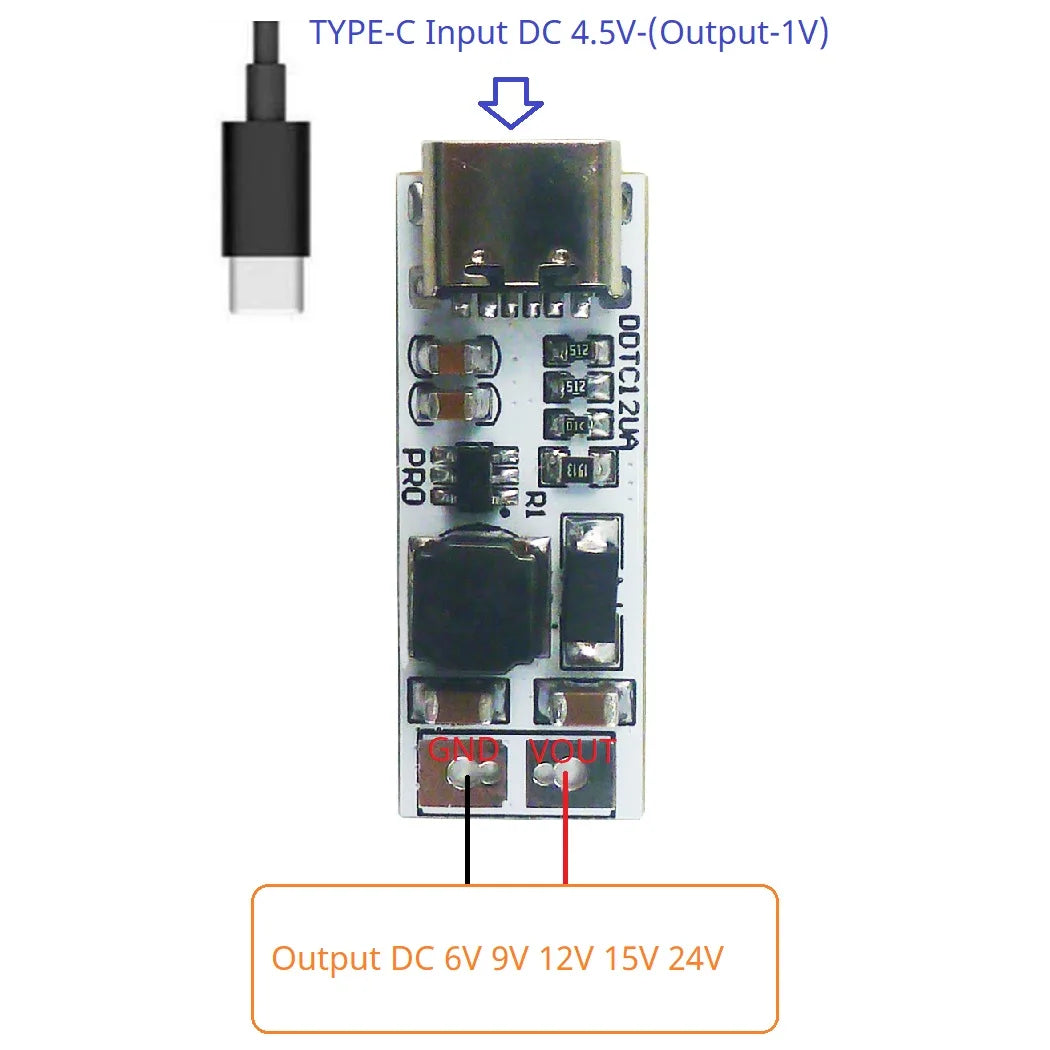

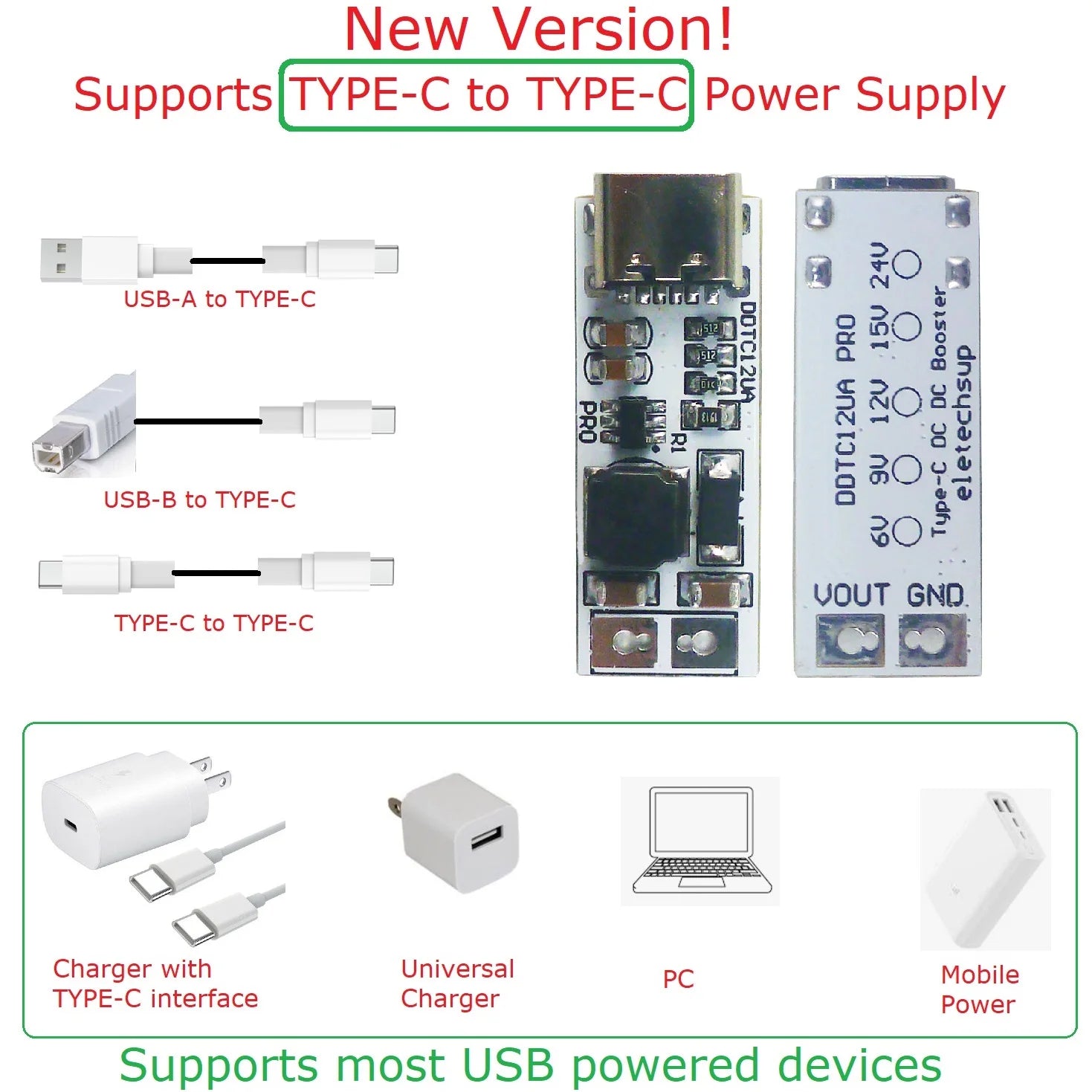

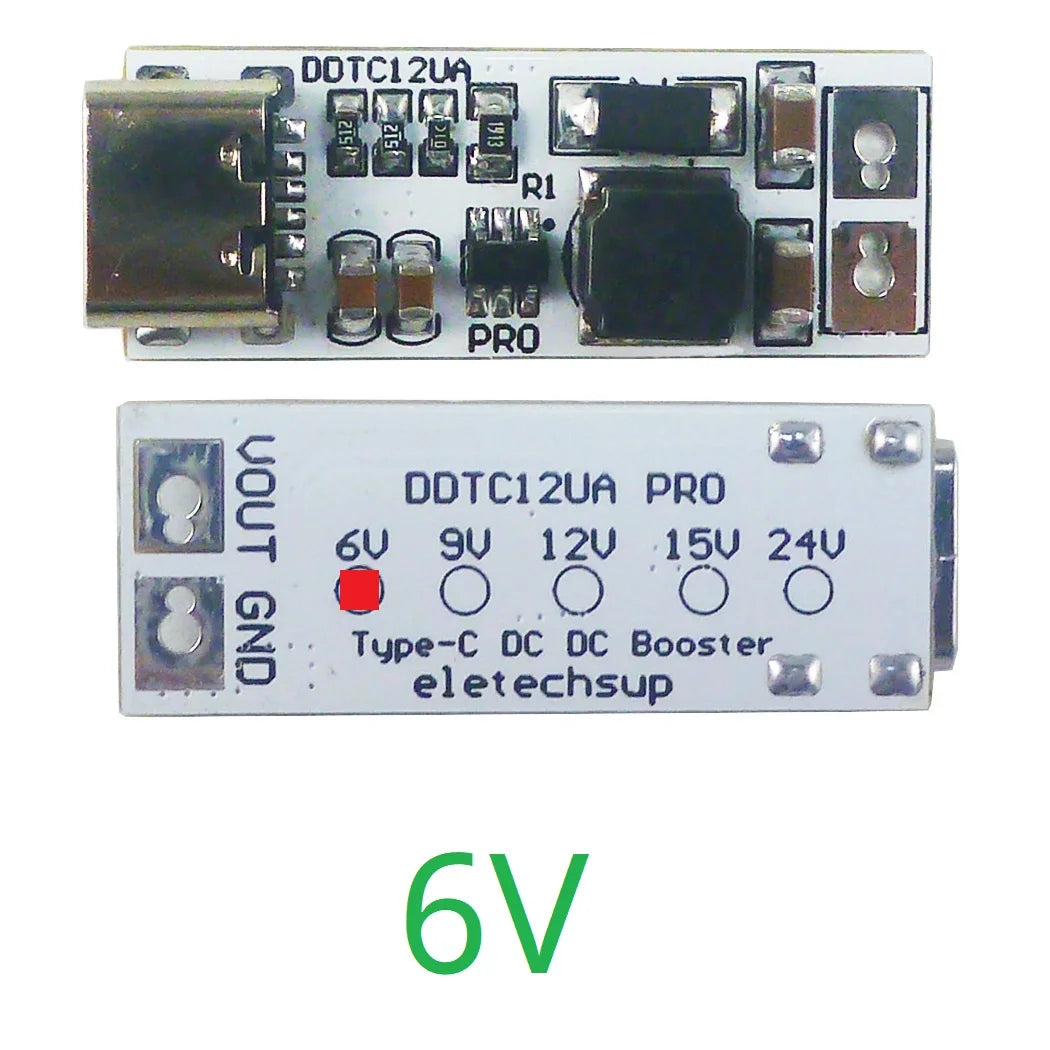

Output 6V :

Input voltage DC 4.5 ~ 5.2V,output DC 6V±2%

Maximum output : 6V/1500MA

Input DC 5V 1.32A,Output 6V 1.00A;

Input DC 5V 1.63A,Output 6V 1.20A;

Input DC 5V 2.00A,Output 6V 1.50A;

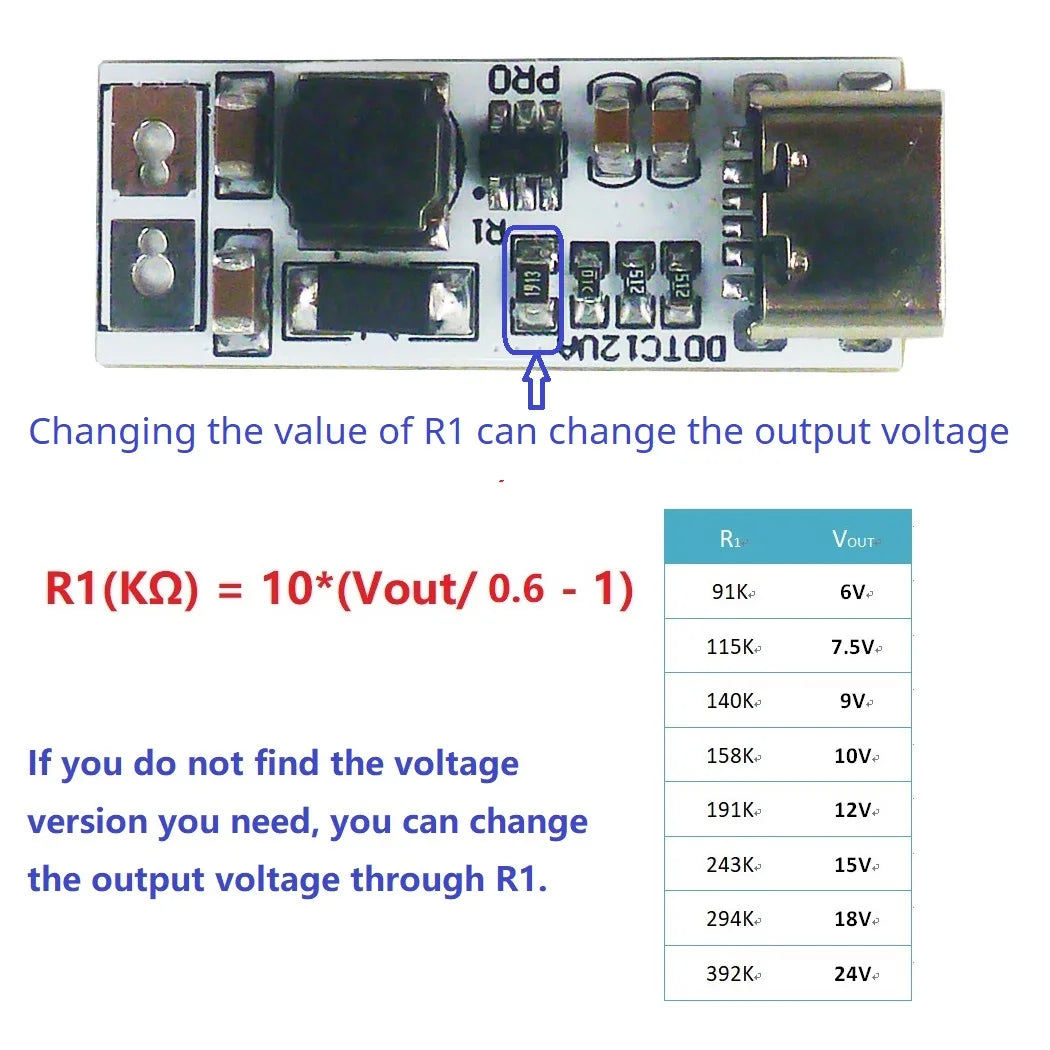

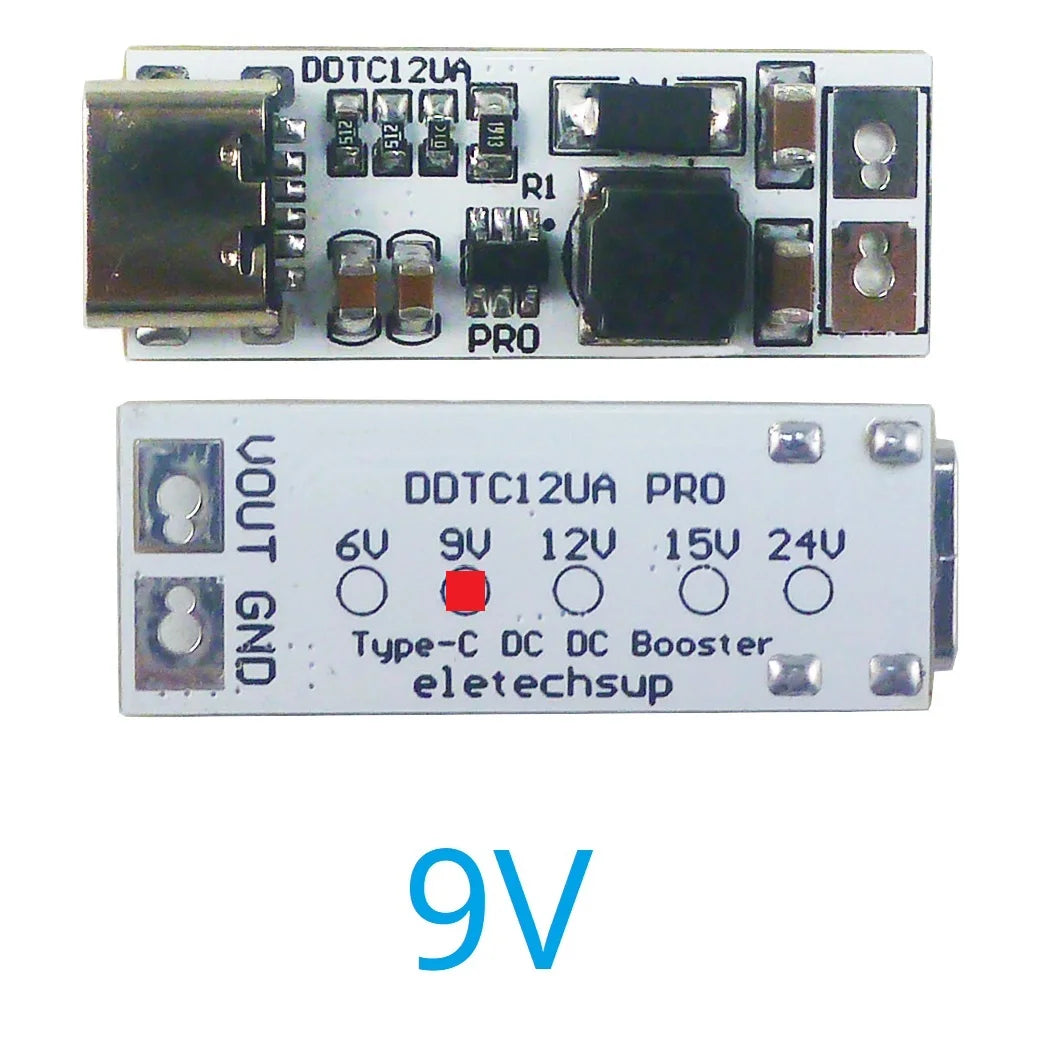

Output 9V :
Input voltage DC 4.5 ~ 8V,output DC 9V±2%

Maximum output : 9V/1000MA(See the table below for details)

Input DC 5V 1.00A,Output 9V 0.52A;

Input DC 5V 1.50A,Output 9V 0.76A;

Input DC 5V 2.00A,Output 9V 1.00A;

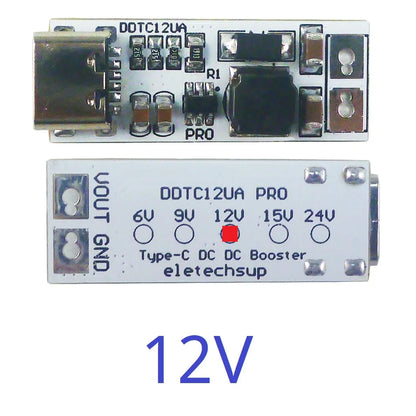

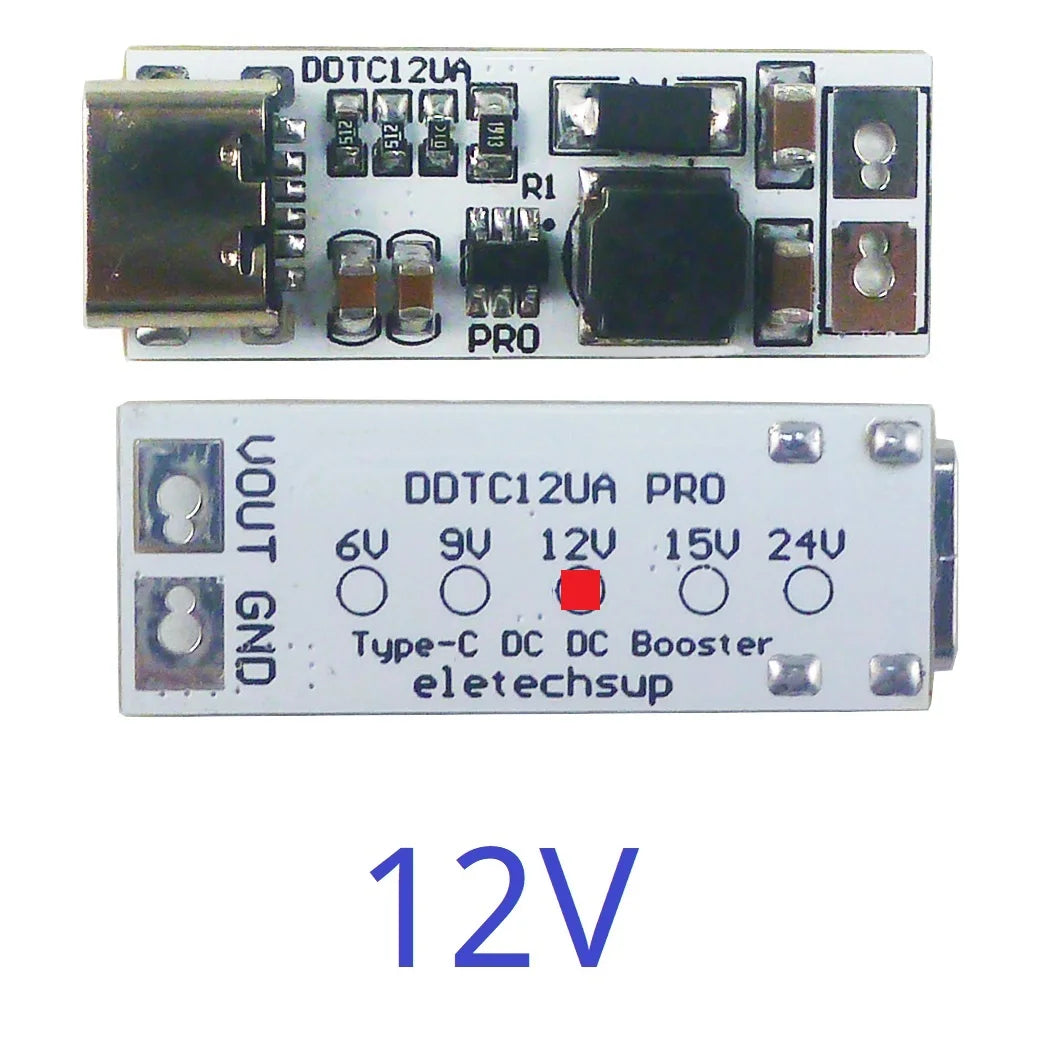

Output 12V :
Input voltage DC 4.5 ~ 11V,output DC 12V±2%

Maximum output : 12V/750MA(See the table below for details)

Input DC 5V 1.00A,Output 12V 0.39A;

Input DC 5V 1.50A,Output 12V 0.57A;

Input DC 5V 2.00A,Output 12V 0.75A;

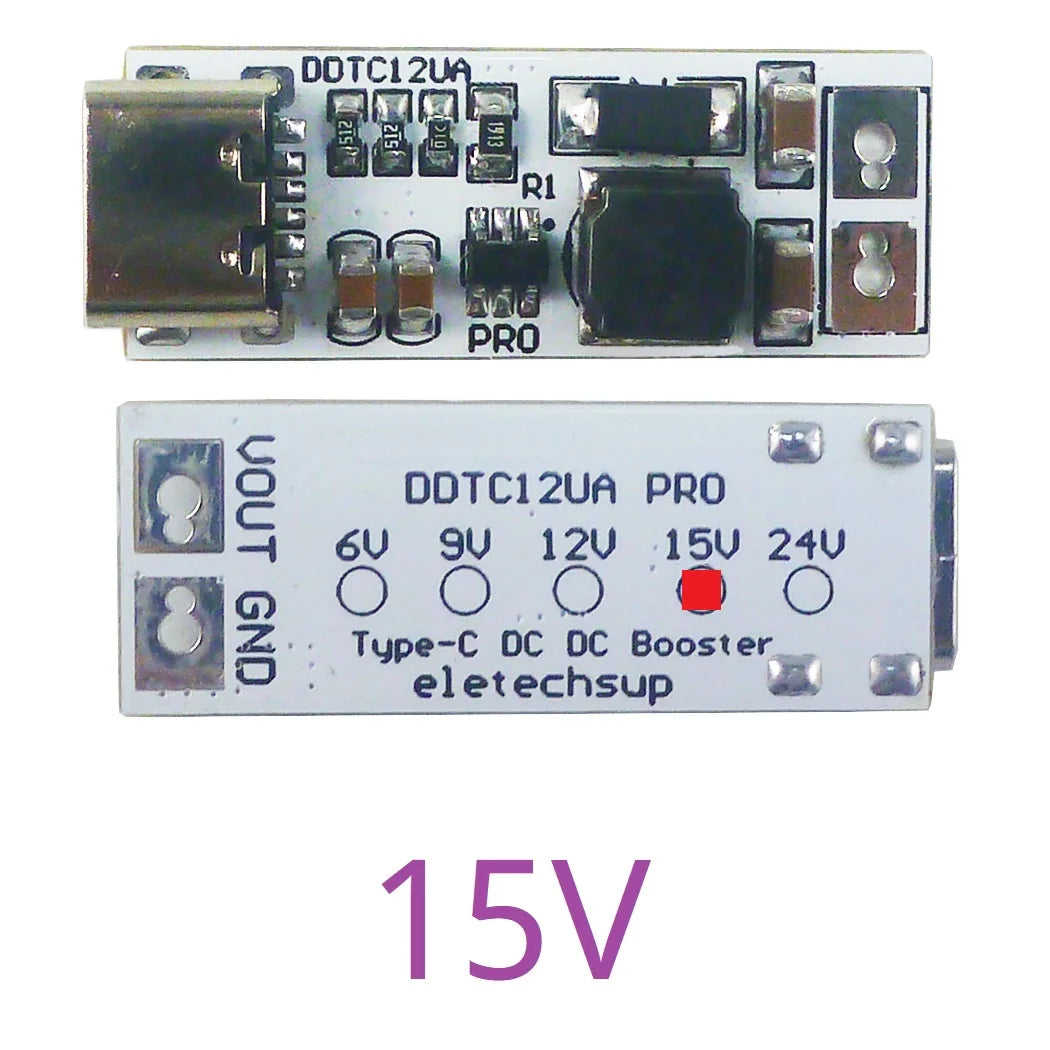

Output 15V :
Input voltage DC 4.5 ~ 14V,output DC 15V±2%

Maximum output : 15V/600MA(See the table below for details)

Input DC 5V 1.00A,Output 15V 0.31A;

Input DC 5V 1.50A,Output 15V 0.45A;

Input DC 5V 2.00A,Output 15V 0.60A;

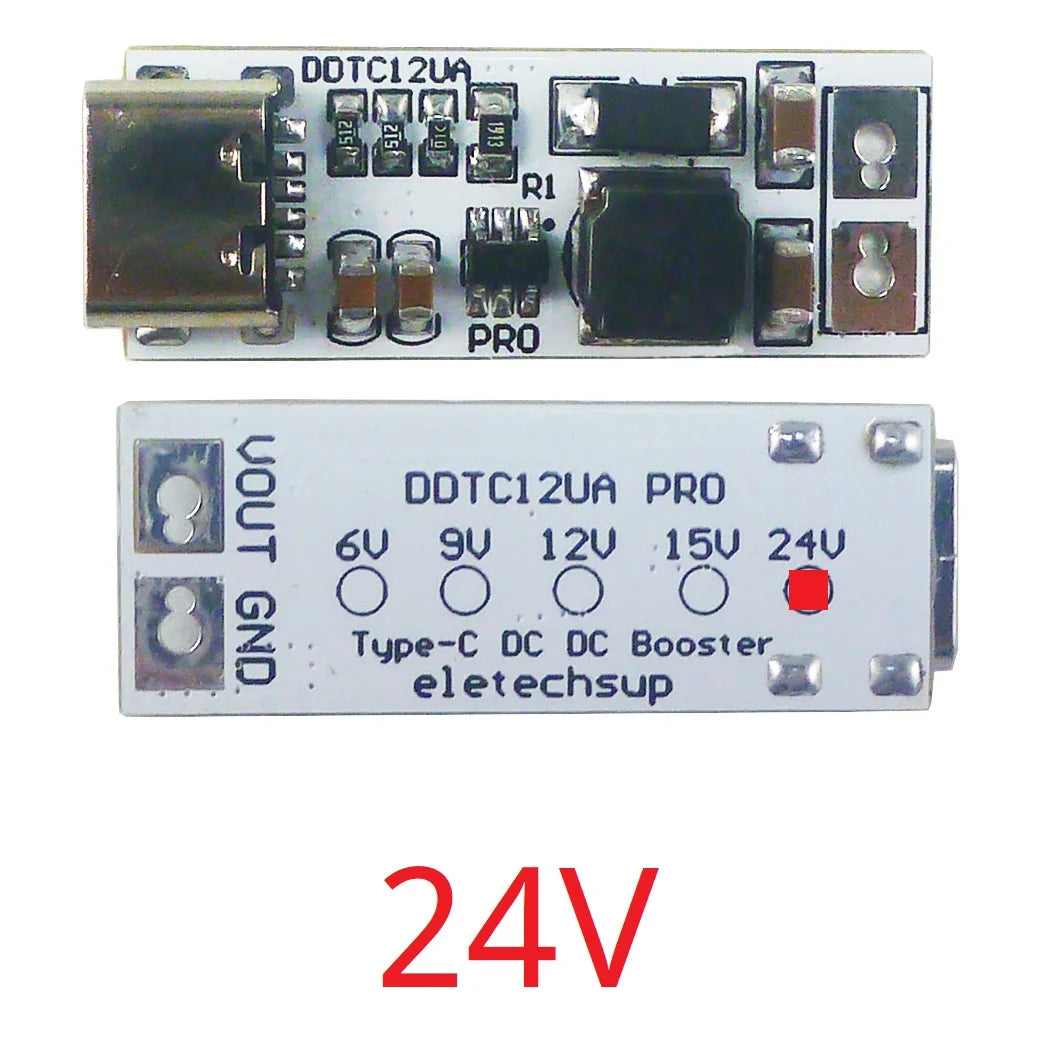

Output 24V :
Input voltage DC 4.5 ~ 18V,output DC 24V±2%

Maximum output : 24V/300MA(See the table below for details)

Input DC 5V 1.00A,Output 24V 0.19A;

Input DC 5V 1.50A,Output 24V 0.27A;

Input DC 5V 1.60A,Output 24V 0.30A;

Q & A:

Q : Why output voltage is less than the nominal voltage


A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
