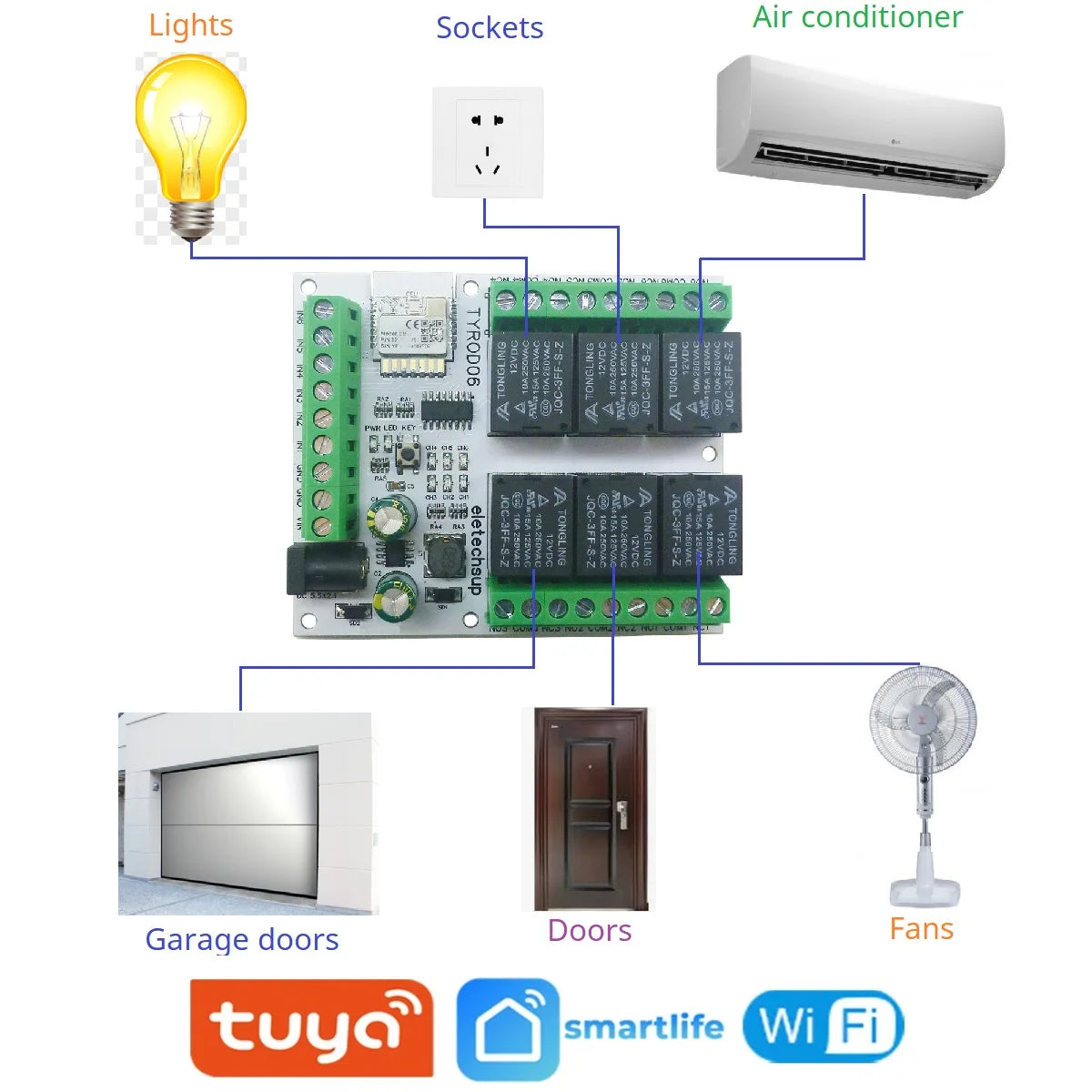

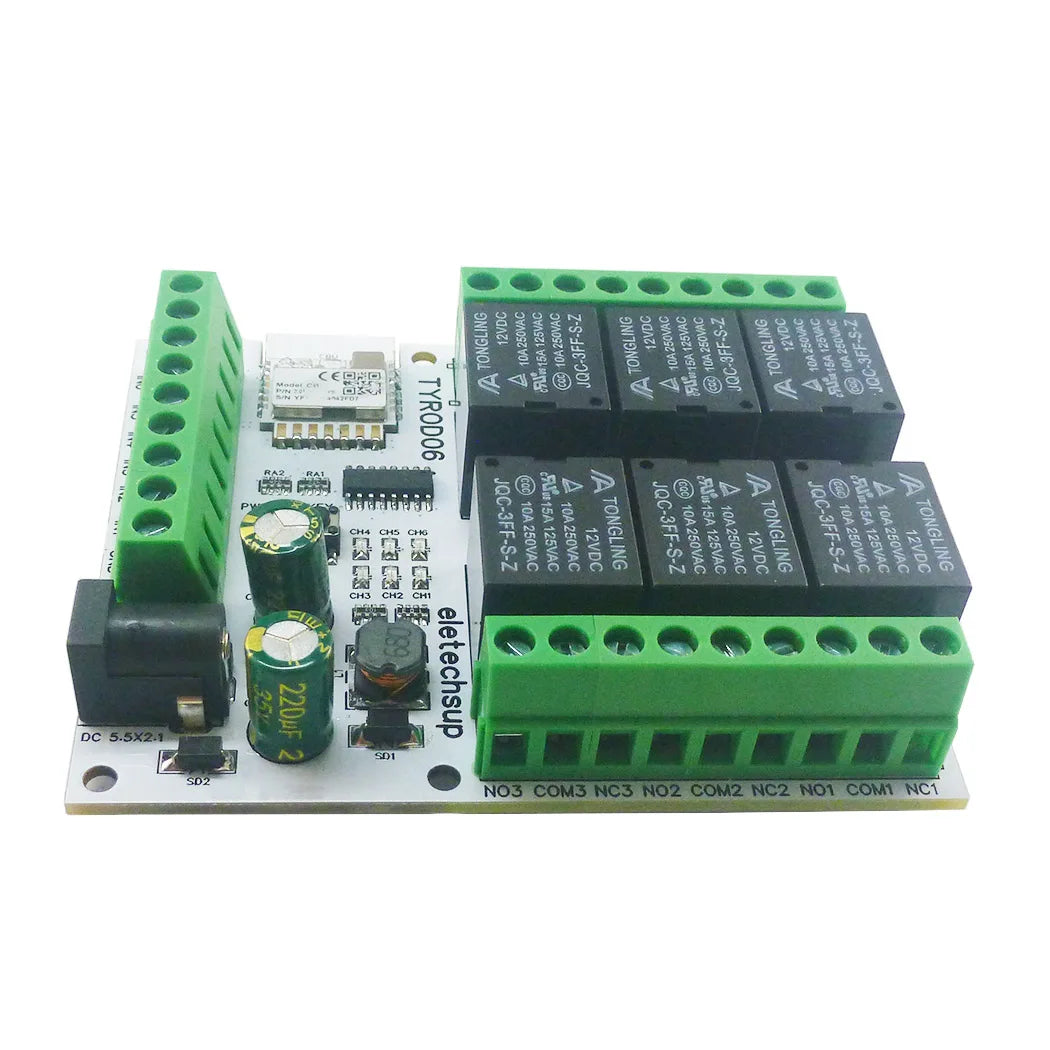

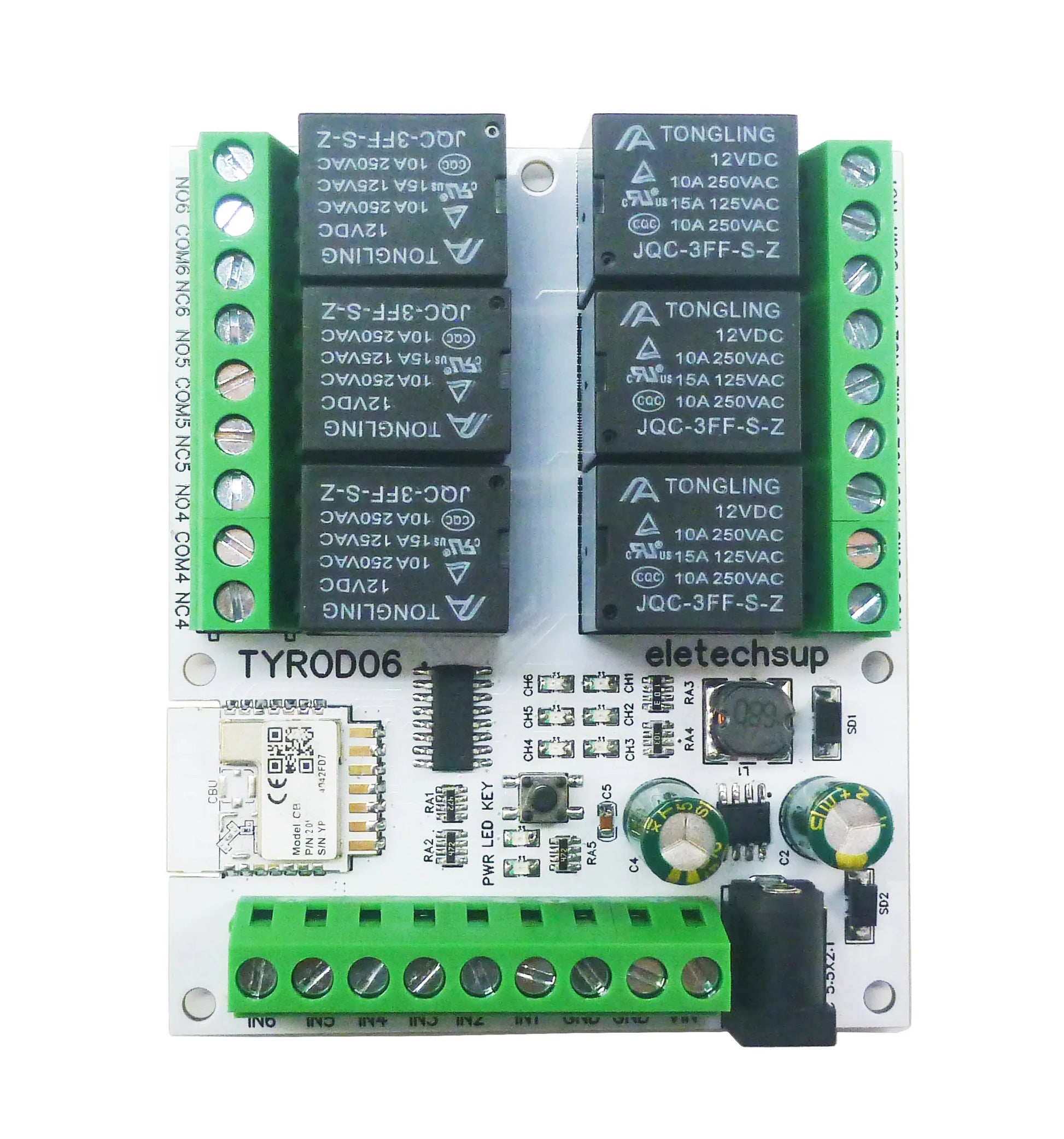

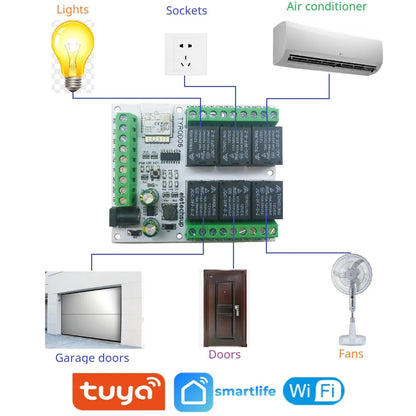

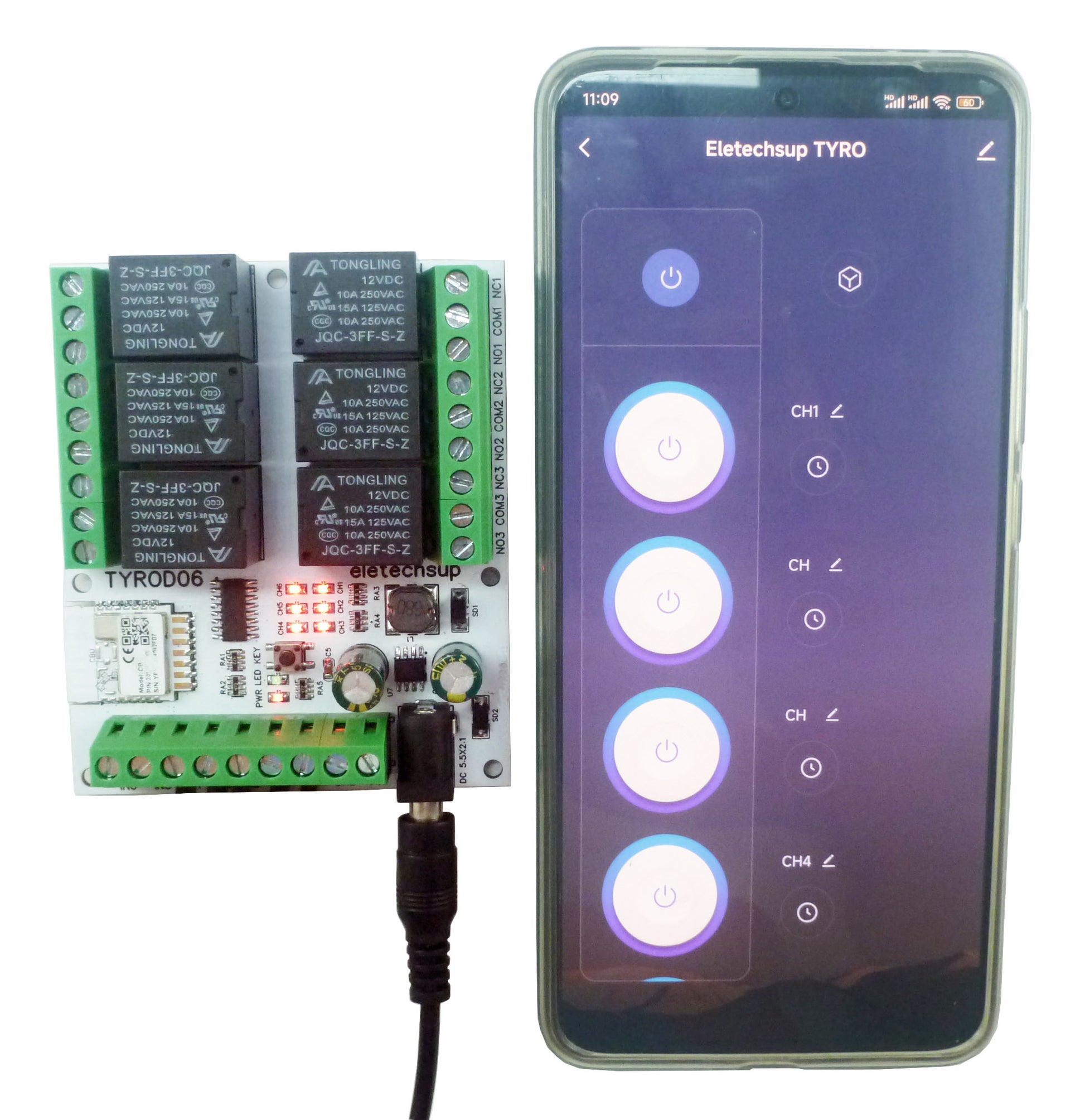

TYROD06 is a 6-channel smart relay module with input control developed and produced by eletechsup. It uses TUYA smart APP control and supports various mobile phone APPs. Through this module, you can easily realize your smart home system.

Product parameters:

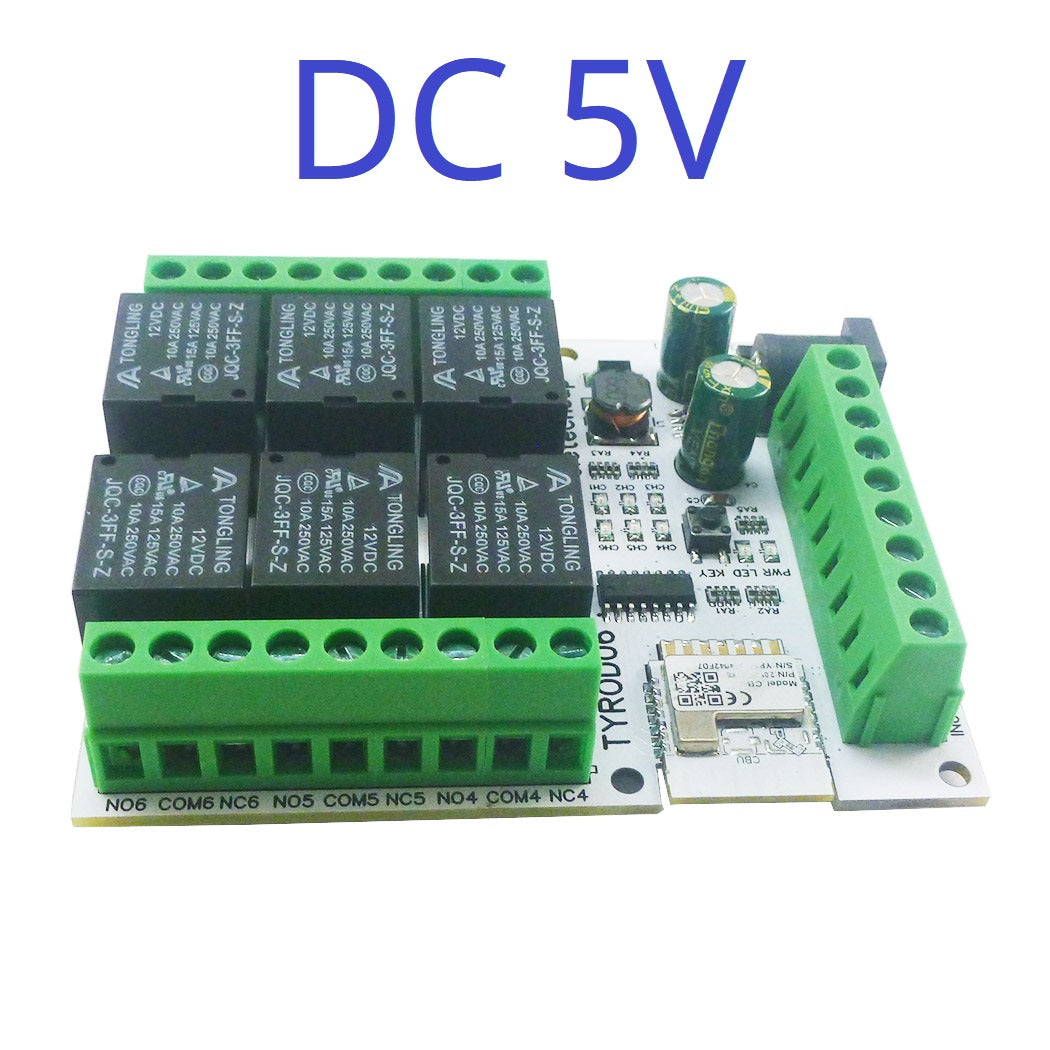

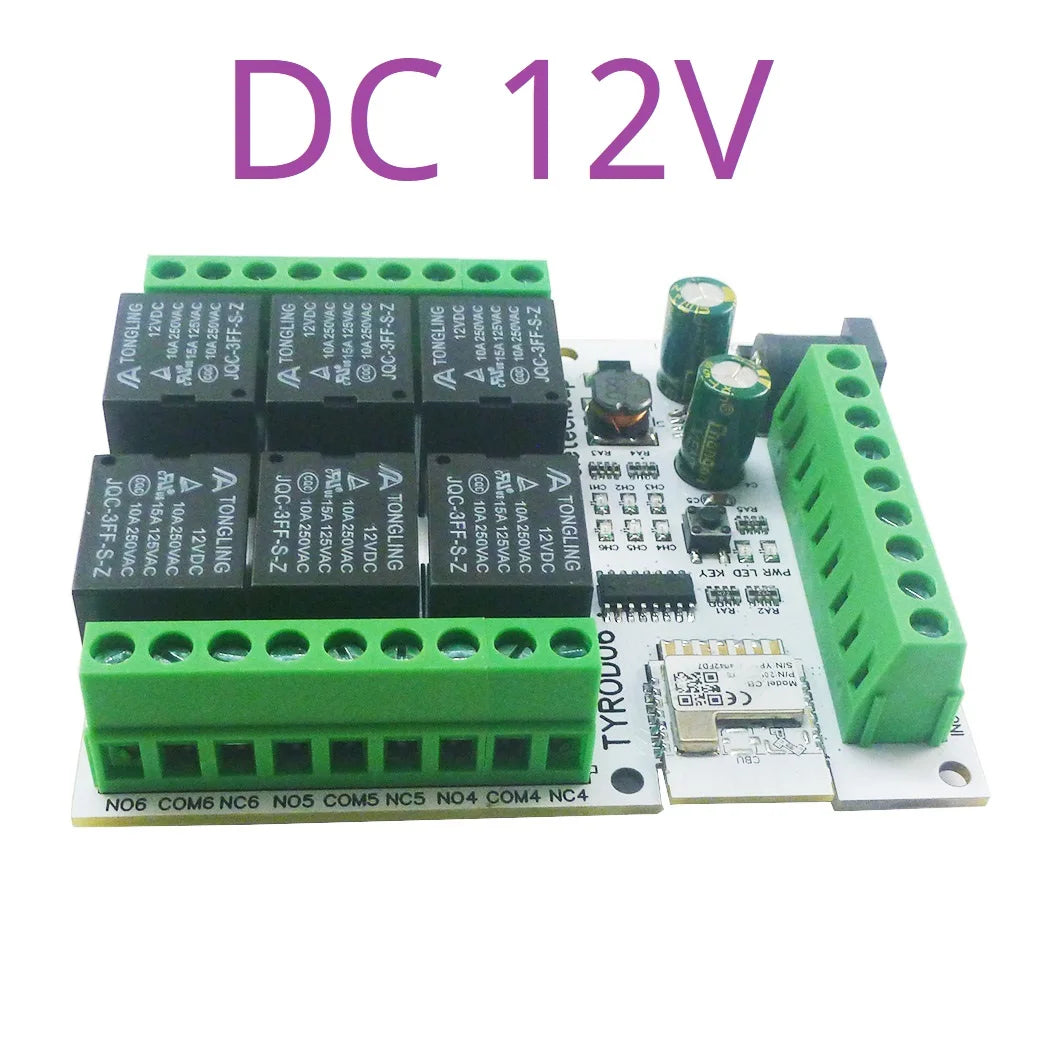

1 Working voltage: DC 5V/12V/24V(Three voltage versions)
2 Working current (DC 12V): standby 12MA, WIFI connection status 20-25MA, 1 relay on 48MA, 2 relays on 72MA, 3 relays on 102MA, 4 relays on 129MA, 5 relays on 160MA, 6 relays on 192MA
3 WiFi 2.4 ghz b/n/g

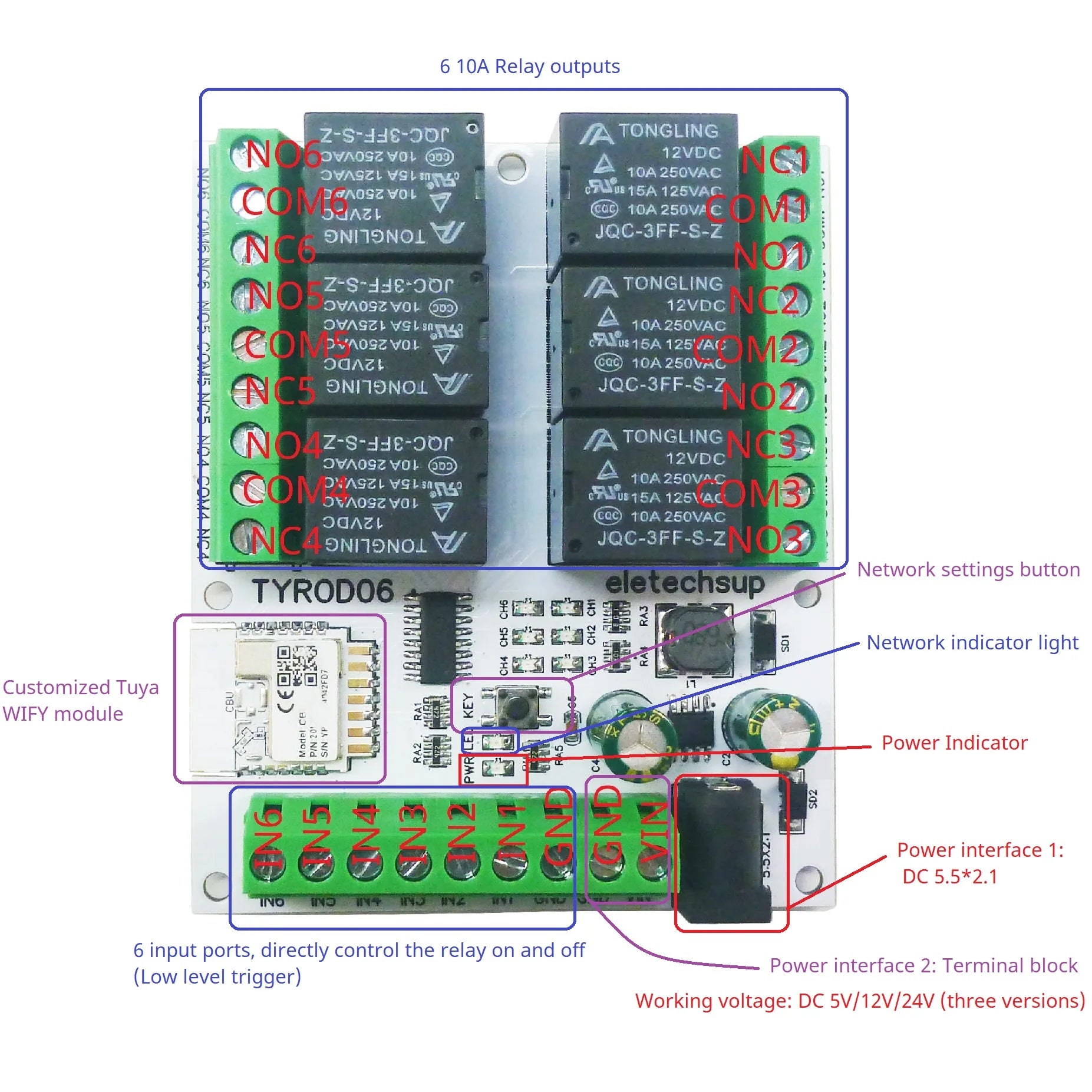

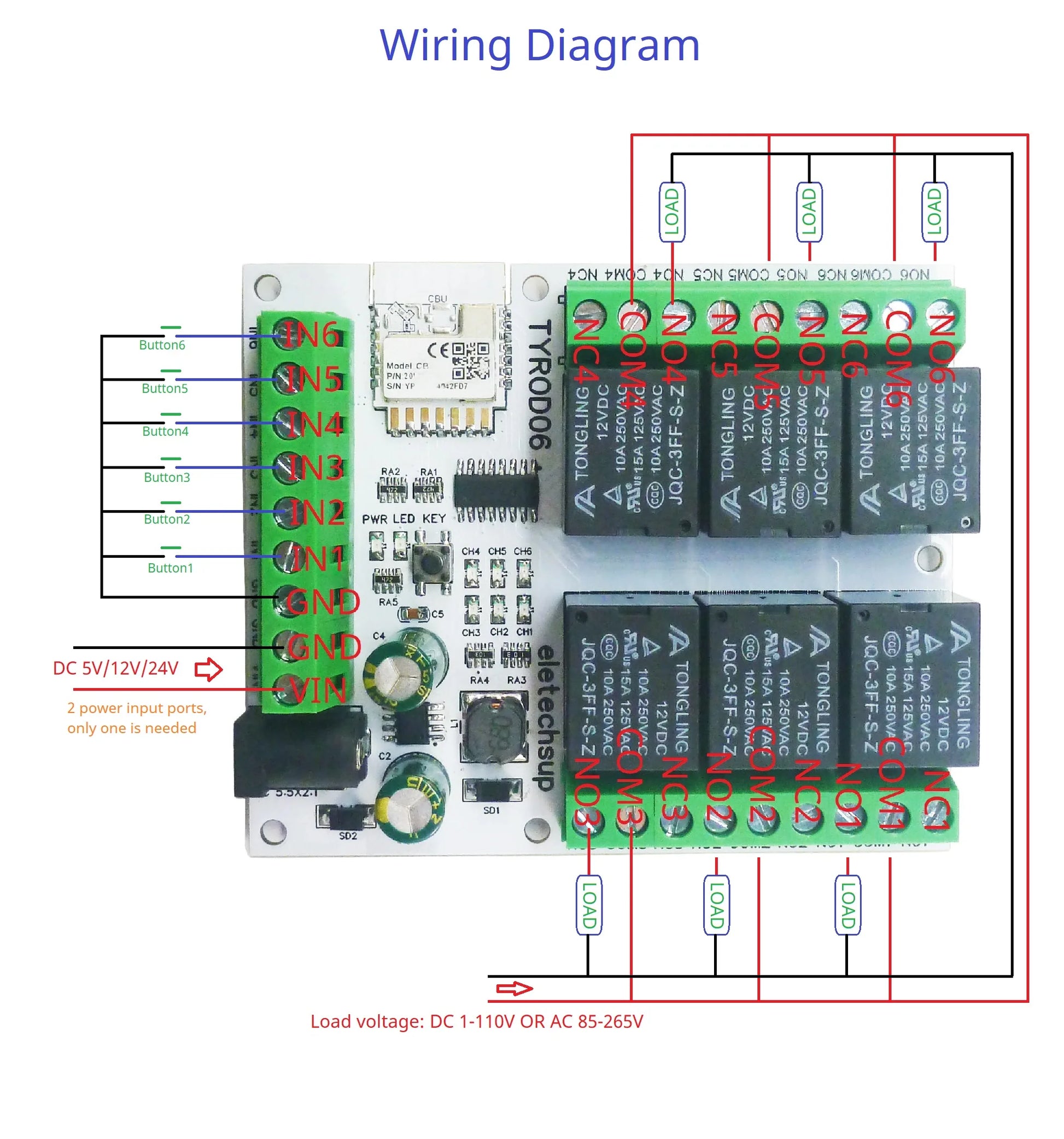

4 6 input channels, can directly control relay ON/OFF
5.6 10A relay outputs with NC COM NO ports
6 Support TUYA and smartlife APP, support Android and Apple mobile phone operating systems
7 Through the APP, the following functions can be realized: ON/OFF, Countdown, Timing, Cycle timing, Random timing, Inching switch
7 Size: 86*72*19MM
8 Weight: 107grams
9 Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC

How to use:

1 Download ''Tuya Smart'' OR ''Smart Life'' APP in the App Store
2 Follow the prompts of the APP to register and log in to your account
3 Follow the video ''TYROD06 first time using Demo'' to configure the network
