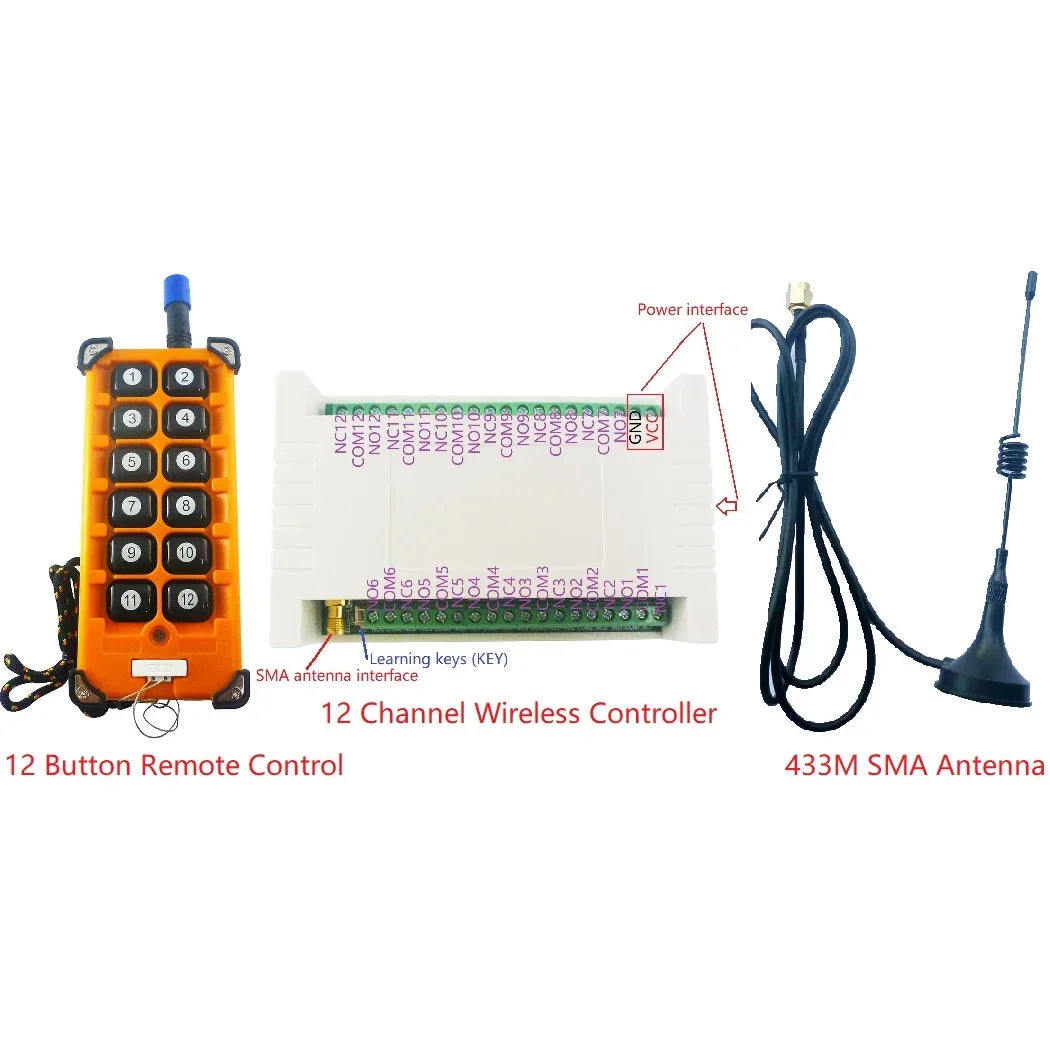

RC44B12+RF34C12 12CH 433MHz 20dBm FSK Rolling Code Wireless Relay Kit – Moisture Proof Garage Door & Smart Home Controller

Product Specifications:



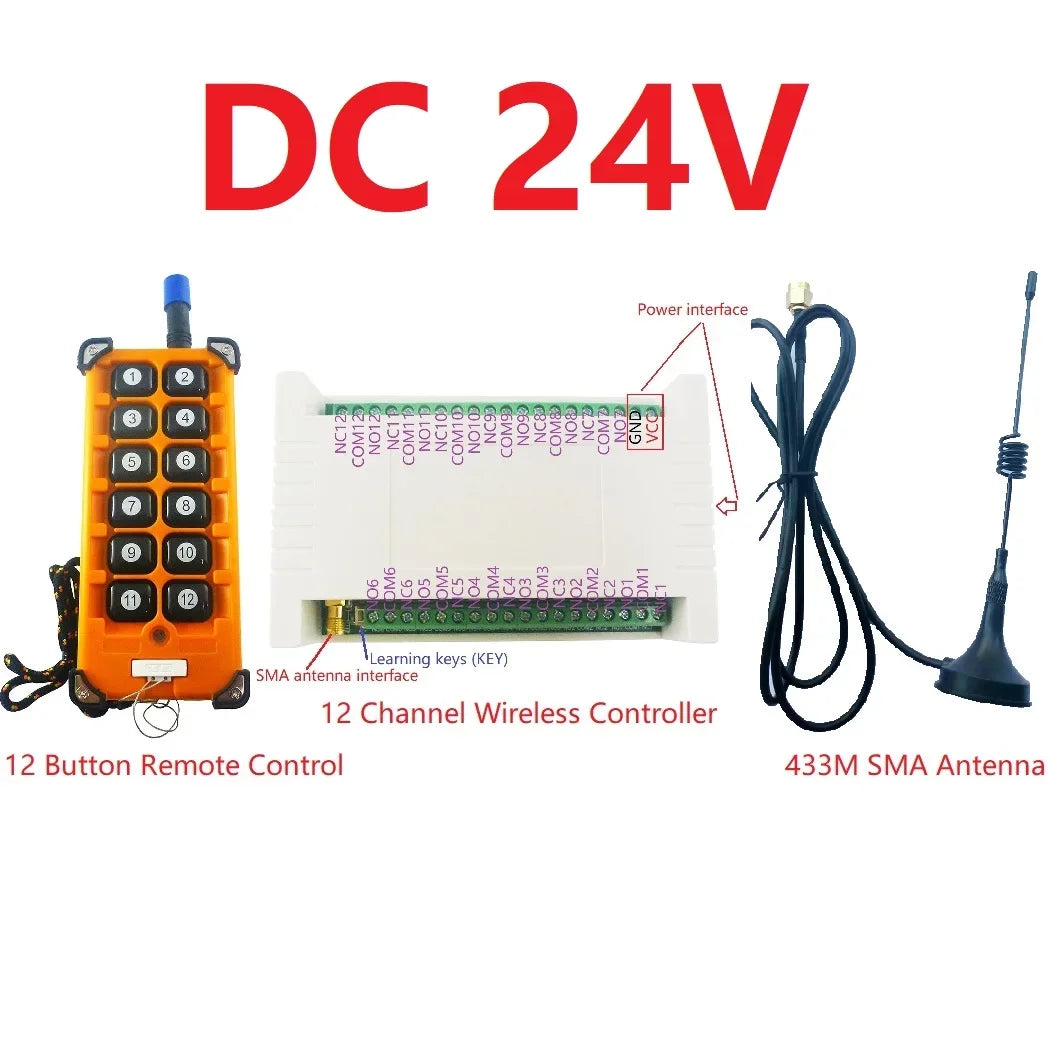

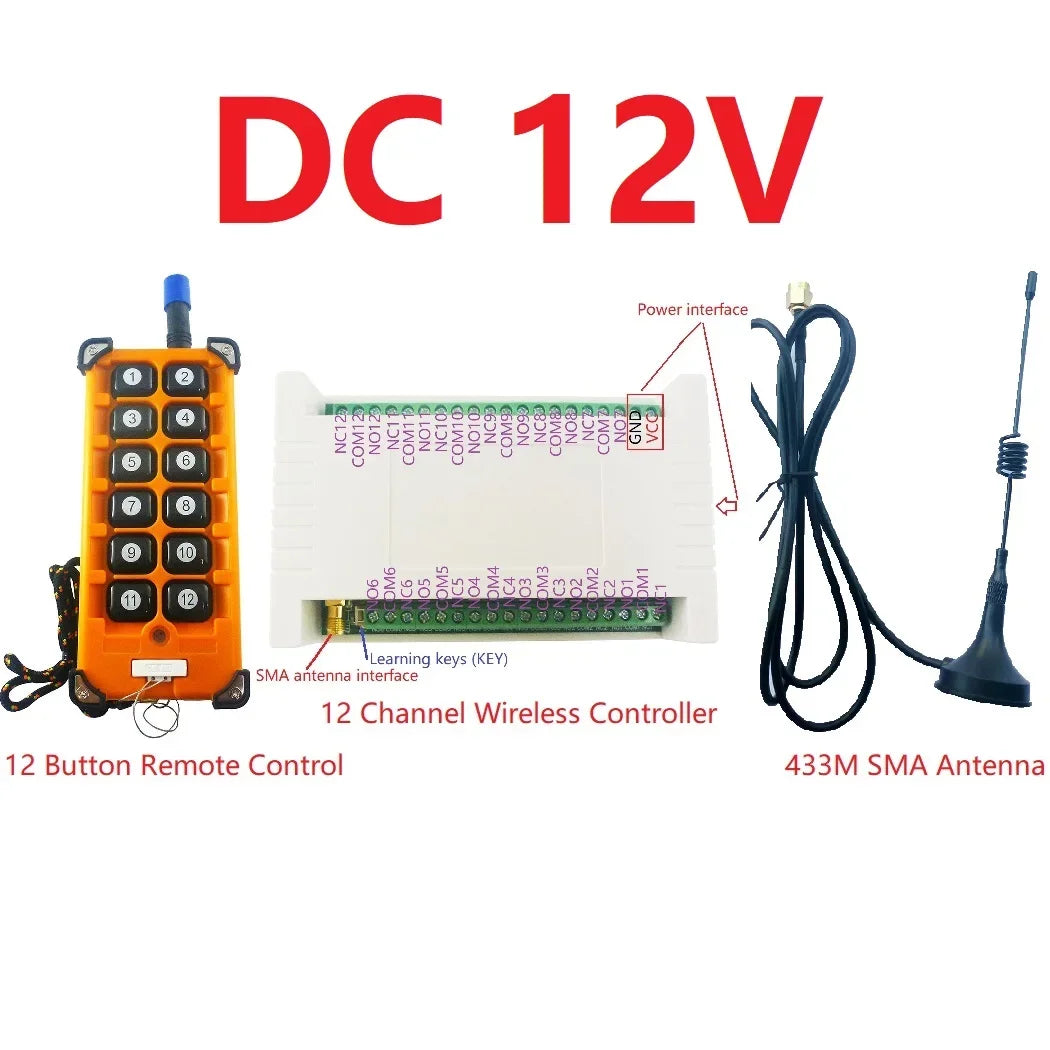

1. Working voltage: DC 12V (24V optional);







2. Working current (DC 12V): standby current 8MA, single relay working current is about 30MA







3. 8 working modes including ''Momentary'', ''Self-locking'', ''Interlock'', ''Self-locking and Momentary coexistence'';







4. Encoding and decoding type: Rolling Code (similar to HCS301), which can be adapted to up to 32 remote controllers;

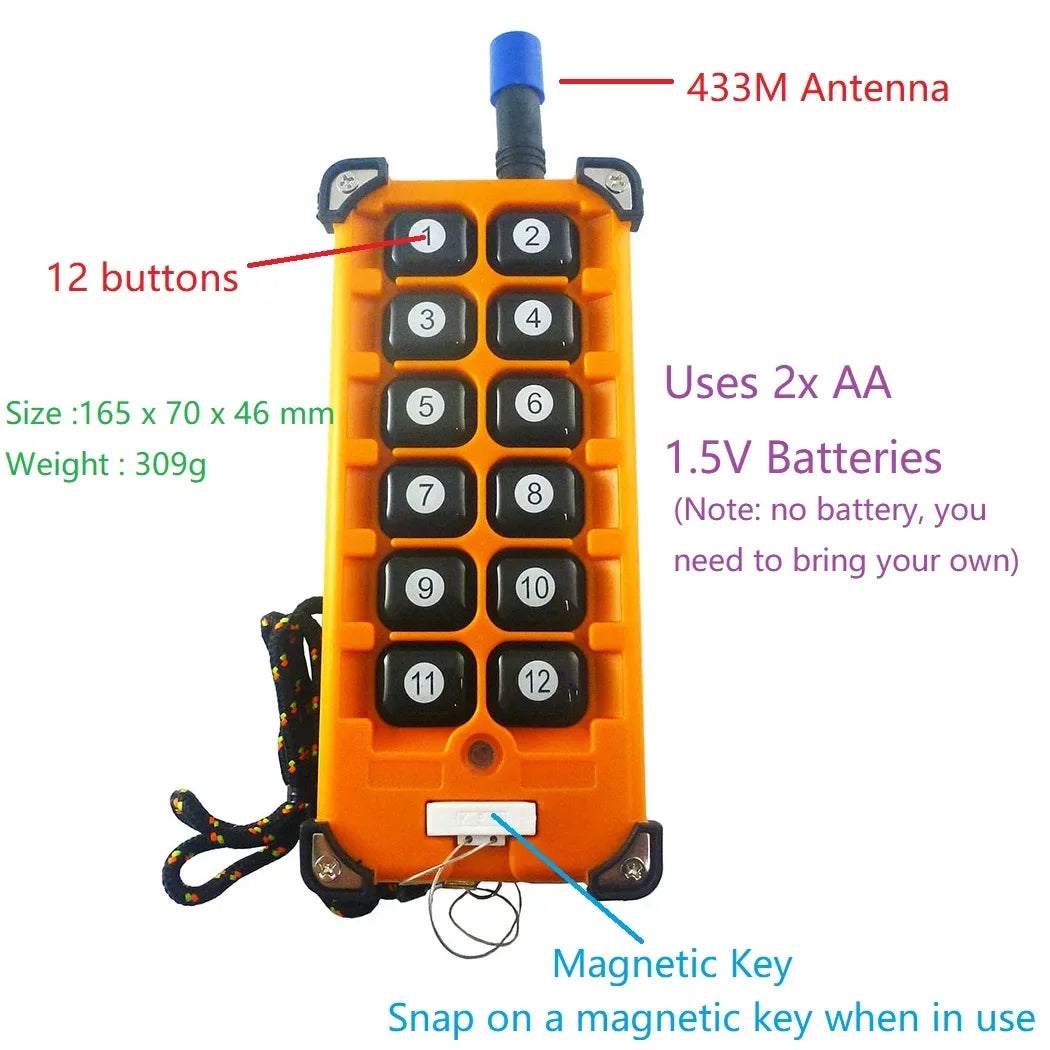

5. Remote control type: RC44B12 industrial-grade remote control, using 2pcs AA 1.5V Batteries


(no batteries, you need to bring your own);







6. Remote control distance: 300-500 meters in open space (wireless receiving sensitivity: -121dBm; wireless transmitting power: +20dBm);







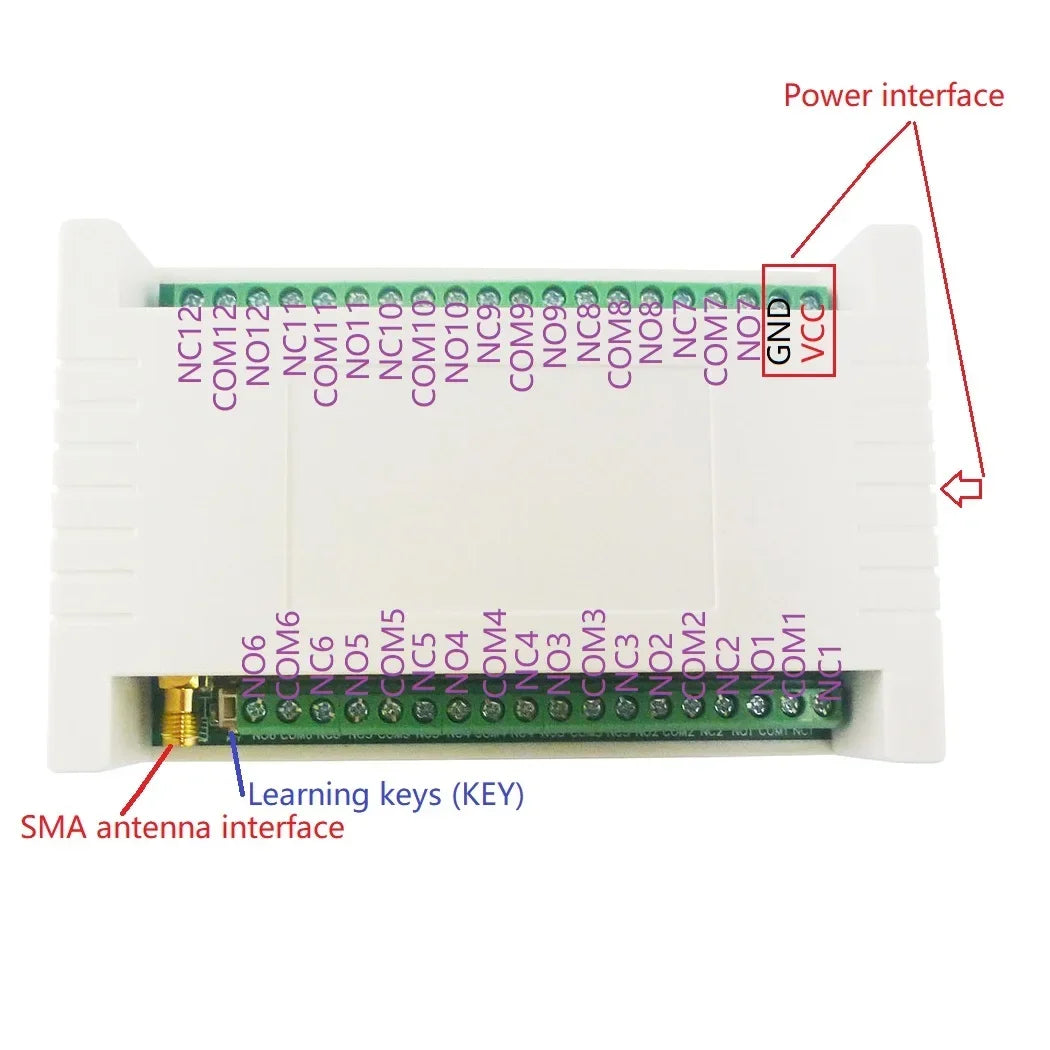

7. Output: Relay NO COM NC;







8. Size: Wireless Controller 125*79*30mm; Remote Control 165*70*46mm



9. Weight: Wireless Controller 238 grams ; Remote Control 309 grams







10. The maximum load capacity of the relay: DC 1-110V/5A; AC 85-265V/6A.










Product Features:






12-channel multi-function wireless controller, each channel is independently controlled and will not interfere with each other.

8 working modes: ''Momentary'', ''Self-locking'', ''Interlock'', ''Self-locking and Momentary coexistence''



For more information, please contact me

















learning (adapting)







In learning mode, press different remote control buttons to adapt to different working modes



Note: If you want to change the working mode, please clear the receiver and then re-learn.










Clear code:



Press and hold the KEY button on the receiver for about 8 seconds until the indicator light goes out, indicating that it has been cleared successfully. The receiver can store 30 remote controls with different codes.










Learning (adapting):



1. Press the key button on the receiver, the LED light is on, and enter the learning state; according to the function you need, choose to press a key on the remote control to learn, and the indicator light flashes once after the receiver receives the signal, indicating that the learning is successful. If the learning fails, the indicator light will go out directly.














Working mode


:







When learning, by pressing different remote control buttons, it can be set to 8 different working modes







Note: If you want to change the working mode, please clear the receiver and then re-learn.







1. Self-locking mode : Press the No. 1 button on the remote control to learn







2. Momentary mode : Press the No. 2 button of the remote control to learn



(when Momentary mode it can support multiple buttons to output at the same time, the relays are triggered independently, and do not affect each other)







3. Interlock mode : Press the No. 3 button on the remote control to learn







4. Relay 1~6 channels Self-locking and 7~12 channels Momentary coexist : Press the No. 4 button of the remote control to learn







5. Relay 1 channel Self-locking and 2~12 channels Momentary coexist : Press the No. 5 button of the remote control to learn







6. Relay 1 and 3 channel Self-locking, 2 4 5 6 7 8 9 10 11 12 channels Momentary coexist : Press the No. 7 button of the remote control to learn







7. Relay 1~10 channel Self-locking, No. 11 button Open 1~10 Relay,No. 12 button Close 1~10 Relay : Press the No. 8 button of the remote control to learn







8. Relay 1-2 channels Interlock , 3 4 5 6 7 8 9 10 channels Momentary,11-12 channels Self-locking : Press the No. 7 button of the remote control to learn

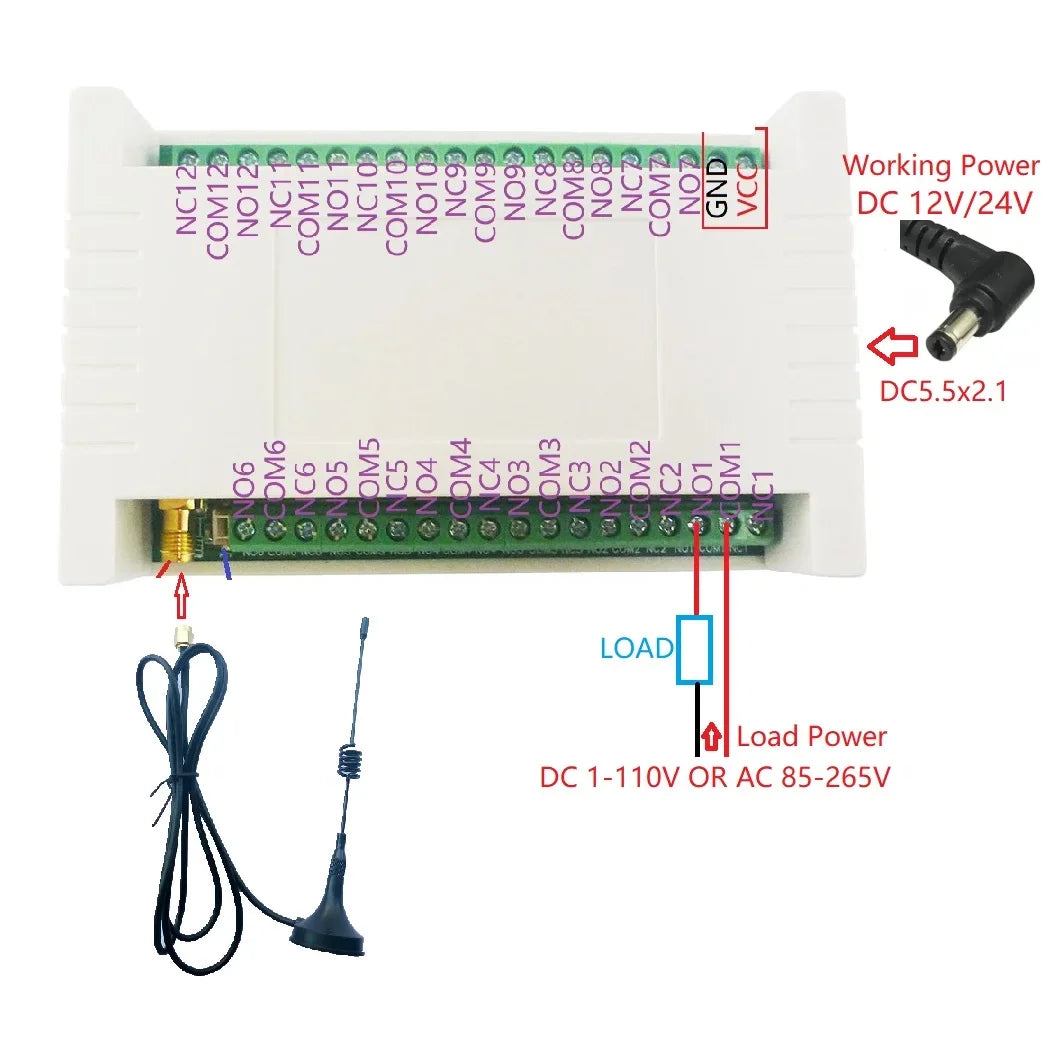

Wiring diagram:







DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and other DC AC equipment
