SHT30 Temperature & Humidity Sensor Module – RS485 RS232 TTL Modbus RTU, -40°C to 125°C, 0–100% RH

Product Name:SHT30 Temperature & Humidity Sensor Module – RS485 RS232 TTL Modbus RTU, -40°C to 125°C, 0–100% RH

Packing list:

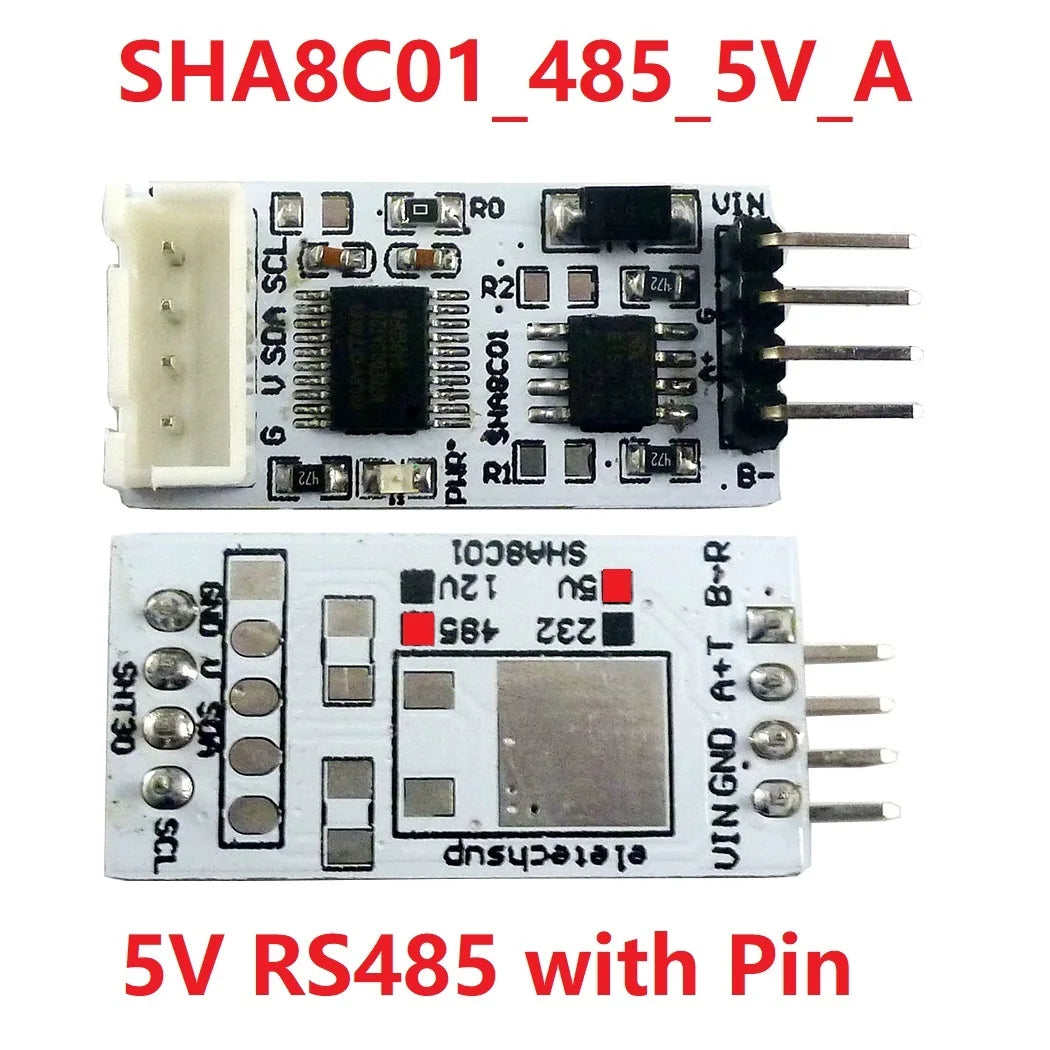

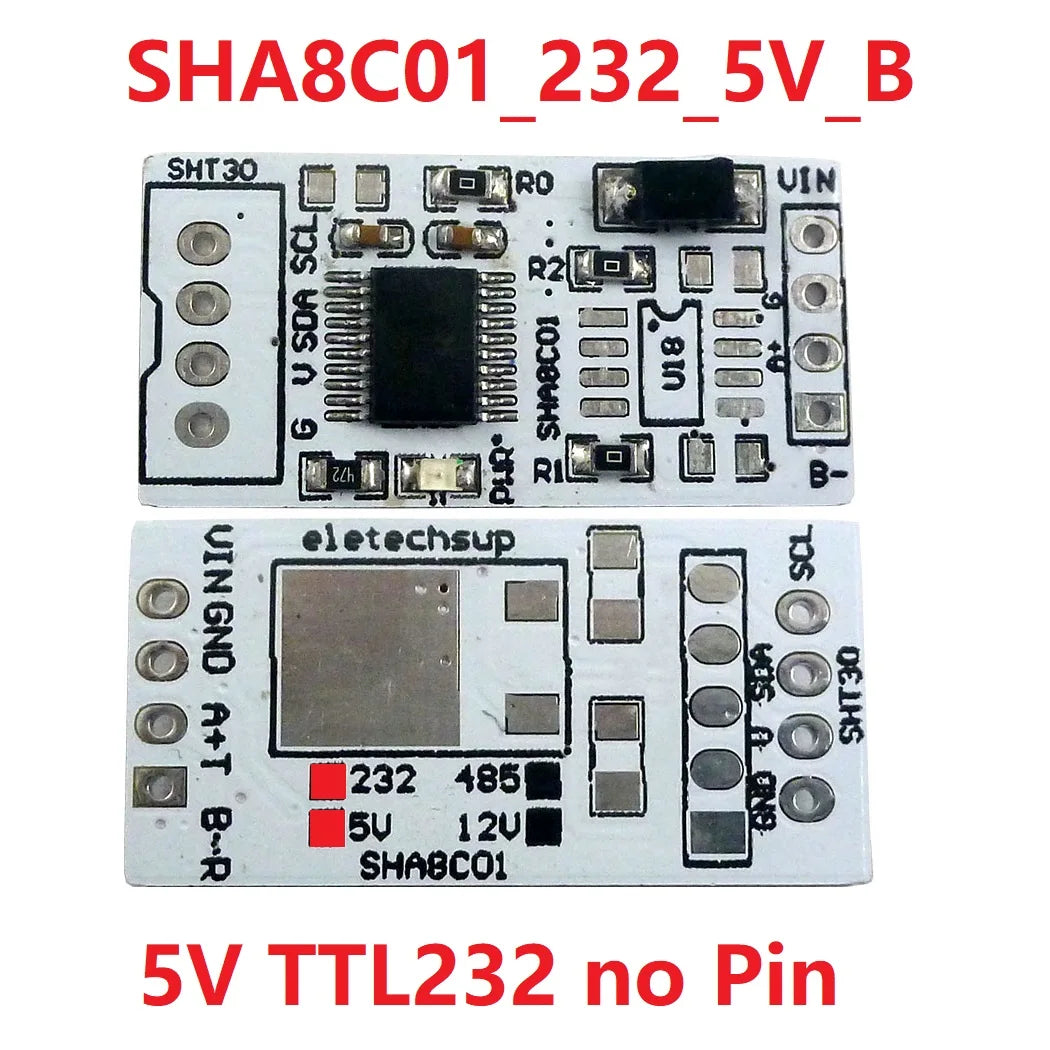

1 pcs SHA8C01 RS485/TTL232 Temperature and humidity collector

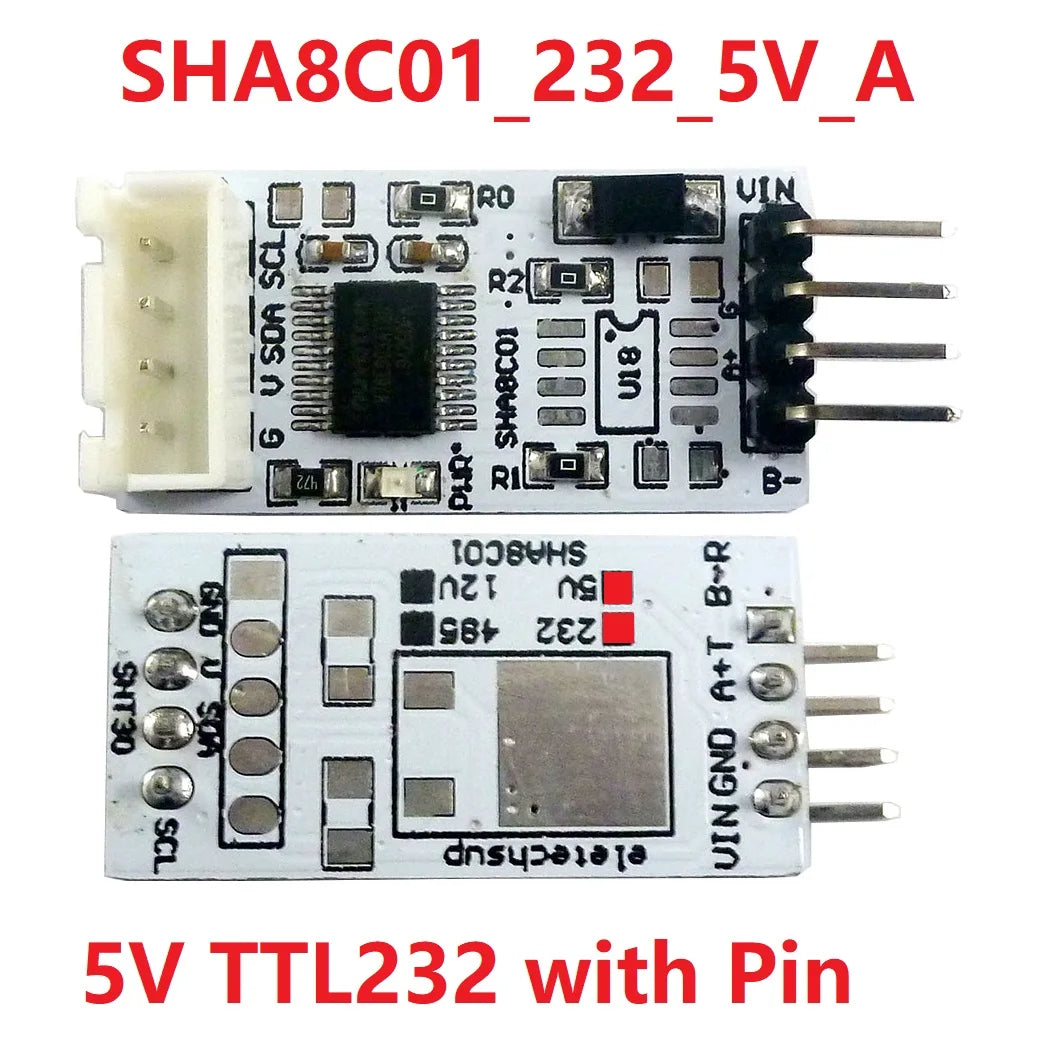

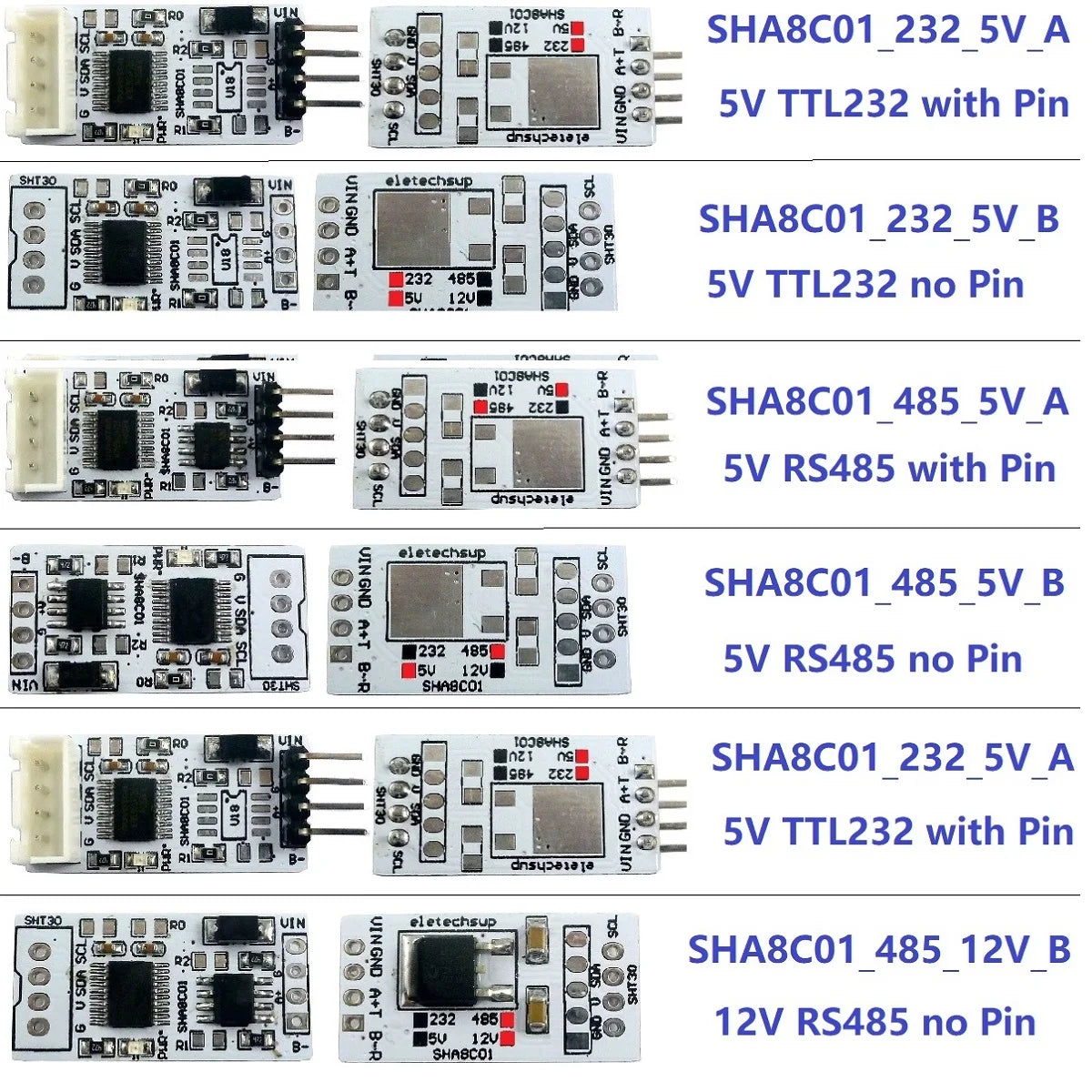

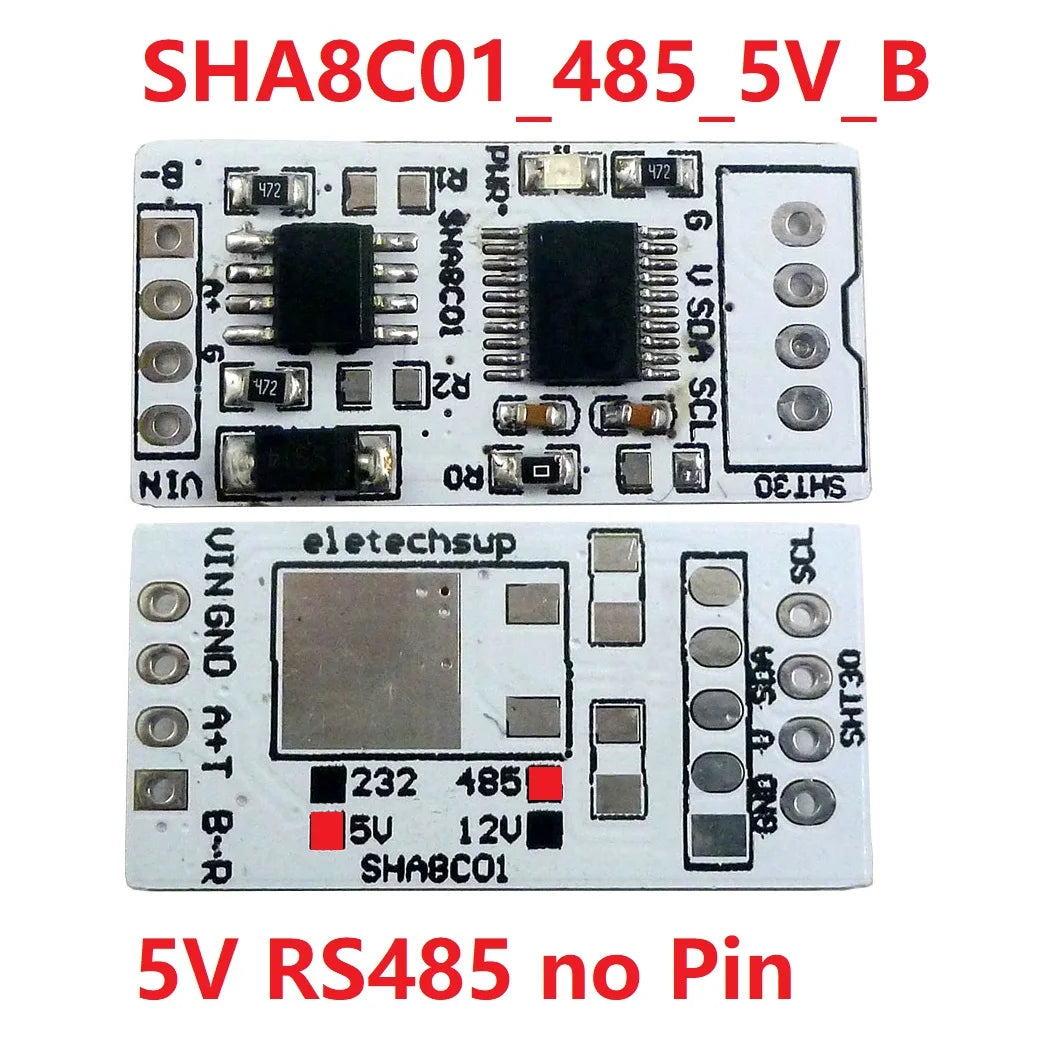

Board(Please choose the version you need)

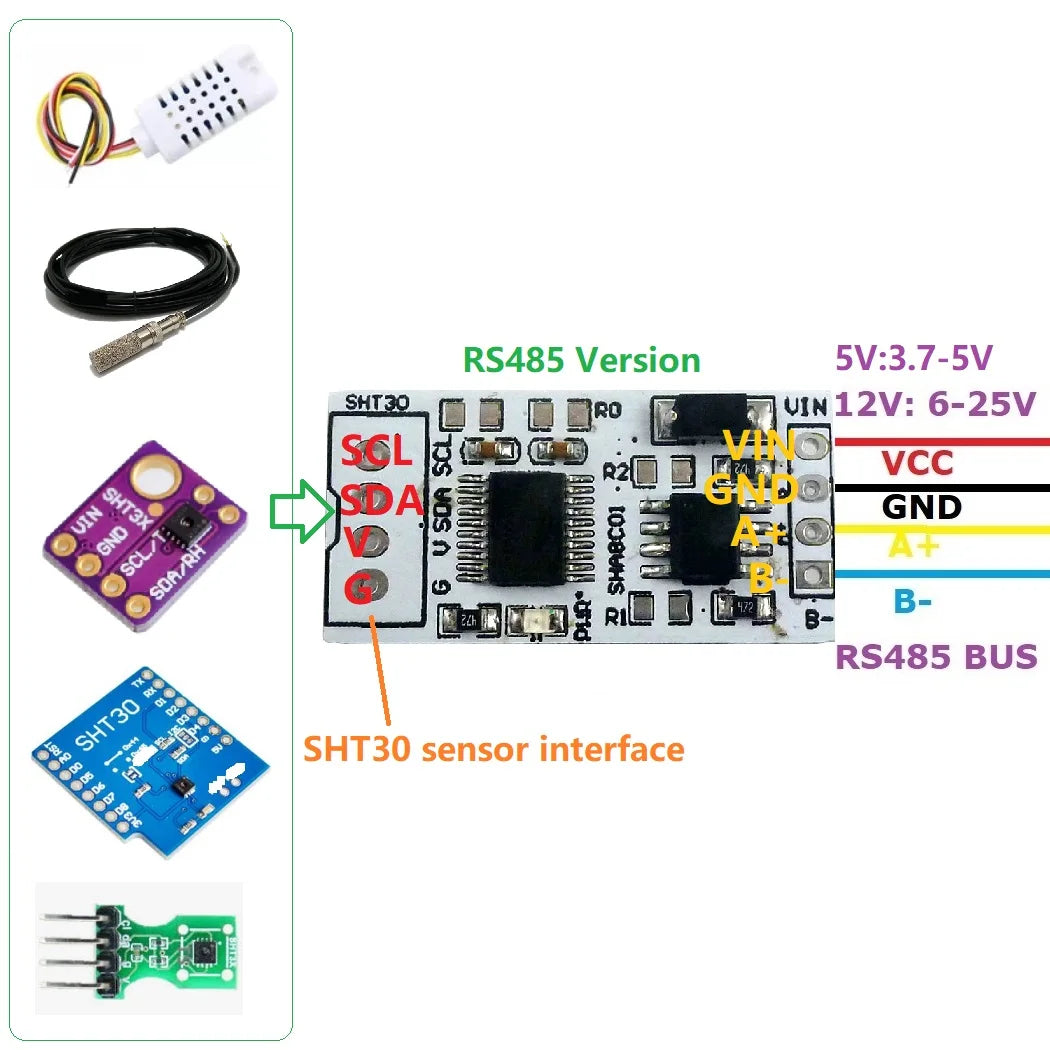

SHA8C01 RS485 SHT30 Acquisition module Description:

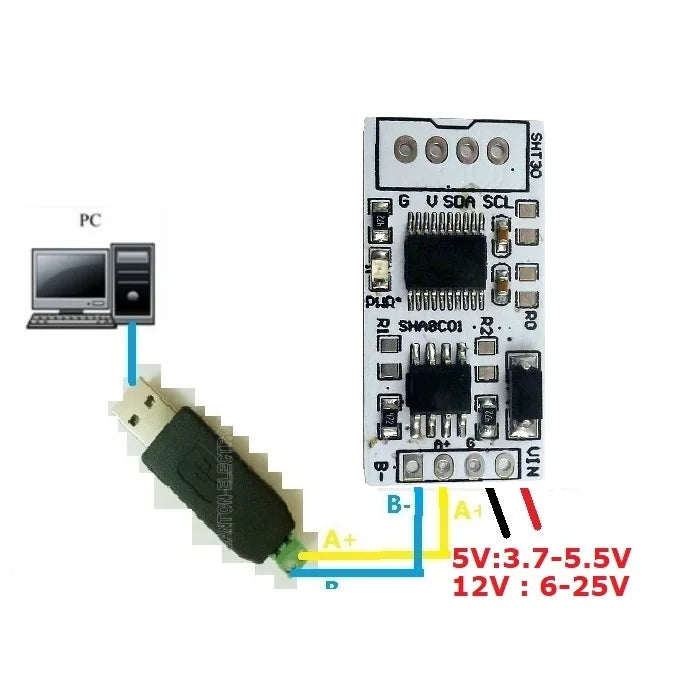

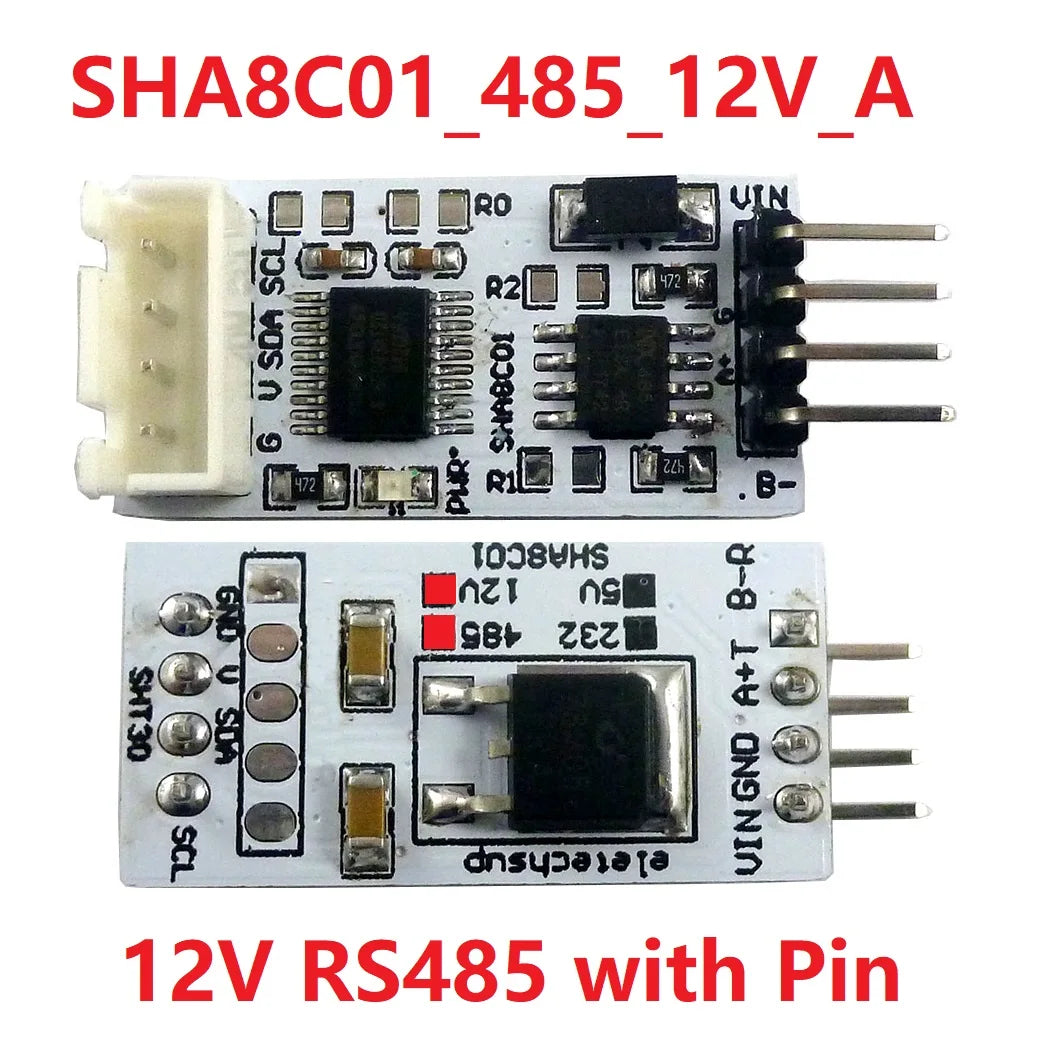

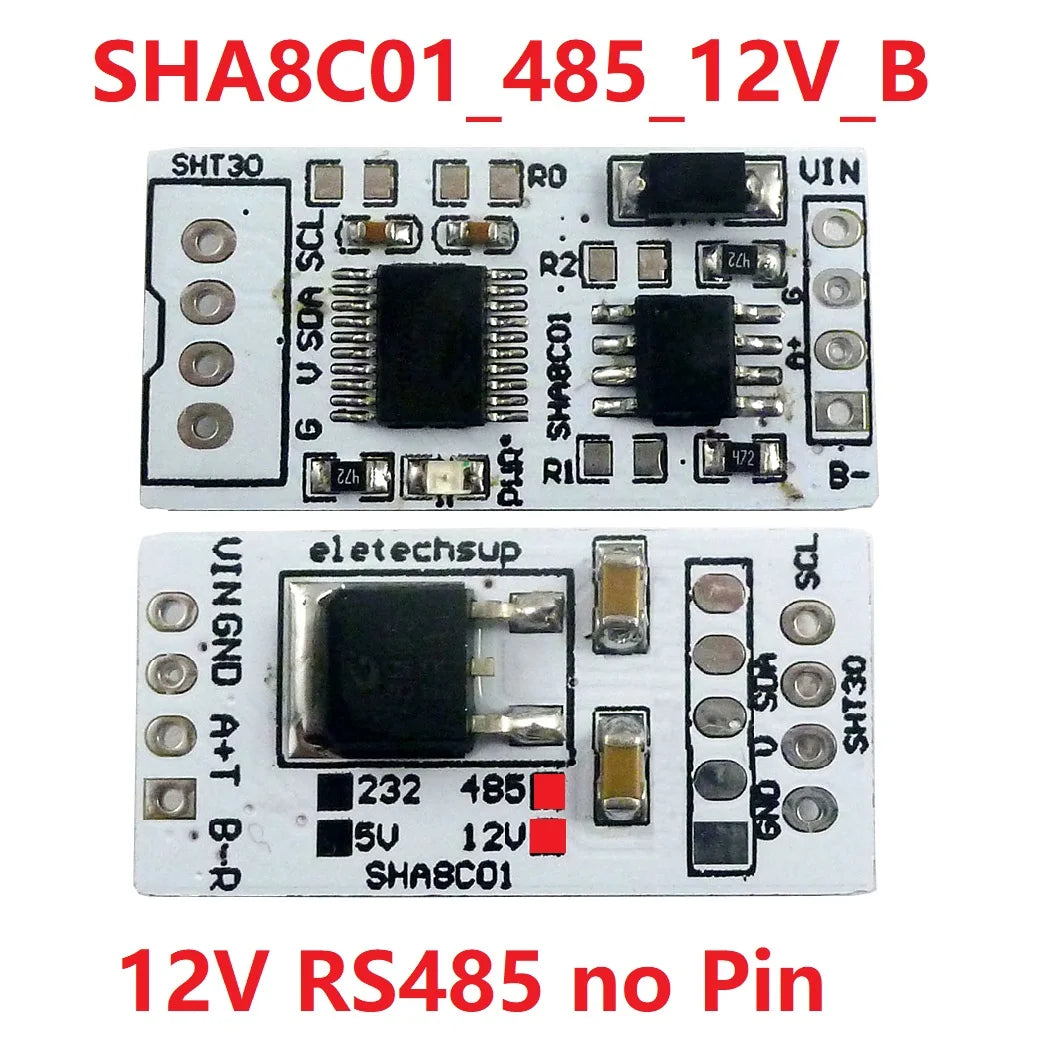

Working voltage: 5V version(DC 3.7-5.5V); 12V version(6-25V)

Working current: 7-13MA

MODBUS RTU protocol, 03 read command, 06 write command.

Serial port baud rate: 9600 (default), N, 8, 1

By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)

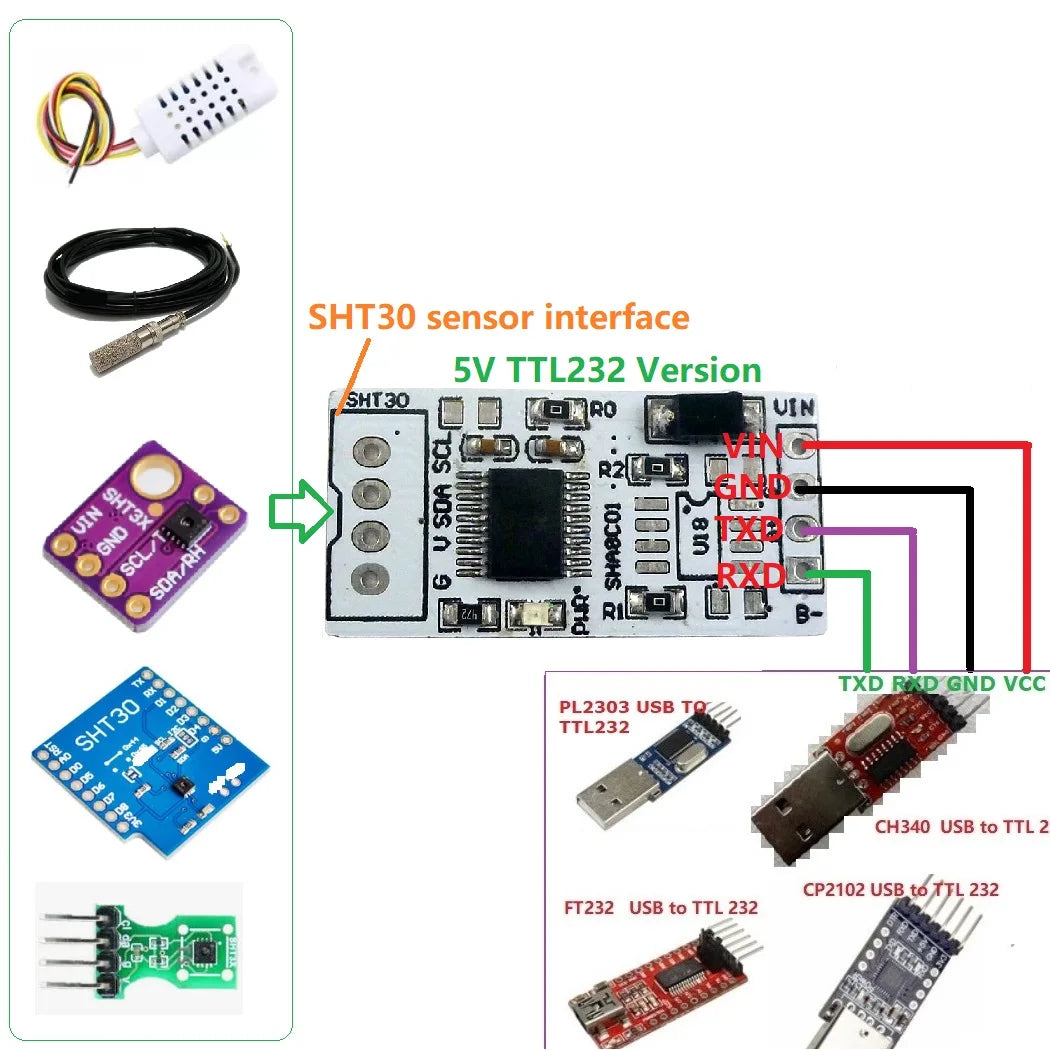

Adapted sensor: SHT30 temperature and humidity sensor

Temperature measurement range: -40-125℃ (Because the shell and wire are not resistant to high temperature, please use it in the environment of -40-80℃)

Humidity measurement range: 0-100%RH Accuracy: ±0.2℃; ±2%RH

Size: 30 X 15 X 5.8MM
Weight: 2g

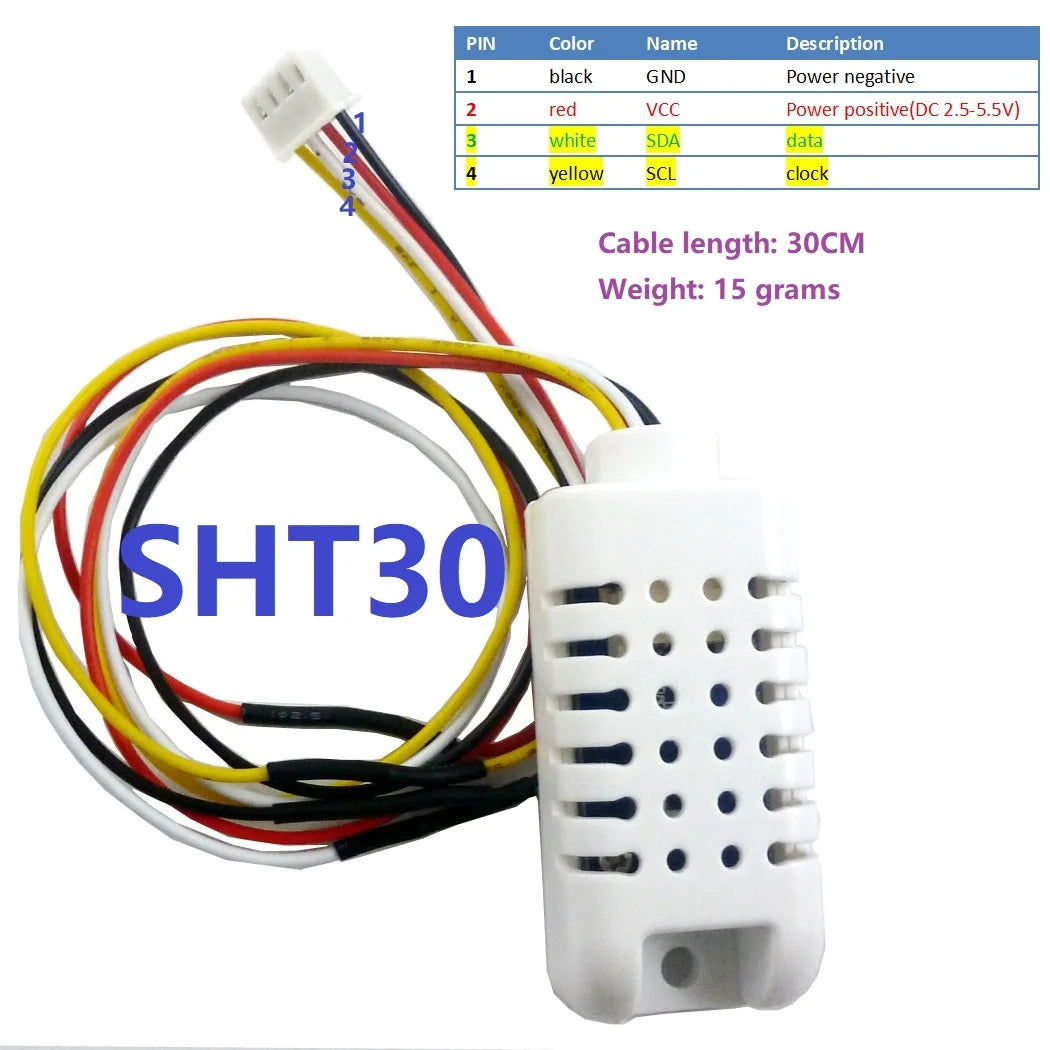

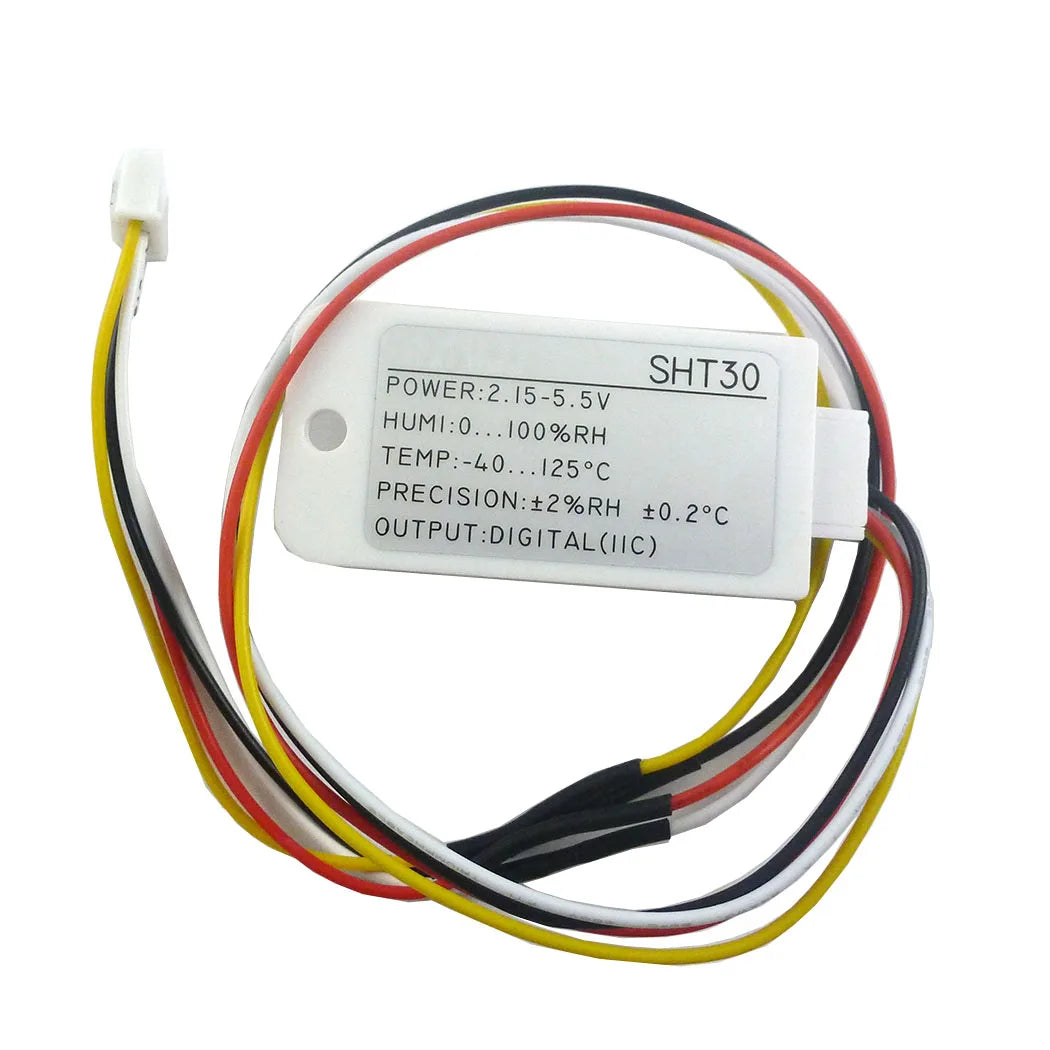

SHT30 sensor specifications:


Product model: TB446 SHT30
Working voltage: 2.5-5.5V DC
Output signal: IIC digital signal
Output interface: XH2.54 4P terminal block
Temperature measurement range: -40-125℃ (Because the shell and wire are not resistant to high temperature, please use it in the environment of -40-80℃)
Humidity measurement range: 0-100%RH
Accuracy: ±0.2℃; ±2%RH
IIC address: 0X44
Wire length: 30 cm
Weight: 15 grams
Shell material: ABS

For more information, please contact us!!!

Typical application:

Temperature and humidity controller

Industrial Systems

Consumer Products

Thermometers

Thermally Sensitive Systems

Indoor and outdoor temperature measurement

Temperature in vegetable garden

Weather forecasting, and monitoring

Temperature and humidity in Computer Room

Warehouse temperature and humidity
