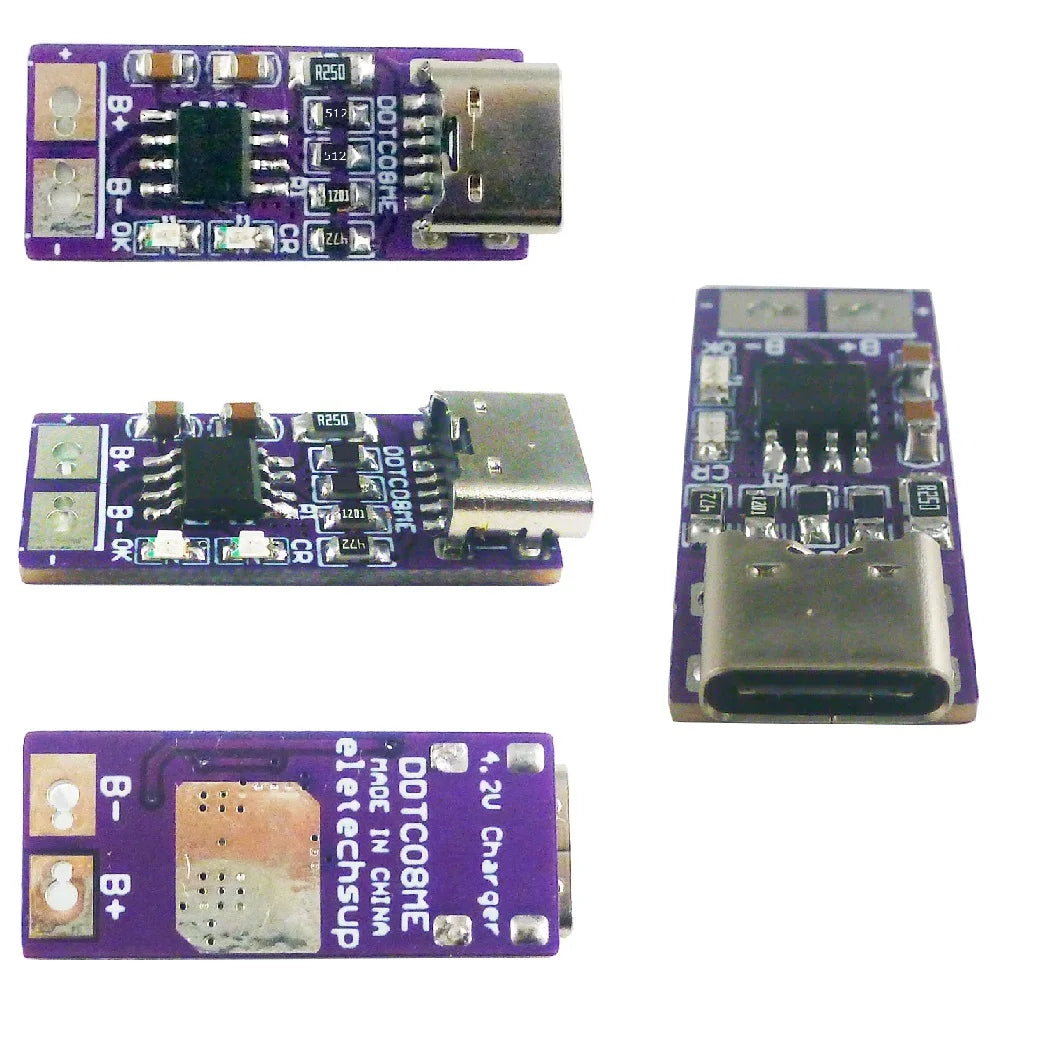

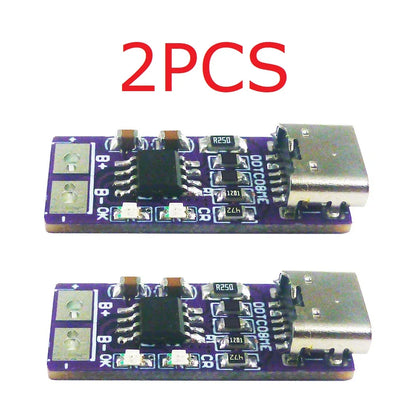

USB-C PD QC FCP 5V to 4.2V 1A Li-ion Li-Po Battery Charger Module for 3.7V 18650 Cells

Description:

New Version! Lithium Ion Battery Charger for Type-C to
Type-C



Power supply: DC 5V>=1A

Charging voltage: 4.2V

Protection of battery cell reverse connection

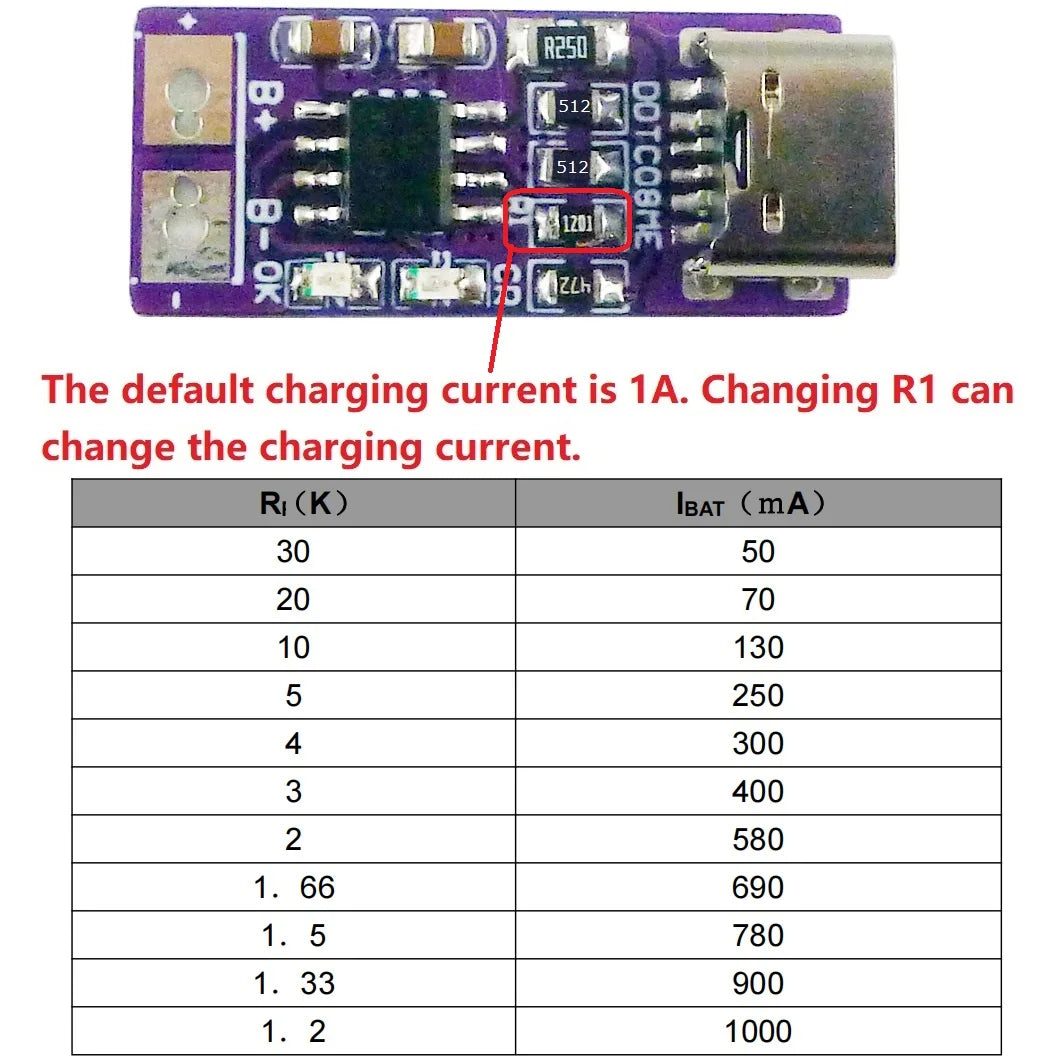

Charging current :1A

Complete linear Charger in SOP8 Package for single Cell Lithium-Ion Batteries.

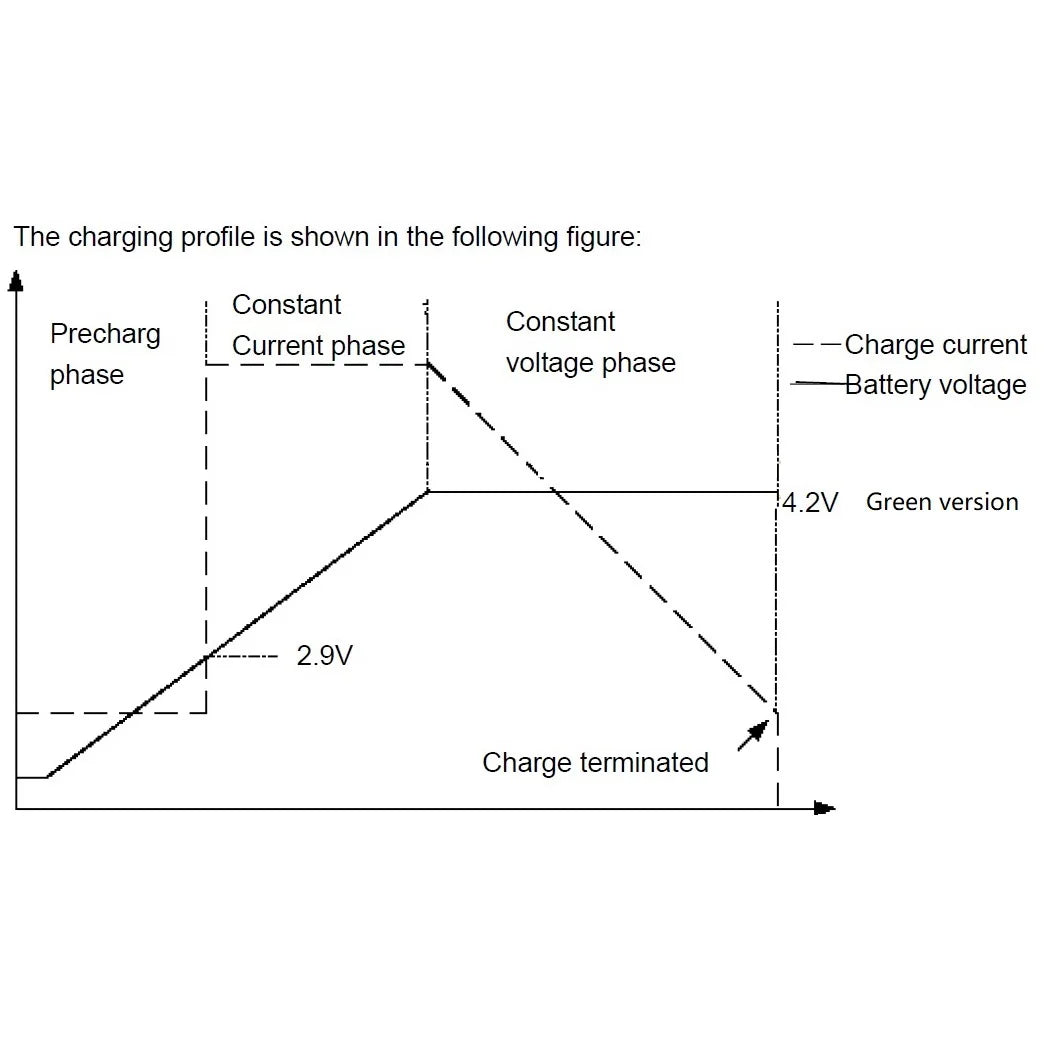

Constant-Current/Constant-Voltage operation with thermal regulation to maximize Rate Without risk of overheating

Preset 4.2V charge voltage with ±1% accuracy

Automatic Recharge

Two Status Indication for Charge status, no battery and battery failure indicators

C/10 charge termination

55μA supply current in shutdown

2.9V trickle current charge threshold

Soft-Start limits inrush current



Led indicator : ''CR'' LED is charge status indicator

''OK'' LED is fully charged OR Constant voltage mode;



Operating Ambient Temperature－40℃ to ＋85℃



Size : 26mm x 12mm x 5mm

Weight : 1.6g

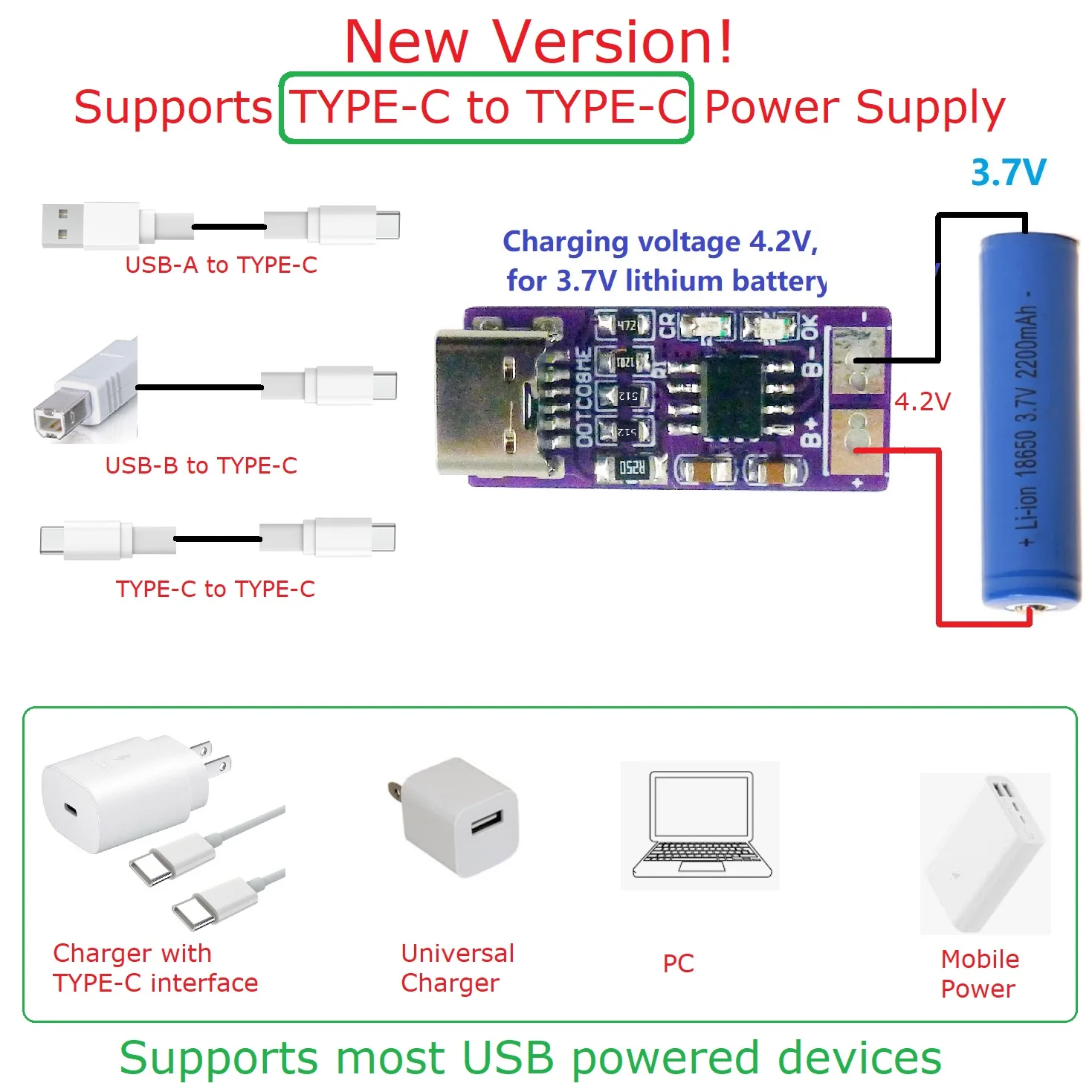

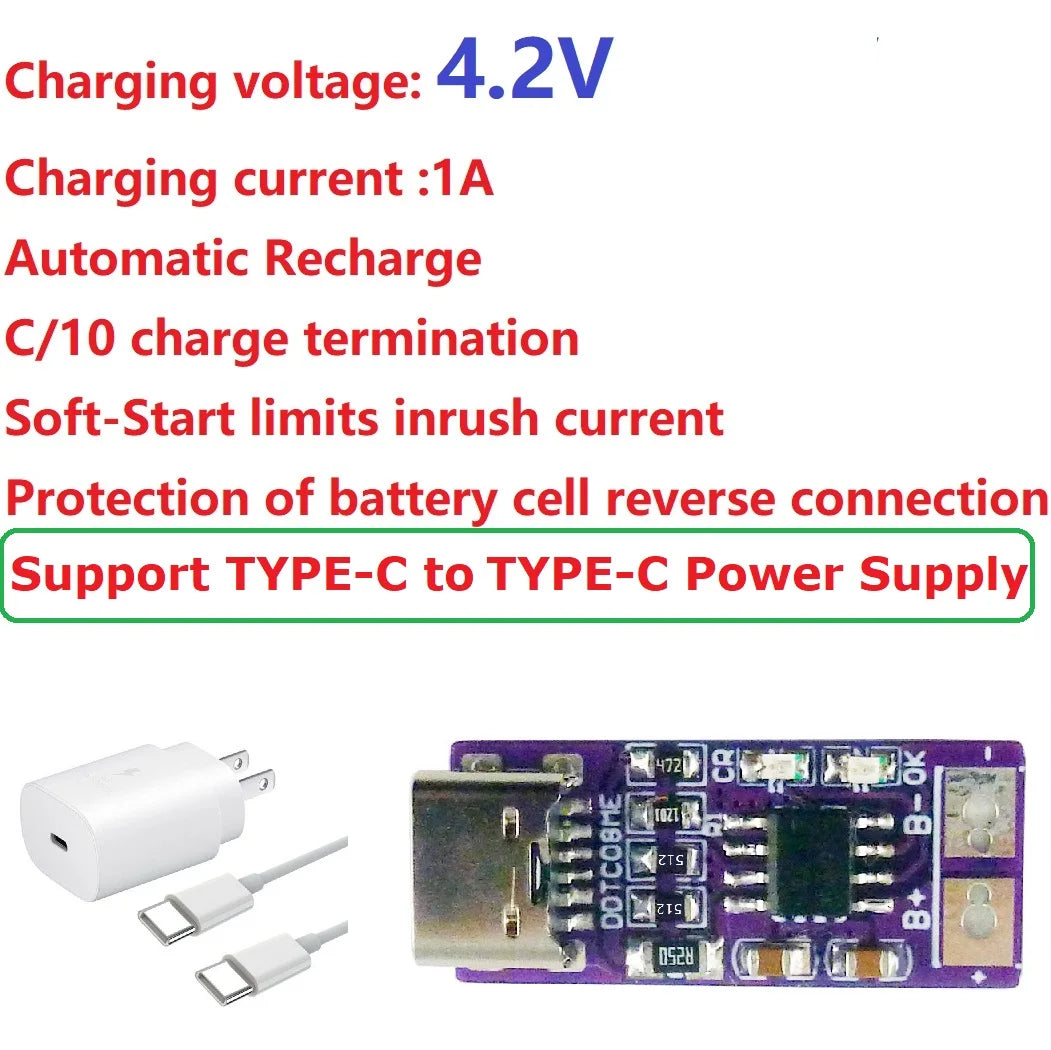

New Version! Supports TYPE-C to TYPE-C Power Supply

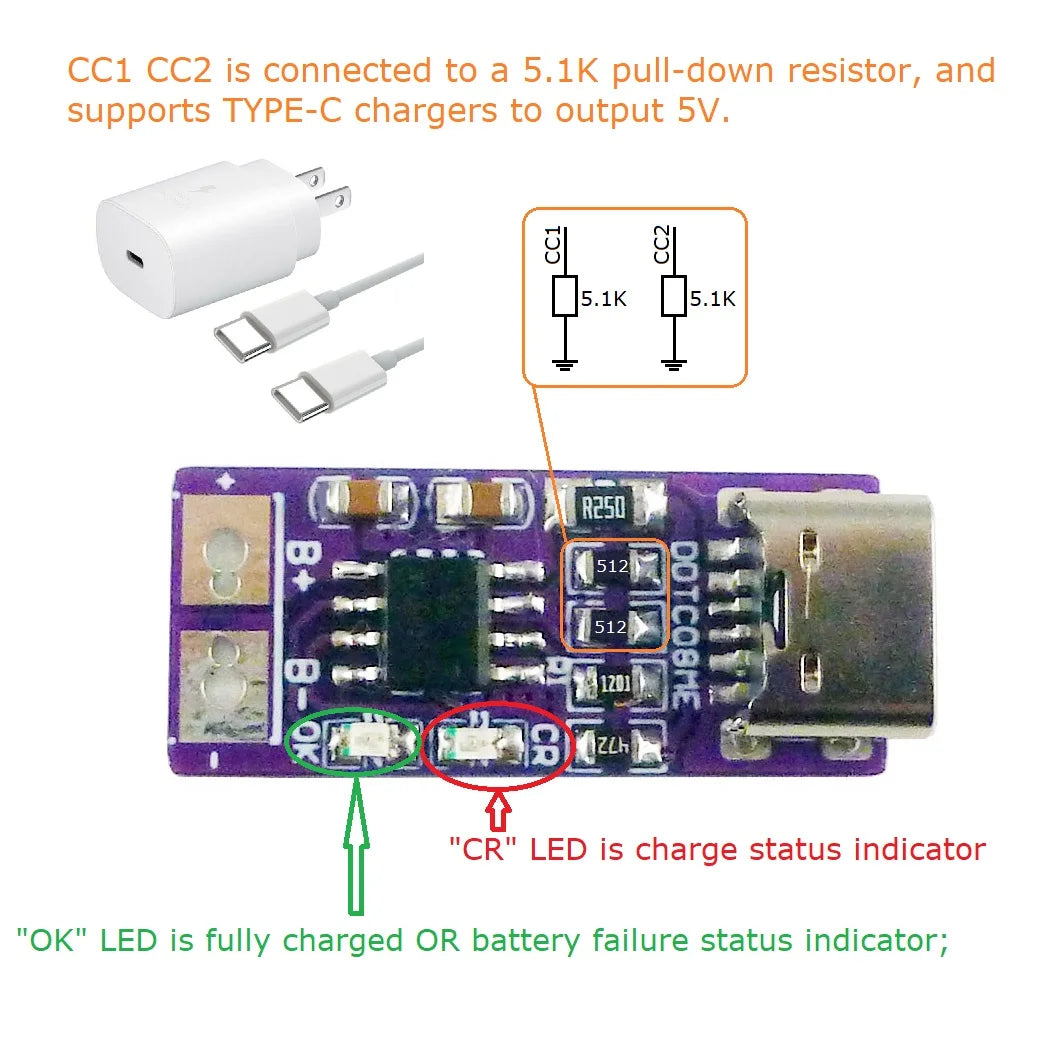

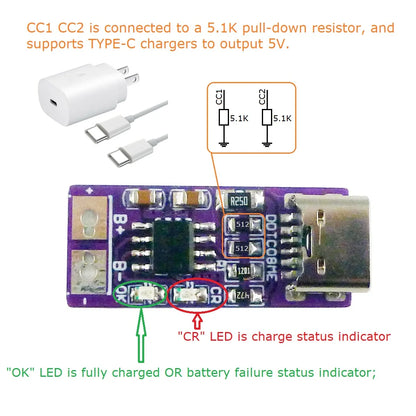

CC1 CC2 is connected to a 5.1K pull-down resistor, and supports TYPE-C chargers to output 5V.
